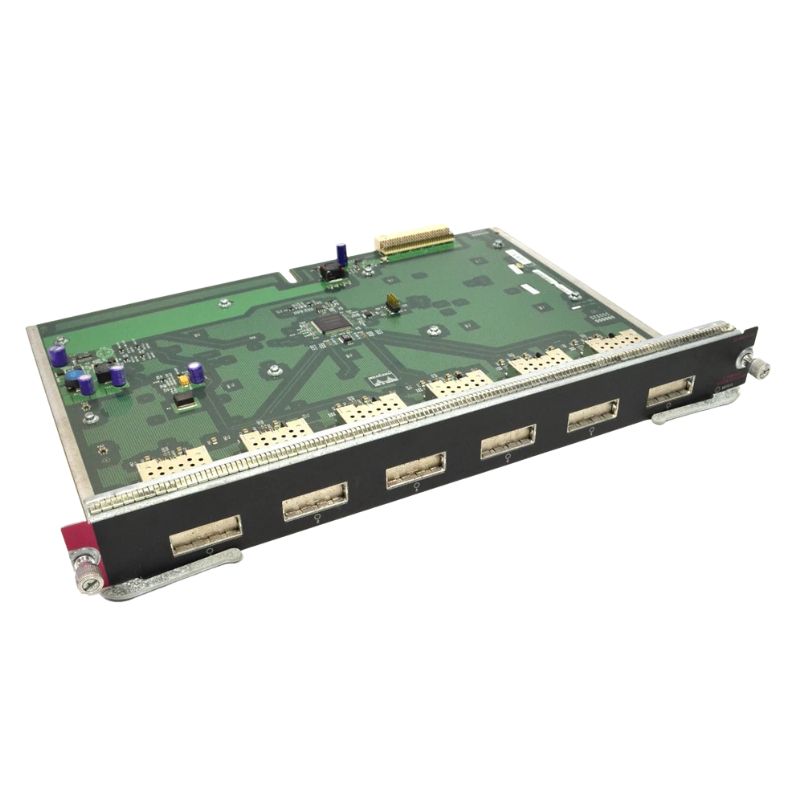

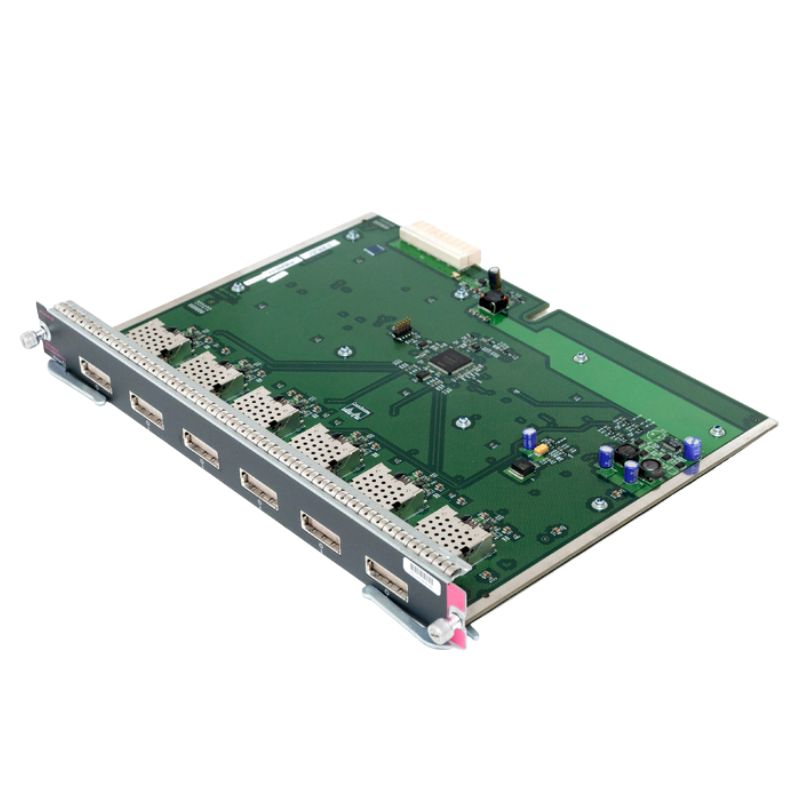

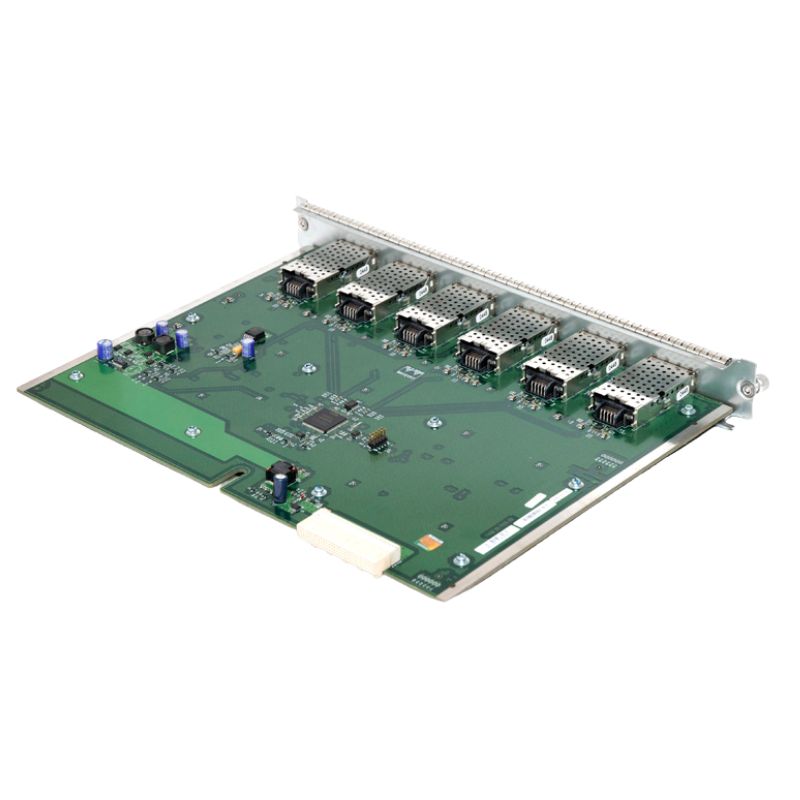

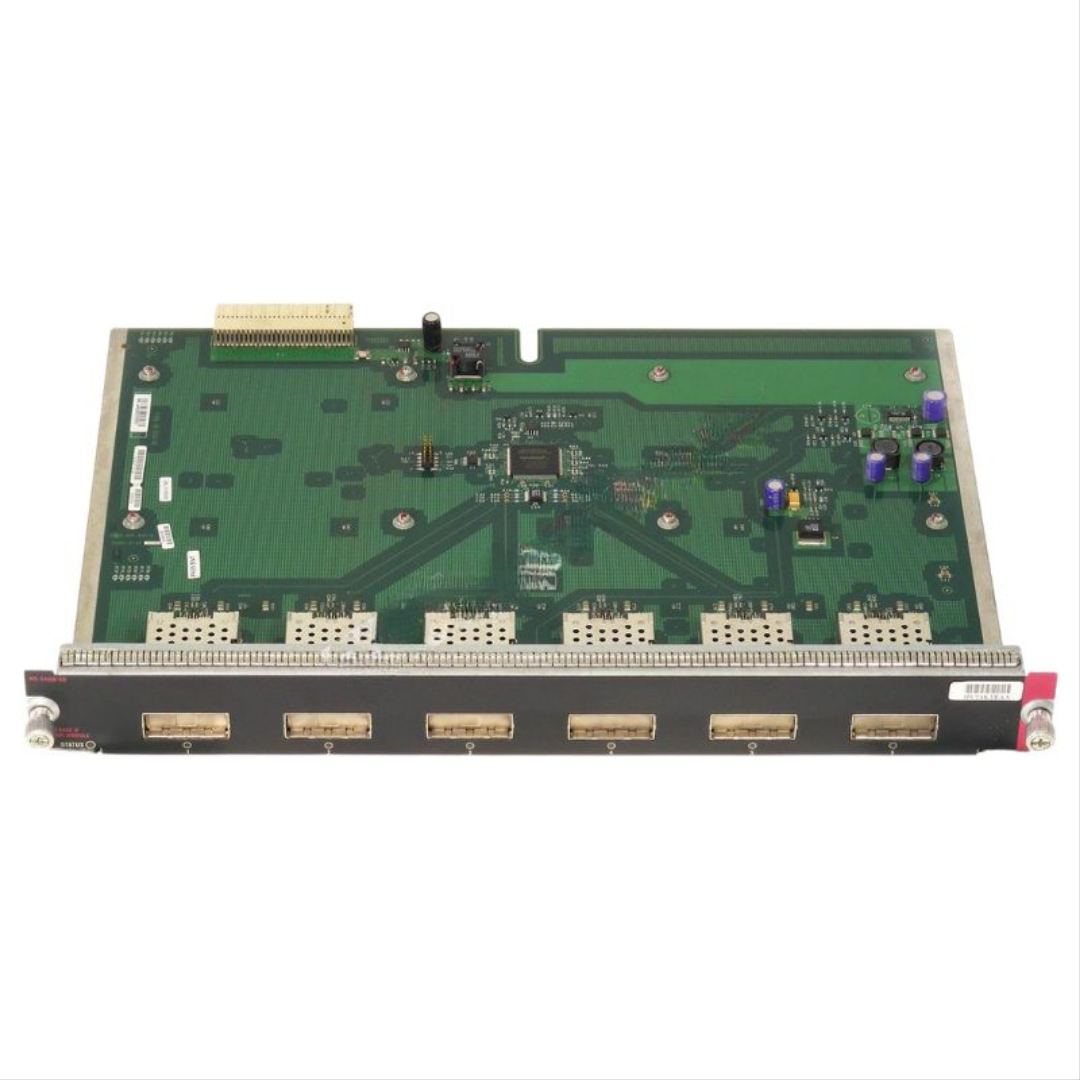

Cisco WS-X4306-GB Catalyst 4500 Gigabit Ethernet Module

Cisco WS-X4306-GB Expansion Module Overview

Key Details

• Manufacturer: Cisco
• Part Number (SKU): WS-X4306-GB
• Product Type: Expansion Module
• Product Name: Catalyst 4500 Series 6-Port 1000Base-X Line Card

Expansion Capabilities

• Supports up to 6 Gigabit Ethernet ports (1000Base-X)
• Integrates seamlessly into the Catalyst 4500 series
• Provides high-speed data transfer at 1 Gigabit per second (Gbps)

Technical Specifications

• Device Type: Switch (Plug-in module)
• Number of Ports: 6 Ethernet ports with 1000Base-X capability
• Data Link Protocol: Gigabit Ethernet
• Supported Speeds: 1 Gbps per port
• Full-Duplex Mode: Enables bidirectional data transmission
• GBIC Slots: 6 open slots for Gigabit Interface Converters (GBIC)

Performance & Standards

• Compliant with IEEE 802.3 standards for Gigabit Ethernet
• Designed for high-performance network environments
• Enables reliable, fast, and full-duplex data communication

Software and System Requirements

• Operating System Compatibility: Cisco IOS version 12.1(8a)EW

Device Compatibility

• Cisco Catalyst 4503: Fully compatible for seamless integration
• Cisco Catalyst 4506: Works with this switch model for network expansion
• Cisco Catalyst 4507R: Designed to operate efficiently with this system
• Cisco Catalyst 4510R-E: Ensures optimal performance with this advanced switch

Additional Features

• Supports Gigabit Ethernet for faster network speeds
• Offers scalable, flexible port expansion for growing networks
• Enhances network performance with full-duplex capabilities

Reliability & Compatibility

• Robust design ensures long-lasting network operations
• Compatible with a wide range of Catalyst 4500 series switches

Name: Cisco WS-X4306-GB Gigabit Ethernet Module

The Cisco WS-X4306-GB Gigabit Ethernet Module is a powerful and versatile network module that belongs to the Catalyst 4500 Gigabit Ethernet Module series. With its advanced features and capabilities, this module is designed to enhance network performance and provide seamless connectivity for users.

Benefits of the Catalyst 4500 Gigabit Ethernet Module

The Catalyst 4500 Gigabit Ethernet Module offers numerous benefits for users, making it an essential component for any network infrastructure. Some of the key advantages include:

1. High-Speed Connectivity

With the support for Gigabit Ethernet technology, the Cisco WS-X4306-GB module delivers blazing-fast data transfer speeds of up to 1000 Mbps. This high-speed connectivity ensures efficient data transmission, allowing users to transfer large files, stream multimedia content, and run bandwidth-intensive applications without any disruptions.

2. Improved Network Performance

By incorporating the Catalyst 4500 Gigabit Ethernet Module into their network setup, users can significantly enhance overall network performance. The module offers advanced features such as Quality of Service (QoS) and traffic prioritization, ensuring that critical data receives priority and minimizing delays or congestion. This results in improved network efficiency and reduced latency.

3. Scalability and Flexibility

The Cisco WS-X4306-GB module is designed to provide scalable solutions for growing networks. With its modular design, users can easily add or upgrade modules as their network requirements evolve. This flexibility allows organizations to expand their network capacity without significant disruptions or costly infrastructure upgrades.

4. High Reliability

The Catalyst 4500 Gigabit Ethernet Module is built to deliver exceptional reliability and uptime. It incorporates redundancy features such as hot-swappable modules and power supplies, ensuring continuous operations even in the event of a failure or maintenance activities. This reliability is crucial for businesses that rely heavily on their network infrastructure to support critical operations.

5. Simplified Network Management

Cisco's Catalyst 4500 series switches, compatible with the WS-X4306-GB module, provide a comprehensive network management solution. The switches offer advanced management capabilities, including SNMP (Simple Network Management Protocol), which allows network administrators to monitor and control the module's performance, troubleshoot issues, and ensure optimal network operation.

6. Investment Protection

Investing in the Catalyst 4500 Gigabit Ethernet Module offers long-term benefits and protects your investment. The module is designed to be future-proof, supporting emerging technologies and standards, ensuring compatibility with future network upgrades. This scalability and compatibility provide a cost-effective solution that can adapt to evolving business needs.

Compatibility: Catalyst 4500 series switches

The Cisco WS-X4306-GB Gigabit Ethernet Module is specifically designed for compatibility with the Catalyst 4500 series switches. This compatibility ensures seamless integration and optimal performance when used together.

Benefits of Catalyst 4500 series compatibility

The compatibility with Catalyst 4500 series switches brings several advantages for users, including:

1. Plug-and-Play Integration

When using the WS-X4306-GB module with Catalyst 4500 switches, installation and integration become hassle-free. The module is designed to be easily inserted into the switch chassis, enabling a plug-and-play experience. This simplicity saves time and effort during the setup process.

2. Streamlined Network Management

By utilizing the Catalyst 4500 series switches in conjunction with the WS-X4306-GB module, users can benefit from a unified network management solution. These switches offer centralized management through Cisco's intuitive network management software, allowing administrators to efficiently monitor and control the entire network infrastructure from a single interface.

3. Enhanced Network Security

The Catalyst 4500 series switches provide robust security features that help protect the network from unauthorized access and potential threats. These switches support advanced security protocols such as Access Control Lists (ACLs), Secure Shell (SSH), and Virtual LAN (VLAN) segmentation, ensuring data confidentiality and integrity.

4. Simplified Troubleshooting

The compatibility between the WS-X4306-GB module and Catalyst 4500 switches simplifies troubleshooting processes. The switches offer comprehensive diagnostic tools and logging capabilities, allowing administrators to quickly identify and resolve network issues. This reduces downtime and improves overall network reliability.

5. Scalability and Future-Proofing

By combining the WS-X4306-GB module with Catalyst 4500 switches, users can take advantage of the scalability offered by these switches. The Catalyst 4500 series supports stacking technology, allowing multiple switches to be interconnected and managed as a single entity. This scalability ensures that the network can accommodate future growth and technological advancements.

Ports: 6

The Cisco WS-X4306-GB Gigabit Ethernet Module features 6 ports, providing ample connectivity options for various devices and network configurations.

Benefits of having 6 ports

The inclusion of 6 ports in the WS-X4306-GB module offers several benefits for users:

1. Increased Device Connectivity

With 6 ports available, users can connect multiple devices simultaneously to the module. This allows for greater device connectivity within the network, enabling seamless communication between various devices such as computers, servers, printers, and other network-enabled devices.

2. Flexibility in Network Design

The 6 ports in the module provide flexibility in network design and configuration. Users can establish different network topologies, including star, mesh, or ring structures, based on their specific requirements. This flexibility ensures that the network can be tailored to meet the unique needs of the organization.

3. Redundancy and High Availability

Having multiple ports in the WS-X4306-GB module allows for redundancy and high availability in the network. Users can implement link aggregation techniques such as EtherChannel or port redundancy protocols like Spanning Tree Protocol (STP) to ensure uninterrupted network connectivity even if one or more ports fail. This redundancy enhances network reliability and minimizes downtime.

4. Simplified Network Segmentation

The availability of 6 ports simplifies network segmentation, enabling users to divide their network into smaller subnets or VLANs. This segmentation improves network performance, security, and manageability by isolating traffic and preventing data collisions. It also allows for better control over network resources and improved scalability.

Speed: Gigabit Ethernet

The Cisco WS-X4306-GB Gigabit Ethernet Module supports Gigabit Ethernet technology, delivering fast and reliable data transfer speeds.

Benefits of Gigabit Ethernet

The utilization of Gigabit Ethernet technology in the WS-X4306-GB module offers several benefits for users:

1. Increased Bandwidth

Gigabit Ethernet provides significantly higher bandwidth compared to traditional Fast Ethernet. With data transfer rates of up to 1000 Mbps, users can experience faster file transfers, smoother multimedia streaming, and more responsive network performance. This increased bandwidth is particularly beneficial in bandwidth-intensive environments such as multimedia production or data centers.

2. Seamless Network Upgrades

By supporting Gigabit Ethernet, the WS-X4306-GB module ensures compatibility with modern network infrastructures. Users can seamlessly upgrade their existing network from Fast Ethernet to Gigabit Ethernet without the need for extensive infrastructure changes. This compatibility simplifies the transition and protects the investment in existing network equipment.

3. Support for High-Bandwidth Applications

Gigabit Ethernet is essential for running high-bandwidth applications that require fast data transfer rates. Applications such as video conferencing, virtualization, cloud computing, and large-scale data backups can benefit greatly from the increased speed offered by Gigabit Ethernet. Users can enjoy smooth and uninterrupted application performance, resulting in enhanced productivity and user satisfaction.

4. Backward Compatibility

Despite its higher speed capabilities, Gigabit Ethernet is backward compatible with slower Ethernet standards. This means that the WS-X4306-GB module can seamlessly communicate with devices using older Ethernet standards such as 10 Mbps or 100 Mbps. This backward compatibility ensures interoperability and enables a gradual migration to higher-speed networks.

Interface: RJ-45

The Cisco WS-X4306-GB Gigabit Ethernet Module features an RJ-45 interface, allowing users to connect their devices using standard Ethernet cables.

Benefits of the RJ-45 Interface

The inclusion of an RJ-45 interface in the WS-X4306-GB module offers several benefits for users:

1. Universal Connectivity

The RJ-45 interface is a widely recognized standard for Ethernet connectivity. It ensures compatibility with a vast range of devices that support Ethernet connectivity, including computers, servers, switches, routers, and more. This universal connectivity allows users to easily connect their devices to the module without the need for additional adapters or specialized cables.

2. Cost-Effective Solution

RJ-45 interfaces are highly cost-effective compared to other interface types. Ethernet cables with RJ-45 connectors are readily available and affordable, making them a cost-effective solution for network connectivity. This affordability makes the WS-X4306-GB module an attractive option for users who want to enhance their network capabilities without breaking the bank.

3. Ease of Installation

The RJ-45 interface is incredibly easy to install, even for users with limited technical expertise. The connectors are straightforward and require no special tools or training to connect devices. This ease of installation ensures that users can quickly set up and deploy the WS-X4306-GB module without any complications.

4. Compatibility with Existing Infrastructure

Most existing Ethernet networks utilize RJ-45 interfaces, making the WS-X4306-GB module compatible with the majority of network infrastructures. Users can seamlessly integrate the module into their existing networks without the need for costly infrastructure changes or upgrades.

Form Factor: Plug-in module

The Cisco WS-X4306-GB Gigabit Ethernet Module is designed as a plug-in module, allowing for easy installation and integration into compatible switches.

Benefits of the Plug-in Module Form Factor

The plug-in module form factor of the WS-X4306-GB module provides several benefits for users:

1. Easy Installation and Removal

The plug-in module design simplifies the installation and removal process. Users can easily insert or remove the module from compatible switches without requiring any complex procedures or technical expertise. This ease of installation ensures that users can quickly adapt their network infrastructure according to their evolving needs.

2. Scalability and Flexibility

The plug-in module form factor allows for seamless scalability and flexibility in network design. Users can add or upgrade modules as per their requirements, enabling them to expand their network capacity without significant disruptions or costly infrastructure changes. This scalability ensures that the network can grow alongside the organization's needs.

3. Hot-Swappable Functionality

The plug-in module design supports hot-swappable functionality, allowing users to replace or upgrade modules without interrupting network operations. This feature eliminates downtime and ensures continuous network connectivity, even during maintenance activities or module failures. The hot-swappable capability enhances network reliability and minimizes service disruptions.

4. Space-Efficient Solution

Plug-in modules are space-efficient, as they occupy minimal physical space within the switch chassis. This compact design allows for optimized use of rack space and contributes to a tidy and organized network infrastructure. Users can maximize their network capacity without sacrificing valuable rack space.

Buffer Size: 6 MB

The Cisco WS-X4306-GB Gigabit Ethernet Module is equipped with a buffer size of 6 MB, facilitating efficient data transfer and reducing packet loss during high traffic scenarios.

Benefits of the 6 MB Buffer Size

The inclusion of a 6 MB buffer size in the WS-X4306-GB module offers several benefits for users:

1. Smoother Network Performance

The generous buffer size of 6 MB ensures that the module can handle high volumes of data traffic without experiencing congestion or packet loss. This results in smoother network performance, even during peak usage periods. Users can enjoy uninterrupted connectivity and reliable data transfer rates.

2. Improved Quality of Service

The ample buffer size allows the WS-X4306-GB module to effectively prioritize critical data packets and prevent congestion. This improves the overall Quality of Service (QoS) by ensuring that time-sensitive applications such as voice or video are given priority access to network resources. Users can enjoy optimal performance for real-time applications without compromising on other network activities.

3. Enhanced Network Reliability

The 6 MB buffer size contributes to network reliability by reducing the likelihood of packet loss and data corruption. In high-traffic situations, the module can temporarily store excess data in the buffer until it can be forwarded without congestion. This feature ensures that data integrity is maintained, minimizing the need for retransmission and enhancing overall network reliability.

4. Support for Bursty Traffic

The generous buffer size enables the WS-X4306-GB module to efficiently handle bursty traffic patterns. Bursty traffic occurs when there are sudden spikes in data transmission, such as during file transfers or multimedia streaming. The module's buffer can absorb temporary surges in traffic, ensuring that no packets are dropped and maintaining consistent network performance.

Forwarding Rate: 6.6 Mpps

The Cisco WS-X4306-GB Gigabit Ethernet Module boasts a forwarding rate of 6.6 million packets per second (Mpps), allowing for efficient and speedy data forwarding within the network.

Benefits of the 6.6 Mpps Forwarding Rate

The high forwarding rate of 6.6 Mpps in the WS-X4306-GB module offers several benefits for users:

1. Rapid Data Transfer

The fast forwarding rate ensures rapid data transfer within the network infrastructure. Whether it's transferring large files or streaming high-definition multimedia content, users can experience minimal latency and fast response times. This rapid data transfer capability enhances productivity and user satisfaction.

2. Support for High-Bandwidth Applications

Applications that require high data throughput, such as video conferencing or resource-intensive cloud applications, can benefit greatly from the high forwarding rate of 6.6 Mpps. The module can efficiently handle the increased data load, ensuring smooth application performance and minimizing delays. This support for high-bandwidth applications enhances productivity and user experience.

3. Efficient Network Utilization

The high forwarding rate allows for efficient utilization of network resources. With the ability to process 6.6 million packets per second, the WS-X4306-GB module ensures that network traffic is forwarded promptly, minimizing bottlenecks and maximizing network efficiency. Users can make the most of their network infrastructure without experiencing performance degradation.

4. Scalability for Growing Networks

The 6.6 Mpps forwarding rate provides scalability for growing networks. As network traffic increases, the module can efficiently handle the additional data load without sacrificing performance. This scalability ensures that the network can accommodate future growth and evolving business needs without requiring costly infrastructure upgrades.

Weight: 1.5 lbs

The Cisco WS-X4306-GB Gigabit Ethernet Module has a weight of 1.5 lbs, making it lightweight and easy to handle during installation and maintenance activities.

Benefits of the 1.5 lbs Weight

The lightweight design of the WS-X4306-GB module offers several benefits for users:

1. Easy Installation

The module's light weight makes it easy to handle and install within compatible switches. Network administrators can effortlessly insert or remove the module without straining themselves or requiring additional assistance. This ease of installation saves time and effort during initial setup or when replacing modules.

2. Reduced Shipping Costs

When purchasing or replacing network modules, weight plays a significant role in shipping costs. The 1.5 lbs weight of the WS-X4306-GB module ensures that shipping expenses remain minimal, allowing users to allocate their budget more efficiently. This cost-saving benefit is particularly valuable for organizations with multiple remote locations or frequent equipment replacements.

3. Rack Space Optimization

Lightweight modules contribute to rack space optimization by minimizing the load on the switch chassis. With less weight to support, network administrators can make the most
