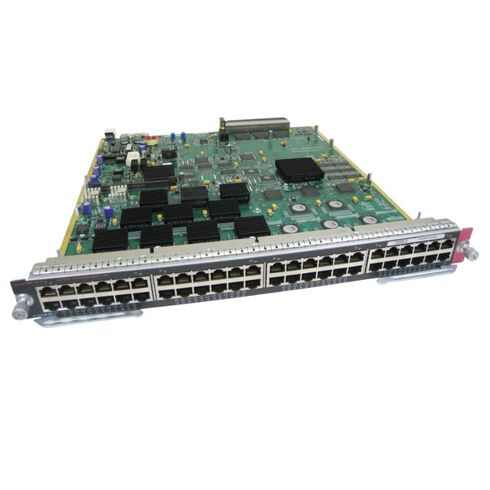

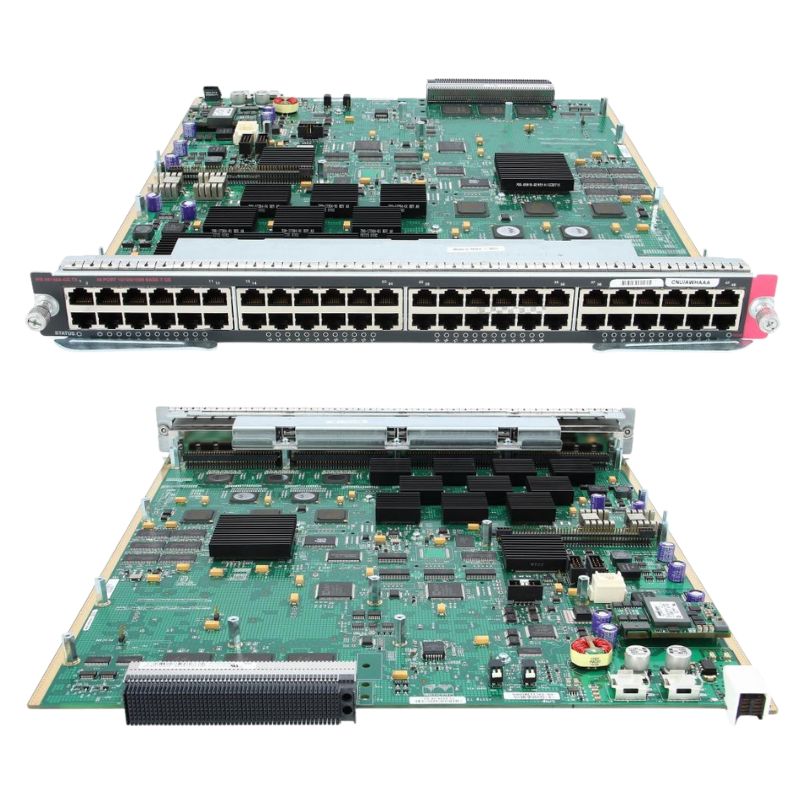

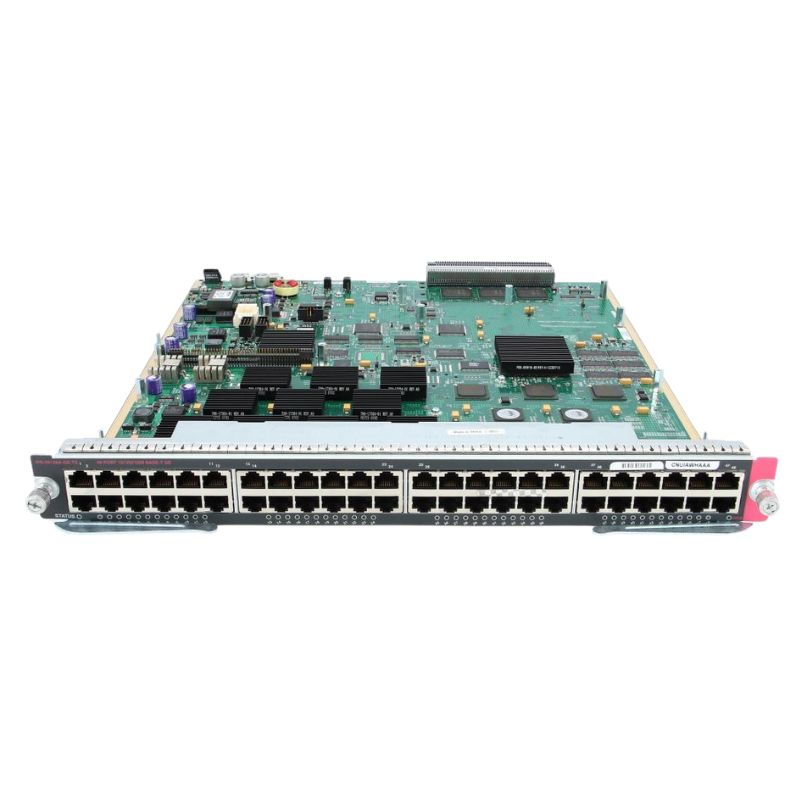

WS-X6148A-GE-TX Cisco Catalyst 6500 48 Ports Expansion Module

Cisco WS-X6148A-GE-TX Expansion Module Overview

The Cisco WS-X6148A-GE-TX Catalyst 6500 48-Port Expansion Module is a high-density Ethernet switching solution designed for enterprise-grade data networking environments. Built for the Cisco Catalyst 6500 Series, this expansion module enhances network scalability, improves port availability, and delivers reliable multi-speed connectivity for modern infrastructure demands.

General Information

• Manufacturer: Cisco
• Part Number: WS-X6148A-GE-TX
• Device Type: Expansion Module
• Series: Catalyst 6500
• Line: Cisco Catalyst Series

48-Port High-Density Ethernet

• 48 Ethernet RJ-45 ports
• Designed for enterprise LAN aggregation
• Supports large-scale device connectivity

Cable Compatibility

• Category 5 twisted-pair cable support
• Backward compatibility with Cat5 infrastructure
• Optimized for copper-based Ethernet deployments

Supported Data Rates

• 10 Mbps Ethernet (legacy devices)
• 100 Mbps Fast Ethernet (standard access devices)
• 1 Gbps Gigabit Ethernet (high-performance endpoints)

Key Media Features

• Enhanced signal integrity over copper cabling
• Reduced deployment cost compared to fiber alternatives
• Stable performance across long-distance copper runs

Expansion Capabilities

• Optional hardware upgrades
• Enhanced switching features via add-on modules
• Future-proof infrastructure scalability

PoE Advantages

• Reduced cabling complexity
• Power delivery to IP phones, access points, and IoT devices
• Improved deployment efficiency

Protocol Support List

• SNMP Version 1
• SNMP Version 2
• SNMP Version 3
• RMON (Remote Monitoring)

Performance Characteristics

• Optimized packet forwarding per second (pps)
• Reduced latency in high-load environments
• Efficient traffic handling across multiple VLANs

Supported Supervisor Engines

• Supervisor Engine 1A
• Supervisor Engine 2
• Supervisor Engine 720

Cisco WS-X6148A-GE-TX Catalyst 48 Ports Expansion Module

The Cisco WS-X6148A-GE-TX Catalyst 6500 48 Ports Expansion Module represents a high-density Gigabit Ethernet switching solution designed to extend the capabilities of the Cisco Catalyst 6500 Series modular switch platform. This module is engineered to deliver scalable network expansion for enterprise campus environments, data centers, and high-performance aggregation layers where port density, reliability, and throughput are critical. Built to integrate seamlessly into the Catalyst 6500 chassis architecture, it provides an efficient method to increase copper-based connectivity while maintaining consistent performance and advanced Layer 2 and Layer 3 services.

Role Within the Catalyst 6500 Ecosystem

Within the Catalyst 6500 ecosystem, this expansion module functions as a key access and aggregation component, enabling organizations to expand wired network connectivity without replacing the core chassis. Its modular nature allows IT teams to incrementally scale port capacity based on evolving requirements. The WS-X6148A-GE-TX is widely recognized for its ability to support large-scale enterprise deployments that require consistent uptime, predictable performance, and flexible configuration options.

Designed for High-Density Switching Environments

The module provides 48 RJ-45 Gigabit Ethernet ports, allowing high-density device aggregation within a single line card slot. This makes it particularly valuable in environments where rack space optimization and structured cabling efficiency are important. The copper-based interface ensures compatibility with standard enterprise endpoints, including workstations, IP phones, wireless access points, and networked industrial devices.

Architecture and Platform Compatibility

Integration with Cisco Catalyst 6500 Series Chassis

The WS-X6148A-GE-TX is designed specifically for compatibility with Cisco Catalyst 6500 Series chassis systems, leveraging the backplane architecture for high-speed communication between modules. This ensures low-latency switching and efficient data forwarding across the network infrastructure. The module communicates directly with the supervisor engine, enabling centralized management and advanced routing capabilities.

Supervisor Engine Dependency and System Coordination

Operational functionality is closely tied to the installed supervisor engine within the Catalyst 6500 chassis. The module relies on the supervisor for routing intelligence, configuration synchronization, and system-wide policy enforcement. This tight integration ensures consistent performance and enables advanced features such as VLAN segmentation, traffic shaping, and policy-based routing.

Compatibility Across Enterprise Network Architectures

The expansion module is commonly deployed in multi-tier network architectures, including access, distribution, and core layers. Its flexibility allows it to serve as either a high-density access layer module or as part of an aggregation layer in larger campus designs. The design supports interoperability with a wide range of Cisco networking technologies, ensuring long-term compatibility within evolving IT infrastructures.

Port Density and Switching Capabilities

48-Port Gigabit Ethernet Configuration

One of the defining characteristics of the WS-X6148A-GE-TX module is its 48-port Gigabit Ethernet configuration, which significantly increases the number of connected endpoints per chassis slot. Each port supports standard RJ-45 connectors and operates at 10/100/1000 Mbps speeds, allowing for flexible connectivity across legacy and modern network devices.

Auto-Negotiation and Adaptive Connectivity

Each port supports auto-negotiation, enabling seamless integration with a wide variety of network devices without manual configuration. This reduces deployment complexity and ensures optimal link speed selection based on connected hardware capabilities. The adaptive nature of the ports helps maintain network stability and efficiency in dynamic environments.

Hardware Design and Physical Characteristics

Robust Engineering for Enterprise Deployment

The WS-X6148A-GE-TX is built with enterprise-grade hardware components designed for continuous operation in demanding environments. Its physical construction supports long-term deployment in data centers and network closets where environmental conditions may vary. The module is engineered for durability, thermal efficiency, and consistent electrical performance.

Thermal Design and Heat Dissipation

Efficient thermal management is integrated into the module’s design, allowing it to operate within optimal temperature ranges even under heavy network loads. The Cisco Catalyst 6500 chassis provides centralized cooling, ensuring that airflow is distributed effectively across all installed modules. This contributes to system stability and long-term reliability.

Hot-Swappable Module Architecture

The module supports hot-swappable installation within compatible Catalyst 6500 chassis, enabling administrators to perform upgrades or replacements without requiring full system downtime. This feature is particularly important in mission-critical environments where network availability must be maintained continuously.

Performance and Throughput Optimization

Non-Blocking Architecture Considerations

The WS-X6148A-GE-TX benefits from the non-blocking switching capabilities of the Catalyst 6500 platform, ensuring that traffic flows efficiently across all ports without congestion under normal operating conditions. This architecture supports consistent throughput performance across enterprise workloads.

Optimized Data Handling for Enterprise Traffic

The module is optimized to handle mixed traffic types, including unicast, multicast, and broadcast data streams. This allows it to support complex enterprise environments where multiple applications operate simultaneously, such as ERP systems, unified communications, and cloud-based services.

Scalability in High-Traffic Environments

In high-traffic deployments, the module scales efficiently by distributing forwarding responsibilities across the chassis fabric. This ensures that network performance remains stable even as endpoint density increases. The architecture is particularly suitable for organizations experiencing rapid network growth.

Network Scalability and Enterprise Deployment

Flexible Expansion for Growing Networks

The WS-X6148A-GE-TX is designed to support scalable network expansion strategies, allowing enterprises to increase port capacity without redesigning their existing infrastructure. This modular approach reduces capital expenditure while extending the lifecycle of the Catalyst 6500 platform.

Supporting Large-Scale Campus Networks

In campus environments, the module provides the necessary port density to support large numbers of end-user devices. It enables centralized management of network access points, simplifying administrative overhead and improving operational efficiency across distributed buildings and departments.

Integration with Multi-Layer Network Designs

The module integrates seamlessly into multi-layer network designs, supporting hierarchical architectures that separate access, distribution, and core functions. This design approach enhances scalability and fault isolation within complex enterprise infrastructures.

Layer 2 and Layer 3 Feature Integration

Advanced Switching Capabilities

The WS-X6148A-GE-TX supports advanced Layer 2 switching features, including VLAN segmentation, spanning tree protocols, and trunking capabilities. These features enable efficient segmentation and traffic management across enterprise networks.

VLAN Architecture and Segmentation Efficiency

VLAN support allows organizations to logically segment network traffic based on departments, applications, or security policies. This improves traffic isolation and enhances overall network security while maintaining high performance.

Layer 3 Routing Support Through Supervisor Integration

While the module itself focuses on switching functionality, Layer 3 routing capabilities are enabled through integration with the Catalyst 6500 supervisor engine. This allows for inter-VLAN routing and advanced traffic control policies within the broader system architecture.

Security Features and Access Control

Enterprise-Grade Network Security Integration

The module supports a wide range of security features when deployed within a Catalyst 6500 system, including port security, access control lists, and policy enforcement mechanisms. These features help ensure that only authorized devices and traffic patterns are allowed on the network.

Traffic Filtering and Policy Enforcement

Traffic filtering capabilities enable administrators to define strict access policies that regulate data flow between network segments. This helps protect sensitive data and ensures compliance with organizational security standards.

Identity-Based Network Access Controls

When integrated with Cisco identity services, the module can support identity-based access control policies that authenticate devices before granting network access. This enhances security posture in enterprise environments where endpoint diversity is high.

Redundancy and High Availability

Fault-Tolerant Network Design

The WS-X6148A-GE-TX contributes to high availability network architectures by leveraging the redundancy capabilities of the Catalyst 6500 chassis. Multiple modules can be deployed to ensure continuous operation in the event of hardware failure.

Chassis-Level Redundancy Features

Redundancy is achieved at the chassis level through dual supervisor engines, redundant power supplies, and distributed switching modules. This ensures that network services remain available even under failure conditions.

Use Cases and Enterprise Applications

High-Density Access Layer Deployment

The WS-X6148A-GE-TX is frequently deployed at the access layer in enterprise networks where high-density endpoint connectivity is required. It supports a wide range of business-critical applications and services.

Data Center Edge Aggregation

In data center environments, the module can function as an edge aggregation component, consolidating traffic from multiple sources before forwarding it to core switching systems.
