DS-13SLT-FAN-F Cisco Front Fan Tray

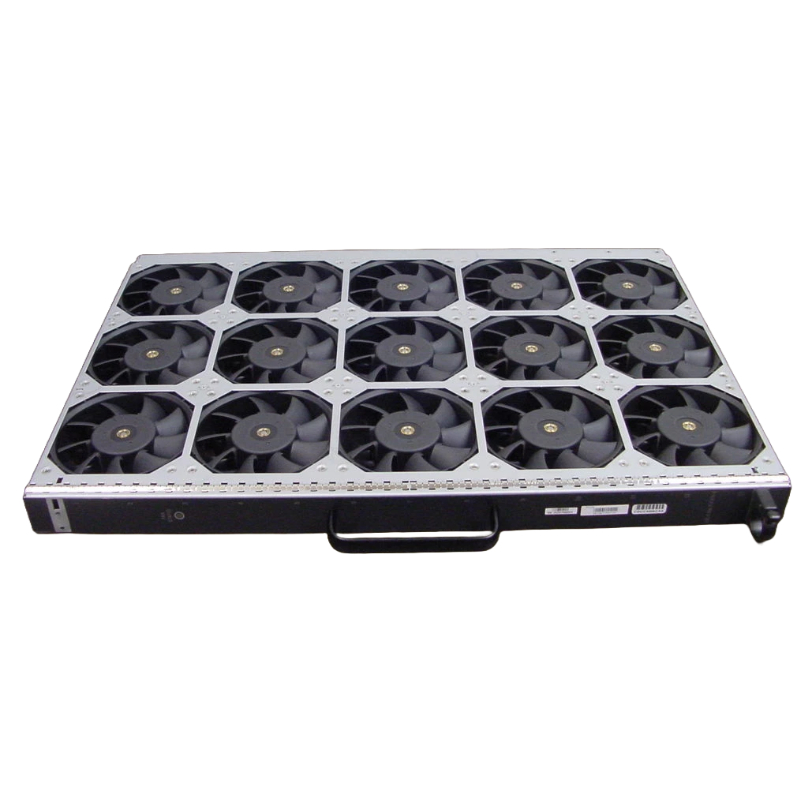

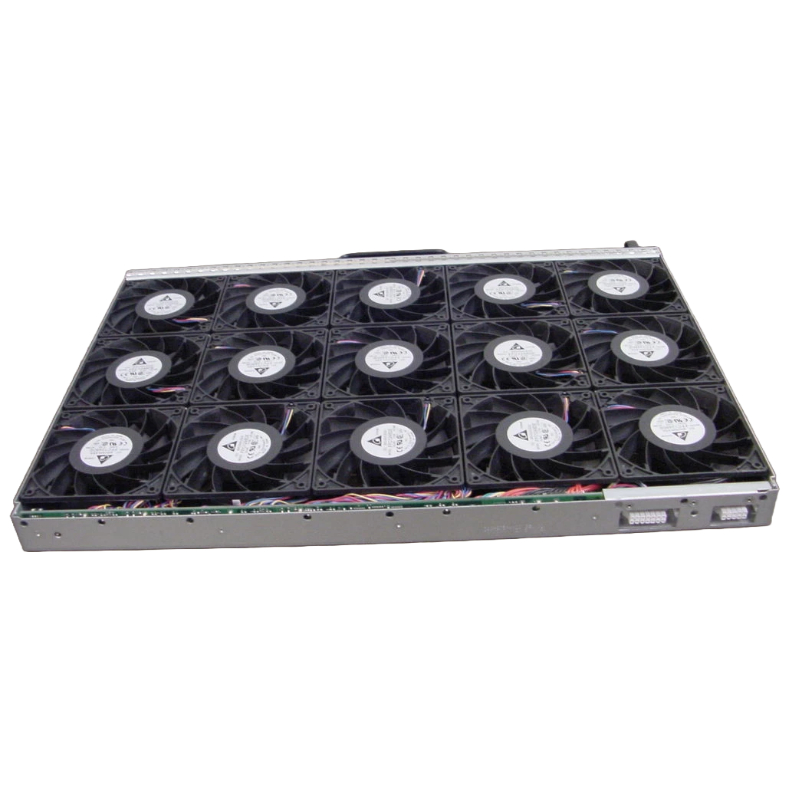

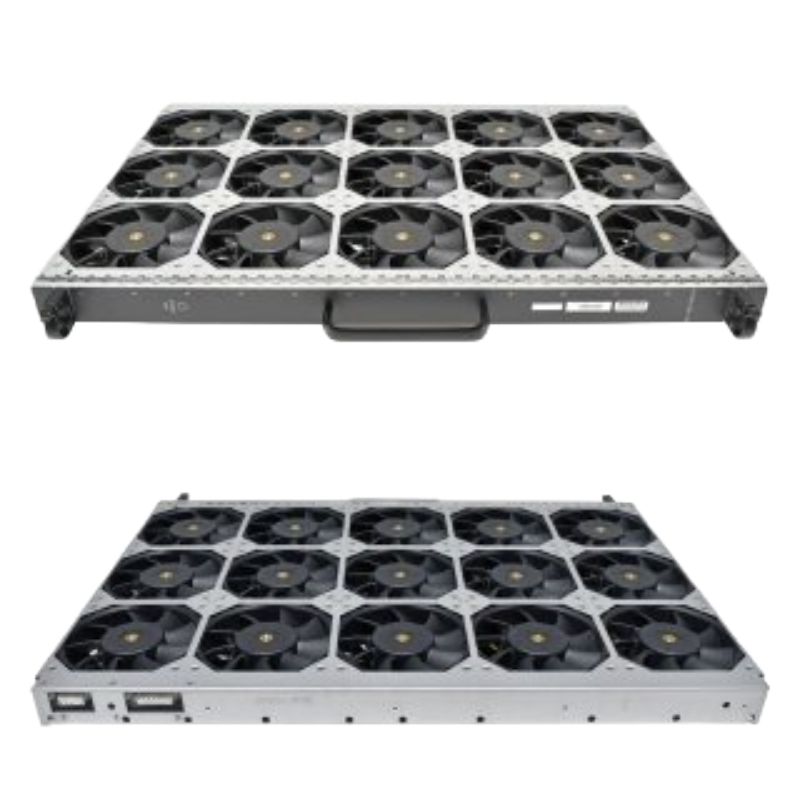

Cisco DS-13SLT-FAN-F MDS 9513 Front 15-Fans Tray Overview

Product Identity and Classification

The Cisco DS-13SLT-FAN-F is a high-performance cooling component engineered specifically for enterprise-grade storage networking systems. It is designed as a dedicated fan tray used within the Cisco MDS 9513 Director chassis, ensuring optimal thermal regulation and continuous system stability.

• Manufacturer: Cisco Systems
• Part Number / SKU: DS-13SLT-FAN-F
• Category: Network infrastructure accessories
• Sub-category: Hot-swappable fan tray module

Core Functional Role in MDS 9513 Systems

This front-mounted fan tray plays a critical role in maintaining airflow efficiency across densely populated chassis environments. It supports multi-fan redundancy, helping prevent overheating even in high-load enterprise SAN deployments.

Cooling and Airflow Management Benefits

• Delivers consistent front-to-rear airflow optimization
• Supports redundant fan operation for fault tolerance
• Helps maintain stable operating temperatures under heavy traffic loads
• Reduces risk of hardware thermal throttling or system shutdown

Hot-Swappable Design Advantages

• Allows replacement without powering down the system
• Minimizes downtime in mission-critical environments
• Enables rapid maintenance and servicing

Technical Specification Highlights

System Compatibility

• Designed for Cisco MDS 9513 Multilayer Director chassis
• Works in conjunction with rear fan tray modules for full cooling coverage
• Integrated into Cisco MDS 9000 Series architecture

Performance and Reliability Features

• Multi-fan architecture supporting redundancy and failover protection
• Automatic fan speed adjustment based on thermal conditions
• Continuous airflow monitoring support via system diagnostics

Operational Resilience

• Maintains functionality even if one or more fans degrade
• System dynamically compensates for fan failure by increasing remaining fan speed
• Designed for uninterrupted enterprise networking environments

Hardware Engineering and Design Structure

Front Fan Tray Architecture

• High-density fan arrangement for uniform airflow distribution
• Engineered to cool multiple line cards and supervisor modules simultaneously
• Optimized for large-scale data center chassis airflow paths

Maintenance and Serviceability

• Modular construction for quick replacement
• Tool-less access design for field servicing
• Integrated status monitoring support for fault detection

Enterprise Deployment Advantages

Data Center Optimization

• Ensures consistent thermal balance in high-density SAN environments
• Supports scalable storage networking infrastructure
• Helps sustain peak performance of Cisco MDS 9513 systems

Reliability and Continuity

• Reduces risk of downtime caused by overheating
• Improves long-term hardware lifespan
• Enhances system availability in mission-critical operations

Environmental and Operational Efficiency

Airflow Efficiency Design

• Engineered for high-volume airflow throughput
• Balanced cooling distribution across chassis components
• Supports stable operation under variable workload conditions

System Integration Efficiency

• Seamless integration with Cisco MDS 9513 chassis architecture
• Works in coordination with power systems and fabric modules
• Ensures synchronized cooling with rear fan assemblies

Cisco DS-13SLT-FAN-F Front 15-Fans Tray

The Cisco DS-13SLT-FAN-F MDS 9513 Front 15-Fans Tray represents a critical cooling subsystem designed for high-density enterprise storage networking environments, specifically engineered for the Cisco MDS 9513 Multilayer Director Switch chassis. In modern data centers where uninterrupted SAN (Storage Area Network) performance is essential, thermal regulation is not merely a supporting function but a foundational requirement for stability, reliability, and long-term hardware endurance. This front fan tray assembly ensures optimized airflow distribution across high-performance switching modules, supervisor engines, and line cards, maintaining operational temperatures within strict enterprise-grade thresholds.

Within large-scale storage infrastructures, airflow management systems such as this fan tray are integral to sustaining continuous uptime. The Cisco DS-13SLT-FAN-F is designed to operate in synergy with redundant power and cooling architectures, enabling resilient heat dissipation even under peak workloads. As enterprise workloads scale with virtualization, cloud computing, and big data analytics, the demand placed on SAN switches increases significantly, making advanced cooling systems essential for protecting hardware investments and ensuring uninterrupted data flow.

Cisco MDS 9513 Front Fan Tray System

Precision Airflow Engineering for High-Density Chassis Cooling

The airflow design of the Cisco DS-13SLT-FAN-F MDS 9513 Front 15-Fans Tray is engineered with precision to support front-to-back cooling dynamics within the MDS 9513 chassis. This configuration ensures that cooler external air is efficiently drawn through the system, passing over critical components and expelling heated air in a controlled and consistent manner. Such directional airflow architecture is essential in preventing thermal hotspots that could degrade switch performance or shorten hardware lifespan.

The fan assembly integrates multiple high-efficiency fans arranged strategically to maximize air pressure and volume distribution across the chassis. Each fan contributes to a coordinated cooling pattern, ensuring uniform temperature regulation across all installed modules. This design supports high availability environments where even minimal thermal imbalance could impact mission-critical workloads.

Durable Industrial-Grade Construction for Continuous Operation

Built for enterprise resilience, the Cisco DS-13SLT-FAN-F fan tray incorporates industrial-grade materials capable of withstanding continuous operation in demanding data center conditions. The chassis-compatible frame is reinforced to minimize vibration while maintaining structural integrity during prolonged usage cycles. This durability is particularly important in environments where equipment operates 24/7 without downtime.

In addition to mechanical strength, the fan tray is designed for thermal endurance. Components are selected to resist heat fatigue, ensuring consistent performance even under elevated ambient temperatures. This level of engineering precision aligns with Cisco’s enterprise networking standards, where reliability is a core requirement.

Cisco DS-13SLT-FAN-F MDS 9513 Multilayer Director Switch

Critical Component for Storage Area Network Stability

The Cisco MDS 9513 platform is widely used in enterprise SAN deployments where high-speed data transfer, redundancy, and scalability are essential. Within this ecosystem, the DS-13SLT-FAN-F front fan tray plays a vital role in maintaining system equilibrium. Without adequate cooling, the performance of switching fabrics and director-class modules can degrade due to thermal throttling or unexpected shutdowns.

By maintaining consistent airflow across switching components, the fan tray ensures that the MDS 9513 operates at optimal efficiency even during peak traffic loads. This is particularly important in environments supporting virtualization clusters, cloud storage systems, and mission-critical database applications.

Integration with Redundant Cooling Architecture

The Cisco DS-13SLT-FAN-F is designed to function as part of a redundant cooling system within the MDS 9513 chassis. Redundancy ensures that even if one or more fans fail, the system continues to maintain adequate airflow to prevent overheating. This redundancy model is essential in enterprise environments where downtime can lead to significant operational and financial losses.

The intelligent design allows the system to dynamically adjust airflow based on internal temperature readings, ensuring efficient energy consumption while maintaining thermal stability. This balance between performance and efficiency is a hallmark of Cisco’s engineering philosophy.

Thermal Management Efficiency in High-Performance Data Centers

Maintaining Optimal Operating Temperatures Under Load

In high-performance data centers, thermal loads can fluctuate rapidly depending on network traffic, storage replication, and virtualization workloads. The Cisco DS-13SLT-FAN-F MDS 9513 Front 15-Fans Tray is engineered to respond to these fluctuations in real time, ensuring that internal chassis temperatures remain stable even during sudden spikes in processing demand.

This adaptive cooling capability prevents thermal throttling, a condition where hardware reduces performance to avoid overheating. By maintaining consistent airflow, the fan tray ensures that the MDS 9513 can sustain maximum throughput without compromising reliability.

Energy Efficiency and Optimized Power Consumption

Energy efficiency is a critical concern in modern data centers, where cooling systems often account for a significant portion of total power usage. The Cisco DS-13SLT-FAN-F is designed to optimize power consumption while delivering high-performance cooling. Intelligent fan speed regulation helps reduce unnecessary energy usage during low-load conditions, contributing to overall operational cost savings.

This efficiency aligns with sustainable IT practices, allowing organizations to reduce their carbon footprint while maintaining high availability infrastructure. The balance between performance and energy conservation makes this fan tray an essential component in green data center strategies.

Reliability, Redundancy, and Fault Tolerance in Mission-Critical Environments

High Availability Design Principles

Reliability is a core design principle of the Cisco DS-13SLT-FAN-F MDS 9513 Front 15-Fans Tray. In mission-critical environments such as financial institutions, telecommunications providers, and cloud service infrastructures, even minor cooling failures can result in significant disruptions. This fan tray is engineered to provide continuous operation with built-in redundancy mechanisms that mitigate the risk of overheating.

The distributed fan architecture ensures that airflow remains consistent even if individual fans experience reduced performance. This fault-tolerant design is essential for maintaining system integrity under unpredictable operational conditions.

Continuous Monitoring and Adaptive Response Systems

The fan tray operates in conjunction with the MDS 9513’s internal monitoring systems, which continuously evaluate temperature, airflow, and system load. Based on this data, fan speed and distribution are adjusted dynamically to ensure optimal cooling performance. This adaptive response system enhances reliability while minimizing unnecessary wear on mechanical components.

Enterprise Use Cases and Deployment Scenarios

Data Center SAN Infrastructure Optimization

In enterprise SAN deployments, the Cisco DS-13SLT-FAN-F plays a vital role in maintaining stable communication between storage arrays and server environments. By ensuring thermal stability, it supports high-speed Fibre Channel and storage networking operations without performance degradation.

Cloud Computing and Virtualized Workloads

Cloud environments rely heavily on virtualization technologies that place continuous demand on storage networks. The fan tray supports these environments by maintaining consistent cooling performance even under fluctuating virtual machine workloads and storage replication processes.

High-Density Enterprise Computing Environments

In environments where rack density is high, thermal accumulation becomes a significant challenge. The Cisco DS-13SLT-FAN-F mitigates this challenge by ensuring that heat is efficiently expelled from the chassis, allowing organizations to maximize hardware density without compromising performance.
