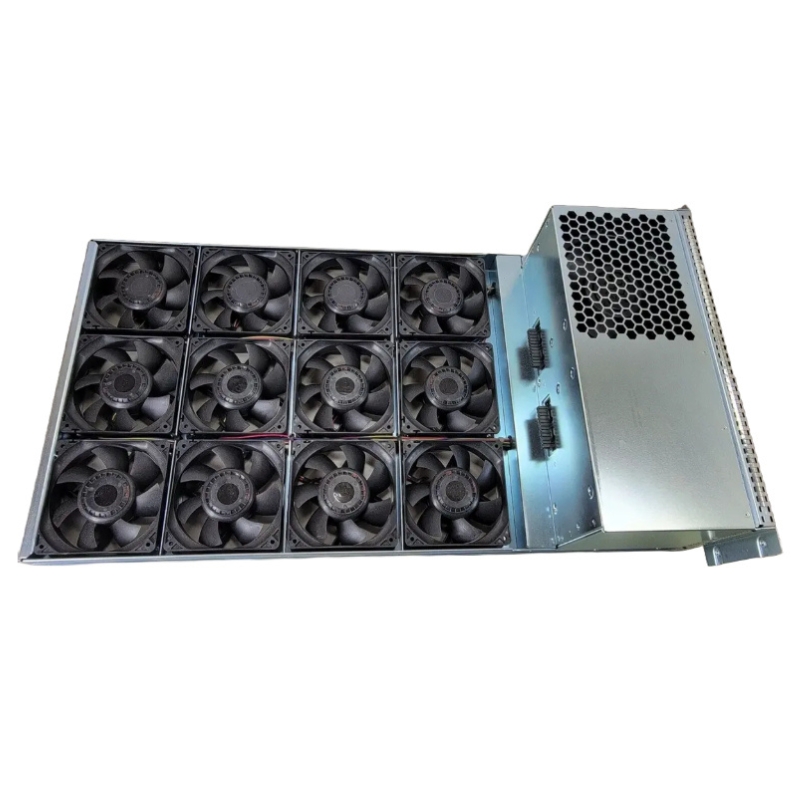

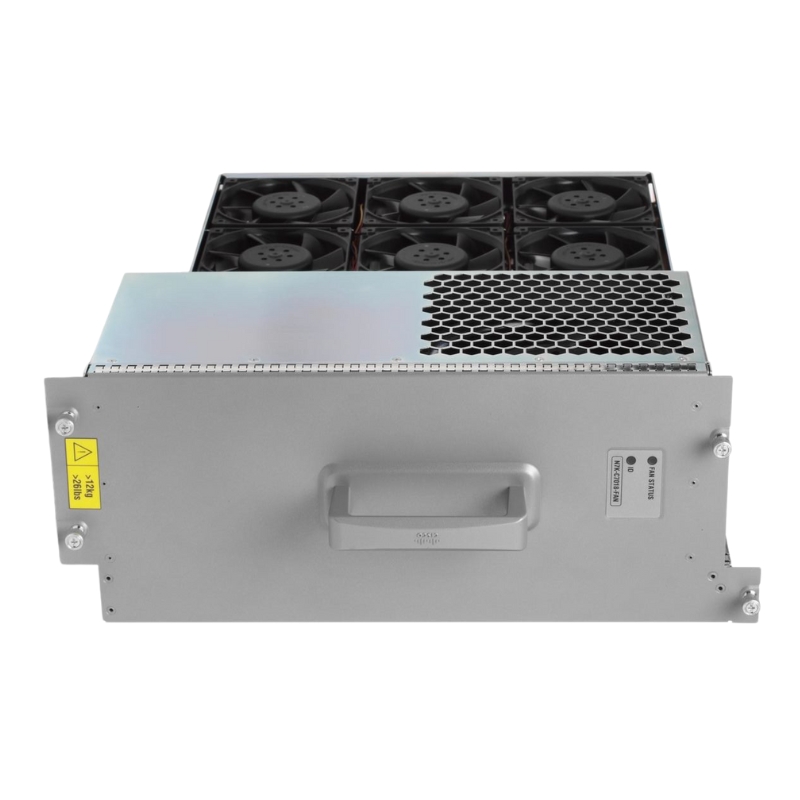

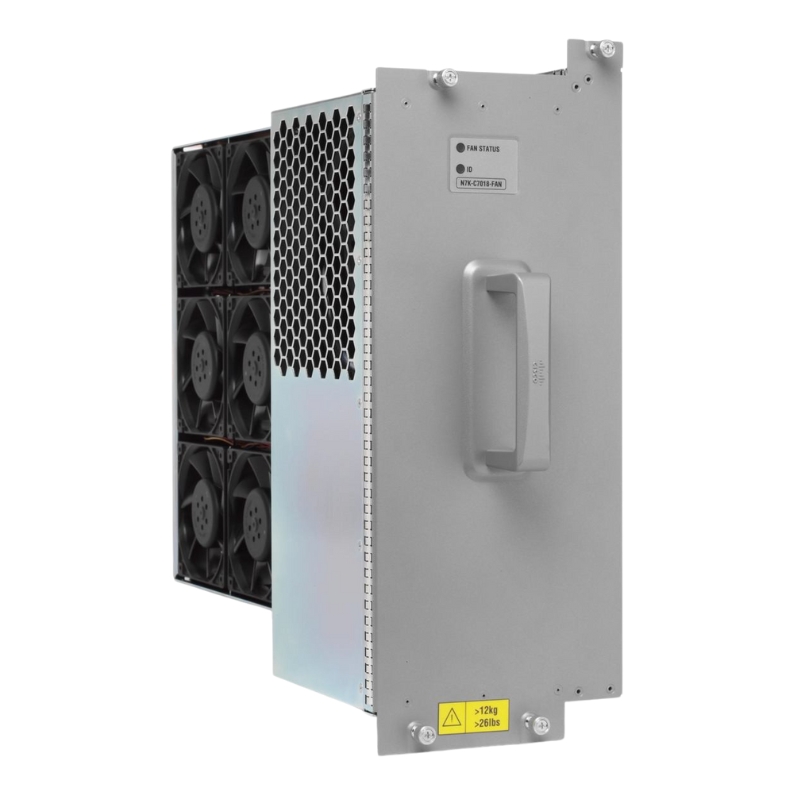

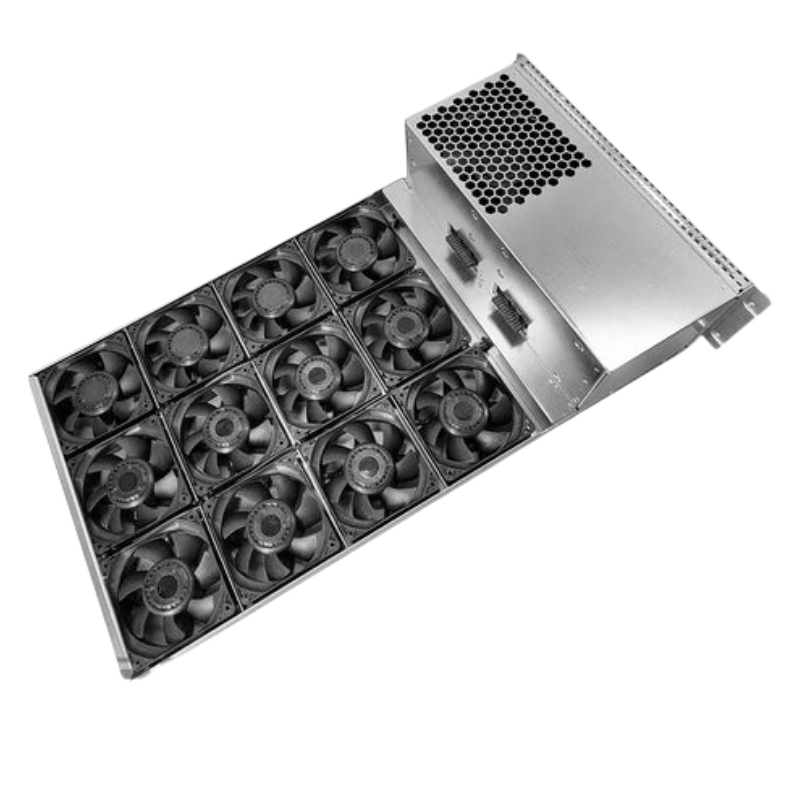

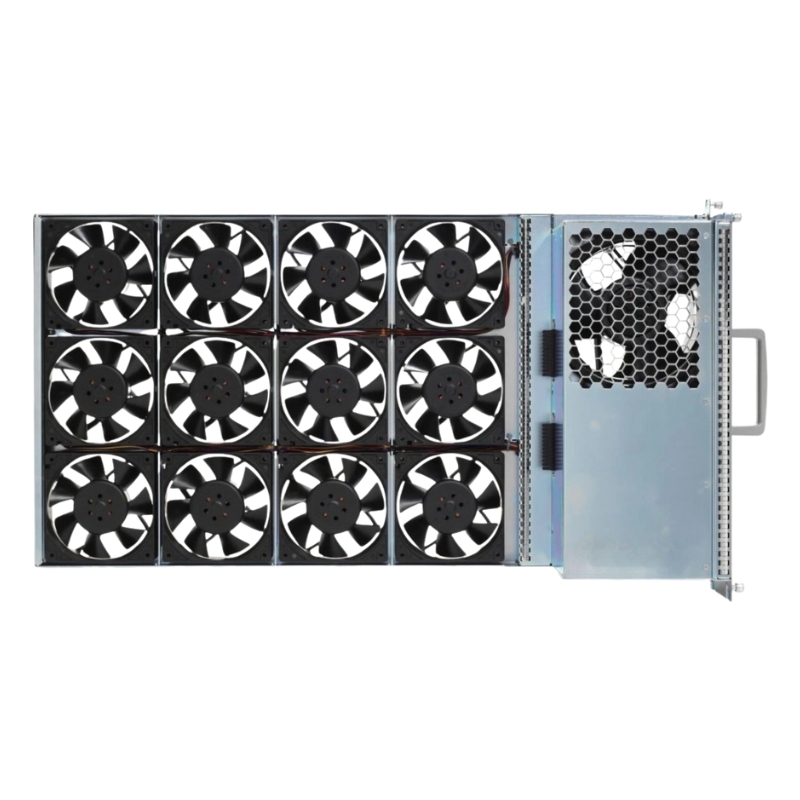

N7K-C7018-FAN Cisco Nexus 7000 - 18 Slot Fan

Cisco N7K-C7018-FAN Nexus 7000 – 18 Slot Cooling Tray

The N7K-C7018-FAN is a fan module designed for the Cisco Nexus 7018 chassis. It provides high-performance airflow to maintain safe operating temperatures for all installed components. The module supports hot-swappable replacement, allowing maintenance without shutting down the system. It is built for reliable, continuous operation in enterprise and data center environments.

General Information

• Manufacturer: Cisco
• Part Number: N7K-C7018-FAN
• Product Type: Hot-swappable Fan Tray

Technical Specifications

• Platform Support: Cisco Nexus 7000 Series
• Chassis Compatibility: Exclusively for Cisco Nexus 7018
• Installation Position: Rear-mounted for efficient airflow
• Cooling Purpose: Maintains optimal temperature
• Airflow Control: Intelligent variable-speed fans
• Fan Speed Levels: 256 dynamically adjusted speed levels
• Temperature Management: Automatic fan speed adjustment via chassis sensors
• Power Consumption: Up to 1000 W
• Power Consumption: Approximately 569 W
• Weight: Around 11.7 kg (25.8 lb) per tray

Reliability

• Redundant Architecture: Dual fan and controller design for fault tolerance
• Hot Swappable: Supports replacement without system shutdown
• System Monitoring: Integrated with Cisco NX-OS environmental monitoring
• Failure Protection: Individual fan failure does not halt system; tray removal triggers warnings and thermal safeguards

Compatibility

Supported Platforms

• Cisco Nexus 7018 Chassis (N7K-C7018)
• Compatible with Cisco Nexus 7000 Series Supervisor Modules
• Compatible with Cisco Nexus 7000 Series Fabric Modules
• Compatible with Cisco Nexus 7000 Series M-Series Line Cards
• Compatible with Cisco Nexus 7000 Series F-Series Line Cards
• Supported by Cisco NX-OS operating system on Nexus 7018

Non-Compatible Platforms

• Cisco Nexus 7009
• Cisco Nexus 7010
• Cisco Nexus 7700 Series chassis
• Any Cisco Catalyst Series chassis
• Other Cisco Nexus chassis requiring different fan tray models
