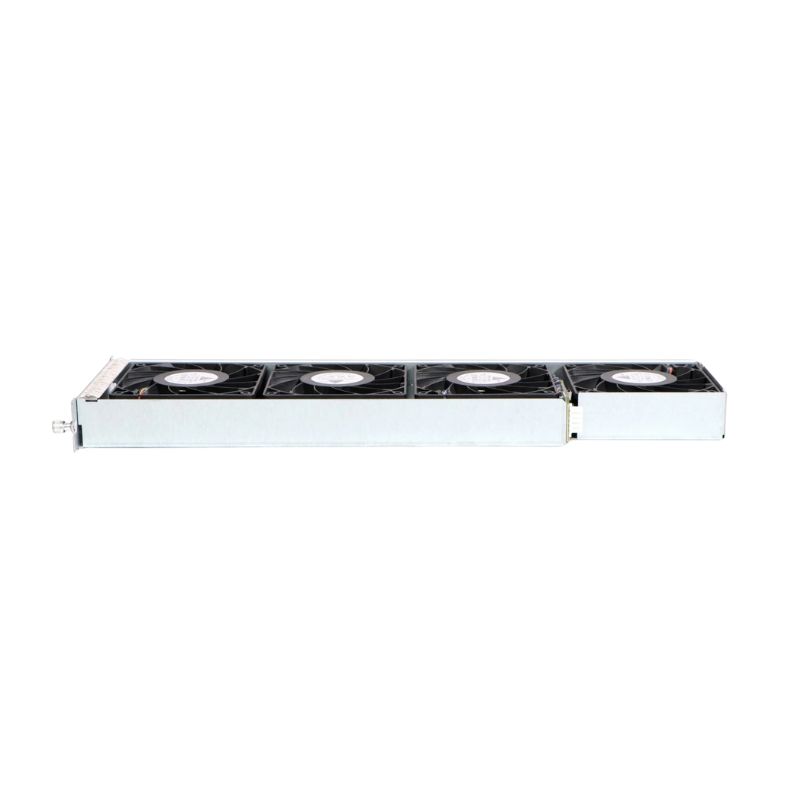

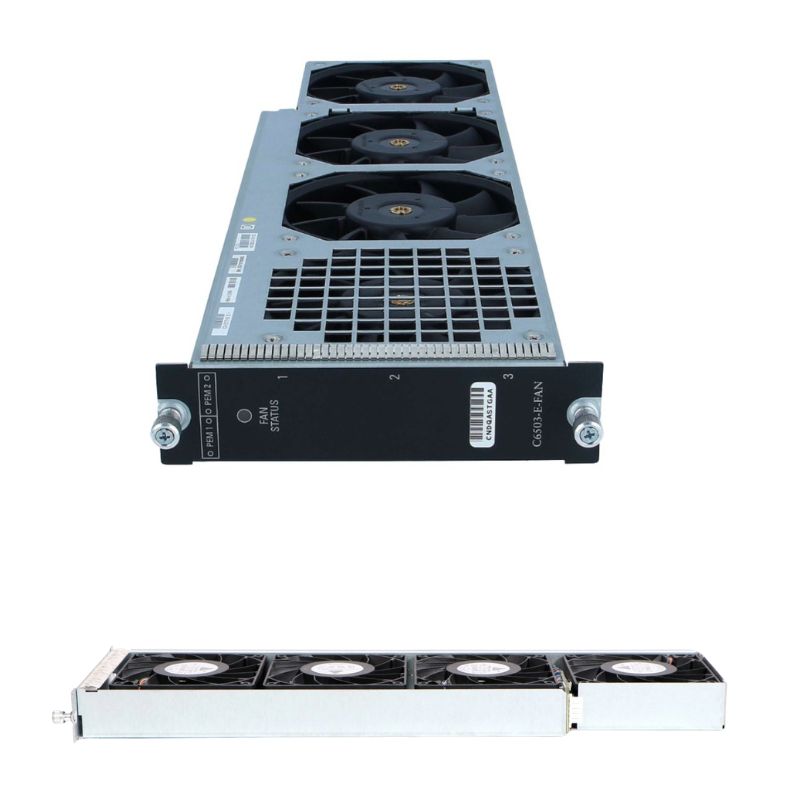

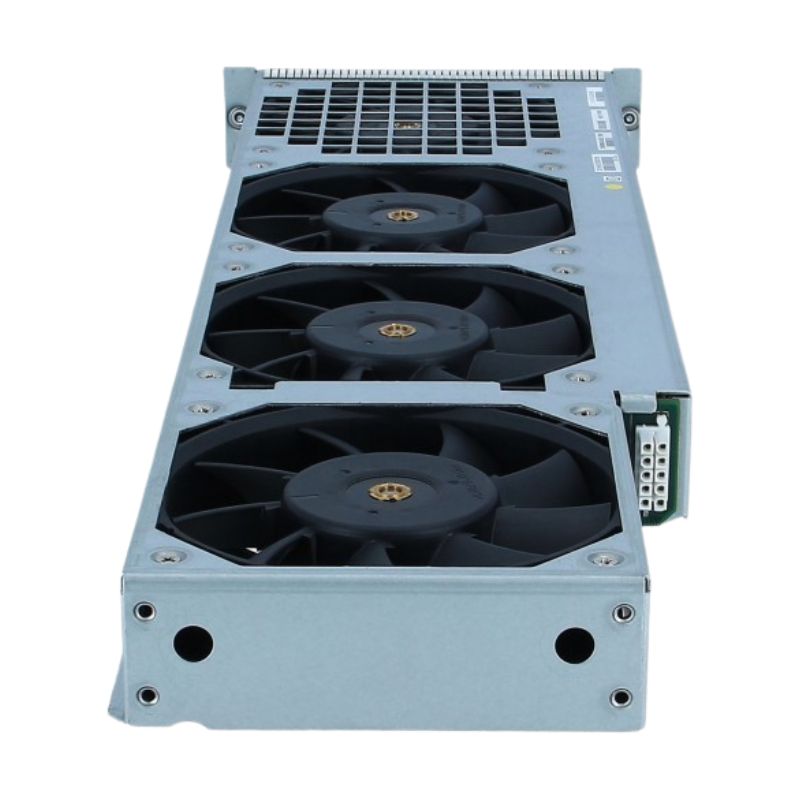

WS-C6503-E-FAN Cisco Catalyst Chassis Fan Tray

Cisco WS-C6503-E-FAN Catalyst Chassis Fan Tray Overview

The Cisco WS-C6503-E-FAN Catalyst Chassis Fan Tray is a high-performance cooling module specifically engineered for the Cisco Catalyst 6503-E chassis. Designed to maintain consistent airflow throughout the networking enclosure, this replacement fan tray helps prevent overheating while supporting continuous network operations. Built with Cisco-quality engineering, it offers reliable thermal management for enterprise data centers, campus networks, and mission-critical IT environments where hardware stability and uptime are essential.

Featuring a modular slide-in design, the Cisco WS-C6503-E-FAN enables quick installation and replacement without interrupting system operations. Its hot-swappable architecture minimizes maintenance windows, making it an excellent solution for organizations that require maximum availability and operational efficiency.

Manufacturer Details of Cisco WS-C6503-E-FAN

• Manufacturer: Cisco
• Part Number: WS-C6503-E-FAN
• Product Category: Chassis Fan Tray
• Application: Enterprise Network Cooling Module

Technical Specifications

Chassis Compatibility

• Compatible only with Cisco Catalyst 6503-E chassis
• Not supported on legacy Cisco Catalyst 6503 platforms
• Designed for precise airflow optimization

Cooling Architecture Benefits

• Four integrated high-performance cooling fans
• Balanced airflow throughout the chassis
• Improved thermal efficiency
• Supports continuous network availability
• Enhances hardware longevity

Hot-Swappable Replacement Capability

• 100% hot-swappable module
• Supports Online Insertion and Removal (OIR)
• No complete system shutdown required
• Ideal for high-availability environments
• Reduces planned maintenance windows

Environmental Specifications

Operating Temperature

• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Designed for continuous enterprise operation
• Maintains stable cooling under sustained workloads

Storage Temperature

• Storage Temperature: -40°F to 167°F (-40°C to 75°C)
• Suitable for warehouse and logistics environments
• Protects component integrity during storage

Humidity Support

• Relative Humidity: 10% to 90% non-condensing
• Reliable performance in enterprise server rooms
• Supports controlled networking environments

Altitude Certification

• Maximum Operating Altitude: 10,000 ft (3,048 m)
• Maintains cooling efficiency at higher elevations
• Supports enterprise deployments worldwide

Key Features

• Original Cisco enterprise cooling solution
• Purpose-built for Cisco Catalyst 6503-E chassis
• Four integrated high-speed internal cooling fans
• Optimized airflow for enhanced thermal management
• Hot-swappable design supporting Online Insertion and Removal
• Tool-free installation with captive thumbscrews
• Integrated LED health monitoring
• Reliable operation in demanding network environments
• Supports continuous business-critical uptime
• Engineered for long-term operational stability

Product Overview

• Designed exclusively for Cisco Catalyst 6503-E chassis
• Integrated four-fan cooling architecture
• Supports continuous enterprise network operations
• Hot-swappable for uninterrupted maintenance
• Toolless slide-in installation with captive thumbscrews
• Built for long-term reliability and efficient thermal performance

Benefits of Choosing Cisco WS-C6503-E-FAN

• Maintains optimal internal switch temperatures
• Reduces the risk of overheating and hardware failures
• Supports maximum network uptime through hot-swappable maintenance
• Simplifies servicing with modular installation
• Provides immediate hardware status through LED diagnostics
• Improves long-term reliability of Cisco Catalyst infrastructure
• Designed specifically for enterprise-grade networking environments
• Ensures dependable cooling performance during continuous operation

Cisco WS-C6503-E-FAN Catalyst Chassis Fan Tray

The Cisco WS-C6503-E-FAN Catalyst Chassis Fan Tray is an essential hardware component engineered to maintain optimal operating temperatures within compatible Cisco Catalyst chassis. As enterprise networking environments continue to demand greater bandwidth, uninterrupted uptime, and continuous processing power, thermal management becomes one of the most critical aspects of infrastructure reliability. A dedicated chassis fan tray ensures that internal switching modules, supervisor engines, power supplies, and interface cards receive consistent airflow, preventing excessive heat accumulation that can negatively impact performance and hardware longevity.

Designed specifically for the Cisco Catalyst 6503-E platform, the WS-C6503-E-FAN provides efficient cooling performance while maintaining compatibility with the architectural requirements of enterprise-class switching systems. The fan tray is manufactured to deliver balanced airflow across every critical internal component, ensuring that networking hardware operates within Cisco-recommended temperature thresholds throughout varying workload conditions.

Organizations deploying campus networks, core switching infrastructures, distribution layers, or data center aggregation platforms depend on reliable cooling systems to maximize equipment availability. The WS-C6503-E-FAN serves as a fundamental part of that infrastructure by supporting continuous operation while helping reduce thermal stress on expensive networking investments.

Purpose of the Cisco WS-C6503-E-FAN Fan Tray

The primary purpose of the Cisco WS-C6503-E-FAN is to provide continuous airflow throughout the Catalyst chassis. Modern networking equipment generates significant heat due to high-performance processors, ASICs, switching fabrics, supervisor engines, optical interfaces, and power conversion systems. Without adequate airflow, these components may experience overheating, leading to degraded network performance, unexpected shutdowns, shortened hardware lifespan, or complete hardware failure.

Rather than acting as a general-purpose cooling solution, this fan tray has been specifically engineered for the airflow patterns, internal layout, and thermal requirements of the Cisco Catalyst 6503-E chassis. Every airflow channel is carefully directed to maximize cooling efficiency while minimizing unnecessary power consumption.

Importance of Continuous Cooling

Enterprise networking equipment frequently operates twenty-four hours a day, seven days a week. Continuous cooling allows switches to sustain heavy workloads generated by thousands of users, cloud applications, virtual machines, unified communications, storage traffic, and mission-critical business services. Stable operating temperatures directly contribute to system reliability, consistent packet forwarding performance, and predictable network availability.

Protection of Critical Components

The fan tray protects numerous internal hardware elements simultaneously. Supervisor engines rely on effective cooling for processing routing tables, forwarding decisions, and protocol management. Switching modules require airflow to dissipate heat generated by high-speed packet forwarding ASICs. Power supplies also benefit from controlled airflow that prevents overheating during periods of peak electrical demand.

Designed Specifically for Cisco Catalyst 6503-E Chassis

The WS-C6503-E-FAN has been engineered exclusively for compatibility with the Cisco Catalyst 6503-E switching platform. This dedicated design ensures physical compatibility, electrical integration, airflow optimization, and operational reliability. Unlike generic cooling devices, Cisco-designed fan trays match the exact thermal specifications established during chassis engineering.

Precision Mechanical Compatibility

The fan tray fits securely into the designated chassis location, allowing quick installation while maintaining proper alignment with airflow channels. Secure mounting helps eliminate vibration while ensuring the cooling system operates efficiently under continuous enterprise workloads.

Integrated Thermal Design

Every Catalyst chassis incorporates a carefully planned thermal architecture. The WS-C6503-E-FAN complements that design by directing airflow exactly where it is needed, reducing temperature variation across different hardware modules.

Enterprise Cooling Architecture

Balanced Air Distribution

Balanced airflow is essential because networking modules positioned throughout the chassis generate different levels of heat. The fan tray distributes cooling air evenly, reducing thermal hotspots that can occur near processors, switching ASICs, optical transceivers, or power conversion circuits.

Efficient Heat Dissipation

Heat generated during network operation is continuously removed from the chassis interior through controlled airflow. Efficient heat removal supports higher switching performance while reducing the risk of thermal throttling or hardware protection mechanisms activating during heavy traffic loads.

Continuous Environmental Stability

Maintaining a stable internal temperature contributes to predictable hardware behavior. Components operating within recommended thermal ranges experience less electrical stress and improved long-term reliability.

Performance Benefits of Proper Chassis Cooling

Improved System Stability

Stable temperatures reduce the likelihood of unexpected hardware resets, system errors, or thermal shutdown events. Organizations depending on uninterrupted network availability benefit from cooling systems designed specifically for enterprise switching environments.

Longer Hardware Lifespan

Electronic components generally perform better over extended periods when exposed to lower operating temperatures. Effective cooling minimizes expansion and contraction caused by repeated heating cycles, helping preserve solder joints, connectors, processors, and integrated circuits.

Higher Network Availability

Reliable airflow supports uninterrupted operation of network infrastructure supporting users, servers, storage systems, cloud connectivity, security appliances, and communication platforms. Continuous cooling contributes directly to business continuity.

Compatibility with Enterprise Networking Environments

Campus Networks

Large educational institutions, government agencies, hospitals, and corporate campuses frequently deploy Cisco Catalyst chassis switches as core or distribution platforms. The WS-C6503-E-FAN supports reliable operation across these demanding environments where uninterrupted connectivity remains essential.

Data Center Infrastructure

Within data centers, Catalyst switches often aggregate server connectivity and interconnect storage, virtualization platforms, and network services. The fan tray helps maintain operational temperatures despite high-density equipment deployments.

Branch Office Deployments

Organizations operating distributed branch offices benefit from dependable chassis cooling that minimizes maintenance requirements while supporting continuous connectivity between remote locations and centralized data centers.

Role in High Availability Network Design

Supporting Continuous Operations

High-availability network architectures depend on every infrastructure component functioning correctly. Cooling systems play an essential role because excessive temperatures may impact switching capacity or trigger protective shutdown mechanisms.

Reducing Operational Risk

Consistent airflow minimizes temperature fluctuations that could otherwise contribute to unexpected hardware failures. Lower operational risk translates into greater confidence for organizations managing mission-critical applications.

Protecting Business-Critical Services

Voice communications, enterprise applications, cloud connectivity, security monitoring, virtualization, and database access all rely on stable network infrastructure. Reliable cooling supports these services by helping ensure continuous switch operation.

Engineering Quality of Cisco Cooling Components

Purpose-Built Manufacturing

Cisco designs enterprise hardware with strict quality standards intended for demanding business environments. The WS-C6503-E-FAN reflects these engineering principles through precise mechanical construction, optimized airflow characteristics, and dependable long-term operation.

Thermal Optimization

The cooling system is designed to deliver airflow that aligns with the internal architecture of the Catalyst chassis rather than relying on generalized cooling methods. This targeted approach improves efficiency while maintaining proper operating conditions for every installed module.

Reliable Component Integration

The fan tray integrates seamlessly with chassis monitoring systems that supervise hardware health, environmental conditions, and operational status. Such integration simplifies infrastructure management while supporting proactive maintenance practices.

Operational Advantages for IT Administrators

Predictable Performance

Purpose-built cooling solutions provide consistent airflow throughout varying traffic loads, allowing administrators to maintain confidence in infrastructure stability during periods of increased network demand.

Reduced Downtime

Reliable thermal management helps reduce temperature-related service interruptions, lowering maintenance costs and improving operational efficiency across enterprise networks.

Supporting Modern Enterprise Applications

Cloud Connectivity

Organizations increasingly depend on hybrid cloud environments that require uninterrupted access between on-premises infrastructure and cloud platforms. Stable chassis cooling supports network hardware responsible for maintaining these critical connections.

Unified Communications

Voice, video conferencing, messaging, and collaboration platforms generate continuous network traffic requiring dependable switching performance. Proper cooling helps maintain consistent packet forwarding capabilities that contribute to communication quality.

Virtualized Infrastructure

Virtualization platforms concentrate significant workloads onto fewer physical servers, increasing network traffic density. Enterprise switching infrastructure equipped with effective cooling remains capable of supporting these demanding environments.

Scalability for Growing Enterprise Networks

Supporting Infrastructure Expansion

As organizations expand network capacity through additional modules, higher bandwidth interfaces, and increased switching requirements, thermal demands also increase. A properly functioning WS-C6503-E-FAN helps maintain the environmental stability necessary for scalable infrastructure growth.

Meeting Long-Term Operational Requirements

Enterprise hardware investments often remain operational for many years. Reliable cooling solutions protect these investments by minimizing temperature-related wear throughout extended deployment cycles.

Foundation for Reliable Network Services

Although often overlooked compared to processors, interface modules, or switching fabrics, the chassis fan tray represents one of the most important infrastructure components supporting long-term network reliability. Consistent airflow preserves hardware integrity, enhances operational stability, improves equipment longevity, and helps organizations maintain dependable connectivity across every layer of their enterprise networking environment.
