WS-X45-SUP8-E= Cisco Catalyst Control Processor Module 4500 E-Series Supervisor

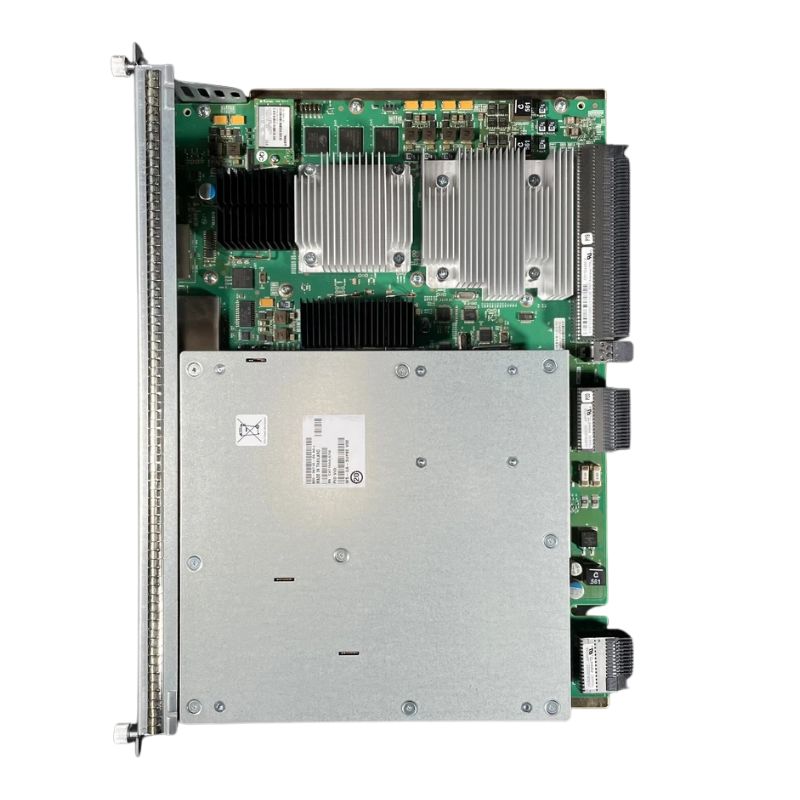

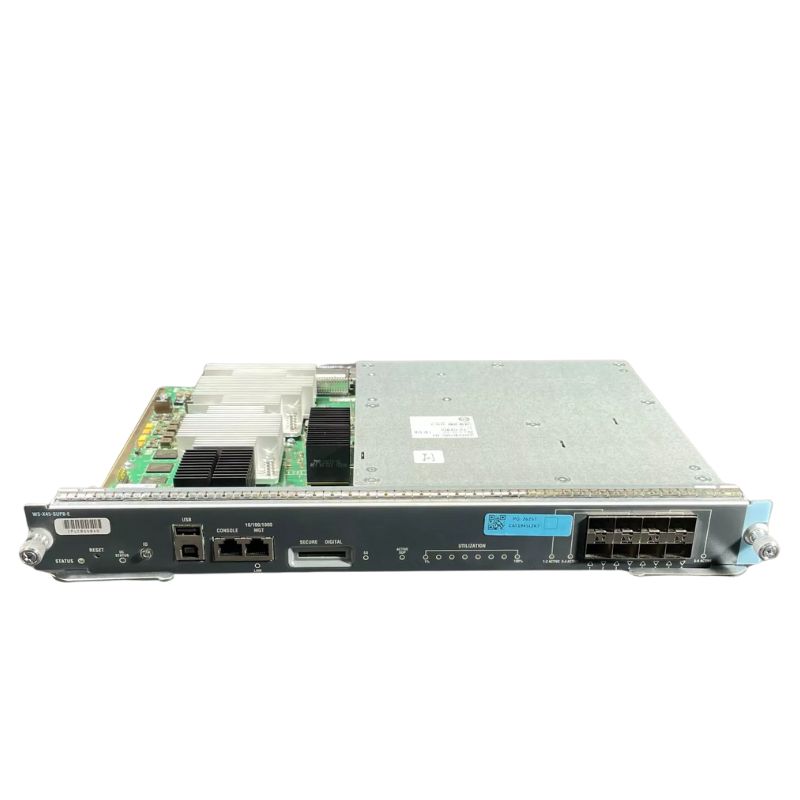

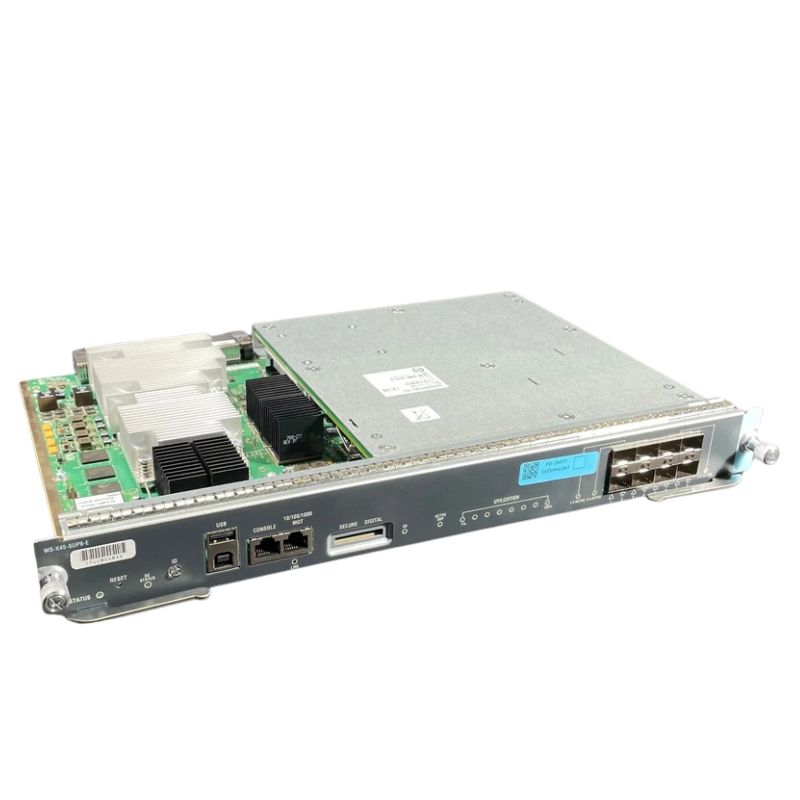

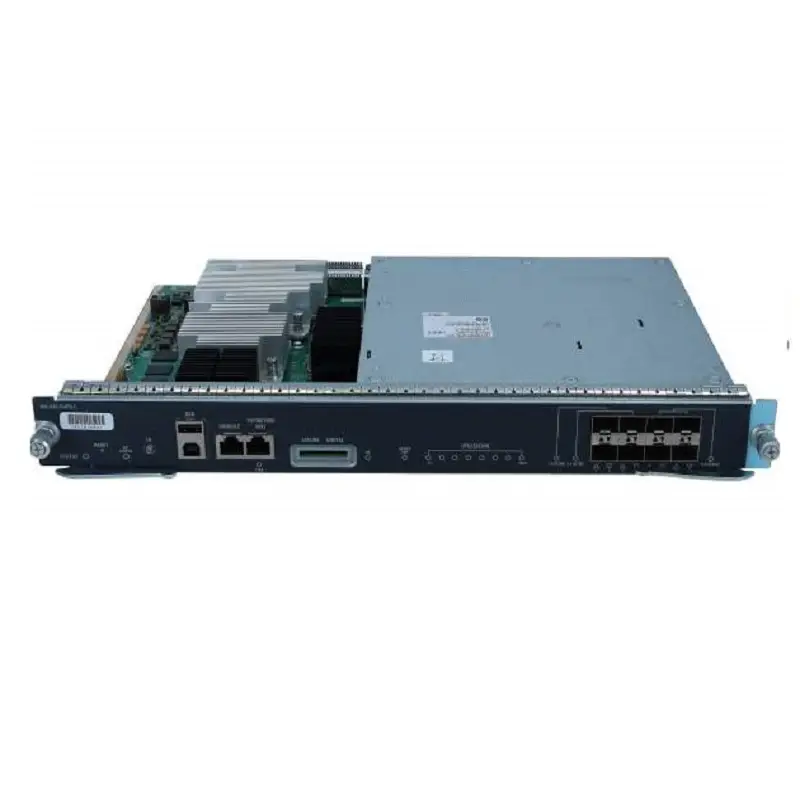

Cisco WS-X45-SUP8-E= Control Processor Module

The Cisco WS-X45-SUP8-E= Catalyst 4500 E-Series Expansion Module is a powerful control processor designed to enhance the capabilities of Catalyst 4500 E-Series switches. Built for enterprise-class networking, this supervisor engine delivers high switching performance, scalable routing capacity, and advanced protocol support for mission-critical infrastructure deployments.

General Information

• Manufacturer: Cisco
• Part Number: WS-X45-SUP8-E=
• Device Type: Control Processor
• Series: Catalyst 4500 E-Series

Core Hardware Specifications

• Form Factor: Plug-in supervisor module
• Processor Speed: 2.2 GHz high-performance CPU
• System Memory: 4 GB RAM optimized for routing and switching processes

Performance Metrics

• Total Switching Capacity: 928 Gbps
• Per-Slot Switching Capacity: 48 Gbps
• Designed for: High-throughput enterprise networks

Routing Capabilities

• IPv4 Routing Performance: 250 Mbps
• IPv6 Routing Performance: 125 Mbps
• Optimized for: Mixed protocol enterprise environments

Capacity and Scaling Features

• QoS Hardware Entries: 128,000
• Security Service Entries: 128,000
• VLAN Support: Up to 4,094 VLANs
• ARP Table Entries: 47,000
• MAC Address Capacity: 55,000

Protocol and Routing Features

• IPv4 Routes: 256,000 entries
• IPv6 Routes: 128,000 entries
• SVI Support: Up to 4,094 Switched Virtual Interfaces
• Spanning Tree Instances: Up to 10,000

Cisco WS-X45-SUP8-E= Catalyst Expansion Module Overview

The Cisco WS-X45-SUP8-E= Catalyst 4500 E-Series Expansion Module represents a high-performance supervisor engine designed to enhance the capabilities of modular enterprise switching environments. Built for scalability, resiliency, and advanced network control, this supervisor module is engineered to support mission-critical campus and data center deployments where uptime and deterministic performance are essential. As part of the broader Catalyst 4500 ecosystem developed by Cisco, it plays a central role in delivering intelligent switching, high-speed forwarding, and robust network services integration.

This supervisor module is specifically designed for Catalyst 4500-E chassis platforms, enabling advanced Layer 2 and Layer 3 functionality, hardware-based forwarding, and seamless integration with enterprise routing protocols. Its architecture supports evolving network demands, ensuring that organizations can scale their infrastructure without compromising operational stability or performance consistency.

Core Design and Functional Capabilities

High-Availability Supervisor Architecture

The WS-X45-SUP8-E= is built with redundancy and resiliency at its core. It supports stateful failover configurations when deployed in dual-supervisor setups, allowing uninterrupted network services even during hardware maintenance or unexpected failures. This ensures that enterprise networks remain operational under strict service-level agreements.

Integrated Control and Data Plane Optimization

The module integrates advanced control-plane processing with optimized data-plane forwarding, enabling low-latency packet handling and efficient bandwidth utilization. It leverages hardware-based switching engines to offload CPU-intensive tasks, improving overall system throughput and reducing bottlenecks in high-traffic environments.

Scalable System Management Integration

Designed for centralized management, the supervisor engine supports comprehensive system monitoring, configuration management, and automated network policy enforcement. This allows network administrators to maintain visibility across large-scale deployments while ensuring consistent policy application across all connected modules and line cards.

Performance Optimization and Switching Efficiency

Advanced Forwarding Capabilities

The WS-X45-SUP8-E= enhances switching performance through optimized forwarding tables and high-speed packet processing pipelines. It is capable of handling large MAC address tables and extensive routing information bases, making it suitable for enterprise environments with dense endpoint connectivity and complex routing requirements.

Multilayer Switching Intelligence

The module supports multilayer switching, enabling efficient processing of both Layer 2 switching and Layer 3 routing functions. This allows traffic to be intelligently routed or switched based on network policies, improving overall performance and reducing latency across enterprise networks.

Traffic Engineering and QoS Integration

Quality of Service (QoS) features integrated into the supervisor engine allow granular traffic prioritization. This ensures that latency-sensitive applications such as voice, video conferencing, and real-time data systems receive prioritized bandwidth allocation, while less critical traffic is managed efficiently to avoid congestion.

Hardware Architecture and System Integration

Modular Chassis Compatibility

The WS-X45-SUP8-E= is designed specifically for Catalyst 4500-E chassis systems, ensuring seamless integration with compatible line cards and power systems. Its modular design enables flexible deployment configurations, allowing enterprises to tailor their switching infrastructure based on workload demands and expansion requirements.

Redundant Power and Cooling Support

To maintain high availability, the module integrates with redundant power supplies and optimized thermal systems within the chassis. This ensures continuous operation even under high-load conditions or partial system failures, reinforcing enterprise-grade reliability standards.

Software Intelligence and Network Services

Layer 3 Routing Protocol Support

The module supports a wide range of dynamic routing protocols, enabling intelligent path selection and adaptive network behavior. This includes enterprise routing standards that ensure compatibility with complex hierarchical network designs.

Security and Access Control Integration

Security remains a critical component of the WS-X45-SUP8-E= architecture. It supports access control mechanisms, policy-based routing, and network segmentation capabilities that help protect enterprise infrastructure from unauthorized access and potential threats.

Network Automation and Policy Enforcement

The supervisor engine enables automated policy enforcement across connected devices, ensuring consistent configuration and reducing administrative overhead. This is particularly beneficial in large-scale enterprise environments where manual configuration would be inefficient and error-prone.

Enterprise Deployment Scenarios

Campus Network Backbone Deployment

In enterprise campus environments, the WS-X45-SUP8-E= is commonly deployed as part of the core switching infrastructure. It provides the necessary throughput and resiliency to support thousands of connected endpoints across multiple buildings and departments.

Data Center Aggregation Layer

Within data center architectures, the supervisor module functions as an aggregation point for high-volume traffic flows. It ensures efficient distribution of data between server clusters, storage systems, and external network gateways.

High-Density Enterprise Edge Switching

For enterprise edge deployments, the module supports high-density connectivity and advanced traffic filtering, ensuring secure and efficient data exchange between internal systems and external networks.

Scalability and Expansion Flexibility

The WS-X45-SUP8-E= supports multiple line card configurations, enabling organizations to expand port density and interface types as needed. This modular scalability ensures long-term adaptability as network demands evolve.

Future-Proof Network Infrastructure Design

Designed with extensibility in mind, the module allows enterprises to upgrade system capabilities without replacing the entire switching infrastructure. This reduces capital expenditure while extending system lifecycle value.

Interoperability with Legacy and Modern Systems

The supervisor engine maintains compatibility with both legacy Catalyst components and newer networking technologies, ensuring smooth integration during infrastructure modernization projects.

Fault Tolerance and Recovery Mechanisms

Built-in fault detection and recovery systems ensure that network operations continue smoothly even in the event of hardware anomalies or configuration issues. This enhances overall system resilience.

Streamlined Administrative Management

Administrative workflows are simplified through centralized configuration tools and automated system reporting features. This reduces operational complexity and improves network management efficiency.

Latency Reduction Strategies

Through hardware acceleration and optimized switching logic, the WS-X45-SUP8-E= minimizes latency across data paths, making it suitable for applications requiring real-time responsiveness.

Bandwidth Management and Allocation

Bandwidth allocation mechanisms ensure that critical applications receive sufficient network resources while maintaining fairness across all connected systems.

Role in Modern Enterprise Networking Ecosystems

Integration with Cloud and Hybrid Architectures

The WS-X45-SUP8-E= plays a supporting role in hybrid network architectures where on-premises infrastructure integrates with cloud-based services. It ensures stable connectivity and efficient data transfer between environments.

Support for Digital Transformation Initiatives

As enterprises adopt digital transformation strategies, the need for scalable and intelligent switching infrastructure becomes critical. This supervisor module provides the foundation for supporting such initiatives through high-performance networking and flexible configuration capabilities.

Enhanced Visibility and Network Analytics

The system supports advanced network analytics capabilities that provide insights into traffic patterns, performance trends, and system utilization, enabling data-driven decision-making for IT teams.
