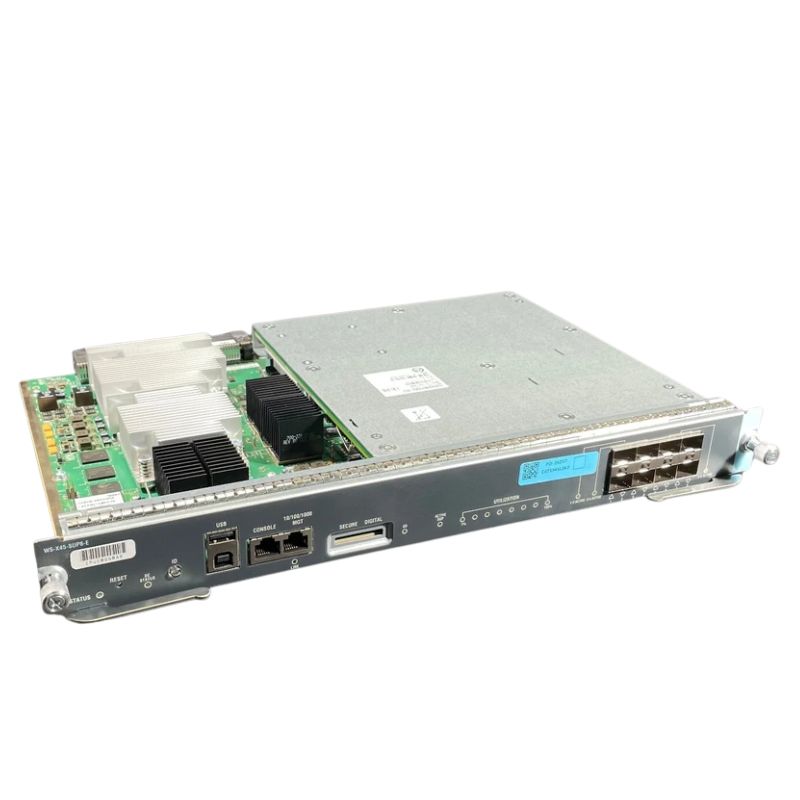

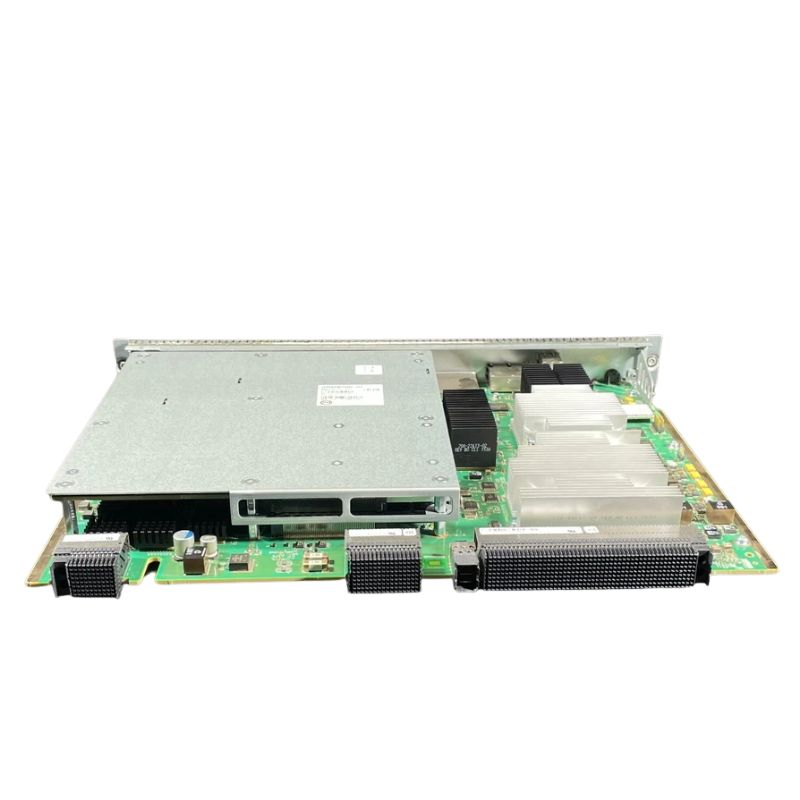

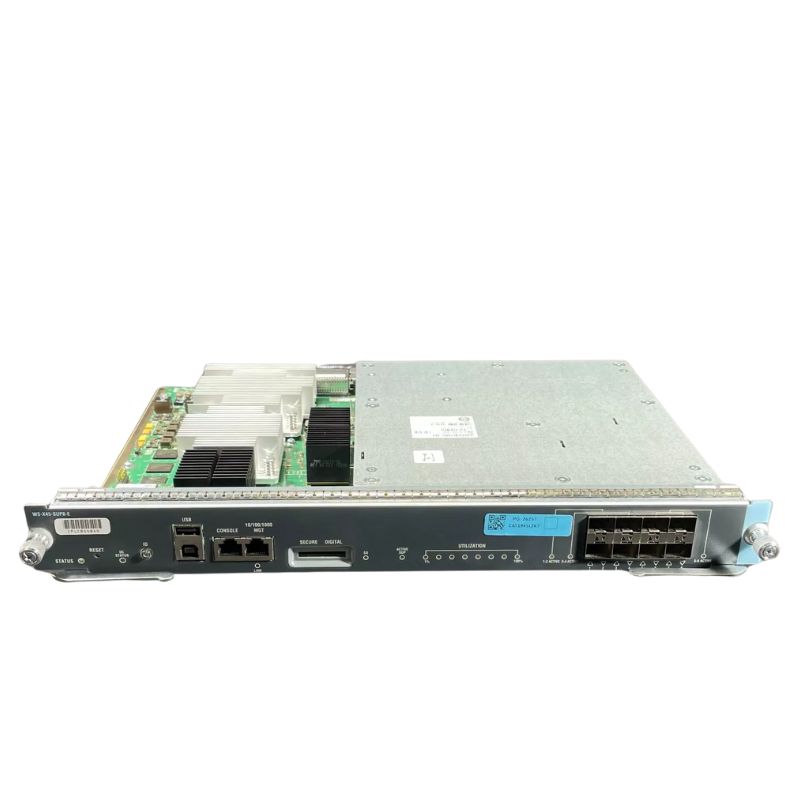

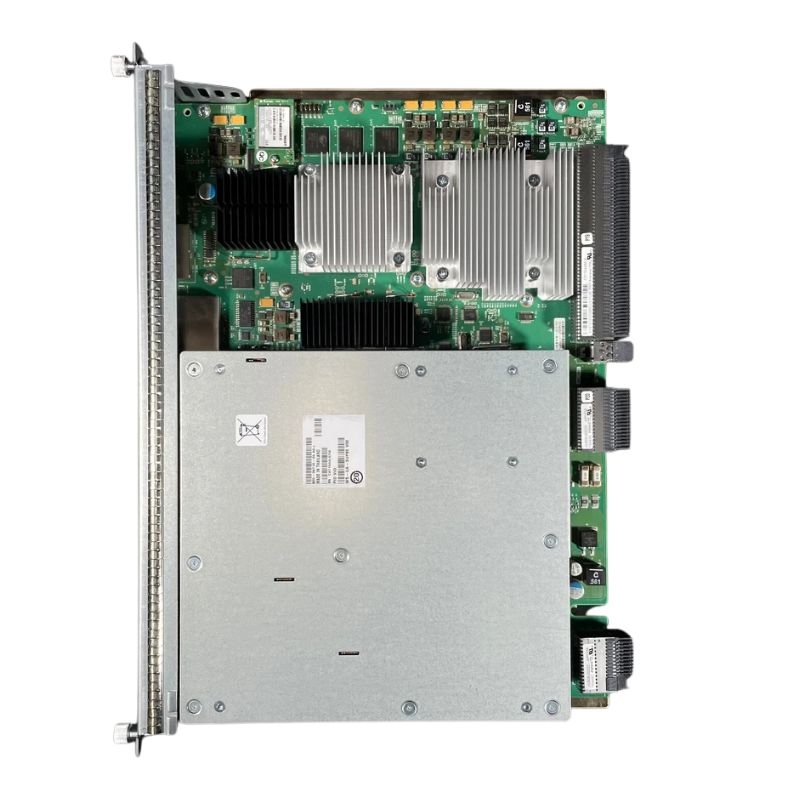

WS-X45-SUP8-E= Cisco Control Processor Expansion Module

Cisco WS-X45-SUP8-E= Catalyst E-Series Processor Module

The Cisco WS-X45-SUP8-E= is a high-performance control processor and expansion module designed for enterprise-class switching environments. Built for scalability, reliability, and advanced routing intelligence, this module enhances the capabilities of Cisco Catalyst 4500 E-Series chassis deployments in modern data centers and campus networks.

General Information

• Manufacturer: Cisco
• Product Category: Control Processor
• Series: Catalyst 4500 E-Series
• Part Number: WS-X45-SUP8-E=

Form Factor and Integration

• Type: Plug-in supervisor module
• Designed for Catalyst 4500 E-Series chassis compatibility
• Hot-insertion capable for optimized maintenance operations

Processing Power

• CPU Speed: 2.2 GHz high-performance processor
• Optimized for routing intelligence and switching control
• Enhanced multitasking for large-scale enterprise networks

System Memory

• Installed RAM: 4 GB
• Supports control plane operations and routing table management

Switching Performance and Throughput

Total System Capacity

• Aggregate Switching Capacity: 928 Gbps
• Designed for high-density traffic environments
• Supports large-scale data center switching workloads

Per-Slot Bandwidth Performance

• Per-slot Switching Capacity: 48 Gbps
• Efficient traffic distribution across modular slots

Traffic Optimization Benefits

• Low latency forwarding
• High throughput data processing
• Optimized for enterprise backbone networks

Routing Performance Capabilities

IPv4 and IPv6 Processing Speed

• IPv4 Routing Speed: 250 Mbps
• IPv6 Routing Speed: 125 Mbps

Routing Efficiency Highlights

• Supports mixed IPv4/IPv6 environments
• Designed for scalable enterprise routing infrastructures

Scalability and Network Capacity

QoS and Security Entry Support

• Quality of Service (QoS) Hardware Entries: 128,000
• Security Services Entries: 128,000
• Enables granular traffic prioritization and filtering

Large-Scale Network Addressing

• VLAN Support: up to 4,094 virtual networks
• ARP Table Capacity: 47,000 entries
• MAC Address Support: 55,000 entries

Routing Table Scalability

• IPv4 Routes: up to 256,000 entries
• IPv6 Routes: up to 128,000 entries

Advanced Protocol and Switching Features

Spanning Tree and Layer 2 Intelligence

• Spanning Tree Protocol Instances: 10,000
• Optimized loop prevention mechanisms
• Enhanced redundancy for enterprise networks

Switched Virtual Interfaces (SVI)

• Supports up to 4,094 SVIs
• Enables advanced VLAN routing architecture

Network Virtualization Capabilities

• Supports large-scale segmentation
• Ideal for multi-tenant enterprise environments

Enterprise Use Cases and Deployment Scenarios

Data Center Switching

• High-density server connectivity
• Core aggregation switching layer

Campus Network Infrastructure

• Enterprise LAN backbone integration
• Scalable VLAN segmentation support

Service Provider Edge Applications

• Traffic aggregation and routing control
• High-capacity routing environments

Operational Advantages

Performance Benefits

• High-speed packet processing engine
• Efficient control plane management
• Optimized for large-scale routing tables

Reliability and Stability

• Carrier-grade system reliability
• Redundant-ready architecture support
• Continuous uptime optimization

Network Efficiency Improvements

• Reduced latency across switching fabric
• Enhanced throughput balancing
• Improved QoS enforcement mechanisms

Key Specifications

• Processor Speed: 2.2 GHz
• Memory: 4 GB RAM
• Switching Capacity: 928 Gbps
• Per-slot Capacity: 48 Gbps

Network Scalability Metrics

• IPv4 Routes: 256,000
• IPv6 Routes: 128,000
• MAC Entries: 55,000
• ARP Entries: 47,000

Network Expansion Capability

• Supports evolving enterprise infrastructures
• Designed for future-ready scalability
• Enhances modular Catalyst 4500 systems

Cisco WS-X45-SUP8-E= Catalyst Expansion Module Overview

Enterprise-Class Supervisor Engine Architecture for Catalyst 4500 Platforms

The Cisco WS-X45-SUP8-E= Catalyst 4500 E-Series Expansion Module is a high-performance supervisor engine designed to enhance the capabilities of enterprise-grade modular switching systems. this supervisor module plays a critical role in delivering scalable Layer 2 and Layer 3 services, advanced routing intelligence, and resilient network control functions within Catalyst 4500 E-Series chassis deployments. As modern enterprise networks demand higher throughput, improved redundancy, and seamless service integration, this supervisor engine provides a robust foundation for campus aggregation, enterprise core, and mission-critical switching environments.

Positioned as part of Cisco’s modular switching ecosystem, the WS-X45-SUP8-E= integrates control plane processing, forwarding intelligence, and system management into a single supervisory architecture. It ensures consistent network performance even under high traffic loads while supporting advanced features such as virtualization, high availability, and multi-service integration.

Core Functional Role in Catalyst 4500 E-Series Systems

Within the Catalyst 4500 E-Series, the supervisor engine acts as the central processing unit of the chassis. It governs system operations, manages switching fabrics, and coordinates line card communication. The WS-X45-SUP8-E= specifically enhances system responsiveness by optimizing packet processing workflows and enabling efficient distribution of network traffic across available hardware resources.

Control Plane and Data Plane Coordination

The supervisor engine ensures tight coordination between the control plane and data plane, allowing routing decisions and switching operations to occur with minimal latency. This separation of responsibilities ensures that the system remains highly responsive even during peak workloads or in complex enterprise routing scenarios.

High-Performance Switching and Routing Capabilities

Advanced Layer 2 and Layer 3 Processing

The WS-X45-SUP8-E= expansion module is engineered to handle both Layer 2 switching and Layer 3 routing tasks efficiently. It supports high-speed forwarding mechanisms, enabling seamless data transfer across VLANs, subnets, and distributed enterprise networks.

Scalable Packet Forwarding Architecture

Its forwarding architecture is designed to scale in accordance with enterprise traffic growth. By leveraging hardware-assisted switching, the module reduces dependency on software-based processing, ensuring consistent throughput and reduced packet loss in demanding network environments.

Optimized Traffic Handling for Enterprise Workloads

In large-scale deployments, traffic patterns often fluctuate significantly. The supervisor engine dynamically adapts to these conditions, ensuring that mission-critical applications such as unified communications, virtualization workloads, and cloud-based services maintain stable performance levels.

Redundancy and High Availability Design

Resilient Network Infrastructure Support

High availability is a key design principle of the Cisco Catalyst 4500 E-Series platform. The WS-X45-SUP8-E= supervisor module supports redundant configurations that allow failover mechanisms to activate automatically in the event of hardware or software disruptions.

Network Continuity in Mission-Critical Environments

Industries such as finance, healthcare, and government rely heavily on uninterrupted network services. The WS-X45-SUP8-E= supports these requirements by providing robust redundancy features that maintain system integrity even under adverse conditions.

Scalability and Modular Expansion Capabilities

Flexible Deployment in Catalyst 4500 Chassis

The expansion module is designed for integration into Catalyst 4500 E-Series chassis systems, allowing organizations to scale network capacity according to evolving business needs. Its modular nature supports incremental upgrades without requiring full infrastructure replacement.

Support for Multiple Line Cards and Interfaces

The supervisor engine coordinates multiple line cards within the chassis, enabling high-density port expansion and diverse interface support. This allows enterprises to design flexible network architectures tailored to specific operational requirements.

Incremental Infrastructure Growth Strategy

Organizations can adopt a phased approach to network expansion using the Catalyst 4500 platform. The WS-X45-SUP8-E= ensures that each upgrade integrates seamlessly into the existing infrastructure without disrupting ongoing services.

Network Performance Optimization Features

Enhanced Throughput and Latency Reduction

The supervisor engine is engineered to optimize network throughput while minimizing latency across switching and routing operations. This ensures efficient handling of high-bandwidth applications such as data analytics, video conferencing, and cloud computing workloads.

Hardware-Accelerated Switching Performance

By leveraging hardware acceleration techniques, the module reduces the burden on CPU-based processing systems, enabling faster packet forwarding and improved overall system efficiency.

Traffic Prioritization and Quality of Service

Quality of Service (QoS) mechanisms allow administrators to prioritize critical network traffic. This ensures that latency-sensitive applications receive preferential treatment over less critical data flows.

Enterprise Network Security Integration

Comprehensive Security Enforcement Mechanisms

Security is a fundamental aspect of enterprise networking, and the WS-X45-SUP8-E= integrates multiple security enforcement features to protect data integrity and prevent unauthorized access. These features operate at both hardware and software levels to provide a multi-layered defense strategy.

Access Control and Policy Enforcement

The supervisor engine supports advanced access control mechanisms that allow administrators to define granular security policies. These policies regulate traffic flow, user authentication, and device access within the network infrastructure.

Threat Mitigation in Large-Scale Networks

In complex enterprise environments, potential threats can originate from both internal and external sources. The WS-X45-SUP8-E= helps mitigate these risks through integrated security features that monitor and control network activity in real time.

Operational Management and Network Visibility

Centralized Network Control and Monitoring

The supervisor engine provides centralized control capabilities that allow network administrators to manage system configurations, monitor performance metrics, and troubleshoot issues efficiently. This centralized approach simplifies network administration in large-scale deployments.

Automation and Network Orchestration Support

Modern enterprise networks increasingly rely on automation to improve efficiency. The WS-X45-SUP8-E= supports integration with orchestration systems that enable automated configuration, provisioning, and policy enforcement.

Hardware Reliability and Engineering Excellence

Robust Industrial-Grade Design

Designed for enterprise deployment, the WS-X45-SUP8-E= is built to withstand demanding operational environments. Its hardware architecture emphasizes durability, thermal efficiency, and long-term operational stability.

Thermal Management and Power Efficiency

Efficient thermal design ensures stable operation even under heavy workloads. The supervisor engine is optimized for power efficiency, reducing operational costs while maintaining high performance standards.

Deployment Scenarios and Use Cases

Enterprise Campus Networks

The WS-X45-SUP8-E= is widely deployed in enterprise campus environments where centralized switching and routing are required. It serves as a backbone component that connects multiple access layers and aggregation points.

Data Center Aggregation Layers

In data center environments, the supervisor engine helps manage aggregation layers that consolidate traffic from multiple server farms and storage systems, ensuring smooth data flow across infrastructure components.

Service Provider Edge Deployments

Service providers utilize the Catalyst 4500 platform for edge routing and service delivery. The WS-X45-SUP8-E= enhances these deployments by providing reliable control plane functionality and scalable routing performance.
