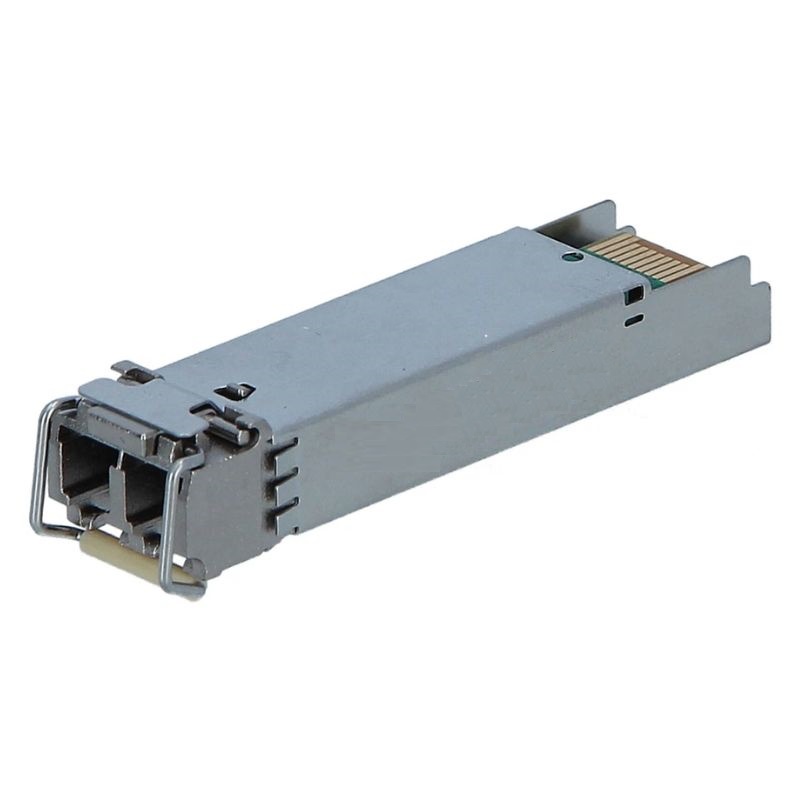

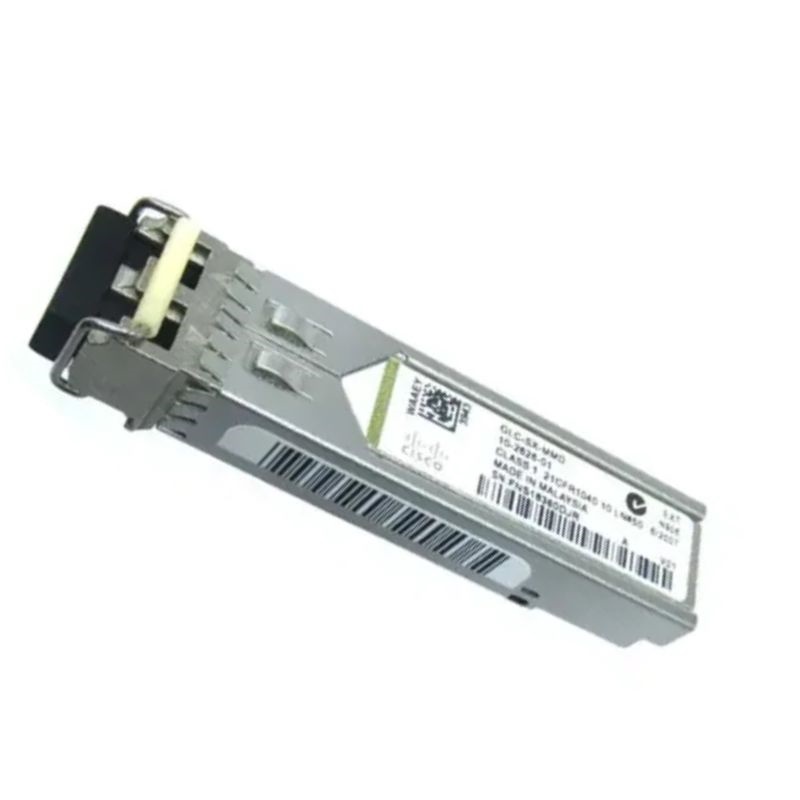

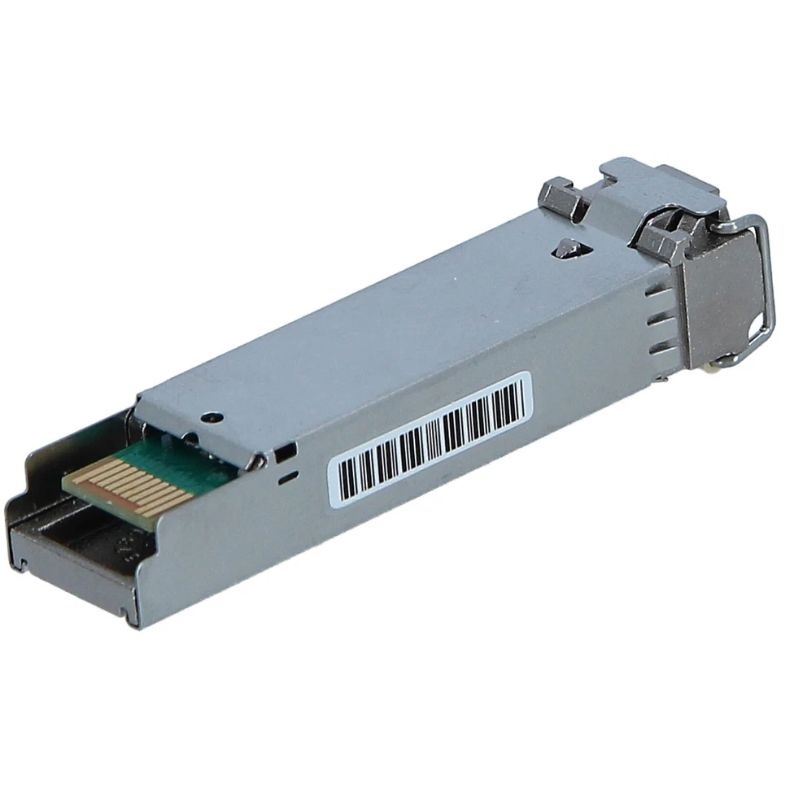

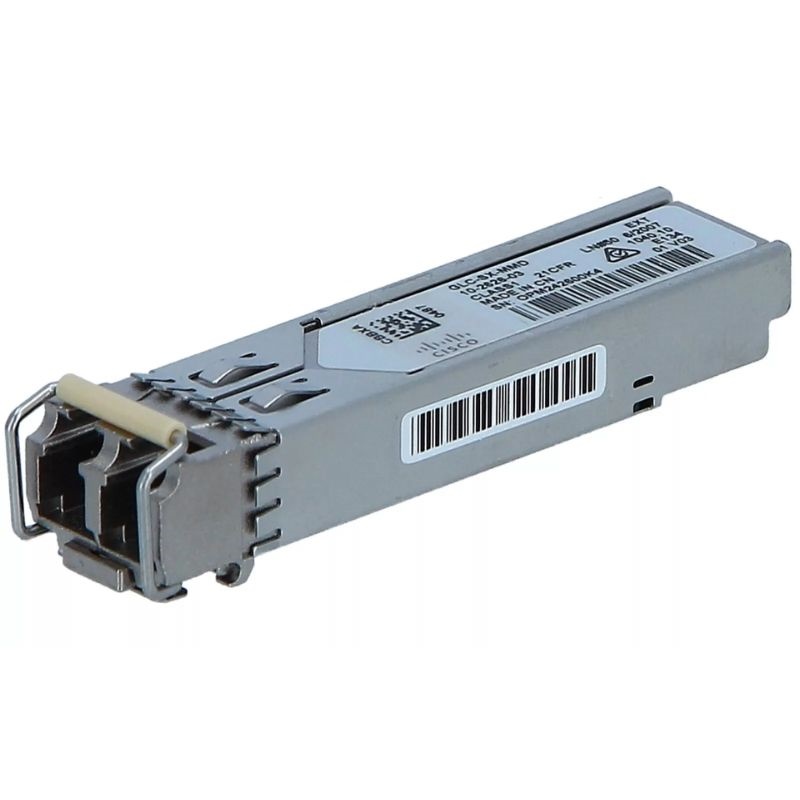

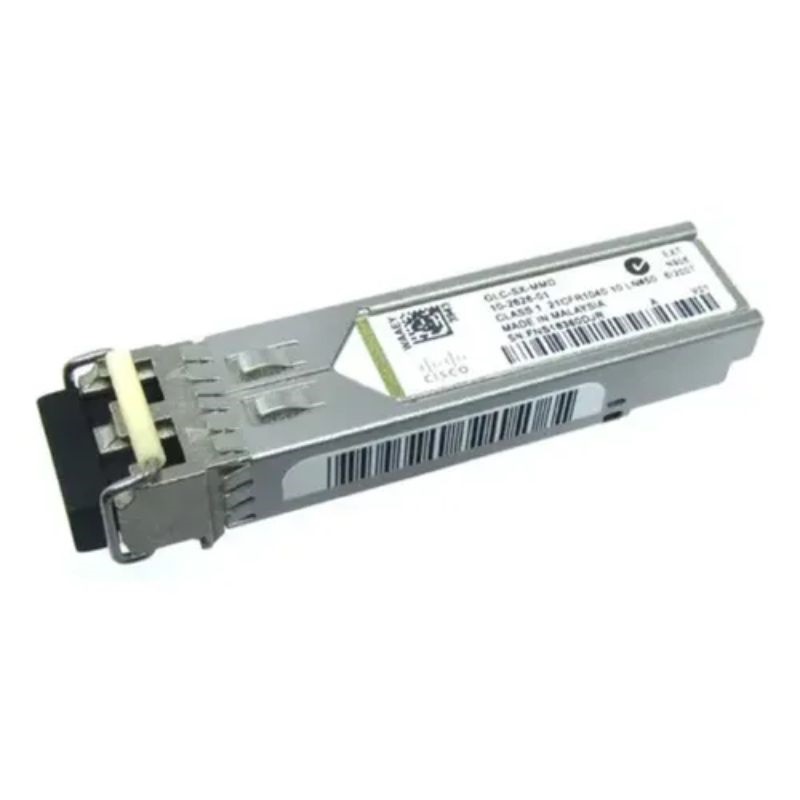

Cisco 10-2626-03 1000BASE-SX SFP Lc/pc Multi-mode Transceiver Module

Cisco 10-2626-03 1Gbps SFP LC/PC Transceiver Outline

The Cisco 10-2626-03 1Gbps SFP Transceiver Module is a compact, hot-pluggable optical networking component engineered for high-speed Gigabit Ethernet connectivity. Designed for enterprise-grade networking environments, this multi-mode fiber optic transceiver delivers reliable short-range data transmission with excellent stability and efficiency. It is widely used in switches, routers, and other networking devices requiring fast and consistent optical communication.

General Product Information

Manufacturer Details

• Brand: Cisco Systems
• Part Number: 10-2626-03
• Product Category: Small Form-Factor Pluggable (SFP) Transceiver Module
• Device Type: Optical Fiber Network Transceiver

Technical Specifications and Engineering Details

Physical Design and Build

• Form Factor: Plug-in SFP module
• Dimensions (W x D x H): 0.5 in x 2.2 in x 0.4 in
• Enclosure Type: Compact, rugged metal housing for durability

Network Performance

• Data Transfer Rate: 1 Gbps (Gigabit Ethernet)
• Supported Protocol: Gigabit Ethernet
• Cabling Standard: 1000BASE-SX

Optical Characteristics

• Wavelength: 850 nm
• Fiber Type: Multi-mode fiber optic cable
• Maximum Distance: Up to 1800 feet (approximately 550 meters)

Compliance and Standards

• IEEE 802.3z Gigabit Ethernet standard compliance
• IEEE 802.3ah specification support
• Laser Class 1 safety certification
• IEC 60825-1 international laser safety standard

Key Features of Cisco 10-2626-03 SFP Module

Hot-Swappable Design

• Supports live installation and removal without powering down the system
• Reduces network downtime during upgrades or maintenance
• Improves operational efficiency in data centers

Compatible Cisco Networking Equipment

Supported Routers

• Cisco 3825
• Cisco 3825 V3PN
• Cisco 3845
• Cisco 3845 V3PN
• Cisco 7301
• Cisco 7301 VAM2+

Supported Catalyst Switch Series

• Cisco Catalyst 2950 / 2950ST
• Cisco Catalyst 2960 / 2960G / 2960S
• Cisco Catalyst 2970G
• Cisco Catalyst 3560 / 3560E / 3560G / 3560V2 / 3560X
• Cisco Catalyst 3750 / 3750G

Enterprise Switching Platforms

• Cisco Catalyst 4500 Series
• Cisco Catalyst 4948
• Cisco Express 500 / 500G Series
• Cisco Supervisor Engine 720

Other Compatible Systems

• Cisco CSS 11503 / 11506
• Cisco ME 3400 Series
• Cisco 4924 / 6524 platforms
• Various Cisco integrated networking systems

Applications and Use Cases

Data Centers and Server Farms

• High-density server connectivity
• Switch-to-switch backbone communication
• Fiber optic aggregation networks

Campus and Educational Networks

• University network infrastructure
• Multi-building campus connectivity
• Secure internal communication systems

Performance Advantages

Stable Optical Signal Transmission

• Reduced packet loss over multi-mode fiber
• Consistent signal integrity across supported distances
• Improved network uptime and reliability

Operational Benefits

• Designed for continuous 24/7 operation
• Resistant to electromagnetic interference
• Stable performance under standard enterprise temperature ranges

Advantages of Cisco 10-2626-03 SFP Module

• High-speed 1Gbps Gigabit Ethernet performance
• Reliable 850nm multi-mode fiber transmission
• Broad Cisco device compatibility
• Compact and durable plug-in design
• Low power consumption with high efficiency
• Industry-standard compliance for maximum interoperability

Cisco 10-2626-03 1Gbps SFP Multi-mode Transceiver Module

The Cisco 10-2626-03 represents a critical component in modern high-speed Ethernet and fiber-optic networking infrastructures, designed to deliver stable, efficient, and scalable short-reach optical connectivity. This Small Form-Factor Pluggable (SFP) module is widely implemented in enterprise switching, data center interconnects, and backbone network distribution systems where reliable Gigabit Ethernet transmission is essential.

As part of a broader category of 1Gbps multi-mode optical transceivers, this module supports LC duplex connectors and PC (physical contact) polishing standards, ensuring optimized signal integrity, reduced insertion loss, and enhanced optical return loss performance. Its engineering focuses on interoperability with Cisco networking hardware, enabling seamless integration across switching platforms and modular routers that require hot-swappable optical interfaces.

Architecture and Engineering Design

The structural foundation of the Cisco 10-2626-03 SFP module is built upon precision optical alignment, semiconductor laser technology, and robust packaging that allows consistent performance in high-density networking environments. The module is designed in compliance with industry-standard SFP Multi-Source Agreement (MSA) specifications, which ensures compatibility with a wide range of networking equipment that adheres to similar optical and electrical interface standards.

Optical Transmission Framework

The optical transmission system within this module operates using multi-mode fiber technology, typically leveraging a 850nm or similar wavelength optimized for short-range data communication. This configuration allows high-speed signal propagation over distances suitable for enterprise LAN environments and data center racks, ensuring minimal signal attenuation across structured cabling systems.

Multi-mode fiber technology enables the transmission of multiple light paths simultaneously within the core, supporting efficient data throughput while maintaining cost-effectiveness in enterprise deployments. The design is particularly suitable for intra-building connections, server-to-switch links, and aggregation layer interconnections.

Electrical Interface and Signal Processing

On the electrical side, the module incorporates high-speed differential signal processing circuits that convert electrical Ethernet signals into optical output and vice versa. These circuits are optimized to reduce jitter, suppress noise, and maintain signal clarity even in electrically dense environments such as server rooms and data centers.

The integrated transceiver chipset is engineered for low power consumption, ensuring efficient thermal management within high-density switch chassis. This contributes to overall system stability and reduces cooling requirements in large-scale deployments.

Physical Design and LC/PC Connector Implementation

The Cisco 10-2626-03 SFP module uses LC duplex connectors, which are widely recognized for their compact form factor and reliable fiber alignment characteristics. LC connectors enable high-density port configurations on switches and patch panels, allowing network administrators to maximize port utilization within limited rack space.

LC Connector Advantages in Enterprise Networks

LC connectors provide superior mechanical stability and consistent optical performance compared to larger connector types. Their latch-based design ensures secure connection retention, minimizing the risk of accidental disconnection in high-vibration environments. This makes them particularly suitable for enterprise data centers, telecommunications hubs, and mission-critical networking environments.

PC Polishing Standard and Signal Integrity

The PC (physical contact) polishing standard used in this module ensures that fiber end-faces are precisely polished to minimize air gaps and optical reflection losses. This enhances signal clarity and reduces return loss, which is critical in maintaining high-quality Gigabit Ethernet transmission over multi-mode fiber.

By optimizing the fiber contact interface, the module achieves improved insertion loss performance, which directly contributes to stable data transmission and reduced packet loss in network communication.

Performance Characteristics of Cisco 10-2626-03 Optical Module

Performance is a defining factor in any optical transceiver module, and the Cisco 10-2626-03 is engineered to deliver consistent Gigabit Ethernet performance under varying operational conditions. It supports 1Gbps data rates, making it suitable for enterprise LAN backbones and access layer connectivity.

Data Throughput Efficiency

The module ensures stable 1 Gigabit per second throughput with minimal latency, supporting real-time applications such as VoIP, video conferencing, cloud-based workloads, and enterprise resource planning systems. Its ability to maintain low latency communication enhances user experience in distributed network environments.

Thermal and Power Efficiency

One of the core engineering strengths of this SFP module is its optimized power consumption profile. The module operates efficiently within standard Cisco switch power budgets, ensuring minimal heat generation. This allows for high-density deployment in modular switch chassis without compromising system cooling efficiency.

Signal Stability and Error Reduction

Advanced error correction and signal conditioning mechanisms embedded within the transceiver architecture help reduce bit error rates and improve overall link stability. This ensures consistent performance even in environments with moderate electromagnetic interference.

Compatibility Across Networking Devices and Infrastructure

The Cisco 10-2626-03 SFP module is designed to integrate seamlessly with a wide range of Cisco switching and routing platforms that support SFP-based optical interfaces. Its standardized design ensures interoperability across multiple generations of Cisco hardware, provided that firmware and platform compatibility requirements are met.

Enterprise Switching Platforms

In enterprise switching environments, this module is commonly deployed in access layer and distribution layer switches to facilitate high-speed uplinks between network segments. It plays a critical role in ensuring uninterrupted data flow between departmental networks and centralized data processing systems.

Data Center Connectivity

Within data center architectures, the module supports server-to-switch and switch-to-switch communication links, contributing to scalable leaf-spine network topologies. Its multi-mode fiber support makes it particularly suitable for short-reach interconnects within rack or row-level deployments.

Network Expansion Flexibility

The hot-swappable nature of SFP modules allows network administrators to expand or modify network architecture without significant downtime. This flexibility is essential in dynamic IT environments where scalability and adaptability are critical operational requirements.

Deployment Scenarios for Multi-mode SFP Transceivers

The Cisco 10-2626-03 module is widely used across multiple networking scenarios where short-range optical connectivity is required. Its deployment extends across enterprise campuses, campus backbone systems, and localized data aggregation networks.

Enterprise LAN Backbone Connectivity

In enterprise LAN backbones, this module enables high-speed connectivity between core switches and distribution switches. It ensures that data traffic is efficiently routed across different network segments without congestion or performance degradation.

Server Farm Integration

Server farms rely heavily on high-speed optical interconnects to maintain consistent communication between compute nodes and storage systems. The module supports these requirements by providing reliable and low-latency optical transmission channels.

Campus Network Infrastructure

In campus environments such as universities, corporate campuses, and research institutions, the module facilitates communication between geographically distributed buildings. Multi-mode fiber infrastructure supported by this module ensures cost-effective and efficient networking over moderate distances.

Advantages of Cisco 10-2626-03

The Cisco 10-2626-03 optical transceiver module offers several advantages that make it a preferred choice for enterprise networking environments. Its combination of performance, reliability, and compatibility ensures that it meets the demands of modern digital infrastructure.

Scalability and Flexibility

The modular design allows organizations to scale their network infrastructure efficiently by adding or replacing transceiver modules as required. This supports evolving business needs and technological upgrades without requiring major infrastructure overhauls.

Cost-Effective Optical Networking

Multi-mode fiber compatibility reduces deployment costs in short-range networking scenarios while maintaining high performance. This makes the module an economical choice for organizations seeking efficient bandwidth utilization.

Interoperability Within Cisco Ecosystem

Integration within the broader Cisco networking ecosystem ensures optimized performance, firmware compatibility, and reduced configuration complexity. This enhances operational efficiency and reduces troubleshooting overhead.

Role in High-Speed Optical Communication Evolution

The evolution of optical networking has been driven by the need for faster, more reliable, and more scalable data transmission technologies. Modules such as the Cisco 10-2626-03 play an essential role in bridging traditional copper-based networks with modern fiber-optic infrastructures.

As enterprises continue to adopt cloud computing, virtualization, and distributed applications, the demand for high-performance optical connectivity continues to increase. This module contributes to that transition by enabling stable and efficient Gigabit Ethernet connectivity across diverse networking environments.
