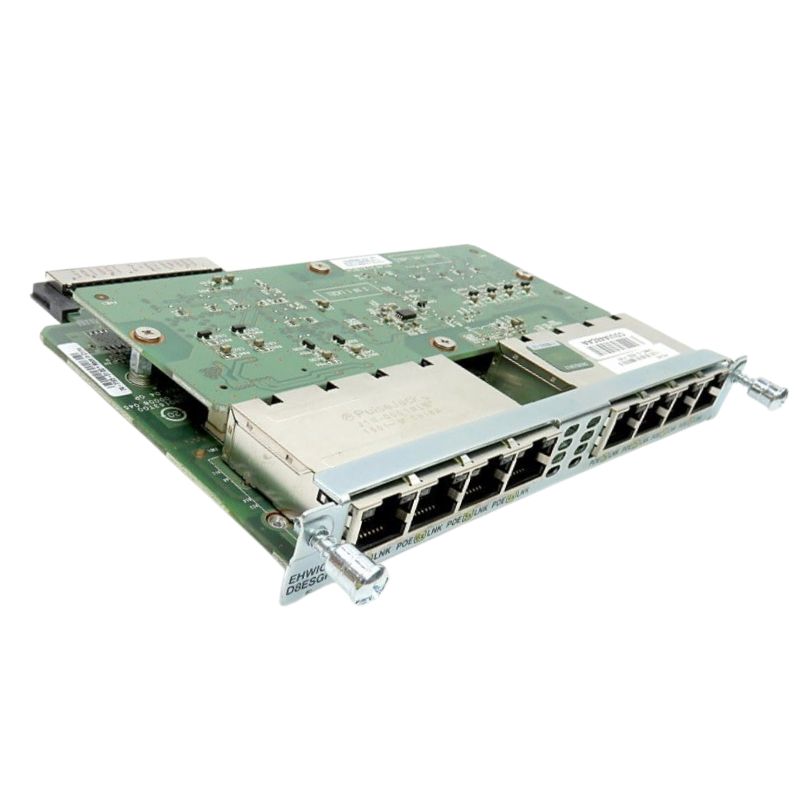

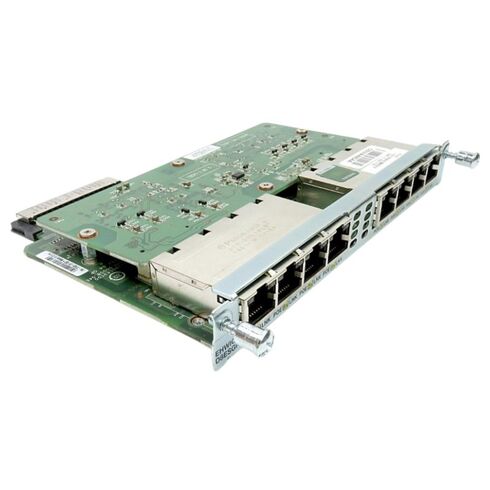

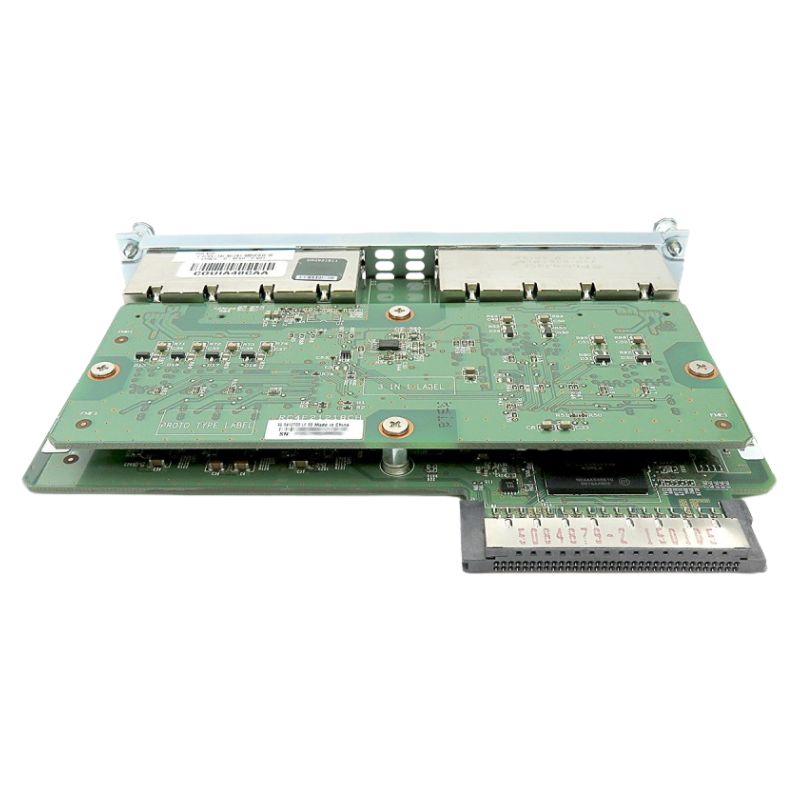

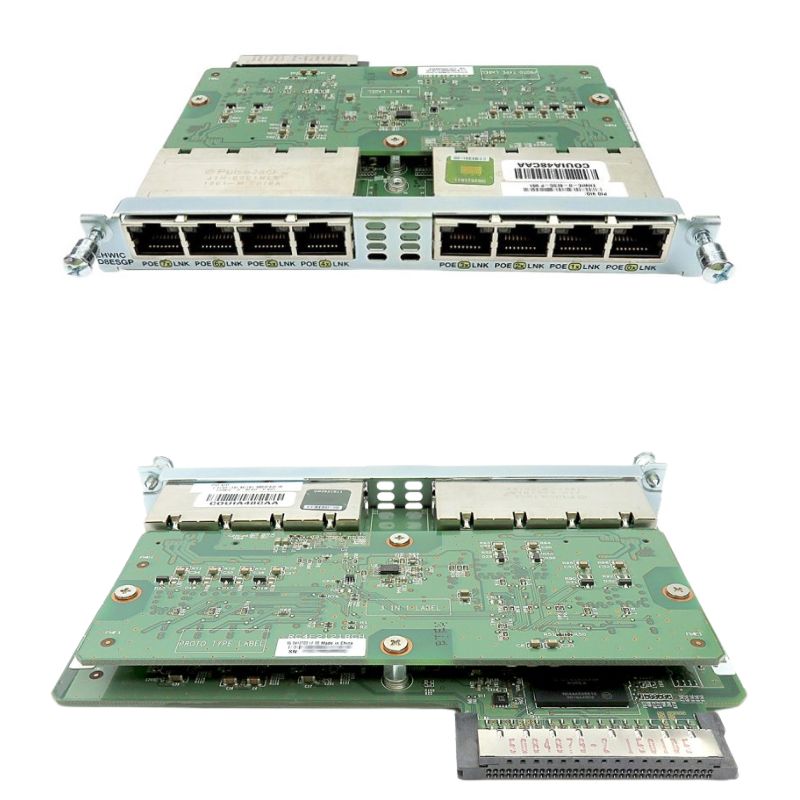

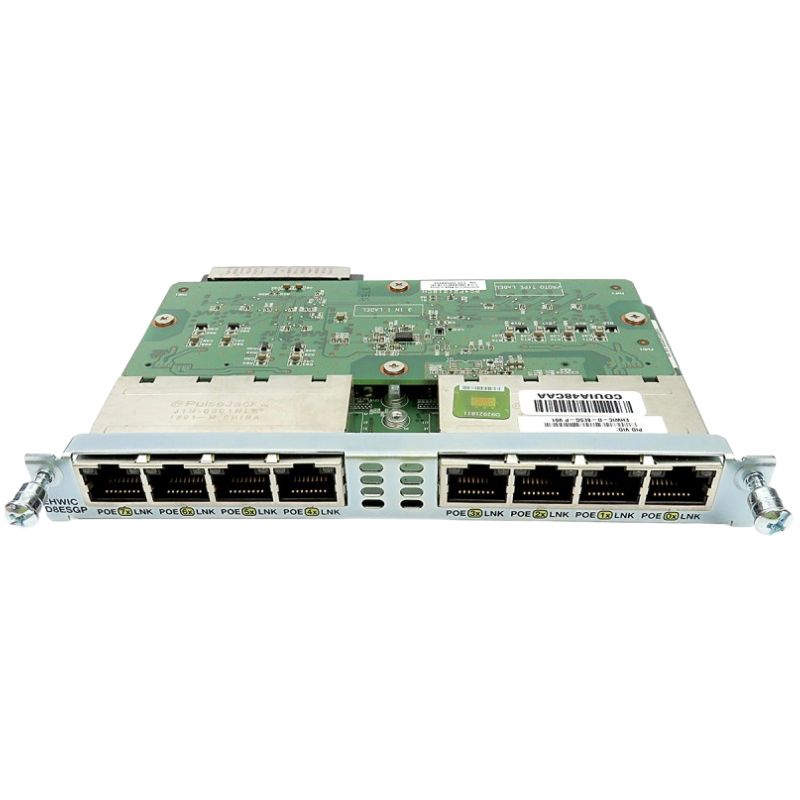

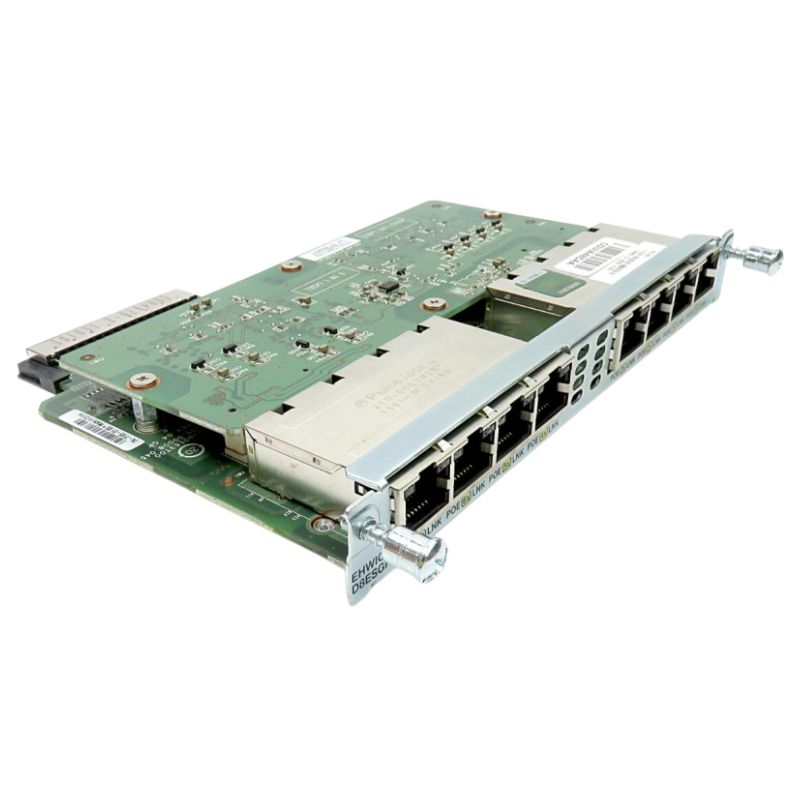

EHWIC-D-8ESG-P Cisco 8 Ports Interface Card Ethernet Switch

Overview of the Cisco 8-Port Gigabit Ethernet WAN Interface

The Cisco EHWIC-D-8ESG-P is a high-performance 8-port Gigabit Ethernet WAN interface module designed to expand network connectivity while delivering reliable switching capabilities with integrated Power over Ethernet (PoE). Built for Cisco Integrated Services Routers, this enhanced high-speed WAN interface card enables organizations to connect multiple Ethernet-enabled devices efficiently while maintaining excellent network performance, scalability, and dependable data transmission for demanding business environments.

General Information

• Manufacturer: Cisco
• Part Number: EHWIC-D-8ESG-P
• Product Type: Wide Area Network (WAN) Interface Module

Technical Specifications

• Module Type: WAN Interface Module
• Application: Wide Area Network (WAN)
• Network Ports: 8 x 10/100/1000Base-T WAN PoE
• Connector Type: 8 x RJ-45 Gigabit Ethernet
• Port Speed: 10/100/1000 Mbps Auto-Negotiating
• PoE Capability: Supported
• Height: 0.80 inches
• Width: 6.20 inches
• Depth: 4.80 inches
• Approximate Weight: 5.26 oz

Compatibility

• Cisco 1900 Series Integrated Services Router
• Cisco 2901 Integrated Services Router
• Cisco 2911 Integrated Services Router
• Cisco 2921 Integrated Services Router
• Cisco 2951 Integrated Services Router
• Cisco 3925 Integrated Services Router
• Cisco 3945 Integrated Services Router
• Cisco 3925E Integrated Services Router
• Cisco 3945E Integrated Services Router

The Cisco EHWIC-D-8ESG-P Interface Card Category

The Cisco EHWIC-D-8ESG-P 8 Ports Interface Card Ethernet Switch category represents a specialized class of high-performance networking expansion modules designed for enterprise-grade integrated services routers. This category focuses on enhancing modular router capabilities by introducing additional Ethernet switching density within a compact form factor. It is engineered to support branch office environments, distributed enterprise networks, and service provider edge deployments where flexibility, port expansion, and integrated switching are essential for efficient network design.

This category is centered around advanced embedded hardware that integrates seamlessly into Cisco Enhanced High-Speed WAN Interface Cards architecture. It enables routers to extend beyond traditional routed interfaces and operate as hybrid switching and routing platforms. This convergence reduces hardware footprint while improving network efficiency, operational control, and cost optimization across distributed infrastructures.

Modular Interface Integration Structure

The architecture of the 8-port Ethernet switching interface card is built around a modular design philosophy that allows installation into compatible Cisco ISR platforms. This modular structure ensures that network administrators can expand port density without replacing core routing equipment. The card is designed with tightly integrated switching silicon, optimized bus communication pathways, and embedded firmware that enables high-speed packet processing.

The internal design emphasizes low-latency data transfer between switching components and router backplane systems. This ensures minimal packet delay even under heavy traffic loads. The hardware architecture also supports hardware-assisted forwarding, reducing CPU overhead on the host router and enabling more efficient multitasking across routing, security, and service functions.

Backplane Communication Efficiency

The backplane communication system is optimized to support high-throughput data exchange between the interface card and the host router. This architecture ensures that switching operations do not interfere with routing processes, allowing simultaneous execution of multiple network services without performance degradation.

Eight-Port Ethernet Switching Capability

The defining feature of this category is the inclusion of eight independent Ethernet ports that provide scalable connectivity for end devices, access switches, and downstream network segments. These ports allow the transformation of a single router slot into a compact switching hub, significantly improving infrastructure efficiency in constrained environments.

Each port is designed to support auto-negotiation, enabling dynamic adjustment of link speed and duplex settings based on connected devices. This ensures compatibility with a wide range of network equipment, from legacy systems to modern high-speed endpoints.

Platform and Deployment

This category is specifically designed for integration with Cisco Integrated Services Routers that support Enhanced High-Speed WAN Interface Card slots. The compatibility ensures that organizations can extend existing router investments without requiring major infrastructure redesign. The interface card fits into modular slots and becomes part of the router’s unified operating environment.

Layer 2 Switching Features and Capabilities

The switching system is capable of dynamically learning MAC addresses from connected devices and building a forwarding database. This allows the interface card to intelligently direct Ethernet frames only to the appropriate destination port, minimizing unnecessary broadcast traffic and improving network efficiency.

Network Security

Security features embedded within this category include port-based access control mechanisms that restrict unauthorized device connectivity. This ensures that only approved endpoints can communicate through designated ports, enhancing overall network security posture. In distributed enterprise environments, the interface card supports decentralized network design. Each branch can operate independently while maintaining centralized control through the core network infrastructure.

Scalability Capability

The modular nature of this category allows incremental expansion of network infrastructure. Organizations can add interface cards as demand increases, ensuring scalable growth without major infrastructure replacement.

Future Network Adaptability

Designed with adaptability in mind, the interface card supports evolving network requirements, enabling integration into modern hybrid networking environments.

Modern Networking Ecosystems

The category plays a key role in unified communication systems where data, voice, and application traffic converge. By integrating switching capabilities into routing platforms, it simplifies network architecture while enhancing functionality. In modern digital environments, this interface card supports transformation initiatives by enabling flexible, scalable, and efficient network designs that align with evolving business requirements.
