XVVY1 Dell Ql41164 10Gbps Ethernet Converged Network Adapters

Dell Ql41164 10GBPS Network Adapter

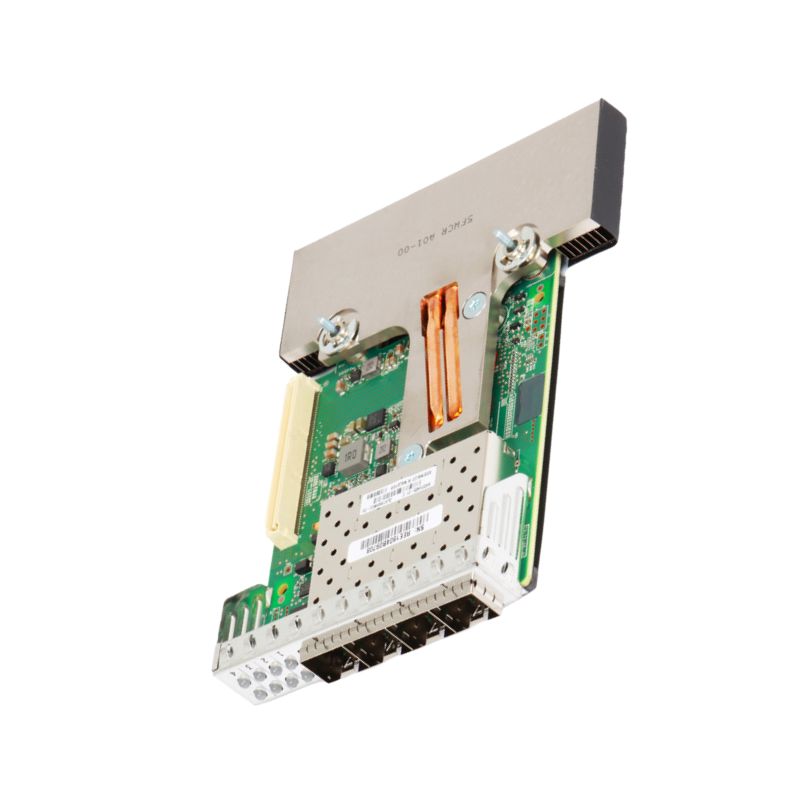

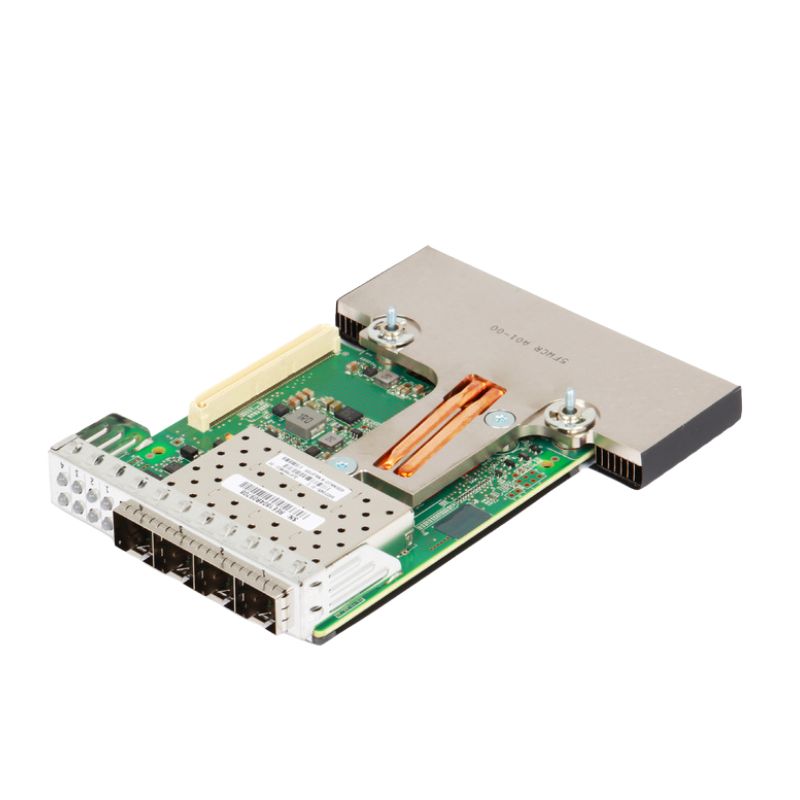

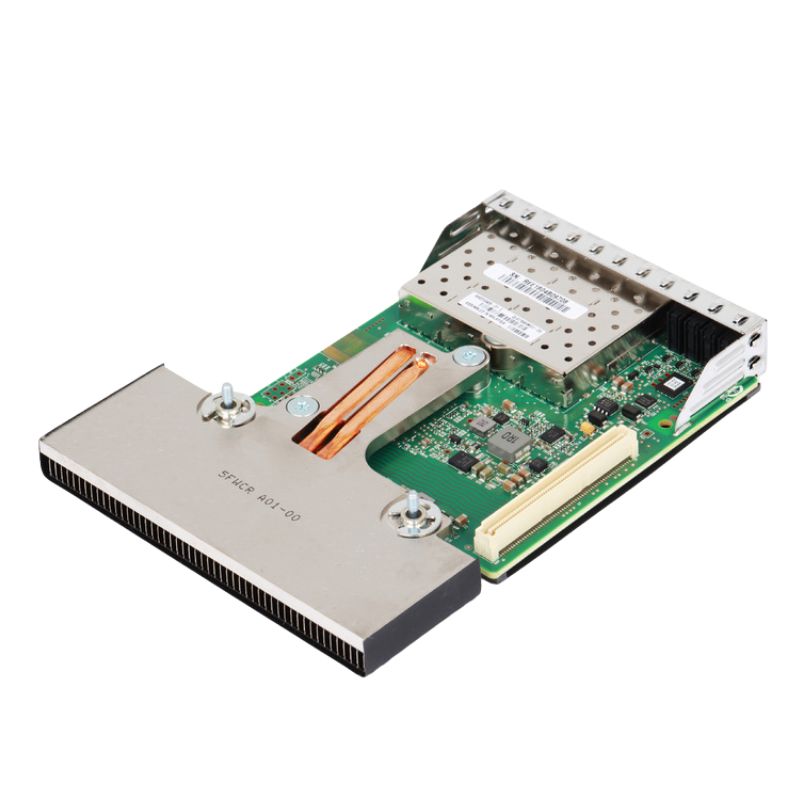

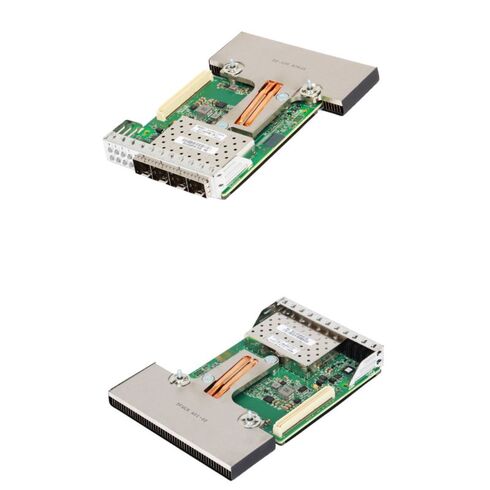

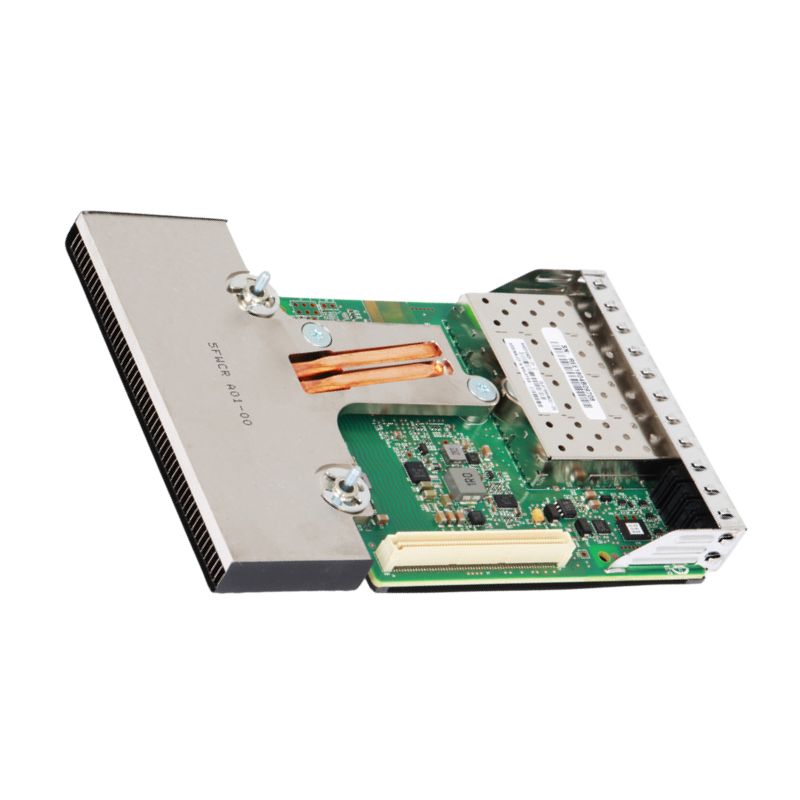

The Dell XVVY1 Four-port Ethernet Converged Ql41164 10Gbps Network Adapter is a powerful solution designed to deliver high-speed connectivity, efficient packet processing, and seamless integration with Dell PowerEdge 14th Generation servers.

Main Information

• Brand: Dell
• Part Number: XVVY1
• Device Category: Network Interface Adapter

Technical Specifications

• Quad-port design with 4 physical interfaces
• 10 Gigabits per second line speed per port
• Connector type: 4 x SFP+ transceiver slots
• PCI Express (PCIe) 3.0 x8 speeds
• Rack Network Daughter Card / Mezzanine form factor
• Saves standard PCIe slots for other components

Networking & Performance Features

• Acts as a Converged Network Adapter (CNA)
• Handles LAN (TCP/IP) and SAN traffic simultaneously
• Streamlines data flow over a single interface

Cabling Versatility

• Supports passive and active 10G Direct Attach Copper (DAC) twinax cabling
• Compatible with optical SFP+ transceivers

Protocol Support

• Native Ethernet protocol compatibility
• iSCSI transport layer support for storage networking

Host Resource Savings

• Executes heavy packet processing directly on the adapter
• Reduces CPU utilization at the host level

Performance Optimization

• Improves throughput efficiency
• Enhances server workload management

Server System Compatibility

• Designed for Dell Technologies 14th Generation servers
• Compatible models include R640, R740, R740xd, R7425, R840, R940, and R940xa

Key Advantages

High-Speed Connectivity

• 10Gbps per port ensures rapid data transfer
• Quad-port design maximizes bandwidth availability

Flexible Deployment

• Supports multiple cabling options
• Ideal for enterprise and cloud environments

Efficient Resource Utilization

• Reduces server CPU workload
• Improves overall system performance

Overview of Dell XVVY1 Four-Port 10GBPS Network Adapter

The Dell XVVY1 Four-port Ethernet 10Gbps Network Adapter category represents a high-performance class of enterprise-grade networking hardware designed for modern data-intensive environments. These adapters are engineered to deliver reliable, low-latency, and high-throughput connectivity across servers, storage systems, and virtualization platforms. Built for scalability, the four-port architecture enables simultaneous multi-channel data transmission, making it suitable for environments requiring dense network traffic handling such as cloud computing infrastructures, hyperscale data centers, enterprise virtualization clusters, and high-performance computing workloads.

This category of 10Gbps network adapters is optimized for servers that demand consistent bandwidth allocation across multiple network interfaces. The Dell XVVY1 series, in particular, is associated with enhanced throughput efficiency, reduced CPU overhead through hardware offloading capabilities, and compatibility with advanced network virtualization technologies. By integrating multiple 10 Gigabit Ethernet ports into a single PCI Express adapter, it allows system administrators to consolidate network resources while maintaining redundancy and performance isolation.

Architecture and Hardware Design Principles

The architectural design of Dell XVVY1 Four-port Ethernet 10Gbps adapters is centered around maximizing bandwidth efficiency while minimizing latency. These adapters typically utilize a PCI Express interface to communicate directly with the host system, ensuring high-speed data transfer between the server motherboard and the network interface card. The internal chipset architecture is designed to handle multiple data streams concurrently, distributing workloads evenly across the four Ethernet ports.

PCI Express Integration and Lane Optimization

The PCIe-based architecture allows the network adapter to leverage multiple lanes for data transmission, reducing bottlenecks commonly associated with lower-bandwidth interfaces. By utilizing PCIe x8 or higher configurations depending on system compatibility, the Dell XVVY1 series ensures that aggregate throughput across all four 10Gbps ports remains stable even under peak traffic conditions. This makes it particularly valuable in environments where deterministic performance is required.

The multi-lane PCIe structure also enhances scalability by enabling seamless integration into multi-socket server systems. The adapter communicates directly with CPU memory channels, allowing for efficient packet processing and reduced latency during high-volume data transfers.

Four-Port Ethernet Configuration Advantages

The four-port configuration provides a significant advantage in network segmentation and traffic isolation. Each 10Gbps port can be assigned to different virtual machines, storage networks, or application clusters. This eliminates contention between workloads and enhances overall system predictability. In addition, the multi-port design supports link aggregation technologies that combine bandwidth across multiple interfaces to achieve higher effective throughput.

This architecture also provides redundancy capabilities, allowing automatic failover between ports in the event of a link failure. Such redundancy is essential in mission-critical environments where uptime is a primary requirement.

10Gbps Ethernet Performance Capabilities

The Dell XVVY1 network adapter category is built around the 10 Gigabit Ethernet standard, which provides significantly higher bandwidth compared to traditional Gigabit Ethernet solutions. Each port is capable of delivering up to 10 gigabits per second of raw data throughput, enabling smooth handling of large datasets, high-resolution media streams, and distributed computing workloads.

When deployed in aggregated mode, the combined throughput of the four ports can theoretically reach up to 40Gbps, depending on system configuration and network design. This makes the adapter suitable for backbone connectivity in enterprise networks as well as high-performance storage access environments such as iSCSI or NVMe over Fabrics deployments.

Low Latency Packet Processing

Low latency is a critical factor in high-performance networking environments, and the Dell XVVY1 series addresses this through hardware-based packet processing mechanisms. Offloading tasks such as checksum calculation, segmentation, and interrupt moderation from the CPU significantly reduces processing delays. This results in faster response times for applications that rely on real-time data exchange, such as financial trading systems and cloud orchestration platforms.

Bandwidth Aggregation and Load Balancing

Load balancing across the four Ethernet ports ensures that network traffic is distributed evenly, preventing congestion and optimizing performance. This is particularly important in environments where multiple virtual machines or containerized applications share the same physical hardware. The adapter intelligently manages traffic distribution based on workload demands and network conditions.

Enterprise Use Cases and Deployment Scenarios

Dell XVVY1 Four-port Ethernet 10Gbps adapters are widely deployed across enterprise IT infrastructures due to their versatility and performance efficiency. They are commonly used in virtualization clusters, private cloud environments, and large-scale database systems where consistent high-speed connectivity is essential.

Data Center Networking Environments

In data center environments, these adapters serve as critical components for server-to-switch connectivity. Their ability to handle multiple high-speed connections simultaneously ensures that data centers can support large numbers of virtual machines and storage nodes without network congestion. They are frequently deployed in blade servers and rack-mounted systems where space efficiency and high-density connectivity are required.

Cloud Infrastructure and Virtualization

Cloud computing platforms rely heavily on efficient network communication between compute nodes. The Dell XVVY1 series supports advanced virtualization features that allow multiple virtual network interfaces to operate independently on a single physical adapter. This improves resource utilization and ensures secure separation between tenant workloads in multi-tenant cloud environments.

High-Performance Storage Connectivity

Storage area networks benefit significantly from the high bandwidth and low latency provided by 10Gbps Ethernet adapters. The Dell XVVY1 category is often used in conjunction with distributed storage systems where fast data replication and synchronization are required. This ensures that storage nodes remain consistently updated and accessible across the network.

Reliability and Fault Tolerance Features

Reliability is a core design principle in enterprise networking hardware. The Dell XVVY1 Four-port Ethernet adapter category incorporates multiple fault tolerance mechanisms that ensure continuous operation even under adverse network conditions. These mechanisms include link redundancy, automatic failover, and error correction capabilities that minimize packet loss.

Redundant Link Architecture

Each of the four ports can function independently or as part of a redundant configuration. In the event that one link fails, traffic is automatically rerouted to the remaining active interfaces without interruption. This ensures that mission-critical applications maintain connectivity even during hardware or cable failures.

Thermal and Power Efficiency Design

Efficient thermal management is essential for maintaining long-term reliability in high-density server environments. The Dell XVVY1 adapter is designed with optimized power consumption profiles that reduce heat generation while maintaining full performance. This contributes to improved system stability and reduced cooling requirements in data center racks.

Compatibility and System Integration

The Dell XVVY1 Four-port Ethernet 10Gbps adapter category is engineered for compatibility with a wide range of server platforms and operating systems. It integrates seamlessly into Dell PowerEdge servers as well as other enterprise-grade x86 server architectures that support PCI Express networking devices.

Operating System Support

These adapters are commonly supported across major operating systems including enterprise Linux distributions, Windows Server environments, and virtualization hypervisors. Driver support ensures that network features such as offloading, VLAN tagging, and link aggregation function correctly across different deployment scenarios.

Virtualization Platform Integration

Integration with virtualization platforms enables advanced networking configurations such as virtual switches, distributed networking, and network function virtualization. This allows administrators to allocate network resources dynamically based on workload requirements.

Advanced Networking Features and Offloading Technologies

Modern network adapters in the Dell XVVY1 category include a range of advanced offloading features designed to reduce CPU workload and improve system efficiency. These features are essential for maintaining performance in high-throughput environments where network traffic can reach extremely high volumes.

Hardware Offloading Capabilities

Hardware offloading includes functions such as TCP segmentation offload, large receive offload, and checksum offloading. By handling these tasks at the adapter level, the system CPU is freed to focus on application processing rather than network packet handling.

Virtual LAN and Traffic Segmentation

Support for VLAN tagging enables logical segmentation of network traffic within a single physical infrastructure. This is essential for separating different organizational departments, workloads, or security zones while maintaining efficient use of physical network resources.

Installation and Deployment Considerations

Deploying Dell XVVY1 Four-port Ethernet 10Gbps adapters requires consideration of server compatibility, PCIe slot availability, and thermal airflow design. Proper installation ensures optimal performance and system stability. The adapter must be securely seated in a compatible PCI Express slot to ensure full bandwidth utilization.

Network configuration following installation typically involves assigning IP addresses, configuring link aggregation if required, and verifying driver installation. Administrators must also ensure firmware compatibility with server BIOS and network switch infrastructure to enable full feature support.

Network Monitoring and Management Capabilities

Effective network monitoring is essential in enterprise environments, and Dell XVVY1 adapters provide detailed diagnostic and performance monitoring features. These include link status indicators, error counters, traffic statistics, and real-time bandwidth utilization metrics.

System administrators can leverage these monitoring capabilities to identify performance bottlenecks, detect network anomalies, and optimize traffic distribution. Integration with centralized management tools allows for scalable monitoring across large server deployments.

Scalability in High-Density Computing Environments

Scalability is a defining feature of the Dell XVVY1 Four-port Ethernet 10Gbps network adapter category. As computing environments grow, the ability to scale network capacity without significant infrastructure redesign becomes critical. These adapters enable horizontal scaling by supporting multiple high-speed connections within a single server node.

In large-scale deployments, multiple servers equipped with these adapters can form high-throughput clusters capable of handling massive computational workloads. This makes them ideal for artificial intelligence training clusters, big data analytics platforms, and distributed computing frameworks.

Performance Optimization Strategies

Optimizing performance in environments using Dell XVVY1 adapters involves careful tuning of network parameters, including interrupt moderation settings, queue depth adjustments, and offloading feature configuration. These optimizations ensure that the full potential of the four-port 10Gbps architecture is realized under varying workload conditions.

Balancing traffic across multiple ports and aligning network paths with application requirements can significantly improve throughput consistency. Proper switch configuration and support for link aggregation protocols further enhance overall network efficiency.

Role in Modern Enterprise Network Infrastructure

The Dell XVVY1 Four-port Ethernet 10Gbps adapter category plays a critical role in modern enterprise IT infrastructure by bridging the gap between traditional Gigabit networks and next-generation high-speed data center architectures. Its ability to deliver consistent high-bandwidth connectivity across multiple ports ensures that enterprise systems can meet growing demands for data processing, storage access, and real-time application performance.

As organizations continue to adopt cloud-native architectures and distributed computing models, the importance of high-performance network adapters such as the Dell XVVY1 series continues to increase, supporting the foundational connectivity required for scalable and resilient digital ecosystems.
