J9988A HPE 5400r 24-Ports SFP Macsec v3 zl2 Expansion Module 1GBPS

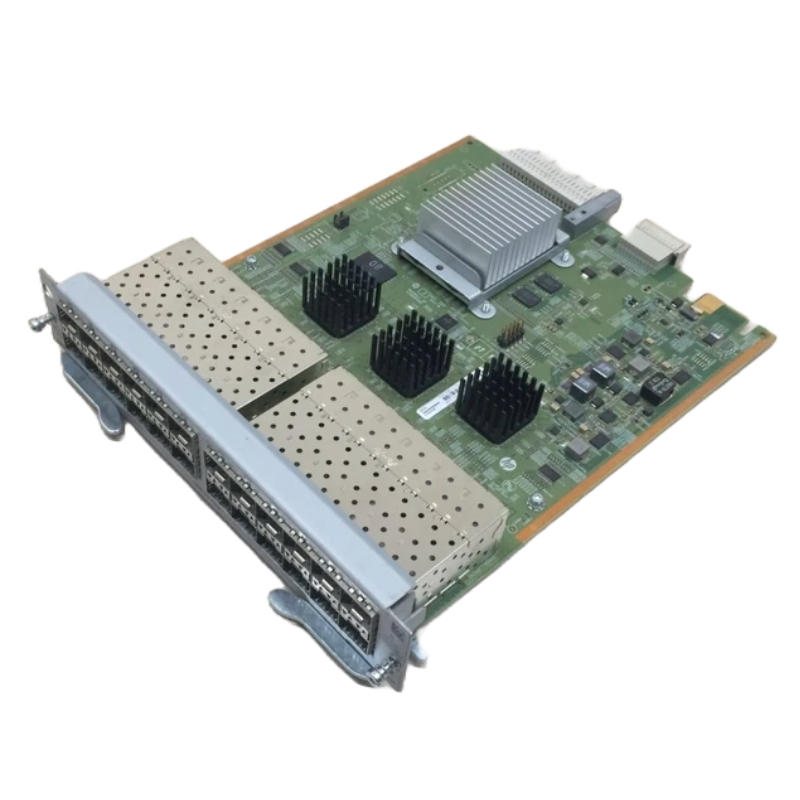

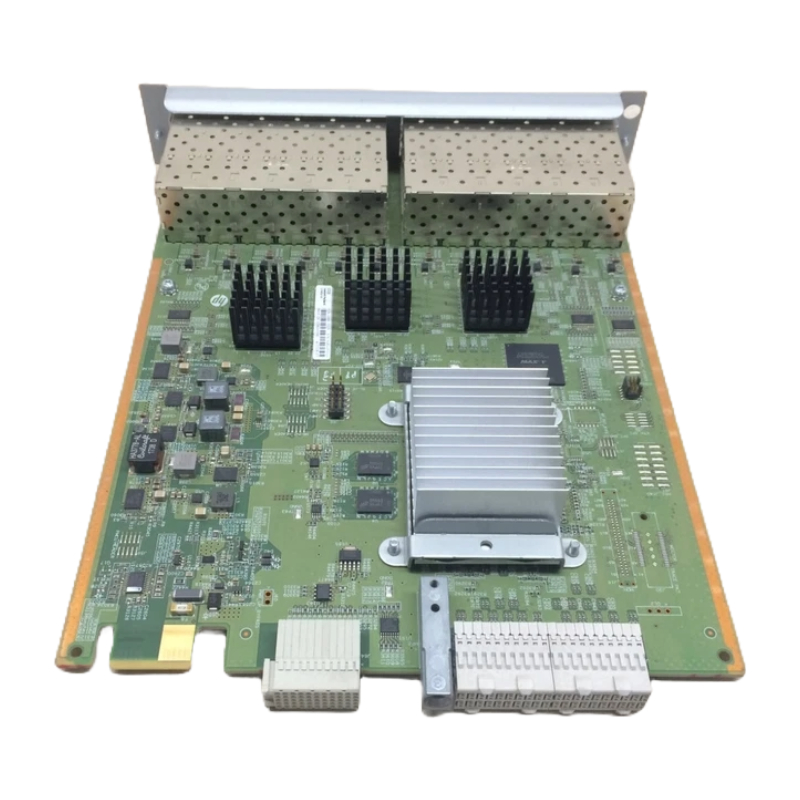

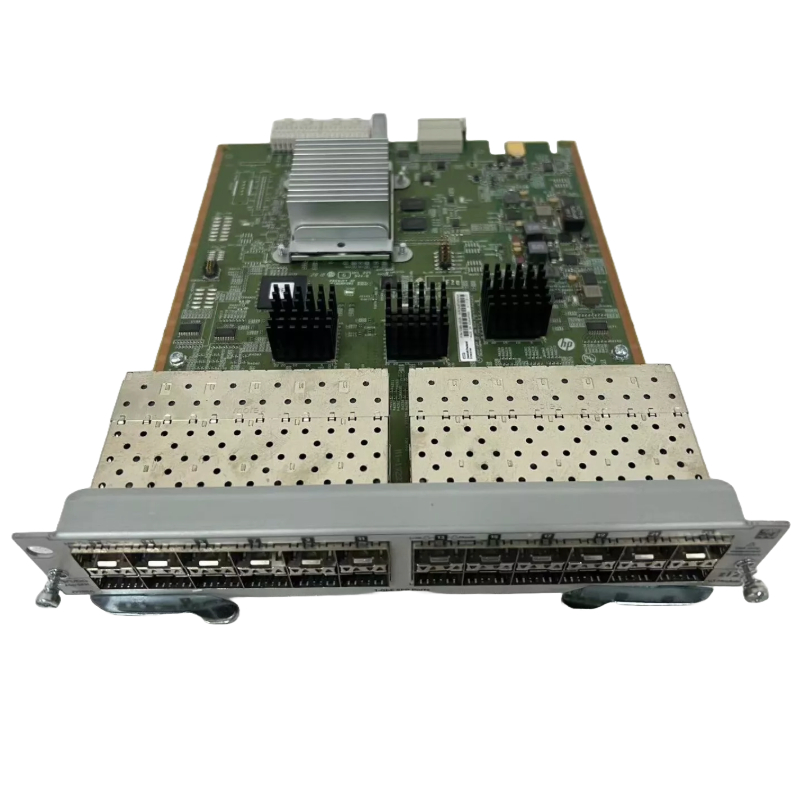

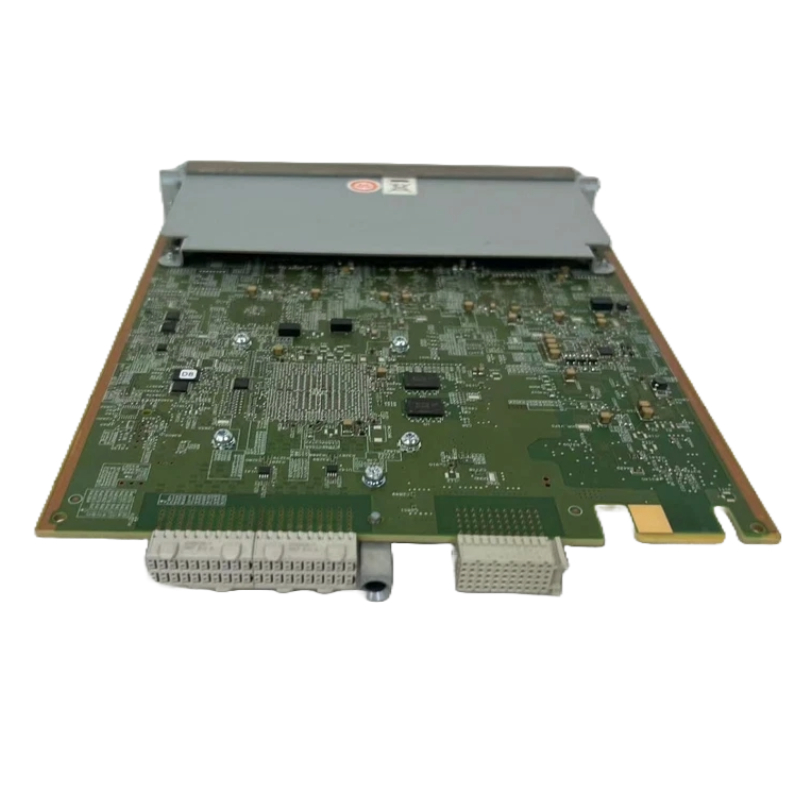

HPE J9988A 24-Port 1GBPS SFP Expansion Module

The HPE J9988A is a high-performance networking add-on designed for scalable enterprise switching environments. Manufactured by this plug-in module enhances switch capacity with high-speed fiber connectivity and advanced security features.

Brand Information

• Brand: HPE
• Part Number: J9988A
• Device Type: Expansion Module

Technical Specifications

• Hot-swappable plug-in module architecture
• Designed for enterprise-grade switch chassis
• Compact and scalable hardware design
• Data Transfer Speed: Up to 1 Gbps per port
• Transmission Technology: Wired fiber connectivity
• Protocol Support: Gigabit Ethernet (GbE)

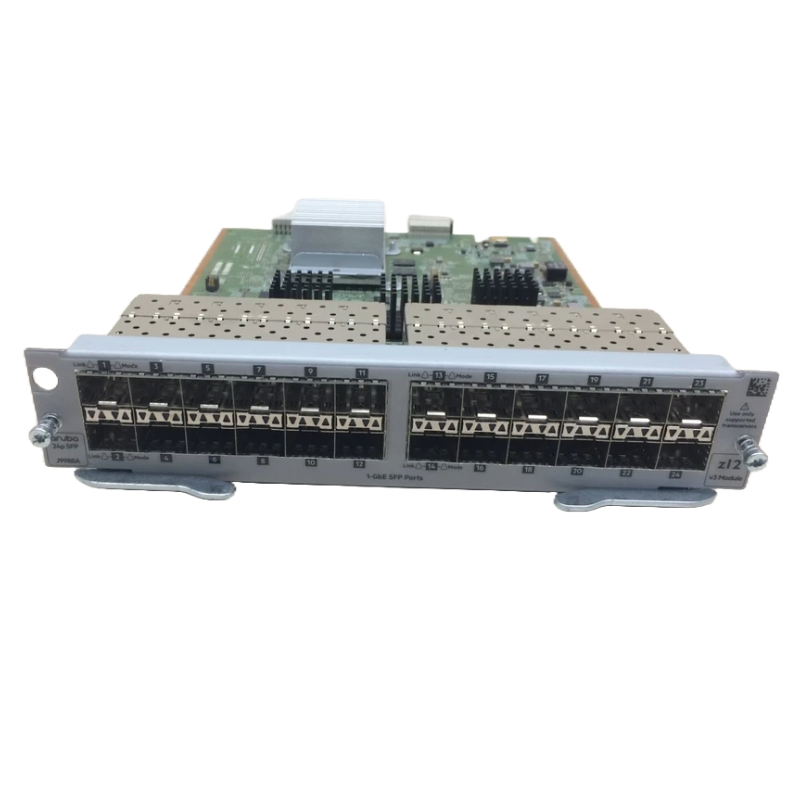

Port Configuration

• 24 × SFP (Mini-GBIC) Gigabit Ethernet ports
• High-density fiber optic connectivity support
• Optimized for backbone and aggregation layers

Security Enhancements

• MACsec (Media Access Control Security) support
• Encrypted data transmission for secure networking
• Improved protection against data interception

Interface Details

• 24 × Ethernet 1000 Base-SFP interfaces
• Compatible with a wide range of SFP transceivers
• Flexible integration with enterprise switch systems

HPE J9988A 24 Ports SFP Expansion Module Overview

The HPE J9988A 24 Ports 5400R 1Gbps SFP with MACsec V3 zl2 Expansion Module represents a high-performance fiber-based expansion solution engineered for enterprise-grade switching environments requiring secure, scalable, and high-speed optical connectivity. Designed for integration within HPE modular switching architectures, this expansion module enhances network backbone capabilities by delivering 24 dedicated SFP-based Gigabit Ethernet interfaces optimized for fiber uplinks and secure data transport. Its inclusion of MACsec encryption support ensures that data integrity and confidentiality are preserved at the hardware layer, making it highly suitable for organizations operating in security-sensitive industries such as finance, government, healthcare, and large-scale enterprise infrastructure deployments.

Modular Switching Architecture and zl2 Platform Integration

The HPE J9988A module is specifically engineered for compatibility with HPE zl2 switching platforms, enabling seamless expansion of existing chassis-based network infrastructures. This modular approach allows organizations to extend network capacity without replacing entire switching systems, thereby reducing capital expenditure while maintaining technological continuity. The zl2 architecture is designed to support high-density modular expansion, allowing multiple interface types and service modules to coexist within a single unified chassis environment.

Chassis-Based Expansion Efficiency

The integration of the J9988A module into a zl2 chassis enables centralized management of networking resources while maintaining physical separation of interface modules. This design ensures that fiber-based SFP connectivity can be deployed alongside copper-based modules without compromising performance or operational efficiency. The modular structure allows network administrators to tailor configurations based on traffic demands, uplink requirements, and security policies.

Backplane Communication and System Synchronization

Within the zl2 chassis, the J9988A module communicates through a high-speed backplane architecture that facilitates low-latency data exchange between modules. This internal switching fabric eliminates the need for external interconnects and ensures that traffic is processed efficiently within the chassis ecosystem. The synchronized communication between modules enables consistent throughput performance even under high network load conditions.

24-Port 1Gbps SFP Optical Connectivity Design

The HPE J9988A module features 24 SFP ports designed to support 1Gbps optical Ethernet connectivity. These ports provide flexibility for long-distance communication across enterprise campuses, data centers, and distributed network environments. The SFP-based design enables interchangeable transceiver support, allowing organizations to select fiber types and transmission distances based on deployment requirements.

High-Density Fiber Aggregation Layer

This module functions as a high-density fiber aggregation layer within enterprise networks, enabling multiple high-speed uplinks and inter-switch connections. The 24-port configuration provides significant port density for environments requiring multiple fiber connections to core switches, aggregation switches, or external network infrastructure components. This makes the module particularly effective in data center interconnect scenarios and campus backbone deployments.

Optical Signal Integrity and Transmission Stability

Each SFP port is engineered to maintain strong optical signal integrity, ensuring minimal packet loss and stable transmission over varying distances. Fiber-based connectivity reduces electromagnetic interference, making the module suitable for deployment in environments with high electrical noise or dense hardware installations. This ensures consistent performance for mission-critical applications requiring uninterrupted data flow.

Transceiver Flexibility and Deployment Adaptability

The use of SFP slots allows organizations to select from a wide range of optical transceivers, including short-range, long-range, and extended-distance fiber modules. This adaptability ensures that the same switching hardware can be deployed across multiple network topologies without requiring hardware redesign or replacement.

MACsec Security Integration for Hardware-Level Data Protection

The inclusion of MACsec (Media Access Control Security) support in the HPE J9988A module introduces advanced encryption capabilities at the Ethernet layer. This ensures that data transmitted across fiber connections is protected against interception, tampering, and unauthorized access. MACsec operates at line rate, providing encryption without introducing significant latency or performance degradation.

Hardware-Based Encryption Architecture

MACsec implementation within the module is hardware-accelerated, ensuring that encryption and decryption processes occur directly within the switching hardware. This eliminates reliance on software-based encryption mechanisms that may introduce processing overhead or latency. As a result, secure communication is maintained even in high-throughput environments.

Secure Network Domain Segmentation

The module supports secure segmentation of network traffic, allowing administrators to define encrypted communication domains across different network segments. This ensures that sensitive data flows remain isolated from non-secure traffic, reducing exposure to potential security threats within the network infrastructure.

Encryption Key Management and Authentication Processes

MACsec relies on secure key exchange mechanisms to establish encrypted communication channels between network devices. The module supports automated key negotiation and authentication processes, ensuring that only authorized devices participate in encrypted communication sessions.

Enterprise Backbone and Data Center Connectivity Applications

The HPE J9988A module is widely deployed in enterprise backbone networks and data center environments where high-speed fiber connectivity and security are essential. Its 24-port configuration provides sufficient capacity for aggregation of multiple network segments, enabling efficient traffic consolidation and distribution across core switching layers.

Data Center Interconnect Optimization

In data center environments, the module functions as a critical interconnect component, linking server clusters, storage systems, and core network infrastructure. Its high-density SFP architecture allows efficient scaling of fiber connectivity, ensuring that data centers can expand bandwidth capacity without redesigning existing infrastructure layouts.

High Availability Network Topologies

The module supports redundant network configurations that enhance system resilience and availability. By enabling multiple fiber paths between network nodes, it ensures that traffic can be rerouted in the event of link failures, minimizing downtime and maintaining service continuity.

Network Security Architecture and Access Control

Beyond MACsec encryption, the module incorporates additional network security mechanisms that help protect enterprise infrastructure from unauthorized access and malicious activity. These security features operate at multiple layers of the networking stack, ensuring comprehensive protection across all connected endpoints.

Port-Based Access Control Mechanisms

Each SFP port can be configured with access control policies that define authorized devices and communication parameters. This ensures that only approved network devices can establish connections through the module, reducing the risk of unauthorized access.

Network Segmentation and Isolation Strategies

The module supports logical segmentation of network traffic, allowing administrators to isolate different departments, services, or user groups. This reduces broadcast traffic and enhances security by limiting cross-segment communication.
