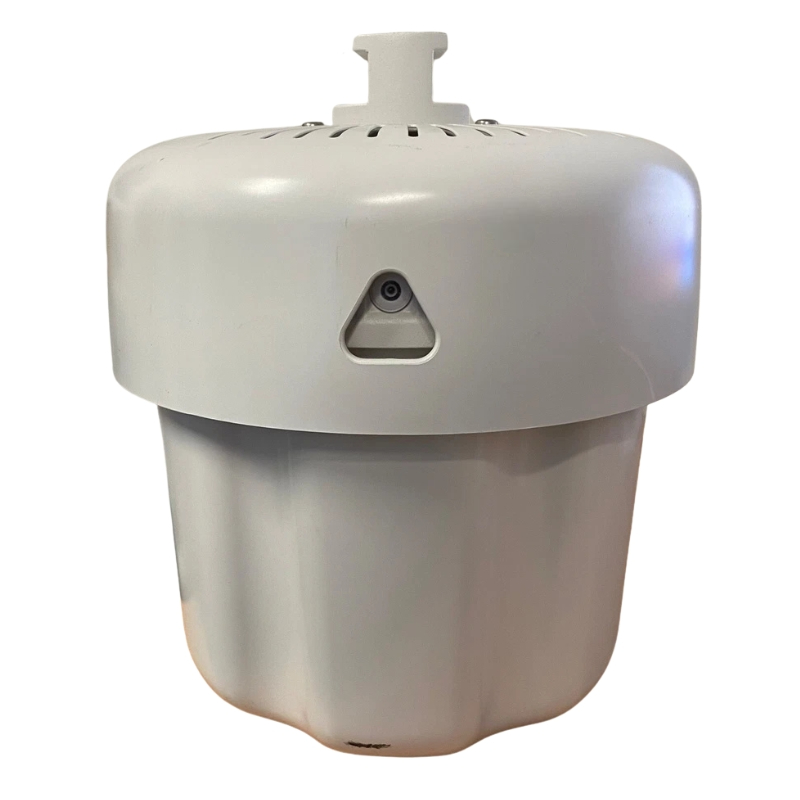

R3P69A HPE Aruba Ap-375ex 2.4GBPS Wireless Access Point

HPE R3P69A Aruba AP-375EX Wireless Access Point

The HPE R3P69A Aruba AP-375EX stands as a ruggedized, high-performance wireless access point engineered for demanding outdoor environments. Built for scalability, this dual-radio access point enables fast, secure, and seamless connectivity, particularly in hazardous or weather-challenged areas. Certified for extended temperature operation and explosion-prone zones, it brings enterprise-grade performance where it's needed most.

Key Technical Attributes

• Manufacturer: HPE
• Model Identifier: R3P69A
• Form Type: External mount, engineered for outdoor deployment
• Device Classification: High-durability wireless access point

Wireless Protocols and Frequency Specifications

The Aruba AP-375EX provides seamless communication using a suite of widely adopted Wi-Fi protocols, ensuring compatibility with a broad range of devices and networks:

• IEEE 802.11a/b/g/n/ac standards supported
• Dual-band operation across 2.4 GHz and 5 GHz frequencies
• Max throughput on 2.4 GHz: up to 300 Mbps
• Max throughput on 5 GHz: up to 1.733 Gbps

Client and Network Handling Capacity

Designed for high-density environments, the AP-375EX supports a large number of users simultaneously, without performance degradation:

• Up to 256 clients per wireless radio
• Accommodates up to 16 BSSIDs per radio, allowing multiple SSIDs per band

System Compatibility and Software Environment

This model is fully compatible with Aruba’s network operating environments:

• Runs on ArubaOS and InstantOS for adaptive networking functions
• Seamless integration into Aruba’s centralized or distributed network management frameworks

Robust Hardware and Interface Options

Connectivity Ports and Expansion Slots

The Aruba AP-375EX offers versatile port options to connect and extend your network reliably:

• 1 x 1000BASE-X SFP (Mini-GBIC) slot for fiber uplink
• 1 x 1000BASE-T RJ-45 for standard Ethernet connectivity
• 1 x Micro-USB port for configuration and troubleshooting

Power Input and Efficiency

The access point is optimized for Power over Ethernet (PoE+), simplifying deployment by eliminating the need for separate power lines:

• PoE+ compliant: Allows data and power over a single cable
• Operational power usage: 23 watts

Ruggedized Design for Harsh Environments

Purpose-Built Outdoor Housing

The external housing of the AP-375EX is engineered to resist dust, moisture, and temperature extremes. It’s ideal for locations such as oil rigs, industrial yards, and remote logistics hubs.

Industrial Certifications and Safety Standards

• Explosion-proof casing certified for hazardous environments
• Weather-resistant design for reliable operation under harsh conditions

Enhanced Operational Durability

With industrial-grade componentry and enclosures, the AP-375EX provides continued service in environments where traditional access points would fail. It supports mission-critical uptime even under physically challenging circumstances.

Scalable Performance and Deployment Flexibility

Flexible Mounting and Deployment Options

• Can be mounted on walls, poles, or ceilings outdoors
• Ideal for deployment in campuses, arenas, industrial zones, and outdoor transit hubs

Multiple Operating Modes

The AP-375EX functions seamlessly in both controller-managed and controller-less (Instant) environments, giving network administrators the freedom to tailor deployment to organizational needs:

• Standalone operation: Using Instant mode for quick, easy setup
• Controller-based mode: For enterprise-wide orchestration and policy control

Advanced Radio Management

• Dynamic frequency selection for optimal channel allocation
• Automatic RF calibration to counter interference and maintain stability
• ClientMatch technology to prevent sticky client issues and distribute loads evenly

Smart Power and Energy Optimization

PoE-Based Power Efficiency

Supporting IEEE 802.3at (PoE+), the Aruba AP-375EX reduces cabling complexity while optimizing energy usage. It is well-suited for distributed and remote deployments where power provisioning is a challenge.

Low Power Consumption Profile

• Consumes a maximum of 23 watts during full operation
• Energy-efficient radio architecture minimizes consumption when under low load

High-Performance Wireless Features

Beamforming and Multi-User MIMO

Integrated beamforming capabilities and multi-user MIMO (MU-MIMO) help deliver strong, directional signals, maximizing throughput and ensuring consistent performance for multiple clients simultaneously.

Advanced Wi-Fi Technologies

• Support for 5 GHz band ensures congestion-free performance
• Backward compatibility with older 2.4 GHz devices
• Optimized for voice and video over Wi-Fi applications

Quality of Service (QoS) and Traffic Prioritization

The AP prioritizes traffic dynamically, ensuring uninterrupted performance for real-time services such as VoIP and video conferencing. Application visibility and traffic shaping features contribute to smooth user experiences.

Security Features and Compliance

Integrated Security Capabilities

Security is built into the fabric of the AP-375EX, helping protect against threats before they impact users:

• WPA3 and WPA2 support for robust encryption
• MAC authentication and role-based access controls
• Integrated intrusion detection and prevention

Centralized Policy Enforcement

When deployed within a controller-based setup, the AP supports centralized policy enforcement, ensuring consistent access rules, firewall integration, and guest access management across the entire wireless estate.

Enterprise Integration and Management

Unified Network Management

• Compatible with Aruba Central and AirWave for monitoring and troubleshooting
• Supports zero-touch provisioning for simplified deployment at scale
• Remote firmware management and diagnostics via web interface or CLI

Cloud and On-Premise Management Flexibility

Whether using Aruba Central for cloud-managed networks or deploying an on-premises Mobility Controller, the AP-375EX adapts easily to your preferred IT strategy.

Customizable Configurations

• Pre-configured templates for specific site deployments
• Granular logging and SNMP support for real-time insights
• Syslog integration for centralized event tracking

High-Performance Outdoor Wireless Connectivity with the HPE Aruba AP-375EX

The R3P69A HPE Aruba AP-375EX is a robust, weatherproof wireless access point designed to deliver ultra-fast connectivity and secure wireless networking in the harshest outdoor environments. As part of Aruba's 370EX Series, this device stands out in the category of hazardous location wireless access points, offering industry-leading performance for enterprise-grade outdoor WLAN deployments. With a maximum aggregate data rate of 2.4Gbps and robust build quality, it is ideal for oil refineries, industrial plants, large-scale campuses, and other mission-critical outdoor applications where intrinsic safety, reliability, and scalability are paramount.

Ruggedized Design for Extreme Conditions

The AP-375EX is engineered to meet stringent hazardous location standards. Built with IP66/67-rated enclosures, this access point is designed to withstand heavy rains, dust, extreme temperatures, and corrosive environments. It is certified for Class I Division 2/Zone 2 hazardous environments, ensuring safe operation near flammable gases or vapors. The rugged exterior allows for deployment on rooftops, industrial sites, and outdoor public venues without the risk of system failure due to environmental factors.

Key Durability Features

• IP66/67-rated for weatherproof operation
• UL2043 plenum rated for safe installation in air-handling spaces
• Certified for hazardous locations (Class I Div 2/Zone 2)
• Corrosion-resistant enclosure with industrial-grade connectors

Wi-Fi Performance and Wireless Capacity

Supporting the latest 802.11ac Wave 2 standard, the HPE Aruba AP-375EX delivers unparalleled wireless throughput of up to 2.4Gbps. It features dual radios—one for 2.4GHz (4x4 MIMO) and another for 5GHz (4x4 MIMO)—allowing simultaneous support for legacy and high-speed clients. With MU-MIMO and Aruba ClientMatch technology, users enjoy optimized bandwidth allocation and seamless roaming across large outdoor areas, which enhances the overall user experience in demanding environments.

Advanced Wireless Features

• 4x4:4 MU-MIMO with beamforming
• 802.11ac Wave 2 compliance
• Max concurrent data rate: 2.4Gbps
• Advanced RF management with AirMatch
• ClientMatch for optimized client connectivity

Security and Network Protection

Security is a core feature of the R3P69A HPE Aruba AP-375EX. It integrates seamlessly with Aruba's security infrastructure, including Policy Enforcement Firewall (PEF), intrusion detection/prevention, and encrypted traffic inspection. The access point supports WPA3 encryption and offers hardware-based trusted platform module (TPM) functionality to safeguard device integrity and sensitive data. It's ideally suited for environments where wireless security cannot be compromised.

Comprehensive Security Suite

• WPA3 and WPA2 Enterprise encryption
• Integrated TPM for secure boot and firmware validation
• Aruba PEF for role-based access control
• Encrypted wireless traffic inspection
• Adaptive radio management with threat detection

Deployment Flexibility and Mounting Options

The Aruba AP-375EX is designed with installation versatility in mind. It includes multiple mounting kits compatible with poles, walls, and ceilings. Its Power over Ethernet (PoE) support simplifies deployment in remote areas, eliminating the need for dedicated electrical outlets. The access point also supports fiber and copper Ethernet uplinks, providing flexible backhaul options to match a range of deployment requirements.

Mounting and Connectivity Options

• Wall, pole, and mast mounting options
• Supports 802.3at PoE+ input
• Gigabit and 1000BASE-X SFP uplink support
• Optional surge protection accessories for outdoor safety

Integration with Aruba Central and AirWave

The AP-375EX integrates with Aruba Central and AirWave for simplified cloud or on-premises management. IT teams can monitor performance, configure access policies, and detect anomalies from a centralized interface. Aruba Central’s AI-based analytics can automate troubleshooting and predict network issues before they impact users. This level of management is essential for large-scale outdoor networks where hands-on access may be limited or delayed.

Management Platform Features

• Cloud-based management with Aruba Central
• AI-powered insights for performance optimization
• Zero Touch Provisioning (ZTP) for simplified rollout
• AirWave support for granular, on-premises control
• Multi-site scalability with full visibility

Ideal Use Cases for the Aruba AP-375EX Access Point

The R3P69A is tailored for outdoor environments where durability, performance, and security are non-negotiable. From industrial manufacturing plants and oil rigs to smart cities and remote utility stations, the AP-375EX proves indispensable. It supports thousands of simultaneous users and IoT endpoints without compromise, making it highly scalable and future-ready.

Oil & Gas Facilities

Environments such as refineries and offshore rigs require access points that can withstand volatile atmospheres and provide always-on connectivity for critical systems. The AP-375EX meets these needs with intrinsic safety certifications and seamless outdoor Wi-Fi.

Mining and Heavy Industry

With its impact-resistant housing and reliable wireless coverage, the AP-375EX is ideal for mining operations where dust, vibration, and temperature extremes are common. It facilitates remote monitoring, real-time data acquisition, and workforce communication in areas where cabling is impractical.

Smart City Infrastructure

Municipalities deploying smart city networks benefit from the AP-375EX's high bandwidth and long-range capabilities. It can be deployed on streetlights, traffic systems, or buildings to support public Wi-Fi, smart sensors, and connected services in urban environments.

Outdoor Campus Networks

University and business campuses often require high-speed outdoor coverage between buildings and common areas. The AP-375EX ensures consistent coverage, enabling users to roam seamlessly across indoor and outdoor spaces without performance loss.

Scalability and Future-Proof Design

The R3P69A AP-375EX is built not only for current wireless demands but also for future scalability. It supports thousands of devices and multiple SSIDs, making it ideal for expanding networks. Aruba’s modular software architecture allows seamless upgrades to newer firmware and feature sets without requiring a hardware overhaul, providing long-term investment protection.

Future-Ready Technology Stack

• Support for Aruba ESP (Edge Services Platform)
• Zero Trust Security integration
• IoT-ready with BLE beaconing
• Open API support for third-party integration

Long-Term Investment Value

Enterprises investing in the AP-375EX benefit from its ability to adapt to evolving network architectures. Whether expanding to Wi-Fi 6 or incorporating edge computing workloads, this access point is designed to evolve without obsolescence concerns.
