C9400-SUP-1 Cisco Catalyst 9400 Fabric Module

Overview of Cisco C9400-SUP-1 9400 Series Supervisor Module

The Cisco C9400-SUP-1 is a high-performance supervisor module designed for the Cisco Catalyst 9400 Series, delivering advanced switching intelligence, scalability, and enterprise-grade resiliency. Built for modern campus core and distribution deployments, this module plays a critical role in ensuring seamless network control, high-speed data forwarding, and intelligent traffic management across large-scale infrastructures.

General Product Information

• Manufacturer: Cisco
• Part Number: C9400-SUP-1
• Product Category: Supervisor Module
• Series: Catalyst 9400 Series

Device Classification

• Enterprise modular switch supervisor engine
• Designed for high-density campus switching environments
• Optimized for mission-critical network operations

Advanced Technical Specifications

High-Speed Switching Performance

• Up to 1.44 Tbps system-wide switching capacity
• Provides 80 Gbps per-slot bandwidth for scalable performance
• Ensures low-latency packet processing for enterprise workloads

Forwarding Capabilities

• IPv4 forwarding rate: up to 900 million packets per second (Mpps)
• IPv6 forwarding rate: up to 450 Mpps
• Optimized hardware-based packet inspection and routing acceleration

Memory and Storage Architecture

• 16 GB DDR4 DRAM for high-speed processing tasks
• 10 GB internal flash storage for system files and configurations
• Optional 960 GB SATA SSD for application hosting and extended services

Uplink Interface Flexibility

• Supports multiple uplink configurations

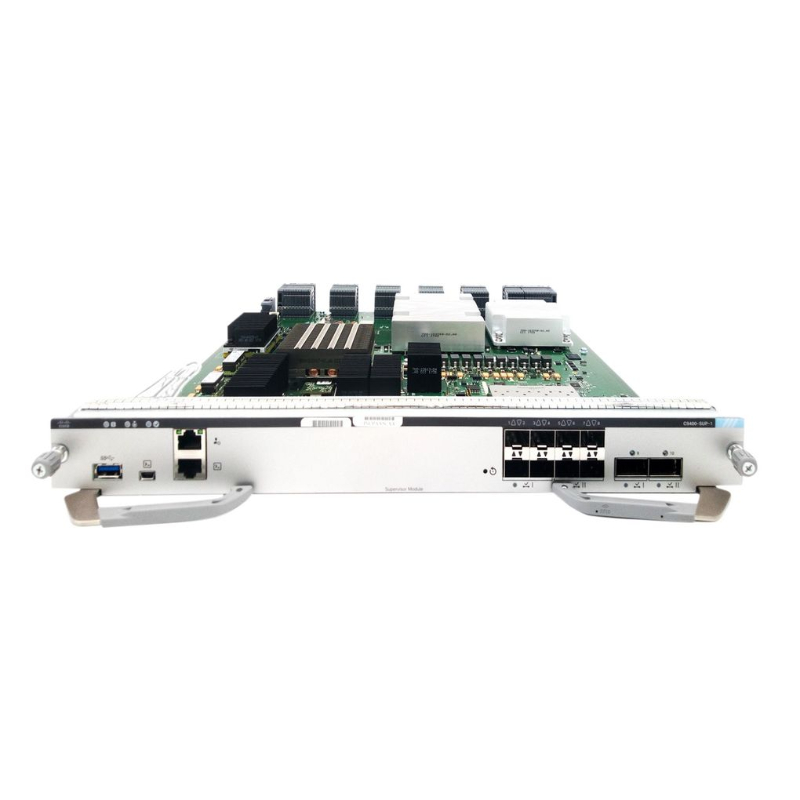

• Front-panel options include:
• 8 x 10G SFP+ ports for high-density fiber connectivity
• 2 x 40G QSFP+ ports for high-capacity backbone links
• Flexible design for diverse enterprise network architectures

Scalability and Routing Capacity

MAC and Route Table Scale

• Supports up to 64,000 MAC addresses
• IPv4 route capacity: up to 112,000 routes
• IPv6 route capacity: up to 56,000 routes
• Designed for large enterprise and campus-scale routing environments

Software Intelligence

• Fully integrated with Cisco IOS XE operating system
• Supports programmable APIs for automation and orchestration
• Full Flexible NetFlow (FNF) for advanced traffic analytics
• Enhanced network visibility and telemetry capabilities

High Availability and Network Resiliency

Redundant Architecture Support

• Supports dual supervisor module configurations
• Enables Stateful Switchover (SSO)
• Nonstop Forwarding (NSF) ensures uninterrupted traffic flow
• Minimizes downtime during upgrades or failover events

Chassis Compatibility

• Optimized for Cisco Catalyst 9400 Series chassis
• Compatible models include:
• C9404R chassis
• C9407R chassis
• C9410R chassis
• Designed for scalable modular deployment strategies

Software-Defined Networking and Enterprise Integration

SD-Access Ready Architecture

• Supports Cisco Digital Network Architecture (DNA)
• Enables Software-Defined Access (SD-Access) deployment
• Improves policy-based automation and segmentation

Network Automation Features

• API-driven configuration and management
• Seamless integration with network orchestration tools
• Enhanced programmability for DevOps and NetOps environments

Enterprise Benefits and Use Cases

Ideal Deployment Scenarios

• Large enterprise campus core networks
• Data center aggregation layers
• High-performance distribution switching environments
• Mission-critical business infrastructure networks

Key Advantages

• High scalability with modular architecture
• Strong redundancy and failover protection
• Advanced traffic analytics and monitoring
• Future-ready SDN and automation support

Summary of Key Capabilities

Performance Highlights

• 1.44 Tbps switching capacity
• Up to 900 Mpps IPv4 forwarding
• Flexible 10G and 40G uplink options

Reliability Highlights

• Dual supervisor redundancy support
• Stateful Switchover (SSO)
• Nonstop Forwarding (NSF)

Scalability Highlights

• Massive routing and MAC table support
• Enterprise-grade chassis compatibility
• SD-Access and DNA ecosystem integration

Cisco C9400-SUP-1 Catalyst 9400 Series Supervisor Module

The Cisco C9400-SUP-1 is a high-performance supervisor engine designed specifically for the Cisco Catalyst 9400 Series modular switching platform. As the central intelligence unit of the chassis, it plays a critical role in managing forwarding decisions, system control, high availability functions, and policy enforcement across enterprise campus networks. This supervisor module is engineered to meet the demands of modern digital enterprises that require secure, scalable, and resilient network infrastructures. Within the Catalyst 9400 ecosystem, the supervisor module acts as the brain of the switch, coordinating hardware and software operations to ensure seamless data flow, optimized performance, and uninterrupted service delivery. It is designed for enterprise campus core and distribution layers where uptime, reliability, and performance consistency are essential for business continuity.

Architectural Design and Hardware Intelligence

Centralized Control Plane Functionality

The Cisco C9400-SUP-1 supervisor module is built with a centralized control plane architecture that ensures efficient management of network resources. It processes routing protocols, maintains forwarding tables, and distributes configuration policies across line cards installed in the chassis. This centralized approach allows for consistent decision-making and reduces complexity in large-scale network environments.

High-Speed Internal Fabric Integration

The module integrates tightly with the Catalyst 9400 switching fabric to provide high-speed packet forwarding capabilities. By leveraging a non-blocking architecture, it ensures that traffic between line cards is handled efficiently without congestion. This makes it highly suitable for environments where bandwidth-intensive applications, such as virtualization, cloud computing, and video conferencing, are commonly used.

Advanced Hardware Redundancy Capabilities

The supervisor engine supports redundant deployment models, allowing organizations to install dual supervisor modules for high availability. In the event of a hardware failure, failover mechanisms ensure uninterrupted network operations. This redundancy model significantly reduces downtime risks in mission-critical enterprise environments such as financial institutions, healthcare systems, and government networks.

Performance Optimization and Network Efficiency

Enhanced Packet Processing Capabilities

The Cisco C9400-SUP-1 is optimized for high-throughput environments, delivering advanced packet processing capabilities that support large-scale enterprise workloads. It efficiently handles routing updates, access control policies, and switching logic without introducing latency into the network pipeline. This performance optimization is essential for maintaining service quality in distributed enterprise environments.

Scalable Bandwidth Management

Designed for scalability, the supervisor module ensures that network bandwidth is allocated intelligently based on application demands. It supports dynamic adjustments to traffic loads, ensuring that critical applications receive priority without degrading overall system performance. This capability is particularly important in hybrid cloud and multi-site enterprise architectures.

Low Latency Switching Architecture

One of the defining characteristics of the Catalyst 9400 platform is its low latency switching architecture. The C9400-SUP-1 supervisor contributes to this by minimizing processing delays between ingress and egress points. This results in faster data transmission and improved application responsiveness across the network infrastructure.

Enterprise-Grade Security Integration

Policy Enforcement and Access Control

Security is a core component of the Cisco C9400-SUP-1 supervisor module. It enables centralized policy enforcement, ensuring that access control rules are consistently applied across all connected devices and network segments. This helps organizations maintain strict compliance with internal security policies and external regulatory standards.

Threat Detection and Network Segmentation

The supervisor module supports advanced network segmentation techniques, allowing administrators to isolate traffic and limit lateral movement in the event of a security breach. This segmentation capability strengthens the overall security posture by reducing the attack surface within enterprise networks.

Secure Management and Encryption Support

The module provides secure management protocols and encrypted communication channels for administrative access. This ensures that configuration changes, monitoring activities, and system diagnostics are protected from unauthorized interception or manipulation.

Software Integration and Operating System Support

Cisco IOS XE Compatibility

The Cisco C9400-SUP-1 supervisor module operates on the Cisco IOS XE software platform, which provides a modular and programmable operating system environment. IOS XE enables automation, programmability, and advanced network management features that are essential for modern enterprise networks.

Automation and Programmability Features

With built-in support for APIs and automation frameworks, the supervisor module allows network administrators to streamline configuration tasks and reduce manual intervention. This leads to improved operational efficiency and reduced risk of configuration errors in large-scale deployments.

Telemetry and Network Analytics

The module supports real-time telemetry and network analytics capabilities, enabling continuous monitoring of network performance. This data-driven approach allows IT teams to identify performance bottlenecks, predict potential failures, and optimize network behavior proactively.

Scalability in Campus and Enterprise Networks

Support for Large-Scale Deployments

The Cisco C9400-SUP-1 is engineered to support large enterprise campus networks that require high-density connectivity and scalable infrastructure. It enables organizations to expand their network capacity without compromising performance or reliability.

Modular Expansion Capabilities

As part of the Catalyst 9400 Series chassis-based architecture, the supervisor module works alongside interchangeable line cards, allowing flexible expansion of network interfaces and services. This modularity ensures long-term investment protection and adaptability to evolving business requirements.

Future-Ready Network Architecture

The supervisor module is designed with future network demands in mind, supporting emerging technologies such as software-defined networking and cloud-integrated infrastructure. This ensures that enterprises can evolve their network architecture without requiring complete hardware replacement.

High Availability and Fault Tolerance Mechanisms

Redundant Supervisor Deployment

The Cisco C9400-SUP-1 supports redundant configurations that provide continuous network availability even in the event of hardware or software failure. Dual supervisor setups ensure seamless failover, minimizing disruption to network services.

Stateful Switchover Technology

Stateful switchover mechanisms preserve network state information during failover events, allowing the standby supervisor to take over without disrupting active sessions. This is crucial for maintaining uninterrupted communication in enterprise environments.

System Resiliency Engineering

The supervisor module is built with resiliency at its core, incorporating hardware and software safeguards that protect against system crashes and unexpected failures. This ensures stable network operations under heavy workloads and adverse conditions.

Deployment Scenarios and Use Cases

Enterprise Campus Networks

The Cisco C9400-SUP-1 is widely deployed in enterprise campus environments where centralized management, high availability, and scalability are critical. It serves as the backbone of campus distribution and core layers.

Data Center Interconnectivity

In certain architectures, the supervisor module contributes to data center interconnectivity by enabling high-speed communication between distributed infrastructure components. This supports cloud-based applications and hybrid IT environments.

Service Provider Edge Applications

Service providers utilize the Catalyst 9400 platform for edge deployments where high-performance routing and switching capabilities are required. The supervisor module ensures reliable traffic handling at the network edge.

Position within Catalyst 9400 Series Ecosystem

Integration with Line Cards and Modules

The Cisco C9400-SUP-1 works in close coordination with various line cards and service modules within the Catalyst 9400 chassis. This integration ensures that all network components operate cohesively under centralized control.

Role in Campus Core and Distribution Layers

In hierarchical network architectures, the supervisor module plays a vital role in both core and distribution layers, ensuring efficient routing, switching, and policy enforcement across the entire enterprise network.

Alignment with Digital Transformation Strategies

As organizations adopt digital transformation initiatives, the supervisor module provides the foundation for agile, automated, and secure networking environments that support cloud adoption, IoT integration, and mobility-driven workflows.

Advanced Network Intelligence and Future Readiness

Support for Software-Defined Networking

The Cisco C9400-SUP-1 is aligned with software-defined networking principles, enabling centralized control and programmable infrastructure. This allows organizations to adapt quickly to changing business requirements.

Cloud-Integrated Network Operations

The module supports cloud integration strategies that allow enterprises to extend their network capabilities into hybrid and multi-cloud environments. This ensures seamless connectivity between on-premises and cloud-based resources.

Adaptive Network Optimization

Through intelligent analytics and automation, the supervisor module continuously optimizes network performance based on real-time traffic conditions and application requirements, ensuring efficient resource utilization across the infrastructure.
