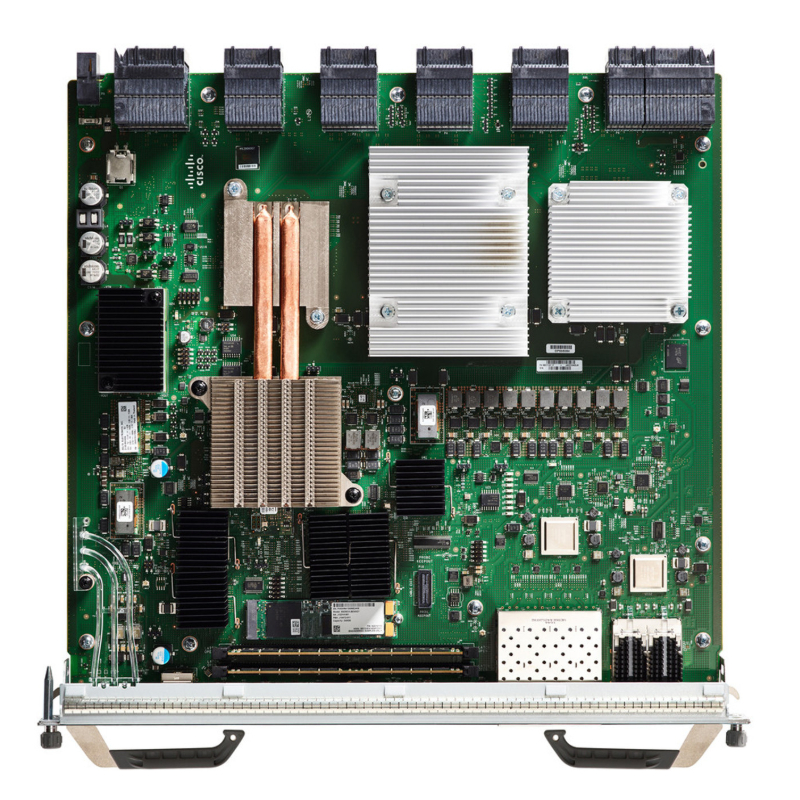

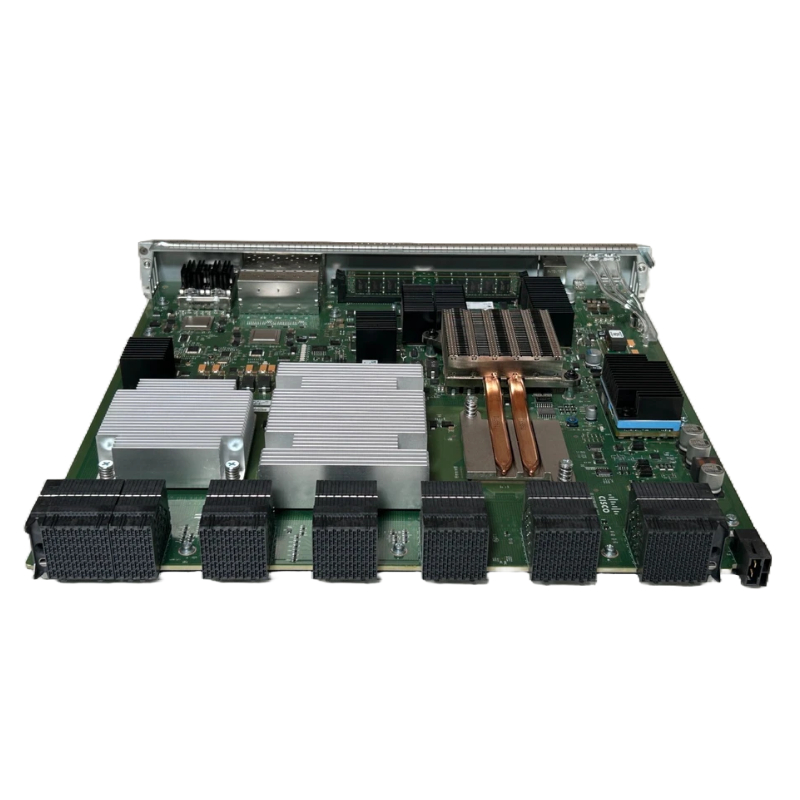

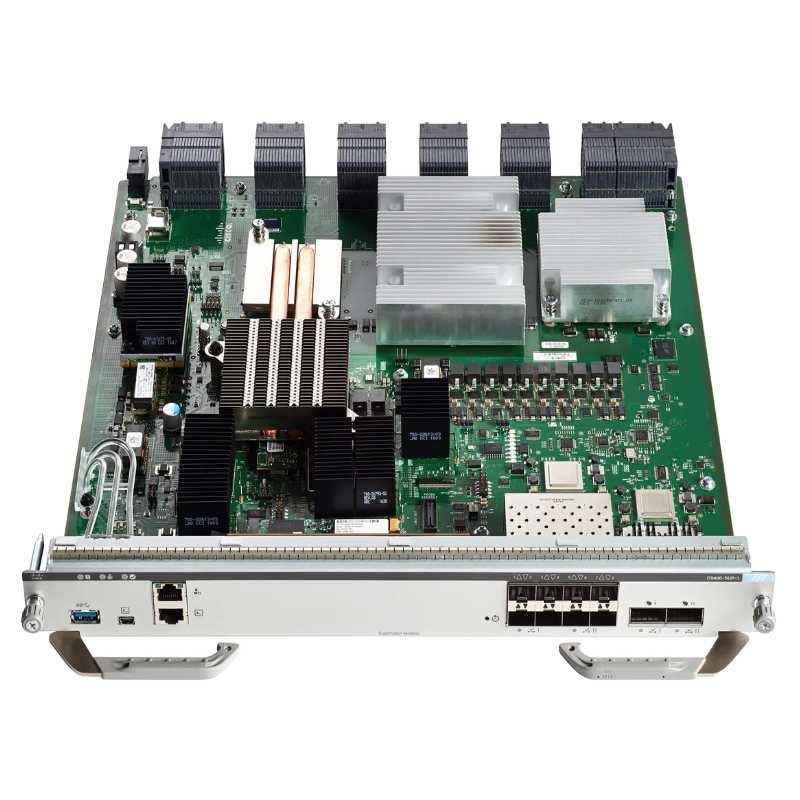

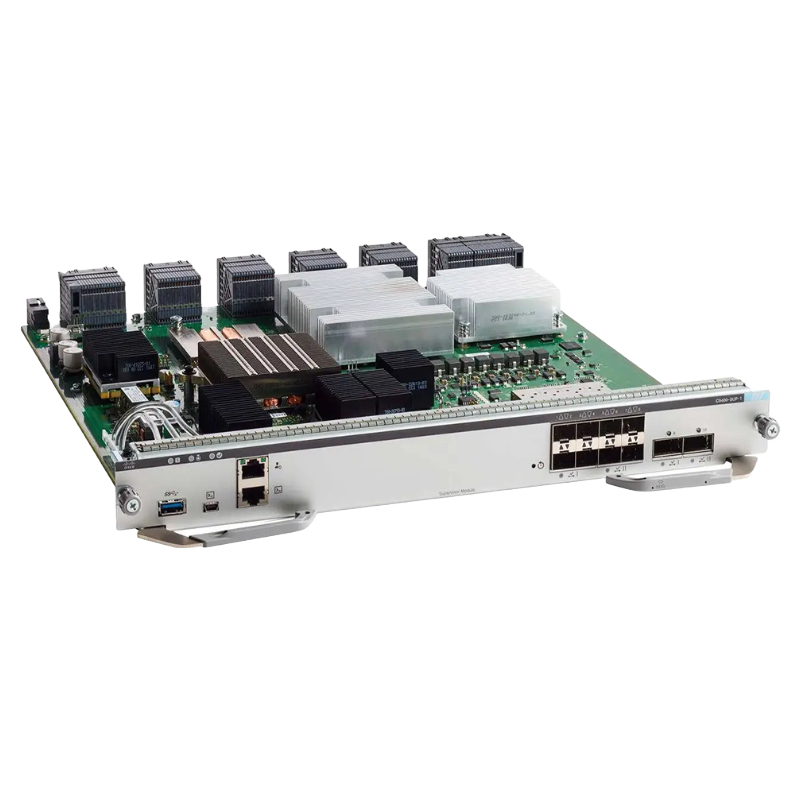

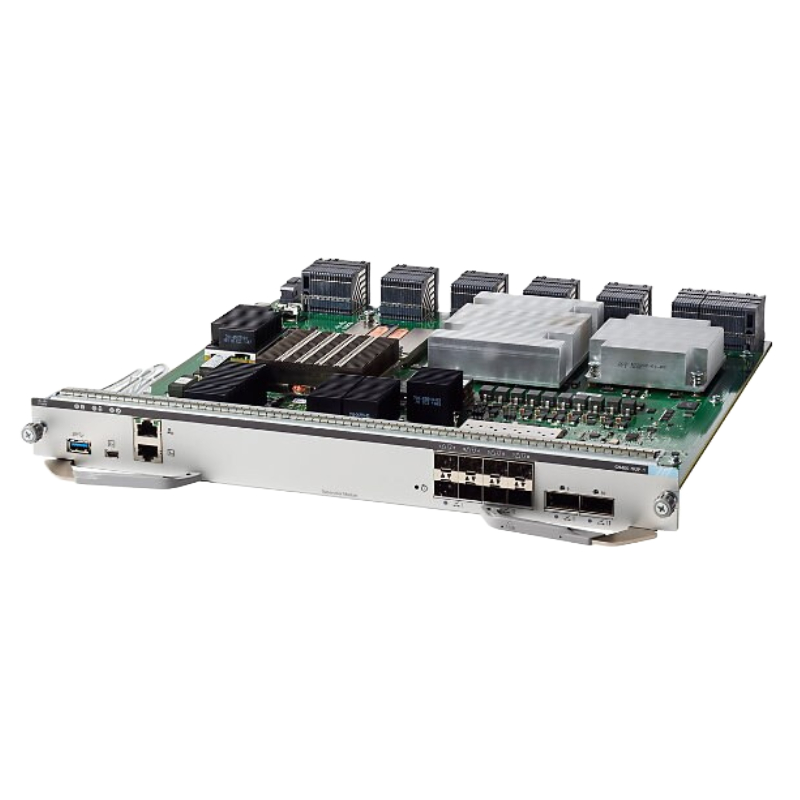

C9400-SUP-1 Cisco Catalyst 9400 Series Supervisor Module

Cisco C9400-SUP-1 Catalyst 9400 Supervisor Module Outline

The Cisco C9400-SUP-1 Supervisor Module is a high-performance control engine designed for the Catalyst 9400 Series modular switching platform. This supervisor module delivers advanced scalability, exceptional throughput, and enterprise-grade reliability for modern campus and data center network infrastructures. It is built to handle mission-critical workloads while enabling seamless programmability and software-defined networking capabilities.

Main Information of Cisco C9400-SUP-1

• Manufacturer: Cisco
• Part Number: C9400-SUP-1
• Product Type: Supervisor Module
• Platform: Catalyst 9400 Series modular switching system

Core Technical Specifications and System Capabilities

Switching Capacity and Performance Metrics

• Up to 1.44 Tbps of system-wide switching bandwidth
• 80 Gbps per-slot fabric capacity for modular scalability
• Optimized architecture for high-density campus deployments

Packet Forwarding Efficiency

• Up to 900 million packets per second (Mpps) for IPv4 traffic
• Up to 450 Mpps for IPv6 routing workloads
• Designed for consistent performance under heavy traffic loads

Advanced Memory Architecture

• 16 GB DDR4 DRAM for high-speed processing operations
• 10 GB internal flash memory for system software and configurations

Optional Expansion Storage

• Up to 960 GB SATA SSD support
• Enables application hosting and advanced analytics workloads
• Ideal for SD-Access and network automation services

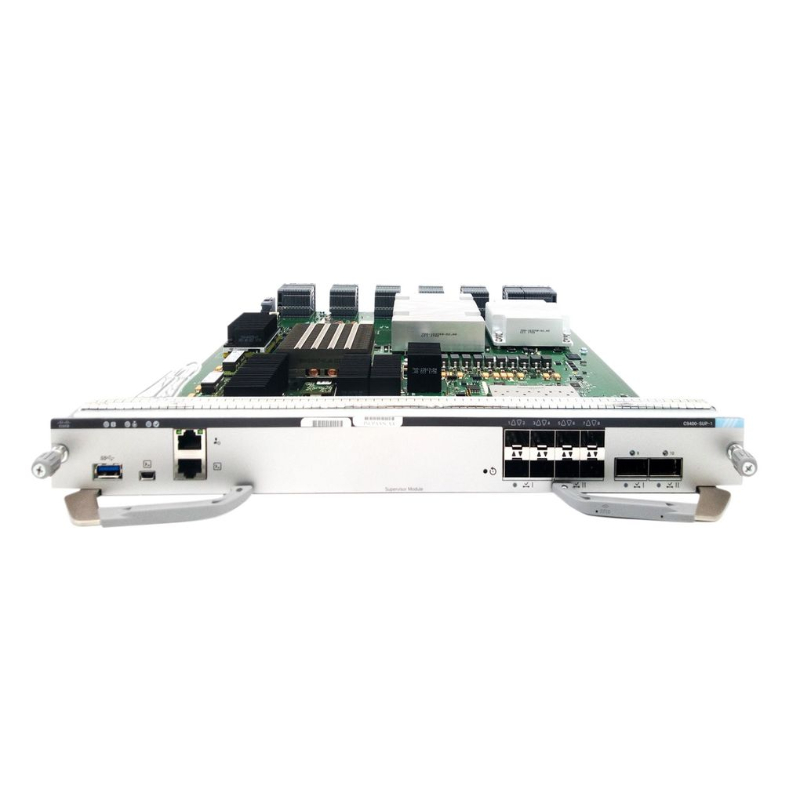

Front-Panel Modular Uplink Design

• Option 1: 8 × 10G SFP+ ports for high-speed Ethernet aggregation
• Option 2: 2 × 40G QSFP+ ports for high-bandwidth backbone connectivity
• Support for scalable uplink expansion and redundancy planning

Routing Scale, MAC Capacity, and Software Intelligence

Routing and Switching Table Capacity

• Up to 64,000 MAC address entries
• 112,000 IPv4 routing entries
• 56,000 IPv6 routing entries

Advanced Software Integration and Network Automation

• Full support for Cisco IOS XE software framework
• Programmable APIs for automation and orchestration
• Full Flexible NetFlow (FNF) for advanced traffic monitoring

Network Intelligence and Visibility

• Enhanced telemetry for real-time analytics
• Deep packet inspection capabilities
• Integrated policy-based network management

High Availability, Redundancy, and Enterprise Reliability

Chassis Compatibility and Deployment Options

• Optimized for Cisco Catalyst 9404R chassis
• Compatible with Catalyst 9407R modular chassis
• Supports high-density Catalyst 9410R environments

Seamless Failover and Continuity Features

• Supports dual supervisor module configurations
• Stateful Switchover (SSO) for uninterrupted operations
• Nonstop Forwarding (NSF) to maintain active traffic flow during failover

Enterprise Reliability Benefits

• Zero-downtime upgrades and maintenance
• High resiliency for mission-critical applications
• Reduced risk of network outages and service disruption

SD-Access and Digital Network Architecture Integration

Key SD-Access Capabilities

• Policy-based segmentation for enhanced security
• Centralized orchestration and automation support
• Scalable fabric architecture integration

Operational Advantages

• Improved network agility and deployment speed
• Reduced operational complexity through automation
• Enhanced visibility and control across enterprise networks

Cisco C9400-SUP-1 40 Gigabit Supervisor Module

The Cisco C9400-SUP-1 Catalyst 9400 Series Supervisor Module represents a core intelligence component designed for enterprise-class modular switching architectures within the Cisco Catalyst 9400 platform. Engineered to deliver high availability, advanced routing capabilities, and scalable performance, this supervisor module plays a crucial role in managing control plane operations, system forwarding decisions, and overall switch fabric coordination. As organizations continue to evolve toward intent-based networking and software-defined infrastructure, the Cisco C9400-SUP-1 stands as a critical building block for resilient campus core and distribution deployments.

Designed for modern enterprise networks that demand uninterrupted connectivity and intelligent traffic management, the Cisco Catalyst 9400 Series Supervisor Module integrates deeply with the chassis architecture, ensuring seamless communication between line cards, power systems, and software services. This supervisor module is built to support high-density environments where performance consistency, uptime reliability, and security enforcement are essential requirements for business continuity and digital transformation strategies.

Role of Cisco C9400-SUP-1 in Catalyst 9400 Architecture

Centralized Control Plane Functionality

Within the Cisco Catalyst 9400 Series, the C9400-SUP-1 supervisor module acts as the central control plane engine responsible for managing routing protocols, system configuration, and hardware orchestration. It ensures that all connected line cards operate under a unified intelligence layer, allowing seamless communication and efficient traffic forwarding decisions across the switching infrastructure. This centralized architecture improves operational consistency and reduces configuration complexity in large-scale enterprise networks.

Hardware and Software Integration

The supervisor module is tightly integrated with Cisco IOS XE software, enabling advanced programmability and automation features. This integration allows network administrators to implement policy-based automation, telemetry streaming, and real-time analytics for enhanced network visibility. The hardware and software synergy ensures optimized packet processing, faster convergence times, and improved system responsiveness under heavy network loads.

High Availability Design Principles

The Cisco C9400-SUP-1 is engineered with redundancy and fault tolerance in mind. It supports redundant supervisor configurations within Catalyst 9400 chassis deployments, ensuring uninterrupted network operations even in the event of hardware failure. This high availability design is particularly valuable for mission-critical enterprise environments such as financial institutions, healthcare systems, and large campus networks where downtime is not acceptable.

Performance Capabilities of Cisco C9400-SUP-1

Scalable System Throughput

The supervisor module is designed to handle large volumes of network traffic while maintaining predictable performance levels. It coordinates forwarding tables, routing information, and switching logic to ensure that data packets are processed efficiently across all active line cards. This scalability allows enterprises to expand network capacity without compromising speed or stability.

Optimized Packet Processing Architecture

The Cisco C9400-SUP-1 utilizes optimized hardware acceleration to manage packet forwarding operations at high speeds. By offloading critical processing tasks from the CPU to specialized hardware components, the supervisor module enhances throughput efficiency and reduces latency. This architecture is particularly beneficial for environments running high-bandwidth applications such as cloud computing, virtualization, and real-time communications.

Advanced Traffic Management

Traffic management within the Catalyst 9400 Series is significantly enhanced through the supervisor module’s intelligent control mechanisms. It supports dynamic routing updates, quality of service enforcement, and adaptive load balancing strategies. These capabilities ensure that network resources are allocated efficiently, prioritizing mission-critical applications while maintaining fairness across all connected devices.

Enterprise Networking Applications

Campus Network Core Deployments

The Cisco C9400-SUP-1 is widely deployed in campus core network environments where centralized switching and routing control are essential. It provides a stable foundation for connecting multiple distribution layers, ensuring seamless data flow between departments, buildings, and remote offices. Its robust architecture supports high-density device connectivity while maintaining consistent performance across the network.

Large-Scale Data Center Connectivity

In modern data center environments, the supervisor module plays a key role in managing inter-switch communication and ensuring efficient traffic distribution between server clusters. Its advanced capabilities support virtualization, cloud integration, and high-speed data processing requirements commonly found in enterprise data centers.

Digital Transformation Infrastructure

Organizations undergoing digital transformation rely on flexible and scalable network infrastructure. The Cisco C9400-SUP-1 supports this evolution by enabling programmability, automation, and policy-driven network management. This allows enterprises to transition from traditional static networks to dynamic, software-defined architectures that adapt to changing business needs.

Hardware Architecture and Design Efficiency

Modular System Integration

The supervisor module is designed as part of a modular chassis system, allowing easy installation, replacement, and scalability within the Cisco Catalyst 9400 platform. This modularity provides enterprises with flexibility to upgrade network capabilities without replacing the entire switching infrastructure, reducing total cost of ownership and operational complexity.

Efficient Thermal and Power Management

Thermal efficiency and power optimization are critical aspects of the Cisco C9400-SUP-1 design. The module is engineered to operate within high-performance environments while maintaining optimal temperature levels and power consumption efficiency. This ensures long-term reliability and reduces the risk of hardware degradation over time.

Hardware Redundancy Support

The supervisor module supports redundant configurations, allowing organizations to deploy dual-supervisor setups for maximum reliability. In such configurations, one supervisor operates as the active control plane while the other remains in standby mode, ready to take over in case of failure. This redundancy mechanism enhances system resilience and minimizes service disruption risks.

Software Intelligence and Network Automation

Cisco IOS XE Integration

The Cisco C9400-SUP-1 operates in conjunction with Cisco IOS XE, a modern modular operating system designed for enterprise networking. IOS XE enables advanced features such as model-driven telemetry, API-based configuration, and automated policy enforcement. This integration transforms traditional network management into a programmable and intelligent infrastructure model.

Intent-Based Networking Support

Intent-based networking is a key component of modern enterprise IT strategies, and the supervisor module supports this approach by translating business intent into automated network policies. This reduces manual configuration errors, enhances operational efficiency, and improves overall network agility.

Real-Time Analytics and Telemetry

The Cisco C9400-SUP-1 enables real-time data collection and telemetry streaming, allowing network administrators to monitor performance metrics, detect anomalies, and optimize system behavior proactively. This visibility is essential for maintaining network health and ensuring optimal application performance across distributed environments.

Security Features and Network Protection

Integrated Threat Defense Capabilities

Security is a fundamental aspect of the Cisco Catalyst 9400 architecture, and the supervisor module contributes to this by enforcing security policies at the control plane level. It supports secure segmentation, access control enforcement, and threat mitigation mechanisms that protect the network from unauthorized access and malicious activity.

Identity-Based Access Control

The Cisco C9400-SUP-1 supports identity-based networking policies that allow administrators to define access rules based on user identity, device type, and application requirements. This ensures that only authorized users and devices can access specific network resources, strengthening overall security posture.

Encrypted Management and Communication

Secure communication channels are maintained between network components and management systems. Encryption protocols help protect configuration data, control plane communication, and management traffic from interception or tampering, ensuring compliance with enterprise security standards.

Scalability and Future-Ready Networking

Support for Network Expansion

The Cisco C9400-SUP-1 is designed to support network growth without requiring architectural redesign. As organizations expand their operations, additional line cards and services can be integrated seamlessly into the existing Catalyst 9400 chassis, ensuring continuous scalability.

Cloud-Ready Architecture

Modern enterprises increasingly rely on hybrid cloud environments, and the supervisor module supports this transition by enabling seamless connectivity between on-premises infrastructure and cloud platforms. This ensures consistent performance and policy enforcement across distributed environments.

Future-Proof Design Philosophy

Cisco has engineered the C9400-SUP-1 with a forward-looking design philosophy that accommodates emerging technologies and evolving networking standards. This ensures long-term investment protection and reduces the need for frequent hardware replacement cycles.

Operational Efficiency and Network Management

Centralized Network Administration

The supervisor module simplifies network management by centralizing control functions within the Catalyst 9400 chassis. This reduces operational overhead and enables administrators to manage complex network environments from a unified interface.

Automated Configuration Management

Automation capabilities integrated into the Cisco C9400-SUP-1 allow for streamlined configuration deployment and policy enforcement. This reduces manual intervention and minimizes configuration errors, improving overall network reliability.

Enhanced Troubleshooting Capabilities

Advanced diagnostics and monitoring tools embedded within the supervisor module enable rapid identification and resolution of network issues. This improves mean time to repair and enhances overall service availability.

Deployment Flexibility and Use Cases

Enterprise Campus Environments

The Cisco C9400-SUP-1 is widely used in enterprise campus environments where centralized control and high-density connectivity are required. It supports diverse applications ranging from internal communication systems to enterprise resource planning platforms.

Service Provider Edge Networks

Service providers leverage the supervisor module for edge network deployments where scalability, performance, and reliability are critical. It enables efficient traffic aggregation and routing between core and access networks.

Government and Public Sector Networks

Public sector organizations benefit from the security, reliability, and scalability offered by the Cisco C9400-SUP-1. It supports secure communication infrastructure required for government operations and public services.

Long-Term Value and Investment Protection

Reduced Total Cost of Ownership

By enabling modular upgrades and centralized management, the supervisor module helps organizations reduce long-term operational and capital expenditures. Its scalability ensures that investments remain relevant as network demands evolve.

Lifecycle Support and Reliability

Cisco provides long-term support for Catalyst 9400 series components, ensuring that the C9400-SUP-1 remains a reliable and supported solution throughout its operational lifecycle. This stability is essential for enterprise planning and infrastructure budgeting.

Strategic Infrastructure Asset

The supervisor module is not only a hardware component but also a strategic infrastructure asset that supports digital transformation, business continuity, and enterprise agility in modern IT environments.
