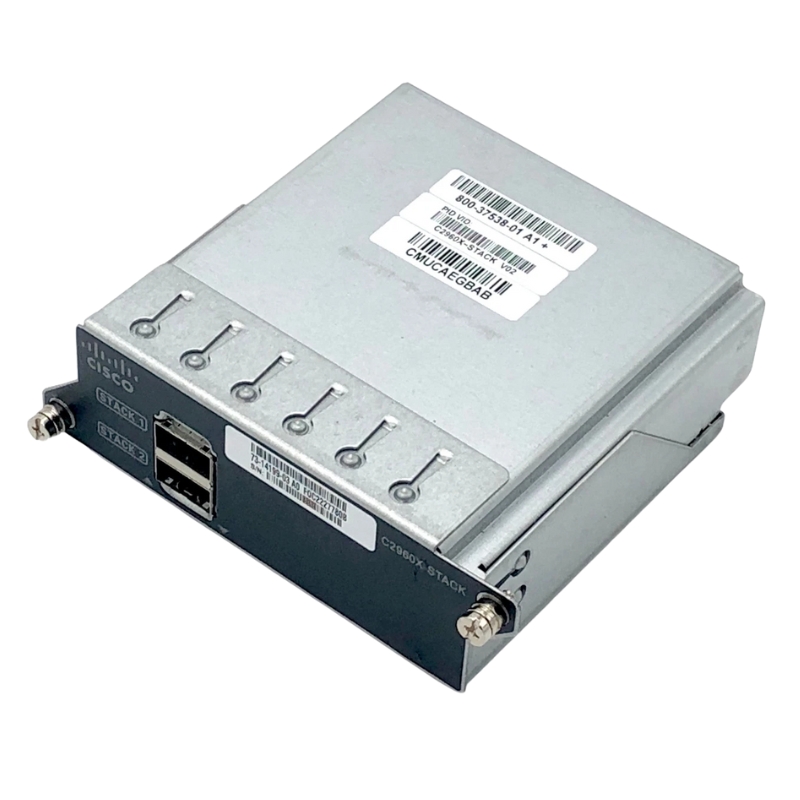

C2960X-STACK= Cisco C2960X FlexStack Plus Stacking Module

Overview of Network FlexStack Modules

The C2960X-STACK= Cisco C2960X FlexStack Plus Stacking Module is a dedicated stacking solution designed to enhance the scalability, redundancy, and performance of enterprise-grade switching environments built on the Catalyst 2960-X and 2960-XR Series switches. This stacking module enables multiple switches to operate as a single logical unit, simplifying management while increasing bandwidth efficiency and operational resilience. It is widely deployed in campus networks, branch office infrastructures, and enterprise access-layer deployments where high availability and simplified network architecture are essential.

Product Identification

• Brand: Cisco
• Part Number: C2960X-STACK=
• Module Type: Stacking Module

Technical Information

• Form Factor: Hot-swappable plug-in module architecture
• Installation Location: Rear structural FlexStack-Plus expansion slot bay
• Insertion Style: Slide-in connection with dual captive securing retention screws

Throughput & Performance

• Stacking Bandwidth: 80 Gbps total aggregate throughput capacity
• Port Data Rate: 40 Gbps full-duplex per stacking interface
• Stack Configuration: Bidirectional data forwarding paths loop layout
• Active Ring Protocol: Automatic hardware-driven packet loop routing prevention
• Physical Interfaces: 2 specialized proprietary copper FlexStack-Plus port connectors

 Scaling & Architecture Capacity

• Maximum Stack Members: Up to 8 physical switches grouped together
• Unified Management: Single master switch election configuration architecture
• Single IP Management: Entire stack operates under one IP address
• Master Redundancy: Automatic active master backup election failover protocol
• Cross-Stack EtherChannel: Aggregates network ports across different stack members
• Hot-Add Capability: Allows adding new switches without powering down the stack

Compatibility with Catalyst Switches

• Catalyst 2960x-24pd-l
• Catalyst 2960x-24ps-l
• Catalyst 2960x-24td-l
• Catalyst 2960x-24ts-l
• Catalyst 2960x-24ts-ll
• Catalyst 2960x-48fpd-l
• Catalyst 2960x-48fps-l
• Catalyst 2960x-48lpd-l
• Catalyst 2960x-48lps-l
• Catalyst 2960x-48td-l
• Catalyst 2960x-48ts-l
• Catalyst 2960xr-24ps-i
• Catalyst 2960xr-24ts-i

The Cisco C2960X FlexStack Plus Stacking Module

As modern IT infrastructures demand higher throughput, improved fault tolerance, and easier network administration, stacking technologies such as Cisco FlexStack Plus play a crucial role. The C2960X-STACK= module allows network administrators to interconnect multiple compatible switches into a unified switching system, effectively reducing operational complexity while enhancing scalability. This makes it a key component in enterprise network design strategies focused on growth and reliability.

Cisco FlexStack Plus Technology

Cisco FlexStack Plus is an advanced stacking architecture that enables up to eight compatible Catalyst 2960-X or 2960-XR switches to be stacked together. Once stacked, the switches behave like a single switching entity with a single management plane, single IP address for management, and unified configuration. This significantly reduces administrative overhead and improves network efficiency.

Unlike traditional standalone switches, FlexStack Plus provides high-speed stacking bandwidth and seamless failover capabilities. If one switch in the stack fails, the remaining switches continue operating without disrupting network services. This is particularly important in mission-critical environments such as financial institutions, healthcare facilities, and large-scale enterprise campuses.

Core Features of C2960X-STACK= Module

The C2960X-STACK= module provides a dedicated high-speed stacking link that delivers up to 80 Gbps stacking bandwidth per switch. This ensures that traffic between stacked switches flows efficiently, minimizing latency and maximizing performance across the network infrastructure.

Scalability for Growing Networks

One of the most significant advantages of using the FlexStack Plus module is its scalability. Organizations can start with a small number of switches and expand the stack as network demands grow. Up to eight switches can be combined in a single stack, allowing businesses to scale their access layer without redesigning the entire network topology.

Unified Management System

Once installed, the stacking module allows all connected switches to be managed as a single entity. This simplifies configuration tasks such as VLAN assignment, QoS policies, security settings, and firmware upgrades. Network administrators benefit from reduced operational complexity and fewer configuration errors.

Seamless Redundancy and Failover

The FlexStack Plus architecture ensures high availability by providing automatic failover capabilities. If a master switch fails, another switch in the stack automatically takes over as the new master, ensuring continuous network operation without manual intervention.

Stacking Hardware Design

The stacking module is physically installed into the rear expansion slot of compatible Catalyst 2960-X switches. It uses proprietary Cisco stacking cables to interconnect multiple devices in a ring or chain topology, ensuring redundancy and optimized traffic distribution.

Ring Topology Advantage

FlexStack Plus supports a dual-ring architecture, meaning data can flow in both directions around the stack. This improves resilience because if one link fails, traffic can automatically reroute in the opposite direction without service interruption.

Master Election Process

Within a stack, one switch is automatically elected as the master. The master switch controls configuration management, forwarding tables, and overall stack coordination. The election process is based on predefined priority rules such as switch priority value, MAC address, and uptime.

Deployment Scenarios for C2960X-STACK=

In enterprise campus environments, the stacking module is commonly used to simplify access-layer switch management across multiple floors or buildings. Instead of managing dozens of individual switches, IT teams can manage a single logical switch stack.

Branch Office Deployments

For branch offices with limited IT staff, FlexStack Plus provides a significant operational advantage. A stack of switches can be deployed and managed centrally, reducing the need for on-site configuration and troubleshooting.

Data Access Layer Optimization

In data-centric environments, the stacking module ensures high-speed connectivity between endpoint devices, servers, and distribution switches. This improves application performance and reduces network congestion at the access layer.

High Availability Networks

Organizations that require near-zero downtime leverage stacked switch architectures to ensure redundancy. If a switch fails, traffic is automatically rerouted through the remaining switches in the stack without service disruption.

Benefits of Using Cisco C2960X-STACK= Module

By consolidating multiple switches into a single managed entity, network administrators can significantly reduce the time and effort required for configuration, monitoring, and maintenance.

Cost Optimization

Instead of investing in expensive modular chassis switches, organizations can achieve similar scalability and redundancy using stacked fixed-configuration switches with the FlexStack Plus module.

Improved Network Performance

High-speed stacking interconnects ensure that internal switch-to-switch communication occurs at line-rate speeds, reducing bottlenecks and improving overall throughput.

Enhanced Fault Tolerance

The distributed architecture of a switch stack ensures that single points of failure are minimized. Redundant paths and automatic failover mechanisms maintain network stability even during hardware failures.

Performance Considerations

The stacking module ensures optimal bandwidth utilization by distributing traffic intelligently across stack members. This reduces congestion and improves application responsiveness.

Latency Reduction

Because stack members communicate over high-speed dedicated links, internal latency is significantly reduced compared to traditional uplink-based architectures.

Load Balancing

Traffic load is automatically balanced across all active switches in the stack, ensuring efficient utilization of hardware resources.

Compatibility and Ecosystem Integration

The C2960X-STACK= module is specifically designed for Cisco Catalyst 2960-X and 2960-XR Series switches. It integrates seamlessly into Cisco’s broader networking ecosystem, supporting advanced features such as Cisco Network Assistant, SNMP-based monitoring, and enterprise-grade security protocols.

Its compatibility with existing Cisco infrastructure makes it an ideal choice for organizations already invested in Cisco networking technologies, allowing for smooth expansion without requiring a complete network redesign.

Security and Reliability Enhancements

Communication between stack members is secured through proprietary Cisco protocols, ensuring that internal data exchanges are protected from unauthorized access or interception.

Network Resilience

The stacking architecture inherently improves resilience by eliminating single-switch dependency. Even during hardware or software failures, network continuity is maintained.

Automatic Recovery Mechanisms

In the event of a failure, the stack automatically reconfigures itself, reassigning roles and maintaining operational stability without manual intervention.

Long-Term Value of FlexStack Plus Modules

Investing in stacking technology such as the C2960X-STACK= module provides long-term value by extending the lifecycle of network infrastructure. Organizations can incrementally expand their switching capacity without replacing entire systems, resulting in cost savings and improved return on investment.

Additionally, the modular nature of the system ensures that upgrades can be performed gradually, allowing businesses to adapt to evolving network demands without disruption.

Functional Advantages

The Cisco C2960X FlexStack Plus Stacking Module represents a powerful solution for organizations seeking scalability, redundancy, and simplified network management. By enabling multiple switches to operate as a unified system, it transforms traditional network architectures into highly efficient, resilient, and manageable infrastructures.
