C2960X-STACK= Cisco FlexStack Plus Module 2 Ports Hot-Swappable

Overview of Network Stacking Modules

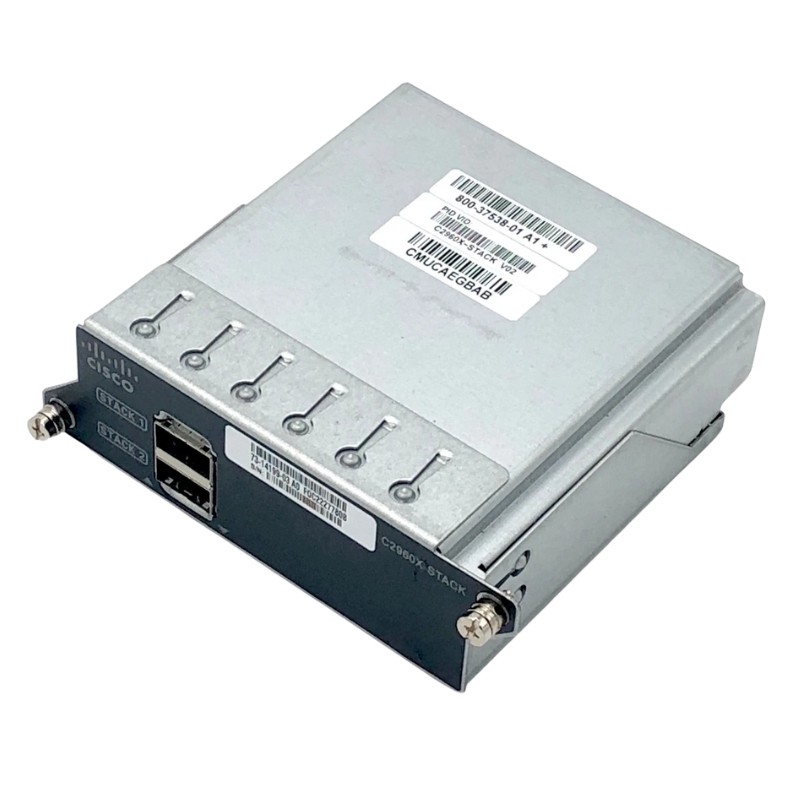

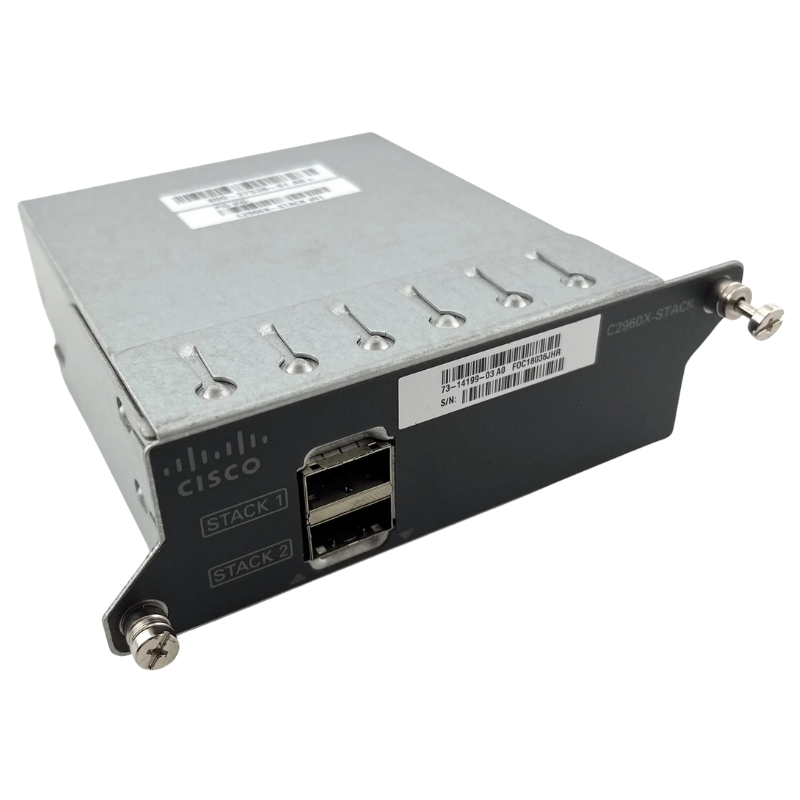

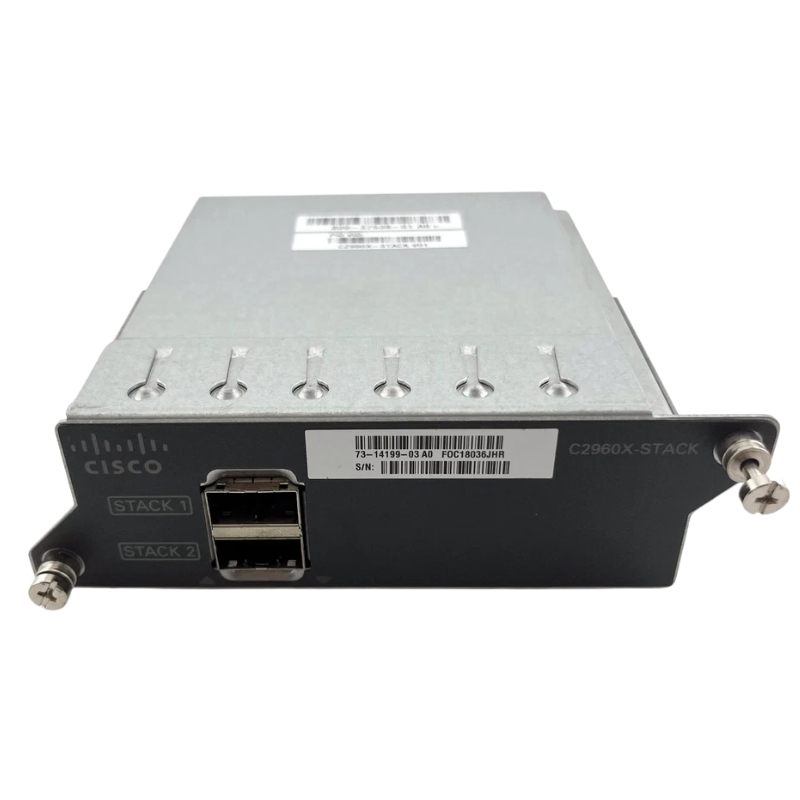

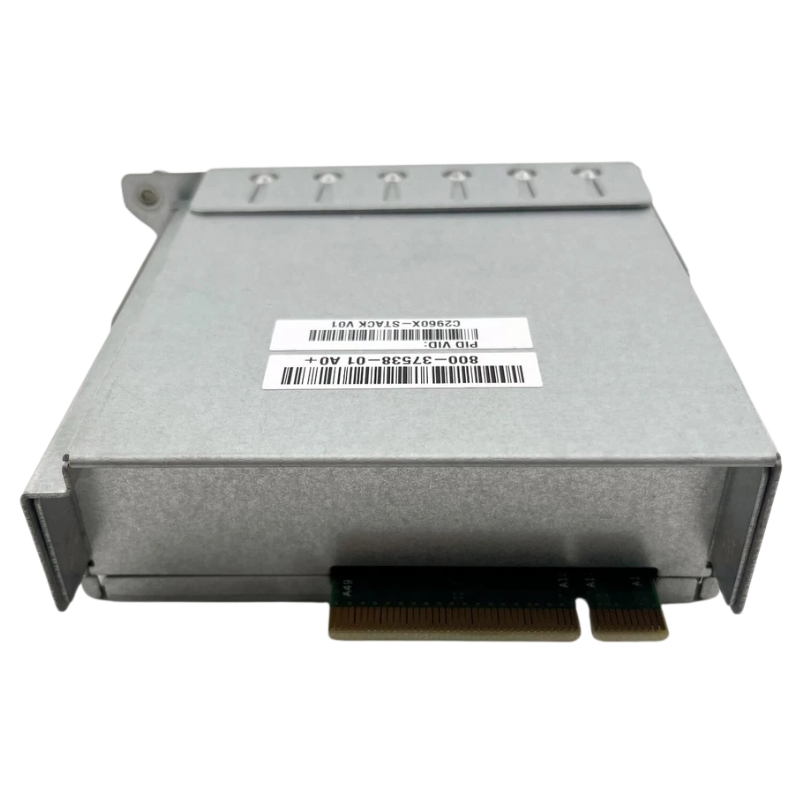

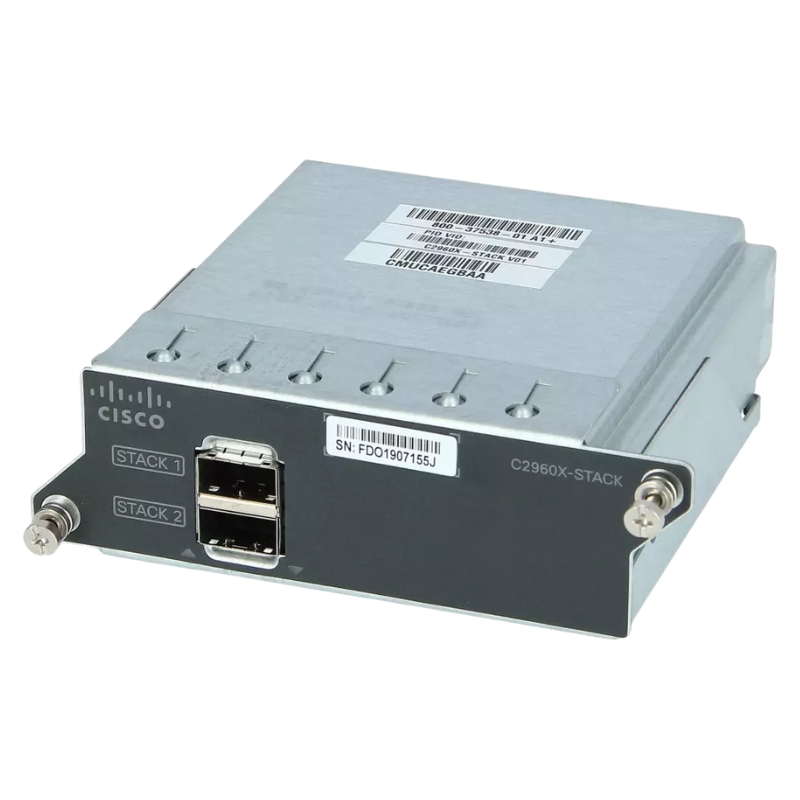

The C2960X-STACK= Cisco C2960X FlexStack Plus Stacking Module is a dedicated hardware expansion component designed for the Cisco Catalyst 2960-X Series. It enables high-performance switch stacking capabilities, allowing multiple switches to operate as a single unified system. This module plays a crucial role in modern enterprise network architectures where scalability, redundancy, and simplified management are essential.

Product Identification

• Brand: Cisco
• Part Number: C2960X-STACK=
• Module Type: Stacking Module

Technical Information

• Form Factor: Hot-swappable plug-in module architecture
• Installation Location: Rear structural FlexStack-Plus expansion slot bay
• Insertion Style: Slide-in connection with dual captive securing retention screws

Throughput & Performance

• Stacking Bandwidth: 80 Gbps total aggregate throughput capacity
• Port Data Rate: 40 Gbps full-duplex per stacking interface
• Stack Configuration: Bidirectional data forwarding paths loop layout
• Active Ring Protocol: Automatic hardware-driven packet loop routing prevention
• Physical Interfaces: 2 specialized proprietary copper FlexStack-Plus port connectors

 Scaling & Architecture Capacity

• Maximum Stack Members: Up to 8 physical switches grouped together
• Unified Management: Single master switch election configuration architecture
• Single IP Management: Entire stack operates under one IP address
• Master Redundancy: Automatic active master backup election failover protocol
• Cross-Stack EtherChannel: Aggregates network ports across different stack members
• Hot-Add Capability: Allows adding new switches without powering down the stack

Compatibility with Catalyst Switches

• Catalyst 2960x-24pd-l
• Catalyst 2960x-24ps-l
• Catalyst 2960x-24td-l
• Catalyst 2960x-24ts-l
• Catalyst 2960x-24ts-ll
• Catalyst 2960x-48fpd-l
• Catalyst 2960x-48fps-l
• Catalyst 2960x-48lpd-l
• Catalyst 2960x-48lps-l
• Catalyst 2960x-48td-l
• Catalyst 2960x-48ts-l
• Catalyst 2960xr-24ps-i
• Catalyst 2960xr-24ts-i

The Cisco C2960X FlexStack Plus Stacking Module

In enterprise switching environments, stackable architecture is increasingly preferred because it reduces operational complexity while improving redundancy and bandwidth utilization. The Cisco FlexStack Plus technology embedded in this module provides high-speed stacking links, enabling seamless communication between switches with minimal latency. It is specifically engineered for the Cisco Catalyst 2960-X and 2960-XR series, ensuring compatibility and optimized performance.

Designed for campus networks, branch offices, and mid-sized enterprise deployments, the C2960X-STACK= module ensures that network administrators can manage multiple switches as a single logical unit, significantly reducing configuration overhead while increasing network resilience.

Understanding Cisco FlexStack Plus Technology

Cisco FlexStack Plus is an advanced stacking technology that enables multiple Catalyst switches to function as a single switching system. Unlike traditional standalone switch configurations, FlexStack Plus allows administrators to unify control planes, simplify management, and enhance redundancy across network devices. The stacking module provides a dedicated high-speed stacking bandwidth that interconnects switches using special stacking cables and modules. With FlexStack Plus, up to eight compatible switches can be stacked together, depending on the model and configuration, creating a scalable switching architecture that grows with business needs.

One of the key advantages of FlexStack Plus is its ability to maintain high availability. If one switch in the stack fails, the remaining switches continue operating without interruption, ensuring business continuity and minimizing downtime. This is especially important in mission-critical environments where network availability directly impacts productivity and operations.

Key Features of C2960X-STACK= Module

The C2960X-STACK= module is engineered with enterprise-grade capabilities that enhance both performance and manageability of Cisco Catalyst 2960-X switches.

High-Speed Stack Bandwidth

The module delivers up to 80 Gbps stacking bandwidth, ensuring fast and efficient data transfer between stacked switches. This high throughput is essential for environments with heavy traffic loads and latency-sensitive applications such as voice, video, and cloud services.

Seamless Switch Integration

With FlexStack Plus, switches behave as a single logical device. This allows for simplified configuration, centralized management, and consistent policy enforcement across all connected switches.

Hot-Swappable Design

The stacking module supports hot-swapping, enabling administrators to replace or install modules without shutting down the switch. This feature reduces maintenance downtime and enhances operational flexibility.

Enhanced Redundancy

Redundancy is a core advantage of stacking. If one switch or stacking link fails, the system automatically reroutes traffic through alternative paths, maintaining uninterrupted network operations.

Scalability

The module allows organizations to scale their network infrastructure by simply adding more switches to the stack. This eliminates the need for complex redesigns as network demands grow.

Compatibility and Supported Platforms

The C2960X-STACK= FlexStack Plus module is designed specifically for the Cisco Catalyst 2960-X and 2960-XR Series switches manufactured by It is not compatible with earlier Catalyst 2960-S or 2960 models that use FlexStack or FlexStack-Plus variations. Proper compatibility ensures optimal stacking performance, stable synchronization, and efficient traffic forwarding across all connected devices. Administrators should always verify firmware and IOS compatibility before deploying stacking modules in production environments.

Stack Cable Configuration

Cisco FlexStack Plus uses proprietary stacking cables designed to provide high-speed bidirectional communication between switches. These cables should be arranged in a ring topology to ensure redundancy and optimal performance.

Software Configuration

After physical installation, switches automatically detect the stacking module. Administrators can verify stack formation using Cisco IOS commands. The master switch election process is automatically handled, though manual priority configuration is also supported for advanced deployments. Proper configuration ensures that all switches in the stack operate under a single management IP address, simplifying monitoring and maintenance.

Enterprise Use Cases and Deployment Scenarios

In campus environments such as universities and corporate offices, the C2960X-STACK= module allows network engineers to interconnect multiple access layer switches. This creates a unified switching system that simplifies VLAN management and improves traffic segmentation across departments.

Branch Office Connectivity

Branch offices benefit significantly from stackable switches, as they often require compact yet scalable networking solutions. The FlexStack Plus module allows IT teams to manage multiple switches as a single entity, reducing administrative overhead at remote locations.

Enterprise Data Access Layers

In enterprise networks, access layer switches play a critical role in connecting end-user devices. By stacking these switches, organizations can ensure consistent policy enforcement and improved bandwidth distribution across all endpoints.

Voice and Video Integration

Modern enterprises rely heavily on VoIP and video conferencing systems. The high stacking bandwidth ensures low latency and stable performance for real-time applications, reducing jitter and packet loss across the network.

Performance and Scalability Advantages

The C2960X-STACK= module significantly enhances the performance capabilities of Cisco Catalyst 2960-X switches. By enabling high-speed inter-switch communication, it reduces bottlenecks and improves overall throughput across the network. Scalability is another major advantage. Organizations can start with a small number of switches and expand their stack as demand increases. This modular approach ensures cost efficiency and future-proof network design.

Additionally, stack convergence allows for faster recovery in case of failures. The system automatically rebalances traffic across remaining active switches, maintaining consistent performance levels even under stress conditions.

Master Switch Election Issues

If the wrong switch becomes the master, administrators can adjust priority settings to control election outcomes. Proper configuration ensures stable network hierarchy and predictable management behavior.
