VWIC3-2MFT-T1/E1 Cisco 2 Ports Interface Card Trunk Voice WAN

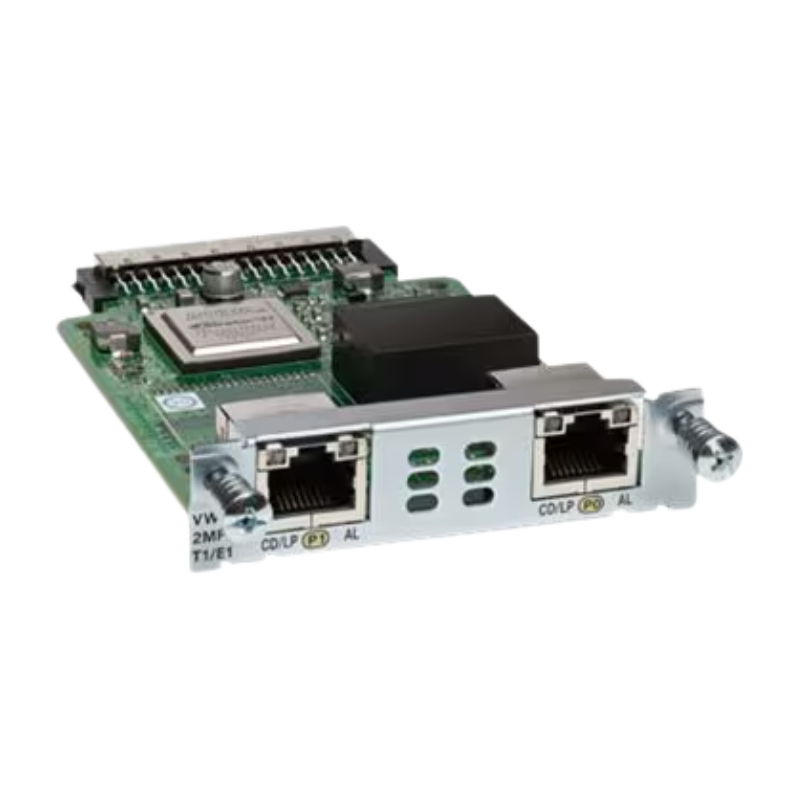

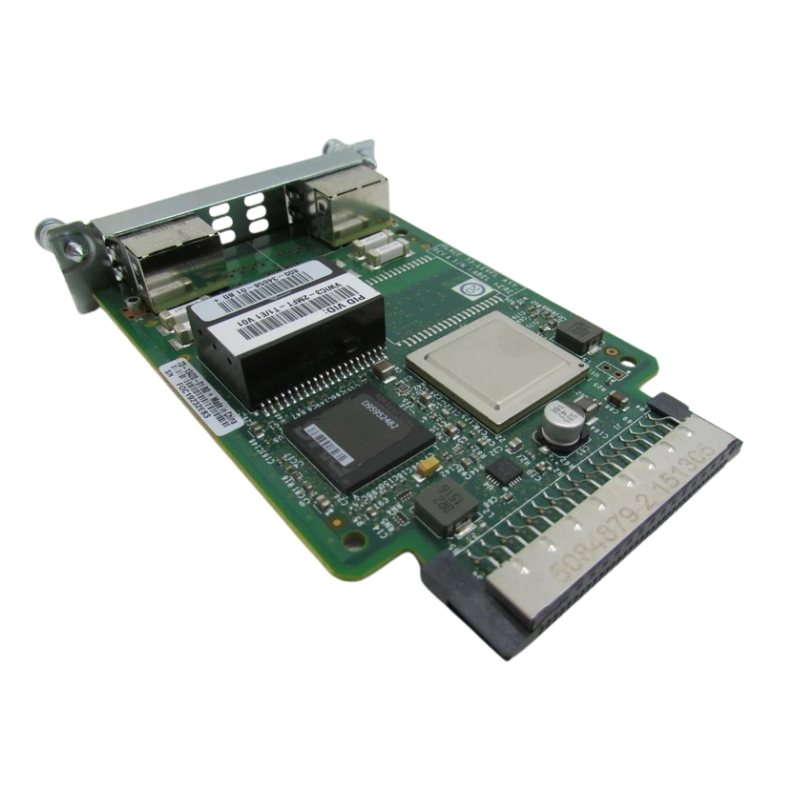

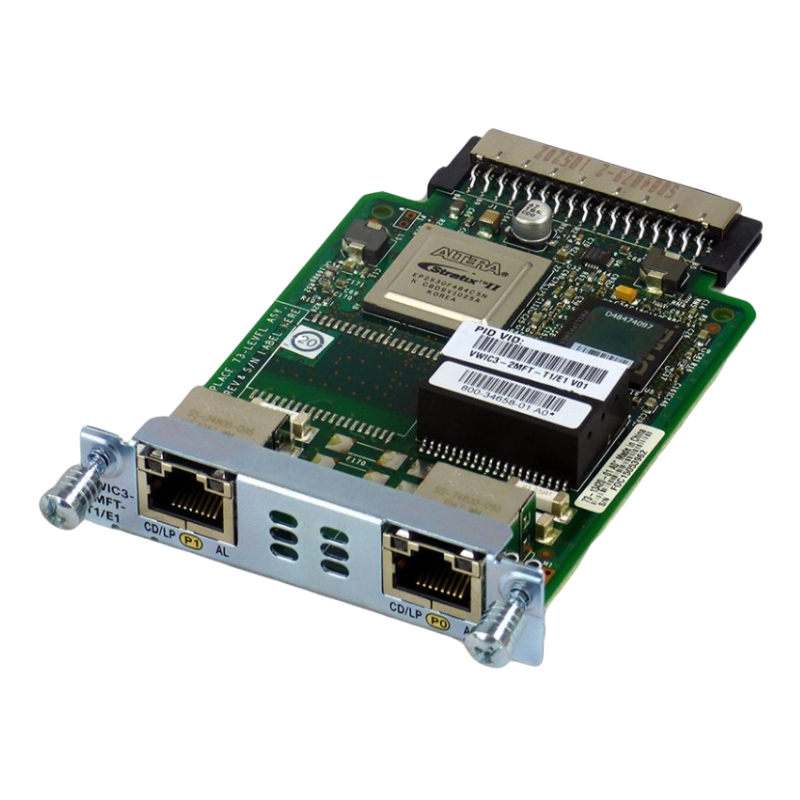

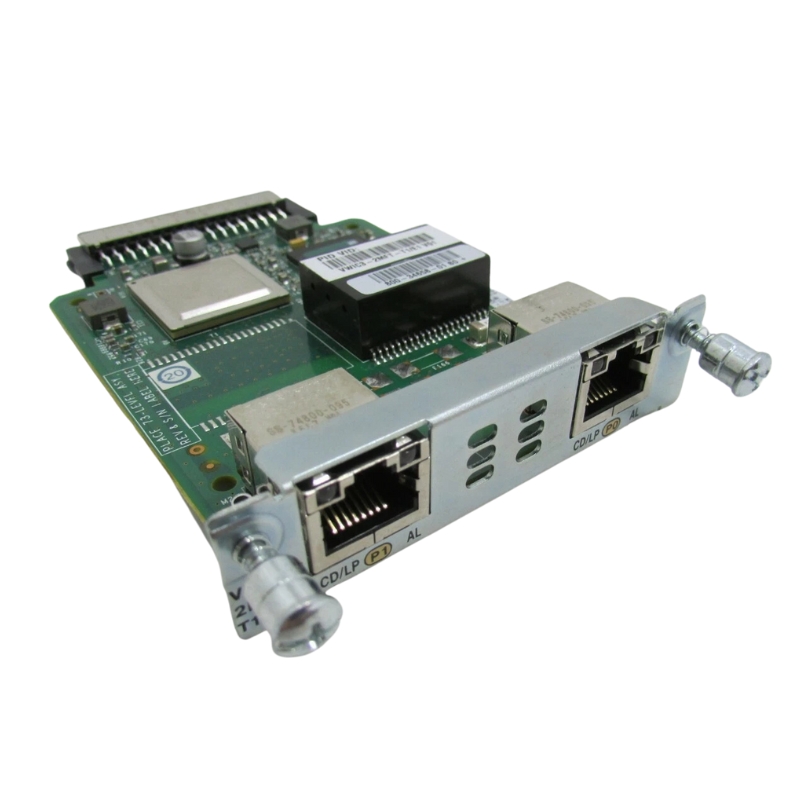

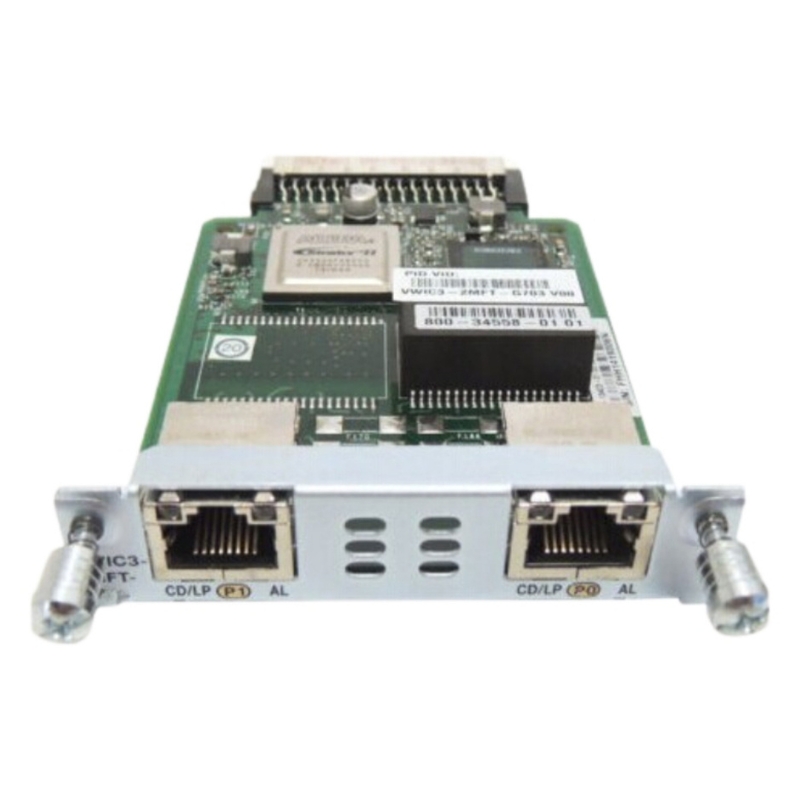

Cisco VWIC3-2MFT-T1/E1 2-Port WAN Interface Card

The Cisco VWIC3-2MFT-T1/E1 is a high-performance Voice/WAN Interface Card (VWIC) engineered to provide reliable voice and data connectivity for Cisco Integrated Services Routers (ISR). Featuring dual configurable T1/E1 interfaces, this network module enables businesses to deploy voice, fax, and WAN applications through a single compact interface card. Its flexible design supports scalable branch office communications while ensuring dependable network performance.

General Information

• Manufacturer: Cisco
• Part Number (SKU): VWIC3-2MFT-T1/E1
• Product Category: Network Module
• Module Type: Voice/WAN Interface Card (VWIC)
• Primary Applications: Voice Communications and Wide Area Networking

Flexible Enterprise Deployment

• Supports T1 and E1 network connections
• Ideal for branch office connectivity
• Optimized for unified communications
• Suitable for voice gateway implementations
• Helps simplify network expansion

Technical Specifications

Network Interfaces

• Number of Ports: 2
• Interface Type: T1/E1 WAN
• Port Configuration: 2 × T1/E1 Network WAN Interfaces
• Application Support: Voice and WAN Networking

Expansion Details

• Expansion Slots: Not Applicable
• Daughter Card Support: Not Applicable

Physical Specifications

• Height: 0.75 inches
• Width: 3.08 inches
• Depth: 4.74 inches
• Approximate Weight: 13 oz

Router Compatibility

The Cisco VWIC3-2MFT-T1/E1 is specifically designed to integrate seamlessly with several Cisco Integrated Services Router platforms, providing dependable compatibility for enterprise networking deployments.

Supported Cisco Router Series

• Cisco 1900 Series Router Chassis
• Cisco 2900 Series Router Chassis
• Cisco 3900 Series Router Chassis

Ideal Deployment Scenarios

Recommended Applications

• Enterprise branch office networking
• Voice gateway installations
• Unified communications infrastructure
• T1/E1 WAN connectivity
• Business voice transmission
• Corporate data networking
• Remote office communication solutions

Cisco VWIC3-2MFT-T1/E1 2 Ports Interface Card Overview

The Cisco VWIC3-2MFT-T1/E1 2 Ports Trunk Voice WAN Interface Card is a high-performance network expansion module designed to enhance voice and data integration across enterprise-grade routing environments. Developed by Cisco Systems, this interface card is part of Cisco’s advanced WAN Interface Card (VWIC) series, engineered to support both T1 and E1 digital trunk standards within a single flexible hardware platform. It enables organizations to consolidate voice and data traffic efficiently while ensuring reliable connectivity to PSTN and carrier-grade networks.

This category of interface cards plays a crucial role in modern unified communications infrastructure, especially in environments where legacy telephony systems must interoperate with IP-based VoIP solutions. The Cisco VWIC3-2MFT-T1/E1 module is widely used in branch offices, enterprise headquarters, and service provider deployments where stable voice trunking and WAN connectivity are essential.

Core Architecture and Design Principles

Dual-Port Trunk Interface Capability

The Cisco VWIC3-2MFT-T1/E1 features two independent ports capable of operating in either T1 or E1 mode. This dual-port architecture allows simultaneous trunk connections, offering redundancy and load distribution across voice or data channels. The flexibility of supporting both T1 (commonly used in North America and Japan) and E1 (widely used in Europe, Asia, and other global regions) makes it a globally adaptable solution.

Integration with Cisco Modular Routers

This WAN Interface Card is designed for seamless integration with Cisco Integrated Services Routers (ISR), including platforms such as Cisco 2800, 2900, 3800, and 3900 series. The tight hardware-software integration ensures optimized performance for voice gateway services, WAN routing, and digital trunk termination.

Hardware Efficiency and Signal Processing

The VWIC3-2MFT-T1/E1 leverages advanced digital signal processing (DSP) resources available in Cisco routers. It offloads voice encoding and decoding tasks, reducing CPU load and improving call quality. This ensures low-latency transmission for real-time voice communications.

Key Functional Capabilities

Voice and Data Convergence

One of the most significant advantages of this interface card is its ability to converge voice and data traffic over a single WAN infrastructure. By enabling trunk-based communication with PSTN or PBX systems, enterprises can integrate traditional telephony systems with modern VoIP networks.

Flexible T1/E1 Configuration

The Cisco VWIC3-2MFT-T1/E1 supports configurable framing and line coding options. For T1 environments, it supports ESF (Extended Super Frame) and SF (Super Frame), while for E1 environments, it supports CRC4 and non-CRC4 framing. This flexibility ensures compatibility with a wide range of telecom carriers.

Channelized and Unchannelized Operation

The card supports both channelized (fractional T1/E1) and unchannelized (full T1/E1) modes. Channelized operation allows bandwidth allocation per time slot, which is ideal for voice channels, while unchannelized mode provides full bandwidth for data-heavy applications.

Voice Trunking and WAN Integration

PSTN Connectivity

The VWIC3-2MFT-T1/E1 module is commonly deployed to connect enterprise routers to Public Switched Telephone Network (PSTN) carriers. It enables direct digital trunking, allowing high-quality voice transmission without analog conversion loss.

PBX Integration

This interface card supports integration with legacy Private Branch Exchange (PBX) systems, allowing enterprises to migrate gradually toward VoIP without replacing existing telephony infrastructure. It acts as a bridge between traditional telephony and IP-based communications.

Voice over IP (VoIP) Gateway Role

In Cisco unified communications environments, the VWIC3-2MFT-T1/E1 often functions as a voice gateway interface. It converts TDM-based voice signals into IP packets for routing across modern IP networks.

Packetization and Compression Support

When used in VoIP deployments, voice traffic processed through the VWIC3 card is packetized using codecs such as G.711 or G.729. This ensures optimized bandwidth usage while maintaining acceptable voice quality for enterprise communications.

Compatibility and Platform Support

Cisco Integrated Services Routers (ISR)

The VWIC3-2MFT-T1/E1 is compatible with multiple generations of Cisco ISR platforms, particularly ISR G1 and G2 series. These include:

• Cisco 1841, 1861 (limited support scenarios)
• Cisco 2800 Series
• Cisco 2900 Series
• Cisco 3800 Series
• Cisco 3900 Series

Software Compatibility

The card operates under Cisco IOS software, which provides configuration control for WAN interfaces, voice ports, and trunk settings. Administrators can configure controller settings, PRI channels, and voice service parameters using IOS CLI commands.

IOS Voice Feature Integration

Advanced IOS feature sets enable dial-peer configuration, call routing, digit manipulation, and QoS policies. This ensures that voice traffic is prioritized across WAN links for optimal performance.

Performance and Reliability Features

Carrier-Grade Stability

Designed for enterprise-grade reliability, the Cisco VWIC3-2MFT-T1/E1 ensures consistent uptime even under high traffic loads. Its hardware-based design minimizes packet loss and jitter in voice communications.

Redundant Trunking Support

With two ports available, organizations can configure redundancy mechanisms such as backup trunk lines or load balancing across multiple carriers. This improves network resilience in case of link failure.

Error Detection and Line Monitoring

The module supports advanced error detection mechanisms such as CRC error monitoring, line loopback testing, and alarm indication signal (AIS) detection. These features help administrators maintain network health and quickly diagnose issues.

Deployment Scenarios and Use Cases

Enterprise Branch Connectivity

In branch office environments, the VWIC3-2MFT-T1/E1 provides a reliable connection to central office systems via T1/E1 leased lines. This ensures secure and stable communication between distributed offices.

Contact Center Infrastructure

Call centers rely heavily on trunk cards like the VWIC3 series to handle large volumes of inbound and outbound calls. The dual-port capability allows for scaling call capacity efficiently.

Unified Communications Systems

Within unified communications ecosystems, the card enables seamless integration between voice, video, and data services, supporting Cisco Unified Communications Manager deployments.

Service Provider Edge Connectivity

Telecommunication providers use the VWIC3-2MFT-T1/E1 for terminating customer leased lines and delivering voice services at the network edge. Its compatibility with carrier standards makes it a preferred choice for edge routing solutions.
