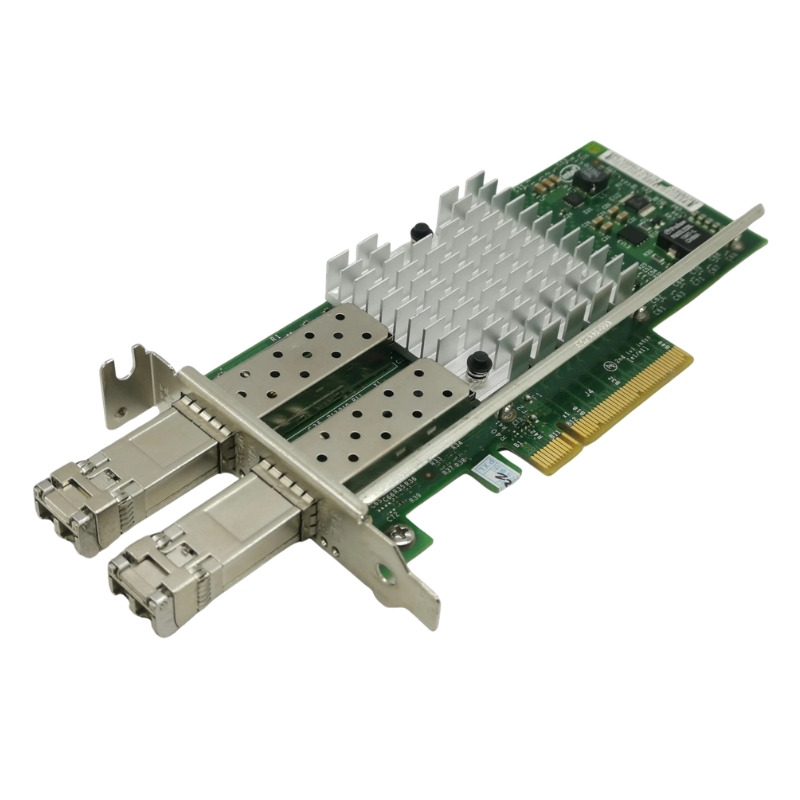

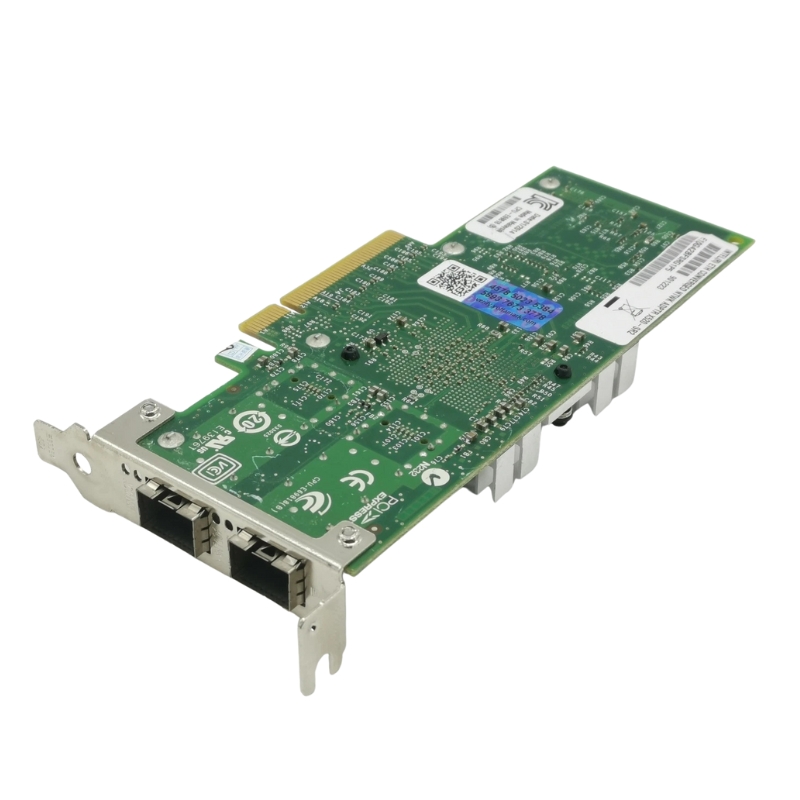

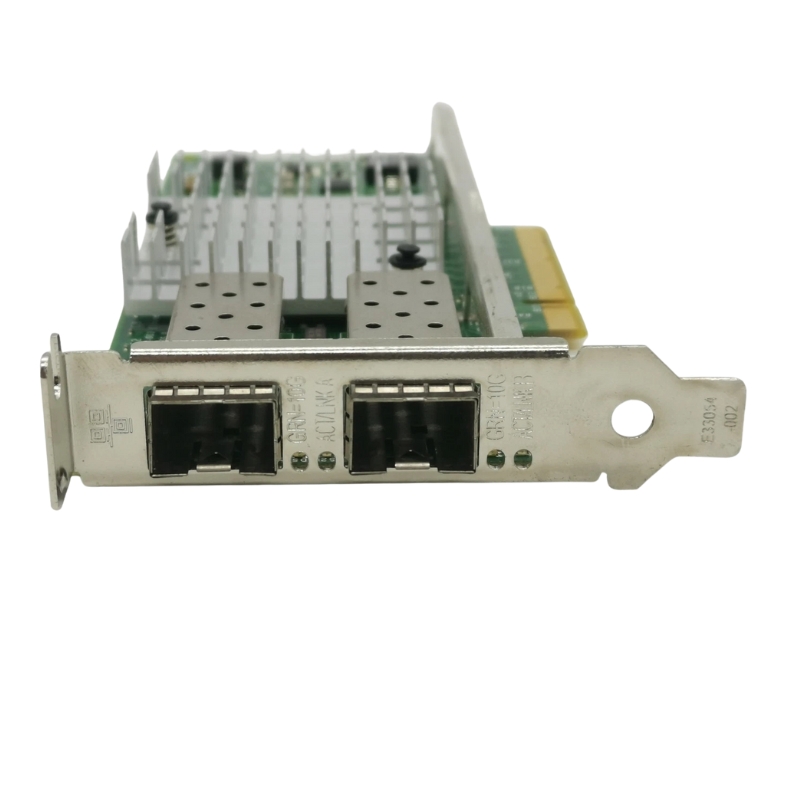

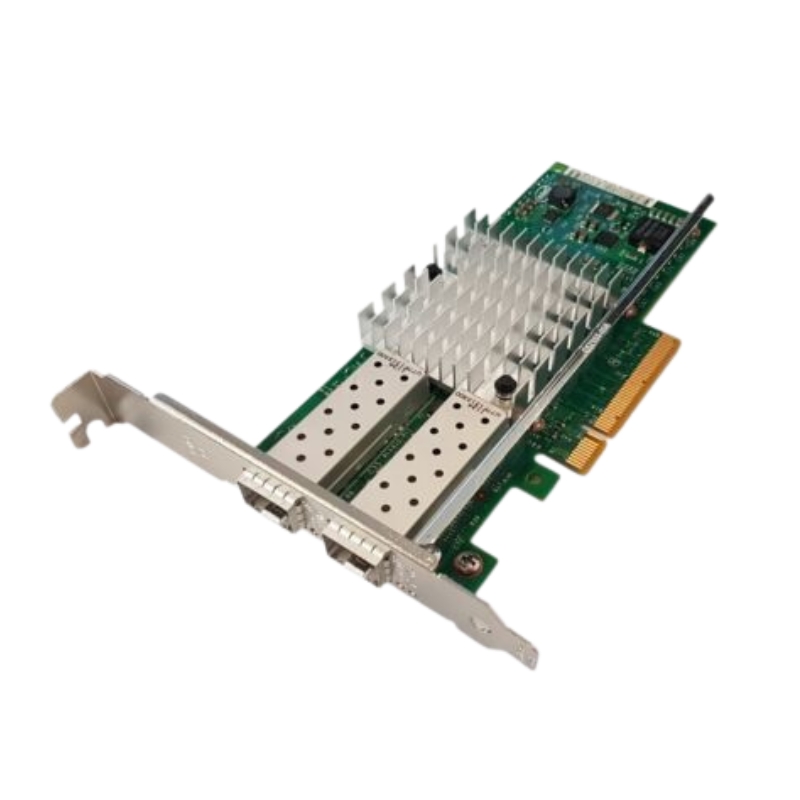

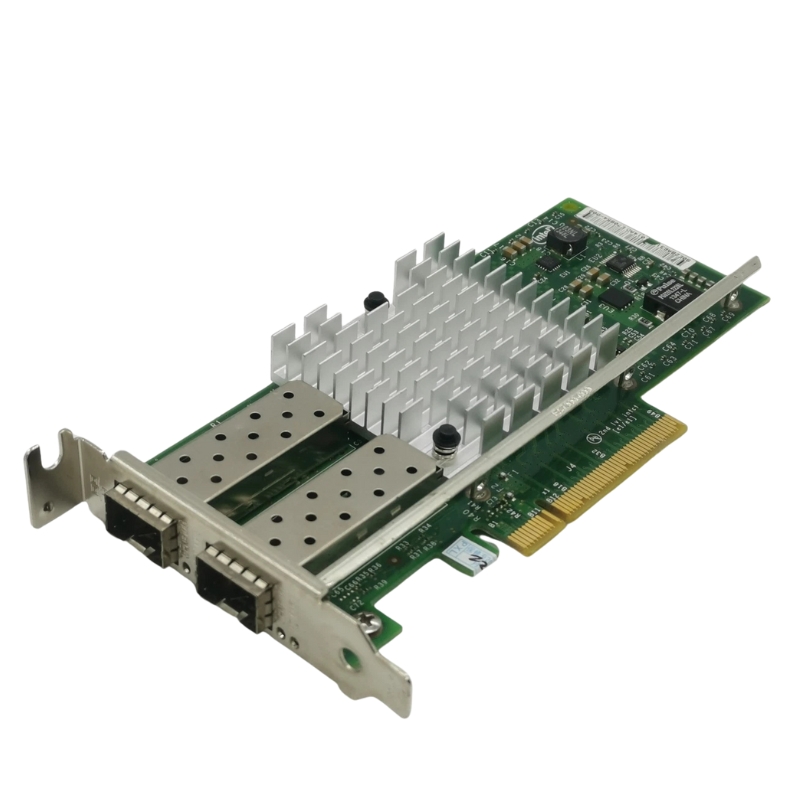

X520-DA2 Intel 10GBE Server Adapter Dual Ports

Overview of Intel X520-DA2 10 Gigabit Ethernet Server Adapter

The Intel X520-DA2 10 Gigabit Ethernet Server Adapter is a robust dual-port network interface card designed to deliver ultra-fast data transmission, enhanced virtualization capabilities, and reliable enterprise-grade connectivity. Built on a PCI Express 2.0 x8 interface, this adapter ensures high throughput and low latency communication for demanding server environments, data centers, and cloud computing workloads.

General Specification

• Manufacturer: Intel
• Part Number: X520-DA2
• Device Type: Server Adapter

Technical Information

• Dual 10GbE SFP+ ports for high-speed connectivity
• Low-profile and full-height bracket compatibility
• PCI Express 2.0 x8 host interface for maximum bandwidth utilization
• Enterprise-ready hardware architecture for scalable networking

10 Gigabit Ethernet Performance for Modern Workloads

• 10 Gbps sustained data transfer rate per port
• Support for TCP/IP and UDP/IP communication stacks
• Integrated IPsec and iSCSI compatibility for secure storage networking
• Optimized throughput for virtualization and cloud workloads

Enhanced Traffic Control and Virtualization Support

• Flow control mechanisms to reduce packet loss during congestion
• VLAN tagging support for segmented network environments
• Packet filtering for improved security and traffic optimization
• Quality of Service (QoS) prioritization for critical workloads
• Virtual Machine Device Queues (VMDq) for optimized virtualization performance

Broad Compatibility with IEEE Networking Standards

• IEEE 802.1Q for VLAN tagging and segmentation
• IEEE 802.1P for traffic prioritization and QoS
• IEEE 802.3ad (LACP) for link aggregation and redundancy
• IEEE 802.1AE for MAC security encryption
• IEEE 802.1AS for time synchronization in network systems

Optimized Packet Processing and Reduced CPU Load

• Hardware-based packet processing for reduced CPU utilization
• Efficient handling of multi-queue traffic environments
• Optimized virtualization offloading capabilities
• Stable performance under heavy network load conditions

PCI Express Slot Integration and Scalability

• Two SFP+ ports for high-speed optical or copper transceivers
• Compatible with PCI Express 2.0 x8 expansion slots
• Full-length and low-profile bracket support for flexible deployment
• Dual-port architecture for redundancy and load balancing

Built-In LED Indicators and Remote Management Support

• Link activity indicators for real-time connectivity status
• Port transmission speed monitoring
• Link integrity verification (Link OK status)
• Support for SNMP-based remote management
• RMON compatibility for advanced network monitoring

Virtualization and Cloud Benefits

• Improved virtual machine network performance through VMDq
• Efficient bandwidth allocation across multiple workloads
• Reduced latency in virtualized storage environments
• Enhanced scalability for enterprise cloud platforms

Reliability Enhancements

• Secure packet handling with IPsec support
• Traffic segmentation for improved network isolation
• Fault-tolerant dual-port configuration
• Stable operation under continuous high-load conditions

Outline of Intel X520-DA2 Dual Ports 10GbE Server Adapter

High-Performance Dual-Port 10 Gigabit Ethernet Architecture

The Intel X520-DA2 Dual Ports 10GbE Server Adapter represents a high-performance networking solution designed for enterprise data centers, cloud infrastructures, virtualization platforms, and high-throughput computing environments. Developed under the engineering leadership of this adapter is built to deliver reliable, low-latency, and scalable 10 Gigabit Ethernet connectivity across demanding server workloads. The dual-port configuration allows simultaneous high-speed data transmission across two independent 10GbE channels, ensuring improved redundancy, load balancing, and network segmentation capabilities within modern IT infrastructures.

At the core of this adapter is Intel’s proven Ethernet controller architecture, optimized for efficient packet processing, reduced CPU utilization, and enhanced throughput performance. The Intel X520 series is widely recognized in enterprise environments for its balance of performance, stability, and compatibility with a broad range of operating systems and virtualization platforms.

Intel 82599 Controller Integration and Processing Efficiency

The X520-DA2 leverages the Intel 82599 Ethernet controller, a widely deployed chipset known for its advanced packet processing capabilities and support for multiple hardware offload functions. This controller significantly reduces CPU overhead by handling tasks such as checksum offloading, segmentation offload, and interrupt moderation directly at the hardware level. As a result, server resources are freed to focus on application-level processing rather than network management tasks.

The architecture also supports multiple queue pairs, enabling efficient handling of high-volume network traffic in virtualized environments. Each port is capable of independent operation, allowing administrators to configure traffic segmentation or dedicate each port to different network functions such as storage access, management traffic, or application data flow.

Hardware Offload and Acceleration Capabilities

The adapter is designed to optimize data movement between network and system memory through advanced Direct Memory Access (DMA) mechanisms. This reduces latency and improves throughput consistency, especially under heavy workloads. The hardware acceleration features ensure that packet processing is performed with minimal software intervention, making it ideal for environments requiring predictable performance under sustained network loads.

10GbE Connectivity and Dual-Port Advantages

One of the defining features of the Intel X520-DA2 is its dual 10 Gigabit Ethernet SFP+ ports. These ports enable flexible connectivity options for fiber or direct attach copper (DAC) cabling, depending on infrastructure requirements. The dual-port design supports both redundancy and aggregation, allowing system administrators to configure link aggregation groups (LAG) for increased bandwidth or failover configurations for enhanced network resilience.

High Bandwidth for Modern Data Centers

With each port capable of delivering up to 10 Gbps throughput, the adapter supports aggregate bandwidth levels suitable for data-intensive applications such as database clusters, virtualization hosts, storage replication systems, and high-frequency trading platforms. The ability to maintain consistent high-speed connectivity ensures minimal bottlenecks in environments where data movement is critical.

Low Latency Network Performance

Low latency is a critical requirement in enterprise networking, particularly in virtualization and cloud computing environments. The X520-DA2 is engineered to minimize packet processing delays through optimized driver support and hardware-level acceleration. This ensures rapid response times for time-sensitive applications such as financial analytics, distributed computing workloads, and real-time data processing systems.

Virtualization and Cloud Infrastructure Optimization

Advanced Virtual Machine Networking Support

The Intel X520-DA2 is specifically optimized for virtualized environments, where multiple virtual machines share physical network resources. It supports technologies such as Virtual Machine Device Queues (VMDq), which improves packet routing efficiency by directing network traffic directly to the appropriate virtual machine without unnecessary CPU intervention.

This capability enhances network scalability in environments running hypervisors such as VMware ESXi, Microsoft Hyper-V, and KVM-based systems. By reducing virtualization overhead, the adapter ensures that each virtual machine receives consistent and predictable network performance even under heavy multi-tenant workloads.

SR-IOV and Hardware-Level Virtualization Acceleration

Single Root I/O Virtualization (SR-IOV) support allows the X520-DA2 to present multiple virtual functions directly to virtual machines, bypassing the hypervisor for improved performance. This reduces latency and increases throughput by enabling near-native network performance for virtual workloads. Each virtual function behaves like an independent network interface, improving isolation and efficiency in multi-tenant environments.

Efficient Multi-Tenant Data Handling

In cloud computing environments, multi-tenancy is a fundamental requirement. The adapter’s virtualization features ensure that network traffic from different tenants remains isolated while still leveraging shared physical hardware resources. This improves both security and performance predictability across large-scale cloud deployments.

Storage Networking and Data Center Integration

The Intel X520-DA2 is widely used in storage networking environments, including iSCSI, NAS, and distributed storage systems. Its high bandwidth and low latency characteristics make it ideal for accelerating data replication, backup operations, and storage virtualization workloads.

iSCSI and High-Speed Storage Access

In iSCSI-based storage environments, the adapter ensures fast and reliable access to remote storage arrays over Ethernet networks. Its hardware offload capabilities reduce CPU involvement in storage packet processing, improving overall system efficiency and enabling higher IOPS performance in storage-intensive applications.

Data Integrity and Reliable Transmission

Maintaining data integrity during transmission is essential in storage networking. The X520-DA2 includes error detection and correction mechanisms that ensure reliable packet delivery, reducing the risk of data corruption during high-speed transfers. This makes it suitable for enterprise-grade storage environments where reliability is critical.

Network Offload Features and System Efficiency

Checksum Offload and Segmentation Optimization

The adapter includes advanced checksum offload capabilities, allowing network-related computations to be handled by the hardware rather than the host CPU. This reduces processing overhead and increases system efficiency, particularly in high-throughput environments where large volumes of data packets are transmitted continuously.

TCP segmentation offload (TSO) and large receive offload (LRO) further improve performance by reducing the number of packets the CPU must process. These features allow the system to handle larger data streams more efficiently, improving overall throughput and reducing latency.

Interrupt Moderation and CPU Load Reduction

Interrupt moderation is another key feature of the X520-DA2, designed to reduce CPU interrupts caused by high-frequency network traffic. By aggregating interrupts, the adapter minimizes CPU overhead and allows for smoother system performance during peak network activity.

Enhanced Multicore CPU Utilization

Modern server architectures rely on multicore processors to handle complex workloads. The X520-DA2 is optimized to distribute network processing tasks across multiple CPU cores, ensuring balanced resource utilization and preventing bottlenecks caused by single-threaded network processing limitations.

Physical Design and Deployment Flexibility

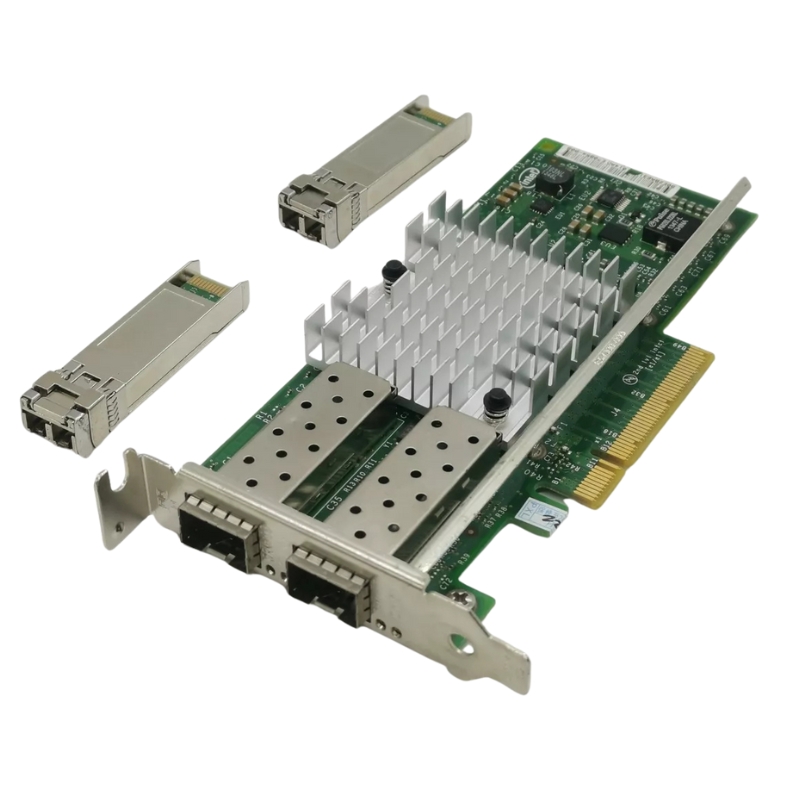

SFP+ Interface and Cabling Compatibility

The Intel X520-DA2 utilizes SFP+ interfaces, providing flexibility in selecting appropriate transceivers or direct attach copper cables depending on deployment requirements. This modular approach allows organizations to adapt their network infrastructure without replacing the entire adapter, reducing long-term operational costs.

Fiber and Copper Deployment Options

The adapter supports both fiber optic transceivers for long-distance connectivity and DAC cables for short-range, cost-effective connections within data centers. This versatility makes it suitable for a wide range of deployment scenarios, from top-of-rack switching to inter-rack communication.

Hot-Swappable Transceiver Support

SFP+ modules used with the X520-DA2 are hot-swappable, allowing network administrators to replace or upgrade transceivers without shutting down the server. This enhances system uptime and simplifies maintenance operations in mission-critical environments.

Enterprise Reliability and Network Stability

Robust Driver and OS Compatibility

The Intel X520-DA2 is supported across major operating systems including Windows Server, Linux distributions, and virtualization platforms. Intel provides regularly updated drivers to ensure compatibility with evolving software environments and security standards.

This broad compatibility ensures seamless integration into existing IT infrastructures without requiring significant configuration changes or system redesigns.

Fault Tolerance and Redundancy Capabilities

Dual-port architecture enables redundancy configurations that enhance network reliability. In the event of a port or link failure, traffic can automatically reroute through the secondary port, minimizing downtime and ensuring continuous connectivity for critical applications.

High Availability Network Design

In enterprise environments where uptime is essential, the X520-DA2 supports high availability configurations that allow seamless failover and load balancing. This ensures uninterrupted service delivery even under hardware or network disruptions.

Performance Optimization in Modern Data Centers

Scalability for Cloud and Enterprise Workloads

The Intel X520-DA2 is engineered to scale with modern data center requirements, supporting increasing demands for bandwidth, virtualization density, and distributed computing workloads. Its architecture ensures consistent performance even as network traffic grows exponentially in cloud-based infrastructures.

Energy Efficiency and Thermal Design

Despite its high-performance capabilities, the adapter is designed with energy efficiency in mind. Low power consumption and optimized thermal characteristics make it suitable for dense server environments where heat management and energy efficiency are critical considerations.

Long-Term Operational Stability

Built with enterprise-grade components and rigorous quality standards, the X520-DA2 is designed for continuous 24/7 operation. Its durability and stability make it a trusted choice for organizations requiring dependable network infrastructure over extended deployment cycles.
