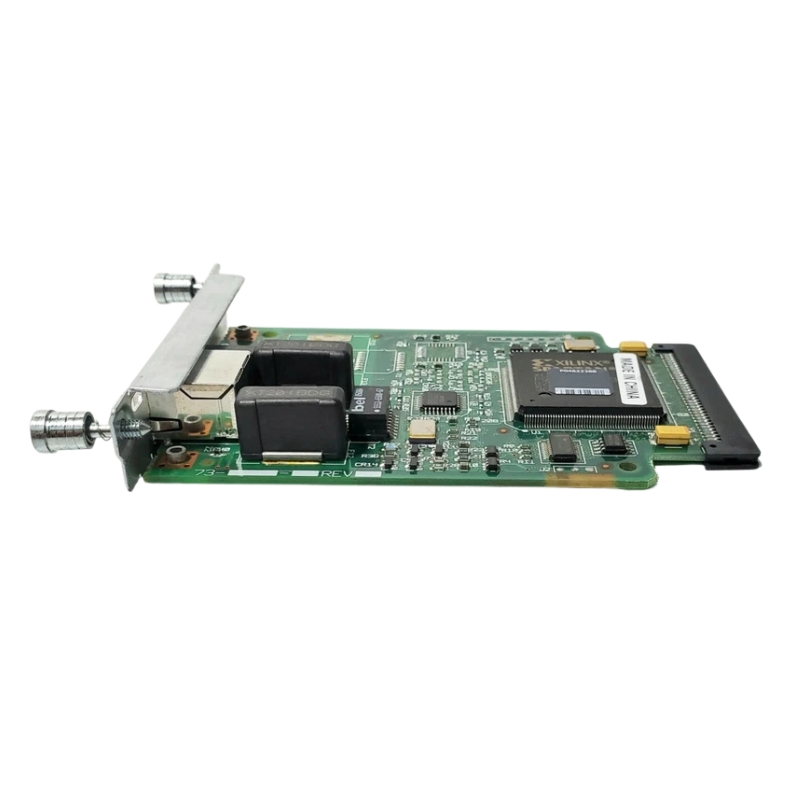

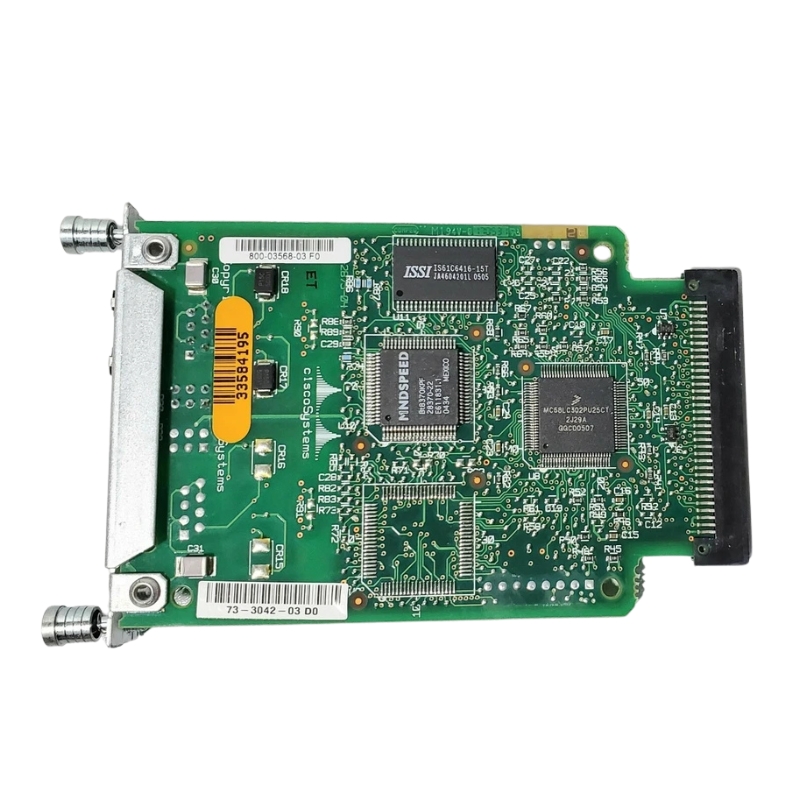

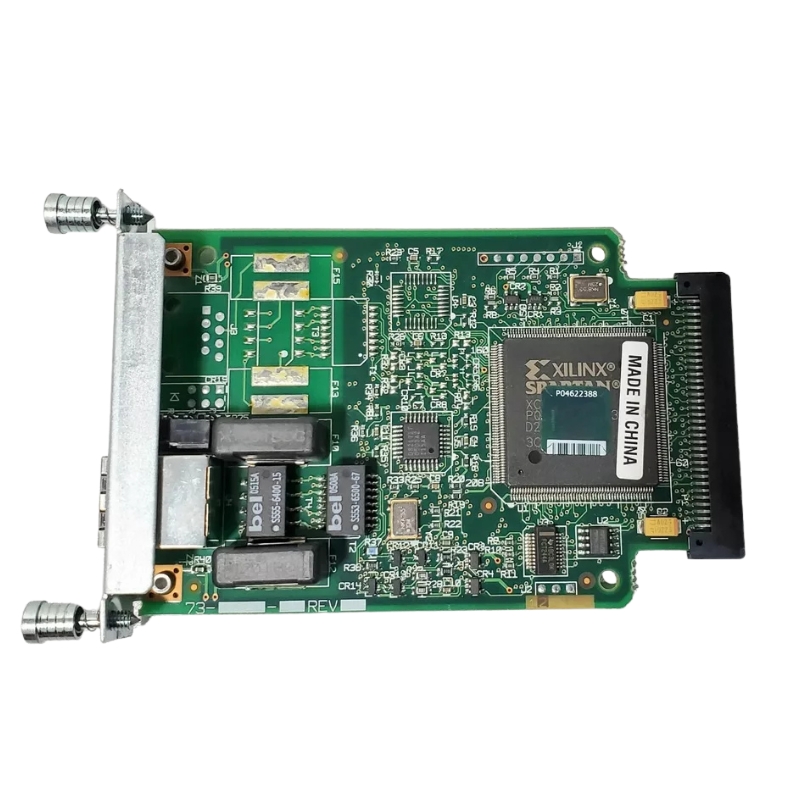

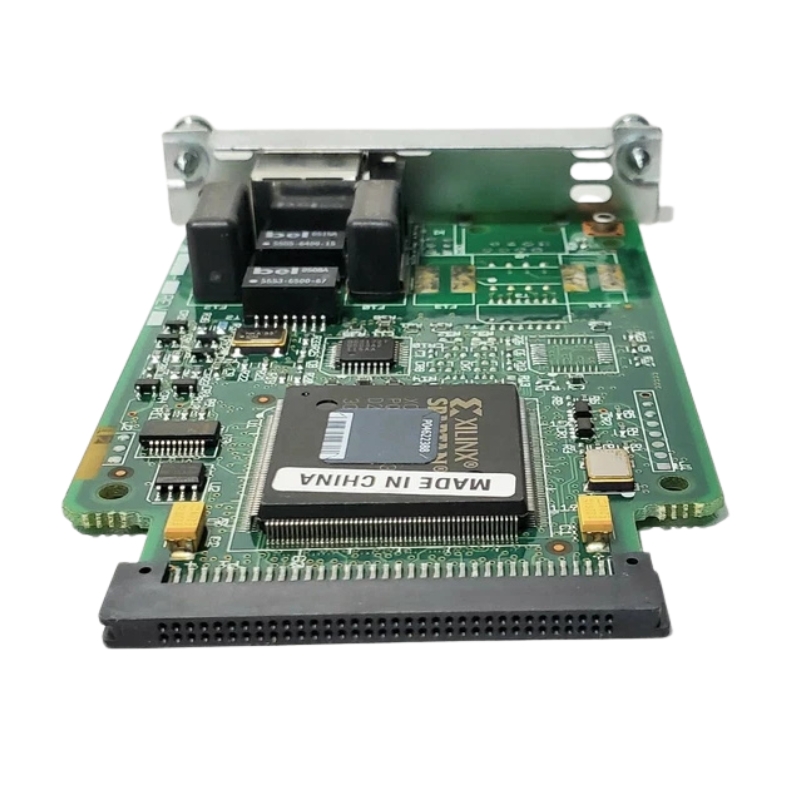

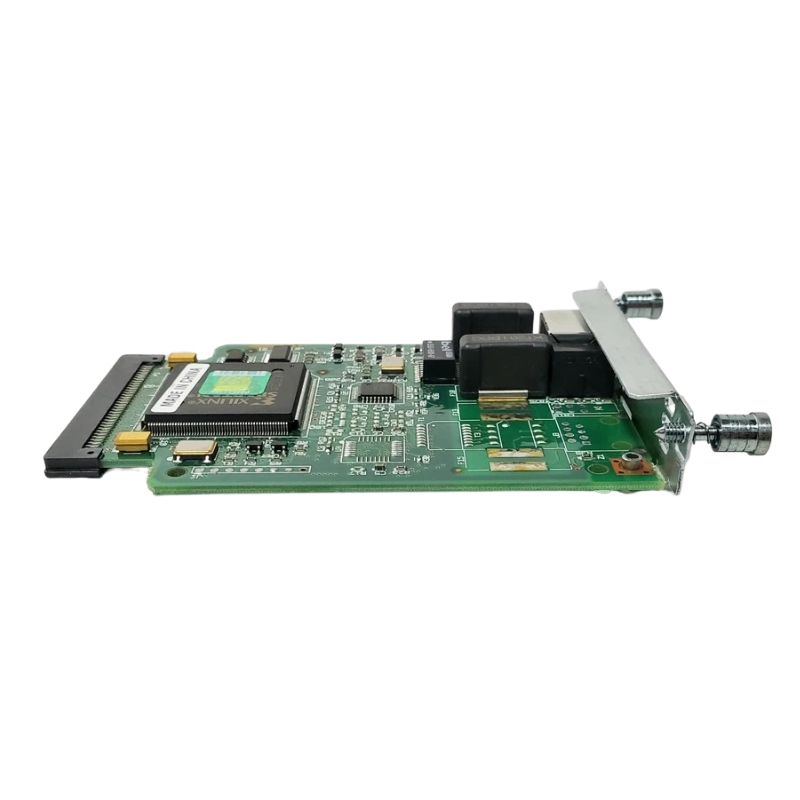

VWIC2-1MFT-G703 Cisco 1 Port Voice/WAN Interface Card

Cisco VWIC2-1MFT-G703 Voice/WAN Interface Card Overview

The Cisco VWIC2-1MFT-G703 1-Port Voice/WAN Interface Card is a reliable networking expansion module engineered to enhance Cisco routers with integrated voice and WAN connectivity. Designed for enterprise and service provider environments, this interface card supports both T1 and E1 WAN technologies, making it an excellent choice for organizations requiring dependable data transmission and voice communication.

Key Product Information

• Manufacturer: Cisco
• Part Number (SKU): VWIC2-1MFT-G703
• Product Category: Network Module
• Module Type: Voice/WAN Interface Card (VWIC)
• Application: Enterprise voice and WAN network expansion

Performance and Technical Specifications

• 1 x T1/E1 WAN interface
• Supports both voice and data communications
• Optimized for business-class networking environments
• Reliable WAN connectivity for remote office deployments

Supported Data Transfer Speeds

This Cisco Voice/WAN Interface Card delivers stable transmission rates suitable for regional and international telecommunications standards.

• E1: Up to 2.05 Mbps
• T1: Up to 1.54 Mbps

Benefits of T1 and E1 Connectivity

• Efficient digital voice transport
• Stable WAN communication
• Business-grade network reliability
• Consistent bandwidth performance
• Ideal for branch office interconnection

Compatibility with Cisco Routers

Supported Cisco 1700 Series Routers

• Cisco 1721 Modular Access Router (Data Only)
• Cisco 1751 Modular Access Router
• Cisco 1760 Modular Access Router
• Cisco 1841 Integrated Services Router (Data Only)

Compatible Cisco 2600 and 3600 Platforms

• Cisco 2600XM Multiservice Router
• Cisco 2691 Multiservice Platform
• Cisco 3662 Telco Versatile DCN Access Platform

Supported Cisco 3700 Series Routers

• Cisco 3725 Multiservice Router
• Cisco 3745 Multiservice Router

Compatible Cisco 2800 Series Integrated Services Routers

• Cisco 2801 Integrated Services Router
• Cisco 2811 Integrated Services Router
• Cisco 2821 Integrated Services Router
• Cisco 2851 Integrated Services Router

Supported Cisco 3800 Series Routers

• Cisco 3825 Integrated Services Router
• Cisco 3845 Integrated Services Router

Advantages of the Cisco VWIC2-1MFT-G703

Enterprise Networking Benefits

• Provides dependable T1 and E1 WAN connectivity.
• Supports integrated voice and data networking applications.
• Expands router capabilities without significant infrastructure upgrades.
• Ideal for enterprise branches, government agencies, and service providers.
• Maintains high compatibility across multiple Cisco router platforms.
• Offers consistent network performance for mission-critical communications.

Ideal Deployment Environments

• Corporate branch offices
• Enterprise WAN infrastructures
• Telecommunication networks
• Voice gateway implementations
• Managed service provider environments
• Multi-site business connectivity

Cisco VWIC2-1MFT-G703 1 Port WAN Interface Card

The Cisco VWIC2-1MFT-G703 1 Port Voice/WAN Interface Card is a specialized networking module designed for Cisco Integrated Services Routers (ISRs), enabling flexible integration of voice and data services over WAN infrastructures. This interface card belongs to the second-generation Voice/WAN Interface Card (VWIC2) family, engineered to support both voice applications and WAN connectivity in enterprise-grade environments. It is particularly optimized for organizations requiring reliable G.703-compliant connectivity, making it a crucial component in legacy and hybrid telecommunication networks.

This category of interface cards is widely used in enterprise telephony systems, service provider networks, and data communication environments where TDM (Time Division Multiplexing) and packet-based networking must coexist. The Cisco VWIC2-1MFT-G703 provides a single-port configuration that supports flexible deployment scenarios, ensuring seamless integration into existing network infrastructures without requiring extensive hardware redesign.

Understanding the Role of VWIC2 Voice/WAN Interface Cards

Hybrid Voice and Data Integration

Voice/WAN Interface Cards such as the VWIC2-1MFT-G703 are designed to bridge the gap between traditional telephony systems and modern IP-based networks. They enable voice traffic to be transported over WAN links while maintaining compatibility with legacy circuit-switched systems. This dual functionality allows businesses to transition gradually toward VoIP and unified communications without disrupting existing infrastructure.

Importance in Cisco ISR Architectures

Cisco Integrated Services Routers rely heavily on modular interface cards like VWIC2 series modules to expand functionality. The VWIC2-1MFT-G703 enhances router capabilities by adding G.703 interface support, which is essential for connecting E1 lines commonly used in Europe, Asia, and other global regions. These modules provide scalability and adaptability for enterprise networks that require reliable WAN connectivity.

Technical Architecture of Cisco VWIC2-1MFT-G703

Hardware Design and Form Factor

The VWIC2-1MFT-G703 is built as a single-port interface card with a compact design that fits into Cisco ISR slots. It is engineered with high-quality electronic components to ensure stable performance in mission-critical environments. The card supports integrated voice and data functionality, reducing the need for separate modules and simplifying network architecture.

Physical Interface Characteristics

The module typically includes a G.703-compliant interface that supports unstructured E1 connections. This ensures compatibility with telecom carrier standards and allows direct termination of E1 circuits. The physical design emphasizes durability, ensuring consistent performance under continuous operational loads.

Signal Processing and Data Handling

The interface card is responsible for handling digital signal conversion between WAN circuits and the router’s internal processing system. It ensures accurate framing, encoding, and timing synchronization for voice and data traffic. This is particularly important in maintaining low latency and minimizing packet loss in voice applications.

Clocking and Synchronization

Accurate clocking is essential in G.703 environments. The VWIC2-1MFT-G703 supports precise timing recovery mechanisms that align with carrier-provided synchronization. This reduces jitter and ensures high-quality voice transmission over WAN links.

G.703 Standard and Its Importance

Overview of G.703 Connectivity

G.703 is an ITU-T standard that defines the physical and electrical characteristics of digital interfaces used in telecommunications. It is commonly associated with E1 and T1 lines, though G.703 is more widely implemented in E1 systems. The Cisco VWIC2-1MFT-G703 is designed specifically to support this standard, making it suitable for global telecom deployments.

Role in Carrier Networks

Carrier-grade networks rely on G.703 interfaces to provide stable and structured digital transmission. The VWIC2-1MFT-G703 enables enterprises to directly connect to telecom provider networks without requiring external conversion equipment, reducing complexity and improving reliability.

Unstructured E1 Support

Unstructured E1 support allows full 2.048 Mbps bandwidth utilization without channelization. This is beneficial for applications requiring continuous data streams such as leased lines and dedicated WAN links.

Deployment Scenarios and Use Cases

Enterprise WAN Connectivity

Enterprises often deploy the VWIC2-1MFT-G703 to establish reliable WAN connections between branch offices and headquarters. Its ability to support E1 circuits ensures consistent bandwidth availability and predictable performance for mission-critical applications.

Telecommunication Infrastructure

Telecom operators utilize this interface card to extend services to business customers requiring dedicated leased lines. The card integrates seamlessly into Cisco routers used as edge devices in carrier networks.

Voice over IP (VoIP) Migration

During migration from traditional PBX systems to VoIP, organizations rely on hybrid modules like VWIC2-1MFT-G703 to maintain compatibility with existing TDM circuits while gradually transitioning to IP-based telephony.

Legacy System Integration

Many organizations still operate legacy telephony systems that depend on E1 connectivity. This interface card enables interoperability between old and new systems, reducing migration risks and costs.

Performance and Reliability Features

High Availability Design

The Cisco VWIC2-1MFT-G703 is engineered for high uptime environments. It supports robust error correction and signal stabilization mechanisms that ensure uninterrupted service even under fluctuating network conditions.

Low Latency Communication

Latency is a critical factor in voice and WAN communications. This interface card minimizes processing delays by efficiently handling framing and signal conversion at hardware level, ensuring smooth voice transmission.

Jitter Reduction Mechanisms

The module incorporates jitter buffering techniques that help stabilize packet timing in voice applications, resulting in clearer and more consistent audio quality.

Integration with Cisco Router Platforms

Compatibility with ISR Series

The VWIC2-1MFT-G703 is compatible with multiple Cisco Integrated Services Routers, including ISR 1800, 2800, and 3800 series. This compatibility ensures flexibility in deployment across different network scales.

Software and Configuration Support

Cisco IOS software provides full support for configuration and management of the VWIC2-1MFT-G703 interface card. Network administrators can configure WAN protocols, routing policies, and voice parameters using standardized CLI commands.

Ease of Management

The module integrates seamlessly into Cisco’s unified management framework, enabling centralized monitoring and troubleshooting of WAN and voice services.

Security and Network Optimization

Secure Data Transmission

Although the VWIC2-1MFT-G703 primarily focuses on connectivity, it plays a role in secure data transmission when combined with Cisco router security features such as encryption, ACLs, and firewall policies.

Traffic Prioritization

Quality of Service (QoS) configurations can be applied to prioritize voice traffic over data traffic. This ensures that critical communication is not affected by bandwidth congestion.

Bandwidth Efficiency

The interface card supports efficient utilization of E1 bandwidth, allowing organizations to maximize performance without unnecessary overhead.

Scalability and Network Expansion

Modular Network Growth

One of the key advantages of Cisco VWIC2 modules is scalability. Organizations can expand network capabilities by simply adding interface cards without replacing entire router systems.

Future-Proof Networking Approach

Although G.703 is considered a legacy standard in some regions, it remains widely used in enterprise and carrier networks. The VWIC2-1MFT-G703 ensures continued support for these environments while allowing gradual modernization.

Cost-Effective Expansion

By using modular interface cards, businesses reduce capital expenditure while maintaining high-performance WAN connectivity.
