691367-B21 HPE VC Flex Fabric 20/40 F8 Module C Class Blade System

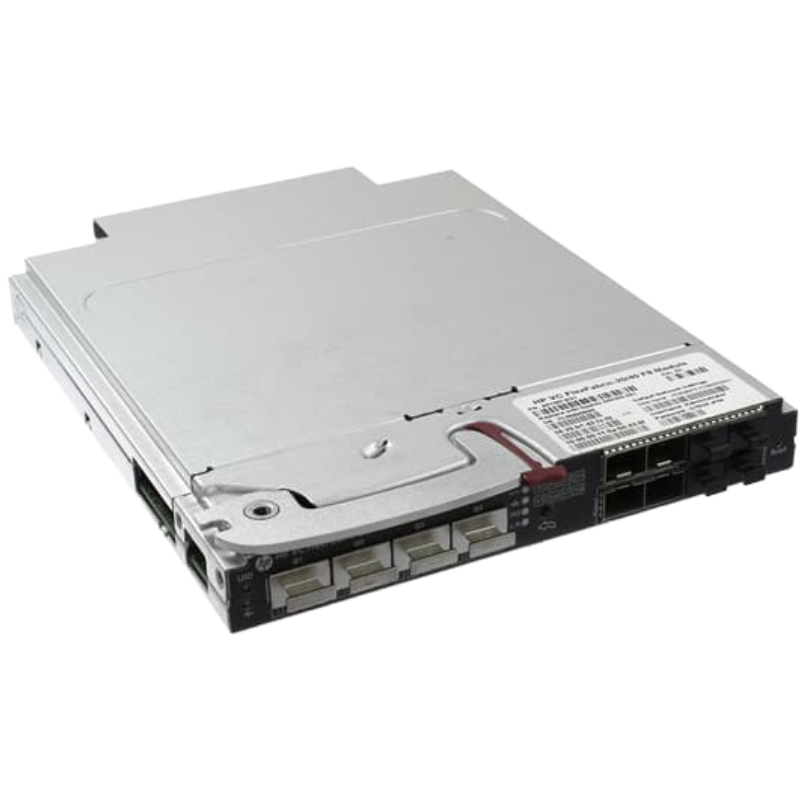

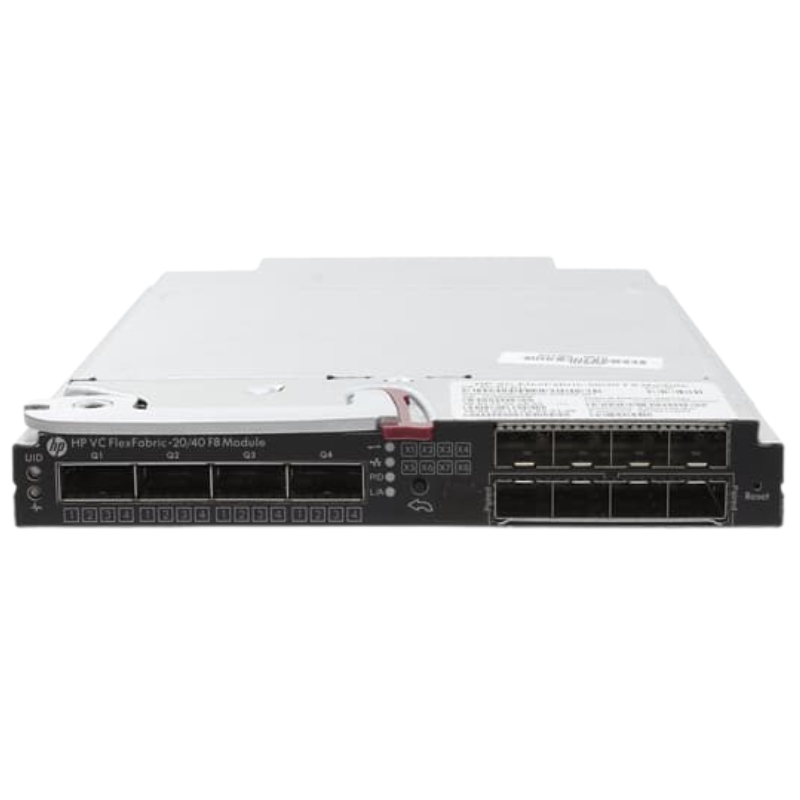

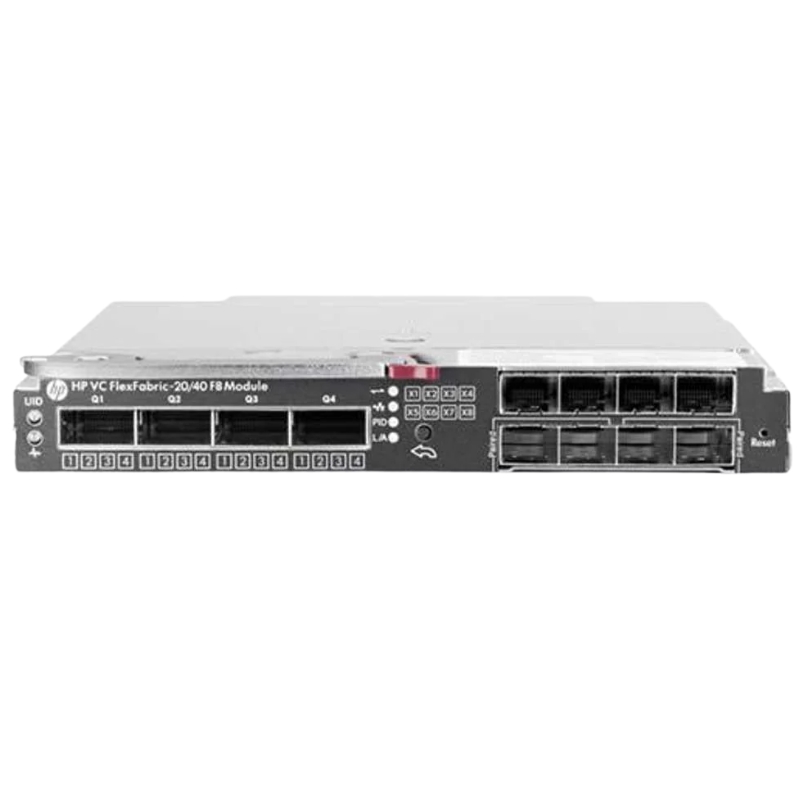

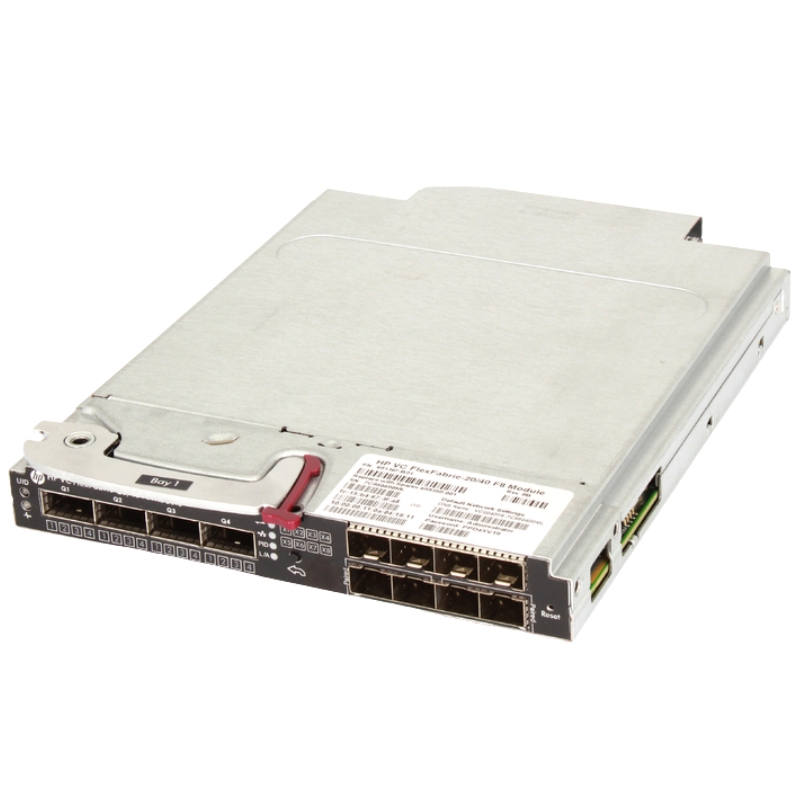

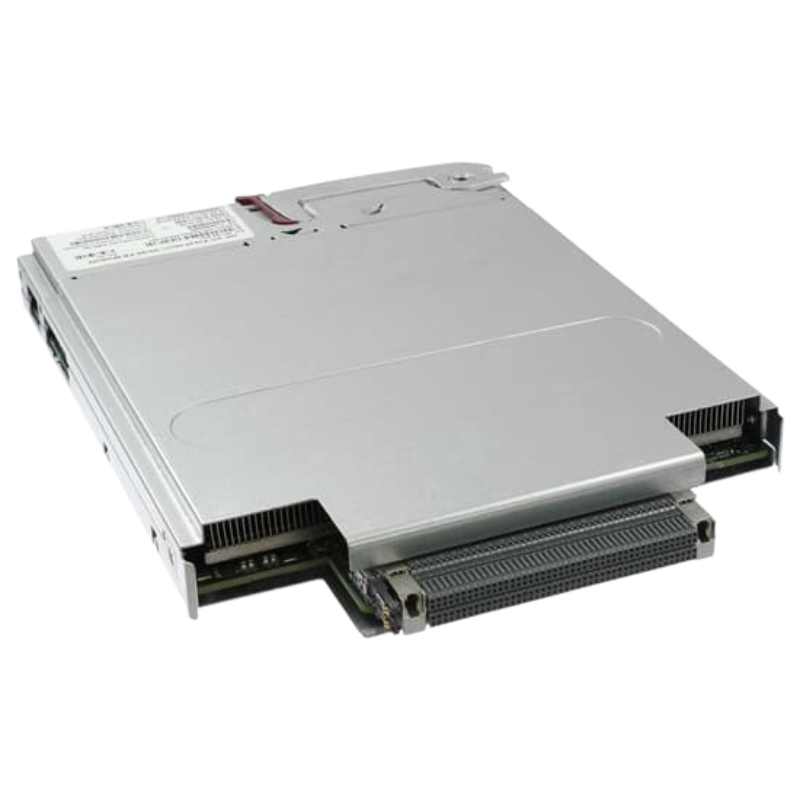

HPE 691367-B21 FlexFabric-20/40 F8 Module C Class Overview

Advanced Interconnect Technology for Enterprise Blade Environments

The HPE 691367-B21 Virtual Connect FlexFabric-20/40 F8 Module represents a high-performance interconnect solution specifically engineered for HPE C-Class BladeSystem infrastructures. Designed to simplify networking while delivering exceptional throughput, this module integrates Ethernet and Fibre Channel over Ethernet (FCoE) capabilities into a single, unified fabric. It plays a vital role in modern data centers that demand flexibility, scalability, and reduced operational complexity.

Unified Fabric Architecture

The FlexFabric-20/40 F8 module introduces a unified fabric architecture that consolidates multiple network types into a single connection. By combining LAN and SAN traffic, it significantly reduces the number of cables, switches, and adapters required in a BladeSystem enclosure. This streamlined approach minimizes hardware sprawl while improving airflow and reducing power consumption, which is critical in high-density computing environments.

Integrated Ethernet and Storage Networking

The module supports both Ethernet and storage networking protocols, enabling seamless communication between servers and storage arrays. This integration allows organizations to maintain high-speed data transfers while simplifying network management. It eliminates the need for separate infrastructure for different traffic types, ensuring efficient utilization of resources.

High-Speed Connectivity and Throughput Capabilities

One of the defining features of the HPE 691367-B21 module is its ability to deliver high-speed connectivity through 20Gb and 40Gb uplink ports. This ensures that data-intensive workloads such as virtualization, cloud computing, and big data analytics can operate without bottlenecks.

20Gb Server Downlink Performance

Each blade server connected to the module benefits from up to 20Gb of bandwidth. This high-speed connectivity allows applications to run smoothly, even under heavy workloads. It is particularly beneficial for virtualized environments where multiple virtual machines share the same physical resources.

40Gb Uplink Expansion

The module supports 40Gb uplink connections, providing a robust backbone for data center networking. These high-speed uplinks ensure that traffic from multiple blade servers can be aggregated and transmitted efficiently to the core network. This capability is essential for maintaining consistent performance in large-scale deployments.

Optimized Data Flow Management

Advanced traffic management features ensure optimal data flow across the network. The module intelligently prioritizes traffic, reducing latency and improving overall application performance. This is particularly useful in environments with mixed workloads, where different applications have varying bandwidth requirements.

Virtual Connect Technology Integration

Virtual Connect technology is at the core of this module, enabling simplified server connectivity and network configuration. It abstracts server connections from the underlying network infrastructure, allowing administrators to manage network profiles independently of physical hardware.

Server Profile Management

The module allows administrators to define server connection profiles that include MAC addresses, WWNs, and boot parameters. These profiles can be assigned to any blade server, enabling rapid provisioning and replacement without the need for manual reconfiguration. This feature significantly reduces downtime and simplifies maintenance operations.

Network Simplification

By decoupling server connections from the network, Virtual Connect eliminates the need for complex switch configurations. Network administrators can focus on core network design while server administrators manage connectivity within the BladeSystem enclosure. This separation of responsibilities enhances operational efficiency.

Seamless Hardware Replacement

In the event of hardware failure, blade servers can be replaced without affecting network configurations. The new server inherits the existing profile, ensuring continuity of operations. This capability is particularly valuable in mission-critical environments where uptime is a top priority.

FlexFabric Technology and Network Convergence

FlexFabric technology enables network convergence by combining multiple data streams into a single fabric. This approach reduces infrastructure complexity while maintaining high performance and reliability.

Reduced Cabling Requirements

The use of a unified fabric significantly reduces the number of cables required in the data center. This not only lowers installation costs but also improves airflow within server racks, contributing to better cooling efficiency and reduced energy consumption.

Enhanced Scalability

FlexFabric allows organizations to scale their infrastructure easily by adding more blade servers or expanding network capacity. The module supports dynamic allocation of bandwidth, ensuring that resources are used efficiently as demands change.

Flexible Network Configuration

Administrators can configure network connections dynamically, adjusting bandwidth allocations based on workload requirements. This flexibility ensures that critical applications receive the resources they need without over-provisioning.

Compatibility with HPE C-Class BladeSystem

The HPE 691367-B21 module is specifically designed for integration with HPE C-Class BladeSystem enclosures. It fits seamlessly into the interconnect bays, providing high-speed connectivity for all installed blade servers.

Seamless Integration with Blade Infrastructure

The module is engineered to work seamlessly with HPE blade servers, ensuring compatibility and optimal performance. It leverages the BladeSystem architecture to deliver high-density computing with minimal footprint.

Support for Multiple Blade Models

The module supports a wide range of HPE blade servers, making it a versatile choice for organizations with diverse hardware environments. This compatibility ensures that existing investments in BladeSystem infrastructure are preserved.

Future-Ready Design

With support for advanced networking technologies, the module is designed to meet the evolving needs of modern data centers. It provides a foundation for future upgrades and expansions, ensuring long-term value.

Enhanced Security and Network Isolation

Security is a critical consideration in enterprise environments, and the FlexFabric-20/40 F8 module incorporates several features to protect data and ensure network integrity.

Secure Data Transmission

The module supports secure communication protocols that protect data during transmission. This is essential for maintaining the confidentiality and integrity of sensitive information.

Network Segmentation

Administrators can create isolated network segments within the BladeSystem enclosure. This segmentation enhances security by preventing unauthorized access and reducing the risk of data breaches.

Policy-Based Access Control

Access to network resources can be controlled באמצעות policies that define user permissions and restrictions. This ensures that only authorized users can access critical systems and data.

Key Optimization for Virtualized Workloads

The module is optimized for virtualized environments, where multiple virtual machines share the same physical resources. It provides the bandwidth and performance needed to support high-density virtualization.

Support for Hypervisor Integration

The module integrates seamlessly with popular hypervisors, enabling efficient management of virtual machines. It supports advanced features such as live migration and high availability.

Low Latency Networking

Low latency is essential for maintaining application performance in virtualized environments. The module ensures minimal delay in data transmission, enabling real-time processing and responsiveness.

Efficient Resource Utilization

By dynamically allocating bandwidth and prioritizing traffic, the module ensures that resources are used efficiently. This reduces waste and improves overall system performance.

Energy Efficiency and Data Center Optimization

Energy efficiency is a key consideration in modern data centers, and the HPE 691367-B21 module is designed to minimize power consumption while delivering high performance.

Reduced Power Usage

By consolidating multiple network functions into a single module, power consumption is significantly reduced. This contributes to lower operational costs and a smaller environmental footprint.

Improved Cooling Efficiency

The reduction in cabling and hardware improves airflow within the data center, enhancing cooling efficiency. This helps maintain optimal operating temperatures and extends the lifespan of equipment.

Optimized Rack Space Utilization

The compact design of the module allows for efficient use of rack space, enabling higher density deployments. This is particularly important in environments جہاں space is limited.
