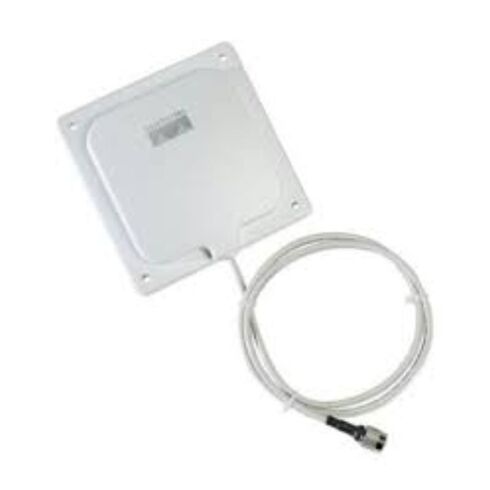

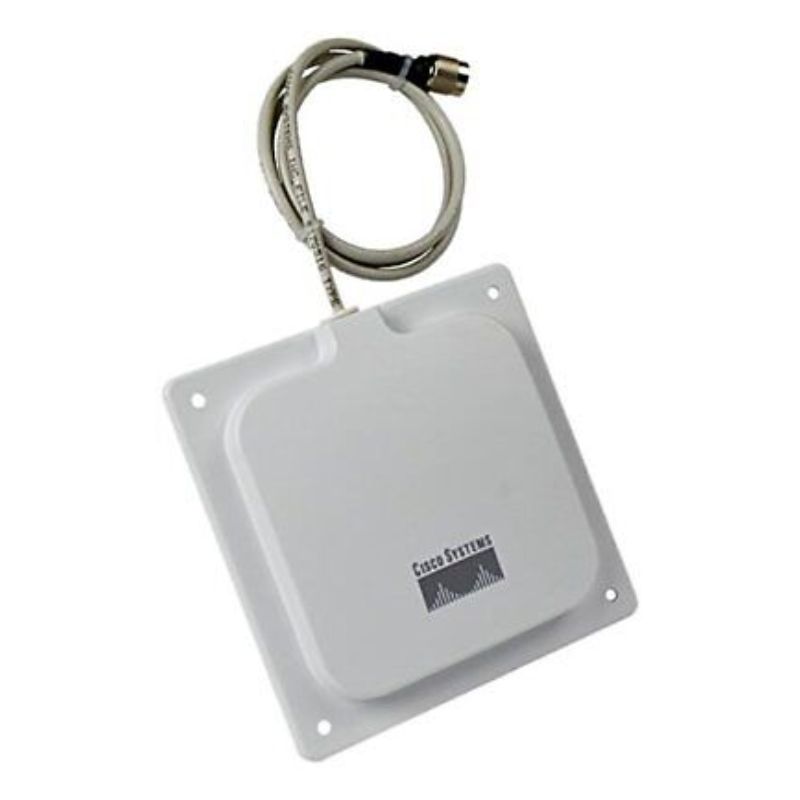

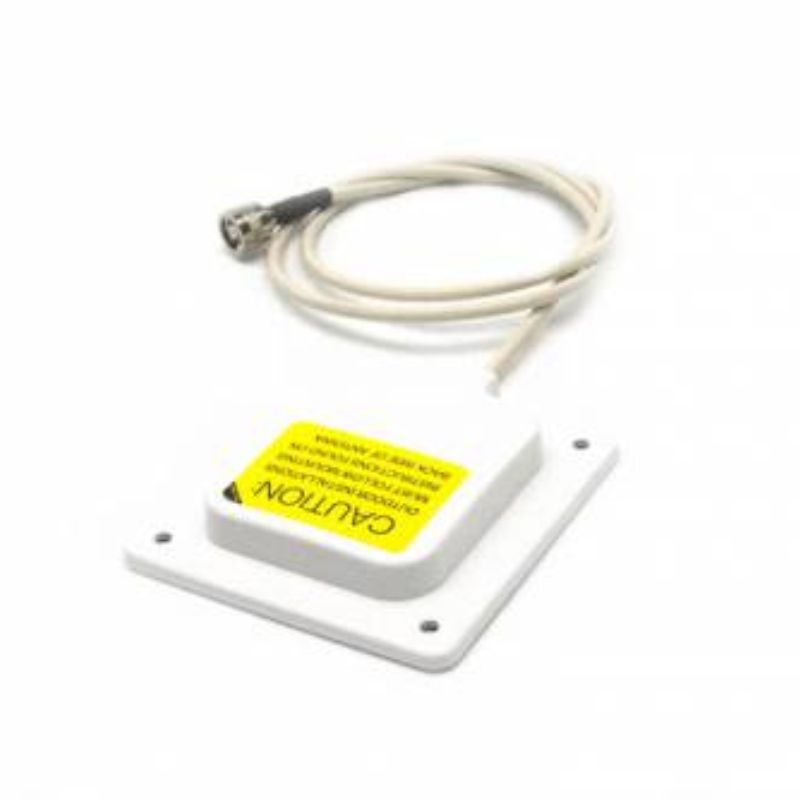

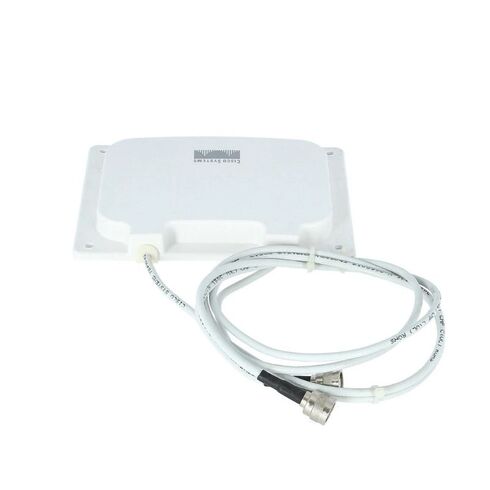

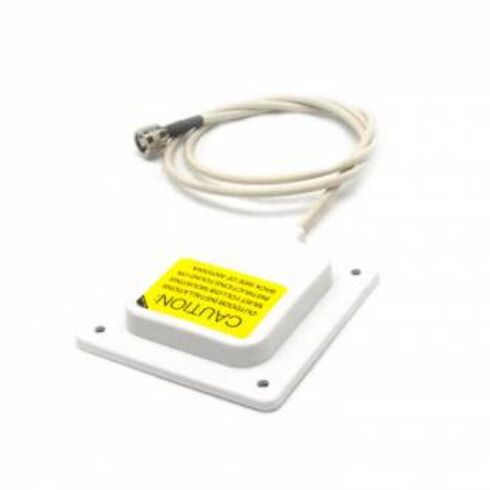

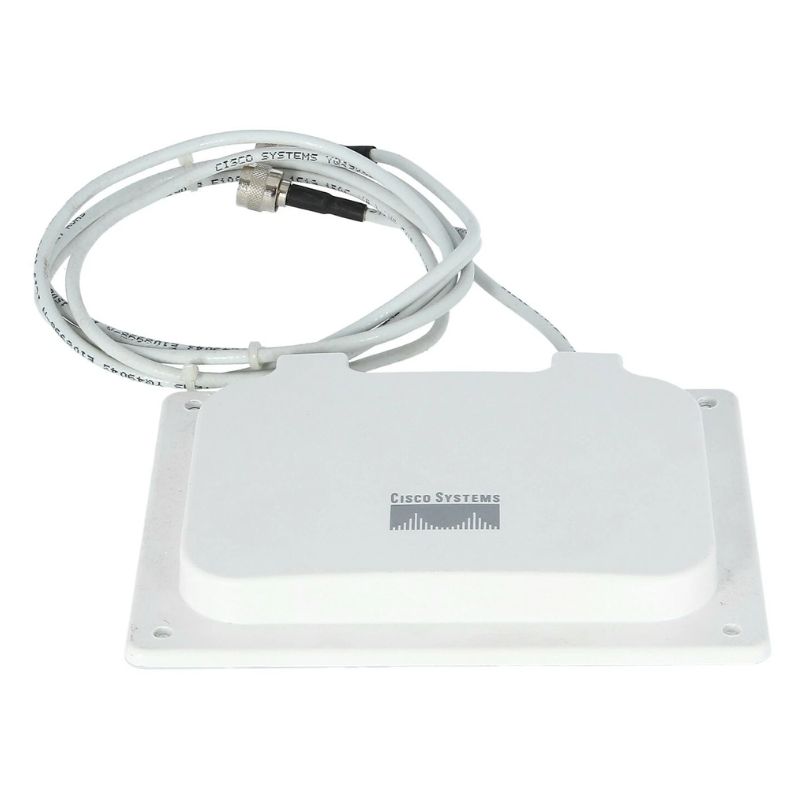

Cisco AIR-ANT2460P-R 6DBI Patch Antenna

Product Overview

Discover the Cisco Aironet AIR-ANT2460P-R, a high-performance 6 dBi patch antenna designed to optimize your wireless network connectivity. Engineered by Cisco Systems, Inc. this antenna is a robust solution for enhancing signal strength and reliability.

Manufacturer Details

• Brand: Cisco
• Part Number: AIR-ANT2460P-R
• Product Line: Aironet

Product Specifications

• Type: Antenna
• Frequency Band Type: UHF
• Frequency Range: 2.40 GHz to 2.40 GHz
• Gain: 6 dB
• Impedance: 50 Ohm
• Polarization: Linear Vertical

Connectivity Features

• Connector Type: RP-TNC

Usage and Application

• Wireless Data Network

Package Contents

• Aironet Indoor/Outdoor 6.0 dBi Patch Antenna
• 4 x Phillips Head Screws (No. 8 x 0.75)
• 4 x Plastic Anchors (No. 8)
• 4 x End Caps

Additional Details

• Cable Type: Times AA-9303 or Equivalent (plenum rated)
• Cable Length: 36 inches

Gain

The Cisco AIR-ANT2460P-R Patch Antenna is designed to provide exceptional performance and coverage in a compact form factor. One of its standout features is the impressive 6dBi gain, which greatly enhances the antenna's ability to transmit and receive signals effectively.

What is Gain?

Gain is a crucial metric used to measure an antenna's ability to focus its signal in a specific direction. It represents the amplification of the signal relative to an isotropic radiator, which radiates power equally in all directions. In simpler terms, gain determines how well an antenna can transmit and receive signals in a particular direction.

Benefits of 6dBi Gain

The Cisco AIR-ANT2460P-R Patch Antenna's 6dBi gain offers several benefits for users:

Extended Coverage

With a higher gain, the antenna can extend the coverage area, reaching more clients and devices at greater distances. This ensures that users located far away from the access point can still enjoy reliable connectivity without experiencing signal degradation.

Improved Signal Quality

A higher gain antenna like the AIR-ANT2460P-R helps improve the overall signal quality by reducing interference and noise. With its enhanced ability to focus signals in a specific direction, it minimizes the impact of environmental factors such as obstacles, reflections, and interference from other devices.

Better Throughput

The 6dBi gain of this patch antenna enhances throughput by increasing the signal strength. This results in faster data transfer rates and improved network performance. Users can enjoy seamless streaming, faster downloads, and smoother online gaming experiences.

Applications

The Cisco AIR-ANT2460P-R Patch Antenna with its 6dBi gain is suitable for various applications:

Point-to-Point Connections

When configured in a point-to-point setup, this antenna can establish long-range connections between two locations. It is ideal for connecting remote buildings, creating links between campuses, or extending network coverage to areas that are difficult to reach.

Wireless Internet Service Providers (WISPs)

WISPs can benefit from the AIR-ANT2460P-R's high gain to provide reliable internet access to customers over a wide area. The increased coverage and signal quality make it easier to deliver stable connections to subscribers located at the edge of the network.

Outdoor Deployments

This patch antenna is a great choice for outdoor deployments, thanks to its rugged design and weather-resistant features. It can withstand harsh environmental conditions while delivering excellent performance, making it suitable for outdoor wireless networks in parks, stadiums, and other open spaces.

Installation and Placement

To maximize the benefits of the Cisco AIR-ANT2460P-R Patch Antenna's 6dBi gain, proper installation and placement are essential:

Mounting Options

The antenna can be mounted on walls, poles, or other suitable structures using the included mounting hardware. Ensure that it is securely attached to minimize any potential movement or misalignment that could impact performance.

Orientation

The antenna should be oriented toward the desired coverage area or target location. Adjusting its position can help fine-tune signal strength and optimize performance. Experimenting with slight adjustments may be necessary to achieve the best results.

Avoid Obstructions

When installing the AIR-ANT2460P-R Patch Antenna, it is crucial to avoid obstructions that can block or interfere with the signal. Clear any obstacles such as trees, buildings, or other structures that may impede the antenna's line of sight to maximize its coverage and effectiveness.

Conclusion

The Cisco AIR-ANT2460P-R Patch Antenna with its impressive 6dBi gain offers users extended coverage, improved signal quality, and better throughput. Its applications range from point-to-point connections to outdoor deployments, making it a versatile choice for various scenarios. By following proper installation and placement techniques, users can fully harness the benefits of this high-gain antenna.
