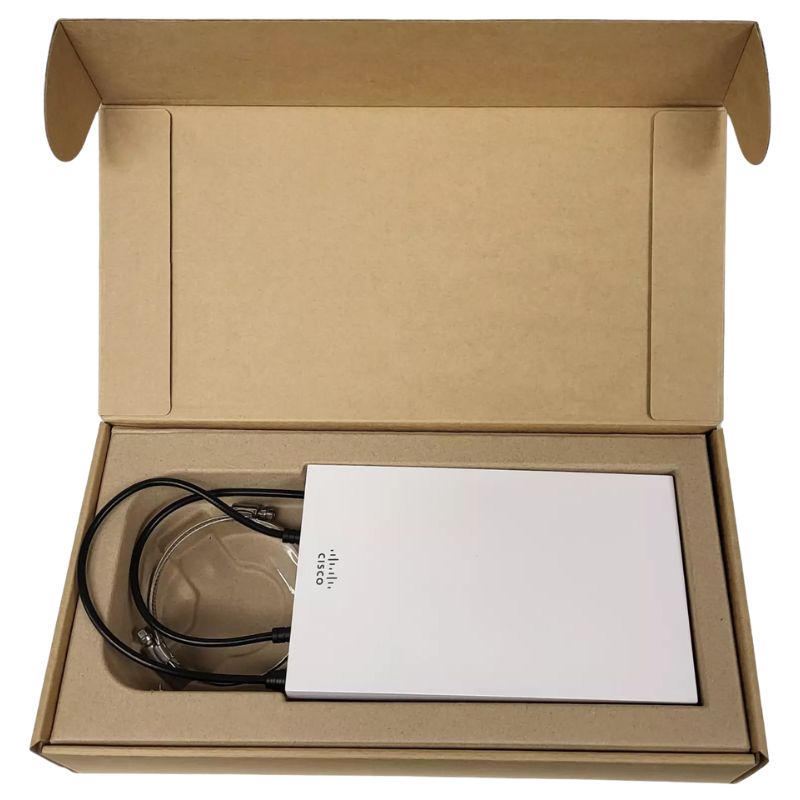

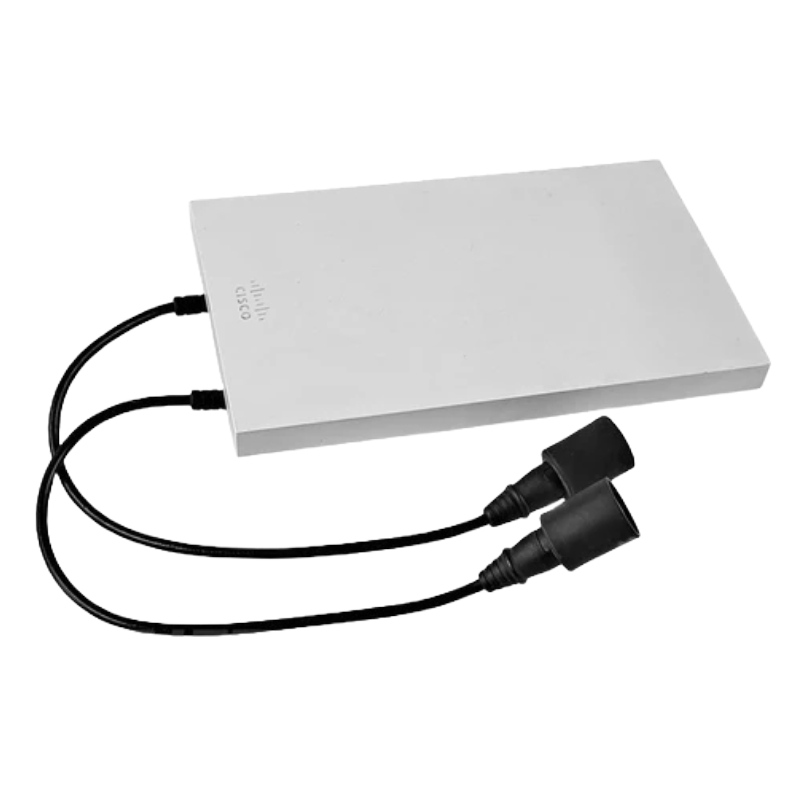

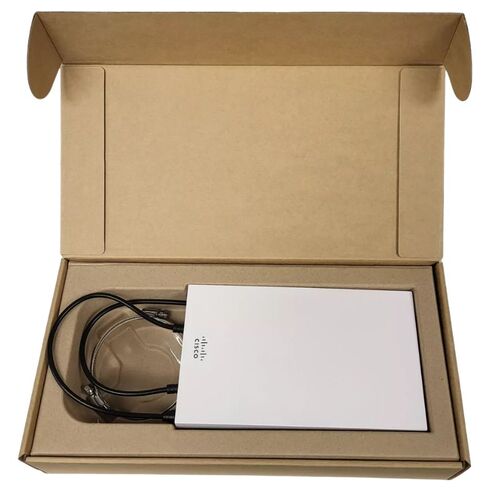

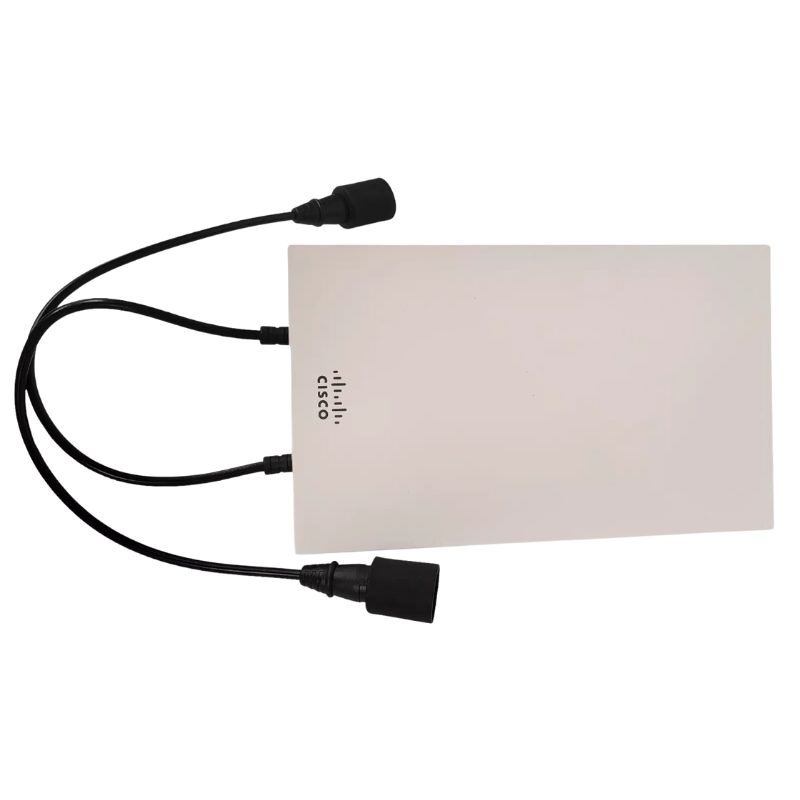

MA-ANT-21 Cisco Meraki 5 GHz 13 dBi Wireless AP Sector Antenna

Cisco MA-ANT-21 Meraki 5 GHz Sector Antenna Overview

The Cisco MA-ANT-21 is a high-performance wireless sector antenna engineered for Meraki access points, designed to deliver stable, long-range connectivity in demanding outdoor and enterprise environments. Built for the 5 GHz band, it enhances network capacity, improves signal directionality, and supports dense deployments with consistent reliability.

Key Product Identification Details

• Manufacturer: Cisco
• Model / Part Number: MA-ANT-21
• Category: Network Infrastructure Device
• Device Type: Wireless Access Point Sector Antenna

Technical Specifications of Cisco MA-ANT-21

Electrical and Frequency Performance

Antenna Design and Operating Band

• Antenna Type: Directional Sector
• Frequency Range: 5.150 GHz – 5.875 GHz
• Gain Level: 13 dBi for extended reach and signal strength

Signal Beam Characteristics

• Horizontal Beamwidth: 80° coverage area for targeted deployment
• Polarization: Dual Linear (Vertical and Horizontal) for improved transmission stability

Physical Build and Environmental Resistance

Dimensions and Weight Profile

• Size: 9.2 x 5.5 x 1.6 inches (233 mm x 140 mm x 40 mm)
• Weight: 1.2 lbs (527 g), lightweight yet durable structure

Material Composition and Durability

• Constructed with UV-resistant industrial-grade plastic
• Designed for outdoor resilience against sun exposure and environmental stress

Operating Conditions

• Temperature Range: -40°F to 158°F (-40°C to 70°C)
• Suitable for extreme weather conditions and harsh installations

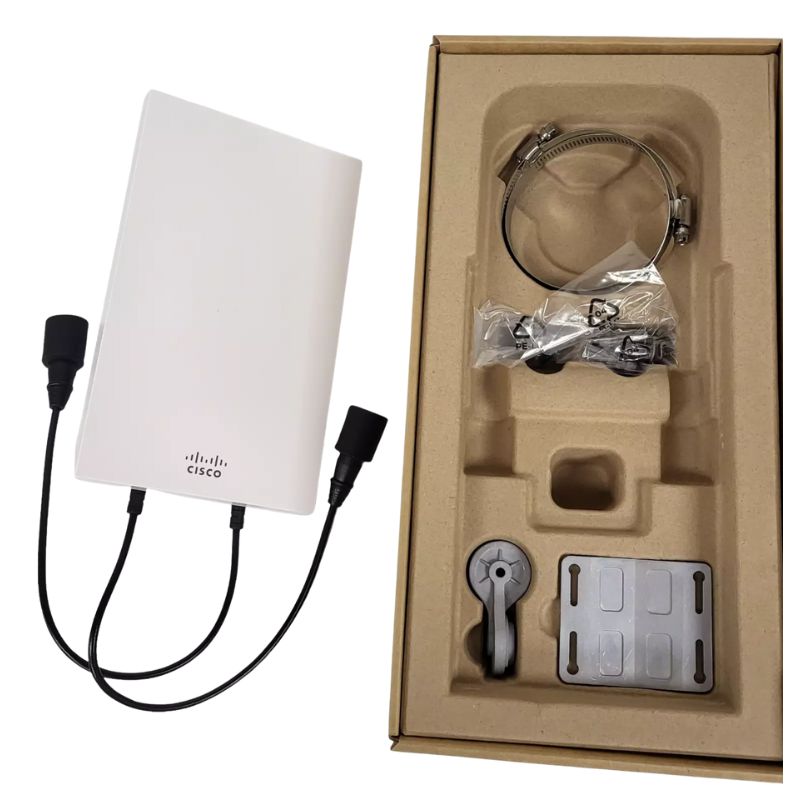

Connector and Installation Features

Interface and Connectivity

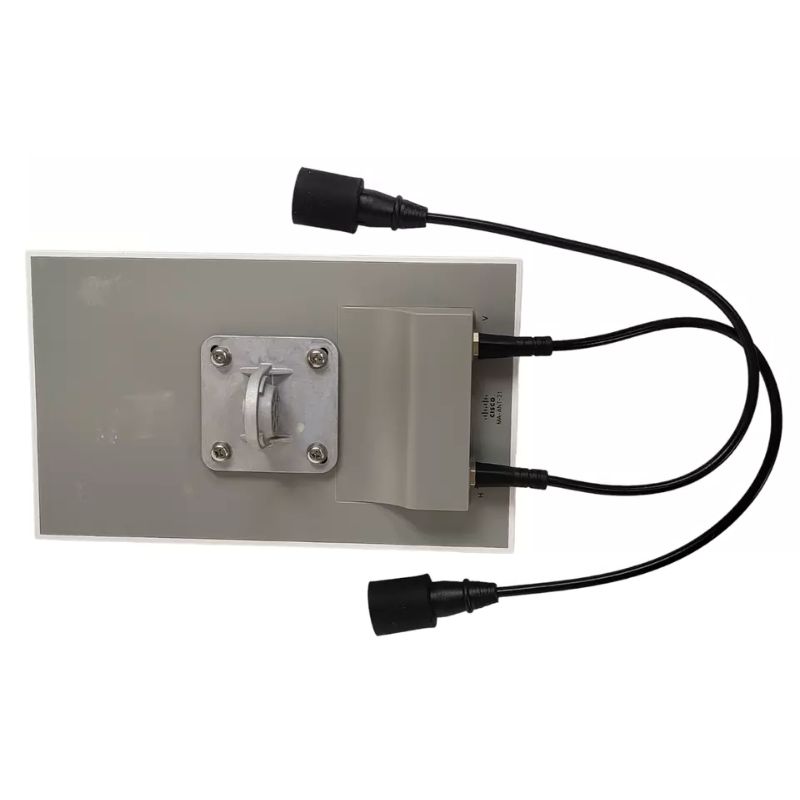

• Connector Type: Dual N-Type connectors for secure integration
• Supports flexible deployment with compatible Cisco Meraki access points

Performance Advantages of Cisco MA-ANT-21 Antenna

Improved Coverage and Network Stability

• Optimized for high-density wireless environments such as campuses and enterprise zones
• Delivers extended 5 GHz signal coverage for outdoor deployments
• Ensures stable and consistent wireless connectivity across sector-focused areas

Environmental Strength and Long-Term Reliability

Rugged Construction Benefits

• UV-resistant casing enhances durability under direct sunlight exposure
• Engineered to withstand temperature extremes and challenging climates

Advanced Signal Optimization

• Dual polarization improves throughput and reduces interference
• Directional sector design increases network efficiency and reduces signal waste

Use Cases and Deployment Scenarios

Ideal Applications

• Enterprise wireless infrastructure expansion
• Outdoor campus Wi-Fi deployments
• High-density public connectivity zones
• Industrial and logistics wireless networking

Deployment Benefits

• Supports scalable wireless architecture
• Enhances signal precision in targeted zones
• Reduces network congestion through directional coverage

Cisco MA-ANT-21 Meraki 5 GHz 13 dBi Wireless AP Sector

The Cisco MA-ANT-21 Meraki 5 GHz 13 dBi Wireless AP Sector Antenna represents a specialized segment within enterprise-grade wireless networking infrastructure, focusing on directional RF signal propagation, optimized coverage zones, and high-performance connectivity in dense or large-scale deployments. This category encompasses sector antennas designed to operate within the 5 GHz frequency band, offering improved throughput, reduced interference, and targeted wireless distribution for mission-critical applications. Organizations leveraging Meraki cloud-managed networking solutions benefit from this antenna category due to its seamless integration, centralized management, and high-efficiency signal delivery tailored for outdoor and semi-outdoor environments.

Sector Antenna Design and Functionality

Sector antennas, such as the Cisco MA-ANT-21, are engineered to provide directional wireless coverage within a defined angular range, typically between 60 to 120 degrees. This directional pattern allows network architects to divide large areas into sectors, each served by a dedicated antenna, thereby improving coverage precision and minimizing co-channel interference. The 13 dBi gain specification indicates a strong signal focus, enabling extended reach and enhanced signal strength across targeted zones. This design is particularly advantageous in environments such as stadiums, campuses, warehouses, and urban outdoor deployments where omnidirectional antennas may fall short in performance.

5 GHz Frequency Band Advantages

The 5 GHz frequency band is widely recognized for its superior bandwidth capabilities and reduced interference compared to the 2.4 GHz spectrum. Within this category, antennas like the Cisco MA-ANT-21 are optimized to operate exclusively in this band, ensuring compatibility with modern wireless standards such as IEEE 802.11ac and 802.11ax. The increased number of non-overlapping channels available in the 5 GHz range allows for higher density deployments without significant performance degradation. This makes the antenna category ideal for high-capacity environments requiring reliable and fast wireless connectivity.

High-Density Deployment Optimization

In high-density scenarios, such as large public venues or enterprise campuses, the use of sector antennas enables network segmentation and efficient channel reuse. By directing signals into specific sectors, administrators can deploy multiple access points with minimal overlap, thereby maximizing spectral efficiency. The Cisco MA-ANT-21 category supports such deployments by offering consistent gain performance and predictable radiation patterns, which are critical for advanced RF planning and optimization.

Integration with Meraki Cloud-Managed Infrastructure

One of the defining characteristics of the Cisco MA-ANT-21 category is its compatibility with Meraki cloud-managed access points. This integration allows for simplified deployment, monitoring, and troubleshooting through a centralized dashboard. Network administrators can remotely configure antenna settings, monitor signal performance, and analyze client connectivity patterns in real time. This level of visibility and control significantly reduces operational complexity and enhances network reliability.

Plug-and-Play Deployment Efficiency

The antenna category is designed for ease of installation, featuring standardized connectors and mounting options that align with Meraki outdoor access points. This plug-and-play approach minimizes deployment time and reduces the need for specialized technical expertise. The Cisco MA-ANT-21, in particular, supports quick integration with compatible hardware, ensuring that organizations can rapidly scale their wireless infrastructure without extensive configuration efforts.

Centralized Management Benefits

Centralized management through the Meraki dashboard provides comprehensive insights into network performance, including signal strength, client distribution, and interference levels. This capability allows administrators to make data-driven decisions when adjusting antenna placement or optimizing coverage. The Cisco MA-ANT-21 category leverages these tools to deliver consistent performance and adaptability in dynamic environments.

Remote Monitoring and Troubleshooting

Remote monitoring capabilities are essential for maintaining large-scale wireless networks. The Cisco MA-ANT-21 category supports continuous performance tracking, enabling administrators to identify and resolve issues proactively. This reduces downtime and ensures a seamless user experience, particularly in mission-critical applications where connectivity is paramount.

Applications Across Industry Verticals

The Cisco MA-ANT-21 Meraki 5 GHz 13 dBi Wireless AP Sector Antenna category serves a wide range of industry verticals, each with unique connectivity requirements. From education and healthcare to manufacturing and transportation, the need for reliable and high-performance wireless networks is universal. This category addresses these needs by providing targeted coverage, scalability, and robust performance in challenging environments.

Outdoor Campus and Educational Environments

Educational institutions often require extensive outdoor wireless coverage to support students, faculty, and administrative operations. The Cisco MA-ANT-21 category enables seamless connectivity across campuses, including open spaces, walkways, and sports facilities. Its directional coverage ensures that signal strength is concentrated where it is needed most, improving user experience and network efficiency.

Industrial and Warehouse Deployments

In industrial settings, reliable wireless connectivity is critical for operational efficiency, inventory management, and automation. The Cisco MA-ANT-21 category provides the durability and performance required for such environments, supporting high-speed data transmission and stable connections across large areas. Its sector-based design allows for precise coverage in warehouses, reducing dead zones and enhancing productivity.

Public Venues and Smart Cities

Public venues and smart city initiatives rely heavily on robust wireless infrastructure to support a wide range of applications, including surveillance, public Wi-Fi, and IoT connectivity. The Cisco MA-ANT-21 category plays a vital role in these deployments by delivering high-capacity coverage and minimizing interference. Its compatibility with advanced wireless technologies ensures that it can meet the demands of modern urban environments.

Technical Specifications and Performance Characteristics

The Cisco MA-ANT-21 category is defined by its advanced technical specifications, which are designed to deliver optimal performance in demanding scenarios. The 13 dBi gain provides a strong and focused signal, while the sector design ensures efficient coverage distribution. The antenna operates within the 5 GHz frequency range, supporting high data rates and reduced latency. These characteristics make it an ideal choice for applications requiring reliable and high-speed wireless connectivity.

Gain and Radiation Pattern

The gain of an antenna is a critical factor in determining its performance. In the Cisco MA-ANT-21 category, the 13 dBi gain indicates a high level of signal concentration, which translates to extended coverage and improved signal quality. The radiation pattern is carefully engineered to provide consistent coverage within the specified sector, ensuring that users within the coverage area experience reliable connectivity.

Durability and Environmental Resistance

Outdoor deployments require antennas that can withstand harsh environmental conditions, including extreme temperatures, moisture, and UV exposure. The Cisco MA-ANT-21 category is built with durable materials and weather-resistant designs, ensuring long-term reliability and performance. This makes it suitable for a wide range of outdoor applications, from urban environments to remote locations.

Compatibility and Connectivity

Compatibility with Meraki access points is a key feature of the Cisco MA-ANT-21 category. The antenna is designed to work seamlessly with compatible hardware, providing a cohesive and efficient wireless solution. Standardized connectors and mounting options further enhance its versatility, allowing for flexible deployment configurations.

Advantages of Directional Antenna Deployment

Directional antennas, such as those in the Cisco MA-ANT-21 category, offer several advantages over omnidirectional alternatives. By focusing the signal in a specific direction, they provide improved coverage, reduced interference, and enhanced performance in high-density environments. This makes them an essential component of modern wireless network design.

Improved Signal Quality

By concentrating the signal within a defined sector, directional antennas deliver stronger and more consistent connectivity. This results in higher data rates and reduced packet loss, enhancing the overall user experience. The Cisco MA-ANT-21 category is specifically designed to maximize these benefits, making it a preferred choice for demanding applications.

Reduced Interference

Interference is a common challenge in wireless networks, particularly in densely populated areas. The directional nature of the Cisco MA-ANT-21 category helps mitigate this issue by limiting signal overlap and minimizing interference from neighboring networks. This leads to more stable and reliable connections.

Scalability and Flexibility

The ability to scale and adapt to changing requirements is a key advantage of the Cisco MA-ANT-21 category. By dividing coverage areas into sectors, network administrators can easily expand or modify the network as needed. This flexibility ensures that the infrastructure can evolve alongside organizational needs, providing long-term value and performance.
