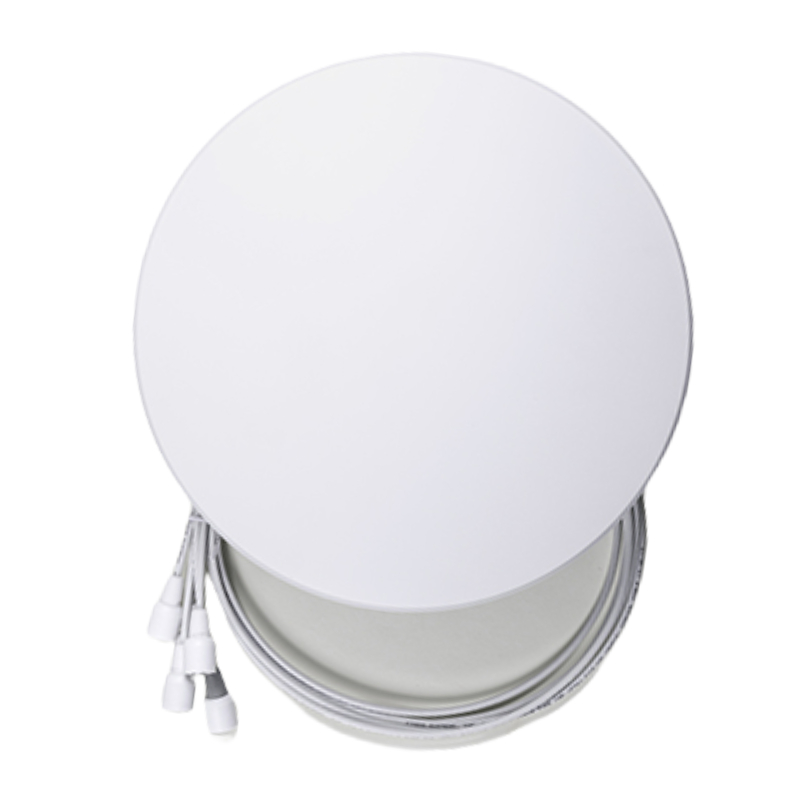

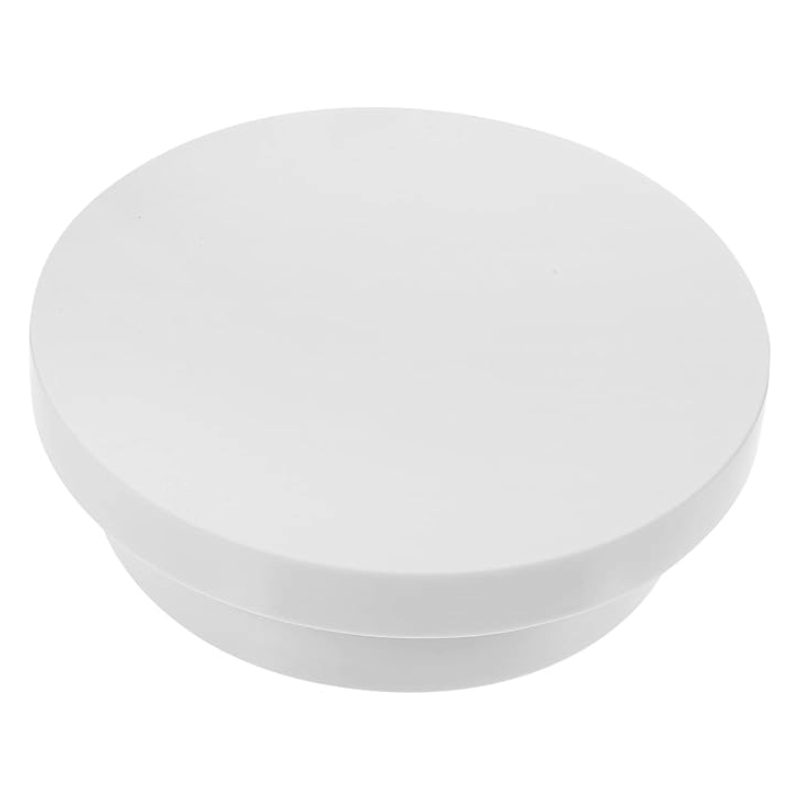

MA-ANT-3-C6 Meraki Cisco Indoor Dual-Band Omni Antenna

Meraki MA-ANT-3-C6 Cisco Indoor Dual-Band Omni Antenna

High-Performance Cisco Wireless Antenna Solution

The Meraki Cisco MA-ANT-3-C6 is a professionally engineered indoor omnidirectional antenna designed to enhance wireless coverage across dual-band networks. Built for enterprise-grade deployments, it ensures stable connectivity and optimized signal distribution in demanding environments.

Key Product Identification Details

• Manufacturer: Meraki
• Model / SKU: MA-ANT-3-C6
• Category: Network Infrastructure Device
• Device Type: Indoor Omni Antenna

Advanced Electrical & RF Characteristics

Dual-Band Frequency Support

This antenna operates efficiently across both 2.4 GHz and 5 GHz bands, ensuring seamless wireless performance for modern networking environments.

Frequency Range Coverage

• 2.400 – 2.500 GHz (2.4 GHz band)
• 5.150 – 5.875 GHz (5 GHz band)

Gain Performance per Element

• 2.4 GHz: 4.9 dBi
• 5 GHz: 4.9 dBi

Polarization & Radiation Pattern

• Linear polarization (vertical and horizontal support)
• Omnidirectional horizontal coverage
• Vertical beamwidth: 60°

Installation Flexibility & Mounting Options

Versatile Deployment Capabilities

The MA-ANT-3-C6 is designed for flexible installation across multiple indoor environments, supporting various mounting configurations to suit infrastructure requirements.

Supported Mounting Methods

• Wall mounting
• Ceiling tile integration (flush-mount included)
• Pole mounting compatibility

Optional Installation Accessories

• Surface mount kits (sold separately)
• Pipe mount hardware (sold separately)

Physical Build & Environmental Specifications

Compact and Durable Construction

Engineered with robust materials and a slim profile, this antenna is suitable for professional indoor deployments where space efficiency and durability are essential.

Dimensions & Weight

• Size: 11.81” x 1.38” (300 mm x 35 mm)
• Weight: 37.04 oz (1.05 kg)

Material Composition

• High-quality PC-ABS housing for durability and strength

Operating Environment Range

• Temperature tolerance: 0°C to 40°C (32°F to 104°F)
• Humidity resistance: 5% – 95%

Connectivity & Cable Interface

Reliable Network Integration

Designed for seamless integration into Cisco wireless systems, this antenna ensures stable connectivity through standardized connector interfaces and cable compatibility.

Connector Details

• RP-TNC connector interface

Cable Specification

• Includes Times AA-9303, 1-meter cable

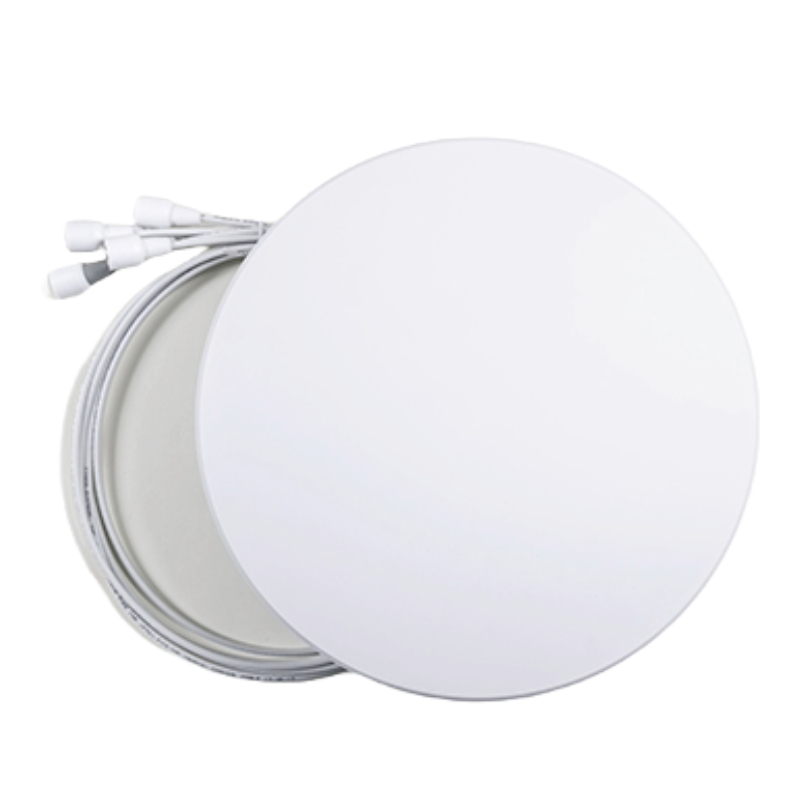

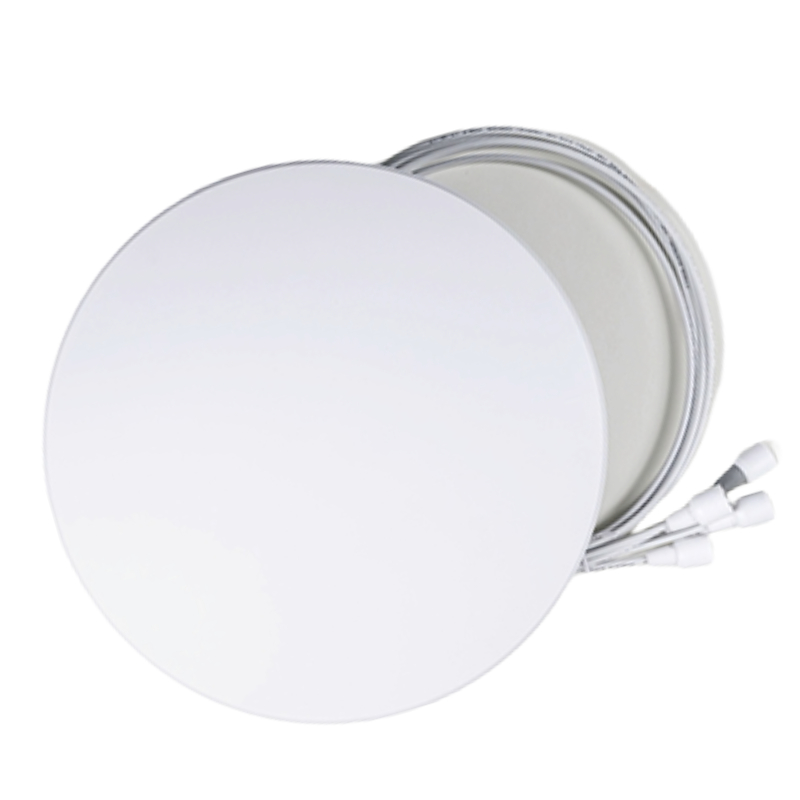

Meraki MA-ANT-3-C6 Indoor Dual-Band Omni Antenna 6-Port

The Meraki MA-ANT-3-C6 Cisco Indoor Dual-Band Omni Antenna 6-Port represents a highly specialized and performance-driven solution within the enterprise wireless networking ecosystem. Designed to support modern Wi-Fi deployments, this category of indoor omnidirectional antennas is engineered to deliver consistent, high-quality signal distribution across complex indoor environments. As wireless connectivity continues to play a critical role in business operations, the importance of robust antenna systems like the MA-ANT-3-C6 becomes increasingly significant. This antenna is tailored for seamless integration with Cisco Meraki access points, ensuring optimized signal propagation and enhanced coverage for dual-band wireless networks operating in both the 2.4 GHz and 5 GHz frequency ranges.

Understanding Dual-Band Omnidirectional Antenna Technology

Dual-band omnidirectional antennas are designed to transmit and receive signals in two distinct frequency bands, enabling compatibility with a wide range of wireless devices. The MA-ANT-3-C6 operates efficiently across both 2.4 GHz and 5 GHz bands, which are essential for modern Wi-Fi standards such as 802.11ac and 802.11ax. Omnidirectional antennas distribute signals uniformly in a 360-degree horizontal pattern, making them ideal for indoor environments where coverage needs to be evenly spread across open spaces, offices, and commercial areas.

Advantages of Dual-Band Performance

The dual-band capability allows network administrators to balance traffic effectively by distributing devices across both frequency bands. The 2.4 GHz band provides broader coverage and better penetration through walls, while the 5 GHz band offers higher data rates and reduced interference. This dual functionality ensures that the MA-ANT-3-C6 can support high-density environments where multiple devices are connected simultaneously without compromising performance.

Omnidirectional Signal Distribution Benefits

Omnidirectional antennas eliminate the need for precise directional alignment, making installation straightforward and flexible. The MA-ANT-3-C6 ensures consistent signal strength in all directions, reducing dead zones and improving overall user experience. This makes it particularly suitable for environments such as offices, retail stores, educational institutions, and healthcare facilities.

Design and Engineering Excellence of the MA-ANT-3-C6

The Meraki MA-ANT-3-C6 is engineered with precision to meet the demands of enterprise-grade wireless networks. Its design focuses on durability, performance, and ease of integration. The antenna features a sleek and compact form factor, allowing it to blend seamlessly into indoor environments without compromising aesthetics.

Six-Port Configuration for Enhanced Connectivity

One of the defining features of the MA-ANT-3-C6 is its six-port configuration. This allows it to connect to multiple radio chains within compatible access points, enabling advanced MIMO (Multiple Input Multiple Output) capabilities. The multi-port design enhances signal diversity and improves overall network performance by supporting simultaneous data streams.

Integration with MIMO Technology

MIMO technology leverages multiple antennas to transmit and receive data simultaneously, significantly increasing throughput and reliability. The MA-ANT-3-C6’s six-port architecture aligns perfectly with modern access points that utilize MIMO configurations, ensuring optimal performance in high-demand environments.

Robust Build Quality for Indoor Deployments

Constructed with high-quality materials, the MA-ANT-3-C6 is designed to withstand the rigors of continuous operation. Its indoor-rated design ensures long-term reliability while maintaining consistent performance across varying environmental conditions typically found in commercial indoor spaces.

Applications and Use Cases for Indoor Omni Antennas

The versatility of the MA-ANT-3-C6 makes it suitable for a wide range of indoor applications. From corporate offices to public venues, this antenna category supports diverse deployment scenarios where reliable wireless connectivity is essential.

Enterprise Office Environments

In modern office settings, where employees rely heavily on wireless connectivity for productivity, the MA-ANT-3-C6 ensures seamless coverage across workspaces. Its omnidirectional design eliminates coverage gaps, enabling employees to move freely without experiencing connectivity issues.

Retail and Commercial Spaces

Retail environments require consistent Wi-Fi coverage to support point-of-sale systems, inventory management, and customer engagement applications. The MA-ANT-3-C6 provides reliable connectivity across store floors, enhancing operational efficiency and customer experience.

Healthcare Facilities

Healthcare environments demand robust and secure wireless networks to support medical devices, patient monitoring systems, and administrative operations. The MA-ANT-3-C6 delivers dependable performance, ensuring uninterrupted connectivity in critical settings.

Educational Institutions

Schools and universities benefit from the MA-ANT-3-C6’s ability to support high-density user environments. With students and faculty accessing online resources simultaneously, the antenna ensures stable and high-speed connectivity across classrooms, lecture halls, and common areas.

Performance Optimization and Signal Efficiency

The performance of an indoor antenna is determined by its ability to deliver consistent signal strength and minimize interference. The MA-ANT-3-C6 excels in both areas, making it a reliable choice for enterprise deployments.

Enhanced Signal Gain and Coverage

The antenna is designed to provide optimal gain across both frequency bands, ensuring strong signal propagation throughout the coverage area. This results in improved connectivity and reduced packet loss, even in challenging environments with obstacles and interference.

Interference Mitigation Techniques

In environments with multiple wireless devices, interference can significantly impact network performance. The MA-ANT-3-C6 incorporates advanced design features to minimize interference, allowing for cleaner signal transmission and improved network stability.

Seamless Roaming Support

For organizations with large indoor spaces, seamless roaming is essential to maintain uninterrupted connectivity as users move between access points. The MA-ANT-3-C6 supports smooth transitions, ensuring a consistent user experience across the network.

Compatibility and Integration with Cisco Meraki Ecosystem

The MA-ANT-3-C6 is specifically designed to integrate seamlessly with Cisco Meraki access points, making it an ideal choice for organizations utilizing the Meraki cloud-managed networking platform. This compatibility ensures simplified deployment and centralized management.

Plug-and-Play Installation

The antenna’s design allows for easy installation with compatible access points, reducing deployment time and complexity. Its standardized connectors ensure secure and reliable connections, minimizing the risk of signal degradation.

Cloud-Based Management Advantages

When used within the Meraki ecosystem, the MA-ANT-3-C6 benefits from cloud-based management capabilities. Network administrators can monitor performance, troubleshoot issues, and optimize configurations remotely, enhancing operational efficiency.

Scalability for Growing Networks

As organizations expand, their network infrastructure must scale accordingly. The MA-ANT-3-C6 supports scalable deployments, allowing businesses to add more access points and antennas without compromising performance or manageability.
