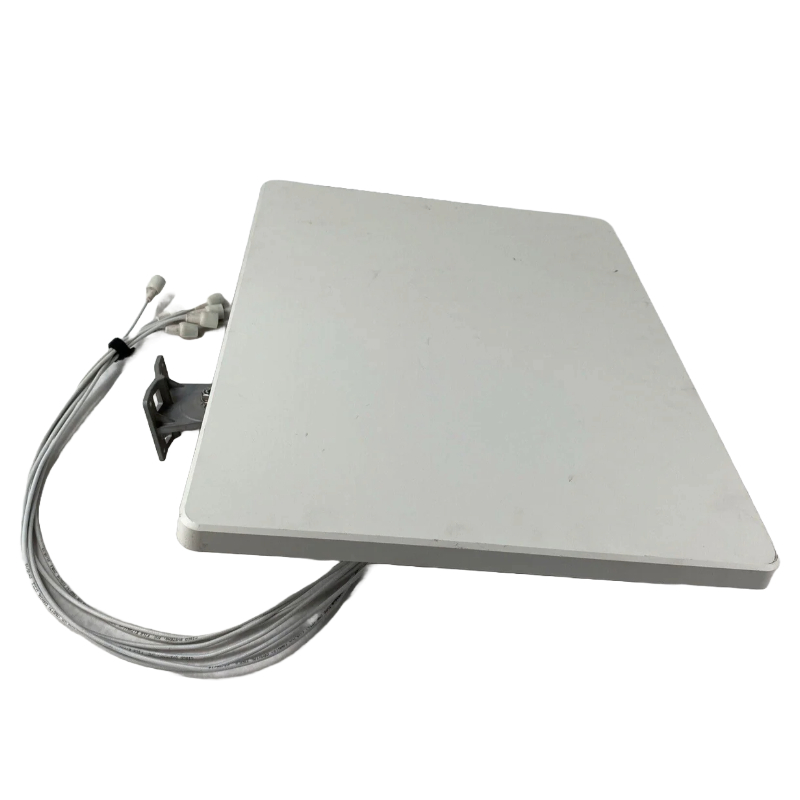

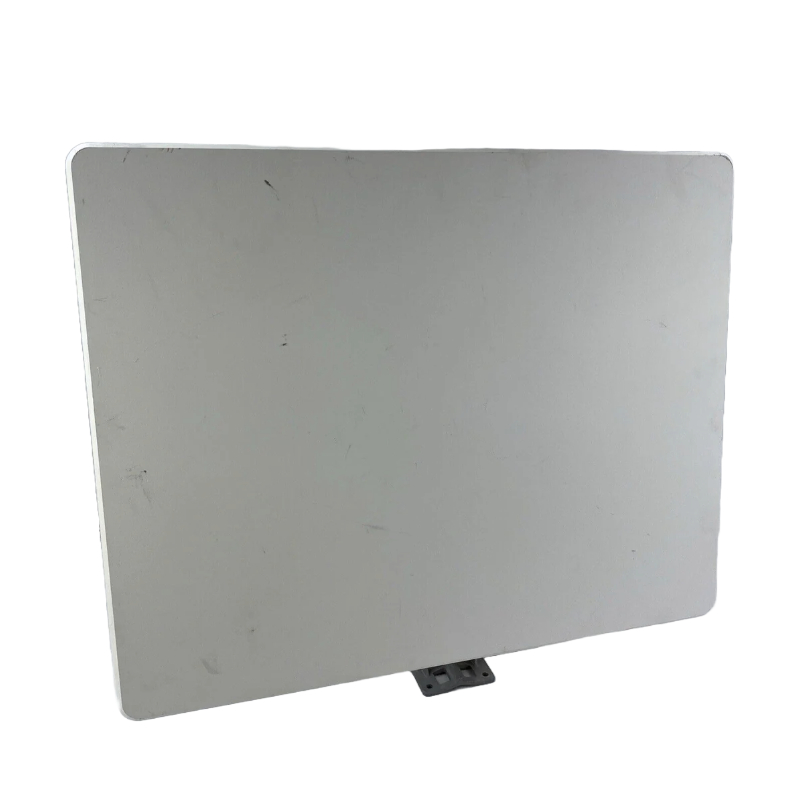

MA-ANT-3-F6 Cisco Mr53e Meraki Narrow Patch Antenna

Cisco MA-ANT-3-F6 Meraki Narrow Patch Antenna

Enterprise-Grade Wireless Antenna Solution

The Cisco MA-ANT-3-F6 is a high-performance narrow patch antenna engineered to enhance wireless connectivity for Cisco Meraki MR53E access points. Built for professional networking environments, it delivers focused signal coverage and improved transmission efficiency across dual frequency bands.

Manufacturer and Identification Details

• Brand: Cisco
• Model / Part Number: MA-ANT-3-F6
• Product Category: Network Devices
• Device Type: External Antenna

Core Technical Specifications

Frequency and Signal Capabilities

Dual-Band Operational Range

This antenna supports both 2.4 GHz and 5 GHz frequency bands, ensuring stable connectivity and optimized network performance in dense wireless environments.

• 2.4 GHz frequency range: 2.4 – 2.5 GHz
• 5 GHz frequency range: 5.15 – 5.875 GHz

Signal Gain Performance

• 11.2 dBi gain for 2.4 GHz band
• 10.8 dBi gain for 5 GHz band

Radiation Pattern and Coverage

Directional Signal Distribution

Designed with a directional radiation pattern, the antenna focuses wireless energy toward a targeted area, improving range, reducing interference, and enhancing overall signal strength.

Design and Construction Features

Build Quality and Materials

Durable Engineering Composition

Constructed using robust PC/ABS material, the antenna ensures long-term durability, resistance to environmental wear, and dependable structural integrity in various deployment scenarios.

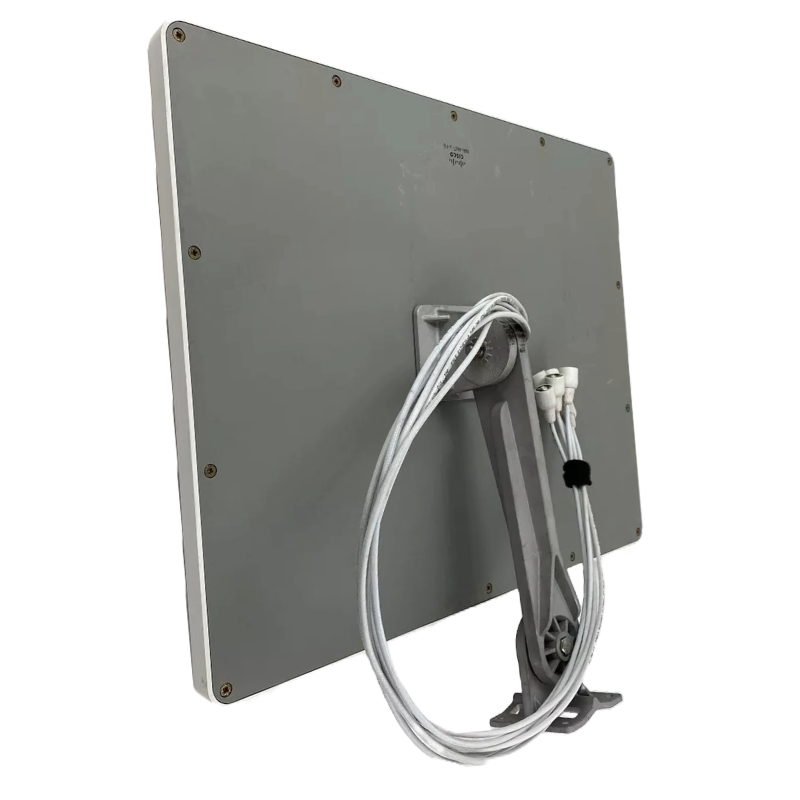

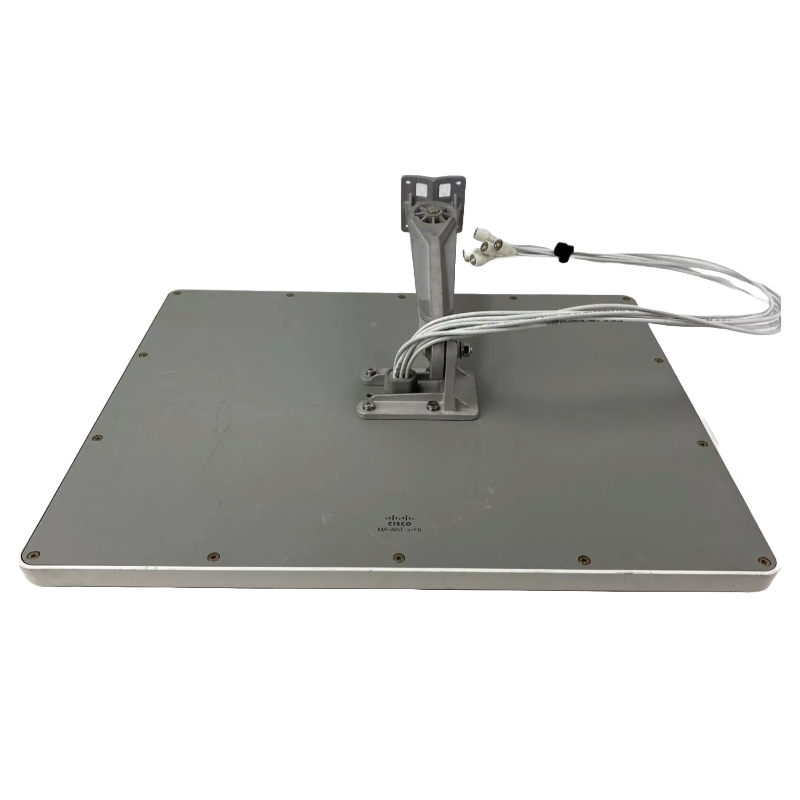

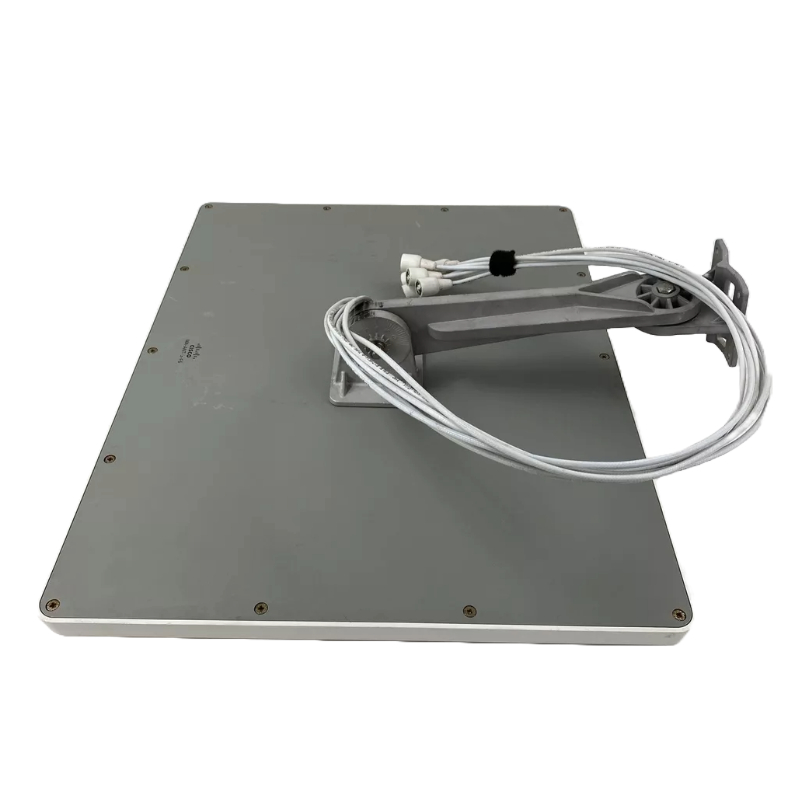

Mounting Flexibility

Versatile Installation Options

• Wall-mounted installation support
• Pole mounting compatibility
• Indoor deployment suitability

Compatibility and Application

Designed for Cisco Meraki Ecosystem

Optimized Device Integration

The Cisco MA-ANT-3-F6 is specifically engineered for seamless integration with the Cisco Meraki MR53E access point, ensuring optimal performance and simplified deployment in enterprise wireless networks.

Ideal Usage Environments

Enterprise Networking Scenarios

• Corporate office wireless networks
• Educational institutions and campuses
• Retail and commercial environments
• High-density indoor deployments

Performance Advantages

Enhanced Wireless Efficiency

Signal Optimization Benefits

• Improved coverage precision through directional focus
• Reduced interference in crowded RF environments
• Balanced dual-band performance for modern applications
• Reliable connectivity for mission-critical operations

Deployment Benefits

Installation and Usability Advantages

• Flexible mounting configurations for diverse setups
• Compact and professional-grade antenna design
• Easy integration with existing Cisco Meraki infrastructure

Cisco MA-ANT-3-F6 Meraki Narrow Patch Antenna Overview

The Cisco MA-ANT-3-F6 Meraki Narrow Patch Antenna is a specialized wireless networking accessory engineered to enhance directional Wi-Fi coverage in enterprise-grade deployments. Designed specifically for compatibility with Cisco Meraki access points such as the Meraki MR53E, this antenna plays a crucial role in optimizing wireless signal distribution in environments that require precision coverage rather than broad omnidirectional broadcasting. Within the enterprise networking ecosystem, narrow patch antennas like the MA-ANT-3-F6 are essential components for achieving high-performance wireless connectivity in structured environments such as campuses, warehouses, stadiums, manufacturing plants, and large office complexes.

This category of directional antenna is built to concentrate RF energy into a controlled beam, ensuring that wireless signals are transmitted efficiently toward targeted zones. Unlike standard omnidirectional antennas that disperse signals uniformly in all directions, the Cisco MA-ANT-3-F6 is optimized for focused transmission, reducing interference, increasing signal strength, and improving overall network reliability. As wireless infrastructure continues to evolve toward higher-density deployments, the demand for precision-tuned antennas like this one has grown significantly in enterprise IT architectures.

Technical Architecture and Engineering Design of Cisco MA-ANT-3-F6

Directional Narrow Patch Antenna Structure

The MA-ANT-3-F6 is engineered using advanced patch antenna technology that enables controlled beamforming. Patch antennas are known for their low-profile structure and ability to maintain consistent performance across specific frequency ranges. The narrow beam design ensures that the wireless signal is concentrated in a defined directional pattern, which is ideal for corridor-based deployments, linear warehouse aisles, and outdoor perimeter coverage scenarios.

The internal radiating elements are constructed to support stable gain characteristics, allowing network engineers to fine-tune coverage zones without excessive signal spillover. This precise engineering is particularly valuable in high-density environments where overlapping signals can cause interference and degrade network performance.

Frequency Optimization and Wireless Compatibility

The Cisco MA-ANT-3-F6 is optimized for dual-band wireless operation, supporting both 2.4 GHz and 5 GHz frequency bands. This dual-band capability ensures seamless integration with modern enterprise Wi-Fi standards, including IEEE 802.11ac and related protocols. By supporting multiple frequency bands, the antenna enables flexible deployment options depending on environmental constraints and performance requirements.

The antenna’s impedance matching and gain calibration are designed to minimize signal loss while maximizing throughput efficiency. This ensures that connected devices experience stable connectivity even at extended ranges within the directional coverage area.

Integration with Cisco Meraki MR53E and Enterprise Access Points

Seamless Hardware Compatibility

The MA-ANT-3-F6 is specifically designed for integration with Cisco Meraki MR53E access points, among other compatible models in the Meraki ecosystem. This compatibility ensures plug-and-play installation without requiring complex configuration changes. The antenna connects directly to the access point’s external antenna ports, allowing network administrators to quickly deploy enhanced directional coverage without replacing core networking infrastructure.

This seamless integration is particularly beneficial for enterprise environments that rely on centralized cloud-based management through the Cisco Meraki dashboard. Once installed, the antenna’s performance characteristics can be monitored and optimized remotely, enabling efficient network management at scale.

Cloud-Managed Network Optimization

When deployed within a Meraki-managed environment, the MA-ANT-3-F6 benefits from intelligent network analytics and adaptive optimization features. Network administrators can monitor signal strength, coverage patterns, and client distribution through the cloud dashboard. This allows for real-time adjustments to access point placement and antenna orientation, ensuring optimal wireless performance across the entire deployment area.

Performance Advantages in Enterprise Wireless Deployments

Improved Signal Directionality and Coverage Efficiency

One of the most significant advantages of the Cisco MA-ANT-3-F6 is its ability to deliver highly directional wireless coverage. By focusing RF energy into a narrow beam, the antenna reduces wasted signal dispersion and improves overall network efficiency. This makes it particularly effective in environments where coverage must be extended along specific pathways or zones rather than across open areas.

For example, in warehouse environments, the antenna can be mounted to provide consistent coverage along storage aisles, ensuring that handheld scanners and IoT devices maintain stable connectivity. In office corridors or multi-floor buildings, it can help extend signal reach without introducing unnecessary interference into adjacent areas.

Reduced Interference and Enhanced Network Stability

Wireless interference is one of the most common challenges in dense network environments. The MA-ANT-3-F6 mitigates this issue by narrowing the transmission field and reducing overlap with neighboring wireless signals. This targeted approach significantly improves signal-to-noise ratio, resulting in more stable and reliable connections for end users.

By minimizing co-channel interference, the antenna supports higher throughput and lower latency, which is essential for applications such as VoIP communication, video conferencing, and real-time data processing systems.

Deployment Scenarios and Industrial Applications

Enterprise Campus Networks

In large enterprise campuses, the MA-ANT-3-F6 is commonly used to extend directional coverage between buildings or across outdoor walkways. Its ability to focus signal strength makes it ideal for bridging network gaps where traditional omnidirectional antennas would struggle to maintain consistent performance.

Warehouse and Logistics Operations

Warehouses and distribution centers benefit significantly from directional antennas due to their structured layout. The MA-ANT-3-F6 ensures that wireless connectivity is maintained along long aisles and storage corridors, enabling uninterrupted operation of inventory management systems, barcode scanners, and automated tracking devices.

Retail and Hospitality Environments

In retail environments, precise wireless coverage is essential for point-of-sale systems, customer analytics, and mobile device connectivity. The antenna allows network designers to direct coverage toward customer-facing zones while minimizing interference in back-end operational areas. In hospitality settings such as hotels and resorts, it supports stable connectivity across hallways, conference rooms, and service areas.

Scalability and Network Architecture Integration

Supporting High-Density Wireless Environments

The MA-ANT-3-F6 is designed to support scalable network architectures where multiple access points and antennas are deployed across large facilities. Its directional capabilities allow network designers to segment coverage areas efficiently, reducing overlap and improving overall network capacity.

This scalability is particularly important in modern enterprise environments where thousands of connected devices may operate simultaneously. By optimizing signal directionality, the antenna helps maintain consistent performance even under heavy network load.

Integration with Hybrid Wireless Systems

In hybrid wireless deployments that combine indoor and outdoor coverage zones, the MA-ANT-3-F6 provides a reliable solution for bridging directional coverage gaps. It can be used alongside omnidirectional antennas to create a balanced network architecture that supports both broad and focused connectivity requirements.

Reliability, Durability, and Long-Term Performance

Enterprise-Grade Build Quality

The Cisco MA-ANT-3-F6 is built to meet the durability requirements of enterprise networking environments. Its robust construction ensures consistent performance even under demanding operational conditions. This includes resistance to environmental factors such as temperature fluctuations, humidity, and physical wear in industrial settings.

Long-Term Network Optimization Benefits

Over time, the use of directional antennas like the MA-ANT-3-F6 contributes to improved network efficiency and reduced operational costs. By minimizing interference and optimizing coverage patterns, organizations can reduce the need for additional access points and lower overall infrastructure complexity.

This long-term optimization aligns with modern IT strategies focused on scalability, efficiency, and centralized network management through platforms such as Cisco Meraki.
