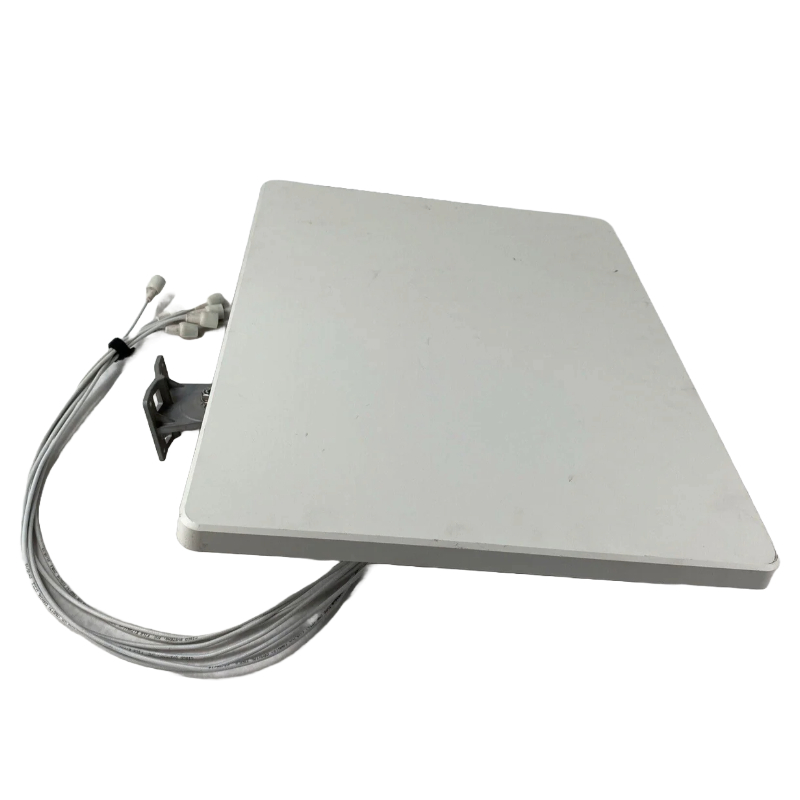

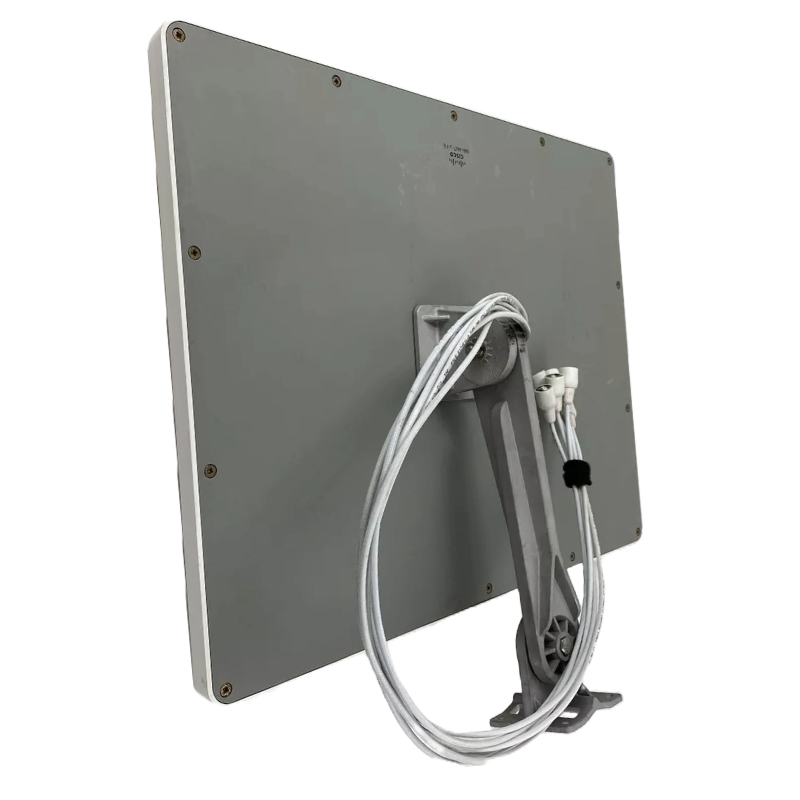

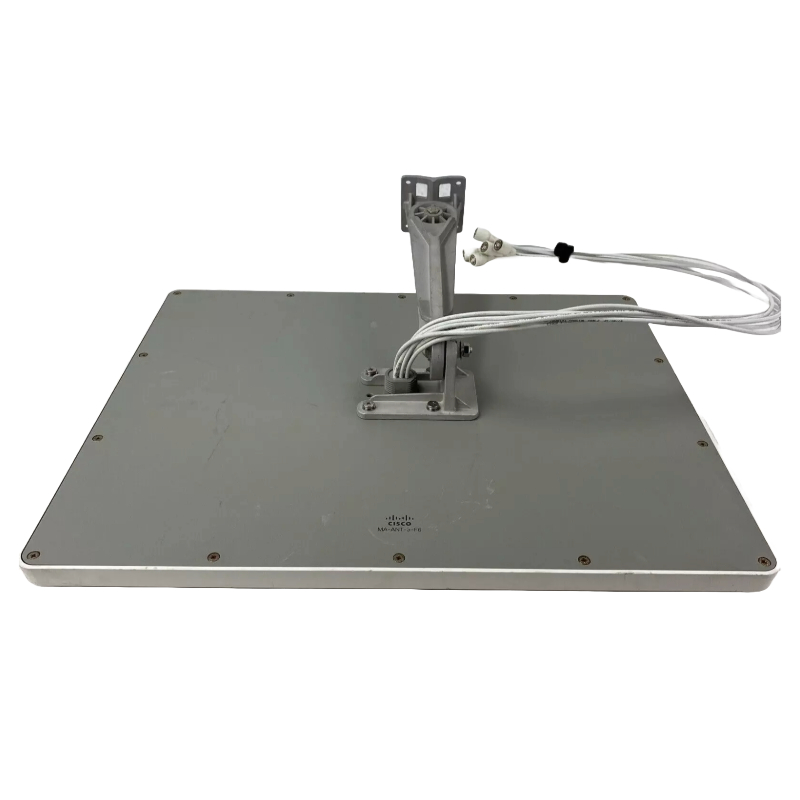

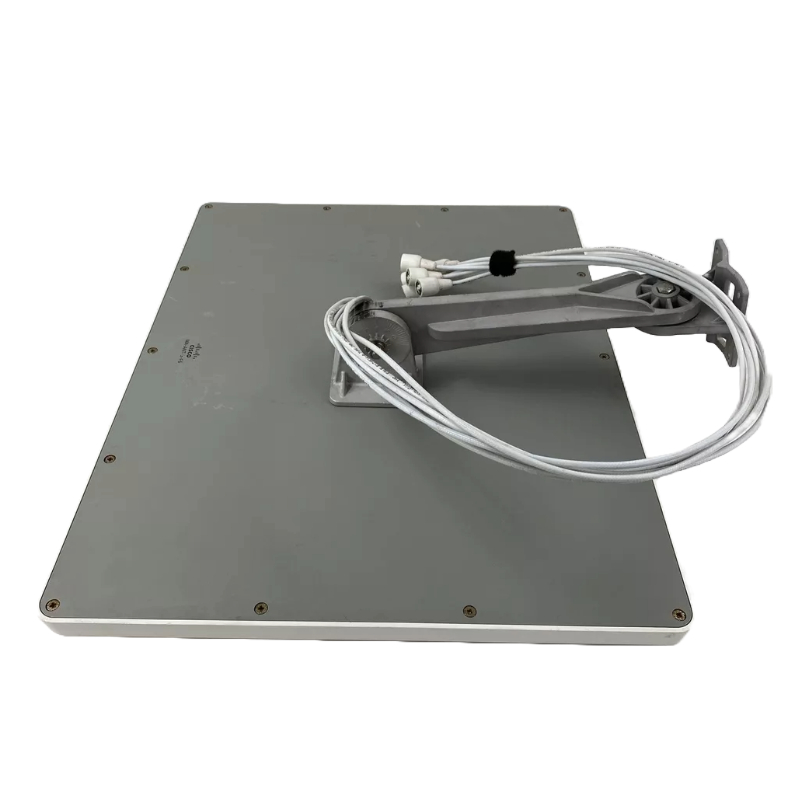

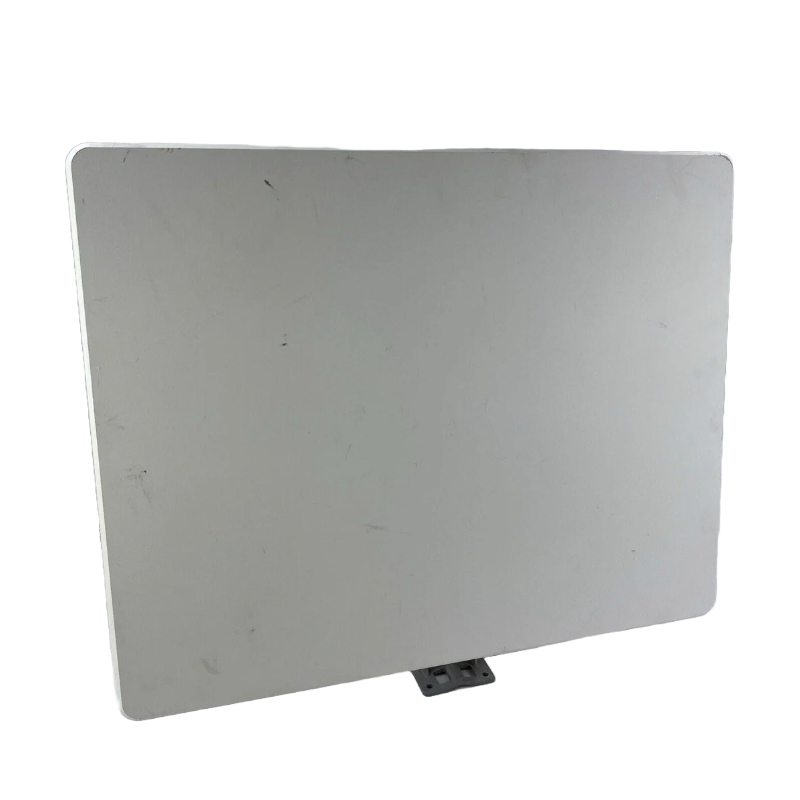

MA-ANT-3-F6 Cisco Mr53e Meraki Narrow Patch Antenna

Cisco MA-ANT-3-F6 Meraki Narrow Patch Antenna Overview

High-Performance Directional Antenna for Enterprise Networking

The Cisco MA-ANT-3-F6 is a precision-engineered narrow patch antenna designed to enhance wireless coverage and performance for enterprise-grade networks. Built by Cisco, this antenna is optimized for integration with the Meraki MR53e access point, delivering reliable signal directionality and improved connectivity in demanding environments.

Key Product Details

Manufacturer & Identification

Brand Information

• Manufacturer: Cisco
• Model / Part Number: MA-ANT-3-F6
• Product Category: Networking Equipment
• Sub-Type: Directional Antenna

Primary Application

Designed for Cisco Meraki Systems

• Specifically optimized for Cisco Meraki MR53e access points
• Enhances targeted wireless signal distribution
• Ideal for enterprise wireless deployments requiring focused coverage

Technical Specifications

Build and Material Composition

Durable Construction

• Manufactured using high-quality PC/ABS material
• Engineered for long-term operational stability

Frequency Performance

Dual-Band Support

• 2.4 GHz range: 2.4 – 2.5 GHz
• 5 GHz range: 5.15 – 5.875 GHz

Antenna Gain and Signal Strength

Optimized Wireless Output

• 2.4 GHz gain: 11.2 dBi
• 5 GHz gain: 10.8 dBi
• Improved signal reach and focused transmission capability

Signal Direction and Coverage

Directional Design Advantages

• Focused beam pattern for targeted connectivity
• Reduced interference in dense network environments

Installation and Mounting Options

Flexible Deployment Methods

Multiple Mounting Configurations

• Wall-mount installation support
• Pole mounting capability for outdoor or elevated positioning
• Indoor deployment compatibility for enterprise environments

Performance Benefits

Enhanced Wireless Efficiency

Operational Advantages

• Improves network signal stability and coverage consistency
• Supports high-density user environments
• Helps reduce dead zones in structured deployments

Enterprise Network Optimization

Use Case Benefits

• Ideal for offices, campuses, and commercial installations
• Supports scalable Cisco Meraki wireless infrastructure

Compatibility and Use Cases

Designed for Modern Networking Needs

Deployment Scenarios

• Enterprise Wi-Fi optimization
• Warehouse and industrial wireless coverage
• Campus-wide network enhancement

Cisco MA-ANT-3-F6 Meraki Narrow Patch Antenna

The Cisco MA-ANT-3-F6 Meraki Narrow Patch Antenna for MR53E is a high-performance directional wireless antenna designed to extend and refine enterprise Wi-Fi coverage in environments that require precision signal control and optimized RF propagation. As part of the Cisco Meraki antenna ecosystem, this model belongs to a specialized category of external patch antennas engineered for use with compatible Meraki access points, particularly the MR53E platform. The purpose of this category is to deliver targeted wireless coverage in areas where omnidirectional antennas may not provide sufficient signal focus or where RF interference must be minimized through directional deployment strategies.

This category of Meraki antennas plays a critical role in modern wireless network architecture, especially in enterprise campuses, warehouses, educational institutions, healthcare facilities, and multi-building environments. The Cisco MA-ANT-3-F6 is engineered to support network administrators in shaping wireless coverage patterns, improving signal quality, and increasing overall network efficiency without requiring additional access points in every deployment zone.

Engineering Principles Behind Cisco Meraki Narrow Patch Antennas

Directional RF Propagation Design

The Cisco MA-ANT-3-F6 is built on the principle of directional radio frequency propagation. Unlike omnidirectional antennas that distribute signal energy uniformly in all directions, narrow patch antennas focus the RF energy into a concentrated beam. This allows for improved signal reach in specific directions while reducing unnecessary RF spillover into adjacent zones. The result is a more controlled wireless environment with higher signal-to-noise ratios and improved client connectivity in targeted areas.

Optimized Beamwidth Characteristics

The antenna is designed with a narrow beamwidth pattern that allows precise coverage shaping. This makes it suitable for corridor deployments, aisle-based warehouse environments, and long rectangular spaces where signal distribution must follow a linear path. The beamwidth optimization ensures that wireless energy is not wasted in undesired directions, improving both efficiency and performance consistency across the deployment area.

Dual-Band Support Architecture

The Cisco MA-ANT-3-F6 is engineered to support dual-band wireless frequencies commonly used in enterprise Wi-Fi networks. This ensures compatibility with both 2.4 GHz and 5 GHz bands, allowing seamless integration into modern high-density environments. Dual-band support also enables better load balancing between legacy devices and high-throughput applications, ensuring consistent connectivity for all users.

Integration with Cisco Meraki MR53E Access Points

Purpose-Built Compatibility

This antenna is specifically designed for use with the Cisco Meraki MR53E access point series, ensuring optimal impedance matching, signal integrity, and installation alignment. The MR53E platform is widely used in enterprise-grade wireless deployments, and the MA-ANT-3-F6 enhances its capabilities by providing directional control over RF coverage patterns.

Enhanced Wireless Network Design Flexibility

By integrating the MA-ANT-3-F6 with MR53E access points, network engineers gain greater flexibility in designing wireless topologies. Instead of relying solely on access point placement density, administrators can now fine-tune coverage areas using antenna directionality. This reduces deployment costs in large-scale environments while maintaining high performance standards.

Improved Signal Stability in Challenging Environments

In environments with heavy interference, metallic structures, or complex architectural layouts, signal degradation is a common challenge. The MA-ANT-3-F6 helps mitigate these issues by focusing signal strength in desired directions, reducing multipath interference and improving overall network stability.

Deployment Scenarios and Use Cases

Enterprise Campus Networks

In large enterprise campuses, wireless coverage must often span multiple buildings, outdoor walkways, and structured office environments. The Cisco MA-ANT-3-F6 is particularly effective in such scenarios where directional coverage is required to link buildings or extend network reach across open spaces without installing excessive access points.

Warehouse and Industrial Environments

Warehouses often feature long aisles and metal shelving units that disrupt traditional Wi-Fi signals. The narrow patch antenna is ideal for these environments because it can project a focused signal down aisles, ensuring uninterrupted connectivity for handheld scanners, inventory systems, and IoT devices used in logistics operations.

Educational Institutions and Lecture Halls

Universities and schools benefit from directional antennas when covering lecture halls, auditoriums, and long corridors. The MA-ANT-3-F6 allows administrators to tailor coverage zones for high-density student usage while minimizing interference between adjacent classrooms or lecture spaces.

Healthcare and Hospital Networks

Hospitals require reliable wireless connectivity for medical devices, patient monitoring systems, and administrative operations. Directional antennas help isolate RF coverage to specific wards or departments, reducing interference and ensuring consistent connectivity in critical care environments.

Technical Performance Characteristics

Signal Gain Optimization

The Cisco MA-ANT-3-F6 is engineered to provide enhanced signal gain in its focused direction, improving overall wireless performance over longer distances. This gain optimization is crucial for maintaining high throughput in environments where devices are spread across extended physical layouts.

Reduced RF Interference Profile

By limiting unnecessary signal dispersion, the antenna reduces the likelihood of interference with neighboring wireless systems. This is particularly important in multi-tenant buildings, dense office complexes, and environments where multiple wireless networks operate simultaneously.

Consistent Throughput Delivery

Directional signal shaping contributes to more stable throughput performance. Devices within the primary beam coverage area experience fewer fluctuations in speed and latency, resulting in improved user experience for bandwidth-intensive applications such as video conferencing and cloud-based services.

Enterprise Wireless Optimization Benefits

Improved Network Efficiency

By concentrating wireless coverage where it is needed most, the antenna reduces unnecessary network overhead and improves overall efficiency. This allows access points to serve more clients effectively without increasing hardware density.

Scalability for Expanding Networks

The use of directional antennas such as the MA-ANT-3-F6 supports scalable network expansion strategies. Instead of adding new access points for every coverage gap, administrators can adjust antenna orientation and placement to extend existing infrastructure capabilities.

Cost-Effective Infrastructure Enhancement

Organizations can achieve significant cost savings by using directional antennas to optimize existing wireless deployments. This reduces the need for additional hardware investments while still improving coverage quality and performance consistency.

RF Design Strategy and Best Practices

Controlled Coverage Zone Design

The MA-ANT-3-F6 enables the creation of controlled RF zones that align with physical building layouts. This is particularly useful in environments where predictable coverage boundaries are required to prevent overlap between departments or operational areas.

Interference Mitigation Techniques

Directional antennas are a key component in interference mitigation strategies. By focusing RF energy, administrators can reduce co-channel and adjacent-channel interference, leading to cleaner spectrum usage and improved network reliability.

High-Density Client Management

In high-density environments, managing large numbers of connected devices is a major challenge. The antenna helps distribute client load more effectively by ensuring that coverage is optimized for specific usage zones, reducing congestion and improving overall performance.

Advanced Wireless Network Engineering Applications

Multi-Floor Building Deployments

In multi-floor buildings, signal leakage between floors can cause interference and performance degradation. The Cisco MA-ANT-3-F6 helps isolate coverage to specific horizontal planes, improving network segmentation and performance consistency.

Outdoor-to-Indoor Coverage Extension

The antenna can also be used in scenarios where wireless coverage must extend from outdoor areas into indoor spaces. Its directional characteristics allow engineers to bridge connectivity gaps between separate structural environments effectively.

Specialized Industrial IoT Integration

Industrial IoT deployments often require highly controlled wireless environments. The MA-ANT-3-F6 supports these applications by delivering predictable coverage patterns that ensure reliable connectivity for sensors, automation systems, and machine-to-machine communication devices.

Long-Term Reliability and Operational Efficiency

Durability in Enterprise Deployments

The antenna category is designed for long-term use in enterprise environments where reliability is critical. Its construction supports consistent performance even under continuous operation in demanding RF conditions.

Maintenance-Free Operation Model

Once properly installed and aligned, the antenna requires minimal maintenance. This makes it suitable for large-scale deployments where operational efficiency and reduced administrative overhead are key priorities.

Future-Ready Wireless Infrastructure Support

The Cisco MA-ANT-3-F6 supports modern wireless infrastructure strategies that emphasize flexibility, scalability, and performance optimization. As enterprise networks continue to evolve, directional antenna systems remain a foundational component of high-efficiency wireless design.
