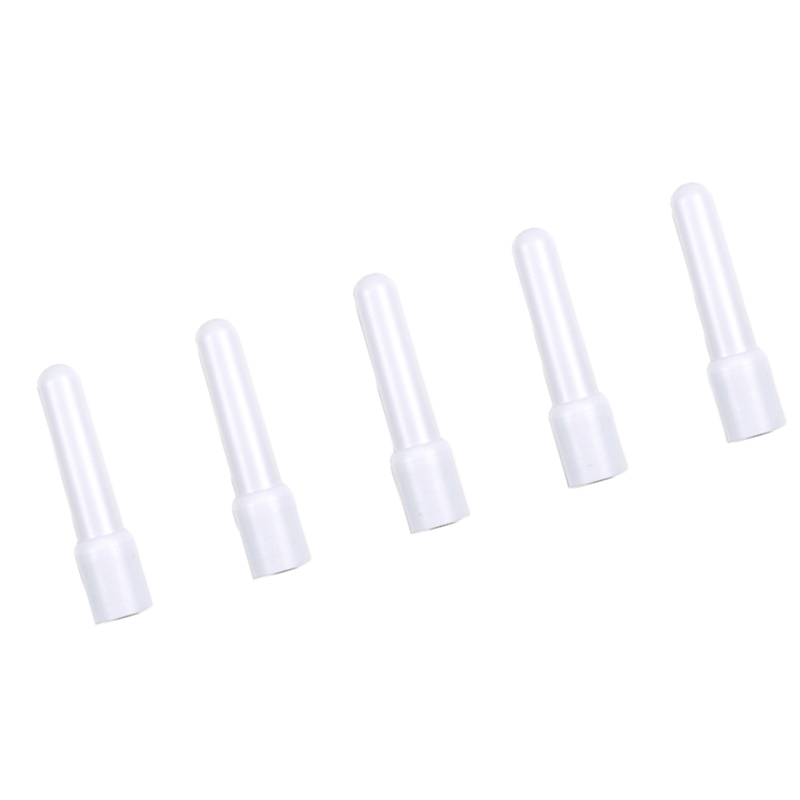

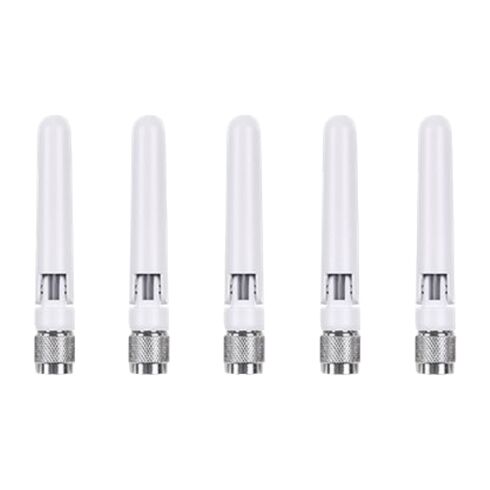

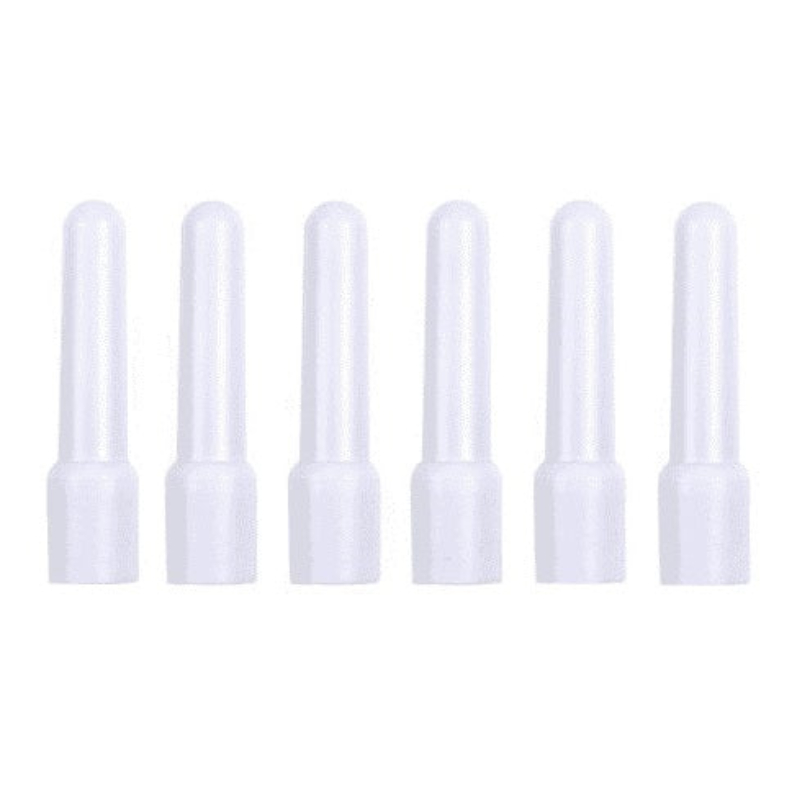

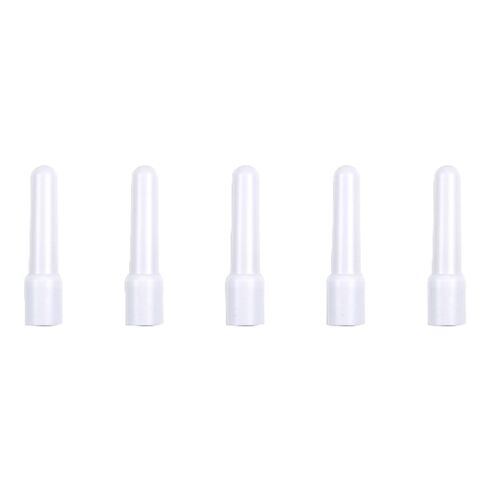

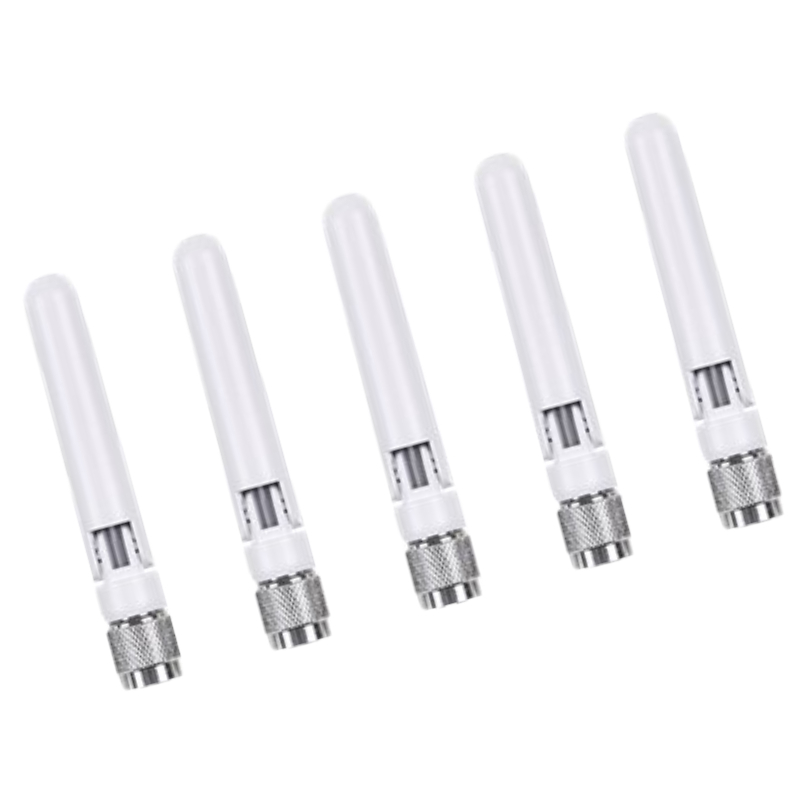

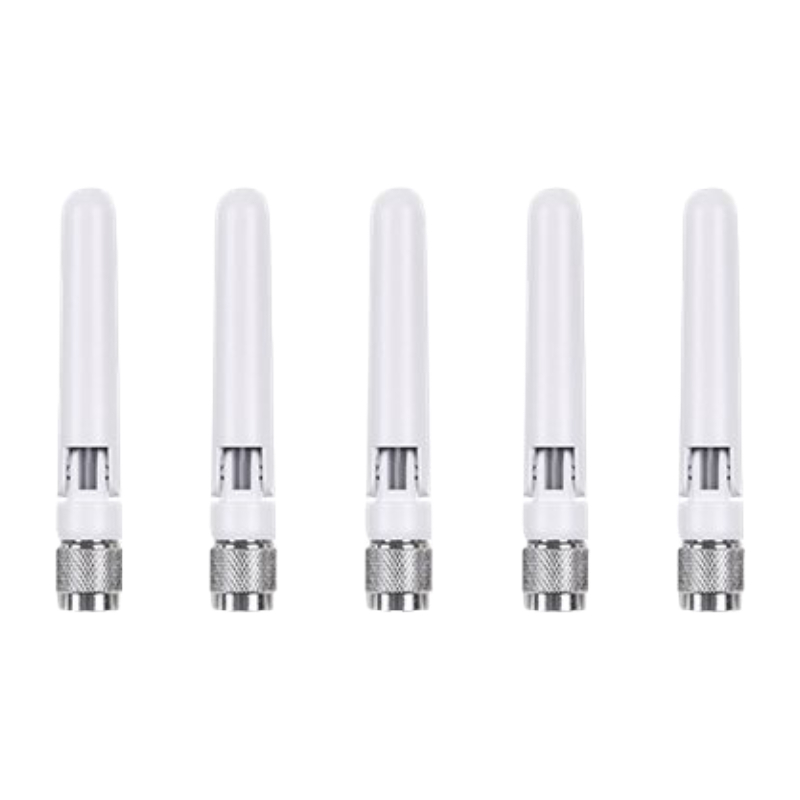

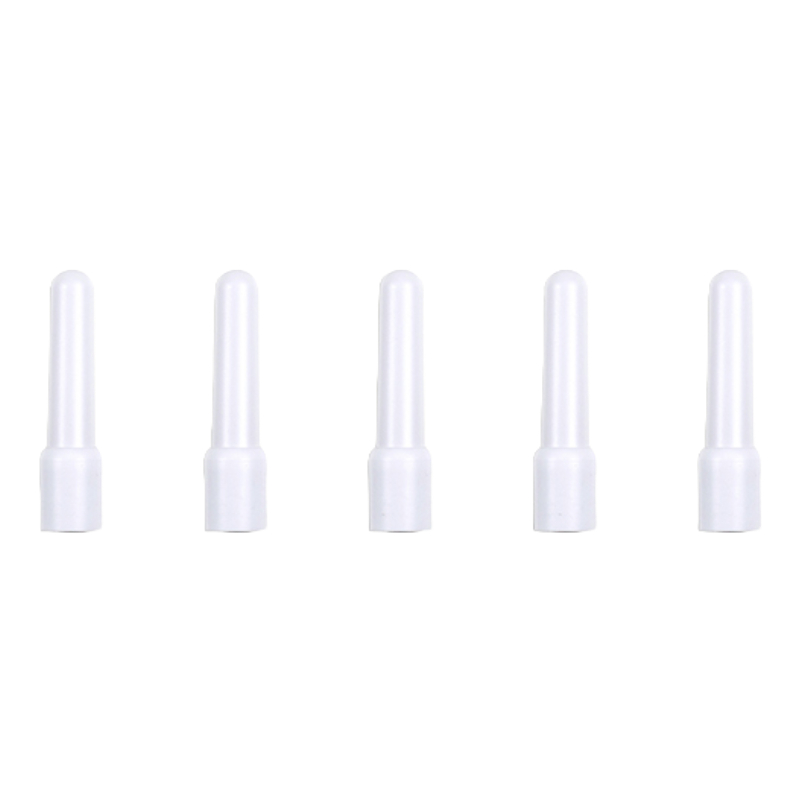

MA-ANT-3-A6 Cisco Meraki Network Antenna Omni-directional Antenna

Cisco MA-ANT-3-A6 Meraki Omni-Directional Network Antenna

High-Performance Dual-Band Wireless Access Point Antenna

The Cisco MA-ANT-3-A6 is a premium-grade omni-directional dipole antenna designed for Cisco Meraki wireless access points. Engineered for reliable enterprise connectivity, it delivers stable performance across dual-band frequencies, making it suitable for high-density network environments.

Key Manufacturer & Product Identification

• Manufacturer: Cisco
• Part Number / SKU: MA-ANT-3-A6
• Product Category: Network Devices
• Sub-Type: Wireless Access Point Antenna

Technical Features and Performance Specifications

Dual-Band Frequency Coverage

• 2.400 ~ 2.500 GHz (2.4 GHz band)
• 5.150 ~ 5.875 GHz (5 GHz band)

Antenna Gain Details

• 2.4 GHz Band: +3.8 dBi gain per element
• 5 GHz Band: +5.5 dBi gain per element

Radiation Pattern and Polarization

• Polarization: Linear (Vertical / Horizontal)
• Horizontal Beamwidth: Omni-directional coverage
• Vertical Beamwidth: 40° half-power beamwidth

Physical Design and Build Quality

Compact and Durable Construction

• Material Composition: PC-ABS reinforced housing
• Color: White finish for professional installations

Dimensions and Weight

• Size (Each Unit): 3.05" x 0.57" (77.7 x 14.5 mm)
• Weight (Each): 21.59 grams

Connectivity and Installation Options

Connector Interface and Compatibility

• Connector Type: RP-TNC
• Direct compatibility with Cisco Meraki MR series access points

Mounting Configuration

• Designed for direct attachment to Meraki MR53E antenna cables
• Supports quick installation in enterprise wireless setups

Environmental Operating Conditions

Temperature and Humidity Tolerance

• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Humidity Range: 5% to 95% RH (non-condensing)

Reliability in Enterprise Environments

• Stable performance across indoor wireless deployments
• Optimized for consistent signal distribution in office and industrial spaces

Functional Advantages of Cisco MA-ANT-3-A6

Enhanced Wireless Coverage

• Wide-area omni-directional signal distribution
• Improved network reliability in multi-user environments

Efficient Dual-Band Operation

• Simultaneous support for 2.4 GHz and 5 GHz networks
• Reduced interference with optimized signal clarity

Enterprise-Grade Deployment Benefits

• Ideal for business-grade Wi-Fi infrastructure
• Supports scalable wireless access point installations

Cisco MA-ANT-3-A6 Meraki Omni-directional Antenna Overview

The Cisco MA-ANT-3-A6 Meraki Omni-directional Antenna with RP-TNC connector and 5.5 dBi gain is a high-performance wireless networking component designed to enhance coverage, improve signal distribution, and support enterprise-grade WiFi deployments. It is widely used within Cisco Meraki ecosystems where reliable, scalable, and consistent wireless communication is essential. This antenna is engineered to provide uniform signal propagation across 360 degrees in the horizontal plane, making it suitable for environments requiring broad wireless coverage without directional limitations.

Built with precision RF engineering, the MA-ANT-3-A6 supports demanding network environments such as enterprise offices, warehouses, educational institutions, hospitality venues, and large commercial deployments. Its omni-directional radiation pattern ensures that wireless signals are distributed evenly around the access point, reducing dead zones and improving connectivity consistency across multiple devices and users.

Design and Engineering of Cisco MA-ANT-3-A6

Omni-Directional Radiation Pattern

The omni-directional nature of the Cisco MA-ANT-3-A6 allows it to radiate signals uniformly in all horizontal directions. This makes it especially effective for centrally located access points where coverage must extend outward evenly. The antenna’s vertical radiation pattern is engineered to focus energy efficiently, ensuring strong connectivity across multiple floors or large open areas depending on mounting height and placement strategy.

5.5 dBi Gain Optimization

With a 5.5 dBi gain rating, this antenna provides a balanced combination of range extension and signal stability. Higher gain antennas typically focus energy more narrowly, but the MA-ANT-3-A6 maintains a careful equilibrium between coverage breadth and signal strength. This allows network administrators to deploy it in environments where both distance coverage and signal uniformity are critical.

RP-TNC Connector Integration

The Reverse Polarity TNC (RP-TNC) connector used in this antenna ensures secure and reliable attachment to compatible Cisco Meraki access points. This connector type is widely recognized in enterprise networking for its durability, resistance to loosening, and stable RF performance. The threaded mechanism ensures minimal signal loss at the connection point while maintaining long-term mechanical integrity in high-traffic installations.

Role in Cisco Meraki Wireless Ecosystem

Seamless Compatibility with Meraki Access Points

The Cisco MA-ANT-3-A6 is designed specifically for integration with Cisco Meraki wireless access points that support external antennas. This ensures seamless compatibility and optimized performance within the Meraki cloud-managed networking ecosystem. Network administrators benefit from simplified deployment and centralized management while still leveraging enhanced RF capabilities provided by the antenna.

Cloud-Managed Network Enhancement

Within the Meraki dashboard environment, network performance can be monitored and optimized in real time. When paired with the MA-ANT-3-A6 antenna, administrators gain improved control over wireless coverage mapping and signal optimization. This helps in identifying coverage gaps and ensuring consistent user experiences across all connected devices.

Wireless Coverage Performance and Applications

Enterprise Office Deployments

In corporate environments, the Cisco MA-ANT-3-A6 helps ensure seamless wireless connectivity across open office layouts, meeting rooms, and collaborative workspaces. Its omni-directional coverage is particularly useful in centrally positioned access points where employees require stable connections regardless of their location within the building.

Warehouses and Industrial Facilities

Large warehouses and industrial spaces often require robust wireless infrastructure due to physical obstructions such as shelving, machinery, and storage units. The MA-ANT-3-A6 helps improve signal distribution across these challenging environments, ensuring handheld scanners, IoT devices, and mobile terminals maintain reliable connectivity.

Education and Campus Networks

Educational institutions benefit from the antenna’s ability to support high-density user environments. Classrooms, lecture halls, libraries, and outdoor campus areas can maintain consistent wireless coverage when supported by strategically deployed MA-ANT-3-A6 antennas.

Hospitality and Retail Environments

Hotels, resorts, shopping centers, and retail stores require uninterrupted connectivity for guests and operational systems. The antenna supports guest WiFi networks, point-of-sale systems, and IoT-based smart services by ensuring consistent coverage across diverse architectural layouts.

Technical Characteristics of MA-ANT-3-A6

Frequency Range and Signal Efficiency

The antenna is designed to operate within WiFi frequency bands commonly used in enterprise networking, ensuring compatibility with modern wireless standards. Its RF efficiency is optimized to minimize signal loss and maximize transmission clarity, which is critical in environments with multiple overlapping networks.

Impedance Matching and RF Stability

Proper impedance matching ensures that the antenna delivers consistent performance with minimal reflection loss. The MA-ANT-3-A6 is engineered to maintain stable RF characteristics, reducing interference and ensuring reliable data transmission across connected devices.

Durability and Build Quality

Constructed using high-quality materials, the antenna is designed for long-term deployment in both indoor and semi-outdoor environments. Its robust casing protects internal RF components from environmental wear, ensuring stable performance over extended periods of operation.

Performance Advantages in Modern Networking

Improved Network Reliability

The MA-ANT-3-A6 contributes to improved network reliability by maintaining consistent signal distribution across connected areas. This reduces the likelihood of dropped connections and enhances user experience in high-density environments.

Scalability for Growing Networks

As organizations expand, wireless infrastructure must scale accordingly. This antenna supports scalable deployment strategies, allowing network administrators to extend coverage without redesigning the entire wireless architecture.

Support for High-Density Environments

Modern enterprise environments often require support for a large number of simultaneous connections. The antenna’s balanced gain and omni-directional design help distribute network load effectively across multiple devices.

RF Engineering Principles Behind the MA-ANT-3-A6

Signal Propagation Behavior

Understanding how radio frequency signals propagate is key to appreciating the value of the MA-ANT-3-A6. Omni-directional antennas emit signals in a circular pattern, which helps maintain consistent coverage in environments where users are mobile and not fixed in one direction.

Gain Versus Coverage Trade-Off

The 5.5 dBi gain represents a carefully engineered balance between range and signal dispersion. Higher gain antennas often focus signals more narrowly, but this model maintains broad coverage suitable for general enterprise applications.

Polarization and Signal Alignment

Proper polarization alignment between the antenna and connected devices ensures optimal signal reception. The MA-ANT-3-A6 is designed to maintain consistent polarization characteristics across its radiation pattern, improving overall network efficiency.

Integration with Wireless Network Design

Centralized Access Point Architecture

In centralized wireless architectures, antennas like the MA-ANT-3-A6 are positioned to maximize coverage from a single access point. This reduces the need for multiple devices while maintaining strong signal distribution.

Distributed Network Environments

In distributed deployments, multiple antennas can be strategically placed to create overlapping coverage zones. This ensures seamless roaming and uninterrupted connectivity for mobile users.

Hybrid Deployment Models

Hybrid network designs combine centralized and distributed approaches, and the MA-ANT-3-A6 supports both strategies by providing flexible installation options and consistent performance characteristics.
