MA-ANT-3-A6 Cisco Meraki Network Antenna Omni-directional Antenna

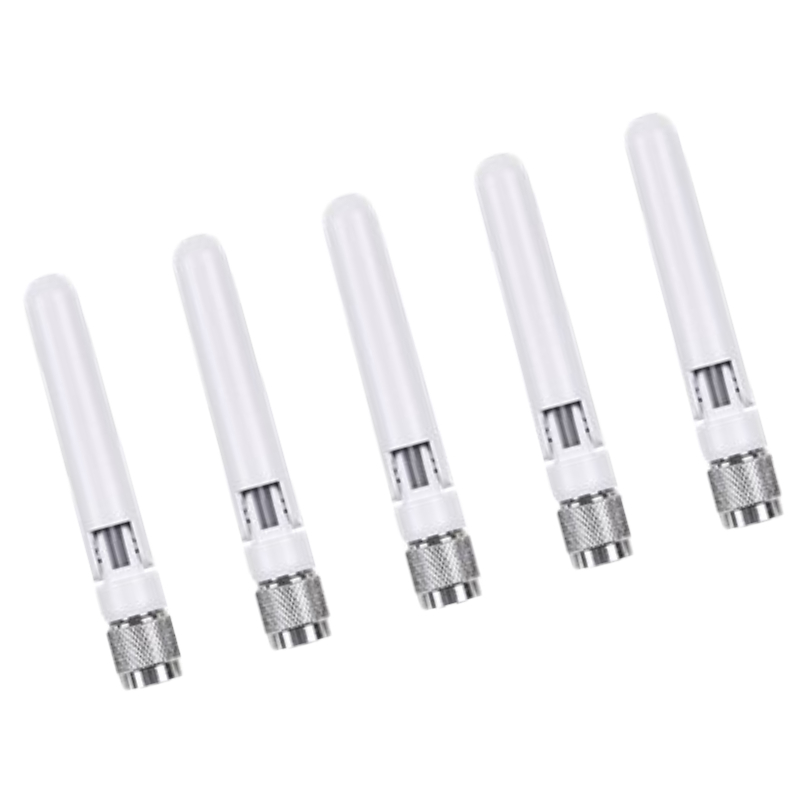

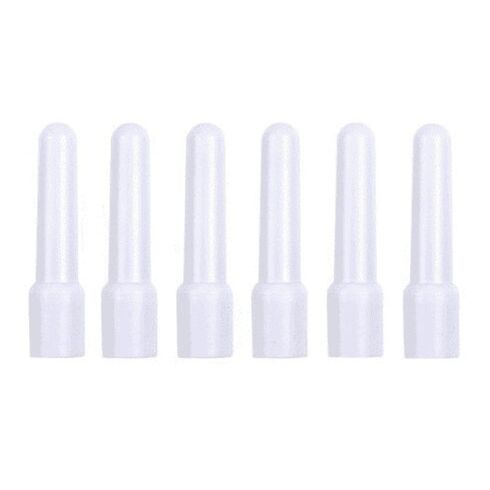

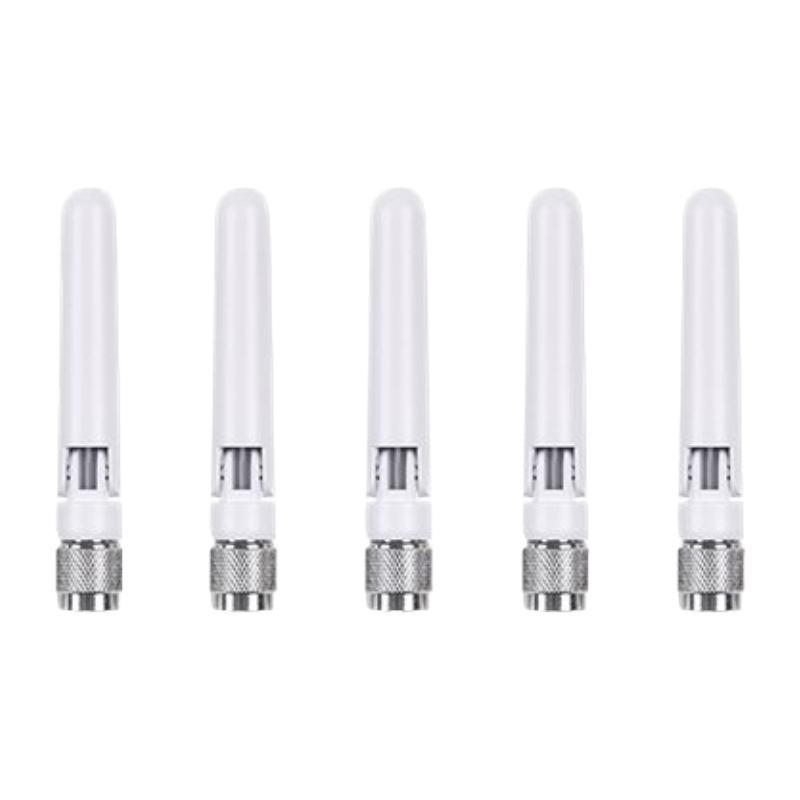

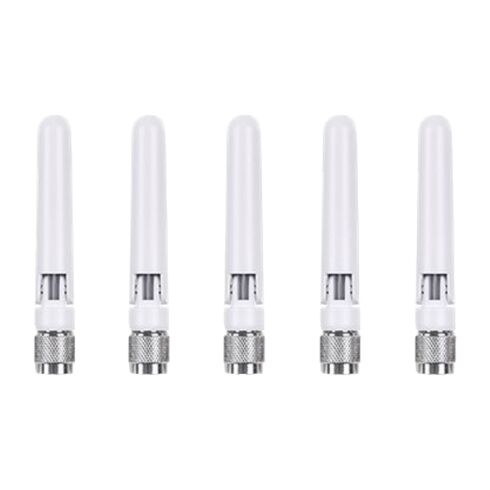

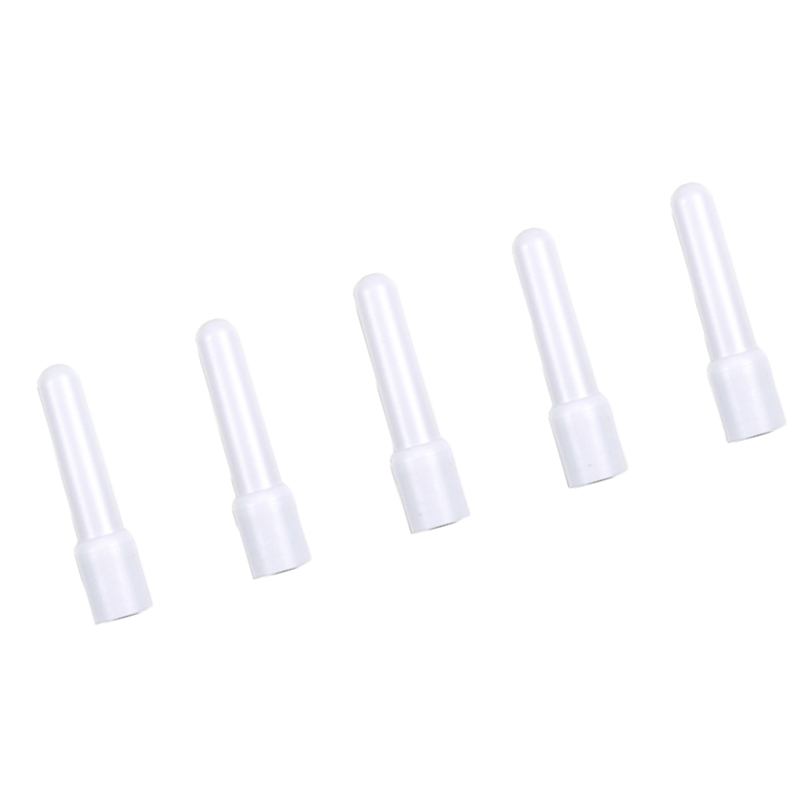

Cisco MA-ANT-3-A6 Meraki Omni-Directional Network Antenna

High-Performance Dual-Band Wireless Antenna Solution

The Cisco MA-ANT-3-A6 is a premium-grade omni-directional dipole antenna engineered to enhance wireless connectivity across dual-band frequencies. Designed for Meraki access point deployments, it delivers stable coverage and optimized signal distribution in enterprise networking environments.

General Product Information

• Manufacturer: Cisco
• Model / SKU: MA-ANT-3-A6
• Category: Wireless networking hardware
• Device Type: Access point external antenna

Technical Overview and Frequency Capabilities

Wireless Frequency Support

• 2.400 – 2.500 GHz (2.4 GHz band)
• 5.150 – 5.875 GHz (5 GHz band)

Antenna Gain Performance

• 2.4 GHz band: +3.8 dBi gain per element
• 5 GHz band: +5.5 dBi gain per element

Signal Distribution Characteristics

• Horizontal coverage: Omni-directional radiation pattern
• Vertical beamwidth: 40° focused signal spread
• Linear polarization for consistent signal transmission

Physical Design and Build Quality

Construction and Material Composition

• Durable PC-ABS housing material for long-lasting reliability
• Engineered for indoor enterprise environments
• Compact dipole form factor for seamless integration

Size and Weight Specifications

• Dimensions per antenna: 3.05" x 0.57" (77.7 x 14.5 mm)
• Weight per unit: 21.59 grams

Connectivity and Mounting Compatibility

Connector Interface

• RP-TNC connector for secure and stable attachment

Installation Compatibility

• Directly attaches to Cisco Meraki MR53E access point cables
• Quick installation design for simplified deployment
• Ideal for scalable wireless network expansion

Environmental Operating Conditions

Temperature Range

• Operational temperature: 0°C to 40°C (32°F to 104°F)

Humidity Tolerance

• 5% to 95% relative humidity
• Non-condensing operating environment requirement

Use Cases and Deployment Scenarios

Enterprise Wireless Optimization

• Enhances Wi-Fi coverage in office environments
• Supports high-density device connectivity areas
• Improves signal consistency in multi-room deployments

Network Expansion Flexibility

• Suitable for upgrading existing Meraki infrastructure
• Supports scalable enterprise networking setups
• Optimized for seamless integration with Cisco ecosystems

Cisco MA-ANT-3-A6 Meraki Omni-Directional Antenna

The Cisco MA-ANT-3-A6 Meraki Network Antenna represents a highly specialized networking component engineered to enhance wireless coverage, optimize signal distribution, and ensure seamless connectivity within enterprise-grade Wi-Fi environments. Designed as an omni-directional antenna with RP-TNC connector compatibility and a 5.5 dBi gain rating, this antenna plays a critical role in extending the performance of Cisco Meraki wireless infrastructure. Its architecture is centered on delivering balanced signal propagation across 360 degrees, making it ideal for deployment scenarios that require consistent wireless coverage across open office layouts, campuses, retail environments, warehouses, and hybrid indoor-outdoor deployments.

Design Philosophy and Engineering Excellence

The engineering behind the Cisco MA-ANT-3-A6 is rooted in the necessity for stable and predictable wireless communication in complex network environments. Its omni-directional radiation pattern ensures that signals are distributed evenly in all horizontal directions, eliminating the need for precise directional alignment. This design choice is particularly important in dynamic enterprise environments where access points may be deployed in central positions to serve multiple users simultaneously across varying distances and spatial layouts.

Omni-Directional Radiation Characteristics

The omni-directional design allows the antenna to radiate wireless signals uniformly around its axis, forming a cylindrical coverage pattern. This ensures that devices located in any direction from the antenna receive a consistent signal strength, reducing dead zones and minimizing network congestion caused by uneven coverage. In enterprise deployments, this characteristic significantly improves user experience by providing stable connectivity regardless of device orientation or movement within the coverage area.

RP-TNC Connector Integration

The RP-TNC connector interface is a critical feature of the MA-ANT-3-A6 antenna, ensuring secure and reliable physical integration with compatible Cisco Meraki wireless access points. This reverse polarity threaded connector system enhances durability and minimizes accidental disconnections. It also provides a robust mechanical coupling that is essential in environments subject to vibration, frequent maintenance, or structural movement.

Performance Optimization and Signal Gain

The Cisco MA-ANT-3-A6 delivers a 5.5 dBi gain, which plays a pivotal role in balancing signal reach and coverage density. This gain level is specifically optimized for environments where moderate signal extension is required without sacrificing signal quality or introducing excessive directionality. The antenna enhances both transmission and reception performance, ensuring that wireless access points can maintain stable communication with client devices over extended spatial areas.

Signal Propagation Efficiency

Signal propagation efficiency is a defining attribute of this antenna. By optimizing the radiating elements and internal structure, the MA-ANT-3-A6 reduces signal loss and ensures efficient energy distribution. This efficiency is particularly valuable in high-density environments where multiple devices compete for bandwidth and stable connectivity is essential for operational continuity.

Balanced Coverage and Interference Reduction

The antenna is designed to maintain balanced coverage while minimizing interference from adjacent wireless systems. Its engineered radiation profile helps mitigate signal overlap issues in multi-access point deployments, allowing network administrators to achieve cleaner channel separation and improved overall network performance.

Integration Within Cisco Meraki Ecosystem

The Cisco MA-ANT-3-A6 is purpose-built for integration within the Cisco Meraki ecosystem, ensuring seamless compatibility with Meraki access points and network management platforms. This integration allows network administrators to deploy, monitor, and optimize wireless performance through centralized cloud-based dashboards. The antenna complements Meraki’s philosophy of simplified yet powerful network management by enhancing physical layer performance without adding complexity to configuration processes.

Cloud-Managed Network Synergy

When deployed within a Meraki-managed environment, the antenna contributes to improved signal consistency, which directly impacts cloud analytics accuracy. Strong and stable wireless signals enable more reliable data collection for client analytics, traffic monitoring, and application usage insights. This synergy between hardware and cloud intelligence enhances the overall value of enterprise wireless deployments.

Deployment Scenarios and Application Environments

The versatility of the Cisco MA-ANT-3-A6 allows it to be used across a wide range of deployment scenarios. Its omni-directional coverage makes it suitable for environments where users and devices are distributed evenly across open spaces. In office environments, it supports seamless roaming for mobile users, while in retail environments, it ensures uninterrupted connectivity for point-of-sale systems, customer Wi-Fi, and IoT devices.

Enterprise Office Deployments

In corporate office environments, the antenna supports high-density user connectivity by distributing wireless signals evenly across workspaces. This ensures that employees experience consistent network performance whether they are in conference rooms, open seating areas, or collaborative zones. The stable signal distribution also supports cloud-based applications, video conferencing, and real-time communication tools.

Warehouse and Industrial Applications

In warehouse and industrial environments, the antenna provides reliable connectivity for inventory systems, automated tracking devices, and mobile scanning equipment. Its ability to maintain consistent coverage across large open spaces with structural obstructions makes it ideal for logistics and supply chain operations where uninterrupted connectivity is critical.

Retail and Hospitality Environments

Retail and hospitality sectors benefit from the antenna’s ability to support guest Wi-Fi networks, digital payment systems, and customer engagement platforms. The omni-directional coverage ensures that customers experience stable connectivity throughout store floors, hotel lobbies, and dining areas, contributing to enhanced user satisfaction and operational efficiency.

Wireless Coverage Optimization Strategies

Optimizing wireless coverage with the Cisco MA-ANT-3-A6 involves strategic placement and alignment of access points to maximize the benefits of its omni-directional radiation pattern. Proper deployment ensures that signal overlap is minimized while maintaining continuous coverage across intended service areas. The antenna’s moderate gain level helps balance coverage range and signal density, reducing the likelihood of performance degradation in high-traffic environments.

Spatial Planning Considerations

Effective spatial planning is essential when deploying omni-directional antennas. Placement at central locations within coverage zones ensures uniform signal distribution. Elevation also plays a significant role in minimizing physical obstructions and enhancing line-of-sight propagation across user devices.

Reliability, Durability, and Operational Stability

The Cisco MA-ANT-3-A6 is designed with durability in mind, ensuring long-term operational stability in enterprise environments. Its robust construction supports continuous usage under varying environmental conditions, making it suitable for both indoor and semi-outdoor deployments. The RP-TNC connector enhances mechanical reliability, reducing wear and maintaining consistent signal integrity over time.

Environmental Resilience

The antenna is engineered to withstand typical environmental challenges encountered in enterprise networking scenarios, including temperature fluctuations and electromagnetic interference. This resilience ensures consistent performance across extended deployment lifecycles.
