VWIC2-1MFT-T1/E1= Cisco 1 Port Voice/WAN Interface Card

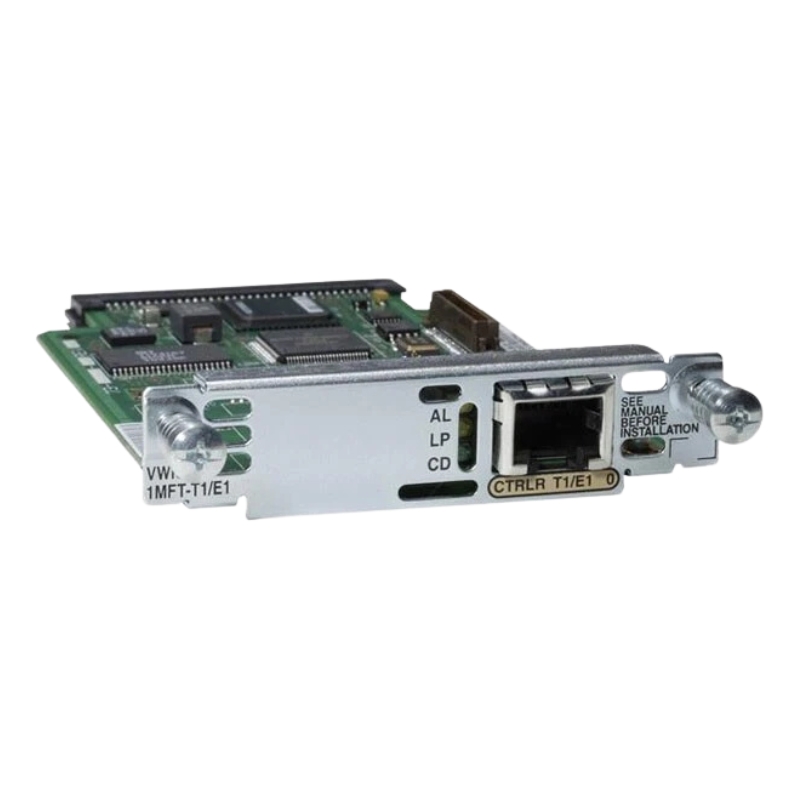

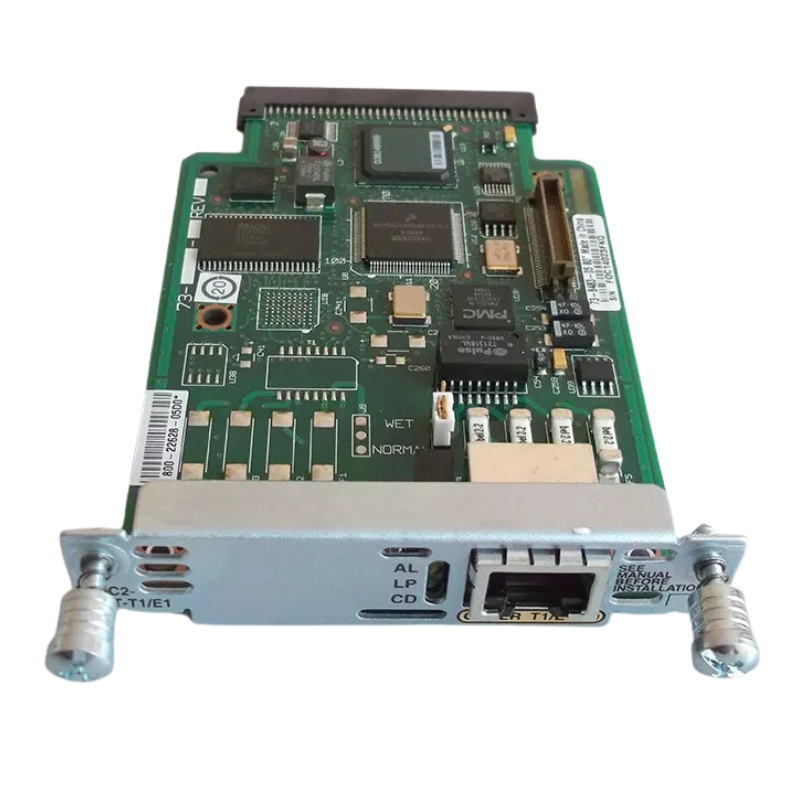

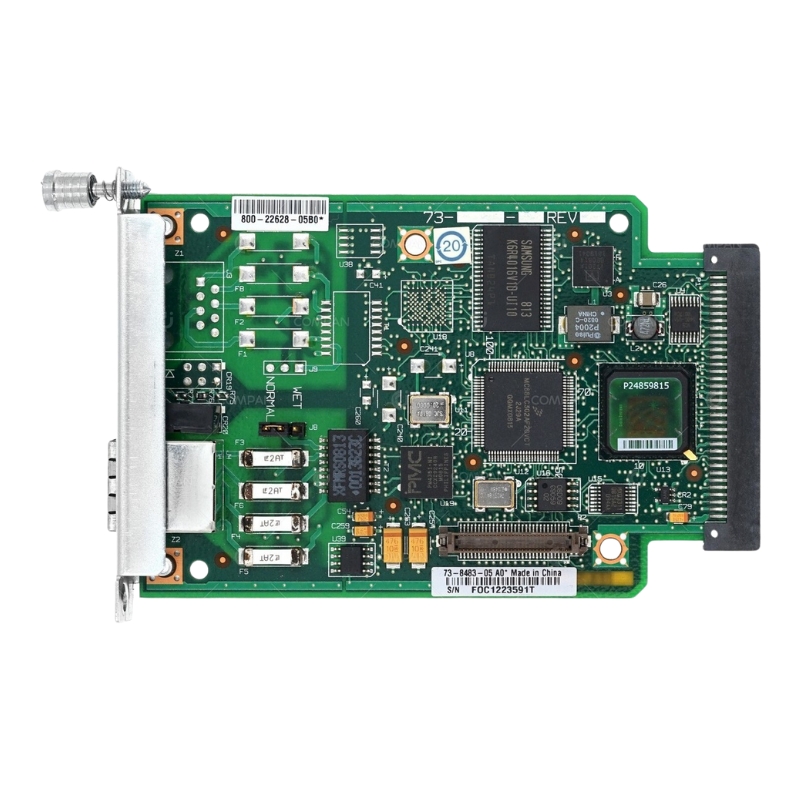

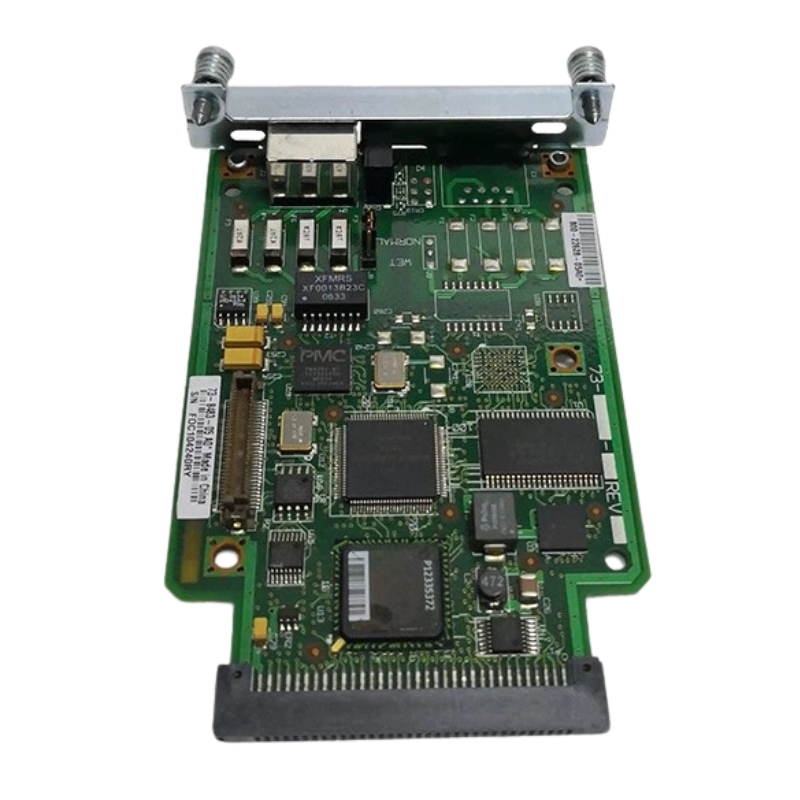

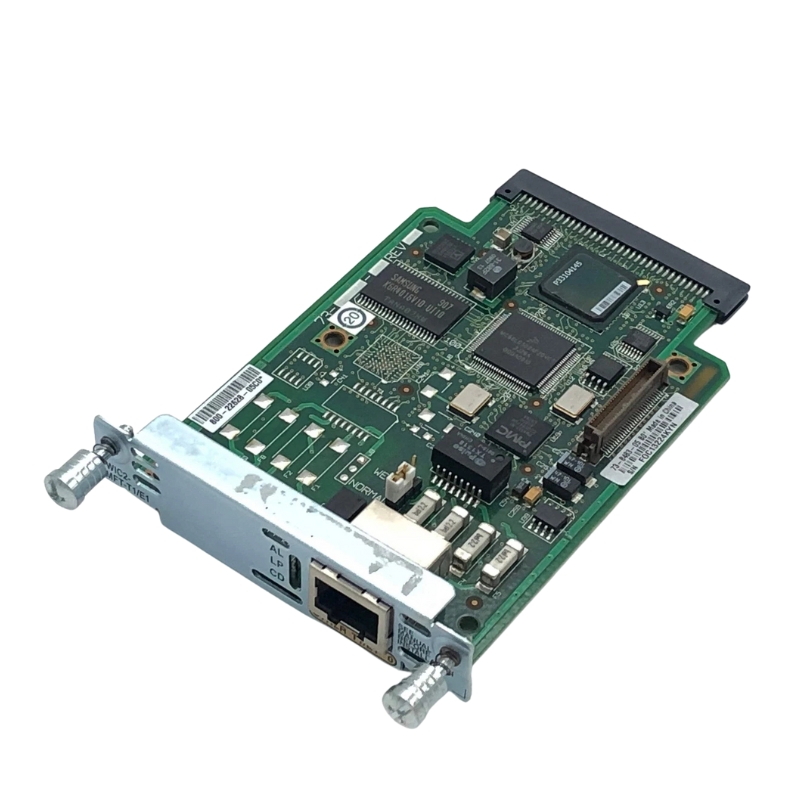

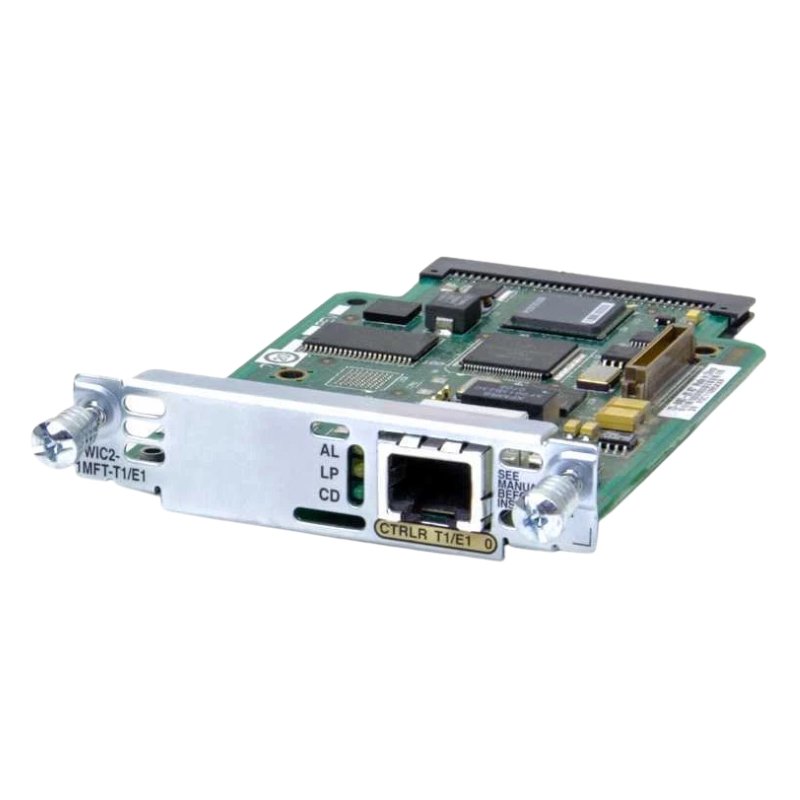

Cisco VWIC2-1MFT-T1/E1= 1-Port Voice/WAN Interface Card

The Cisco VWIC2-1MFT-T1/E1= is a high-performance Voice/WAN Interface Card engineered to expand voice and WAN connectivity for compatible Cisco networking platforms. Designed for enterprise branch offices and business communication environments, this plug-in module supports both T1 and E1 digital circuits, providing dependable voice and data transmission with excellent network efficiency.

Product Highlights

• Original Cisco 1-Port Voice/WAN Interface Card
• Supports both T1 and E1 WAN connections
• Reliable voice and data integration
• Compact plug-in module for compatible Cisco routers
• Optimized for enterprise and branch office deployments
• Compatible with Cisco IOS software
• Supports multiple line coding standards for flexible deployment

Product Specifications

General Information

• Manufacturer: Cisco
• Model: VWIC2-1MFT-T1/E1=
• Product Category: Network Module
• Module Type: Voice/WAN Interface Card
• Installation Type: Plug-in Module

Hardware Specifications

Physical Dimensions

• Width: 7.9 cm
• Depth: 12.2 cm
• Height: 2.1 cm
• Weight: Approximately 57 g

Performance Features

• Maximum data transfer speed of up to 2.048 Mbps
• Supports digital T1 and E1 communication standards
• Provides stable and consistent WAN connectivity
• Ideal for integrated voice and data applications

Supported Line Coding Formats

Multiple Encoding Standards

The module supports several industry-standard line coding methods, ensuring compatibility with a wide range of telecommunications providers and network environments.

• AMI (Alternate Mark Inversion)
• B8ZS (Bipolar with Eight-Zero Substitution)
• HDB3 (High-Density Bipolar 3)

Performance Benefits

Efficient WAN Communication

• High-speed transmission up to 2.048 Mbps
• Stable digital circuit connectivity
• Low-latency voice communication
• Reliable data transfer across enterprise networks
• Designed for continuous business operation

Common Deployment Scenarios

Ideal Applications

• Enterprise branch office connectivity
• Business voice gateway deployments
• Unified communications infrastructure
• Digital T1 and E1 WAN connections
• Corporate data and voice networking
• Telecommunication service integration
• Secure enterprise network expansion

Cisco VWIC2-1MFT-T1/E1=

Business Advantages

• Authentic Cisco networking hardware
• Supports both T1 and E1 digital interfaces
• High compatibility with Cisco routers
• Dependable performance for voice and WAN traffic
• Flexible deployment across multiple network environments
• Industry-standard line coding support
• Compact form factor with easy installation
• Enterprise-grade reliability and long-term stability

Summary of Key Features

• 1-Port Voice/WAN Interface Card
• Supports T1 and E1 network services
• Maximum throughput of 2.048 Mbps
• Plug-in module design
• Supports AMI, B8ZS, and HDB3 line coding
• Compatible with Cisco IOS software
• Compact dimensions of 7.9 × 12.2 × 2.1 cm
• Lightweight construction at approximately 57 g

Overview of Cisco VWIC2-1MFT-T1/E1= 1 Port Interface Card

The VWIC2-1MFT-T1/E1= 1 Port Voice/WAN Interface Card is a highly specialized modular networking component designed to enhance voice and data integration across enterprise-grade routers. This interface card is engineered to deliver flexible connectivity for both T1 and E1 digital circuits, allowing organizations to deploy unified communications and WAN services through a single hardware module. It is widely used in branch office routers, enterprise WAN edge deployments, and legacy telephony integration environments where reliable circuit-switched communication remains essential.

Built on Cisco’s modular WAN interface card architecture, this device enables seamless interoperability between voice traffic and data networking. It supports multifunctional roles such as digital voice transport, WAN access, and integrated signaling. By leveraging a single port design, it simplifies infrastructure while maintaining robust compatibility with traditional telecom standards, making it a reliable choice for hybrid network environments.

Core Functional Capabilities of VWIC2-1MFT-T1/E1= Module

Dual-Standard T1 and E1 Support

One of the defining capabilities of the Cisco VWIC2-1MFT-T1/E1= module is its support for both T1 and E1 line standards. This dual compatibility ensures that organizations operating across different geographic regions can deploy a single hardware solution without requiring separate interface cards. T1 lines are predominantly used in North America and Japan, while E1 lines are common in Europe, Asia, and other global markets. This flexibility significantly reduces deployment complexity and hardware inventory requirements.

Integrated Voice and Data Handling

The module is designed to handle both voice and WAN data traffic through a unified interface. This allows enterprises to converge telephony and data communication into a single infrastructure layer. Voice traffic can be transported over TDM circuits, while WAN data packets are efficiently routed through Cisco-supported networking protocols. This convergence helps optimize bandwidth utilization and reduces operational overhead in hybrid communication systems.

Enhanced Reliability for Enterprise Networks

Reliability is a key attribute of this interface card. It is built to operate in mission-critical environments where downtime can lead to significant operational disruption. The module incorporates advanced error detection and line monitoring capabilities, ensuring consistent signal quality and stable transmission performance even under variable network conditions. This makes it suitable for industries such as finance, government, telecommunications, and large-scale enterprise IT infrastructures.

Technical Architecture and Engineering Design

Modular WAN Interface Card Design

The VWIC2-1MFT-T1/E1= follows Cisco’s modular architecture philosophy, enabling it to be installed into compatible routers via WAN interface slots. This modular approach allows network administrators to customize router functionality based on specific operational requirements. Instead of deploying separate devices for voice and WAN services, the interface card consolidates these capabilities into a single hardware component.

Digital Signal Processing Integration

The module incorporates advanced digital signal processing capabilities that ensure efficient handling of TDM-based voice traffic. It supports framing, encoding, and synchronization functions required for high-quality voice transmission over digital circuits. These features help maintain clarity, reduce latency, and ensure accurate packetization of voice data when integrated with Cisco voice-enabled routers.

Clocking and Synchronization Mechanisms

Accurate timing is essential for T1 and E1 circuit operation. The VWIC2-1MFT-T1/E1= includes sophisticated clocking mechanisms that maintain synchronization with carrier networks. This ensures that data streams remain aligned with telecom standards, reducing jitter and packet loss while improving overall communication stability.

Deployment Scenarios and Use Cases

Enterprise Branch Office Connectivity

In branch office deployments, the Cisco VWIC2-1MFT-T1/E1= is commonly used to establish reliable WAN connectivity to central data centers. It enables seamless data exchange between distributed office locations while maintaining support for legacy voice systems. This makes it ideal for organizations transitioning from traditional PBX systems to IP-based telephony infrastructures.

Telephony Network Integration

The module plays a critical role in integrating traditional telephony systems with modern IP networks. It allows PBX systems to connect directly to digital carrier circuits, facilitating voice transport across wide area networks. This capability is particularly valuable in hybrid environments where legacy telephony infrastructure remains in use alongside VoIP technologies.

Carrier-Grade WAN Access

Service providers and large enterprises use the VWIC2-1MFT-T1/E1= for carrier-grade WAN access, enabling high-quality digital leased line connectivity. The module supports structured and unstructured E1 services, ensuring compatibility with various telecom carrier configurations. Its stability and performance make it suitable for long-term deployment in high-demand network environments.

Performance Optimization and Network Efficiency

Bandwidth Utilization Efficiency

The VWIC2-1MFT-T1/E1= is optimized for efficient bandwidth utilization across digital circuits. By combining voice and data services on a single interface, it minimizes hardware redundancy while maximizing throughput efficiency. This ensures cost-effective use of leased line resources in enterprise environments.

Latency Reduction Mechanisms

Through its integrated processing capabilities, the module reduces latency in voice transmission by streamlining signal conversion and transport operations. This is particularly important for real-time communication applications where delays can impact call quality and user experience.

Traffic Prioritization Support

The module supports quality-of-service (QoS) mechanisms when integrated with Cisco routing platforms. This allows prioritization of voice traffic over data traffic, ensuring that time-sensitive communication is maintained even during periods of network congestion.

Security and Network Integrity Features

Secure Circuit-Based Communication

The VWIC2-1MFT-T1/E1= leverages circuit-based communication channels that inherently provide a level of isolation from packet-switched network vulnerabilities. This helps maintain secure and predictable communication pathways for enterprise voice and WAN traffic.

Network Monitoring and Diagnostics

Built-in diagnostic capabilities enable continuous monitoring of line performance, error rates, and signal integrity. These features assist network administrators in identifying potential issues before they impact operational performance, ensuring proactive maintenance and troubleshooting.

Fault Detection and Recovery

The interface card is designed with fault detection mechanisms that identify line interruptions or synchronization failures. In such cases, the system can initiate recovery procedures or alert network administrators, minimizing downtime and service disruption.

Industry Applications and Deployment Environments

Financial Institutions and Banking Networks

Banks and financial organizations rely on stable and secure communication infrastructure for transaction processing and inter-branch connectivity. The VWIC2-1MFT-T1/E1= provides the reliability and performance required in such high-stakes environments, ensuring uninterrupted data and voice communication.

Government and Public Sector Infrastructure

Government agencies often maintain legacy communication systems alongside modern IP networks. This interface card enables smooth integration between these systems, supporting secure communication channels for administrative and operational functions.

Large Enterprise WAN Architectures

Enterprises with geographically distributed operations benefit from the module’s ability to support scalable WAN connectivity. It allows centralized network management while maintaining high-performance communication between multiple office locations.

Scalability and Future Network Integration

Support for Hybrid Network Evolution

As organizations transition from traditional TDM networks to IP-based systems, the VWIC2-1MFT-T1/E1= provides a bridge technology that supports hybrid architectures. This ensures continuity of service during migration phases without requiring immediate infrastructure replacement.

Integration with Modern Cisco Infrastructure

The module integrates seamlessly with modern Cisco routing platforms and voice systems, enabling unified communication strategies. This compatibility ensures that enterprises can gradually modernize their networks while preserving existing investments.

Adaptability in Multi-Protocol Environments

The interface card supports multiple signaling and framing protocols, making it adaptable to diverse telecom environments. This flexibility enhances its usability across different industries and global deployment scenarios.
