VWIC3-1MFT-T1/E1= Cisco Card1 Port Voice WAN Interface

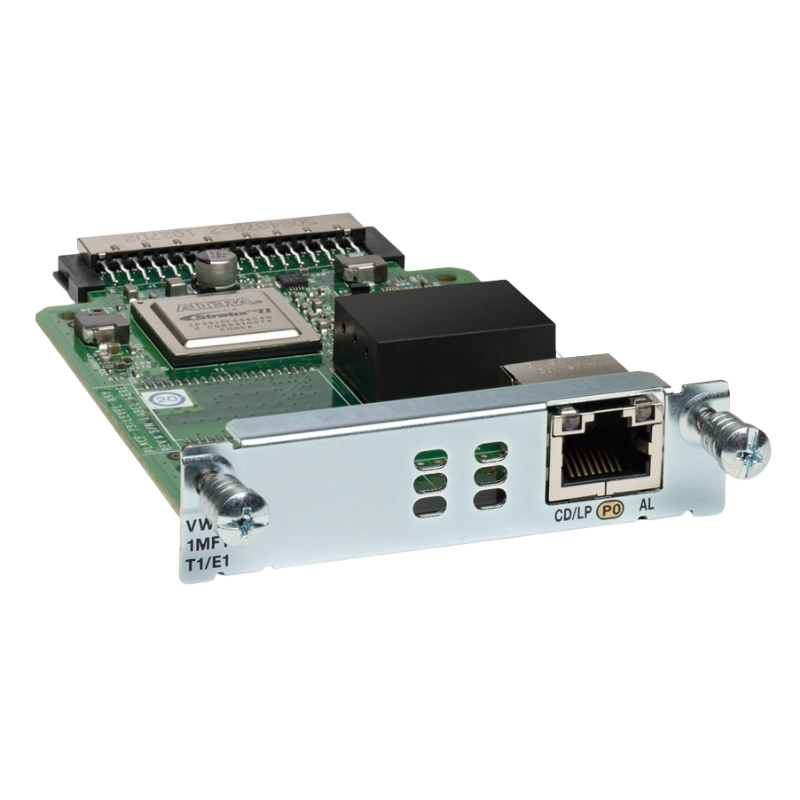

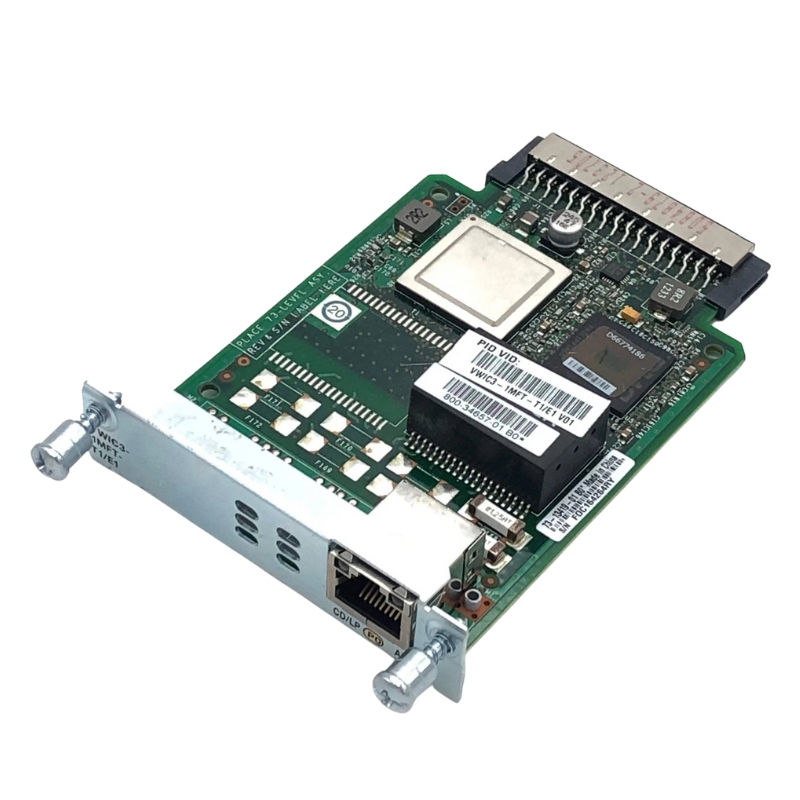

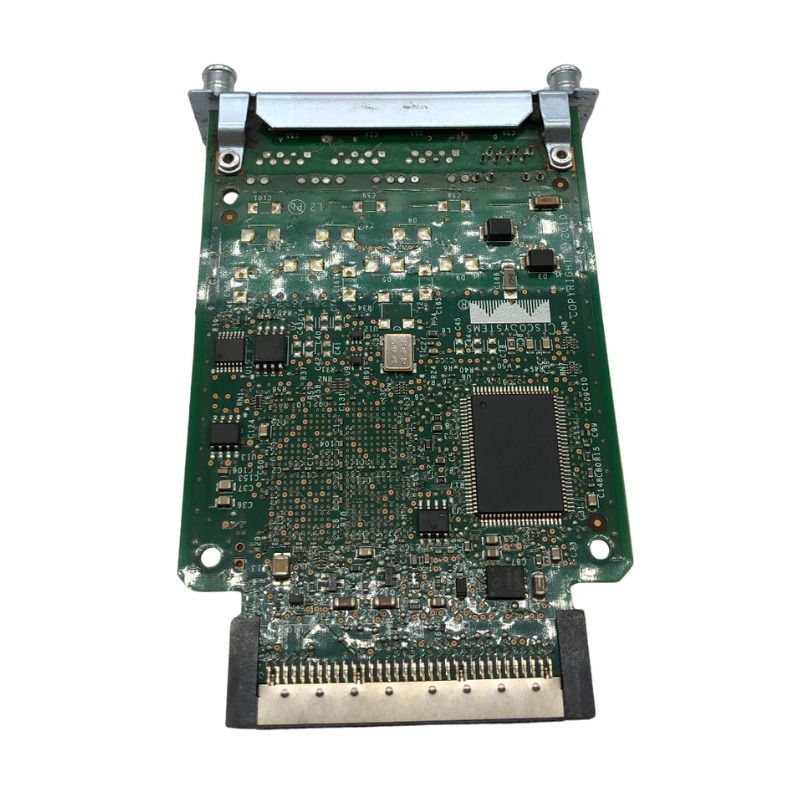

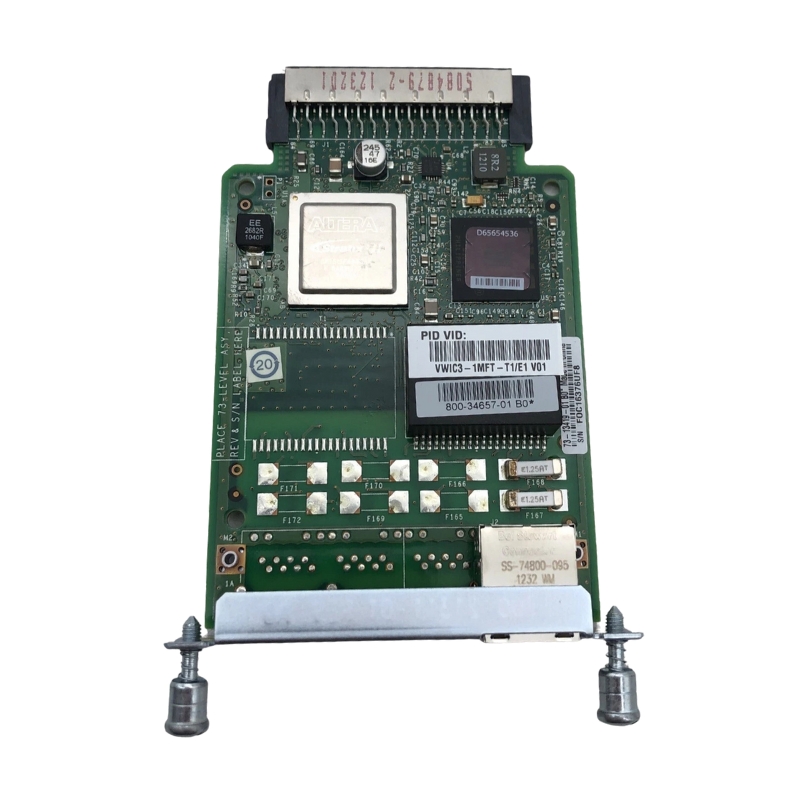

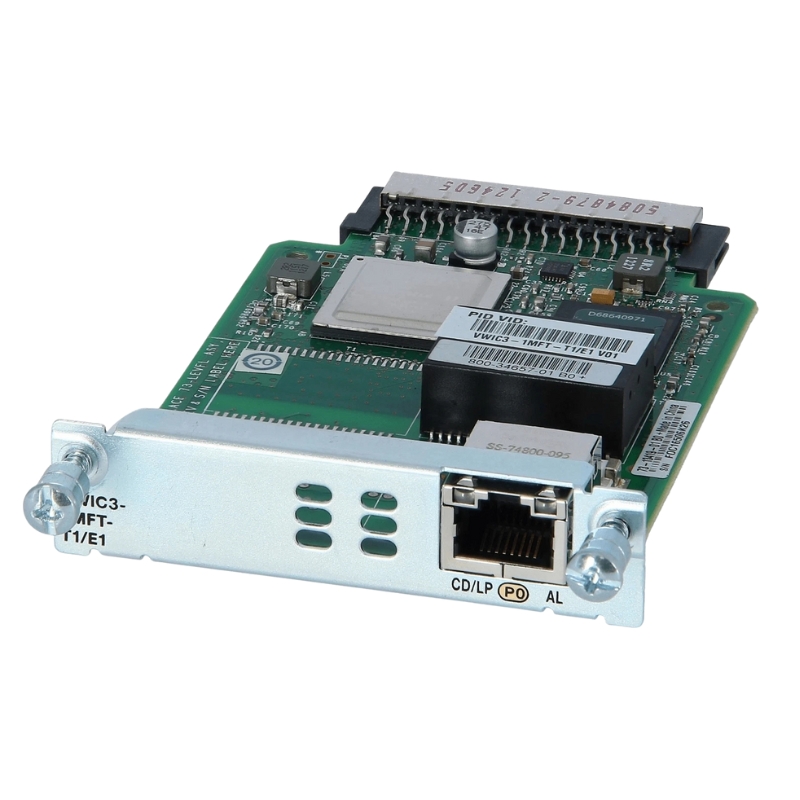

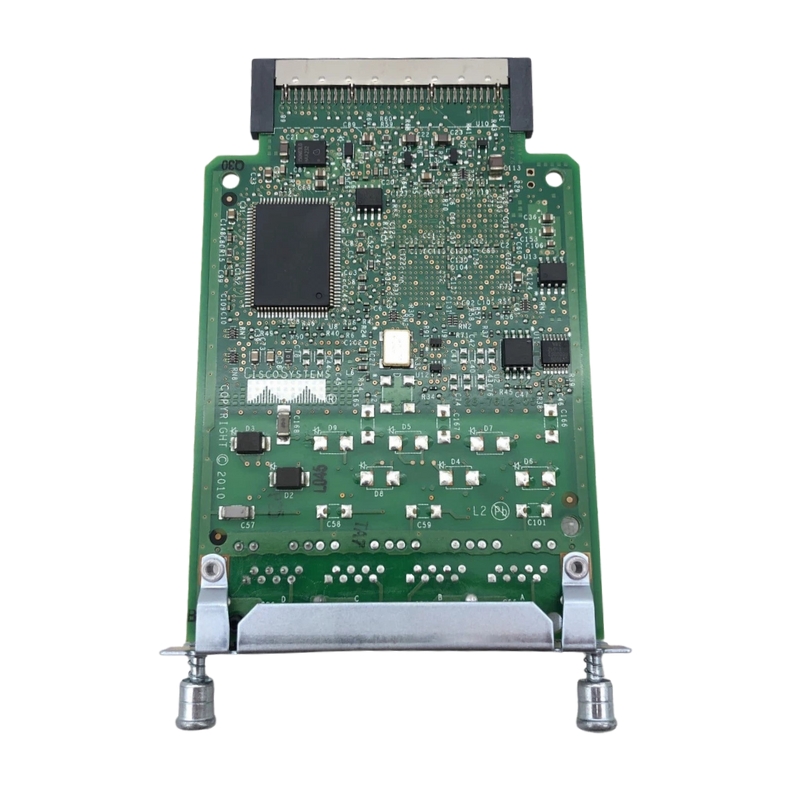

Cisco VWIC3-1MFT-T1/E1= 1-Port Voice Interface Card Overview

Product Summary

The Cisco VWIC3-1MFT-T1/E1= is a high-performance single-port Voice and WAN Interface Card designed to enhance connectivity in enterprise-grade Cisco router environments. It delivers reliable voice integration and wide-area network support for optimized communication infrastructure.

Key Product Information

• Manufacturer: Cisco
• Part Number / SKU: VWIC3-1MFT-T1/E1=
• Product Category: Network Module
• Module Type: Voice / WAN Interface Card

Technical Specifications

Supported Applications

• Voice communication systems
• Wide Area Network (WAN) connectivity

Port & Interface Details

• 1 x T1/E1 WAN network interface

Network Performance

• Supported Technologies: T1 and E1
• Maximum Data Transfer Rate: Up to 2.05 Mbit/s

Physical Specifications

Product Dimensions

• Height: 0.8 inches
• Width: 3.1 inches
• Depth: 4.7 inches

Weight Details

• Approximate Weight: 2.88 oz

Device Compatibility

Supported Cisco Router Series

• Cisco 1900 Series Router Chassis
• Cisco 2900 Series Router Chassis
• Cisco 3900 Series Router Chassis

Deployment Benefits

• Seamless integration with Cisco enterprise routers
• Enhanced voice and data transmission efficiency
• Reliable WAN connectivity for business-critical operations
• Compact design for flexible installation

Cisco VWIC3-1MFT-T1/E1= Voice/WAN Interface Card

Enterprise-Class Voice and WAN Integration Module

The Cisco VWIC3-1MFT-T1/E1= 1 Port Voice/WAN Interface Card is a high-performance network expansion module designed for Cisco Integrated Services Routers (ISR) that require flexible voice and WAN connectivity over T1 and E1 infrastructures. This module plays a critical role in enabling enterprises, service providers, and large-scale communication networks to integrate traditional telephony systems with modern IP-based networks. By combining voice and data capabilities into a single interface card, it helps organizations streamline infrastructure, reduce hardware complexity, and improve network efficiency.

Built for mission-critical environments, this interface card supports both T1 (North America) and E1 (International) standards, making it suitable for global deployments. It is widely used in branch offices, enterprise communication hubs, call centers, and service provider edge routers where reliable voice transport and WAN connectivity are essential.

Core Architecture and Design Principles

Integrated Voice and Data Transmission Design

The VWIC3-1MFT-T1/E1= is engineered to handle both voice and WAN traffic over a single physical interface. This dual-purpose architecture reduces the need for separate voice and data cards, lowering operational costs and simplifying network design. It provides channelized TDM (Time Division Multiplexing) support, allowing organizations to efficiently allocate bandwidth for voice calls, data transmission, or mixed traffic scenarios.

Hardware-Level Optimization

The module is built with hardware acceleration capabilities that ensure minimal latency in voice processing and WAN packet handling. It is optimized for Cisco ISR platforms, ensuring seamless integration with router backplanes and embedded voice processing systems. This tight integration helps maintain consistent performance even under heavy network loads.

Scalable Network Expansion Capabilities

One of the defining characteristics of the Cisco VWIC3-1MFT-T1/E1= is its scalability. It allows enterprises to expand WAN and voice capabilities without replacing entire networking systems. Instead, organizations can simply add interface cards to existing routers, making it a cost-effective solution for growing businesses and evolving communication needs.

Technical Specifications and Functional Capabilities

Support for T1 and E1 Standards

The interface card supports both T1 and E1 digital transmission standards, ensuring compatibility across different regions and telecom infrastructures. T1 operates at 1.544 Mbps and is primarily used in North America, while E1 operates at 2.048 Mbps and is commonly used in Europe, Asia, and other global regions.

Channelized and Unchannelized Modes

The VWIC3-1MFT-T1/E1= supports both channelized and unchannelized configurations. In channelized mode, the interface divides the available bandwidth into multiple DS0 channels, enabling simultaneous voice and data transmission. In unchannelized mode, the full bandwidth is dedicated to high-speed data transport, making it suitable for dedicated WAN links.

Voice Integration Capabilities

This module is designed to support voice applications including PSTN connectivity, VoIP gateway integration, and PBX interconnection. It enables traditional telephony systems to communicate with IP-based voice systems, bridging legacy infrastructure with modern communication technologies.

PRI and CAS Support

The card supports Primary Rate Interface (PRI) and Channel Associated Signaling (CAS), allowing it to interface with digital telephony networks. This makes it highly suitable for enterprises running call centers, customer service operations, or unified communications platforms.

Deployment Scenarios and Use Cases

Enterprise Branch Office Connectivity

In branch office environments, the Cisco VWIC3-1MFT-T1/E1= provides reliable WAN connectivity to headquarters or data centers. It ensures stable communication links that support business-critical applications such as ERP systems, CRM platforms, and cloud services.

Secure Voice and Data Transmission

Organizations can use this interface card to establish secure voice and data tunnels across private or leased lines. This ensures confidentiality and integrity of communication between distributed offices.

Call Center and VoIP Gateway Deployment

Call centers benefit significantly from the VWIC3-1MFT-T1/E1= as it enables direct connection to PSTN networks while supporting VoIP integration. This hybrid capability allows businesses to route calls intelligently between traditional telephony and IP-based systems, optimizing call handling efficiency.

High-Density Voice Traffic Management

The card supports multiple simultaneous voice channels, making it ideal for high-volume call environments. Its architecture ensures minimal jitter and latency, which is critical for maintaining voice quality in real-time communications.

Service Provider Edge Connectivity

Service providers use this interface card at network edges to connect customer premises equipment (CPE) to core network infrastructures. It enables reliable transport of aggregated voice and data traffic across metropolitan and wide-area networks.

Compatibility with Cisco Network Infrastructure

Supported Cisco ISR Platforms

The VWIC3-1MFT-T1/E1= is compatible with a range of Cisco Integrated Services Routers, including select ISR G1 and ISR G2 platforms. This compatibility ensures smooth integration into existing Cisco-based network ecosystems without requiring major hardware redesigns.

Seamless IOS Integration

The module operates under Cisco IOS, allowing administrators to configure and manage it using standard IOS commands. This ensures consistency in network management practices and reduces the learning curve for network engineers.

Interoperability with Legacy Systems

One of the key strengths of this interface card is its ability to interoperate with legacy telephony systems. It supports older PBX systems while also enabling migration toward modern IP telephony architectures.

Hybrid Network Environments

In hybrid deployments, the card acts as a bridge between traditional circuit-switched networks and packet-switched IP networks, allowing organizations to transition gradually without service disruption.

Performance Benefits and Network Efficiency

Reduced Infrastructure Complexity

By combining voice and WAN capabilities into a single module, the Cisco VWIC3-1MFT-T1/E1= significantly reduces infrastructure complexity. Organizations no longer need separate hardware for voice and data transmission, resulting in streamlined network architecture.

Cost Efficiency in Deployment

The integration of multiple functionalities into one interface card reduces capital expenditure and operational costs. It also minimizes rack space requirements and power consumption in networking environments.

Enhanced Network Reliability

The module is designed for high availability and consistent performance. It ensures stable connectivity even in demanding enterprise environments where continuous uptime is critical.

Fault Tolerance and Redundancy

When deployed in redundant configurations, the interface card can help maintain network availability during hardware or link failures, ensuring uninterrupted communication services.

Security and Traffic Management Capabilities

Secure WAN Connectivity

The VWIC3-1MFT-T1/E1= supports secure WAN communication when integrated with Cisco security features such as VPNs, access control lists (ACLs), and encryption protocols. This ensures that data transmitted over T1/E1 links remains protected from unauthorized access.

Traffic Prioritization and QoS

Quality of Service (QoS) mechanisms can be configured to prioritize voice traffic over data traffic. This ensures high-quality voice communication even during periods of network congestion.

Reliable Voice Packet Handling

The interface card ensures that voice packets are transmitted with minimal delay and jitter, maintaining high call quality standards essential for enterprise communication systems.
