MA-ANT-20 Cisco Meraki Dual Band Omni Antenna 7 dBi Wireless Data Network

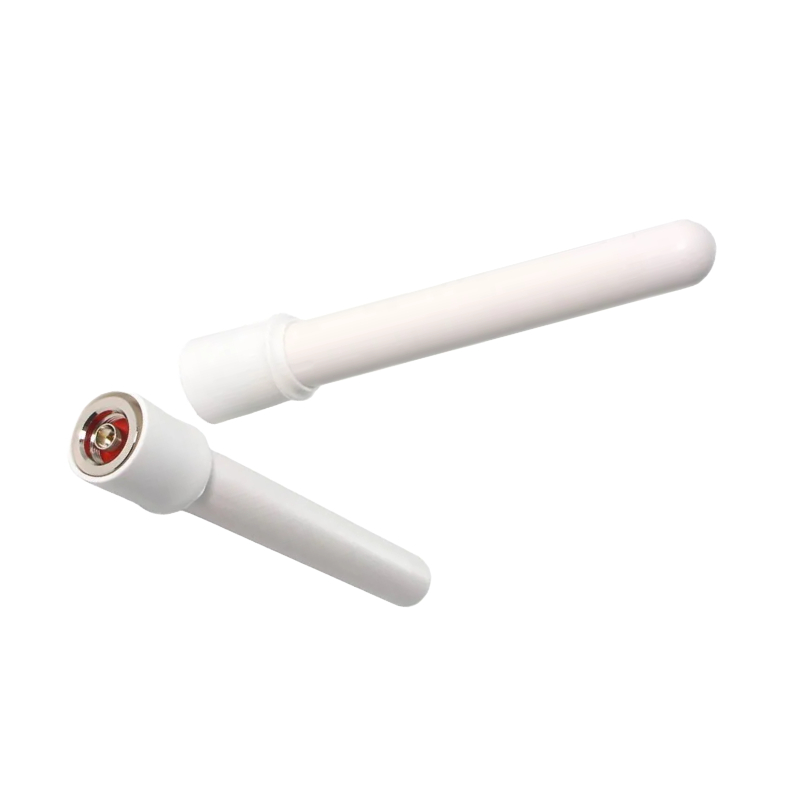

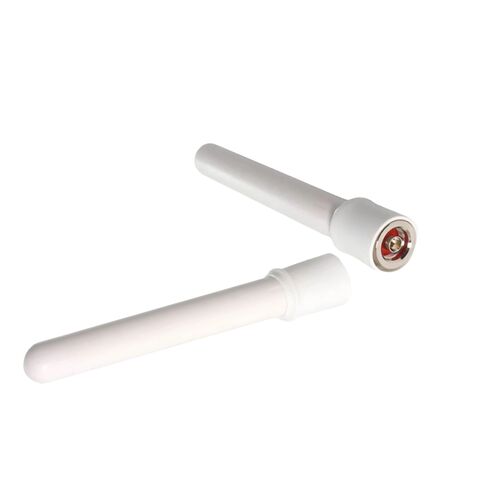

Overview of Cisco Meraki MA-ANT-20 Dual-Band Antenna

The Cisco Meraki MA-ANT-20 is a high-efficiency dual-band omni-directional antenna engineered to enhance wireless data transmission across enterprise-grade networks. Designed for seamless compatibility with Meraki wireless devices, this antenna supports stable signal propagation across both 2.4 GHz and 5 GHz frequency bands.

Key Manufacturer and Product Details

• Brand: Cisco
• Model / SKU: MA-ANT-20
• Device Category: Wireless Network Antenna
• Deployment Type: Indoor and controlled outdoor environments

Electrical Performance Characteristics

Built to deliver balanced coverage and consistent throughput, the MA-ANT-20 antenna optimizes radio performance for modern Wi-Fi deployments.

Supported Frequency Bands

• 2.4 GHz Band: Operates between 2.400 and 2.500 GHz
• 5 GHz Band: Covers a wide spectrum from 5.150 to 5.875 GHz

Signal Gain and Radiation Pattern

• Gain at 2.4 GHz: 4 dBi for reliable short-to-mid range coverage
• Gain at 5 GHz: 7 dBi for improved performance at higher frequencies
• Antenna Pattern: Omni-directional for uniform 360-degree horizontal coverage

Beamwidth and Polarization

• Horizontal Beamwidth: 360° for all-around signal distribution
• Vertical Beamwidth: 45° optimized for multi-level environments
• Polarization: Vertical linear polarization for reduced signal loss

Installation and Mounting Options

The MA-ANT-20 is designed for straightforward installation, minimizing setup time while ensuring optimal placement.

Mounting Method

• Direct attachment to compatible Meraki devices
• No additional RF cable required
• Secure and stable connection for consistent signal integrity

Physical Construction and Environmental Tolerance

Engineered with durable materials, this antenna is suitable for demanding operational conditions.

Dimensions and Weight

• Size: 1.0 x 7.1 inches (25 mm x 180 mm)
• Net Weight: 0.17 lbs (79 grams)

Build Material

• High-quality ABS plastic housing
• Lightweight yet impact-resistant design

Operating Temperature Range

• Functions reliably from -40°F to 158°F (-40°C to 70°C)
• Suitable for varied climate-controlled installations

Connectivity and Package Contents

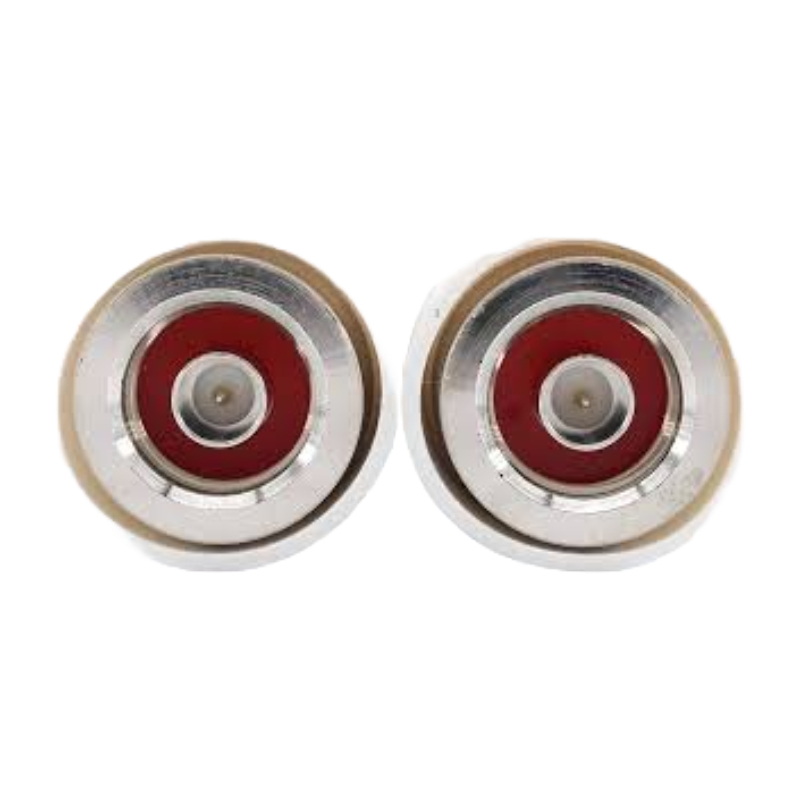

Antenna Connector Type

• N-type connector for secure RF connectivity
• Ensures low signal attenuation and stable performance

Included Items

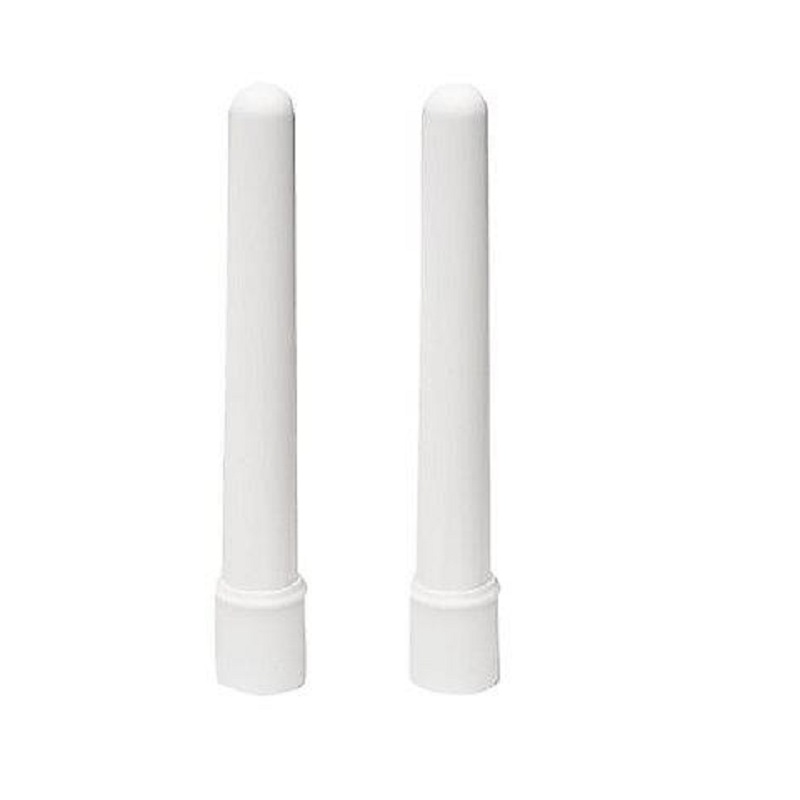

• Two Cisco Meraki MA-ANT-20 dual-band antennas
• Ready for immediate deployment

Enterprise-Grade Dual Band Omni Antenna Technology for Modern Wireless Networks

The Cisco MA-ANT-20 Meraki Dual Band Omni Antenna 7 dBi Wireless Data Network category represents a specialized class of enterprise wireless networking accessories designed to extend, optimize, and stabilize radio frequency coverage across demanding indoor and semi-outdoor environments. This category focuses on high-gain omnidirectional antennas engineered to integrate seamlessly with Cisco Meraki access points, delivering consistent signal propagation across both 2.4 GHz and 5 GHz frequency bands. The dual band design ensures compatibility with legacy wireless standards while fully supporting modern high-throughput wireless technologies, making this category essential for organizations seeking scalable and future-ready wireless infrastructure.

Within professional network deployments, antenna performance directly influences coverage quality, throughput stability, roaming efficiency, and overall user experience. The Cisco MA-ANT-20 Meraki Dual Band Omni Antenna category addresses these requirements by offering a precisely tuned 7 dBi gain profile that balances extended range with uniform signal dispersion. This makes the category particularly relevant for enterprises that require reliable wireless connectivity across wide floor areas, warehouses, educational campuses, healthcare facilities, hospitality venues, and large retail environments where signal consistency is critical.

Dual Band Frequency Optimization and Signal Uniformity

Support for 2.4 GHz and 5 GHz Wireless Standards

The Cisco MA-ANT-20 Meraki Dual Band Omni Antenna category is engineered to operate efficiently across both the 2.4 GHz and 5 GHz frequency spectrums. This dual band capability ensures compatibility with a broad range of wireless devices, including older Wi-Fi clients that rely on 2.4 GHz connectivity as well as modern high-performance devices optimized for the 5 GHz band. By supporting both frequency ranges within a single antenna solution, this category enables network administrators to design unified wireless architectures without compromising device compatibility or performance.

In high-density environments, the ability to distribute client devices across multiple frequency bands reduces congestion and improves overall network efficiency. Antennas in this category are tuned to maintain consistent radiation patterns across both bands, ensuring that coverage remains balanced regardless of the frequency in use. This is particularly valuable for enterprise-grade wireless deployments that leverage band steering, load balancing, and advanced radio resource management features available within Cisco Meraki ecosystems.

Omnidirectional Radiation Pattern Design

The omnidirectional design characteristic of the Cisco MA-ANT-20 Meraki Dual Band Omni Antenna category enables uniform horizontal signal distribution in all directions. Unlike directional antennas that focus energy into narrow beams, omnidirectional antennas provide 360-degree coverage, making them ideal for centralized access point installations where users are distributed evenly throughout the coverage area. This design minimizes coverage gaps and reduces the need for additional access points, contributing to cost-effective network expansion.

The 7 dBi gain profile enhances signal reach while maintaining a controlled vertical beamwidth. This ensures that energy is efficiently distributed across the intended coverage plane rather than wasted in unnecessary vertical propagation. As a result, this category supports optimized coverage in multi-story buildings, open-plan offices, and large halls where predictable signal behavior is essential for reliable connectivity.

7 dBi Gain Characteristics and Coverage Enhancement

Balancing Range Extension and Signal Stability

The 7 dBi gain specification defines the performance class of the Cisco MA-ANT-20 Meraki Dual Band Omni Antenna category. This gain level represents an optimal balance between extended coverage and signal stability, making it suitable for a wide range of enterprise wireless scenarios. Higher gain antennas can extend coverage distances, but they may also narrow beamwidths and introduce coverage inconsistencies if not carefully designed. This category addresses those challenges through precision engineering that preserves uniform signal distribution while enhancing range.

In practical deployments, antennas within this category enable access points to cover larger areas without increasing transmit power, which helps maintain compliance with regulatory limits and reduces interference. This makes the category especially relevant for organizations operating in regions with strict wireless emission regulations or in environments where interference management is a priority.

Impact on Roaming and Client Experience

Consistent signal strength across coverage areas directly impacts client roaming performance and connection stability. The Cisco MA-ANT-20 Meraki Dual Band Omni Antenna category supports smooth roaming by maintaining predictable signal gradients, allowing wireless clients to transition between access points without sudden drops in signal quality. This is critical for voice over Wi-Fi applications, real-time collaboration tools, and mobile workforce scenarios where uninterrupted connectivity is essential.

Integration with Cisco Meraki Wireless Ecosystem

Optimized Compatibility with Meraki Access Points

The Cisco MA-ANT-20 Meraki Dual Band Omni Antenna category is specifically designed for compatibility with Cisco Meraki access points that support external antenna connections. This ensures seamless mechanical, electrical, and RF integration, eliminating the need for complex tuning or third-party validation. Antennas in this category align with Meraki radio characteristics, enabling predictable performance and simplifying deployment planning.

Integration within the Meraki ecosystem also allows network administrators to leverage centralized cloud management features without additional configuration complexity. Antenna performance characteristics are well-documented and standardized, enabling accurate predictive modeling and site survey planning within enterprise wireless design workflows.

Support for Cloud-Managed Wireless Architectures

Cloud-managed wireless networks rely on consistent hardware performance to deliver accurate analytics, automated optimization, and reliable policy enforcement. The Cisco MA-ANT-20 Meraki Dual Band Omni Antenna category supports these requirements by providing stable RF characteristics that align with Meraki’s cloud-based management algorithms. This enables features such as automatic RF optimization, dynamic channel assignment, and adaptive power control to function effectively.

Deployment Flexibility Across Enterprise Environments

Indoor and Semi-Outdoor Use Cases

The Cisco MA-ANT-20 Meraki Dual Band Omni Antenna category is suitable for a wide range of indoor and semi-outdoor deployments. Its robust construction and consistent performance make it ideal for office buildings, warehouses, manufacturing floors, retail spaces, educational institutions, and hospitality environments. In semi-outdoor settings such as covered walkways, stadium concourses, and open atriums, the antenna’s omnidirectional coverage ensures reliable connectivity despite varying user densities and movement patterns.

This versatility allows organizations to standardize on a single antenna category across multiple deployment scenarios, simplifying inventory management and reducing design complexity.

High-Density and Open-Area Coverage Scenarios

In high-density environments where large numbers of users connect simultaneously, antenna performance plays a crucial role in maintaining throughput and minimizing interference. The Cisco MA-ANT-20 Meraki Dual Band Omni Antenna category supports efficient spectrum utilization by providing controlled gain and consistent coverage, enabling access points to serve more clients effectively without excessive overlap.

Mechanical Design and Installation Considerations

Professional-Grade Build Quality

The mechanical design of the Cisco MA-ANT-20 Meraki Dual Band Omni Antenna category reflects enterprise-grade durability and reliability standards. Materials and construction methods are selected to ensure long-term performance stability, even in environments with temperature fluctuations, vibration, or moderate environmental exposure. This makes the category suitable for permanent installations where maintenance access may be limited.

Ease of Mounting and Positioning

Proper antenna placement is essential for optimal wireless performance. Antennas in this category are designed to support flexible mounting options, enabling precise positioning relative to access points and coverage areas. This flexibility simplifies installation workflows and allows network engineers to fine-tune coverage patterns based on site-specific requirements.

Wireless Performance Optimization and Interference Management

Minimizing Co-Channel and Adjacent Channel Interference

Interference management is a critical aspect of enterprise wireless network design. The Cisco MA-ANT-20 Meraki Dual Band Omni Antenna category contributes to interference mitigation by providing predictable radiation patterns and controlled gain. This allows for more accurate access point placement and channel planning, reducing the likelihood of co-channel and adjacent channel interference in dense deployments.

By maintaining consistent signal boundaries, this category helps ensure that wireless cells are clearly defined, enabling more efficient frequency reuse and improved overall network capacity.

Support for Advanced Wireless Features

Modern wireless networks rely on advanced features such as multiple-input multiple-output technologies, beamforming, and adaptive modulation schemes. The Cisco MA-ANT-20 Meraki Dual Band Omni Antenna category is designed to support these technologies by preserving signal integrity and polarization characteristics across both frequency bands. This ensures that access points can fully leverage their radio capabilities to deliver high throughput and low latency.

Scalability and Future-Ready Wireless Infrastructure

Supporting Network Growth and Device Proliferation

As organizations continue to adopt cloud services, mobile workflows, and Internet of Things technologies, wireless networks must scale to accommodate increasing device counts and data demands. The Cisco MA-ANT-20 Meraki Dual Band Omni Antenna category supports this scalability by enabling efficient coverage expansion without significant infrastructure changes. Its dual band design and optimized gain profile make it suitable for evolving wireless standards and increasing performance requirements.

Long-Term Investment Protection

Investing in high-quality antenna solutions is essential for protecting long-term network investments. The Cisco MA-ANT-20 Meraki Dual Band Omni Antenna category offers consistent performance across multiple generations of wireless technology, reducing the need for frequent hardware replacements. This makes it a cost-effective choice for enterprises seeking reliable wireless performance over extended deployment lifecycles.

Role in Comprehensive Wireless Network Design

Enhancing Predictive Design and Site Surveys

Accurate predictive design and site surveys depend on reliable antenna performance data. The Cisco MA-ANT-20 Meraki Dual Band Omni Antenna category provides well-defined RF characteristics that simplify modeling and simulation processes. Network designers can accurately predict coverage areas, signal strength, and capacity, reducing deployment risks and optimizing resource allocation.

Consistency Across Multiple Deployment Sites

For organizations with multiple locations, maintaining consistent wireless performance standards is essential. The Cisco MA-ANT-20 Meraki Dual Band Omni Antenna category enables standardized deployments across diverse sites, ensuring uniform user experiences and simplifying centralized network management. This consistency supports enterprise-wide wireless policies and performance benchmarks.

Enterprise Applications and Industry Adoption

Use in Education, Healthcare, and Commercial Sectors

The Cisco MA-ANT-20 Meraki Dual Band Omni Antenna category is widely applicable across various industries that depend on reliable wireless connectivity. In educational environments, it supports high-density classrooms and campus-wide coverage. In healthcare settings, it enables dependable connectivity for clinical applications and mobile devices. In commercial and retail sectors, it enhances customer experiences through stable guest Wi-Fi and operational wireless services.

These diverse applications highlight the versatility and reliability of this antenna category within mission-critical wireless deployments.
