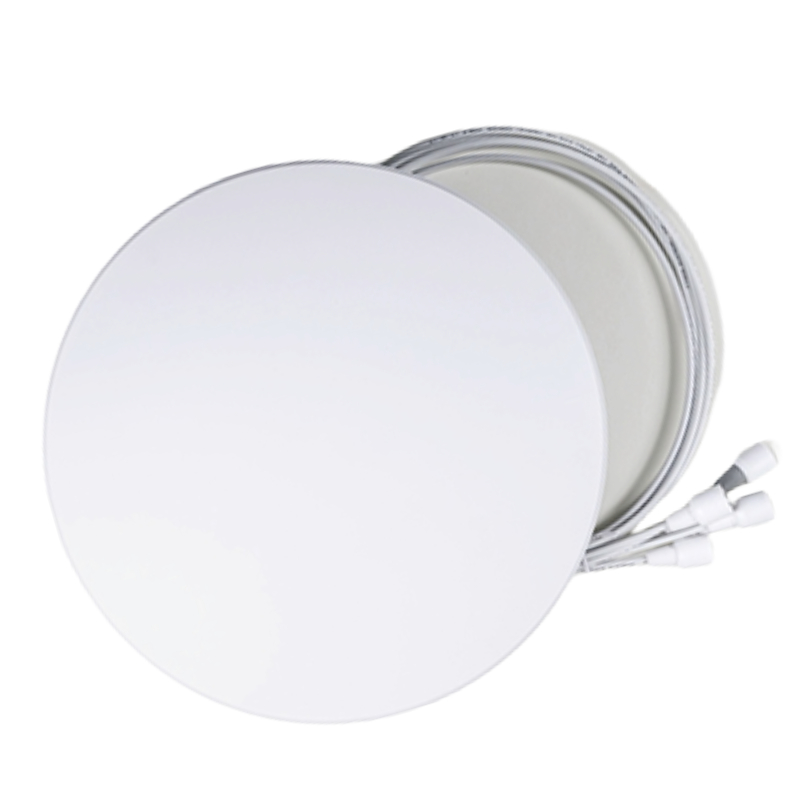

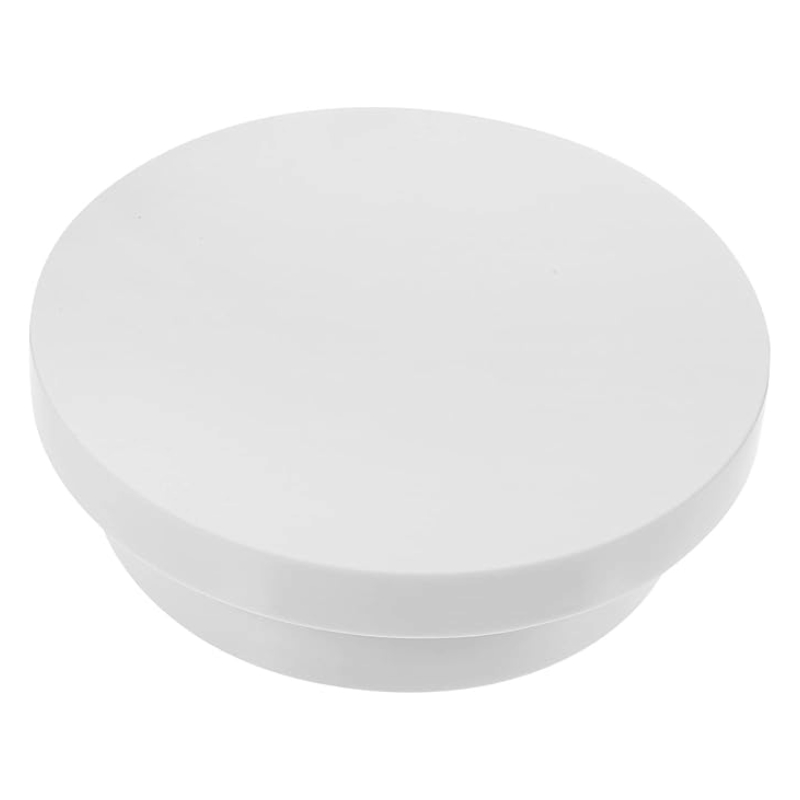

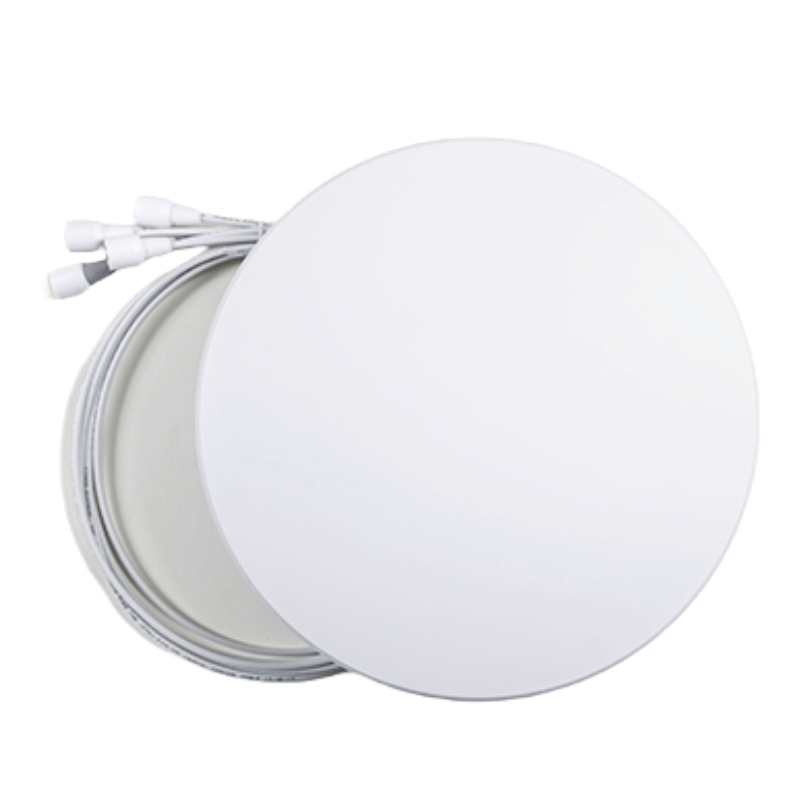

Meraki MA-ANT-3-C5 Indoor Dual-Band Omni Antenna, 5-Port
Main Features of Cisco MA-ANT-3-C5
- Manufacturer: Cisco
- SKU: MA-ANT-3-C5
- Product Category: Network Devices
- Type: Network Accessories
Technical Specifications
Electrical Properties
- Antenna Type: Dipole
- Frequency Bands: 2.400 - 2.500 GHz, 5.150 - 5.875 GHz
- Gain: 4.9 dBi for both 2.4 GHz and 5 GHz bands
- Beamwidth (Horizontal): Omni-directional coverage
- Beamwidth (Vertical): 60°
- Polarization: Linear, both vertical and horizontal
Connector and Mounting
- Connector Type: RP-TNC
- Dimensions: 11.81 inches x 1.38 inches (300 mm x 35 mm)
- Weight: 37.04 oz (1.05 kg)
Environmental Specifications
Durability and Operating Conditions
- Material Composition: High-durability PC-ABS
- Temperature Range: Operates between 32 °F to 104 °F (0 °C to 40 °C)
- Humidity Tolerance: 5% to 95% non-condensing
Enhanced Wireless Coverage with Meraki MA-ANT-3-C5
The Cisco Meraki MA-ANT-3-C5 dual-band omni antenna provides reliable and seamless wireless connectivity for indoor environments. Designed to enhance network performance, this dipole antenna features optimal gain and beamwidth for uniform signal distribution, meeting a variety of enterprise needs.
Overview of the Meraki MA-ANT-3-C5 Indoor Dual-Band Omni Antenna
The Meraki MA-ANT-3-C5 is a high-performance indoor dual-band omni antenna designed to complement Cisco Meraki’s range of enterprise-grade access points. With five ports, it offers unparalleled connectivity and coverage for indoor wireless networking solutions. This antenna is ideal for large and complex indoor environments, ensuring reliable signal distribution and optimal user experience.
Features and Benefits of the Meraki MA-ANT-3-C5
The Meraki MA-ANT-3-C5 boasts an array of features that enhance network performance:
- Dual-Band Functionality: Operating on both 2.4 GHz and 5 GHz frequency bands, this antenna ensures robust connectivity across a wide range of devices.
- High Gain Performance: The antenna provides an optimal gain pattern that maximizes coverage and strengthens signal distribution within indoor spaces.
- Five-Port Design: With five distinct ports, the MA-ANT-3-C5 facilitates flexible deployment and efficient network management.
- Seamless Integration: Fully compatible with Meraki’s indoor access points, this antenna can be effortlessly incorporated into existing network infrastructure.
- Compact and Durable: The antenna's design allows for discrete installation while maintaining a rugged build suitable for demanding environments.
Technical Specifications
Understanding the technical details of the Meraki MA-ANT-3-C5 can help network administrators make informed decisions:
Frequency Range
This antenna operates across dual frequency bands:
- 2.4 GHz band: Ideal for broader coverage at lower data rates.
- 5 GHz band: Suitable for higher data transfer rates and reduced interference.
Gain and Radiation Pattern
The antenna delivers an impressive gain to ensure consistent signal quality:
- 2.4 GHz Band Gain: Typically around 3 dBi, providing broad coverage.
- 5 GHz Band Gain: Around 4 dBi, optimized for higher throughput.
Its omnidirectional radiation pattern ensures uniform distribution, which is critical for environments where coverage consistency is paramount.
Physical Design
The compact design of the Meraki MA-ANT-3-C5 makes it easy to deploy without significant visual impact. The robust build ensures the antenna withstands typical indoor challenges, such as varying temperatures and humidity levels.
Applications and Ideal Use Cases
The Meraki MA-ANT-3-C5 excels in numerous indoor scenarios:
Large Office Spaces
Corporate environments with multiple rooms and open-plan areas benefit from the omnidirectional coverage provided by this antenna, ensuring seamless wireless connectivity for employees.
Educational Institutions
Schools and universities with lecture halls, classrooms, and common areas can use the MA-ANT-3-C5 to maintain consistent Wi-Fi coverage, supporting both students and faculty.
Retail Stores
In retail spaces, this antenna supports smooth POS operations, customer Wi-Fi access, and reliable connections for IoT devices.
Event Venues
Convention centers and indoor event spaces with large crowds need antennas that can manage high-capacity demands. The Meraki MA-ANT-3-C5 is designed to offer stable connectivity, even in high-density areas.
Comparison with Other Indoor Antennas
When comparing the Meraki MA-ANT-3-C5 with other indoor antennas, a few key differentiators stand out:
- Multi-Port Design: Unlike standard single or dual-port antennas, the five-port structure of the MA-ANT-3-C5 provides greater versatility and enhanced performance.
- Compatibility: Specifically tailored to work seamlessly with Cisco Meraki indoor access points, ensuring maximum efficiency and compatibility.
- Coverage Consistency: The omnidirectional pattern ensures no coverage dead zones, which can be an issue with directional antennas.
Alternative Options
While the MA-ANT-3-C5 is ideal for many situations, some users might consider alternative options for different needs:
- Meraki MA-ANT-21: A smaller indoor antenna for limited coverage requirements.
- Directional Antennas: For areas needing focused, high-gain signal, a directional antenna might be preferred.
Installation and Deployment Tips
Proper installation is crucial for maximizing the performance of the Meraki MA-ANT-3-C5:
Placement Recommendations
To ensure optimal performance, follow these guidelines:
- Place the antenna centrally within the coverage area to leverage its 360-degree signal distribution.
- Avoid obstructions such as thick walls or metal surfaces that may attenuate the signal.
- Ensure that the antenna is positioned at an appropriate height, preferably near the ceiling, for wider coverage.
Connecting to Meraki Access Points
The MA-ANT-3-C5 is designed for easy integration with Meraki access points. To connect:
- Ensure the access point is mounted in the desired location.
- Attach the antenna’s connectors to the corresponding ports on the access point.
- Verify that connections are secure to prevent signal loss.
Testing and Calibration
After installation, use the Meraki dashboard to test signal strength and adjust the antenna's positioning if needed. Conduct site surveys to confirm that all areas are covered as expected.
Maintenance and Troubleshooting
Regular maintenance can ensure long-term performance:
- Check Connectors: Periodically inspect antenna connections for any signs of wear or damage.
- Clean the Antenna: Use a soft, dry cloth to remove dust and debris that could interfere with performance.
- Firmware Updates: Keep your Meraki access points updated with the latest firmware for optimal antenna compatibility and performance.
Frequently Asked Questions (FAQs)
Can the MA-ANT-3-C5 be used with non-Meraki devices?
While the MA-ANT-3-C5 is optimized for Meraki access points, it can technically be used with other compatible devices. However, to leverage full functionality, pairing with Meraki hardware is recommended.
What is the coverage area of the MA-ANT-3-C5?
The coverage area depends on several factors, including the building layout and network configuration. Generally, the antenna provides reliable coverage for medium to large indoor spaces.
How does this antenna handle interference?
The dual-band functionality helps mitigate interference by allowing the use of the less congested 5 GHz band. Additionally, the high-quality design minimizes signal degradation.
Is the antenna weatherproof?
No, the Meraki MA-ANT-3-C5 is intended for indoor use only and is not designed to withstand outdoor weather conditions.
Conclusion
The Meraki MA-ANT-3-C5 Indoor Dual-Band Omni Antenna is a reliable and versatile solution for enterprises seeking to enhance their indoor wireless network performance. With its multi-port design, compatibility with Meraki access points, and robust dual-band functionality, it stands out as an essential addition to any modern network infrastructure.
