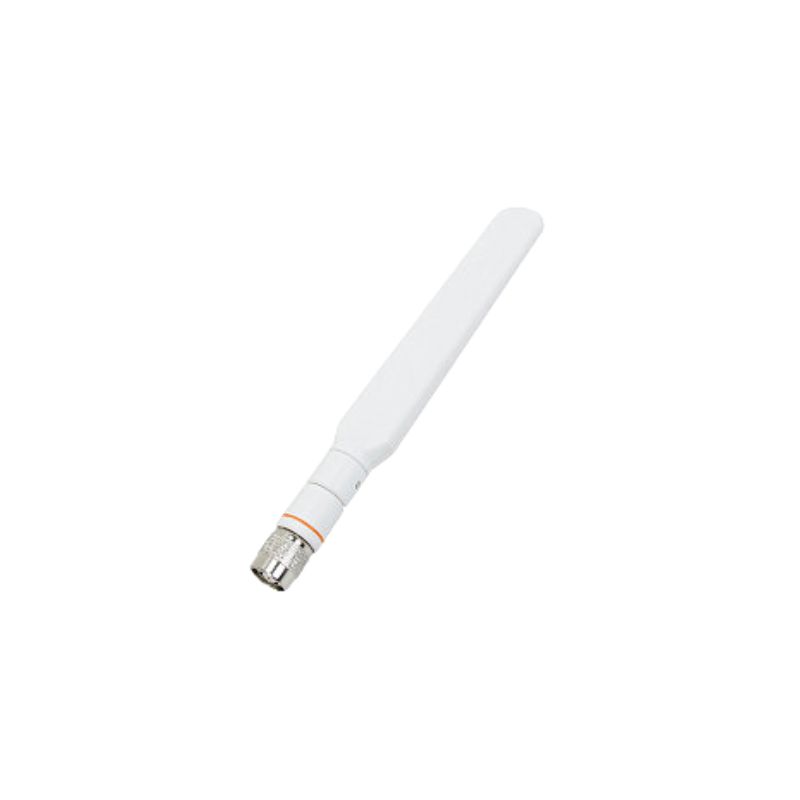

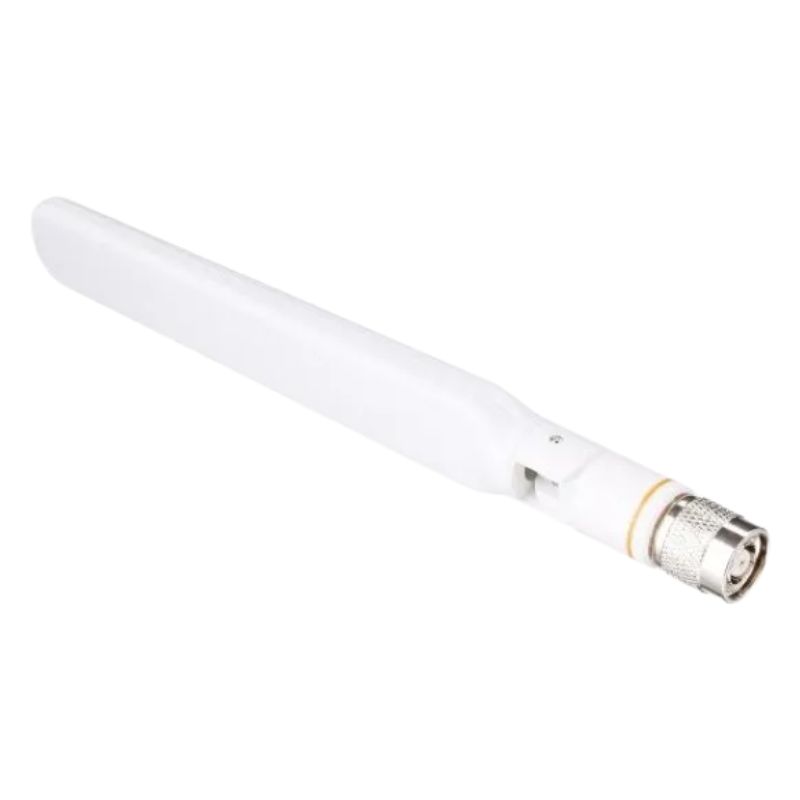

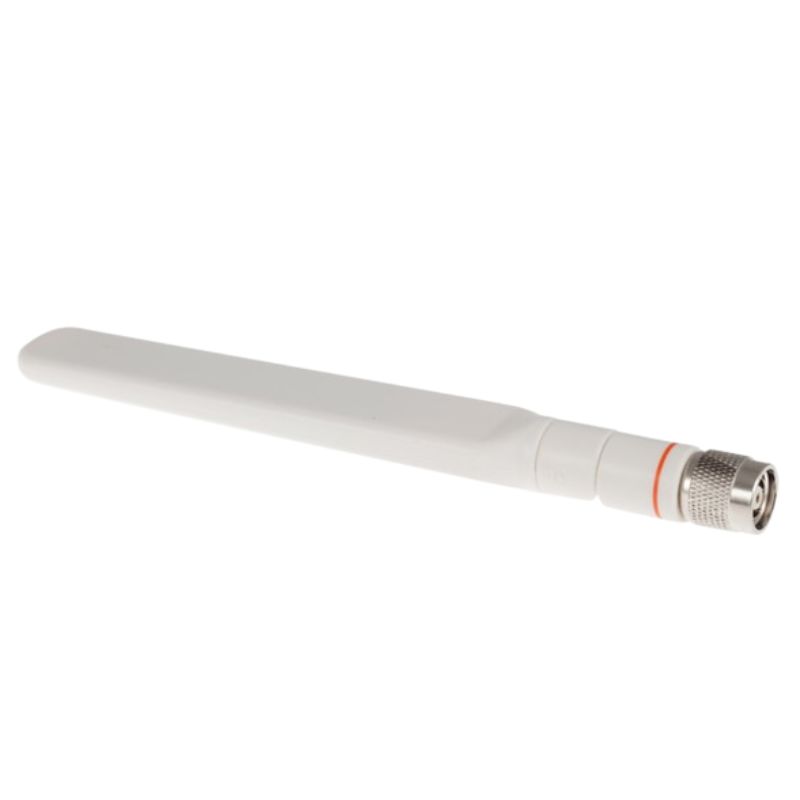

AIR-ANT2524DW-R Cisco Aironet Dual-Band Dipole Antenna - 2.4GHz/5GHz 2DBI/4DBI

Overview of the Cisco Aironet Dual-Band Dipole Antenna

The Cisco AIR-ANT2524DW-R Aironet Dual-Band Dipole Antenna is a high-performance indoor wireless antenna designed to enhance Wi-Fi connectivity for compatible Cisco Aironet access points. This omnidirectional dipole antenna supports both 2.4 GHz and 5 GHz frequency bands, delivering reliable wireless coverage with optimized signal distribution.

General Information

• Manufacturer: Cisco
• Prat Number: AIR-ANT2524DW-R
• Device Type: Wireless Network Antenna

Technical Specifications

• Antenna Type: Dual-band dipole.
• Operating Frequency Range: 2400 to 2500 MHz and 5150 to 5850 MHz.
• Peak Gain at 2.4 GHz: 2 dBi.
• Peak Gain at 5 GHz: 4 dBi.
• Nominal Input Impedance: 50 Ohms.
• Voltage Standing Wave Ratio: Less than 2:1.
• Elevation Plane 3dB Beamwidth at 2.4 GHz: 63 degrees.
• Elevation Plane 3dB Beamwidth at 5 GHz: 39 degrees.

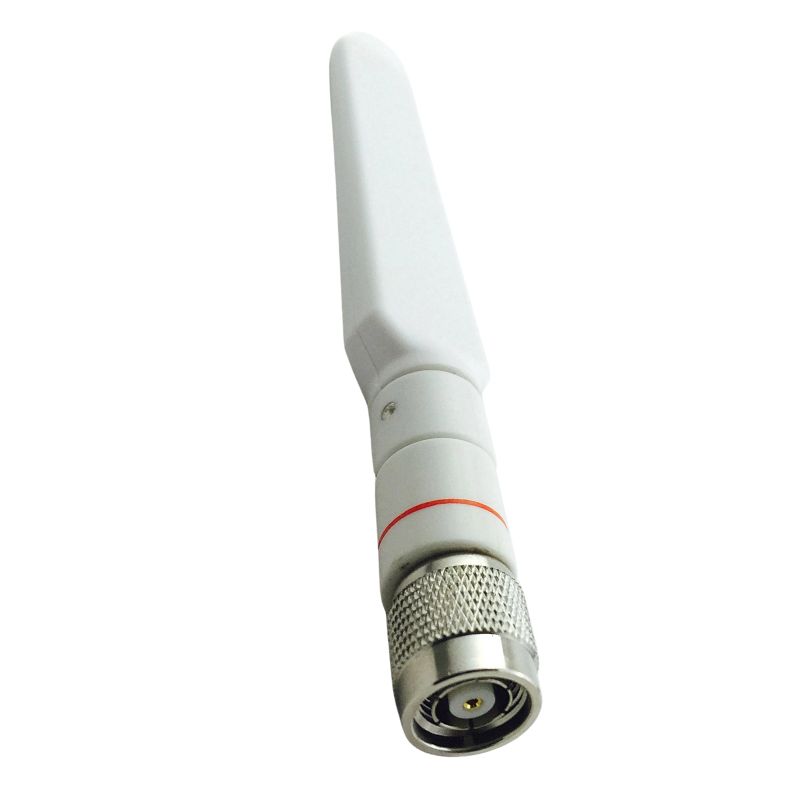

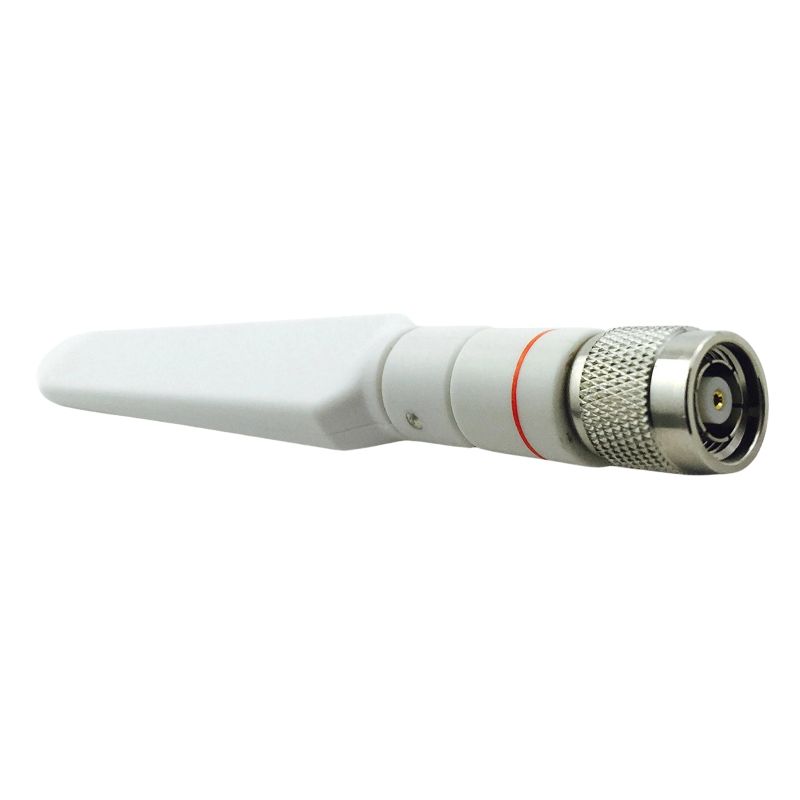

• Connector Type: Reverse-Polarity TNC plug.
• Antenna Length: 6.63 inches.
• Antenna Width: 0.83 inches.
• Radome Length: 4.88 inches.
• Weight: 1.3 ounces.
• Enclosure Color: White.
• Operating Temperature: -20°C to 60°C.
• Storage Temperature: -40°C to 85°C.
• Environment Type: Indoor office environments.
• 2.4 GHz Frequency Range: 2400 MHz to 2500 MHz
• 5 GHz Frequency Range: 5150 MHz to 5850 MHz
• Antenna Gain: 2 dBi at 2.4 GHz and 4 dBi at 5 GHz
• Radiation Pattern: Omnidirectional
• Antenna Design: Dipole Array

Signal Coverage and Beamwidth

• Elevation Beamwidth (2.4 GHz): 63 degrees
• Elevation Beamwidth (5 GHz): 39 degrees
• Nominal Input Impedance: 50 Ohms
• VSWR: Less than 2:1

Connector and Compatibility Information

• RF Connector: 1 x RP-TNC Male Plug
• Compatible Device: Cisco Aironet 3602e

Compatibility

• Cisco Aironet 1800 Series: Fully compatible with 1832E and 1852E access points.
• Cisco Aironet 2700 Series: Fully compatible with 2702E access points.
• Cisco Aironet 2800 Series: Fully compatible with 2802E access points.
• Cisco Aironet 3600 Series: Fully compatible with 3602E access points.
• Cisco Aironet 3800 Series: Fully compatible with 3802E access points.
• Cisco Catalyst 9100 Series: Fully compatible with 9115AX, 9120AX, and 9130AX access points.
• Port Requirement: Requires dual-band orange-labeled RP-TNC antenna ports.
• Wireless Standards: Built specifically to support 802.11n and newer Wi-Fi networks.

Cisco AIR-ANT2524DW-R Dual-Band Antenna

The Cisco AIR-ANT2524DW-R Aironet Dual-Band Dipole Antenna is engineered to work with selected Cisco Aironet access points that require external antenna solutions. Unlike single-band antennas that operate only on one frequency range, this model supports both the 2.4 GHz and 5 GHz spectrum bands. This dual-frequency capability allows network administrators to create more efficient wireless networks by taking advantage of the strengths of each Wi-Fi band.

The 2.4 GHz frequency band is widely used because it offers longer range and better ability to pass through physical obstacles. The 5 GHz frequency band provides access to additional channels, reduced interference in many environments, and improved performance for high-bandwidth applications. The Cisco AIR-ANT2524DW-R combines these advantages into one antenna design, helping organizations deliver consistent wireless access across different network conditions.

The antenna features a dipole design that provides a practical balance between performance and installation flexibility. Dipole antennas are commonly chosen for enterprise wireless deployments because they provide reliable omnidirectional coverage. This means the antenna distributes wireless signals around the access point rather than focusing energy in a narrow direction, making it suitable for many indoor wireless layouts.

Dual-Band Wireless Performance for Modern Networks

Modern wireless networks support a wide range of devices, including laptops, smartphones, tablets, barcode scanners, smart equipment, and Internet of Things devices. These devices often compete for wireless resources, making antenna performance an important factor in maintaining connectivity. The Cisco AIR-ANT2524DW-R helps improve the wireless experience by supporting both major Wi-Fi frequency ranges used by contemporary networks.

The 2 dBi gain on the 2.4 GHz band provides reliable coverage characteristics for everyday wireless connectivity. This frequency is especially useful in environments where users require consistent access throughout rooms or areas with moderate physical barriers. The antenna helps maintain communication between client devices and wireless access points by improving signal transmission and reception efficiency.

On the 5 GHz band, the 4 dBi gain provides enhanced performance for applications that require greater throughput. The 5 GHz spectrum is often preferred for demanding workloads such as video conferencing, cloud applications, wireless collaboration platforms, and high-speed data transfers. The additional gain helps extend effective coverage and supports stronger connections for compatible devices.

2.4 GHz Frequency Support and Benefits

The 2.4 GHz band remains an important part of wireless networking because of its broad compatibility and coverage characteristics. Many devices continue to use this frequency because it offers dependable connectivity over longer distances compared with higher-frequency bands. The Cisco AIR-ANT2524DW-R supports 2.4 GHz wireless operation with a 2 dBi gain, providing a practical solution for environments where coverage consistency is important.

Wireless signals at 2.4 GHz generally travel farther and penetrate obstacles more effectively than 5 GHz signals. This makes the 2.4 GHz band useful for general connectivity throughout offices, classrooms, and shared spaces. The antenna supports this frequency range while helping maintain reliable communication between connected devices and network infrastructure.

Because many older and specialized wireless devices rely on 2.4 GHz connectivity, supporting this band remains important for organizations that operate mixed-device networks. The Cisco AIR-ANT2524DW-R provides compatibility with environments where both legacy and newer wireless technologies need to coexist.

5 GHz Frequency Support and Performance Advantages

The 5 GHz band has become increasingly important as wireless networks continue to evolve. Compared with 2.4 GHz, the 5 GHz spectrum typically offers more available channels and less congestion in many locations. This allows networks to support higher data rates and improved performance for bandwidth-intensive applications.

The Cisco AIR-ANT2524DW-R provides a 4 dBi gain on the 5 GHz band, helping deliver stronger wireless performance for compatible devices. This makes it suitable for environments where users rely on fast connections for productivity, communication, and digital services. The antenna supports wireless deployments that need efficient use of available spectrum while maintaining reliable coverage.

Organizations often use the 5 GHz band for devices that require better speed and lower interference. The antenna helps wireless access points take advantage of this frequency range by supporting effective signal transmission and reception.

Enterprise Wireless Network Applications

The Cisco AIR-ANT2524DW-R Aironet Dual-Band Dipole Antenna can be used across many professional wireless networking scenarios. Its dual-band capability and compact design make it suitable for businesses that require dependable Wi-Fi connectivity without complex antenna configurations.

In office environments, the antenna supports wireless access points that provide connectivity for employees, guests, and connected devices. Modern workplaces depend on wireless networks for communication tools, online services, cloud platforms, and collaboration applications. A properly configured antenna helps ensure that users receive stable connections throughout the workspace.

Educational institutions can also benefit from dual-band antenna solutions. Schools and training facilities often have many wireless devices active at the same time. The Cisco AIR-ANT2524DW-R helps support wireless access points that connect computers, tablets, interactive systems, and other learning technologies.

Healthcare facilities require reliable wireless communication for operational efficiency. Wireless devices used by staff members, administrative systems, and connected equipment depend on consistent network access. The antenna contributes to dependable wireless infrastructure when paired with compatible Cisco networking equipment.

Commercial Wireless Deployments

Retail environments increasingly depend on wireless technology for point-of-sale systems, inventory management, customer services, and operational tools. The Cisco AIR-ANT2524DW-R supports wireless access point deployments that require flexible coverage across customer areas, storage spaces, and administrative locations.

Commercial buildings may include multiple floors, meeting rooms, open workspaces, and high-traffic areas. A suitable antenna helps wireless administrators design networks that provide better coverage and user experiences. The dipole design of this antenna allows it to integrate into many common access point installations.

Warehouses and industrial locations often use wireless systems for tracking, communication, and automated operations. Although environmental conditions vary, reliable wireless connectivity remains a key requirement. The Cisco AIR-ANT2524DW-R provides a practical antenna option for compatible access points used in these types of deployments.

Benefits of Choosing a Cisco Aironet Antenna

Using an antenna designed specifically for Cisco Aironet equipment provides several advantages for network administrators. Compatibility between the antenna and access point helps ensure proper operation and reduces concerns associated with mismatched wireless components. Cisco antenna accessories are developed to work within Cisco wireless networking environments.

The Cisco AIR-ANT2524DW-R supports simplified wireless infrastructure planning by combining two frequency bands into one antenna. This reduces the need for separate antenna models and makes equipment management easier. Organizations can maintain consistent hardware standards across different wireless installations.

The antenna also supports long-term network flexibility. As wireless requirements change, dual-band capability allows networks to continue supporting different types of client devices. This is especially useful for organizations transitioning toward newer Wi-Fi technologies while still maintaining compatibility with existing equipment.

Improving Wi-Fi Coverage with the AIR-ANT2524DW-R

Wireless coverage quality depends on multiple factors, including access point capabilities, antenna performance, network configuration, and physical surroundings. The Cisco AIR-ANT2524DW-R contributes to better coverage by providing appropriate gain levels for both 2.4 GHz and 5 GHz operation.

The antenna helps support balanced wireless communication by allowing access points to distribute signals effectively. This is especially valuable in environments where users move throughout a facility and expect uninterrupted connectivity. Consistent signal availability can improve productivity and reduce connectivity-related issues.

For organizations managing large numbers of wireless clients, antenna selection becomes part of a broader network optimization strategy. The Cisco AIR-ANT2524DW-R provides a reliable component for building scalable wireless networks that support current and future connectivity needs.

Compatibility and Cisco Wireless Infrastructure

The Cisco AIR-ANT2524DW-R is part of the Cisco Aironet antenna family, created for use with compatible Cisco wireless access points. Choosing the correct antenna ensures that wireless hardware operates as intended and supports the required frequency ranges.

Cisco wireless solutions are widely used in enterprise environments because they provide centralized management, security features, and scalable networking capabilities. Accessories such as antennas contribute to the overall performance of these wireless deployments by supporting effective radio communication.

When expanding or upgrading a wireless network, selecting a suitable antenna helps maintain consistency across the infrastructure. The AIR-ANT2524DW-R provides a practical option for organizations that need dual-band support from a trusted networking accessory.
