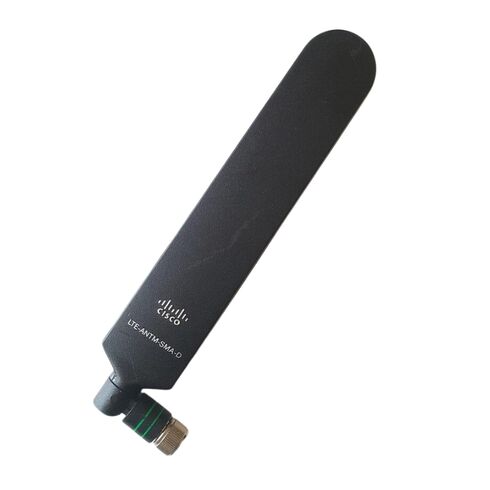

LTE-ANTM-SMA-D= Cisco LTE SMA Dipole Antenna Omni-directional

Cisco LTE-ANTM-SMA-D= LTE Omni-Directional

The Cisco LTE-ANTM-SMA-D= is a high-efficiency omni-directional dipole antenna designed to enhance cellular communication performance across LTE, 3G, and 4G networks. Engineered for stable signal reception and transmission, this antenna delivers consistent connectivity in diverse deployment environments where reliable wireless coverage is essential.

Key Product Highlights

• Omni-directional dipole antenna design for wide-area coverage
• Standard SMA connector for flexible installation compatibility
• Multi-band support across LTE frequency ranges
• Optimized for cellular, 3G, and 4G communication systems
• Balanced gain performance for stable signal quality
• Rugged design suitable for indoor and outdoor deployments

Antenna Design

• Dipole antenna structure for balanced signal propagation
• Omni-directional coverage for 360-degree communication
• Engineered for cellular network optimization
• Stable performance in varying signal conditions

Connector Interface

• SMA-type connector interface
• Easy integration with LTE modems and routers
• Secure and stable physical connection
• Suitable for enterprise and industrial installations

Frequency Bands

• 698 – 960 MHz for low-band LTE and GSM coverage
• 1448 – 1511 MHz for specialized LTE applications
• 1710 – 2690 MHz for mid- to high-band cellular services
• Multi-band support for global network compatibility

Antenna Gain Efficiency

• 2 dB gain for 698 – 960 MHz range
• 2.8 dBi gain for 1447 – 1511 MHz range
• 3.7 dBi gain for 1710 – 2690 MHz range
• Balanced gain distribution for consistent performance

Radiation Pattern Characteristics

• 360-degree signal coverage
• Improved connectivity in multi-user environments
• Reduced signal dead zones
• Ideal for mobile and stationary deployments

VSWR and Signal Stability

• 2.5:1 VSWR at 698 – 960 MHz
• 2.5:1 VSWR at 1447 – 1511 MHz
• 2.0:1 VSWR at 1710 – 2690 MHz
• Improved transmission efficiency and reduced signal loss

Impedance and Signal Matching

• 50-ohm impedance standard
• Enhanced signal transfer efficiency
• Reduced reflection and transmission loss
• Compatible with modern wireless infrastructure

Device and Network Compatibility

• Compatible with LTE networks
• Supports 3G communication systems
• Fully functional with 4G LTE services
• Works with Cisco wireless routers and modems

Durability in Extreme Temperatures

• Minimum operating temperature: -22°F (-30°C)
• Maximum operating temperature: 158°F (70°C)
• Stable performance in harsh outdoor conditions
• Suitable for industrial and remote installations

Advantages of Cisco LTE-ANTM-SMA-D= Antenna

• Omni-directional dipole design ensures wide coverage
• Multi-band LTE support for flexible deployment
• Reliable SMA connector for easy installation
• Stable gain performance across frequency ranges
• Strong compatibility with LTE, 3G, and 4G systems
• Durable construction for long-term wireless performance

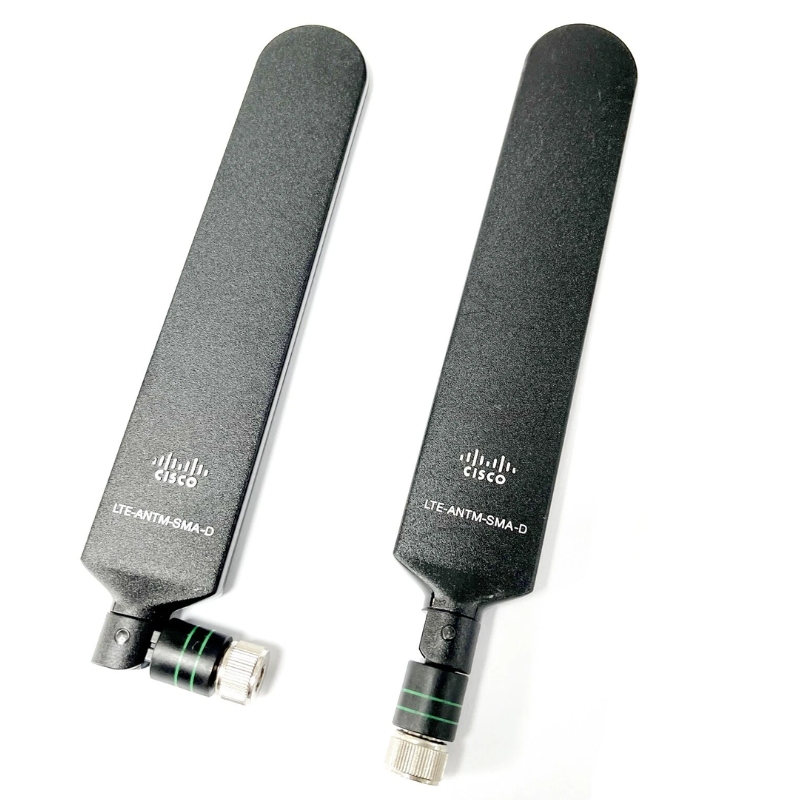

Cisco LTE-ANTM-SMA-D= Dipole Omni-directional Antenna

The Cisco LTE-ANTM-SMA-D= LTE SMA Dipole Antenna Omni-directional belongs to a specialized category of enterprise-grade wireless networking components designed to extend and stabilize LTE cellular connectivity across industrial, enterprise, and remote networking environments. This category of antennas plays a critical role in ensuring reliable wide-area network access for routers, gateways, and cellular-enabled infrastructure that depend on LTE or broadband mobile networks as either primary or failover connectivity channels.

Within modern network architecture, this category represents a foundational layer of wireless signal optimization hardware. While routers and cellular gateways handle data processing and routing logic, LTE antennas such as this Cisco dipole model are responsible for capturing and transmitting radio frequency signals efficiently. The omnidirectional design ensures that signal reception and transmission are maintained across a full 360-degree horizontal plane, making it highly suitable for environments where signal sources may vary in direction or where device mobility and network flexibility are required.

Role of LTE SMA Dipole Antennas in Enterprise Network Infrastructure

LTE SMA dipole antennas are essential components in enterprise wireless ecosystems where wired broadband may be unavailable, unreliable, or used as a secondary connectivity path. The Cisco LTE-ANTM-SMA-D= category is engineered to integrate seamlessly with Cisco LTE-enabled routers and industrial gateways, ensuring stable communication with cellular towers across supported frequency bands.

These antennas are widely used in branch offices, remote industrial sites, transportation systems, and IoT deployments where consistent connectivity is critical for operational continuity. Their SMA connector interface ensures compatibility with a wide range of Cisco networking devices, enabling plug-and-play deployment in standardized LTE configurations.

Importance of Omni-Directional Radiation Patterns

The omni-directional radiation pattern is a defining characteristic of this category. Unlike directional antennas that focus signal strength in a specific direction, omni-directional antennas distribute signal reception and transmission evenly around the horizontal axis. This makes them ideal for environments where the exact location of LTE towers may vary or where multiple towers provide overlapping coverage.

The Cisco LTE-ANTM-SMA-D= leverages this design to ensure consistent signal strength even in dynamic or unpredictable network environments. This is particularly valuable in mobile or semi-mobile installations such as vehicles, temporary field deployments, and distributed enterprise infrastructure.

Signal Distribution and Coverage Optimization

Signal distribution in omni-directional antennas is designed to maximize coverage consistency rather than peak directional gain. This ensures that devices maintain stable LTE connectivity even when environmental conditions change or when physical obstructions affect signal paths. The dipole structure enhances this capability by creating a balanced radiation field around the antenna axis.

In enterprise deployments, this translates into fewer connectivity drops, improved latency stability, and more reliable data transmission over cellular networks. These characteristics are essential for applications such as remote monitoring, backup internet failover systems, and distributed IoT networks.

Cisco LTE-ANTM-SMA-D= Design Architecture and Engineering Principles

The Cisco LTE-ANTM-SMA-D= antenna is engineered with precision RF design principles to ensure optimal performance across supported LTE frequency bands. Its dipole configuration provides balanced signal propagation, while the SMA connector ensures secure and low-loss connectivity to compatible Cisco LTE devices.

The physical design emphasizes durability, compactness, and ease of deployment. This makes it suitable for both indoor and semi-outdoor installations where space constraints and environmental variability must be considered. The antenna is designed to maintain consistent performance across a wide range of operating conditions, including temperature fluctuations and varying electromagnetic environments.

Dipole Antenna Structure and Functional Advantages

Dipole antennas are among the most widely used antenna structures in wireless communications due to their simplicity and efficiency. In the Cisco LTE-ANTM-SMA-D= category, the dipole design ensures balanced current distribution along the antenna elements, which contributes to stable radiation patterns and consistent signal quality.

This structural simplicity also enhances reliability, as there are fewer complex components that could degrade over time. The result is a robust antenna solution suitable for long-term enterprise deployment scenarios where maintenance cycles are minimized.

Electrical Performance and Frequency Stability

Electrical performance in LTE antennas is defined by their ability to maintain stable impedance and resonance across multiple frequency bands. The Cisco LTE-ANTM-SMA-D= is optimized for LTE frequency ranges commonly used in global cellular networks, ensuring compatibility with a wide range of service providers.

Frequency stability is critical for maintaining consistent data throughput and minimizing signal loss. The antenna’s design ensures that impedance matching is maintained, reducing reflection and maximizing signal efficiency between the antenna and connected LTE modem or router.

Enterprise LTE Connectivity

The Cisco LTE-ANTM-SMA-D= category is widely deployed in enterprise environments that require reliable cellular connectivity as part of their network architecture. These use cases span multiple industries, including retail branch networking, industrial automation, transportation systems, and emergency communication infrastructure.

In many cases, LTE antennas serve as a critical backup connectivity solution, ensuring that network services remain operational even if primary wired connections fail. This redundancy is essential for maintaining business continuity in distributed enterprise environments.

Branch Office and Remote Site Connectivity

Branch offices and remote sites often face challenges related to limited broadband infrastructure or unreliable wired connections. The Cisco LTE-ANTM-SMA-D= antenna provides a practical solution by enabling LTE-based internet access through compatible Cisco routers and gateways.

This ensures that remote locations remain connected to centralized enterprise systems, allowing for secure data exchange, cloud application access, and centralized network management. The omnidirectional design ensures flexibility in deployment without requiring precise alignment with cellular towers.

Industrial and IoT Deployment Scenarios

Industrial environments frequently rely on IoT sensors, telemetry systems, and automated machinery that require continuous network connectivity. The Cisco LTE-ANTM-SMA-D= supports these environments by providing stable LTE signal reception for industrial gateways and edge computing devices.

In IoT deployments, consistent connectivity is essential for real-time data collection and analytics. The antenna’s ability to maintain stable connections in challenging RF environments makes it suitable for factories, warehouses, energy facilities, and agricultural monitoring systems.

Impact of Physical Obstructions on LTE Performance

Physical obstructions such as walls, metal structures, and dense urban environments can significantly impact LTE signal quality. The dipole omni-directional design helps compensate for these challenges by maintaining signal reception from multiple angles.

This improves the likelihood of maintaining a stable connection even when direct line-of-sight to a cellular tower is unavailable.

Interference Management in Dense RF Environments

In environments with high radio frequency density, such as urban centers or industrial zones, interference can degrade LTE performance. The Cisco LTE-ANTM-SMA-D= antenna is designed to operate effectively in such conditions by maintaining stable impedance and minimizing signal distortion.

This ensures more reliable connectivity and improved data integrity across LTE communication channels.

Compatibility with Cisco LTE Routers and Gateways

Compatibility with Cisco LTE-enabled devices is a key design feature of this antenna category. The SMA connector interface allows for straightforward installation and ensures secure physical and electrical connectivity. This minimizes deployment complexity and reduces configuration time in enterprise environments.

Network Redundancy and Failover

LTE antennas are often deployed as part of network redundancy strategies, where cellular connectivity acts as a failover mechanism for primary wired connections. The Cisco LTE-ANTM-SMA-D= supports this role by providing stable LTE signal access for automatic failover configurations.

This ensures uninterrupted connectivity for critical business applications even during primary network outages.

High Availability Network Architectures

High availability architectures rely on multiple redundant communication paths to ensure continuous service delivery. The antenna contributes to this by enabling reliable LTE connectivity that can be activated instantly when required.

This is particularly important in industries where downtime can result in operational disruption or financial loss.

Optimal Placement Strategies for Signal Reception

Antenna placement should prioritize minimal obstruction and maximum exposure to LTE signal sources. Elevated positions and locations away from dense structural materials typically yield better performance results.

In enterprise deployments, centralized planning of antenna placement helps ensure consistent coverage across multiple devices and network segments.

Long-Term Reliability and Maintenance Considerations

The Cisco LTE-ANTM-SMA-D= category is designed for long-term operational stability with minimal maintenance requirements. However, periodic inspection of physical connections and environmental conditions helps ensure continued performance.

Maintaining secure SMA connections and protecting the antenna from physical damage or excessive environmental exposure contributes to sustained signal reliability over time.
