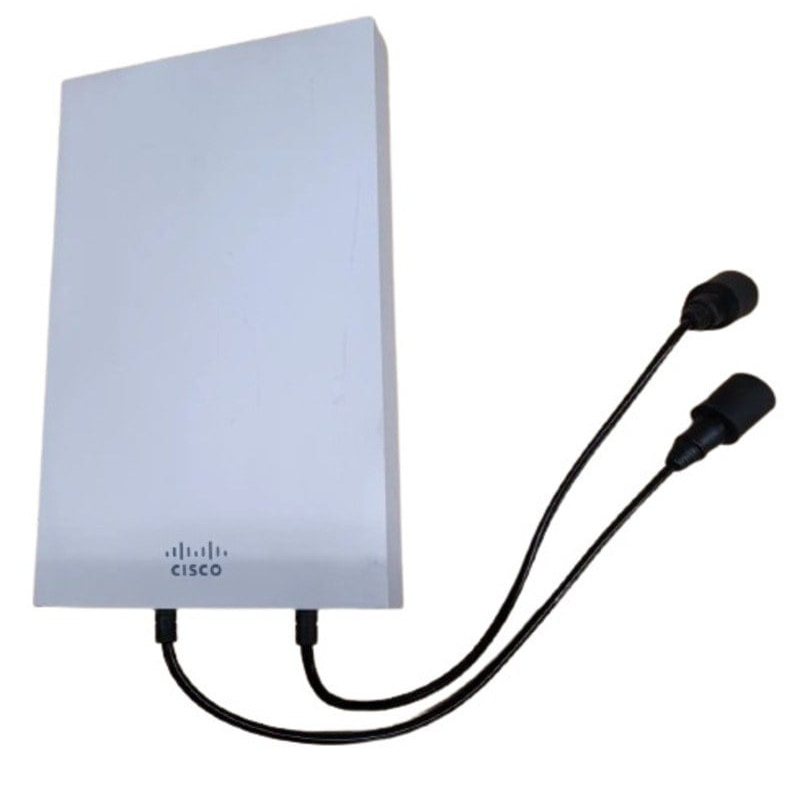

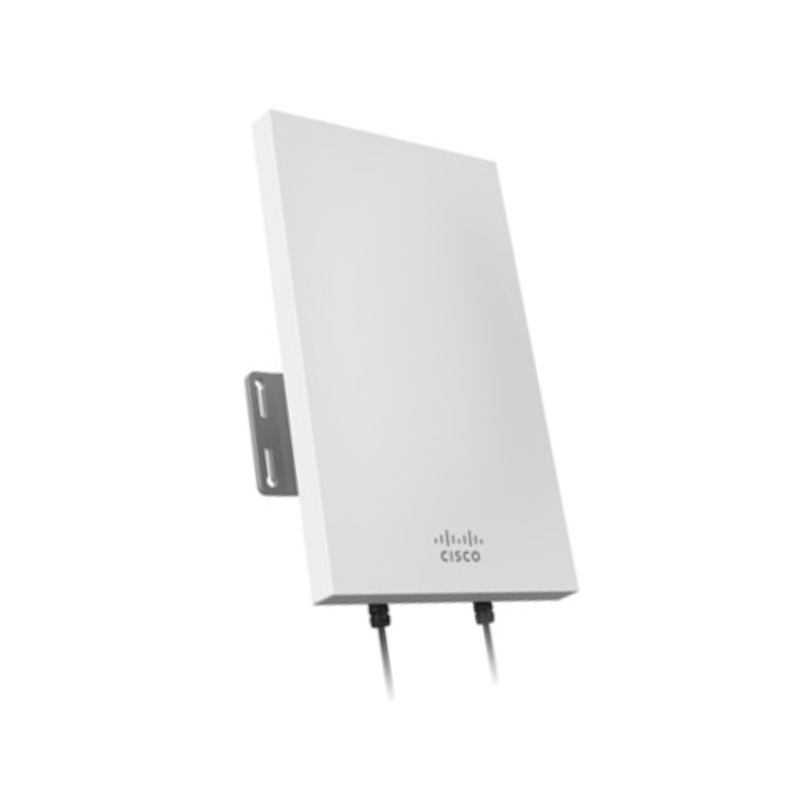

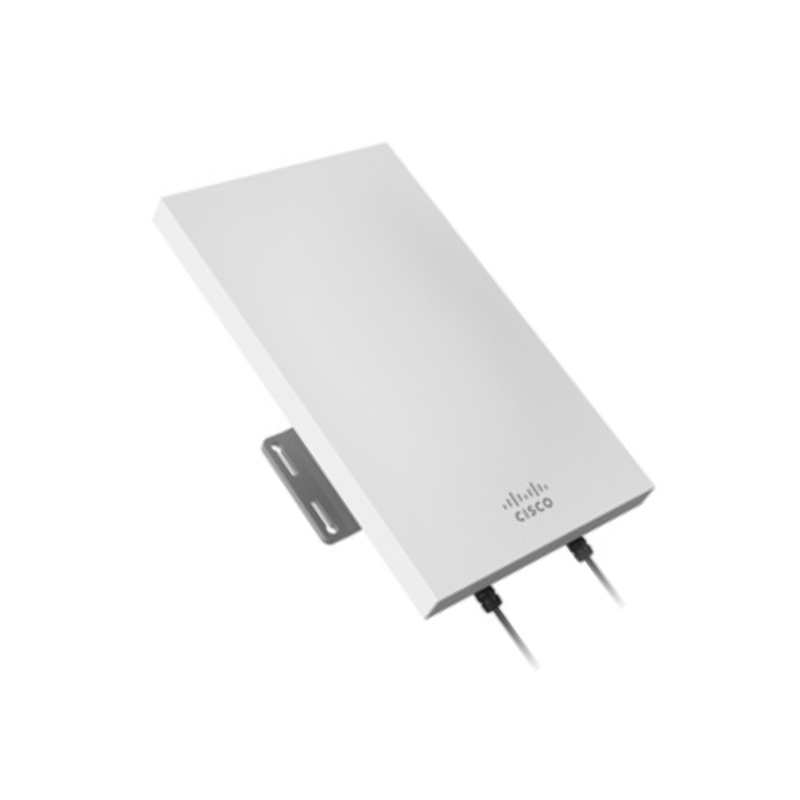

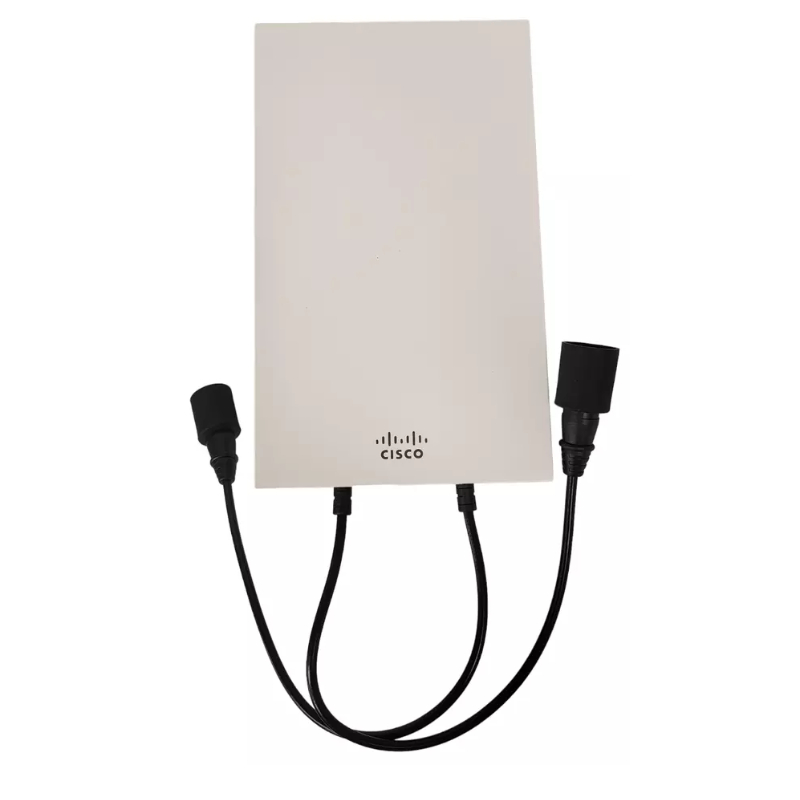

Cisco MA-ANT-27 Meraki Sector Antenna

Cisco MA-ANT-27 Meraki Network Antenna Details

General Information

• Manufacturer: Cisco
• Part Number: MA-ANT-27
• Product Name: Meraki Network Antenna

Technical Specifications

Frequency and Gain

• Frequency Range: 2.40 GHz to 2.50 GHz, 5.15 GHz to 5.88 GHz
• Antenna Gain: 12 dB

Connectivity

• Connector Type: N-connector

Physical Characteristics

Dimensions and Form Factor

• Height: 9.1 inches
• Width: 5.5 inches
• Depth: 1.9 inches
• Form Factor: Patch/Wall/Pole
• Weight: Approximately 1.40 lbs

Usage

Application

• Recommended For: Wireless Access Points

Compatibility

The Cisco MA-ANT-27 Sector Antenna is designed to be compatible with a range of wireless networking devices, but it particularly shines when used with Meraki equipment. Meraki is a leading provider of cloud-managed networking solutions, and their devices are known for their ease of use, reliability, and advanced features. By using the MA-ANT-27 with Meraki devices, users can take full advantage of the antenna's capabilities and enhance their wireless network performance.

Benefits of Using the MA-ANT-27 with Meraki

When used with Meraki equipment, the MA-ANT-27 offers several benefits:

Seamless Integration

The MA-ANT-27 is designed to seamlessly integrate with Meraki devices, ensuring a hassle-free installation process. The antenna can be easily connected to a Meraki access point or wireless router, allowing users to quickly extend the range and coverage of their wireless network.

Optimized Performance

Meraki devices are known for their intelligent and adaptive technology that optimizes network performance. When paired with the MA-ANT-27, this optimization extends to the antenna's capabilities. The Meraki device can intelligently manage and direct traffic to maximize signal strength and minimize interference, resulting in improved network performance and reliability.

Centralized Management

Meraki's cloud-managed networking solutions provide centralized management capabilities, allowing users to easily configure and monitor their entire network from a single interface. The integration between the MA-ANT-27 and Meraki devices ensures that antenna settings can be conveniently managed alongside other network settings, simplifying the overall network management process.

Advanced Features

The combination of the MA-ANT-27 and Meraki devices unlocks access to advanced features that further enhance the wireless network. These features may include real-time analytics, automated network optimization, seamless roaming, and integrated security measures. Users can take advantage of these features to create a robust and secure wireless network infrastructure.

Frequency Range

The Cisco MA-ANT-27 Sector Antenna operates in both the 2.4 GHz and 5 GHz frequency bands. This dual-band capability provides users with increased flexibility, improved performance, and enhanced network capacity.

Benefits of Dual-Band Operation

By supporting both the 2.4 GHz and 5 GHz frequency bands, the MA-ANT-27 offers the following benefits:

Expanded Coverage

The 2.4 GHz band provides better coverage over long distances and through obstacles, making it ideal for outdoor deployments or areas with a high density of devices. On the other hand, the 5 GHz band offers faster speeds and is less prone to interference, making it suitable for applications that require high bandwidth or operate in crowded environments. The dual-band capability of the MA-ANT-27 allows users to leverage both bands for optimal coverage and performance.

Increased Capacity

The availability of two frequency bands allows for better distribution of devices, reducing congestion and improving overall network capacity. By utilizing the 2.4 GHz and 5 GHz bands simultaneously, users can connect more devices to their wireless network without sacrificing speed or experiencing performance degradation.

Flexible Network Design

The ability to operate in both frequency bands gives users the flexibility to design their wireless networks according to their specific requirements. They can allocate different types of devices or applications to different bands based on their performance needs or interference considerations, ensuring a tailored network design that maximizes efficiency and user experience.

Gain

The Cisco MA-ANT-27 Sector Antenna features a gain of 14 dBi, which plays a crucial role in enhancing the signal strength and coverage of a wireless network.

Benefits of High Gain

The high gain offered by the MA-ANT-27 provides several benefits to users:

Extended Coverage

A higher gain allows the antenna to radiate the signal in a more focused and concentrated manner, resulting in an extended coverage area. With a gain of 14 dBi, the MA-ANT-27 can amplify the signal and reach distant devices or areas that would otherwise be out of range. This is especially useful for large outdoor deployments or locations with challenging terrain.

Better Signal Quality

The increased gain of the MA-ANT-27 helps improve the signal quality by reducing noise and interference. By focusing the signal in a specific direction, the antenna can minimize unwanted signals from other sources and enhance the overall signal-to-noise ratio. This leads to a more reliable and stable connection, especially in environments with high levels of interference.

Improved Throughput

With its higher gain, the MA-ANT-27 can transmit and receive signals more efficiently, resulting in improved throughput. The antenna's ability to concentrate the signal allows for faster data transfer rates and reduced latency. This is particularly important for bandwidth-intensive applications or environments where multiple users are accessing the network simultaneously.

Beamwidth

The Cisco MA-ANT-27 Sector Antenna has a beamwidth of 90 degrees, which determines the width of coverage provided by the antenna's main lobe.

Benefits of Wide Beamwidth

The wide beamwidth of the MA-ANT-27 offers several advantages:

Broader Coverage Area

A wider beamwidth means that the antenna can cover a larger area with a single installation. With a 90-degree beamwidth, the MA-ANT-27 can provide coverage to a wide sector, making it suitable for applications such as point-to-multipoint connections or surveillance systems that require monitoring a broad area. This allows for efficient use of resources and reduces the need for multiple antennas.

Flexible Deployment Options

The wide beamwidth gives users more flexibility in choosing the antenna's placement and orientation. It allows for greater freedom in aligning the antenna with the desired coverage area, reducing the need for precise pointing or alignment. This simplifies the installation process and makes it easier to adapt the antenna to different deployment scenarios.

Reduced Interference

With its wide beamwidth, the MA-ANT-27 can provide coverage over a larger area without compromising signal strength or quality. This helps minimize interference from nearby sources or neighboring networks, as the antenna's main lobe can capture and transmit signals from a broader range of directions. The reduced interference leads to improved network performance and reliability.

Connector Type

The Cisco MA-ANT-27 Sector Antenna utilizes an RP-TNC connector type, which ensures a secure and reliable connection between the antenna and the wireless device.

Benefits of RP-TNC Connector

The RP-TNC connector offers several benefits to users:

Compatibility

The RP-TNC connector is widely used in the networking industry, making it compatible with various wireless devices and accessories. This allows users to easily connect the MA-ANT-27 to their existing equipment without the need for additional adapters or converters. The compatibility ensures a hassle-free installation process and provides flexibility in choosing compatible devices.

Secure Connection

The RP-TNC connector provides a secure and reliable connection between the antenna and the wireless device. Its threaded design ensures a tight and stable connection, reducing the risk of signal loss or disconnection due to physical movement or environmental factors. This ensures consistent performance and minimizes downtime.

Easy Installation

The RP-TNC connector's design allows for easy installation and removal of the antenna. It can be quickly connected or disconnected from the wireless device without requiring specialized tools or technical expertise. This makes it convenient for users to reposition or replace the antenna as needed, enabling them to optimize their wireless network coverage.

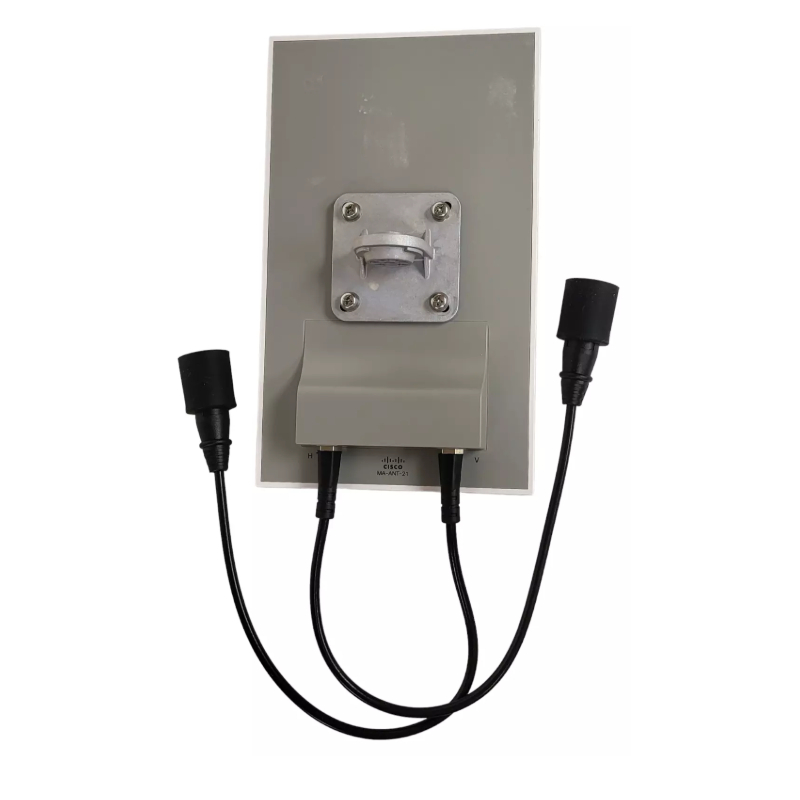

Mounting Options

The Cisco MA-ANT-27 Sector Antenna offers flexible mounting options, allowing users to choose between pole mount or wall mount installations based on their specific requirements.

Benefits of Flexible Mounting

The flexible mounting options provided by the MA-ANT-27 offer the following benefits:

Versatility

The ability to choose between pole mount or wall mount installations gives users the flexibility to adapt the antenna to different environments and deployment scenarios. The pole mount option is ideal for outdoor installations, allowing the antenna to be securely mounted on poles, towers, or other elevated structures. On the other hand, the wall mount option is suitable for indoor deployments or areas where wall mounting is more practical. The versatility of mounting options ensures that users can optimize the antenna's position for optimal coverage and performance.

Ease of Installation

Both pole mount and wall mount options are designed for easy installation. The MA-ANT-27 comes with the necessary mounting hardware, making it straightforward for users to securely attach the antenna to the desired location. The ease of installation saves time and effort, allowing users to quickly set up their wireless network without unnecessary complications.

Space Optimization

The flexibility in mounting options helps optimize space utilization. Users can choose the most suitable mounting method based on the available space and infrastructure. The ability to mount the antenna on a pole or a wall allows for efficient use of limited space, especially in crowded environments where floor or desk space may be at a premium.

Weather Resistant

The Cisco MA-ANT-27 Sector Antenna is weather resistant, offering reliable performance even in challenging outdoor environments.

Benefits of Weather Resistance

The weather resistance feature of the MA-ANT-27 provides several benefits to users:

Durability

The antenna's weather resistance ensures its durability and longevity. It is designed to withstand various weather conditions, including rain, snow, extreme temperatures, and UV exposure. This makes it suitable for outdoor installations where the antenna is exposed to the elements. The durable construction ensures that the MA-ANT-27 can continue to deliver consistent performance and withstand harsh environmental conditions over an extended period.

Reliable Performance

By being weather resistant, the MA-ANT-27 maintains its performance even in adverse weather conditions. The antenna's components are protected from moisture and other environmental factors that could potentially degrade signal quality or cause malfunction. This reliability ensures that users can depend on the antenna to provide consistent coverage and connectivity, regardless of the weather conditions.

Outdoor Deployment

The MA-ANT-27's weather resistance feature makes it an ideal choice for outdoor deployments. Whether it is used for extending wireless coverage in outdoor areas, establishing point-to-point connections, or supporting surveillance systems, the antenna's ability to withstand the elements allows for reliable and uninterrupted operation. Users can confidently deploy the MA-ANT-27 in outdoor environments without concerns about weather-related performance issues.
