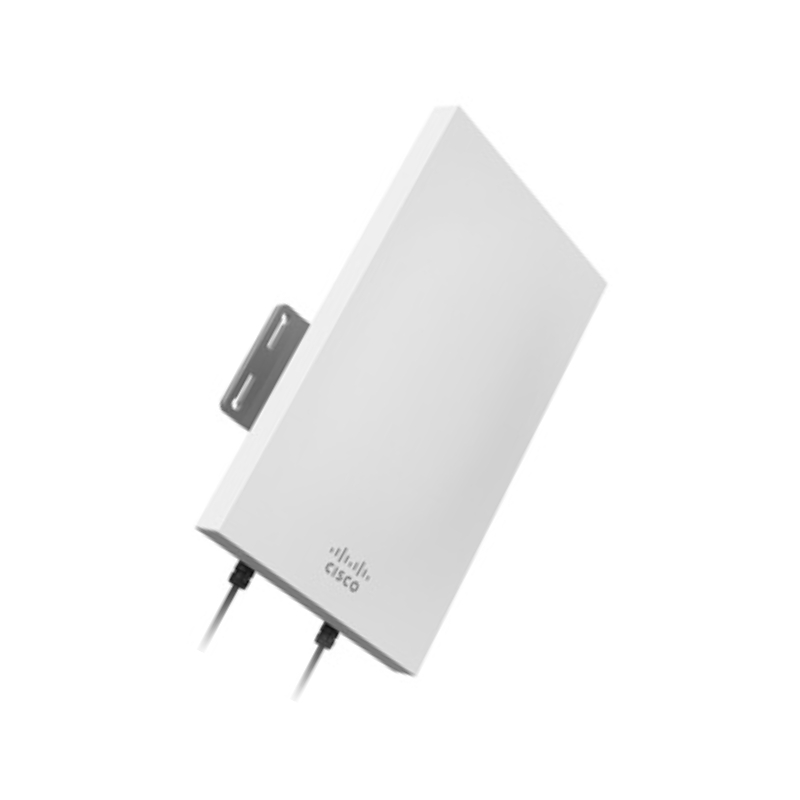

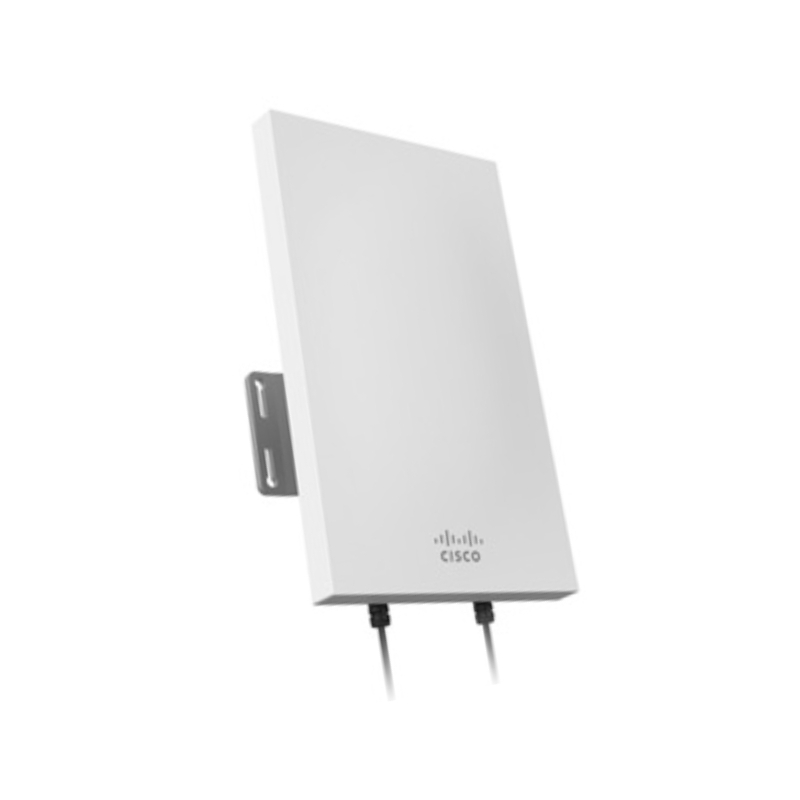

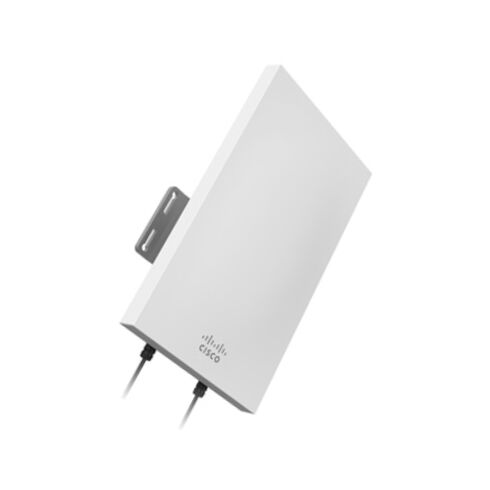

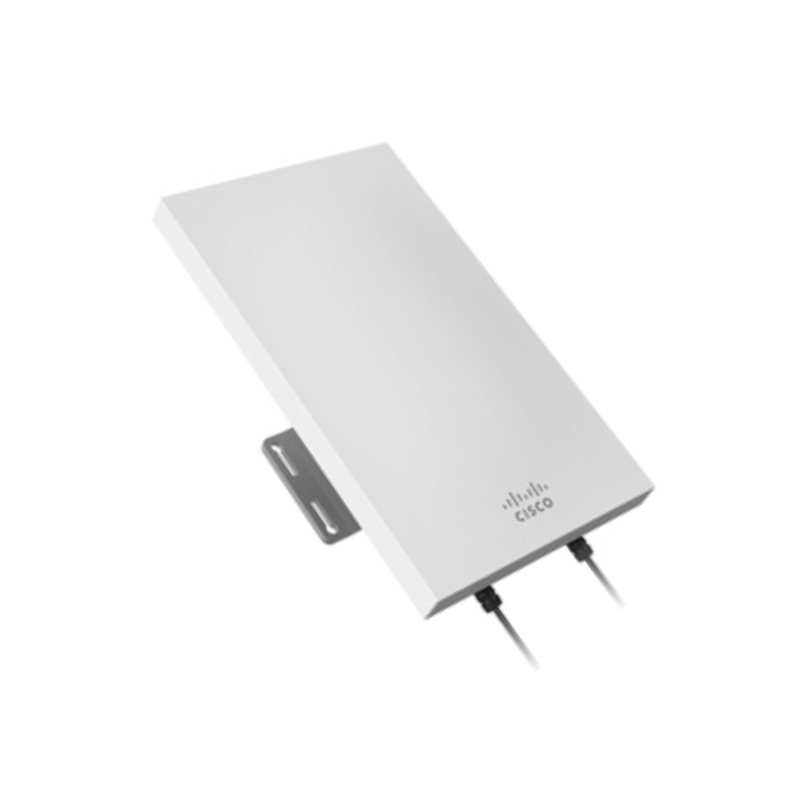

MA-ANT-27 Cisco Meraki Sector Antenna

Cisco MA-ANT-27 Meraki Wireless Access Point Antenna

High-Performance Wireless Network Antenna Solution

The Cisco MA-ANT-27 is a premium dual-band sector antenna designed to enhance wireless coverage and performance in enterprise-grade networking environments. Built for reliability and efficiency, it supports both 2.4 GHz and 5 GHz frequency bands, making it ideal for modern high-density deployments.

Key Manufacturer Details

• Brand: Cisco
• Model / Part Number: MA-ANT-27
• Category: Network Infrastructure Equipment
• Device Type: Wireless Access Point Antenna

Advanced Electrical Performance Specifications

Dual-Band Frequency Support

Engineered for flexible deployment scenarios, this antenna operates efficiently across both commonly used Wi-Fi bands.

• 2.400 – 2.500 GHz (2.4 GHz band)
• 5.150 – 5.875 GHz (5 GHz band)

Signal Gain and Coverage Optimization

• Gain levels: 9 dBi / 12 dBi depending on frequency range
• Enhanced signal directionality for improved coverage density

Beamwidth and Signal Direction Control

• Horizontal Beamwidth: 86° / 65° for broad-to-focused coverage adjustment
• Vertical Beamwidth: 34° / 18° for precision signal targeting

Polarization Capabilities

Supports dual linear polarization for both vertical and horizontal signal alignment, improving connectivity stability in complex environments.

Physical Build and Environmental Durability

Rugged Construction Design

The MA-ANT-27 is constructed using UV-resistant materials, ensuring long-lasting durability even in challenging outdoor or semi-outdoor installations.

• Material: UV-resistant reinforced plastic housing

Dimensions and Compact Structure

• Height: 9.1 inches (230 mm)
• Width: 5.5 inches (140 mm)
• Depth: 1.9 inches (48 mm)

Weight and Installation Efficiency

• Lightweight design: 1.4 lbs (630 g)
• Easy mounting for rapid deployment scenarios

Environmental Operating Conditions

Temperature Resistance Range

• Minimum operating temperature: -40°F (-40°C)
• Maximum operating temperature: 158°F (70°C)

Humidity Tolerance

Designed to function reliably in varying humidity conditions, making it suitable for both indoor and outdoor enterprise installations.

• Operating humidity range: 5% to 95%

Connectivity and Interface Features

Antenna Connector Type

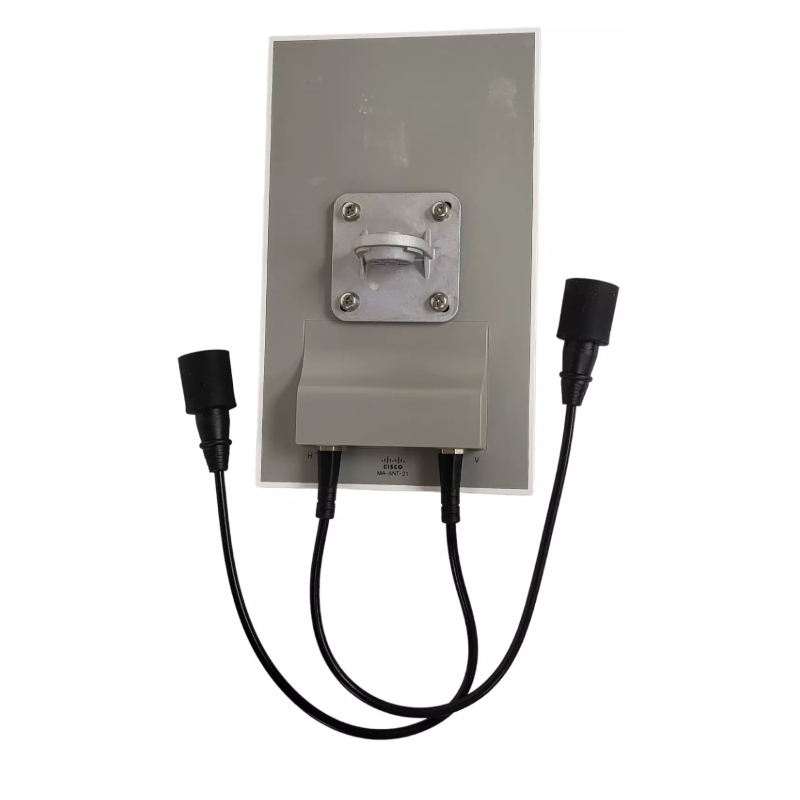

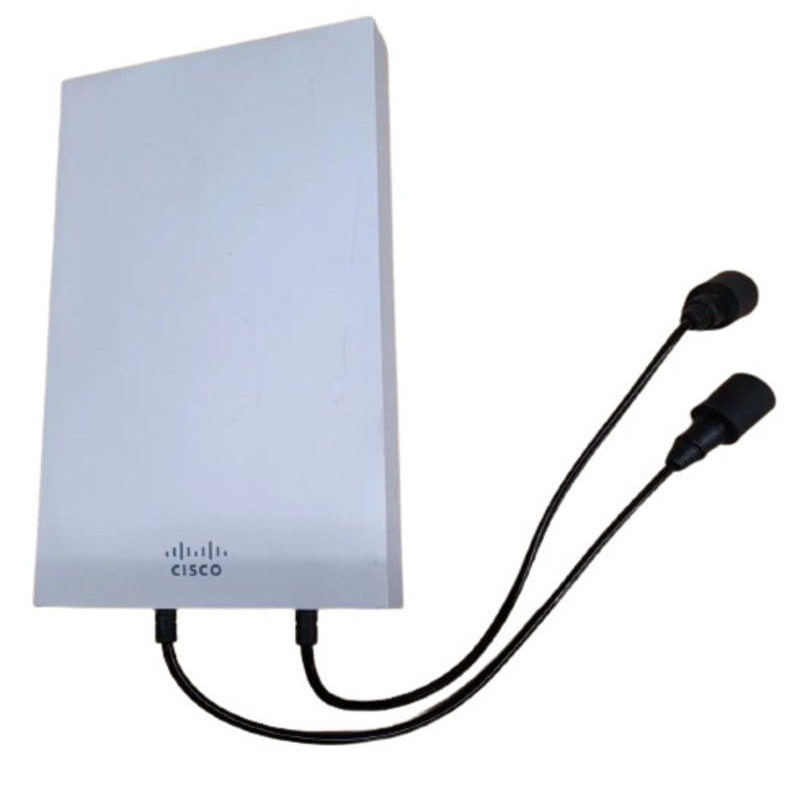

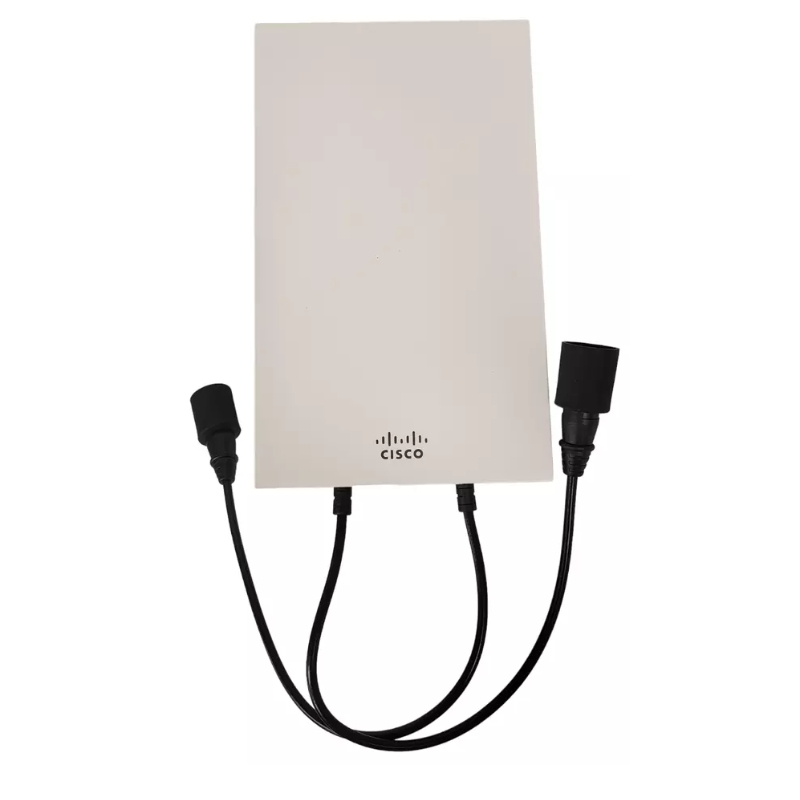

• Dual N-type connectors for stable and secure RF connectivity
• Optimized for integration with Cisco Meraki wireless access points

Deployment Advantages and Use Cases

Ideal Network Environments

• Enterprise campuses and corporate offices
• Large-scale public venues and stadiums
• Industrial wireless networking setups
• Outdoor coverage expansion projects

Performance Benefits

• Improved wireless signal distribution
• Reduced dead zones in high-traffic areas
• Enhanced multi-device connectivity stability
• Efficient dual-band performance optimization

Why Choose Cisco MA-ANT-27 Antenna

• Engineered for enterprise-grade reliability
• Dual-band flexibility for modern wireless demands
• Rugged design suitable for harsh environments
• Optimized beam shaping for targeted coverage

Installation Flexibility Highlights

• Simple mounting configuration for quick setup
• Compatible with a wide range of Cisco Meraki systems
• Adaptable positioning for directional coverage tuning

Cisco MA-ANT-27 Meraki Dual-band Sector Wireless Access Point

The Cisco MA-ANT-27 Meraki Dual-band Sector Antenna is a high-performance wireless networking component designed to enhance the coverage, capacity, and reliability of enterprise-grade Wi-Fi deployments. Engineered for integration with compatible Cisco Meraki wireless access points, this dual-band sector antenna is optimized for directional signal distribution across both 2.4 GHz and 5 GHz frequency bands. Its purpose is to extend wireless connectivity in targeted directions, making it particularly suitable for large-scale outdoor environments, stadiums, campuses, industrial complexes, and high-density public venues where omnidirectional coverage is insufficient.

As part of the Cisco Meraki ecosystem, the MA-ANT-27 antenna contributes to cloud-managed networking infrastructures, ensuring centralized configuration, monitoring, and optimization. The sectorized radiation pattern allows network engineers to precisely control wireless coverage zones, reducing interference and improving signal quality in demanding environments.

Dual-Band Sector Antenna Architecture and Engineering Design

Advanced Radio Frequency Engineering

The MA-ANT-27 is designed with advanced RF engineering principles that support simultaneous operation across dual wireless bands. The antenna structure is optimized to deliver consistent gain performance across both frequency ranges, ensuring balanced connectivity for legacy devices operating at 2.4 GHz and modern high-throughput devices utilizing 5 GHz channels. This dual-band capability is essential in environments where device diversity is high and seamless connectivity must be maintained without manual band steering intervention.

Directional Sector Coverage Design

Unlike omnidirectional antennas that radiate signals in all directions, the Cisco MA-ANT-27 employs a sectorized radiation pattern that focuses wireless energy into a defined horizontal arc. This directional approach increases signal strength within the intended coverage area while minimizing RF pollution in unwanted directions. The result is improved spectral efficiency and reduced co-channel interference, particularly in dense deployments where multiple access points operate in proximity.

Optimized Beam Shaping Technology

The antenna incorporates precision beam shaping techniques that help control vertical and horizontal beamwidth. This ensures that wireless signals are delivered efficiently across long distances while maintaining adequate coverage density for client devices at varying heights and positions. Beam shaping also reduces signal spillover, which is critical in multi-sector deployments where overlapping coverage can degrade performance.

Enterprise Wireless Deployment Scenarios

Large Campus Network Deployments

In enterprise campus environments, the Cisco MA-ANT-27 is often deployed to extend wireless connectivity across outdoor courtyards, walkways, and building perimeters. Its directional design enables network architects to segment coverage areas effectively, ensuring that users experience stable connectivity while moving between buildings or outdoor zones. The antenna’s ability to maintain strong signal integrity over distance makes it an ideal solution for universities, corporate parks, and research facilities.

Stadiums and High-Density Venues

Sports stadiums and large entertainment venues present unique challenges due to extremely high user density and unpredictable traffic patterns. The MA-ANT-27 addresses these challenges by enabling sector-based coverage design, where each antenna focuses on a specific seating section or concourse area. This approach improves user experience by distributing network load evenly and reducing congestion on individual access points.

Industrial and Warehouse Environments

In industrial environments such as warehouses and manufacturing plants, reliable wireless connectivity is essential for operational efficiency. The MA-ANT-27 supports these environments by delivering stable directional coverage across long aisles and high-ceiling structures. Its rugged deployment capabilities ensure that wireless signals remain consistent even in areas with heavy machinery, metal structures, and RF-reflective surfaces.

Performance Characteristics and Wireless Optimization

High-Gain Signal Distribution

The Cisco MA-ANT-27 is engineered to provide high-gain performance that enhances signal reach and penetration. This is particularly important in outdoor deployments where environmental factors such as distance, obstacles, and weather conditions can degrade wireless performance. The antenna’s gain characteristics ensure that data transmission remains stable and efficient even at extended ranges.

Interference Mitigation and Spectrum Efficiency

One of the key advantages of using a sector antenna is its ability to reduce interference by limiting signal dispersion. The MA-ANT-27 helps network administrators manage RF environments more effectively by focusing energy only where it is needed. This results in improved spectrum utilization, reduced noise levels, and enhanced overall network performance in multi-access point deployments.

Channel Reuse Optimization

In dense wireless environments, channel reuse is critical for maintaining throughput and reducing congestion. The directional nature of the MA-ANT-27 allows for more efficient channel reuse strategies by isolating coverage zones. This enables multiple antennas to operate on the same or adjacent channels without causing significant interference, thereby increasing network scalability.

Cisco Meraki Integration and Cloud Management

Seamless Meraki Ecosystem Compatibility

The MA-ANT-27 is fully compatible with Cisco Meraki wireless access points, enabling seamless integration into cloud-managed network infrastructures. Through the Meraki Dashboard, administrators can monitor performance metrics, adjust configurations, and optimize coverage in real time. This centralized management approach simplifies large-scale deployments and reduces operational complexity.

Real-Time Network Analytics

With Meraki cloud analytics, network administrators gain deep visibility into antenna performance, client distribution, and traffic patterns. The MA-ANT-27 contributes to this ecosystem by providing consistent and measurable RF behavior that can be analyzed for optimization. These insights help organizations make data-driven decisions to improve wireless coverage and capacity planning.

Automated Optimization Features

The integration with Meraki’s cloud platform enables automated optimization features such as adaptive power control and dynamic channel selection. These features work in conjunction with the MA-ANT-27 to ensure that wireless performance is continuously optimized based on real-time environmental conditions and client demand.

Wireless Network Design and Scalability

Sector-Based Network Architecture

The MA-ANT-27 supports sector-based network design strategies that divide large coverage areas into manageable RF zones. Each sector can be independently optimized for capacity, coverage, and interference control. This approach is widely used in enterprise and carrier-grade deployments where scalability is a key requirement.

High-Density Client Management

In environments with a large number of connected devices, efficient client management becomes essential. The directional coverage provided by the MA-ANT-27 helps distribute client load evenly across different sectors, reducing congestion and improving user experience. This is particularly important in public venues and enterprise campuses where thousands of devices may connect simultaneously.
