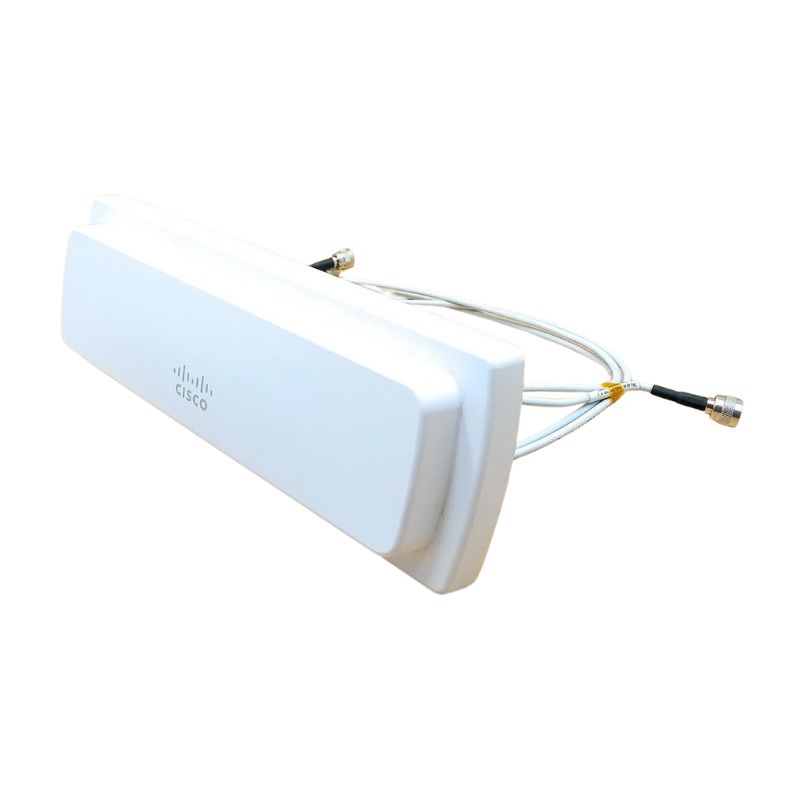

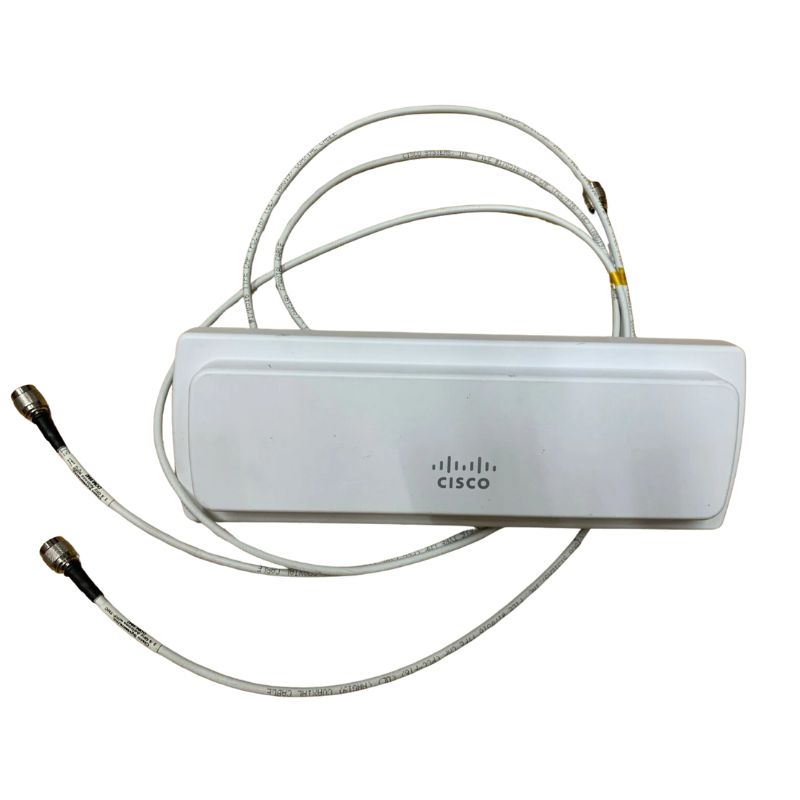

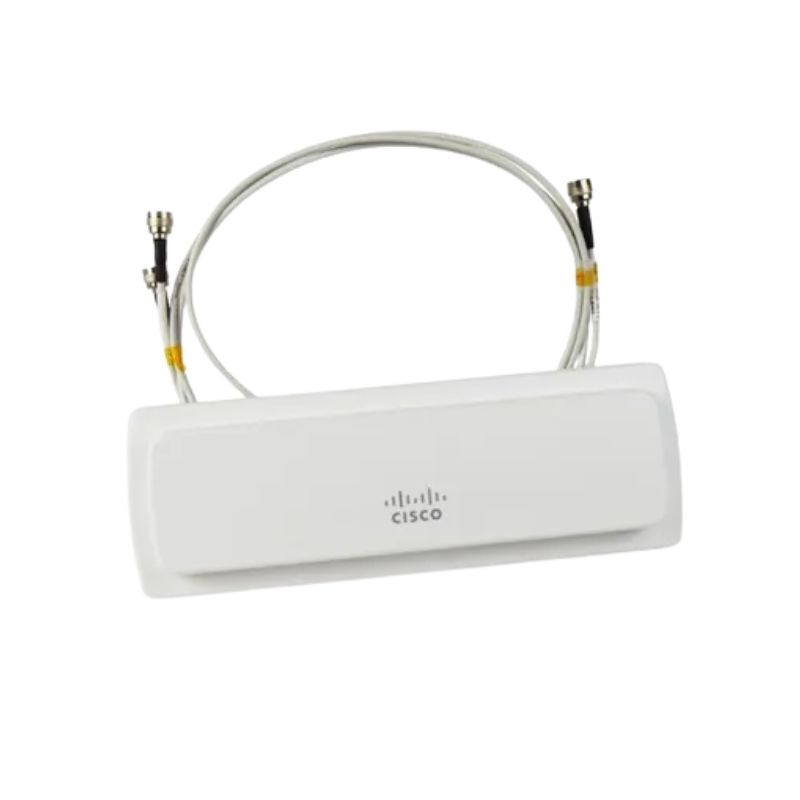

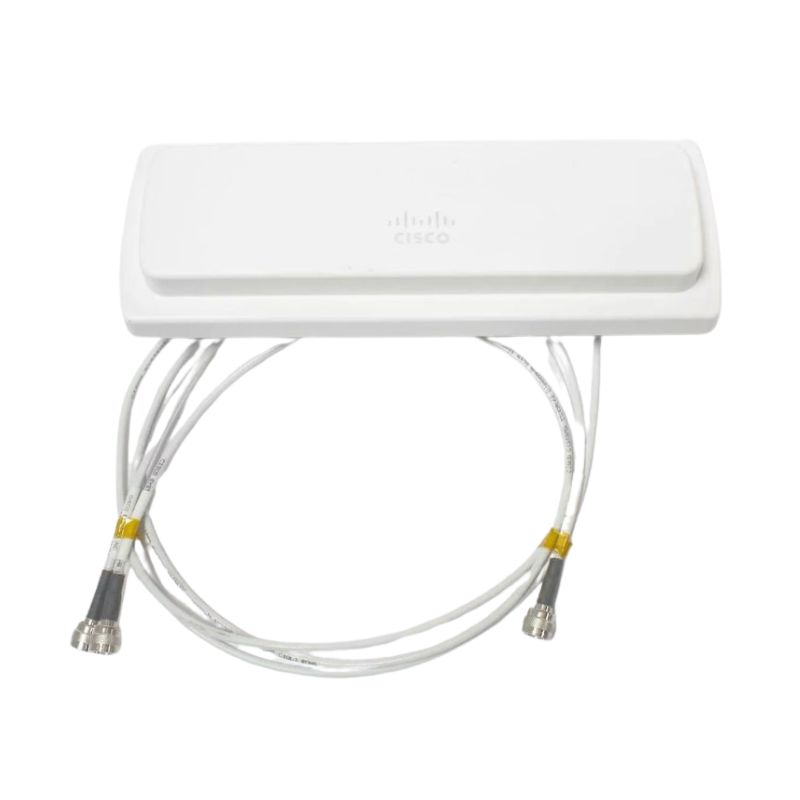

AIR-ANT2430V-R Cisco Aironet Triple Omni Antenna

Overview of the Cisco Aironet Triple Omni Antenna

The Cisco AIR-ANT2430V-R Aironet Triple Omni Antenna is a specialized wireless networking antenna designed for enterprise-grade Wi-Fi deployments where reliable coverage, flexible installation, and consistent signal performance are essential. This antenna belongs to the Cisco Aironet antenna family and is engineered to support wireless access points that require a ceiling-mountable omni-directional antenna solution. With its 3-dBi gain design, the AIR-ANT2430V-R provides balanced wireless coverage suitable for a wide range of indoor environments, including offices, educational facilities, healthcare spaces, retail locations, hospitality venues, warehouses, and other professional networking environments.

General Information

• Manufacturer: Cisco
• Part Number: AIR-ANT2430V-R
• Device Type: Wireless Antenna

Technical Specifications

• Operating Band: Single-band 2.4 GHz
• Frequency Range: 2402 – 2485 MHz
• Peak Gain: 3 dBi
• Polarization: Linear
• Beamwidth: 360° Horizontal (H-Plane) / 60° Vertical (E-Plane)

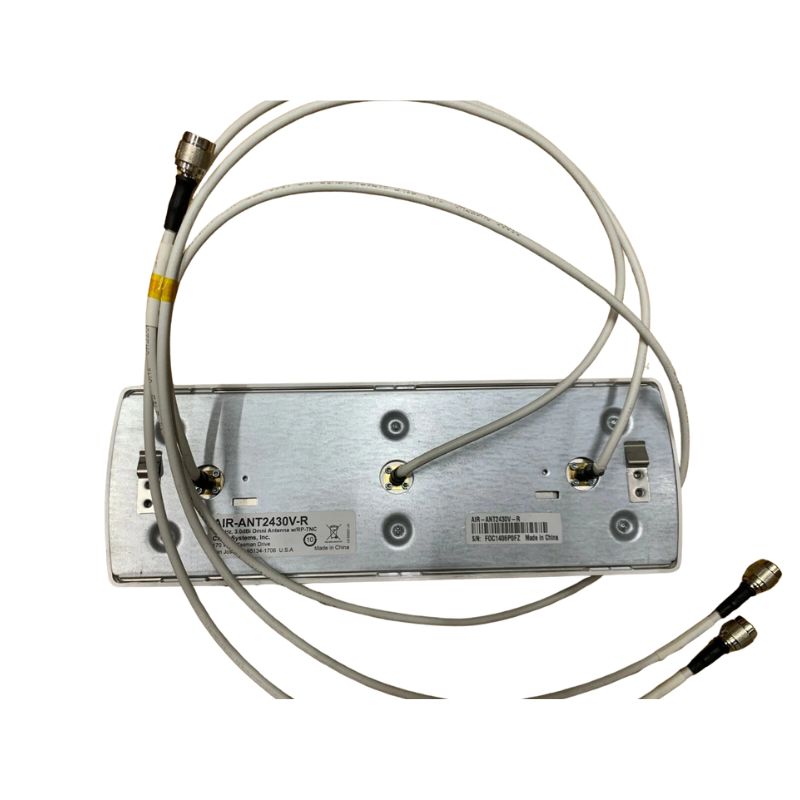

• Connector Type: 3 x RP-TNC plugs
• Cable Setup: 3 x 36-inch (91.4 cm) UV-stable, low-loss cables
• VSWR: Less than 2:1

Compatibility

• MIMO Technology: Engineered specifically for multi-input multi-output 802.11n environments.
• Wireless Standards: Fully backward compatible with legacy 802.11b and 802.11g networks.
• Primary System Match: Expressly designed for Cisco Aironet 1250 series modular access points.
• Secondary System Match: Pairs seamlessly with Cisco Aironet 1260 series access points.
• Enterprise System Match: Integrates with Cisco Aironet 3500e series hardware platforms.
• Specialized System Match: Operates correctly alongside Cisco Aironet 3500p series hardware.
• Frequency Constraint: Restricted from usage on 5 GHz physical radio ports.

The Cisco AIR-ANT2430V-R Aironet Triple Omni Antenna

Built for compatibility with Cisco Aironet wireless infrastructure, this triple omni antenna configuration combines multiple antenna elements into one compact design to improve wireless performance and simplify installation. The antenna provides coverage in multiple directions, allowing Wi-Fi signals to spread evenly across the surrounding area. Its omni-directional pattern makes it an effective choice for locations where users and wireless devices are distributed throughout a space rather than concentrated in a single direction.

The Cisco AIR-ANT2430V-R is designed as a ceiling-mountable antenna, allowing network administrators to position the antenna in an optimal location for stronger wireless accessibility. Ceiling mounting is commonly preferred in enterprise environments because it helps reduce physical obstacles, improves signal distribution, and supports cleaner network installations. The antenna’s design helps maintain a professional appearance while integrating into modern wireless infrastructure layouts.

Understanding the Cisco Aironet Triple Omni Antenna Design

The triple omni-directional design of the Cisco AIR-ANT2430V-R allows multiple antenna elements to work together to support wireless communication performance. Unlike a single-element antenna, a triple antenna arrangement can provide broader functionality when paired with compatible Cisco wireless access points. This design approach helps create a more consistent wireless experience by supporting coverage requirements in different orientations and reducing the limitations associated with traditional directional antennas.

Omni-directional antennas are commonly selected for environments where coverage needs to extend around the access point. The Cisco AIR-ANT2430V-R distributes wireless energy in a pattern designed to serve devices positioned throughout the surrounding area. This makes it suitable for open office layouts, classrooms, meeting areas, public spaces, and other locations where users connect from various positions.

The 3-dBi antenna gain represents a practical balance between coverage range and signal distribution. Higher gain antennas can sometimes focus signals into narrower areas, while lower gain antennas may provide a wider but shorter coverage pattern. The AIR-ANT2430V-R is designed to provide a balanced approach, making it useful for indoor deployments where predictable coverage is more important than long-distance point-to-point transmission.

Ceiling Mountable Wireless Antenna Benefits

The ceiling-mountable structure of the Cisco AIR-ANT2430V-R provides several advantages for enterprise wireless installations. Mounting an antenna on the ceiling helps place the wireless signal source above common obstructions such as furniture, partitions, and equipment. Since many wireless devices operate below ceiling level, this positioning can contribute to improved connectivity throughout the coverage area.

Ceiling installation also supports organized network design. Many businesses prefer ceiling-mounted wireless hardware because it reduces clutter and keeps networking equipment away from high-traffic areas. The Cisco AIR-ANT2430V-R can be incorporated into professional wireless deployments where appearance, reliability, and accessibility are important considerations.

For IT teams managing large wireless networks, a ceiling-mountable antenna can simplify planning and maintenance. Wireless access points can be positioned strategically, and antenna placement can be adjusted to match the needs of the environment. The AIR-ANT2430V-R supports this approach by offering an antenna form factor suited for structured indoor installations.

Enterprise Wireless Coverage Applications

The Cisco AIR-ANT2430V-R Aironet Triple Omni Antenna is commonly associated with enterprise wireless applications where dependable connectivity is required across a defined indoor area. In corporate offices, the antenna can support employee devices, wireless phones, laptops, tablets, and Internet of Things equipment. Its omni-directional coverage characteristics help provide connectivity across workspaces, conference rooms, and shared areas.

In education environments, wireless networks must often support many simultaneous users. Classrooms, libraries, laboratories, and administrative spaces benefit from antennas that can distribute signals evenly throughout a room. The Cisco Aironet antenna design supports these requirements by helping wireless access points deliver coverage to users in different locations.

Healthcare environments also depend on stable wireless communication for operational efficiency. Hospitals, clinics, and medical facilities may use wireless networks for mobile workstations, communication devices, inventory systems, and connected equipment. A properly installed antenna solution like the AIR-ANT2430V-R can contribute to reliable wireless infrastructure planning.

Cisco AIR-ANT2430V-R Wi-Fi 3-dBi Omni-directional Performance

The Cisco AIR-ANT2430V-R provides a 3-dBi omni-directional antenna solution designed for indoor Wi-Fi coverage requirements. Antenna gain is an important specification because it influences how wireless signals are distributed. The 3-dBi rating indicates that this antenna is optimized for balanced coverage rather than extreme range, making it appropriate for environments where consistent connectivity throughout a space is needed.

Wireless networks depend on careful antenna selection to achieve effective performance. The wrong antenna type can create coverage gaps, unnecessary interference, or uneven signal distribution. The AIR-ANT2430V-R is designed to work within Cisco’s wireless ecosystem, helping network professionals select hardware that matches their access point deployment strategy.

Because the antenna operates as an omni-directional solution, it is particularly useful when users may connect from multiple directions around the access point. This differs from directional antennas, which focus wireless energy toward a specific area. Omni-directional antennas are often preferred for general-purpose indoor Wi-Fi coverage because they support flexible user movement and device placement.

Compatibility with Cisco Aironet Wireless Infrastructure

The Cisco AIR-ANT2430V-R is part of the Cisco Aironet antenna range, which was developed to support professional wireless networking deployments. Cisco Aironet products are widely recognized in enterprise environments where network reliability, scalability, and management are important factors. Using a compatible antenna helps organizations maintain a consistent wireless infrastructure design.

Wireless access points rely on antennas to transmit and receive radio frequency signals. The antenna choice influences the overall behavior of the wireless network. The AIR-ANT2430V-R provides a purpose-built antenna option for compatible Cisco wireless access points, allowing administrators to select an antenna that matches their physical environment and coverage goals.

When designing a wireless network, factors such as building layout, wall materials, user density, device types, and access point placement all affect performance. A properly selected antenna helps optimize the relationship between the access point and connected devices. The Cisco AIR-ANT2430V-R offers a practical solution for many indoor deployments requiring dependable omni-directional coverage.

Indoor Wi-Fi Deployment Considerations

Successful Wi-Fi deployment requires more than simply installing access points. Antenna placement, orientation, and environmental conditions all contribute to network quality. The Cisco AIR-ANT2430V-R supports structured wireless planning by providing a ceiling-oriented antenna design that fits common enterprise installation methods.

Buildings contain many factors that can influence wireless signals. Concrete walls, metal structures, electronic equipment, and crowded environments may affect signal behavior. Network professionals often evaluate these conditions before selecting antenna types. The AIR-ANT2430V-R can be used as part of a broader wireless design strategy focused on improving coverage consistency.

The antenna’s compact and professional form factor also supports installations where network equipment must blend into the surrounding environment. Businesses, schools, and public facilities often prefer solutions that provide strong wireless functionality without creating unnecessary visual disruption.

Reliable Connectivity for Modern Devices

Modern organizations depend on wireless connectivity for an increasing number of devices. Employees use laptops and mobile devices, customers expect wireless access, and automated systems often rely on network connections. A dependable antenna solution helps support these growing connectivity demands.

The Cisco AIR-ANT2430V-R contributes to wireless network planning by helping access points provide stable communication with connected devices. While overall performance depends on many factors including access point configuration and network design, a suitable antenna remains an important part of a successful deployment.

Integration of Cisco AIR-ANT2430V-R

The Cisco AIR-ANT2430V-R is designed for straightforward integration into compatible Cisco wireless networking setups. Its ceiling-mountable format supports installations where antennas need to be positioned above the user area for improved signal distribution. Proper installation helps ensure the antenna performs according to its intended design.

Network installers typically consider antenna location, access point placement, cable routing, and surrounding physical conditions during deployment. The antenna should be positioned to support the coverage requirements of the specific environment. The AIR-ANT2430V-R provides flexibility for organizations building or upgrading wireless networks.

Maintenance and long-term reliability are also important considerations in enterprise networking. A professionally installed antenna solution can support stable wireless operation over time. Cisco-designed networking components are commonly selected by organizations that prioritize compatibility and structured infrastructure management.

Supporting Scalable Wireless Networks

As businesses expand their reliance on wireless technology, network scalability becomes increasingly important. Antenna selection plays a role in ensuring that wireless systems can adapt to changing requirements. The Cisco AIR-ANT2430V-R supports scalable wireless planning by providing a reliable coverage option for compatible deployments.

Whether used in a small professional environment or a larger enterprise network, antenna performance contributes to the overall user experience. Stable wireless connections help support productivity, communication, and digital services. The AIR-ANT2430V-R is designed as part of a complete wireless infrastructure approach.
