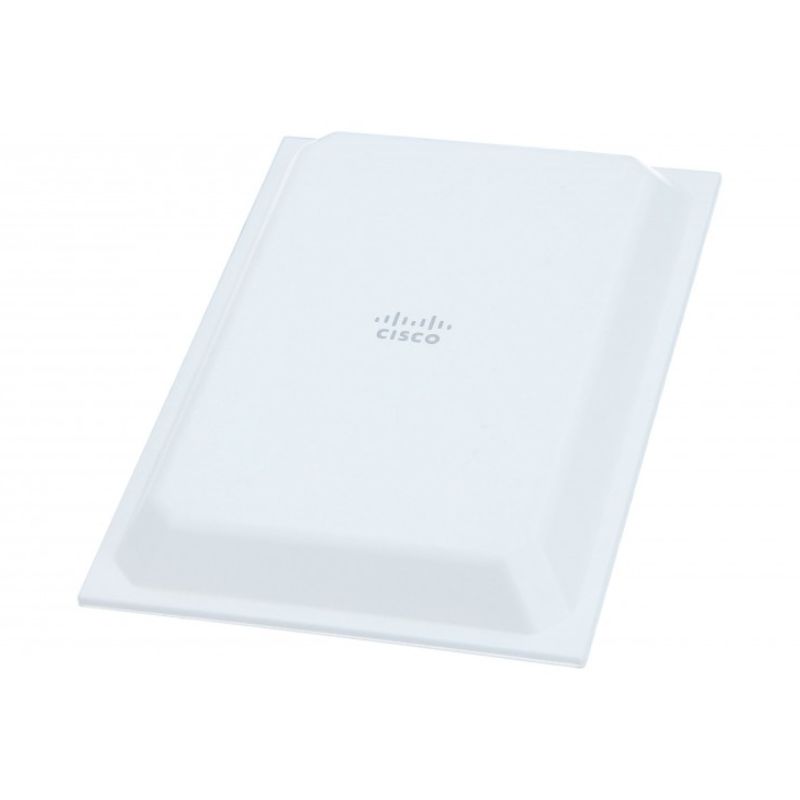

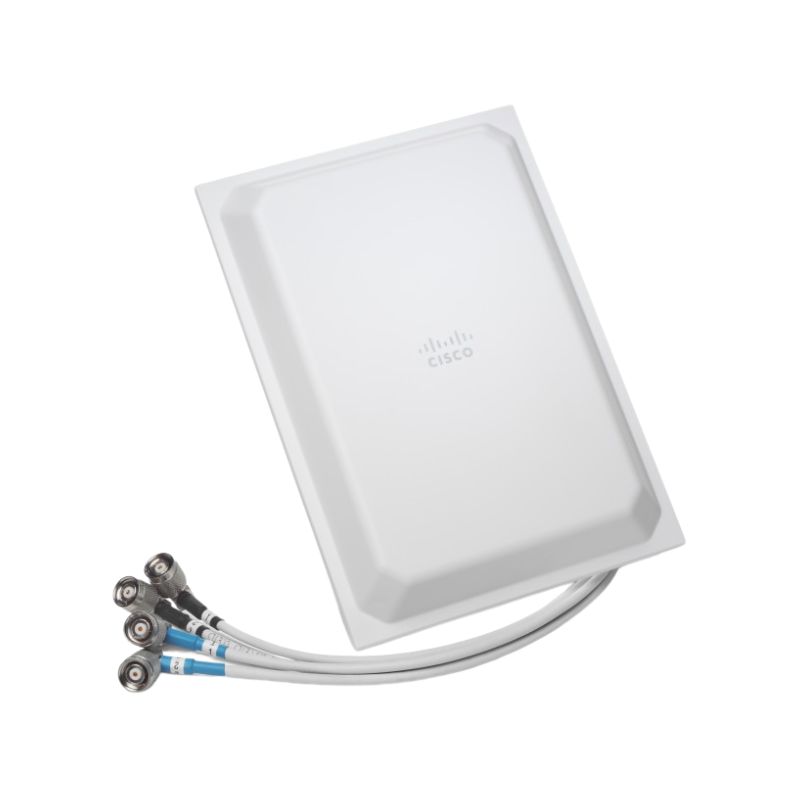

AIR-ANT2451V-R Cisco AIRONET Dual Band Omnidirectional Antenna

Overview of the Cisco Aironet Dual-Band Antenna

The Cisco AIR-ANT2451V-R Aironet antenna is a high-performance four-element dual-band omnidirectional antenna designed for reliable wireless networking environments. This Cisco antenna solution supports both 2.4 GHz and 5 GHz frequency ranges, providing stable wireless coverage, enhanced connectivity, and flexible deployment options for compatible Cisco Aironet access points.

Main Information

• Manufacturer: Cisco
• Part Number: AIR-ANT2451V-R
• Device Type: Wireless Network Antenna

Technical Specifications

• Antenna Type: Four-element dual-band omnidirectional array.
• Operating Frequency: 2.4 GHz (2400-2500 MHz) and 5 GHz (5150-5850 MHz) bands.
• Peak Gain (2.4 GHz): Nominal 2 dBi.
• Peak Gain (5 GHz): Nominal 3 dBi.
• VSWR Bandwidth: 2:1 ratio or less across both operating bands.
• Input Impedance: Nominal 50 Ohms.
• Polarization: Linear arrangement.
• Horizontal Beamwidth: 360° omnidirectional coverage pattern.
• Vertical Beamwidth (2.4 GHz): 80° E-plane distribution.
• Vertical Beamwidth (5 GHz): 50° E-plane distribution.
• Connector Quantity: Four separate integrated radio terminations.
• Connector Type: Right-angle RP-TNC male pigtails.
• Cable Assembly: Four 18-inch (45.7 cm) attached leads.
• Cable Rating: Plenum-rated jacket for safe ceiling deployment.
• Radome Material: UV stable ABS plastic compound.
• UL Flame Rating: UL-94 V0 safety compliance standard.
• Environment Rating: Indoor office installations only.
• Physical Dimensions: 8.5 x 6.0 x 0.93 inches (21.5 x 15.2 x 2.4 cm).
• Physical Weight: 8.5 oz (240 grams).
• Operating Temperature: 32°F to 122°F (0°C to 50°C).

Signal Strength Capability

• 2.4 GHz Peak Gain: 2 dBi
• 5 GHz Peak Gain: 3 dBi

Connectivity Interface

• Four right-angle RP-TNC male connectors
• Reverse-polarity threaded Neill–Concelman interface
• Supports dependable RF signal transmission

Performance Specifications

• VSWR Rating: 2.0:1 or lower across supported frequency bands
• Input Impedance: 50 Ohms
• Designed for consistent wireless communication

Compatibility

• MIMO Technology: Optimized for early multi-input multi-output system configurations.
• Wireless Standards: Fully supports IEEE 802.11a, 802.11b, and 802.11g deployments.
• Interface Requirement: Demands hardware access points with matching RP-TNC female ports.
• Primary System Match: Pairs directly with Cisco Aironet 1250 modular unified series.
• Specific System Match: Fits Cisco Aironet 1252AG standalone and unified platforms.
• Specific System Match: Fits Cisco Aironet 1252G configuration hardware layouts.
• Port Mapping: Requires matching dual-band port paths to use all four leads.

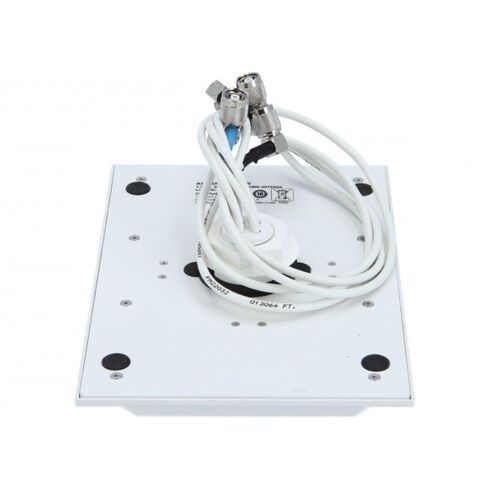

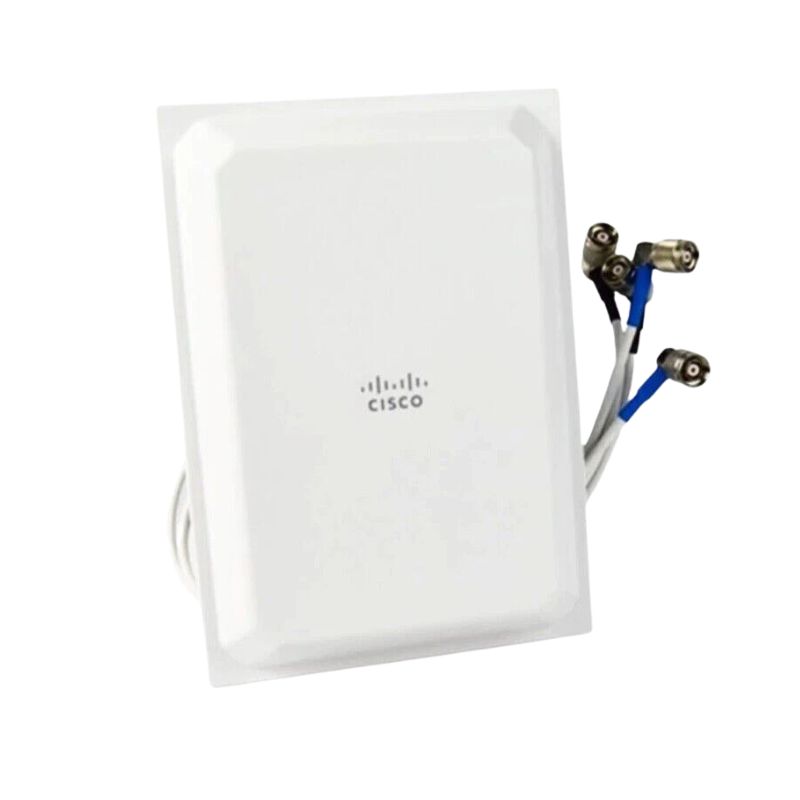

The Cisco AIR-ANT2451V-R Omnidirectional Antenna

The Cisco AIR-ANT2451V-R Aironet Four-Element Dual-Band Omnidirectional Antenna is a professional-grade wireless networking antenna designed for enterprise environments that require dependable, wide-area Wi-Fi coverage, consistent signal distribution, and compatibility with advanced Cisco Aironet wireless infrastructure. This antenna belongs to the category of enterprise wireless LAN antennas and is engineered to support dual-band communication across both 2.4 GHz and 5 GHz frequency ranges. With a four-element omnidirectional design, the antenna provides a balanced radiation pattern that helps distribute wireless signals evenly around the access point location, making it suitable for offices, educational facilities, healthcare environments, warehouses, retail spaces, and other demanding network deployments.

Wireless networks depend on the quality of the connection between access points and client devices, and the antenna plays a significant role in determining coverage, reliability, and overall performance. The Cisco AIR-ANT2451V-R is designed to improve wireless connectivity by providing efficient signal transmission and reception. Its dual-band functionality allows organizations to support modern wireless devices operating on different frequency standards while maintaining strong performance across multiple types of network applications. The antenna is built for use with compatible Cisco Aironet access points and helps network administrators create scalable wireless environments that can handle increasing device density and bandwidth requirements.

The four-element structure of this antenna provides an optimized approach to wireless signal distribution. Instead of relying on a simple single-element antenna design, the multi-element configuration allows improved coverage characteristics and better adaptability in enterprise installations. The omnidirectional pattern is particularly valuable when users and devices are located around the access point rather than in one specific direction. This makes the antenna a practical solution for open spaces and environments where consistent connectivity throughout the surrounding area is required.

Dual-Band Wireless Antenna Technology and Network Performance

The Cisco AIR-ANT2451V-R Aironet Four-Element Dual-Band Omnidirectional Antenna operates across two major Wi-Fi frequency bands, allowing organizations to take advantage of both legacy compatibility and modern wireless capabilities. The 2.4 GHz band has historically been used for broad compatibility because many wireless devices support it. The 5 GHz band provides additional channels and can offer improved performance in areas where interference on the lower frequency range is a concern. By supporting both bands, this antenna enables network designers to create flexible wireless deployments that accommodate a wide variety of client devices.

Dual-band antenna technology is especially important in enterprise networks because wireless traffic patterns continue to evolve. Modern businesses rely on cloud applications, video conferencing, voice communications, wireless collaboration tools, mobile devices, and Internet of Things equipment. These applications require stable and efficient wireless communication. The Cisco AIR-ANT2451V-R supports this requirement by providing an antenna solution that helps access points deliver wireless connectivity across multiple frequency ranges.

The antenna design contributes to improved coverage efficiency by helping maintain consistent signal strength throughout the intended service area. Omnidirectional antennas are commonly selected for environments where users are distributed around a central access point. Rather than focusing energy in a single direction, an omnidirectional antenna spreads the wireless signal around the access point in a horizontal pattern. This design approach makes the AIR-ANT2451V-R useful for installations where network coverage needs to extend across rooms, workspaces, corridors, or open areas.

Enterprise Wi-Fi Coverage Applications

The Cisco AIR-ANT2451V-R is designed for enterprise wireless deployments where reliability and predictable performance are essential. In corporate offices, the antenna can support employee workstations, wireless laptops, mobile devices, and collaboration systems. In educational environments, it can help provide wireless access for classrooms, libraries, laboratories, and shared learning spaces. In healthcare facilities, reliable wireless connectivity is necessary for communication systems, mobile equipment, and operational technologies.

Warehouses and industrial environments can also benefit from dual-band omnidirectional antenna solutions. These locations often contain large areas where wireless devices move throughout the facility. Inventory systems, handheld scanners, monitoring equipment, and operational devices require continuous connectivity while users and equipment change positions. The omnidirectional characteristics of the Cisco AIR-ANT2451V-R make it suitable for applications where coverage consistency is more important than highly directional signal transmission.

Design Characteristics of the Cisco Aironet Four-Element Antenna

The four-element configuration of the Cisco AIR-ANT2451V-R represents a carefully engineered antenna approach intended to provide balanced wireless coverage. Multiple antenna elements allow the device to manage wireless signal distribution more effectively than basic antenna designs. This architecture supports dual-band operation while maintaining a compact and practical form factor suitable for enterprise installations.

The physical design of the antenna is created for professional networking environments where equipment must operate consistently over extended periods. Enterprise antennas are expected to function in locations with many users, multiple wireless devices, and changing network conditions. The AIR-ANT2451V-R is built with these requirements in mind, offering a solution that supports long-term wireless infrastructure planning.

Omnidirectional antenna designs are frequently chosen because they simplify network placement. Instead of requiring precise directional alignment, these antennas provide broad coverage around the mounting location. This allows network administrators to position access points in central locations and distribute wireless connectivity throughout the surrounding area. This approach can reduce installation complexity and make wireless expansion easier as organizations grow.

Importance of Antenna Selection in Wi-Fi Deployment

Selecting the right antenna is a critical part of designing a successful wireless network. Different environments have different coverage requirements, and antenna characteristics influence how signals travel through those spaces. Factors such as building layout, physical obstacles, device density, and user activity all affect wireless performance.

The Cisco AIR-ANT2451V-R fits deployments where a broad coverage pattern is required. Its dual-band capability helps network designers support multiple generations of wireless devices while preparing infrastructure for future connectivity needs. Choosing an antenna that matches the access point placement and coverage goals can improve user experience and reduce areas with weak wireless connectivity.

Wireless Reliability and Signal Distribution

Reliable wireless communication depends on more than just access point power. The antenna must efficiently transmit and receive radio frequency signals so devices can maintain stable connections. The Cisco AIR-ANT2451V-R is designed to provide consistent signal distribution, supporting applications that require dependable wireless access.

Enterprise networks often experience challenging radio environments due to interference from neighboring wireless networks, electronic equipment, and building materials. A suitable antenna can help network planners create better coverage strategies by providing predictable performance characteristics. The AIR-ANT2451V-R supports professional wireless deployments where maintaining connectivity quality is a priority.

Cisco Aironet Antenna Solutions for Modern Networks

Cisco Aironet wireless solutions are widely used in enterprise networking because they provide infrastructure designed for organizations with complex connectivity needs. Antenna accessories such as the Cisco AIR-ANT2451V-R extend the capabilities of wireless access points by allowing administrators to choose antenna configurations that match specific deployment requirements.

The role of an antenna in a wireless network continues to become more important as organizations connect more devices. Smartphones, tablets, laptops, sensors, and specialized wireless equipment all compete for network resources. A well-designed antenna solution helps create a stable wireless environment where users can access applications without unnecessary interruptions.

The Cisco AIR-ANT2451V-R is positioned as a professional wireless accessory that supports the ongoing demand for stronger and more flexible Wi-Fi networks. Its dual-band operation and omnidirectional coverage make it appropriate for many common enterprise scenarios where balanced wireless performance is needed.

Benefits of Using a Dual-Band Omnidirectional Antenna

A dual-band omnidirectional antenna provides several practical advantages for network deployments. Supporting both 2.4 GHz and 5 GHz allows greater flexibility when managing wireless traffic. Devices that require wider compatibility can continue using the 2.4 GHz range, while newer devices can take advantage of the additional capacity available through 5 GHz connectivity.

The omnidirectional design provides coverage around the access point, helping users connect from multiple directions. This is useful in environments where people move throughout a space or where wireless clients are distributed across a broad area. The four-element design further supports a more advanced approach to wireless communication compared with basic antenna solutions.

Another important advantage is deployment simplicity. Network teams can install compatible antennas as part of a planned wireless infrastructure strategy without requiring highly specialized positioning techniques. This makes the Cisco AIR-ANT2451V-R a practical option for organizations seeking dependable wireless expansion.

Suitable Environments for Installation

The Cisco AIR-ANT2451V-R can be used in a wide range of professional settings. Corporate offices may use this antenna to support employee productivity applications and wireless collaboration platforms. Schools and universities may deploy it to improve access for students and staff. Healthcare organizations may rely on wireless networks for communication, equipment monitoring, and operational workflows.

Retail environments can also benefit from reliable wireless coverage because point-of-sale systems, inventory tools, and customer-facing services increasingly depend on connectivity. Industrial facilities require strong wireless infrastructure to support operational technologies and mobile equipment. In each of these scenarios, a dual-band omnidirectional antenna provides a flexible approach to extending wireless access.

Network Planning Considerations for the Cisco AIR-ANT2451V-R

When deploying the Cisco AIR-ANT2451V-R, network planners consider several factors to achieve the desired wireless coverage. Access point placement, antenna orientation, building construction, and expected user activity all influence the final network performance. Proper planning ensures that the antenna can deliver the intended coverage pattern.

Wireless engineers typically evaluate the environment before installation to determine where access points should be located and which antenna type best matches the requirements. The AIR-ANT2451V-R is suitable when a broad horizontal coverage pattern is needed and users are expected to connect from various directions.

Enterprise wireless networks also benefit from regular monitoring and optimization. As organizations add more devices and applications, wireless requirements may change. A flexible antenna solution helps support adjustments and expansions without requiring a complete redesign of the network infrastructure.

Supporting High-Density Wireless Environments

Modern wireless environments often contain many connected devices operating at the same time. Conference rooms, classrooms, public spaces, and shared work areas can experience high demand during busy periods. The Cisco AIR-ANT2451V-R supports these environments by providing an antenna solution designed for professional wireless deployments.

High-density wireless planning involves balancing coverage and capacity. An antenna that provides consistent signal distribution helps users maintain connections as they move through the environment. Combined with appropriate Cisco wireless equipment, the antenna contributes to a stronger overall network design.

Enterprise-Grade Antenna Performance for Expanding Connectivity Needs

As wireless technology continues to develop, organizations require infrastructure that can support increasing numbers of devices and more demanding applications. The Cisco AIR-ANT2451V-R helps address these needs by providing a dependable antenna option for Cisco wireless networks. Its design supports efficient communication between access points and wireless clients while maintaining the practical advantages of an omnidirectional antenna.

The combination of dual-band operation, four-element construction, and enterprise compatibility makes this antenna suitable for organizations that need stable wireless coverage. Whether used in business facilities, educational institutions, healthcare locations, retail spaces, or industrial environments, the Cisco AIR-ANT2451V-R provides a foundation for reliable wireless connectivity and scalable network growth.
