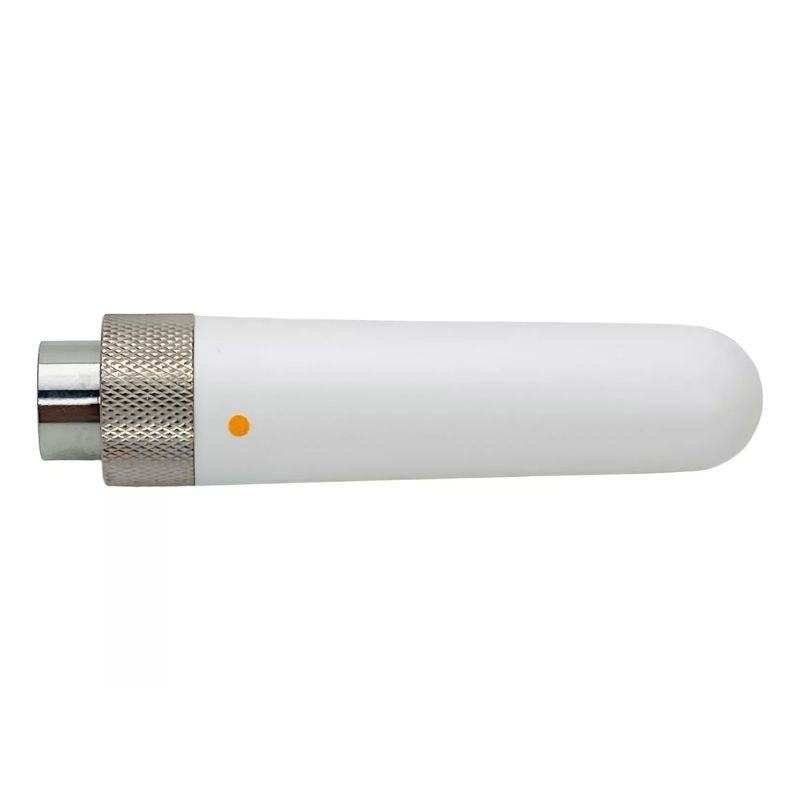

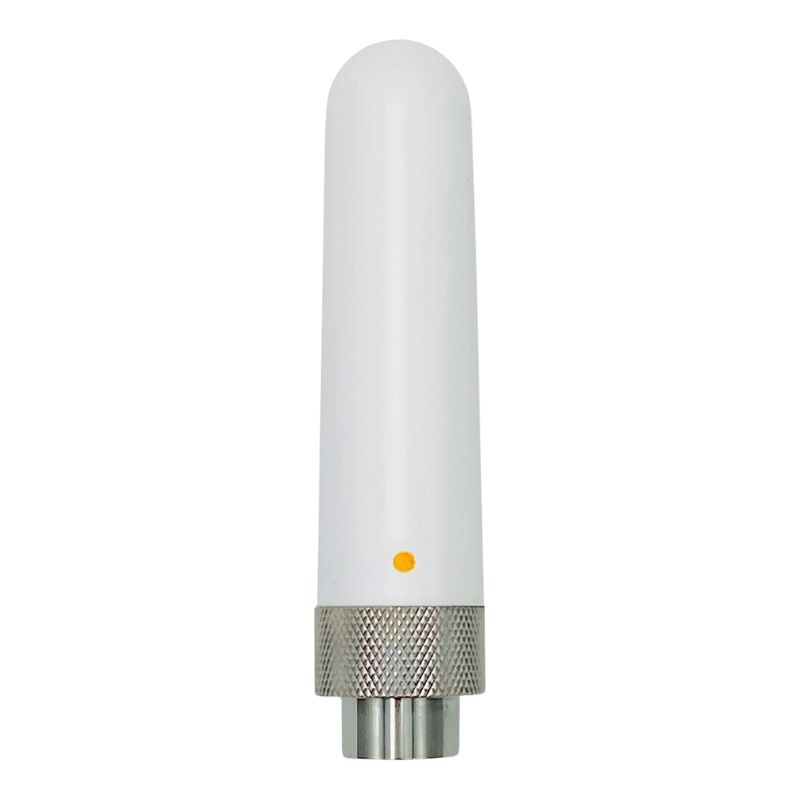

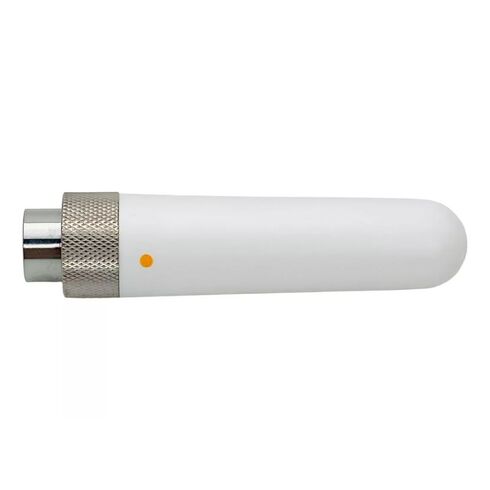

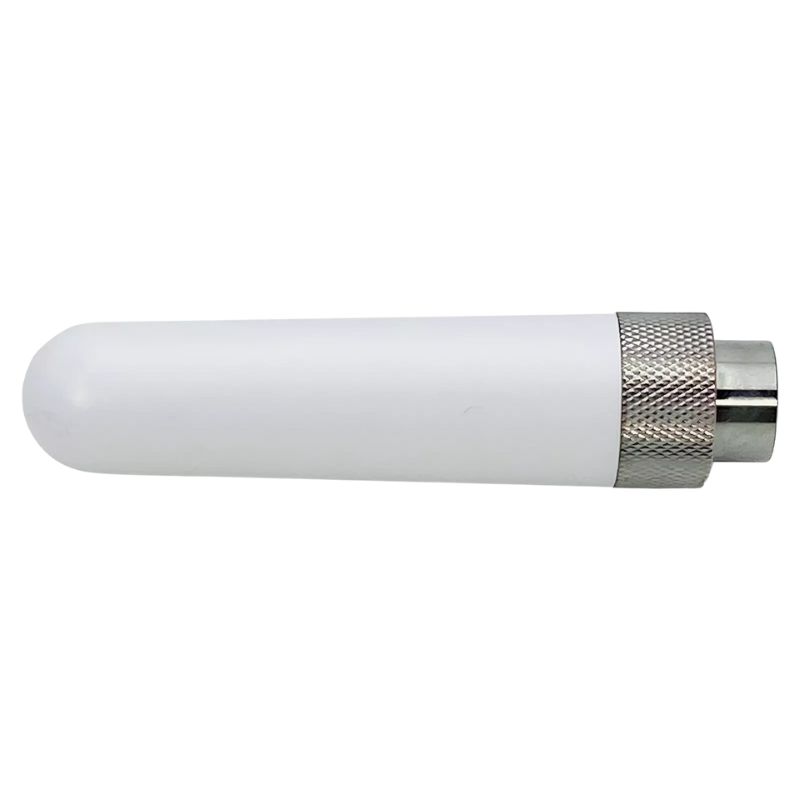

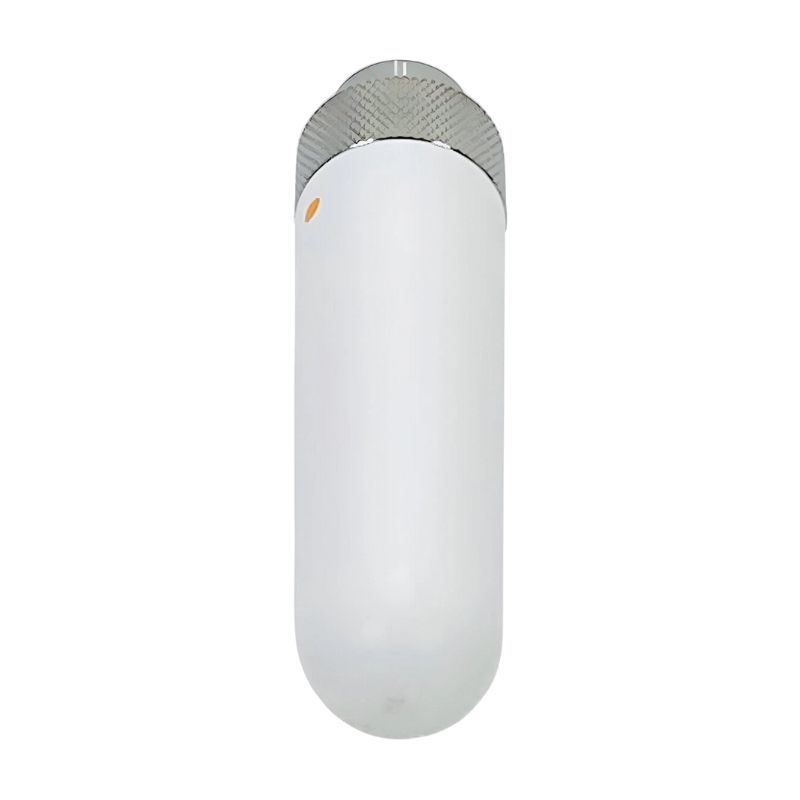

AIR-ANT2535SDW-R Cisco Aironet 5 DBI Antenna Dual-Band Indoor Outdoor

Overview of the Cisco Aironet 5 dBi Antenna

The Cisco AIR-ANT2535SDW-R Aironet Short Dual-Band Antenna is a high-performance wireless networking antenna designed for reliable indoor and outdoor connectivity. This compact antenna solution delivers optimized RF performance across both 2.4 GHz and 5 GHz wireless frequency bands, making it suitable for enterprise Wi-Fi deployments and Cisco Aironet access point environments.

Details Information

• Manufacturer: Cisco
• Part Number: AIR-ANT2535SDW-R
• Device Type: Aironet Antenna

Technical Specifications

• Antenna Type: Dual-band short omnidirectional dipole.
• Operating Frequency Ranges: 2.4 to 2.5 GHz and 5.15 to 5.925 GHz.
• Peak Gain at 2.4 GHz: 3 dBi.
• Peak Gain at 5 GHz: 5 dBi.
• Nominal Input Impedance: 50 Ohms.
• Voltage Standing Wave Ratio: Less than 2.0:1 in both bands.
• Polarization Type: Linear vertical polarization.
• Azimuth Plane Beamwidth: 360-degree omnidirectional coverage.
• Elevation Plane 3dB Beamwidth: 35 to 40 degrees.

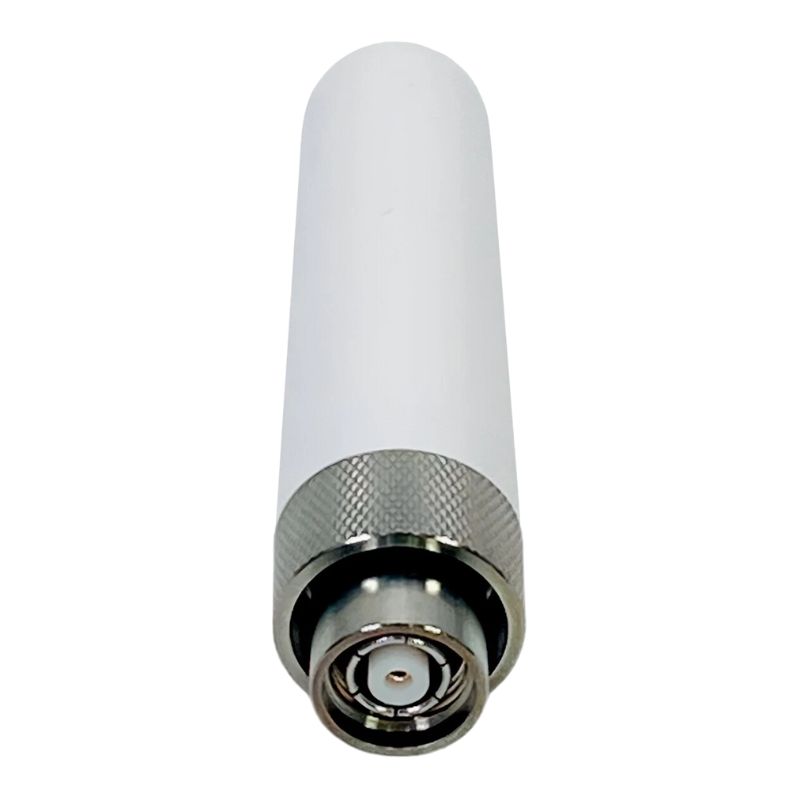

• Connector Type: Direct-mount Male RP-TNC.
• Physical Profile: Compact, low-profile rigid white radome.
• Antenna Height: 3.3 inches.
• Antenna Diameter: 1.25 inches.
• Weight: 1.7 ounces.
• Articulating Joint: None, this model is a rigid stubby antenna.
• Environment Rating: Designed solely for indoor deployments.
• Operating Temperature Range: -30°C to 70°C.

Compatibility

• Cisco Aironet 1600 Series: Compatible with 1602E access points.
• Cisco Aironet 2600 Series: Compatible with 2602E access points.
• Cisco Aironet 2800 Series: Compatible with 2802E access points.
• Cisco Aironet 3600 Series: Compatible with 3602E access points.
• Cisco Aironet 3700 Series: Compatible with 3702E access points.
• Cisco Aironet 3800 Series: Compatible with 3802E access points.
• Cisco Catalyst 9100 Series: Compatible with 9115AXE, 9120AXE, and 9130AXE access points.
• Port Requirement: Hooks directly to standard dual-band RP-TNC antenna ports.

The Cisco AIR-ANT2535SDW-R 5 Dual-Band Antenna

The Cisco AIR-ANT2535SDW-R Aironet 5 DBI Antenna Indoor Outdoor Short Dual-Band is a professional-grade wireless networking antenna designed to improve the performance, coverage, and reliability of compatible Cisco Aironet wireless access points. Built for modern enterprise Wi-Fi environments, this antenna supports dual-band wireless communication, helping organizations maintain strong connectivity across both the 2.4 GHz and 5 GHz frequency ranges. Its compact short design, durable construction, and flexible deployment capability make it suitable for indoor and outdoor wireless networking applications where dependable signal distribution is required.

Wireless infrastructure depends heavily on antenna quality because antennas influence coverage area, signal strength, and overall network stability. The Cisco AIR-ANT2535SDW-R is engineered to provide consistent wireless performance while maintaining a low-profile appearance. With a 5 dBi gain rating, this antenna balances range and coverage efficiency, making it an excellent choice for offices, warehouses, campuses, retail spaces, industrial locations, and other environments requiring reliable wireless communication.

This dual-band antenna solution is designed for users who need improved wireless reach without installing large external antenna systems. The short form factor allows easier installation while helping maintain a clean and professional network deployment. Whether used for expanding Wi-Fi coverage or replacing an existing antenna, the Cisco AIR-ANT2535SDW-R provides a practical solution for enhancing Cisco wireless networks.

Understanding the Cisco Aironet Dual-Band Antenna Technology

The Cisco Aironet antenna family is developed to support enterprise wireless networking requirements by combining advanced radio frequency engineering with practical installation features. The Cisco AIR-ANT2535SDW-R operates across multiple Wi-Fi frequency bands, allowing access points to serve different wireless devices using modern networking standards. Dual-band capability is especially valuable because it helps reduce congestion by distributing wireless clients across available frequencies.

The 2.4 GHz band provides broader coverage and compatibility with many wireless devices, while the 5 GHz band offers additional channels and improved performance potential for newer devices. By supporting both frequencies, the antenna allows network administrators to create flexible wireless environments that can accommodate laptops, mobile devices, industrial equipment, and Internet of Things applications.

The antenna design focuses on maintaining reliable signal patterns across supported frequencies. This helps provide consistent connectivity throughout the deployment area. In professional wireless installations, predictable antenna performance is essential because poor antenna selection can create coverage gaps, unstable connections, and reduced network efficiency.

Compact Short Dual-Band Antenna Design

The Cisco AIR-ANT2535SDW-R features a short antenna structure that is designed for installations where space, appearance, and practicality are important considerations. Many enterprise environments require wireless hardware that blends naturally with existing infrastructure. A compact antenna reduces visual impact while still delivering strong wireless performance.

The short design also makes installation easier in areas where larger antennas may not be suitable. Network equipment installed in offices, conference rooms, classrooms, and public spaces often benefits from smaller antenna solutions that maintain professional aesthetics while supporting dependable wireless coverage.

5 dBi Signal Gain Performance

The 5 dBi gain rating provides a balance between coverage extension and signal distribution. Antenna gain affects how wireless energy is focused, and a properly selected gain level helps optimize performance for specific environments. The Cisco AIR-ANT2535SDW-R is designed to provide improved wireless reach compared with lower-gain antennas while maintaining a practical coverage pattern.

In enterprise networks, antenna gain selection should match the physical environment. A 5 dBi antenna can be effective in areas where users need stable connectivity across moderate distances. It supports applications such as wireless access deployment, mobility solutions, voice communication over Wi-Fi, and connected device networks.

Indoor and Outdoor Wireless Deployment Capability

The Cisco AIR-ANT2535SDW-R Aironet antenna is designed to support both indoor and outdoor networking environments. This flexibility allows organizations to deploy compatible wireless solutions in a variety of locations without requiring separate antenna models for every application.

Indoor deployments may include corporate offices, educational facilities, healthcare environments, hospitality locations, and retail networks. In these spaces, the antenna helps create reliable wireless zones where users expect consistent connectivity for daily operations.

Outdoor deployment scenarios can include campus networks, building-to-building wireless coverage, outdoor work areas, and industrial environments. Outdoor wireless systems require antennas that can handle environmental conditions while maintaining dependable radio frequency performance. The Cisco AIR-ANT2535SDW-R provides a versatile option for extending wireless communication beyond traditional indoor spaces.

Applications of Cisco AIR-ANT2535SDW-R Antenna

Enterprise organizations rely on wireless connectivity for communication, collaboration, cloud applications, and operational systems. The Cisco AIR-ANT2535SDW-R helps support these environments by improving wireless access point performance and coverage. Businesses can use this antenna as part of a structured Wi-Fi deployment designed around employee mobility and device connectivity.

Modern workplaces contain many wireless devices operating simultaneously. Smartphones, laptops, tablets, printers, scanners, and smart equipment all compete for wireless resources. A reliable antenna solution contributes to stronger network design by helping access points deliver stable connections throughout the coverage area.

Education and Campus Networks

Schools, universities, and training facilities require wireless networks that support large numbers of users. Classrooms, libraries, laboratories, and common areas often depend on Wi-Fi access for learning platforms and digital resources. The Cisco AIR-ANT2535SDW-R supports these environments by helping create effective wireless coverage zones.

Because the antenna supports dual-band operation, it can assist with managing different types of client devices. Older wireless equipment can continue using compatible frequencies while newer devices take advantage of higher-performance wireless bands.

Industrial and Commercial Wireless Systems

Industrial environments often require wireless connectivity for monitoring systems, inventory management, automation equipment, and communication devices. These locations may experience challenges such as large spaces, physical obstacles, and changing usage patterns. Proper antenna selection helps maintain reliable communication between wireless devices and network infrastructure.

The compact yet durable design of the Cisco AIR-ANT2535SDW-R makes it suitable for commercial deployments where dependable wireless operation is required. It can support network expansion projects and replacement installations while maintaining compatibility with Cisco wireless platforms.

Improved Wireless Coverage

A properly designed antenna improves how wireless signals are distributed throughout a location. The Cisco AIR-ANT2535SDW-R helps optimize coverage by providing a balanced signal pattern suitable for many deployment scenarios. This can reduce weak signal areas and improve user experience across connected devices.

Reliable coverage is especially important for applications that require constant communication. Voice over Wi-Fi, video meetings, cloud services, and real-time business applications all depend on stable wireless connections.

Enhanced Network Flexibility

The dual-band functionality of this antenna provides flexibility for wireless network planning. Administrators can design networks that support multiple device types and frequency requirements. This makes the antenna a useful component in evolving wireless environments where technology demands continue to increase.

As organizations upgrade their wireless infrastructure, compatible antenna solutions help extend the usefulness of existing access points. The Cisco AIR-ANT2535SDW-R provides a practical upgrade path for improving connectivity without completely redesigning a wireless system.

Cisco Aironet Antenna

Proper installation plays an important role in achieving optimal antenna performance. Antenna placement, orientation, and surrounding physical conditions can influence wireless results. Network professionals typically evaluate the environment before installation to determine the best location for maximum coverage.

The Cisco AIR-ANT2535SDW-R is designed to integrate with compatible Cisco Aironet equipment, helping simplify deployment. Its compact design supports installations where space efficiency and appearance are important. When installed correctly, the antenna contributes to a more stable and efficient wireless network.

Choosing the Right Antenna for Wireless Infrastructure

Selecting an antenna requires consideration of network goals, physical layout, frequency requirements, and expected device usage. The Cisco AIR-ANT2535SDW-R is suited for environments that need dependable dual-band connectivity with a practical gain level. It offers a combination of performance and convenience that fits many professional wireless applications.

Organizations investing in wireless infrastructure benefit from choosing components designed for compatibility and reliability. Cisco Aironet antennas are developed to work within Cisco networking ecosystems, helping administrators build efficient wireless solutions with predictable performance.

Cisco AIR-ANT2535SDW-R for Modern Wi-Fi Expansion

Wireless technology continues to become more important as businesses and organizations rely on connected systems. Expanding wireless networks requires hardware that can support increasing device numbers and changing connectivity needs. The Cisco AIR-ANT2535SDW-R Aironet 5 DBI Antenna Indoor Outdoor Short Dual-Band provides a reliable antenna option for strengthening wireless deployments.

Its combination of dual-band support, compact construction, and professional-grade performance makes it valuable for a wide range of networking projects. From improving office connectivity to supporting larger wireless environments, this antenna helps deliver a dependable foundation for wireless communication.
