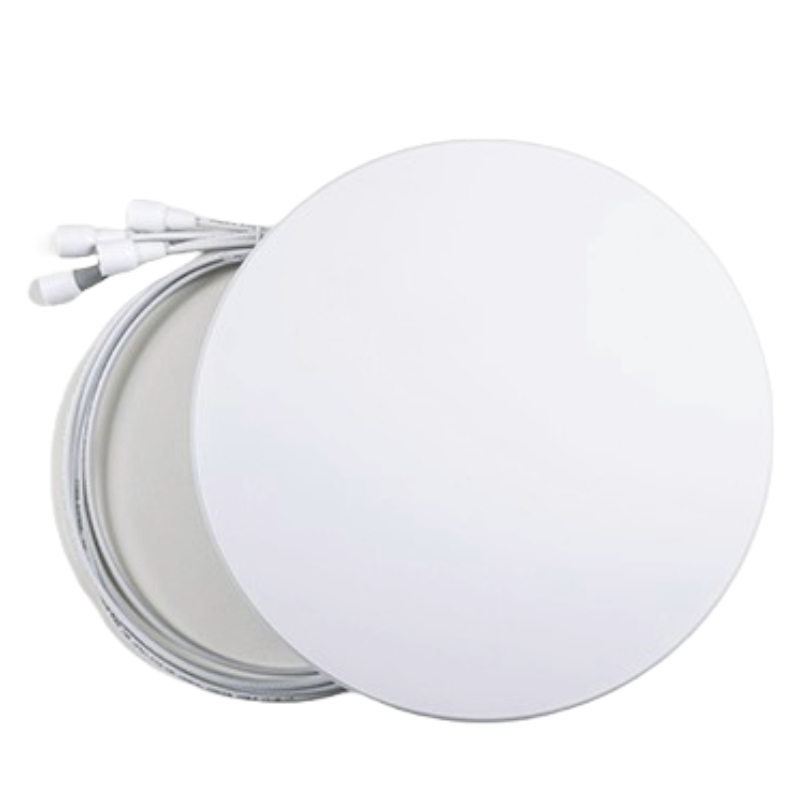

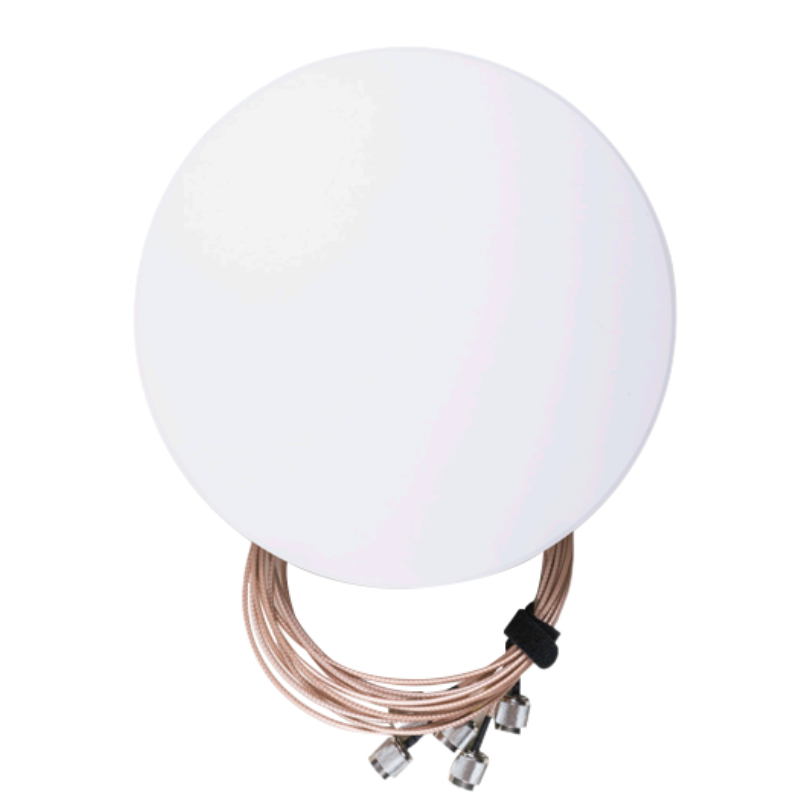

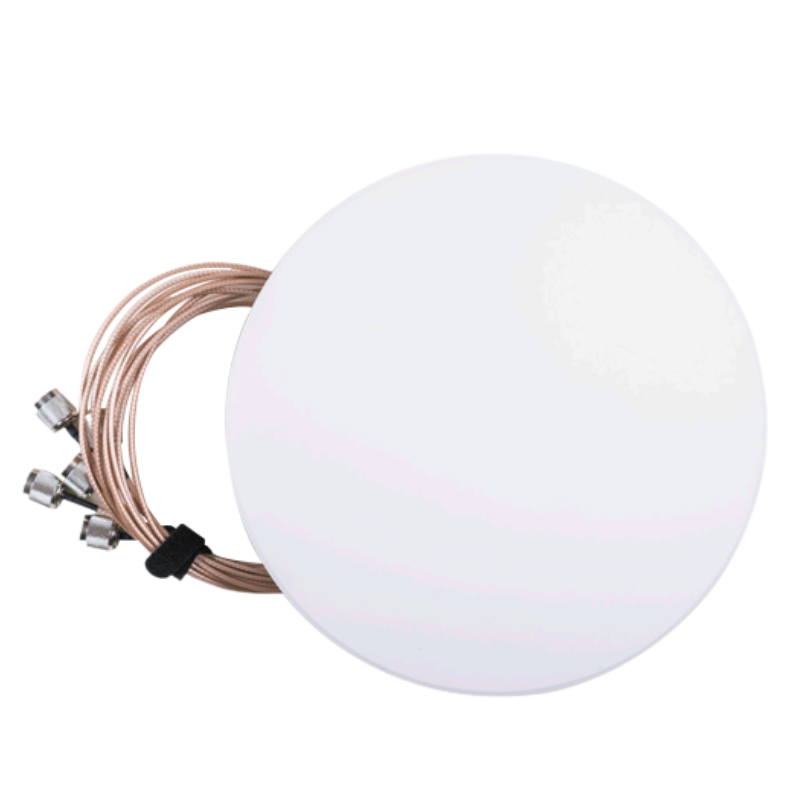

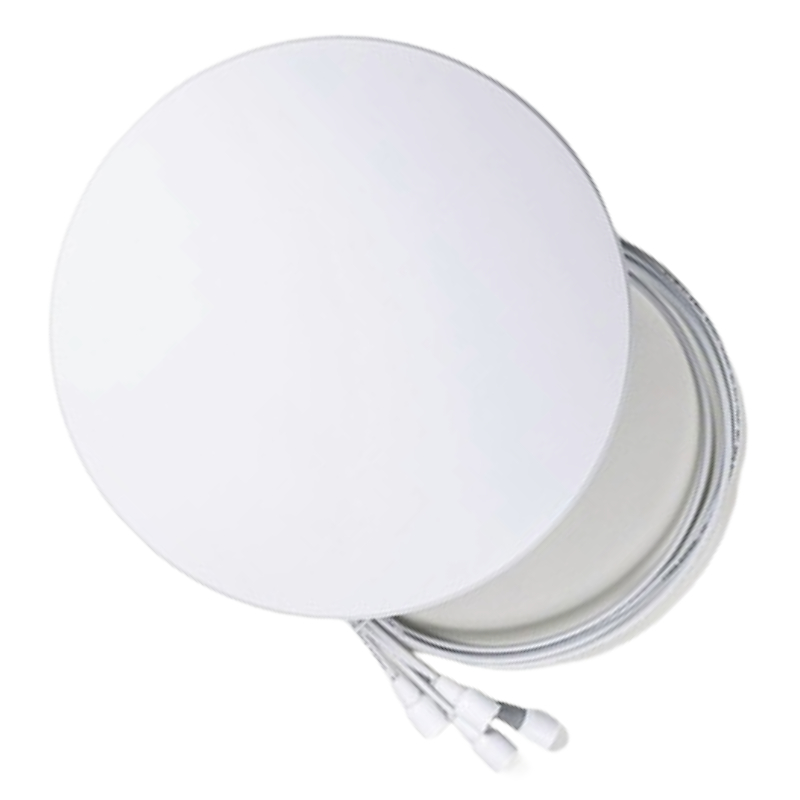

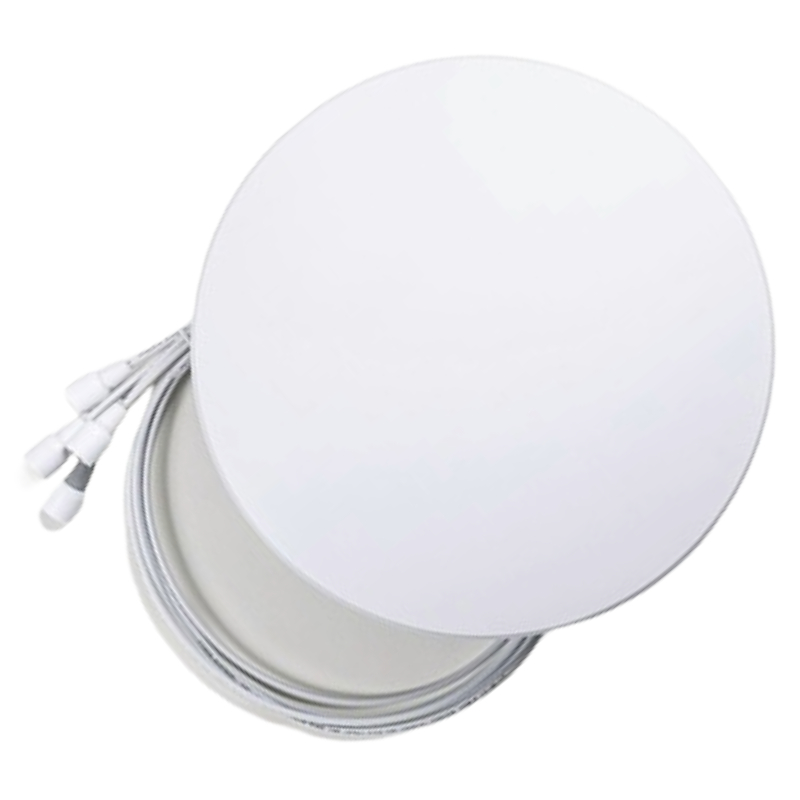

MA-ANT-3-D5 Meraki Cisco Indoor Dual-Band Downtilt Omni Antenna

Meraki MA-ANT-3-D5 Indoor Dual-Band Downtilt Omni Antenna

The Meraki MA-ANT-3-D5 is a high-performance indoor networking antenna designed for dual-band wireless coverage. Engineered for reliable enterprise connectivity, it delivers stable signal distribution across both 2.4 GHz and 5 GHz frequencies, making it suitable for modern Wi-Fi environments.

Key Product Identification Details

Manufacturer and Model Information

• Brand: Meraki
• Model Number: MA-ANT-3-D5
• Category: Networking Hardware
• Device Type: Indoor Antenna Unit

Advanced Technical Specifications

Frequency Coverage and Performance

• Supports dual-band operation for enhanced wireless efficiency
• 2.4 GHz Range: 2.400 – 2.500 GHz
• 5 GHz Range: 5.150 – 5.875 GHz

Signal Gain and Coverage Pattern

• Gain (2.4 GHz): 2.9 dBi
• Gain (5 GHz): 3.7 dBi
• Horizontal beam coverage: 360° full omnidirectional spread
• Vertical beamwidth: 60° optimized propagation angle

Polarization and Orientation

• Supports both vertical and horizontal linear polarization
• Integrated downtilt configuration for improved signal direction control
• Fixed tilt angle of +/- 45° for flexible deployment scenarios

Physical Construction and Design Features

Build Quality and Materials

• Constructed with durable PC-ABS polymer housing
• Lightweight yet robust design for indoor installations

Dimensions and Weight

• Size: 8.86 inches x 1.46 inches (225 mm x 37 mm)
• Weight: 20.81 oz (0.59 kg)

Connector Interface

• Equipped with RP-TNC connector for secure connectivity

Environmental Operating Conditions

Temperature and Humidity Tolerance

• Operating temperature range: 0°C to 40°C (32°F to 104°F)
• Humidity tolerance: 5% to 93% non-condensing environment

Functional Advantages of Meraki MA-ANT-3-D5

Performance Benefits

• Enhances indoor wireless network stability and reach
• Optimized for enterprise-grade Wi-Fi deployment
• Provides consistent multi-directional signal distribution

Deployment Flexibility

• Suitable for office spaces, campuses, and commercial interiors
• Easy integration with existing Meraki network systems
• Compact structure allows discreet installation

Use Case Scenarios

• Corporate wireless infrastructure enhancement
• Educational institution connectivity expansion
• Retail and indoor public network optimization

Cisco Meraki MA-ANT-3-D5 Antenna

The Meraki MA-ANT-3-D5 Cisco Indoor Dual-Band Downtilt Omni Antenna represents a high-performance solution within the enterprise wireless networking category, designed to enhance signal distribution, optimize coverage patterns, and deliver consistent connectivity across complex indoor environments. As organizations increasingly rely on seamless wireless connectivity to support business-critical applications, the demand for reliable, scalable, and intelligently designed antenna systems continues to grow. This category of indoor omnidirectional antennas plays a crucial role in ensuring that wireless access points can deliver optimal performance by directing RF energy efficiently and minimizing dead zones.

Dual-Band Performance for Modern Wireless Networks

The dual-band capability of the MA-ANT-3-D5 antenna enables simultaneous support for both 2.4 GHz and 5 GHz frequency bands, making it highly adaptable to modern wireless deployments. With the increasing number of connected devices and bandwidth-intensive applications, dual-band antennas provide flexibility in managing network traffic while reducing congestion. This capability ensures that users experience stable connections regardless of device type or usage scenario, whether in offices, educational institutions, or healthcare environments.

Enhanced Signal Distribution and Coverage Optimization

The downtilt omnidirectional design of this antenna ensures that RF signals are directed toward the intended coverage area rather than wasted in vertical dispersion. This is particularly beneficial in indoor environments with multiple floors or high ceilings, where traditional antennas may struggle to deliver consistent coverage. By focusing signal strength downward, the antenna enhances user connectivity on the ground level while maintaining broad horizontal coverage.

Strategic Application in Enterprise Environments

Within enterprise networking, the MA-ANT-3-D5 antenna is commonly deployed in conjunction with compatible access points to extend wireless coverage in large open spaces such as conference halls, retail stores, and warehouses. Its ability to maintain uniform signal strength across wide areas reduces the need for additional hardware, resulting in cost-effective network expansion and simplified infrastructure management.

Design and Engineering Excellence in Indoor Antennas

The category of indoor omnidirectional antennas is characterized by precision engineering and careful consideration of environmental factors. The MA-ANT-3-D5 exemplifies this through its compact form factor, durable construction, and advanced RF design. Its five-port configuration supports multiple input/output streams, enhancing data throughput and supporting modern wireless standards that rely on multi-stream communication.

Five-Port Configuration for Advanced Connectivity

The inclusion of five antenna ports allows for multiple spatial streams, enabling technologies such as Multiple Input Multiple Output (MIMO) to function effectively. This improves data rates, enhances signal reliability, and supports a higher number of concurrent users. In environments where network demand fluctuates throughout the day, such as offices or campuses, this capability ensures consistent performance under varying load conditions.

Compact Form Factor and Aesthetic Integration

Indoor antennas must blend seamlessly into their surroundings without compromising performance. The MA-ANT-3-D5 is designed to integrate unobtrusively into ceilings or walls, maintaining a clean and professional appearance. This is particularly important in customer-facing environments where aesthetics play a role in overall experience, such as hotels and retail spaces.

Durability and Longevity

Built with high-quality materials, the antenna is engineered to withstand the demands of continuous operation. Its robust construction ensures long-term reliability, reducing maintenance requirements and minimizing downtime. This makes it an ideal choice for organizations seeking dependable networking components that can support their infrastructure over extended periods.

Optimizing Wireless Network Performance

Within the broader category of wireless networking hardware, antennas like the MA-ANT-3-D5 play a critical role in determining overall network performance. While access points provide the core connectivity, antennas are responsible for shaping the signal and ensuring it reaches users effectively. Proper antenna selection and placement can significantly impact network efficiency, user experience, and operational productivity.

Reducing Dead Zones and Interference

Dead zones and signal interference are common challenges in indoor wireless environments. The downtilt design of the MA-ANT-3-D5 helps mitigate these issues by directing RF energy where it is needed most. This reduces signal overlap between adjacent access points, minimizing interference and improving overall network stability.

Supporting High-Density Environments

In high-density environments such as conference centers, lecture halls, and large offices, the ability to support numerous devices simultaneously is essential. The antenna’s design ensures efficient signal distribution, enabling access points to handle increased traffic without degradation in performance. This is particularly important for organizations that rely on real-time communication tools, cloud applications, and streaming services.

Seamless Roaming and Connectivity

Seamless roaming between access points is a key requirement for modern wireless networks. The MA-ANT-3-D5 contributes to this by providing consistent coverage, allowing devices to transition smoothly without experiencing dropped connections. This enhances user experience and supports mobility within the network.

Integration with Cisco Meraki Ecosystem

The MA-ANT-3-D5 antenna is designed to integrate seamlessly with the Cisco Meraki ecosystem, which is known for its cloud-managed networking solutions. This integration allows for simplified deployment, centralized management, and real-time monitoring of network performance. Organizations can leverage these capabilities to optimize their wireless infrastructure and respond quickly to changing requirements.

Cloud-Based Management and Monitoring

By integrating with cloud-managed platforms, the antenna becomes part of a larger system that provides visibility into network performance. Administrators can monitor signal strength, identify coverage gaps, and make adjustments as needed. This level of control enhances operational efficiency and ensures that the network continues to meet user demands.

Scalability for Growing Networks

As organizations expand, their networking needs evolve. The MA-ANT-3-D5 supports scalable deployments, allowing businesses to add additional access points and antennas without disrupting existing infrastructure. This flexibility makes it suitable for both small businesses and large enterprises.

Ease of Deployment

The antenna’s design simplifies installation, reducing the time and effort required to deploy wireless networks. Its compatibility with Meraki access points ensures a straightforward setup process, enabling organizations to achieve optimal performance with minimal configuration.

Use Cases Across Industries

The versatility of the MA-ANT-3-D5 antenna makes it suitable for a wide range of industries. From corporate offices to educational institutions and healthcare facilities, its ability to deliver reliable wireless coverage supports diverse applications and use cases.

Corporate Environments

In office settings, reliable wireless connectivity is essential for productivity. The antenna ensures consistent coverage across workspaces, meeting rooms, and collaborative areas, enabling employees to access resources and communicate effectively.

Education Sector

Educational institutions require robust wireless networks to support digital learning tools, online resources, and student connectivity. The MA-ANT-3-D5 provides the coverage needed to ensure uninterrupted access to these resources, enhancing the learning experience.

Healthcare Facilities

In healthcare environments, reliable connectivity is critical for patient care and operational efficiency. The antenna supports medical devices, communication systems, and data access, contributing to improved outcomes and streamlined workflows.
