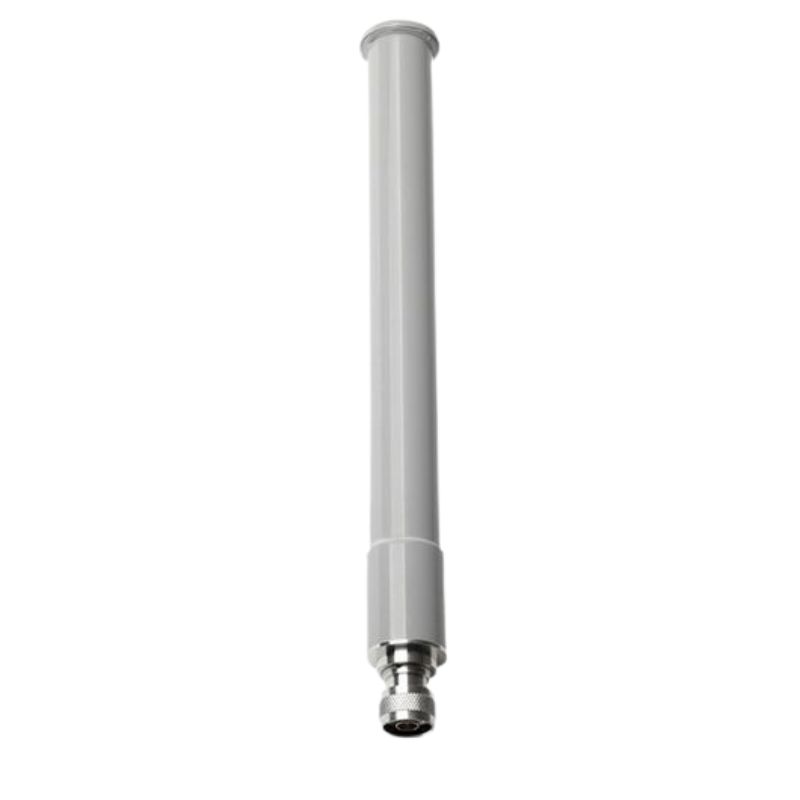

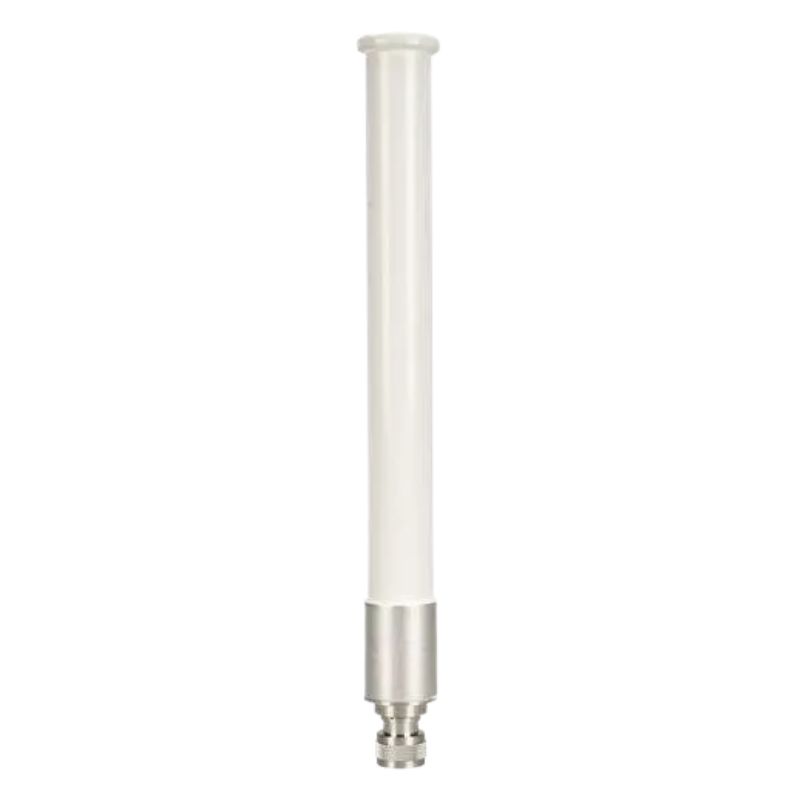

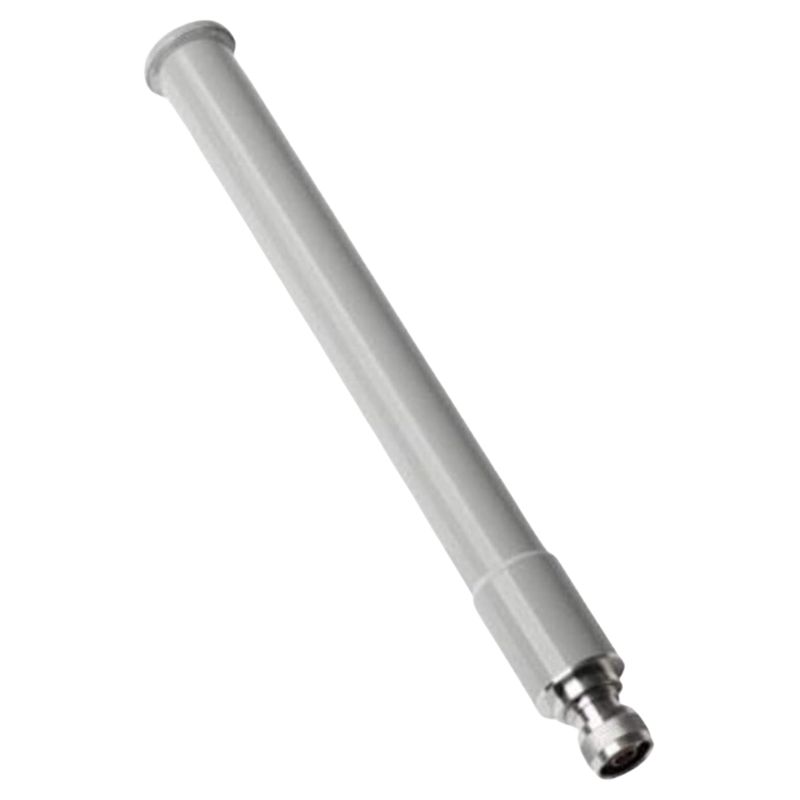

AIR-ANT2547V-N Cisco Outdoor Antenna Dual Band

Overview of the Aironet Antenna Dual Band

The Cisco AIR-ANT2547V-N Aironet Omnidirectional Antenna Dual Band is a professional wireless networking antenna designed to improve coverage, stability, and performance for compatible Cisco Aironet wireless access points. This antenna belongs to the category of enterprise-grade Wi-Fi antennas that support dual-band wireless communication, allowing organizations to achieve reliable connectivity across both 2.4 GHz and 5 GHz frequency ranges. Built for business, education, healthcare, hospitality, and industrial environments, this omnidirectional antenna provides a practical solution for expanding wireless network reach while maintaining consistent signal quality.

General Information

• Manufacturer: Cisco
• Part Number: AIR-ANT2547V-N
• Device Category: Antenna

Technical Specifications

• Antenna Type: Omni-directional collinear array.
• Frequency Bands: Dual-band operations at 2.4 GHz and 5 GHz.
• Operating Frequencies: Range of 2400–2483 MHz and 5150–5875 MHz.
• Antenna Gain: Peak gain is 4 dBi at 2.4 GHz and 7 dBi at 5 GHz.
• Input Impedance: Rated at a nominal value of 50 Ohms.
• VSWR Performance: Voltage Standing Wave Ratio maximum rating is 2.0:1.
• Polarization Type: Utilizes standard vertical linear polarization.
• Horizontal Beamwidth: Full 360-degree omnidirectional coverage footprint.
• Vertical Beamwidth: Focuses at 30° on 2.4 GHz and 14° on 5 GHz.
• Connector Interface: Features an integrated N-Male type connector.
• Physical Dimension: Length is 11.1 inches with a 1.25-inch diameter.
• Hardware Weight: Total weight of the unit is 6.0 ounces.
• Weather Proofing: Built with IP66 and IP67 weather-proof ingress ratings.
• Wind Survival: Engineered to survive standard winds up to 165 mph.
• Temperature Range: Operates safely between -40°F to 185°F.

Performance Metrics

• VSWR: Less than 2.0:1 across both bands
• Elevation Beamwidth: 30° at 2.4 GHz, 14° at 5 GHz
• Operational Wind Speed: Up to 100 mph (161 kph)
• Structural Survival: Withstands up to 165 mph (265 kph)

Compatibility

• Access Point Focus: Designed primarily for Cisco Aironet outdoor access points.
• Industrial Router Link: Directly matches Cisco Connected Grid and Industrial IoT routers.
• Port Connection: Connects to devices equipped with standard N-Female antenna ports.
• Wireless Standards: Fully supports wireless architectures like Wi-Fi 5 and Wi-Fi 6.
• Specific Model Match: Integrates cleanly with the Cisco 829 Industrial ISR series.
• Direct Chassis Mount: Supports direct threading onto compatible outdoor wireless chassis.

Cisco AIR-ANT2547V-N Antenna Dual Band

Modern wireless networks require dependable antenna performance to deliver seamless connectivity for users, devices, and applications. The Cisco AIR-ANT2547V-N Aironet Omnidirectional Antenna Dual Band is engineered to support demanding wireless environments where coverage, capacity, and signal reliability are essential. By providing omnidirectional signal distribution, this antenna helps create a balanced wireless environment where connected devices can communicate effectively from multiple directions without requiring precise antenna alignment.

As part of the Cisco Aironet antenna family, this model is designed to work with selected Cisco access point platforms and networking solutions. It is commonly used as an upgrade or replacement antenna for deployments that require enhanced wireless coverage. Its dual-band capability allows network administrators to optimize their wireless infrastructure by supporting older 2.4 GHz devices while also enabling faster and less congested 5 GHz connections.

Dual Band Wireless Performance for Enterprise Networks

The main advantage of the Cisco AIR-ANT2547V-N Aironet Omnidirectional Antenna Dual Band is its ability to operate across two major Wi-Fi frequency bands. Dual-band antennas provide flexibility because modern wireless networks often include a wide range of devices with different connectivity requirements. The 2.4 GHz band offers broad compatibility and longer range characteristics, while the 5 GHz band supports higher performance and improved capacity for newer wireless technologies.

In enterprise environments, wireless traffic can vary significantly depending on the number of users, connected devices, and applications being used. A dual-band antenna helps network managers create a more efficient wireless design by distributing connections across available frequencies. This reduces congestion and allows organizations to support activities such as cloud applications, video conferencing, online collaboration, and mobile device access with greater reliability.

Reliable Antenna Solution for Cisco Wireless Infrastructure

The Cisco AIR-ANT2547V-N Aironet Omnidirectional Antenna Dual Band is developed for organizations that depend on Cisco wireless infrastructure. Cisco Aironet solutions are widely used for enterprise networking because they provide scalable wireless management and advanced connectivity features. A compatible antenna ensures that the access point can perform according to its intended wireless design.

Using an antenna that matches the requirements of a wireless access point is important for maintaining proper radio performance. Antenna selection affects coverage patterns, signal strength, and overall network efficiency. This model provides a suitable option for deployments where a compact and dependable dual-band omnidirectional antenna is required.

Features of Cisco AIR-ANT2547V-N Aironet Omnidirectional Antenna Dual Band

The Cisco AIR-ANT2547V-N Aironet Omnidirectional Antenna Dual Band includes several characteristics that make it suitable for professional wireless networking applications. Its dual-frequency support, omnidirectional coverage, and compatibility with Cisco Aironet access points make it a practical choice for organizations building or expanding wireless networks.

The antenna is designed to deliver dependable radio communication across supported Wi-Fi frequencies. It helps wireless access points transmit and receive signals effectively, supporting reliable connections for laptops, smartphones, tablets, scanners, sensors, and other network-connected devices. In environments where wireless availability is critical, antenna performance plays an important role in maintaining productivity.

Enterprise-Grade Wireless Connectivity

Enterprise networks often require stronger and more stable wireless solutions than typical home environments. Large offices, campuses, medical facilities, and industrial spaces may contain many users and devices operating simultaneously. The Cisco AIR-ANT2547V-N helps address these challenges by providing antenna performance designed for professional wireless deployments.

The antenna supports network environments where consistent wireless communication is necessary throughout the day. Whether employees are accessing business applications, students are using online resources, or customers are connecting to guest networks, a properly configured wireless system depends on quality antenna components.

Flexible Deployment Options

One of the benefits of an omnidirectional antenna is installation flexibility. Because the signal spreads in multiple directions, it can be positioned in areas where users require broad wireless access. Network designers can consider ceiling-mounted, wall-mounted, or other appropriate installation approaches depending on the wireless access point and physical environment.

Proper placement helps maximize wireless performance. Factors such as building materials, interference sources, user density, and access point positioning all influence network coverage. The Cisco AIR-ANT2547V-N is designed to integrate into professional wireless environments where careful planning is used to achieve optimal results.

Applications of Cisco AIR-ANT2547V-N Dual Band Antenna

The Cisco AIR-ANT2547V-N Aironet Omnidirectional Antenna Dual Band can be used across many industries and wireless networking scenarios. Its ability to support broad coverage makes it suitable for locations that require dependable Wi-Fi connectivity across multiple areas.

Corporate offices frequently use enterprise wireless antennas to support employee devices, meeting rooms, wireless printers, and connected workplace technologies. A dual-band antenna helps organizations maintain efficient wireless communication while supporting different generations of Wi-Fi devices.

Business and Office Wireless Networks

In business environments, wireless networks have become essential for daily operations. Employees rely on wireless connections for communication platforms, file access, cloud services, and collaboration tools. A stable antenna solution contributes to a reliable network foundation by helping access points deliver consistent coverage.

The Cisco AIR-ANT2547V-N is appropriate for organizations looking to maintain professional wireless infrastructure. It supports environments where users expect fast connections and minimal interruptions while moving between workspaces.

Education and Campus Connectivity

Schools, universities, and training facilities often require extensive wireless coverage because large numbers of users connect at the same time. Classrooms, libraries, laboratories, and common areas depend on wireless networks for digital learning resources and communication.

A dual-band omnidirectional antenna supports flexible connectivity across these spaces. By improving wireless distribution, it helps educational institutions provide more reliable access for students, teachers, and staff members using various devices.

Healthcare and Industrial Wireless Environments

Healthcare and industrial organizations rely on wireless communication for specialized equipment, monitoring systems, inventory management, and operational workflows. In these environments, network stability can directly affect efficiency and service quality.

The Cisco AIR-ANT2547V-N antenna category is designed for professional deployments where wireless consistency matters. It can support environments that require dependable communication between wireless devices and network infrastructure.

Benefits of Using Cisco Aironet Dual Band Antenna Technology

Choosing the correct antenna provides several advantages for wireless network performance. The Cisco AIR-ANT2547V-N Aironet Omnidirectional Antenna Dual Band helps organizations improve coverage planning and create wireless systems that better match their operational requirements.

Dual-band operation is one of the most important benefits because it allows networks to support multiple device types. Many older devices continue using the 2.4 GHz band, while newer devices often perform better on 5 GHz. Supporting both frequencies provides greater flexibility.

Improved Wireless Capacity

Wireless networks are affected by the number of connected devices and the amount of traffic being transmitted. Moving compatible devices to the 5 GHz band can help reduce pressure on the 2.4 GHz spectrum. The Cisco AIR-ANT2547V-N supports this type of network strategy by enabling dual-band connectivity.

Better capacity management improves user experience by helping applications perform more consistently. Businesses can support more wireless users without relying only on a single frequency band.

Consistent Network Experience

A strong wireless experience depends on more than just access point specifications. Antennas influence how signals travel through the environment. The omnidirectional coverage pattern of this antenna helps create a predictable wireless area that supports connected users from different positions.

Reliable wireless connectivity is especially important for organizations that use real-time applications. Video meetings, voice communication, cloud platforms, and online systems all benefit from stable network performance.

Choosing the Right Wireless Antenna for Your Network

Selecting an antenna requires consideration of the wireless environment, access point compatibility, coverage expectations, and user requirements. The Cisco AIR-ANT2547V-N Aironet Omnidirectional Antenna Dual Band is designed for deployments where broad coverage and dual-band support are important.

Network administrators should evaluate the physical layout of a building before installing antennas. Walls, floors, equipment, and interference sources can affect wireless signal behavior. Proper antenna selection combined with professional installation helps achieve better results.

Compatibility and Infrastructure Planning

Compatibility between the antenna and wireless access point is essential. Cisco Aironet wireless systems are designed with specific antenna requirements to ensure correct operation. Using an appropriate antenna model helps maintain expected performance and network reliability. Infrastructure planning also includes considering future growth. Organizations often add more users and devices over time, making scalable wireless design an important factor. A reliable dual-band antenna supports long-term networking strategies.
