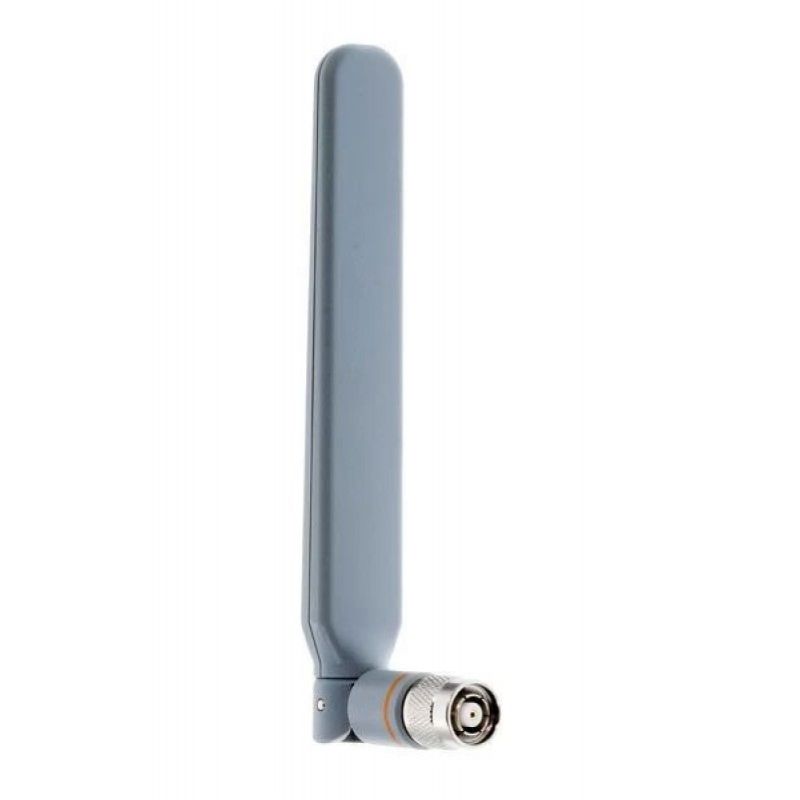

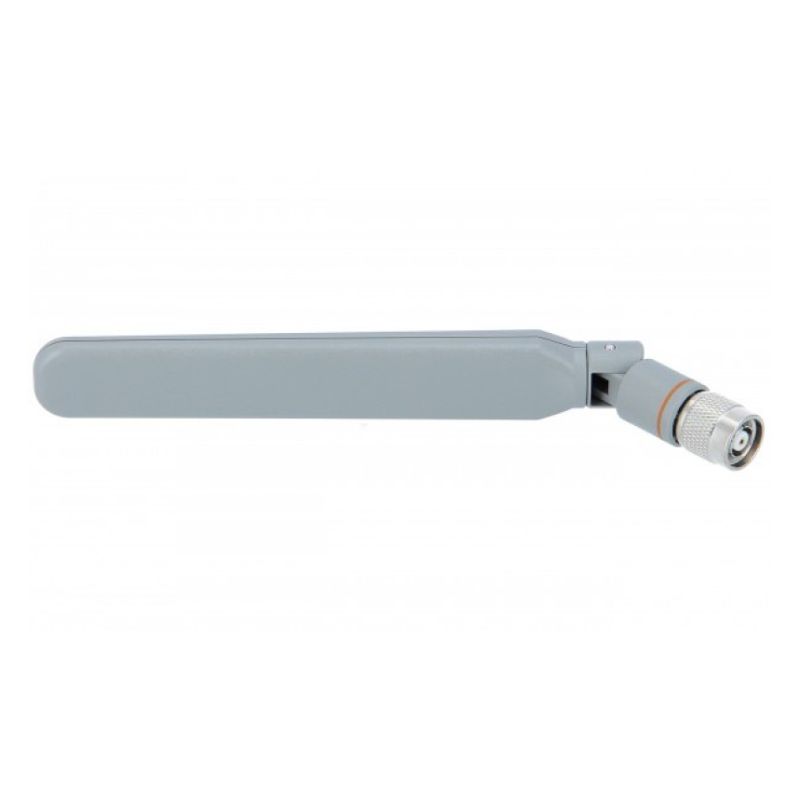

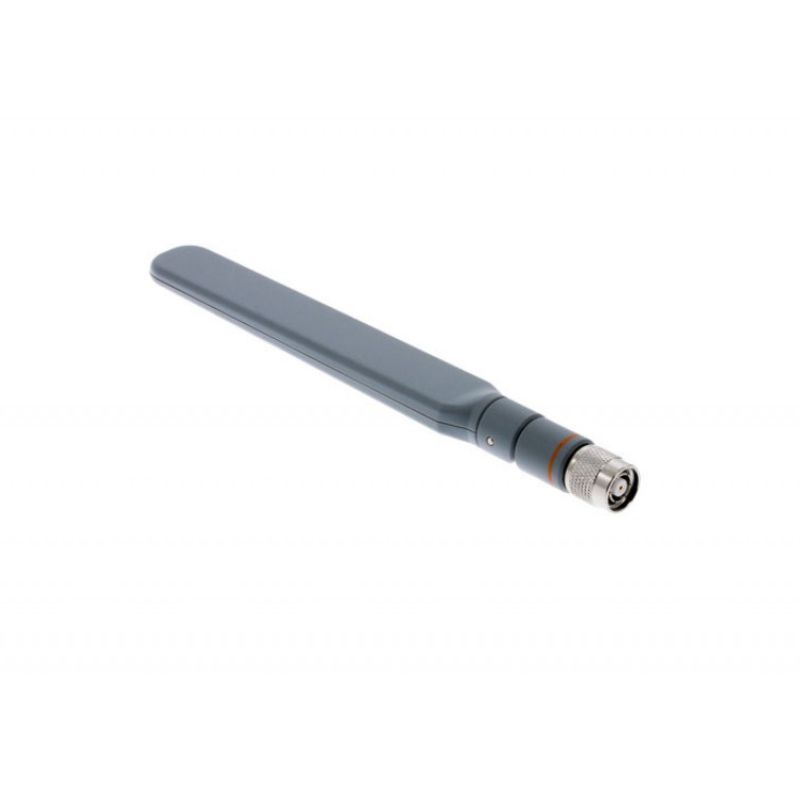

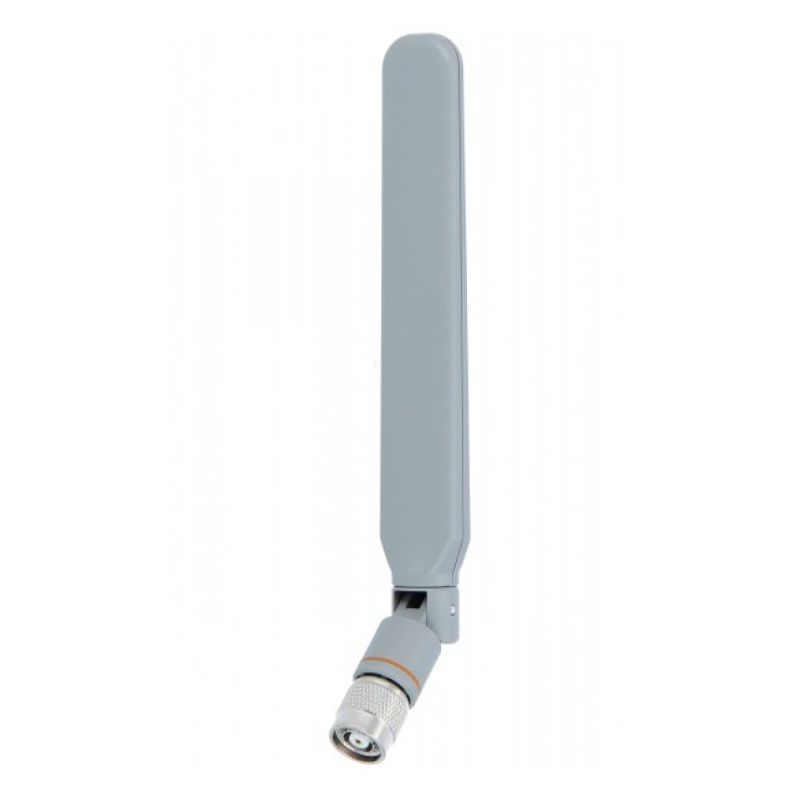

AIR-ANT2524DG-R Cisco Dual-Band Dipole Antenna

Overview of the Cisco Aironet Dual-Band Dipole Antenna

The Cisco AIR-ANT2524DG-R Aironet Dual-Band Dipole Antenna is a high-performance wireless networking accessory designed to enhance Wi-Fi coverage and signal reliability. This Cisco antenna solution supports both 2.4 GHz and 5 GHz frequency ranges, making it suitable for modern wireless communication environments that require stable and efficient connectivity.

General Information

• Manufacturer: Cisco
• Part Number: AIR-ANT2524DG-R
• Device Type: Wireless Network Antenna

Technical Specifications

• 2.4 GHz Frequency Range: 2400 MHz to 2500 MHz
• 5 GHz Frequency Range: 5150 MHz to 5850 MHz
• Supported Wireless Bands: Dual-Band operation for Wi-Fi networks
• Antenna Design: Omnidirectional Dipole Array
• Peak Gain at 2.4 GHz: 2 dBi
• Peak Gain at 5 GHz: 4 dBi
• Elevation Beamwidth: 63° at 2.4 GHz
• Elevation Beamwidth: 39° at 5 GHz

Connectivity Interface Details

• Connector Type: Reverse-Polarity Threaded Neill–Concelman (RP-TNC) Male Connector
• Number of Connectors: 1 RF Connector
• Input Impedance: 50 Ohms
• VSWR: Less than 2:1

Compatibility

• MIMO Technology: Optimized for simultaneous multi-input multi-output layouts.
• Wireless Standards: Fully supports 802.11a, 802.11b, 802.11g, 802.11n, and 802.11ac networks.
• Port Requirement: Demands dedicated dual-band antenna ports marked with orange text.
• Supported Access Points: Fits Cisco Aironet 1600E series hardware.
• Supported Access Points: Fits Cisco Aironet 2600E series layouts.
• Supported Access Points: Fits Cisco Aironet 2700E series access points.
• Supported Access Points: Fits Cisco Aironet 3600E series architectures.
• Supported Access Points: Fits Cisco Aironet 3700E series platforms.
• Supported Access Points: Fits matching external-antenna Cisco Catalyst 9100 series infrastructure platforms.

Cisco AIR-ANT2524DG-R Aironet Dipole Antenna

The Cisco AIR-ANT2524DG-R Aironet Dual-Band Dipole Antenna is a specialized wireless networking accessory designed to support reliable connectivity, flexible deployment, and optimized radio performance across modern Wi-Fi environments. This antenna belongs to the Cisco Aironet antenna family and is engineered for use with compatible Cisco wireless access points that require external antenna solutions. By supporting both the 2.4 GHz and 5 GHz frequency bands, this dual-band dipole antenna provides a practical solution for organizations that need consistent wireless coverage while maintaining compatibility with a wide range of enterprise networking equipment.

The design philosophy behind the Cisco AIR-ANT2524DG-R focuses on providing balanced wireless signal distribution in indoor environments. Unlike single-band antennas that are limited to one wireless spectrum, this dual-band model allows network administrators to deploy a single antenna solution that supports multiple generations of wireless technologies. This makes it suitable for environments where older 2.4 GHz devices and newer 5 GHz devices operate together. The antenna helps create a stable wireless infrastructure for offices, educational facilities, healthcare environments, retail locations, hospitality networks, and other professional installations.

The Cisco AIR-ANT2524DG-R Aironet Dual-Band Dipole Antenna is recognized for its compact form factor, straightforward installation approach, and compatibility with Cisco Aironet access points. Its dipole configuration allows the antenna to provide an effective radiation pattern that supports broad coverage areas. This makes it an excellent choice for users who need dependable wireless connectivity without requiring large external antenna systems or complex mounting arrangements.

Understanding the Cisco Aironet Dual-Band Antenna Category

Dual-band antennas play an important role in wireless network design because they allow access points to communicate across different frequency ranges. The Cisco AIR-ANT2524DG-R fits into the category of enterprise Wi-Fi antennas that improve the performance and flexibility of wireless infrastructure. It is designed to operate with both 2.4 GHz and 5 GHz wireless frequencies, which are commonly used by Wi-Fi standards and networking devices around the world.

The 2.4 GHz band has traditionally been used for wireless communication because of its longer range and better ability to pass through certain obstacles. However, this band is also more crowded because many devices use the same frequency range. The 5 GHz band offers additional channels and generally experiences less interference, making it valuable for higher-performance wireless applications. A dual-band antenna such as the Cisco AIR-ANT2524DG-R allows a compatible access point to take advantage of both frequency ranges.

Wireless Coverage and Signal Performance

The Cisco AIR-ANT2524DG-R Aironet Dual-Band Dipole Antenna is designed to provide efficient wireless signal coverage through an omnidirectional antenna pattern. Omnidirectional antennas distribute radio signals around the antenna rather than focusing them in a single direction. This makes them useful for general-purpose wireless deployments where users may connect from different locations around an access point.

In office environments, omnidirectional dipole antennas can help provide wireless access across work areas, meeting spaces, and common areas. In classrooms, these antennas support connectivity for multiple devices positioned throughout the room. In commercial environments, they help maintain wireless access for employees, customers, and connected equipment. The antenna performance depends on factors such as access point placement, building materials, interference levels, and network configuration, but the dual-band design provides a strong foundation for dependable connectivity.

Compact Dipole Antenna Design

The dipole design of the Cisco AIR-ANT2524DG-R contributes to its simplicity and versatility. Dipole antennas are widely used in wireless networking because they provide effective performance while maintaining a small physical profile. This type of antenna is easy to install and adjust, making it suitable for environments where space, appearance, and ease of maintenance are important considerations.

The compact structure also allows network administrators to integrate the antenna into existing wireless deployments without requiring significant changes to infrastructure. Its practical design supports efficient installation on compatible Cisco access points while maintaining the professional appearance expected in enterprise networking environments.

Features of Cisco AIR-ANT2524DG-R Aironet Dual-Band Dipole Antenna

The Cisco AIR-ANT2524DG-R includes several characteristics that make it a useful component for wireless network expansion and optimization. Its primary feature is dual-band operation, which enables support for both 2.4 GHz and 5 GHz Wi-Fi communication. This capability allows organizations to build flexible networks that accommodate a wide variety of wireless devices and applications.

Another important feature is its compatibility with Cisco Aironet wireless access points. Cisco designed the Aironet antenna family to work closely with its wireless networking hardware, helping ensure reliable integration between antennas and access points. This compatibility helps simplify deployment planning for businesses that already use Cisco wireless solutions.

The antenna also provides a convenient solution for replacing damaged antennas, upgrading existing wireless equipment, or creating new network installations. Because it is an external antenna model, administrators have greater flexibility in positioning and adjusting their wireless equipment compared with fixed internal antenna designs.

Applications of Cisco AIR-ANT2524DG-R Antenna

The Cisco AIR-ANT2524DG-R Aironet Dual-Band Dipole Antenna can be used in many different wireless networking scenarios. Enterprise offices often use this type of antenna to improve wireless availability for employees who rely on laptops, mobile devices, voice applications, and cloud-based services. A reliable antenna solution supports daily business operations by helping maintain stable connections throughout workspaces.

Educational institutions can benefit from dual-band antenna technology because modern learning environments depend heavily on wireless access. Classrooms, libraries, laboratories, and administrative areas often contain many connected devices. A dual-band antenna helps support a mixture of older devices operating on 2.4 GHz and newer devices using 5 GHz connections.

Healthcare facilities also require strong wireless infrastructure for communication systems, mobile workstations, monitoring equipment, and administrative applications. The Cisco AIR-ANT2524DG-R can contribute to a reliable wireless environment when installed as part of a properly planned network design.

Business and Enterprise Wireless Networks

Enterprise wireless networks require equipment that can handle high expectations for availability, scalability, and performance. The Cisco AIR-ANT2524DG-R is designed for professional networking environments where consistent wireless communication is essential. Its dual-band capability supports network strategies that separate traffic between different frequency bands to improve efficiency and reduce congestion.

Many organizations use wireless networks for voice communication, video meetings, file access, and cloud applications. These activities require stable connections and effective signal distribution. The antenna helps compatible Cisco access points deliver wireless coverage that supports these demanding applications.

Indoor Wi-Fi Infrastructure

The Cisco AIR-ANT2524DG-R is commonly associated with indoor wireless installations. Its design is suited for controlled environments where access points are mounted in offices, hallways, classrooms, retail spaces, and similar locations. Indoor wireless deployments benefit from antennas that provide predictable coverage and straightforward maintenance.

When planning an indoor wireless network, antenna selection is an important consideration. The correct antenna can help improve coverage consistency and support better user experiences. The AIR-ANT2524DG-R offers a practical balance between size, compatibility, and wireless performance.

Benefits of Choosing Cisco AIR-ANT2524DG-R Aironet Dual-Band Dipole Antenna

One of the main benefits of the Cisco AIR-ANT2524DG-R is its ability to support multiple wireless frequencies with one antenna design. This reduces complexity for network administrators because they do not need separate antennas for different Wi-Fi bands. A unified dual-band solution can simplify inventory management and make deployment planning easier.

Another advantage is its integration with Cisco wireless equipment. Organizations that standardize their network infrastructure around Cisco products often prefer accessories designed specifically for Cisco systems. Using compatible antennas helps maintain consistency across wireless installations and can reduce potential compatibility issues.

The antenna also supports flexible network upgrades. As wireless technology continues to evolve, many organizations operate mixed environments where different generations of devices connect simultaneously. A dual-band antenna allows networks to continue supporting existing devices while preparing for newer wireless requirements.

Deployment Considerations

Proper antenna installation is essential for achieving effective wireless coverage. The Cisco AIR-ANT2524DG-R should be positioned according to the requirements of the access point and the physical environment. Placement decisions influence signal quality, coverage range, and overall user experience.

Network professionals typically consider factors such as room layout, wall materials, device density, interference sources, and access point locations when deploying antennas. A well-planned installation helps ensure that wireless signals reach intended areas while minimizing unnecessary coverage gaps.

Because the Cisco AIR-ANT2524DG-R uses a simple dipole design, installation is generally straightforward for compatible equipment. Its practical design supports quick deployment during new installations or network upgrades.

Supporting Modern Connected Environments

Modern workplaces depend on wireless connectivity for communication, productivity, automation, and digital services. The Cisco AIR-ANT2524DG-R contributes to these environments by enabling compatible access points to deliver wireless connectivity across multiple frequency bands.

As the number of connected devices continues to grow, wireless infrastructure must support increasing demand. Devices such as smartphones, tablets, laptops, sensors, and smart equipment all rely on effective wireless communication. A dual-band antenna helps create a foundation for networks that can accommodate diverse connectivity requirements.

Enhancing Wireless Network Efficiency

A well-designed wireless network depends on efficient communication between devices and infrastructure. The Cisco AIR-ANT2524DG-R helps support this efficiency by enabling compatible access points to operate across both major Wi-Fi frequency bands. This flexibility allows network designers to balance coverage, capacity, and performance requirements.

The combination of 2.4 GHz and 5 GHz support makes the antenna suitable for environments with diverse connectivity needs. Lower-frequency communication can help extend coverage, while higher-frequency communication can provide additional capacity for modern applications.
