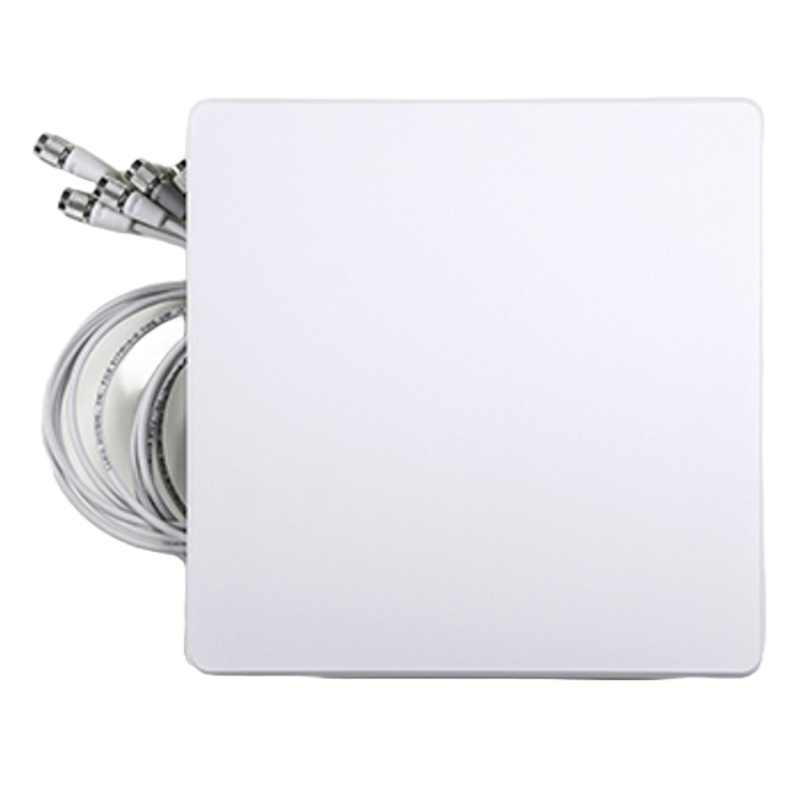

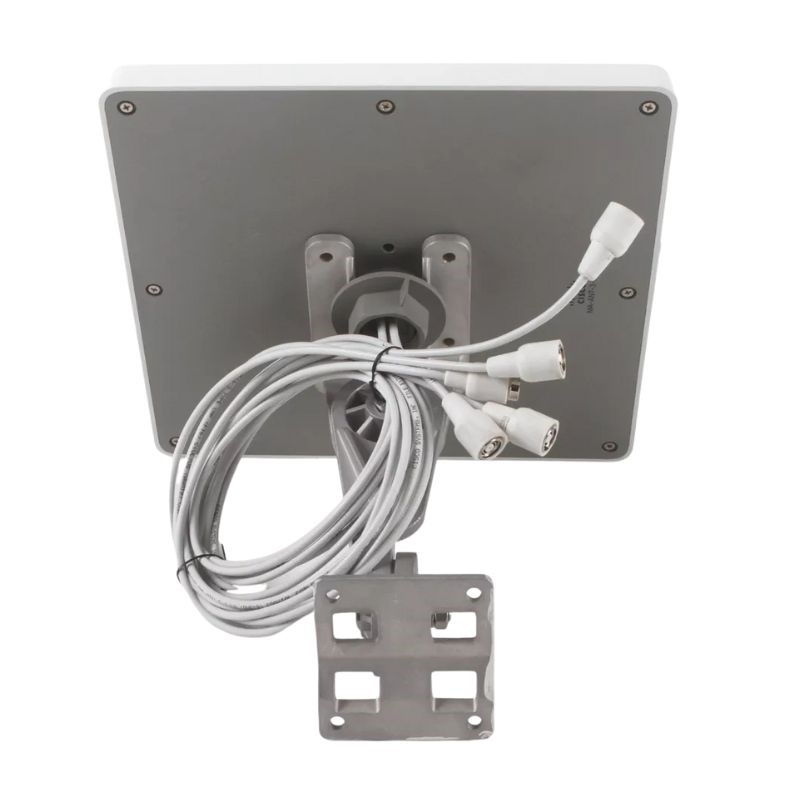

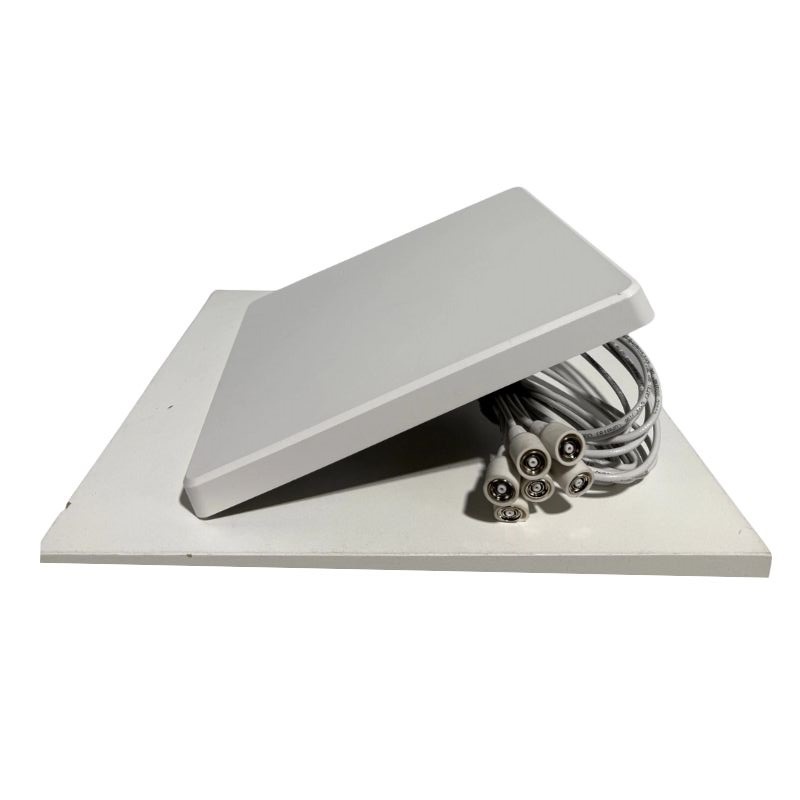

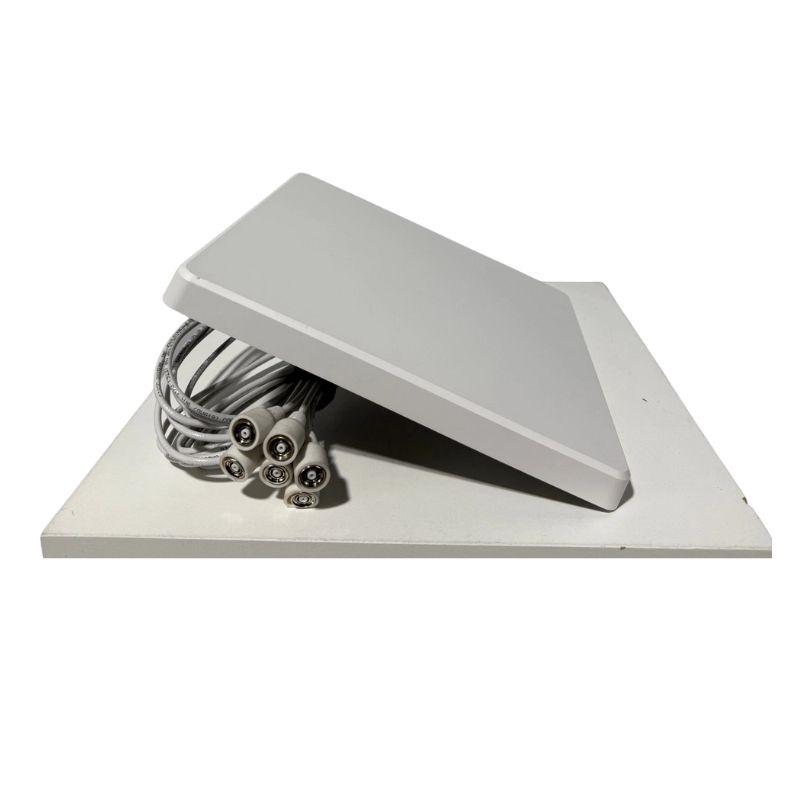

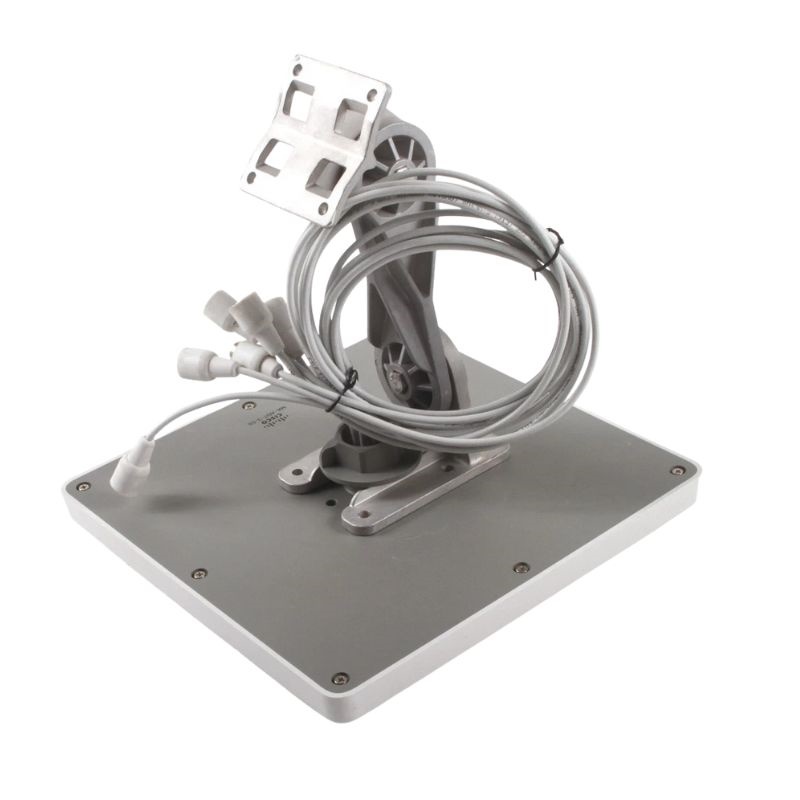

MA-ANT-3-E6 Cisco Meraki Indoor Dual-Band Wide Patch Antenna

Cisco MA-ANT-3-E6 Indoor Dual-Band Antenna Overview

High-Performance Cisco Wireless Antenna for Enterprise Networks

The Cisco MA-ANT-3-E6 Meraki indoor dual-band wide patch antenna is engineered to enhance wireless coverage and signal efficiency in enterprise-grade environments. Designed for seamless integration with Cisco network infrastructure, it delivers stable connectivity across both 2.4 GHz and 5 GHz frequency bands.

• Manufacturer: Cisco Systems
• SKU / Part Number: MA-ANT-3-E6
• Category: Network Devices
• Subcategory: Indoor Wide Patch Antenna

Dual-Band Frequency Range and Signal Optimization

Extended Coverage Across Wireless Bands

This antenna is optimized for modern wireless environments, supporting dual-band operation to ensure consistent performance across diverse network loads.

Frequency Capabilities

• 2.4 GHz band: 2.4 GHz – 2.5 GHz
• 5 GHz band: 5.15 GHz – 5.875 GHz

Signal Gain Efficiency

• 2.4 GHz Gain: 7 dBi for enhanced reach
• 5 GHz Gain: 6.3 dBi for high-speed data transmission

Directional Coverage and Radiation Characteristics

Optimized Beam Pattern for Indoor Deployment

The Cisco MA-ANT-3-E6 features a wide patch design that improves signal distribution while maintaining directional precision for indoor deployments.

Beamwidth Specifications

• Horizontal Beamwidth: 60° for focused lateral coverage
• Vertical Beamwidth: 60° for balanced vertical propagation

Polarization Details

• Linear polarization with ±45° orientation

Connectivity and Interface Design

Reliable Integration with Cisco Systems

Built for compatibility with enterprise networking hardware, this antenna ensures smooth installation and stable RF performance.

Connector Type

• RP-TNC connector for secure and low-loss connectivity

Physical Design and Build Quality

Compact Structure with Durable Materials

The antenna is constructed using robust materials to support long-term deployment in indoor enterprise environments.

Dimensions and Weight

• Size: 10.83 x 10.83 x 0.93 inches (275 x 275 x 23.5 mm)
• Weight: 41.27 oz (1.17 kg)

Material Composition

• Durable PC-ABS housing for strength and stability

Environmental Operating Conditions

Designed for Standard Indoor Network Environments

This Cisco antenna is suitable for controlled indoor conditions, ensuring reliable performance across typical commercial settings.

Temperature Range

• Operating temperature: 32°F to 104°F (0°C to 40°C)

Humidity Resistance

• Supports humidity levels from 5% to 93% (non-condensing)

Key Advantages of Cisco MA-ANT-3-E6

Enhanced Wireless Infrastructure Performance

• Improved indoor Wi-Fi signal distribution
• Dual-band support for flexible network deployment
• Compact and professional-grade design
• Optimized gain for high-speed connectivity
• Reliable Cisco engineering for enterprise usage

Meraki MA-ANT-3-E6 Indoor Dual-Band Wide Patch Antenna

The Cisco MA-ANT-3-E6 Meraki Indoor Dual-Band Wide Patch Antenna represents a specialized category of enterprise-grade wireless networking accessories engineered to enhance Wi-Fi coverage, signal directionality, and overall performance in indoor deployments. Designed specifically for compatibility with Cisco Meraki access points, this 6-port antenna solution enables organizations to optimize their wireless infrastructure through precise signal shaping and improved spatial coverage. In modern business environments where wireless connectivity is mission-critical, such antennas play a fundamental role in delivering consistent throughput, reduced interference, and predictable user experiences across complex indoor layouts.

Understanding Dual-Band Wireless Antenna Technology

The dual-band functionality embedded within the Cisco MA-ANT-3-E6 allows it to operate across both 2.4 GHz and 5 GHz frequency spectrums, which are essential for supporting a wide variety of wireless devices and applications. The 2.4 GHz band provides broader coverage and better wall penetration, making it suitable for general connectivity and legacy devices. Meanwhile, the 5 GHz band offers higher data rates, lower latency, and reduced congestion, which are crucial for bandwidth-intensive tasks such as video conferencing, cloud computing, and real-time collaboration tools.

Benefits of Dual-Band Optimization

By integrating both frequency bands into a single antenna solution, enterprises can maintain a balanced network environment that accommodates diverse user requirements. The Cisco Meraki MA-ANT-3-E6 ensures that devices dynamically connect to the optimal band, thereby enhancing overall network efficiency and reducing performance bottlenecks. This dual-band capability also supports advanced wireless standards, ensuring long-term scalability and compatibility with evolving networking technologies.

Signal Integrity and Performance Consistency

The antenna’s engineering emphasizes consistent signal strength across both bands, minimizing packet loss and maintaining reliable connectivity even in high-density environments. This is particularly important in offices, educational institutions, healthcare facilities, and retail environments where uninterrupted connectivity is essential for operational continuity.

Wide Patch Antenna Design for Directed Coverage

The wide patch antenna design of the Cisco MA-ANT-3-E6 is tailored to provide focused signal propagation, which differs significantly from omnidirectional antennas that distribute signals uniformly in all directions. Patch antennas are ideal for scenarios where targeted coverage is required, such as corridors, large rooms, auditoriums, and open-plan workspaces.

Directional Signal Distribution

The directional characteristics of the MA-ANT-3-E6 enable network engineers to control where the wireless signal is concentrated. This reduces signal leakage into unintended areas, enhances security, and improves overall spectral efficiency. By directing the signal toward high-demand zones, organizations can achieve stronger connectivity and better performance for end users.

Enhanced Coverage Efficiency

Wide patch antennas strike a balance between narrow beam antennas and omnidirectional solutions. The Cisco Meraki MA-ANT-3-E6 delivers a broad yet controlled coverage pattern, making it suitable for environments that require both reach and precision. This design reduces the number of access points needed, lowering infrastructure costs while maintaining optimal coverage.

Interference Mitigation

By focusing the signal in a defined direction, the antenna minimizes interference from neighboring networks and devices. This is particularly beneficial in densely populated areas such as office buildings, co-working spaces, and multi-tenant facilities where multiple wireless networks operate simultaneously.

6-Port Antenna Architecture and MIMO Support

The six-port configuration of the Cisco MA-ANT-3-E6 aligns with modern Multiple Input Multiple Output (MIMO) technology, which is a cornerstone of high-performance wireless networking. Each port corresponds to a specific antenna element, enabling simultaneous transmission and reception of multiple data streams.

Maximizing Throughput with MIMO Technology

MIMO technology leverages multiple antenna elements to increase data throughput and improve signal reliability. The Cisco Meraki MA-ANT-3-E6 supports advanced MIMO configurations, allowing compatible access points to deliver higher speeds and better performance in challenging environments.

Spatial Diversity and Signal Resilience

The multi-port design enhances spatial diversity, which helps mitigate the effects of signal fading and multipath interference. This ensures that users experience stable connections even in environments with physical obstructions such as walls, furniture, and equipment.

Scalability for High-Density Deployments

The 6-port architecture is particularly advantageous in high-density deployments where numerous devices connect simultaneously. By supporting multiple spatial streams, the antenna helps maintain consistent performance across all connected users, making it ideal for enterprise-scale networks.

Seamless Integration with Cisco Meraki Ecosystem

The Cisco MA-ANT-3-E6 is designed to integrate seamlessly with the broader Cisco Meraki ecosystem, which is known for its cloud-managed networking solutions. This compatibility ensures simplified deployment, centralized management, and enhanced visibility into network performance.

Cloud-Based Network Management

When paired with Meraki access points, the antenna benefits from cloud-based management through the Meraki dashboard. This platform allows administrators to monitor network performance, configure settings, and troubleshoot issues from a single interface.

Plug-and-Play Deployment

The antenna is engineered for easy installation, enabling rapid deployment without complex configuration processes. This reduces setup time and minimizes operational disruptions, making it an efficient choice for organizations looking to expand or upgrade their wireless infrastructure.

Optimized Compatibility and Performance

By working in tandem with Cisco Meraki devices, the MA-ANT-3-E6 ensures optimal performance and reliability. This integration eliminates compatibility concerns and allows organizations to leverage the full capabilities of their wireless network.

Applications Across Diverse Indoor Environments

The Cisco MA-ANT-3-E6 is suitable for a wide range of indoor applications, each with unique connectivity requirements. Its versatile design makes it a valuable asset in various industries and settings.

Corporate Offices and Workspaces

In office environments, reliable wireless connectivity is essential for productivity and collaboration. The antenna provides consistent coverage across meeting rooms, workstations, and common areas, ensuring seamless access to digital resources.

Educational Institutions

Schools and universities require robust wireless networks to support online learning, research, and administrative operations. The MA-ANT-3-E6 enhances connectivity in classrooms, lecture halls, and libraries, enabling uninterrupted access to educational platforms.

Healthcare Facilities

Hospitals and clinics depend on reliable wireless networks for patient care, data management, and communication. The antenna’s focused coverage ensures that critical areas such as patient rooms, operating theaters, and administrative offices maintain strong connectivity.

Enhancing Network Security and Efficiency

The Cisco MA-ANT-3-E6 contributes to improved network security and efficiency by enabling controlled signal distribution and reducing unnecessary exposure.

Controlled Signal Leakage

By directing the wireless signal toward specific areas, the antenna minimizes signal leakage beyond intended boundaries. This reduces the risk of unauthorized access and enhances overall network security.

Efficient Spectrum Utilization

The focused coverage pattern allows for better utilization of available spectrum, reducing interference and improving overall network performance. This is particularly important in environments with multiple overlapping networks.

Support for Secure Connectivity

The antenna works in conjunction with secure access points to support encryption protocols and authentication mechanisms, ensuring that data transmission remains protected.
