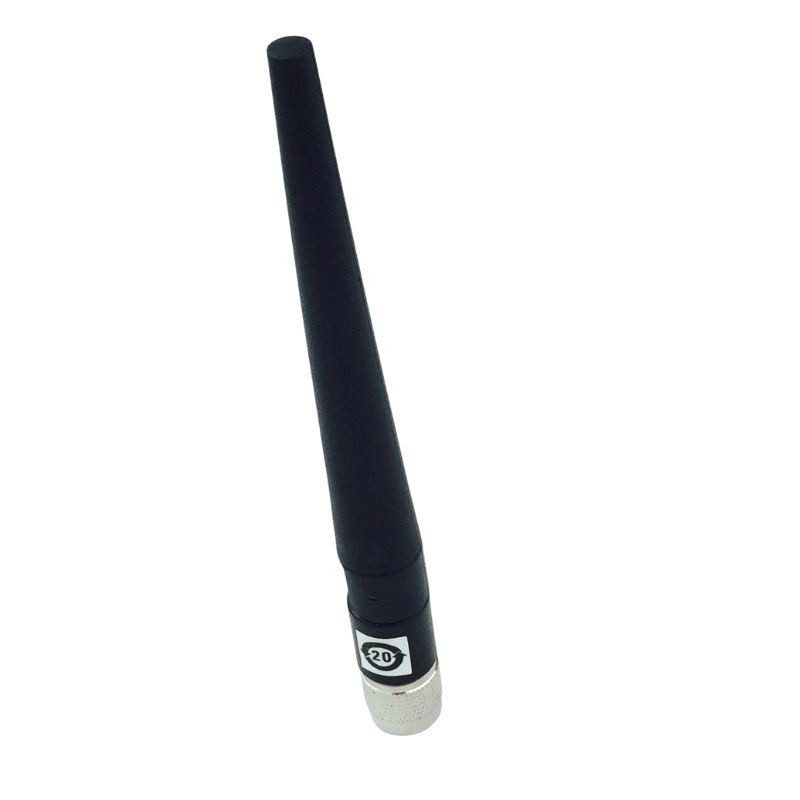

AIR-ANT2422DB-R Cisco Aironet 2.2DBI Dipole Antenna

Overview of the AIR-ANT2422DB-R Aironet 2.2dBi Antenna

The AIR-ANT2422DB-R Cisco 2.2 dBi Dipole Antenna is a high-performance omnidirectional antenna engineered specifically for Cisco wireless networking environments that operate in the 2.4 GHz frequency band. Designed to enhance wireless signal distribution, this dipole antenna is widely used in enterprise-grade Wi-Fi deployments, offering reliable coverage, stable connectivity, and optimized RF performance for indoor and semi-indoor environments. Its 2.2 dBi gain makes it suitable for balanced coverage scenarios where signal consistency is prioritized over extreme range extension.

Main Information

• Brand: Cisco
• Prat Number: AIR-ANT2422DB-R
• Device Type: Wireless Dipole Antenna

Technical Specifications

• Frequency Band: Single-band 2.4 GHz
• Operating Frequency Range: 2400 MHz to 2500 MHz
• Peak Antenna Gain: 2.2 dBi
• Signal Coverage Type: Omnidirectional transmission pattern

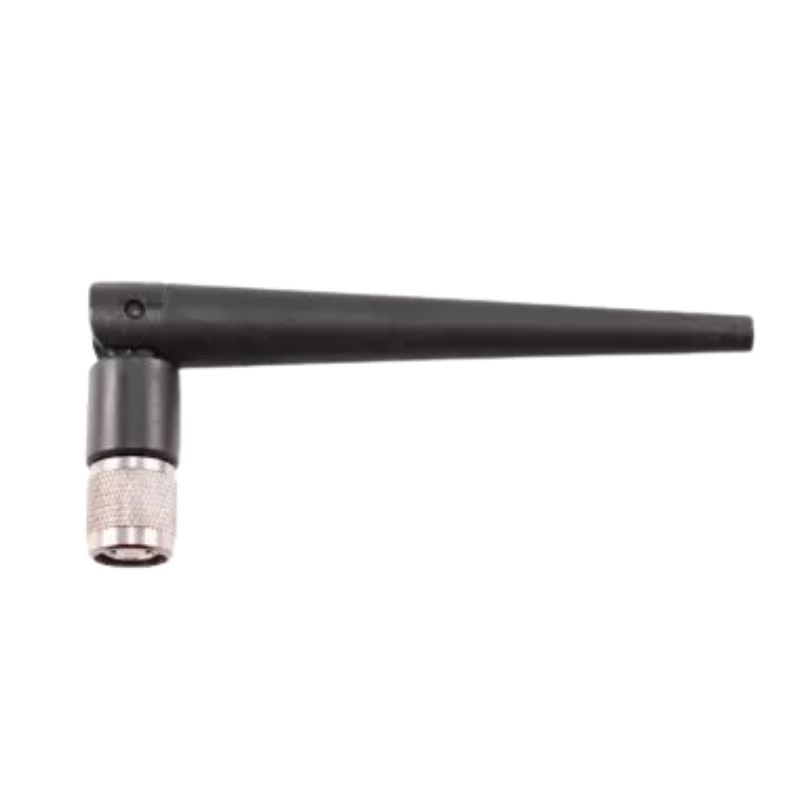

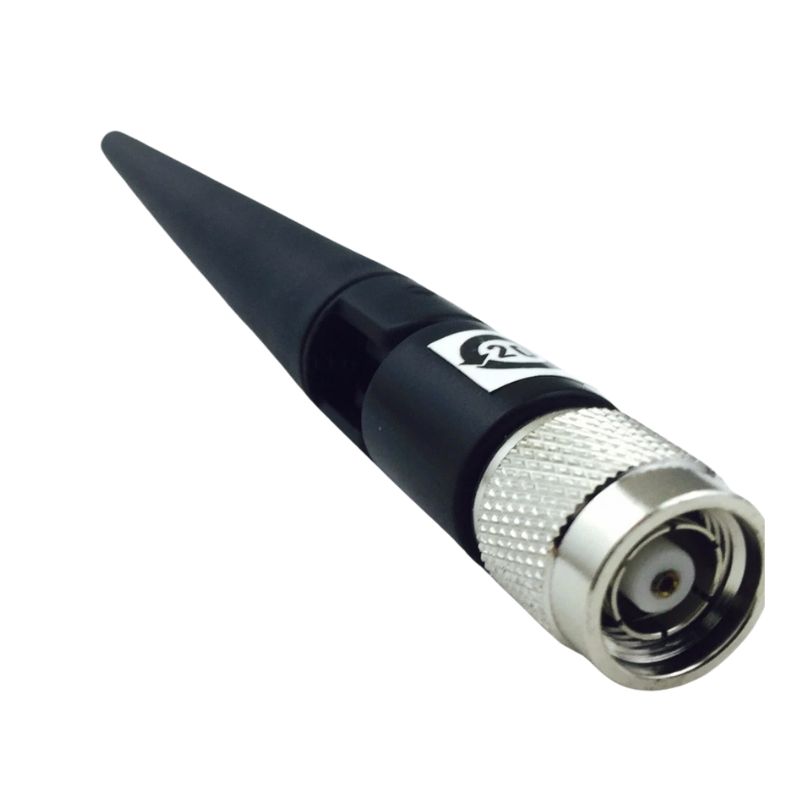

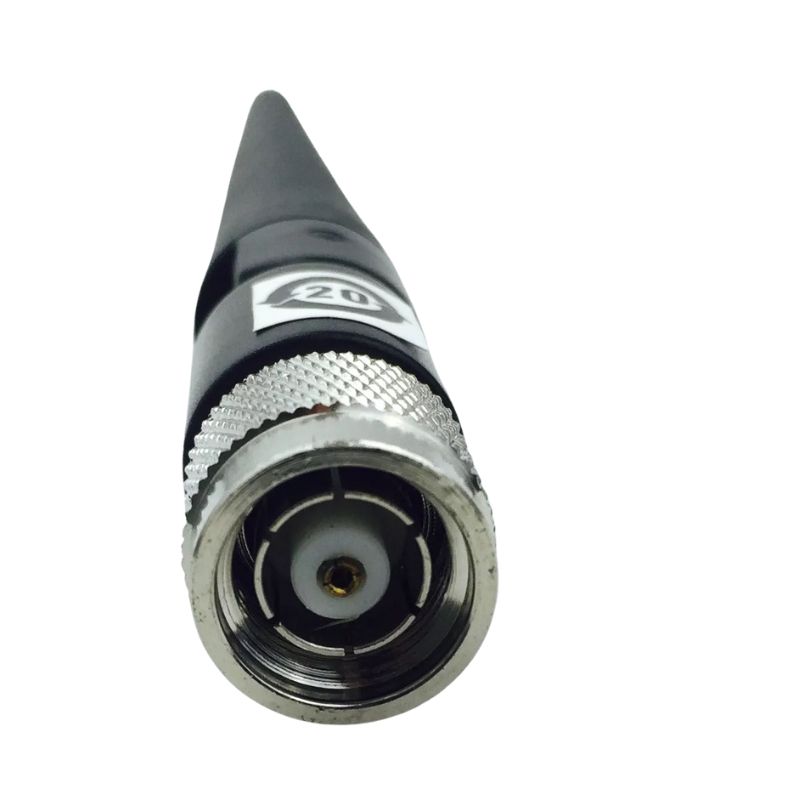

• Connector Type: RP-TNC Male connector
• Interface: Reverse-Polarity Threaded Neill–Concelman connection
• Mounting Style: Direct device attachment

Compatibility

• Interface Target: Operates with any legacy or modern Cisco radio component hosting an external 2.4 GHz RP-TNC female port.
• Aironet Legacy Systems: Works with legacy infrastructure hardware including Aironet 350 and 1100 series platforms.
• Aironet Flagship Units: Directly compatible with multi-port Aironet 1200, 1230, 1240, and 1250 series access points.
• Integrated Routers: Connects to external wireless radio ports on fixed Cisco 850 and 870 series business routers.
• Frequency Restriction: Restricted exclusively from attaching to 5 GHz blue-dotted ports to prevent significant radio performance degradation.

Coverage Specifications

• Polarization: Linear vertical orientation
• Horizontal Beamwidth: 360 degrees (H-Plane)
• Vertical Beamwidth: 70 degrees (E-Plane)
• Radiation Pattern: Omnidirectional coverage

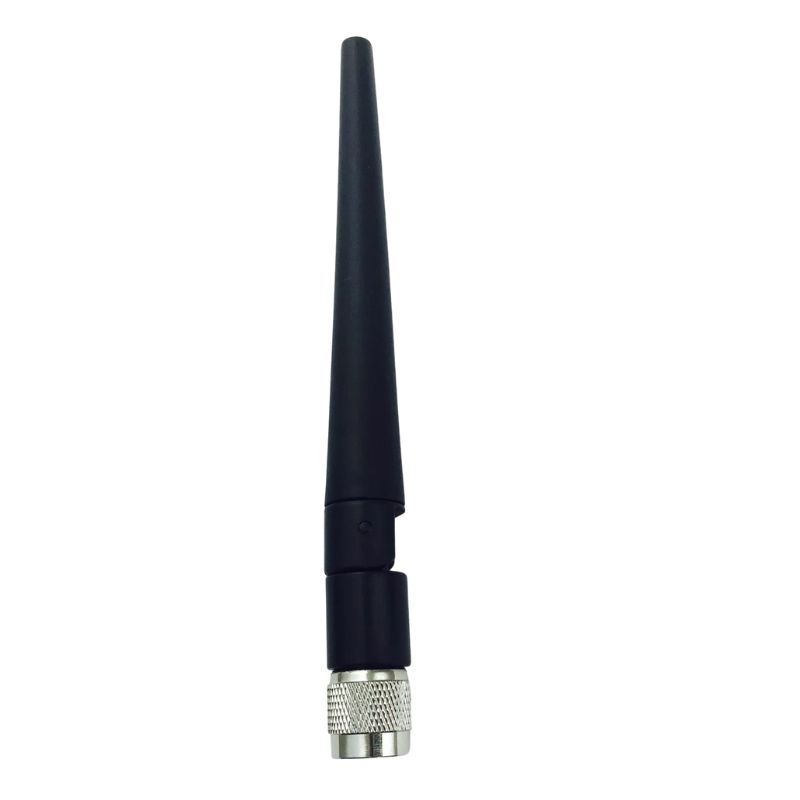

Cisco AIR-ANT2422DB-R 2.2DBI Dipole Antenna

The Cisco AIR-ANT2422DB-R Aironet 2.2DBI Dipole Antenna is a compact wireless networking accessory designed to enhance the performance and flexibility of compatible Cisco Aironet wireless access points. This antenna belongs to the category of low-profile dipole antennas, which are widely used in enterprise wireless environments where reliable signal distribution, easy installation, and efficient coverage are essential. The AIR-ANT2422DB-R model provides a practical solution for organizations that need dependable wireless connectivity across offices, educational facilities, healthcare environments, retail spaces, warehouses, and other indoor network deployments.

Designed with a 2.2 dBi gain rating, this Cisco Aironet antenna provides balanced wireless coverage suitable for many standard indoor applications. Its omnidirectional radiation pattern allows wireless signals to spread across a broad area, making it an effective option for users who require consistent connectivity rather than highly focused directional transmission. The antenna works as an important component within a wireless infrastructure by helping access points communicate effectively with connected devices such as laptops, mobile devices, barcode scanners, IoT equipment, and other Wi-Fi-enabled systems.

The Cisco AIR-ANT2422DB-R Aironet 2.2DBI Dipole Antenna category focuses on providing replacement and expansion antenna options for Cisco wireless networking hardware. Businesses often select dipole antennas because they are simple to install, easy to position, and capable of delivering stable wireless performance without requiring complex configuration. This makes them especially valuable for network administrators who want to maintain or improve wireless coverage while keeping deployment processes straightforward.

Understanding the Cisco Aironet Antenna Category

Cisco Aironet antennas are developed as part of a broader wireless networking ecosystem that includes access points, controllers, wireless management solutions, and network accessories. Within this ecosystem, antennas play a critical role because they influence how radio frequency signals are transmitted and received. The antenna selection process depends on factors such as coverage area, mounting location, wireless frequency range, physical environment, and required network performance.

The AIR-ANT2422DB-R belongs to the dipole antenna category, which is one of the most commonly used antenna designs in wireless networking. Dipole antennas are valued for their straightforward construction and predictable performance characteristics. They are typically attached directly to an access point and positioned vertically or according to the recommended installation guidelines to achieve optimal signal distribution.

Unlike directional antennas that concentrate wireless signals toward a specific area, dipole antennas are designed for broader coverage. This makes the Cisco AIR-ANT2422DB-R a suitable option for environments where users and devices are distributed around an access point. Offices with multiple workstations, classrooms with mobile devices, and commercial spaces with wireless users moving throughout the area can benefit from this type of antenna design.

Design Characteristics of the AIR-ANT2422DB-R

The Cisco AIR-ANT2422DB-R Aironet 2.2DBI Dipole Antenna features a design optimized for compatibility, reliability, and ease of deployment. The 2.2 dBi antenna gain provides a moderate level of signal enhancement while maintaining a wide coverage pattern. This balance is important in indoor wireless environments because excessive antenna gain can sometimes reduce coverage effectiveness by narrowing the signal distribution.

The dipole form factor allows the antenna to remain lightweight and practical for daily network operations. Wireless administrators can install or replace these antennas without requiring specialized tools or complicated procedures. The compact structure also helps maintain a clean appearance when installed on access points located in visible areas such as offices, meeting rooms, or public facilities.

Another important aspect of this antenna category is compatibility. Cisco Aironet accessories are designed to work with specific Cisco wireless hardware models, ensuring that the antenna connector, electrical specifications, and operating characteristics match the access point requirements. Proper antenna compatibility helps maintain wireless performance and prevents installation issues caused by using unsuitable accessories.

Applications of Cisco AIR-ANT2422DB-R Dipole Antenna

The Cisco AIR-ANT2422DB-R Aironet 2.2DBI Dipole Antenna is commonly used in a variety of indoor wireless networking scenarios. Its flexible coverage capabilities make it appropriate for organizations that depend on wireless connectivity for everyday operations. As wireless networks continue to support business applications, communication systems, and connected devices, reliable antennas remain an important part of network infrastructure.

In corporate offices, this antenna can support wireless access points that provide connectivity for employees, visitors, and business devices. Modern workplaces often require consistent wireless coverage across meeting rooms, open workspaces, and collaborative areas. A dipole antenna helps distribute wireless signals throughout these spaces, supporting activities such as web access, cloud applications, video conferencing, and internal communication platforms.

Educational institutions also use wireless networks extensively, making antenna selection an important consideration. Classrooms, libraries, laboratories, and administrative areas often contain many wireless devices operating simultaneously. The Cisco AIR-ANT2422DB-R provides a practical antenna option for maintaining reliable communication between wireless access points and connected devices.

Enterprise Wireless Network Deployment

Enterprise networks require careful planning because wireless performance depends on many environmental factors. Building materials, interference sources, device density, and access point placement can all influence connectivity. The AIR-ANT2422DB-R antenna supports enterprise wireless deployments by offering a dependable omnidirectional solution that can be integrated into existing Cisco Aironet environments.

Network administrators often evaluate antennas as part of a complete wireless design strategy. The antenna type affects signal behavior, and choosing the correct model helps ensure that wireless access points perform according to expectations. A 2.2 dBi dipole antenna is often selected when the goal is balanced coverage for typical indoor spaces rather than extended-distance wireless transmission.

Retail businesses can also benefit from this antenna category. Stores frequently use wireless networks for payment systems, inventory management, customer services, and internal communications. A reliable antenna helps maintain communication between wireless devices and access points, supporting smooth daily operations.

Indoor Wireless Connectivity Benefits

The primary advantage of the Cisco AIR-ANT2422DB-R is its ability to provide stable wireless connectivity in indoor environments. The omnidirectional design allows signals to radiate around the antenna, helping devices connect from multiple directions. This makes the antenna especially useful in areas where users are not concentrated in one specific location.

Wireless connectivity quality depends on both access point capabilities and antenna performance. Even a powerful access point may not deliver expected results if the antenna is not appropriate for the environment. By using a compatible Cisco Aironet antenna, organizations can maintain a properly matched wireless system where hardware components work together effectively.

Coverage and Signal Distribution Considerations

Coverage planning is an essential part of wireless network installation. The AIR-ANT2422DB-R 2.2DBI Dipole Antenna provides a coverage pattern intended for general indoor use. Its signal distribution characteristics allow network designers to create predictable wireless coverage areas when access points are positioned correctly.

Factors such as wall thickness, furniture placement, electronic interference, and device activity can influence actual wireless performance. Because of this, professional network deployments often combine antenna selection with wireless surveys and testing. The Cisco AIR-ANT2422DB-R serves as a dependable component within these carefully planned environments.

Compatibility and Cisco Aironet Integration

The Cisco AIR-ANT2422DB-R Aironet 2.2DBI Dipole Antenna is designed as an accessory for Cisco wireless infrastructure products. Compatibility is a major consideration when selecting antennas because different access points may require specific antenna types, connectors, and performance specifications.

Using an antenna designed for Cisco Aironet equipment helps organizations maintain a reliable wireless architecture. Proper integration ensures that the antenna and access point operate together according to manufacturer specifications. This reduces installation challenges and helps preserve expected network performance.

For IT departments managing large wireless deployments, standardized antenna selection simplifies maintenance and replacement processes. When existing equipment requires antenna upgrades or replacements, choosing a matching Cisco Aironet antenna helps maintain consistency across the network environment.

Network Maintenance and Replacement Use

Wireless networks operate continuously, and network components may eventually require replacement due to physical damage, upgrades, or environmental factors. The AIR-ANT2422DB-R provides a convenient replacement option for compatible installations. Maintaining the correct antenna model helps organizations avoid unnecessary compatibility concerns.

Replacement antennas are also useful during network expansion projects. As businesses add new wireless locations, additional access points may require suitable antennas to match the existing infrastructure. A reliable dipole antenna option supports these expansion efforts by providing a consistent wireless hardware solution.

Optimizing Wireless Performance with Proper Antenna Selection

Selecting the correct antenna is an important step in achieving effective wireless performance. The AIR-ANT2422DB-R is designed for situations where broad indoor coverage and dependable connectivity are priorities. Network professionals consider antenna specifications along with access point placement and environmental conditions to achieve the best results.

A well-designed wireless network depends on cooperation between hardware components. Access points, antennas, cabling, network switches, and management systems all contribute to overall performance. The antenna serves as the connection point between network hardware and wireless devices, making its role essential in the complete wireless system.

Suitable Environments for Deployment

The Cisco AIR-ANT2422DB-R antenna can be used in numerous environments where wireless communication is required. Office buildings, schools, healthcare facilities, hospitality locations, and commercial spaces often rely on wireless networks to support daily operations. In these environments, stable coverage and easy maintenance are valuable benefits.

The antenna’s compact profile also makes it suitable for installations where appearance and practicality matter. Many organizations prefer networking equipment that blends into the environment while still delivering reliable performance. The dipole design supports this requirement by remaining unobtrusive while providing essential wireless functionality.
