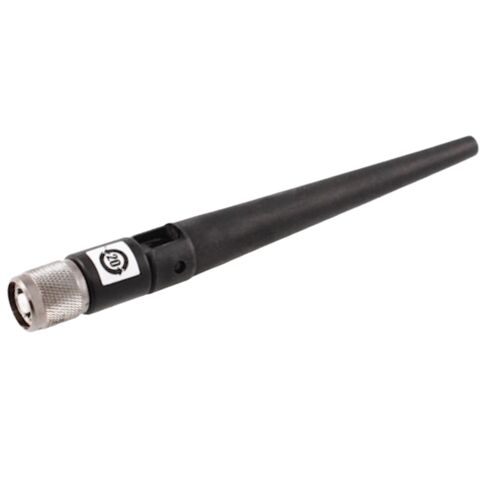

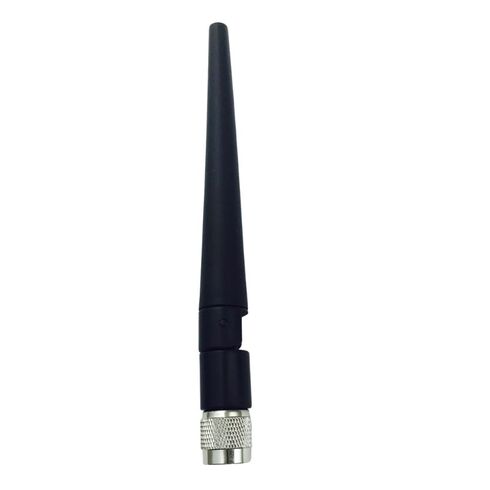

AIR-ANT2422DB-R Cisco 2.2DBI Dipole Antenna

Overview of the Cisco Aironet 2.2dBi Dipole Antenna

The Cisco AIR-ANT2422DB-R Aironet 2.2DBI Dipole Antenna is a compact wireless networking antenna designed to enhance the performance, flexibility, and coverage capabilities of compatible Cisco Aironet wireless access points. Built for enterprise-grade wireless environments, this dipole antenna provides reliable signal distribution for Wi-Fi networks that require consistent connectivity, efficient installation, and dependable wireless communication. As part of the Cisco Aironet antenna family, the AIR-ANT2422DB-R represents a practical solution for organizations looking to optimize wireless infrastructure without requiring large external antenna systems.

General Information

• Brand: Cisco
• Prat Number: AIR-ANT2422DB-R
• Device Type: Wireless Dipole Antenna

Technical Specifications

• Frequency Band: Single-band 2.4 GHz
• Operating Frequency Range: 2400 MHz to 2500 MHz
• Peak Antenna Gain: 2.2 dBi
• Signal Coverage Type: Omnidirectional transmission pattern

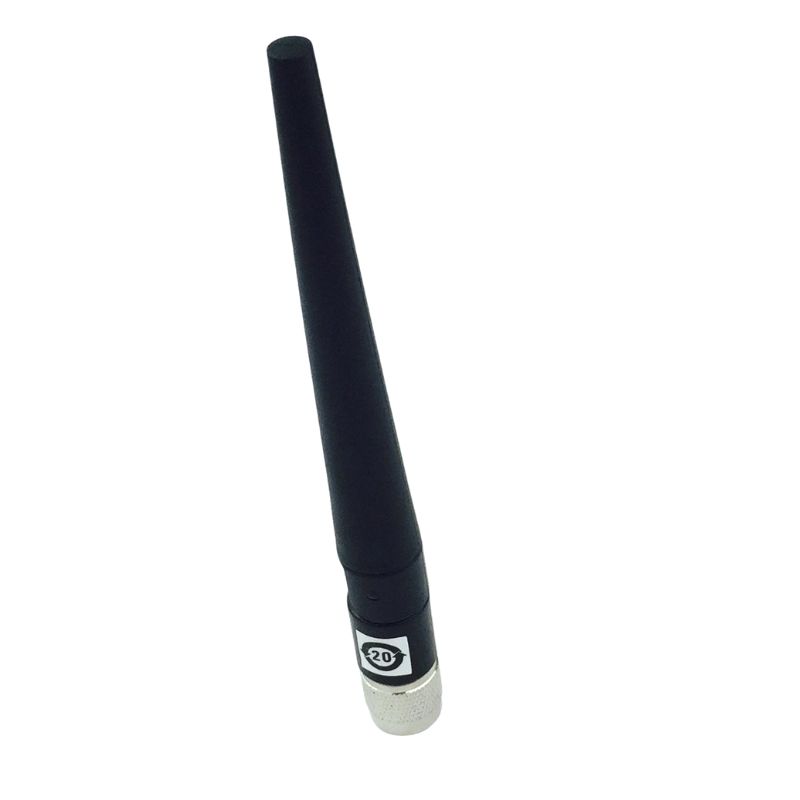

• Connector Type: RP-TNC Male connector
• Interface: Reverse-Polarity Threaded Neill–Concelman connection
• Mounting Style: Direct device attachment

Compatibility

• Interface Target: Operates with any legacy or modern Cisco radio component hosting an external 2.4 GHz RP-TNC female port.
• Aironet Legacy Systems: Works with legacy infrastructure hardware including Aironet 350 and 1100 series platforms.
• Aironet Flagship Units: Directly compatible with multi-port Aironet 1200, 1230, 1240, and 1250 series access points.
• Integrated Routers: Connects to external wireless radio ports on fixed Cisco 850 and 870 series business routers.
• Frequency Restriction: Restricted exclusively from attaching to 5 GHz blue-dotted ports to prevent significant radio performance degradation.

Coverage Specifications

• Polarization: Linear vertical orientation
• Horizontal Beamwidth: 360 degrees (H-Plane)
• Vertical Beamwidth: 70 degrees (E-Plane)
• Radiation Pattern: Omnidirectional coverage

Cisco AIR-ANT2422DB-R 2.2DBI Dipole Antenna

This 2.2 dBi dipole antenna operates within the 2.4 GHz frequency range, making it suitable for wireless networking applications that rely on the IEEE 802.11 standards. Its omnidirectional design allows wireless signals to radiate around the antenna, helping provide balanced coverage throughout the surrounding area. The antenna is especially useful in indoor deployments where access points need to provide stable wireless access across offices, classrooms, retail environments, healthcare facilities, warehouses, and other commercial locations.

The Cisco AIR-ANT2422DB-R Aironet 2.2DBI Dipole Antenna is engineered to work with selected Cisco Aironet access point models, providing a seamless combination of Cisco wireless hardware and antenna technology. The antenna’s design focuses on simplicity and effectiveness, allowing network administrators to deploy wireless connectivity with minimal complexity while maintaining professional network standards.

The AIR-ANT2422DB-R Cisco 2.2 dBi Dipole Antenna

The primary purpose of the AIR-ANT2422DB-R dipole antenna is to improve wireless signal propagation by providing controlled omnidirectional radiation patterns. It helps wireless access points distribute RF signals evenly across office spaces, warehouses, educational institutions, healthcare facilities, and commercial environments. By using a dipole structure, the antenna ensures consistent signal coverage in a 360-degree horizontal pattern, minimizing dead zones and improving client connectivity stability.

This antenna is optimized for Cisco access points that support detachable antenna interfaces, allowing network administrators to customize wireless coverage based on environmental requirements. The 2.2 dBi gain level strikes a balance between range and signal density, making it suitable for dense user environments where multiple devices connect simultaneously.

Specifications and RF Characteristics

The AIR-ANT2422DB-R operates within the 2.4 GHz ISM band, which is commonly used for Wi-Fi standards such as 802.11b, 802.11g, and 802.11n. This frequency range ensures broad compatibility with legacy and modern wireless devices, making it a versatile component in mixed-device enterprise networks.

Gain and Radiation Pattern

With a 2.2 dBi gain rating, the antenna provides moderate signal amplification while maintaining an omnidirectional radiation pattern. This ensures that signals are distributed evenly across all directions horizontally, which is ideal for centralized access point deployments. The vertical radiation pattern helps maintain coverage across multiple floors or open-plan environments when properly positioned.

Impedance and Connector Type

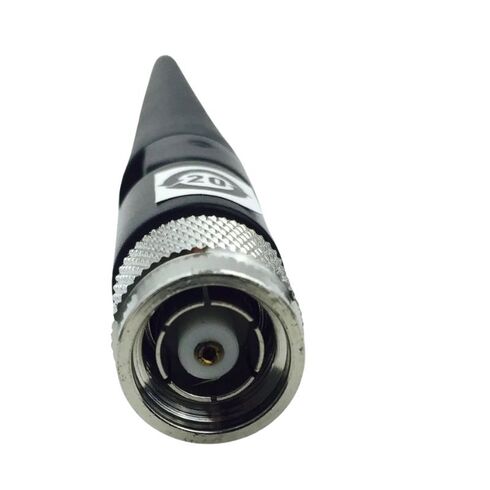

The antenna is designed with a standard 50-ohm impedance, ensuring efficient power transfer between the access point and the antenna system. It typically uses Cisco-compatible RP-TNC connectors, allowing secure attachment to supported wireless devices without signal loss or instability.

Polarization

The AIR-ANT2422DB-R uses linear polarization, which is standard for enterprise Wi-Fi systems. This ensures compatibility with client devices such as laptops, smartphones, tablets, and IoT devices that also operate with linear polarization antennas.

VSWR Performance

The Voltage Standing Wave Ratio (VSWR) is optimized to minimize signal reflection and maximize transmission efficiency. Lower VSWR values contribute to better performance, reduced signal degradation, and improved overall wireless stability.

Durable Construction Materials

The Cisco AIR-ANT2422DB-R dipole antenna is constructed using durable industrial-grade materials designed to withstand long-term deployment in enterprise environments. The casing is engineered to resist wear and environmental stress, ensuring stable performance over extended operational lifespans.

Compact and Flexible Form Factor

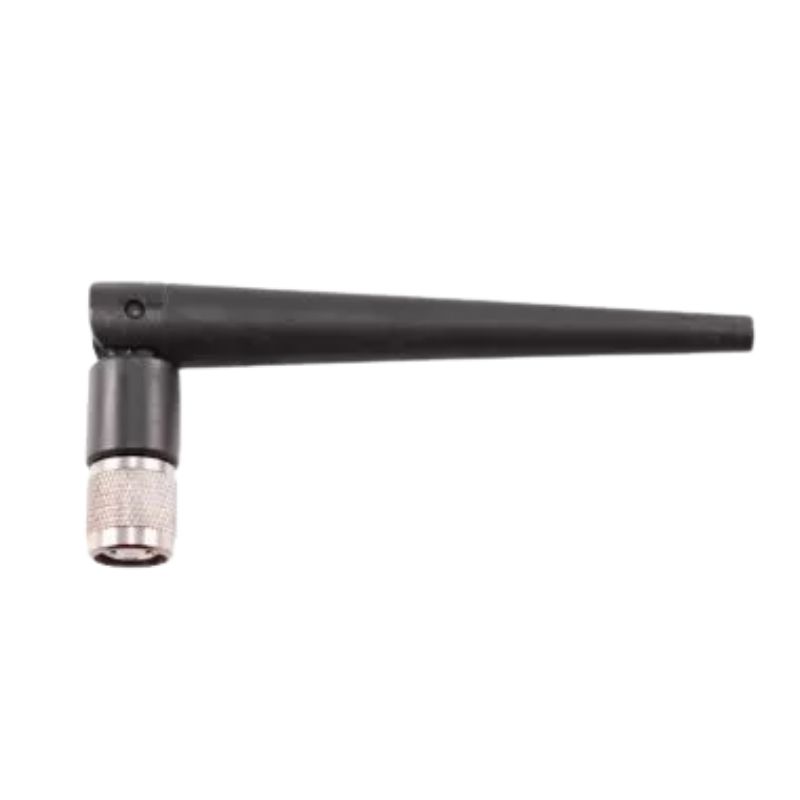

The antenna features a compact dipole design that allows for flexible positioning. Its adjustable structure enables administrators to tilt or orient the antenna for optimal signal propagation based on environmental layout. This flexibility is particularly useful in dense office environments where obstructions may affect signal distribution.

Aesthetic Integration

In addition to technical efficiency, the antenna is designed with a neutral professional appearance, allowing it to blend seamlessly into office interiors without disrupting aesthetics. This is particularly important in corporate environments where equipment visibility must remain minimal.

Deployment Scenarios and Use Cases

In corporate office environments, the AIR-ANT2422DB-R is commonly used to provide consistent Wi-Fi coverage across workstations, meeting rooms, and collaborative spaces. Its omnidirectional pattern ensures that employees receive stable connectivity regardless of their location within the coverage area.

Educational Institutions

Schools, colleges, and universities benefit from the antenna’s ability to handle multiple simultaneous connections. Classrooms, lecture halls, and libraries often require dense wireless coverage, which this antenna helps deliver efficiently.

Healthcare Facilities

Hospitals and clinics rely on stable wireless connectivity for medical devices, patient records systems, and communication tools. The AIR-ANT2422DB-R supports these critical applications by providing dependable signal distribution across complex building layouts.

Warehouse and Industrial Environments

In warehouses, the antenna supports mobile scanning devices, logistics tracking systems, and IoT-based inventory solutions. Its omnidirectional signal pattern helps maintain connectivity across large open areas with varying obstructions.

Optimal Placement Strategy

To maximize performance, the AIR-ANT2422DB-R should be installed in elevated and central locations. Positioning the antenna away from large metal objects, electrical interference sources, and thick concrete walls helps reduce signal attenuation and improves coverage consistency.

Orientation Adjustments

The dipole design allows for adjustable positioning, which can be fine-tuned depending on the desired coverage area. Vertical positioning typically enhances horizontal coverage, while angled placement can help improve signal distribution in multi-level environments.

Access Point Compatibility

This antenna is compatible with Cisco wireless access points that support external antenna connectors. Proper matching between access point models and antenna configuration ensures optimal RF performance and prevents signal imbalance.

Cabling and Connector Handling

Careful handling of connectors is essential to avoid signal degradation. Secure tightening without over-torquing ensures a stable connection while preserving the integrity of the RP-TNC interface.

Performance Optimization Factors

Wireless performance is heavily influenced by environmental factors such as wall density, electronic interference, and building layout. The AIR-ANT2422DB-R is designed to mitigate these challenges through stable omnidirectional propagation, but optimal placement remains critical.

Channel Planning and Network Design

Proper Wi-Fi channel planning enhances antenna performance by reducing interference between adjacent access points. When paired with Cisco wireless controllers, the antenna supports dynamic channel selection and load balancing for improved efficiency.

Device Density Management

In high-density environments, such as conference halls or auditoriums, the antenna supports multiple simultaneous connections without significant performance degradation. However, network segmentation and access point distribution remain important for scalability.

Integration with Cisco Wireless Ecosystem

The AIR-ANT2422DB-R is designed to integrate seamlessly within Cisco’s enterprise wireless ecosystem. It works alongside Cisco access points, wireless controllers, and network management tools to deliver centralized control and optimized performance. This integration ensures that administrators can monitor signal strength, adjust configurations, and maintain network stability efficiently. When deployed in Cisco-managed environments, the antenna contributes to intelligent RF management features such as automatic power adjustment, interference mitigation, and adaptive coverage optimization.

Signal Coverage Behavior and Propagation Insights

The antenna’s dipole structure produces a doughnut-shaped radiation pattern, which is ideal for horizontal coverage in open environments. Signal strength is strongest perpendicular to the antenna shaft, while reduced radiation occurs directly above and below the antenna. Understanding this behavior helps in designing efficient wireless layouts.

In multi-floor buildings, strategic placement ensures that signal penetration extends vertically while maintaining strong horizontal distribution across each level.

Comparison with Higher Gain Antennas

Compared to higher gain antennas, the AIR-ANT2422DB-R prioritizes balanced coverage over long-range directional focus. Higher gain antennas may extend range but can reduce coverage uniformity. In contrast, this dipole antenna ensures consistent omnidirectional coverage, making it more suitable for general enterprise deployments rather than point-to-point communication scenarios.

Enterprise Network Scalability Considerations

As organizations scale their wireless infrastructure, the AIR-ANT2422DB-R supports expansion through distributed access point deployment. Its consistent performance ensures that additional nodes can be integrated without compromising overall network stability. In large-scale deployments, combining multiple antennas across strategically placed access points allows for seamless roaming and uninterrupted connectivity for mobile users.

Security and Wireless Reliability Factors

While antennas do not directly control network security, stable signal coverage provided by the AIR-ANT2422DB-R supports secure wireless operations by reducing dead zones and ensuring consistent authentication connectivity. This is essential for enterprise environments utilizing WPA2 or WPA3 security protocols.

Environmental and Regulatory Compliance

The antenna is designed to comply with standard RF emission regulations applicable to enterprise wireless equipment. Its efficient radiation pattern ensures minimal interference with surrounding systems while maintaining strong wireless performance.

Operational Efficiency in Mixed-Device Networks

Modern enterprise networks often include a mix of legacy and modern devices. The AIR-ANT2422DB-R supports seamless interoperability across multiple device generations, ensuring that older hardware remains functional while newer devices benefit from improved throughput and stability.

Advanced Deployment Optimization Strategies

Network engineers often combine multiple AIR-ANT2422DB-R antennas across access points to create overlapping coverage zones. This approach ensures redundancy, reduces dead zones, and enhances roaming efficiency for mobile users. Fine-tuning antenna orientation, adjusting power levels, and optimizing channel allocation collectively contribute to a high-performance wireless infrastructure.
