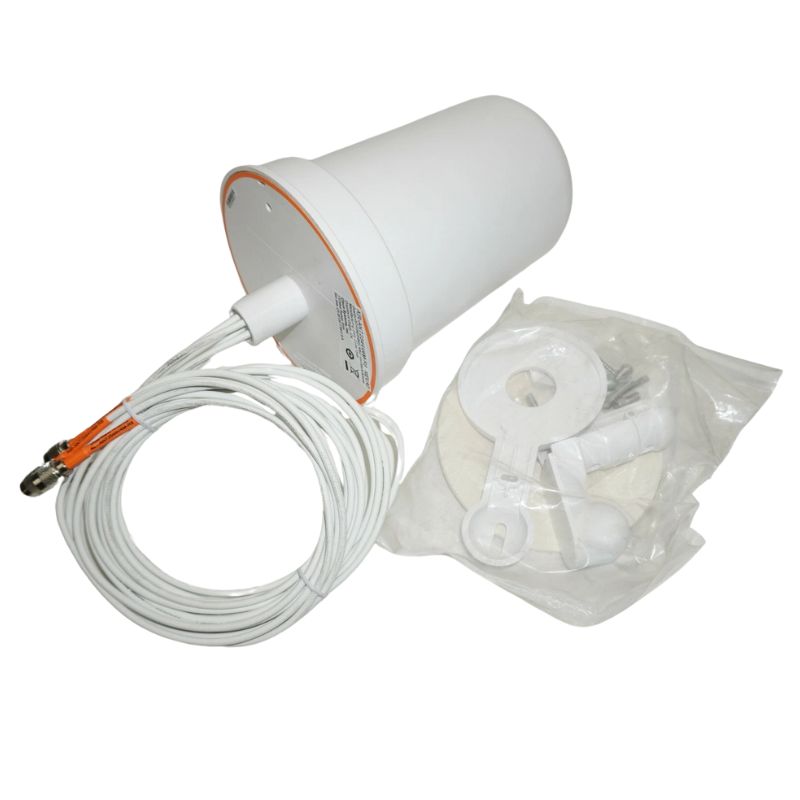

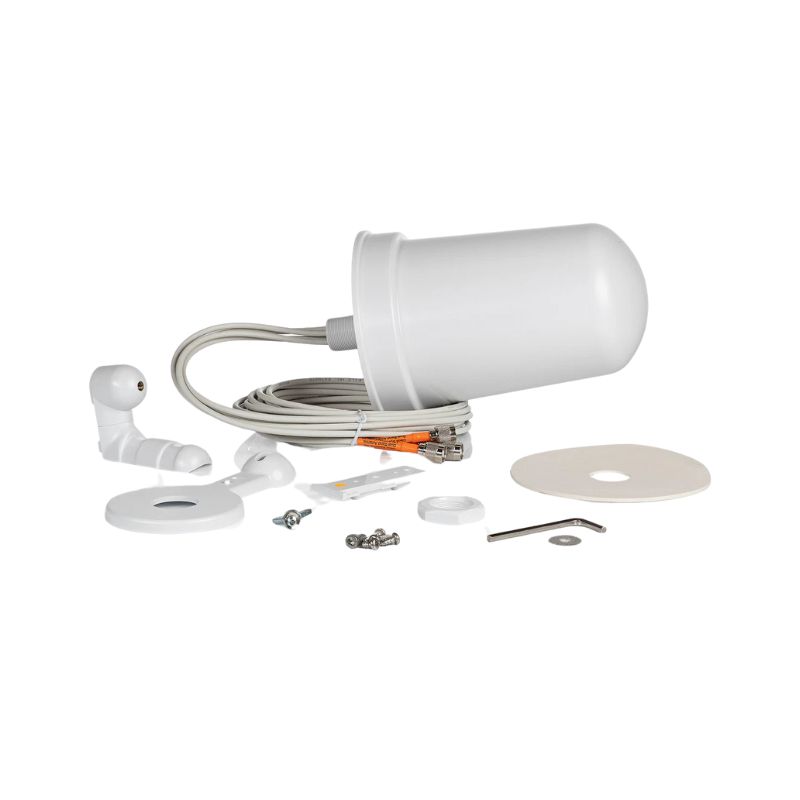

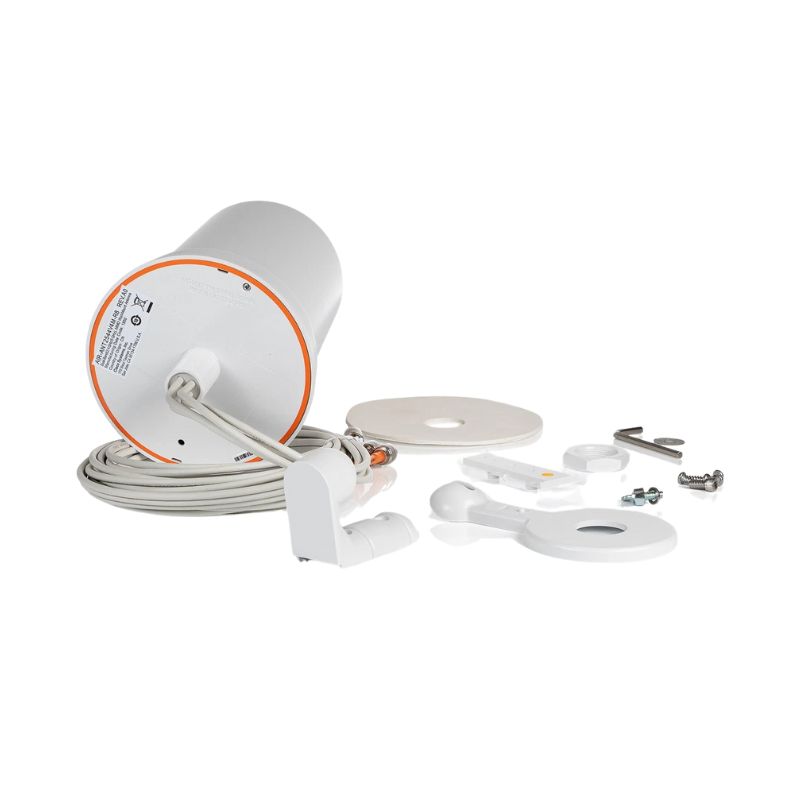

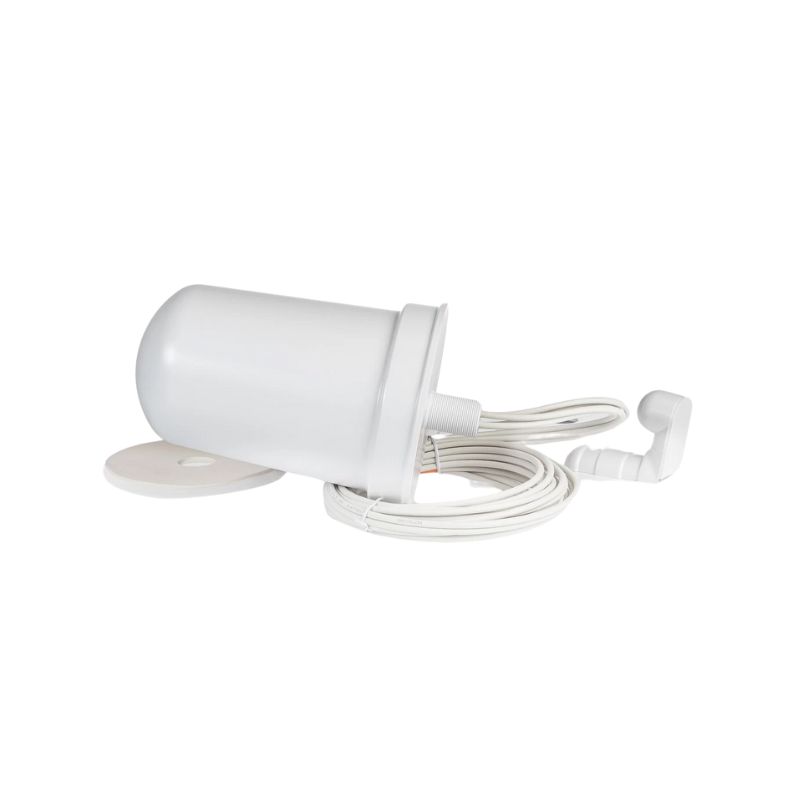

AIR-ANT2544V4M-R8 Cisco Dual Band Wall Mount Antenna

Overview of the Cisco Dual Band Wall Mount Antenna

The Cisco AIR-ANT2544V4M-R8 Dual Band Wall Mount Antenna is a specialized wireless networking accessory designed to improve Wi-Fi coverage, signal quality, and connectivity performance in enterprise environments. Built for compatibility with Cisco wireless infrastructure, this antenna supports dual-band operation, allowing wireless networks to operate efficiently across both the 2.4 GHz and 5 GHz frequency ranges. By providing flexible deployment options and optimized radio performance, this wall mount antenna helps organizations create reliable wireless environments for offices, campuses, industrial spaces, hospitality locations, and other high-density networking areas.

General Information

• Manufacturer: Cisco
• Part Number: AIR-ANT2544V4M-R8
• Device Type: Antenna

Technical Specifications

• Antenna Type: Four-element MIMO omnidirectional antenna.
• Operating Frequency Ranges: 2400 to 2484 MHz and 5150 to 5850 MHz.
• Peak Gain: 4 dBi on the 2.4 GHz band and 4 dBi on the 5 GHz band.
• Nominal Input Impedance: 50 Ohms.
• Voltage Standing Wave Ratio: 2:1 or less across both operating bands.
• Polarization Type: Linear, vertical polarization.
• Azimuth Plane Beamwidth: 360-degree omnidirectional horizontal coverage.
• Elevation Plane 3dB Beamwidth at 2.4 GHz: 60 degrees.
• Elevation Plane 3dB Beamwidth at 5 GHz: 33 degrees.
• Connector Type: Four Reverse-Polarity TNC plugs.
• Pigtail Cables: Four attached 8-foot plenum-rated cables.
• Physical Dimensions: 8.6 inches in length by 6.3 inches in diameter.
• Weight: 1.48 pounds for the main antenna assembly.
• Radome Color: White.
• Environment Rating: Certified for both indoor and outdoor deployments.
• Operating Temperature: -30°C to 70°C.

Compatibility

• Cisco Aironet 1800 Series: Compatible with 1830 and 1850 access points.
• Cisco Aironet 2800 Series: Compatible with 2802E access points.
• Cisco Aironet 3800 Series: Compatible with 3802E access points.
• Cisco Catalyst 9100 Series: Compatible with 9115AX, 9120AX, and 9130AX access points.
• General Radio Requirement: Connects to any Cisco radio utilizing external dual-band RP-TNC connectors.
• Mounting Requirement: Designed for wall mounting or attachment to I-beams with the included multi-mount kit.

Cisco AIR-ANT2544V4M-R8 Dual Band Antenna

This antenna category represents a solution for businesses that require enhanced wireless communication through professionally installed access point accessories. The Cisco AIR-ANT2544V4M-R8 is engineered to deliver consistent signal distribution while maintaining a clean and practical installation design. Unlike basic consumer-grade antennas, enterprise wireless antennas are designed with specific radio frequency characteristics, mounting considerations, and environmental requirements to support stable network operations.

The dual-band capability of this antenna allows wireless administrators to take advantage of modern Wi-Fi technologies that rely on multiple frequency ranges. The 2.4 GHz band provides broad coverage and compatibility with a wide range of wireless devices, while the 5 GHz band supports higher performance, reduced interference, and improved capacity for newer wireless clients. This combination makes the antenna suitable for networks where both coverage and performance are important considerations.

Understanding the Cisco AIR-ANT2544V4M-R8 Antenna Technology

The Cisco AIR-ANT2544V4M-R8 Dual Band Wall Mount Antenna is part of a category of professional wireless antennas developed to extend and optimize the capabilities of Cisco access points. Wireless antennas play an important role in determining how radio signals are transmitted and received. The antenna design influences coverage patterns, signal strength, wireless reliability, and overall user experience.

This model uses a dual-band antenna architecture that supports simultaneous operation across two commonly used Wi-Fi frequency bands. Modern wireless networks often depend on efficient spectrum management, and dual-band antennas provide network administrators with greater flexibility when designing wireless coverage areas. By supporting multiple frequencies from one physical antenna, organizations can simplify deployment while maintaining strong connectivity for different device types.

The wall mount form factor provides a practical installation method for locations where ceiling mounting is not preferred or available. Wall-mounted antennas can be positioned strategically to direct wireless coverage toward specific areas, helping improve connectivity in offices, meeting rooms, warehouses, classrooms, and public spaces. This installation style also allows network planners to adapt antenna placement according to building layouts and wireless requirements.

Dual Band Wireless Performance and Coverage Benefits

Dual-band wireless operation is a key feature of the Cisco AIR-ANT2544V4M-R8 category. The 2.4 GHz frequency band has traditionally been widely used because it offers strong range and compatibility with many wireless devices. However, it can become crowded in environments with many wireless networks, Bluetooth devices, and other sources of interference.

The 5 GHz frequency band provides additional channels and is commonly used for higher-performance wireless communication. It is especially beneficial in environments where many users connect simultaneously, such as corporate offices, training facilities, healthcare environments, and educational institutions. The availability of the 5 GHz spectrum allows organizations to distribute wireless traffic more effectively and reduce congestion.

By supporting both frequency ranges, the Cisco AIR-ANT2544V4M-R8 helps wireless networks balance compatibility and performance. Devices that require broader range can continue using 2.4 GHz connectivity, while newer devices can utilize the faster and less congested 5 GHz band. This creates a more efficient wireless ecosystem where different devices can operate according to their capabilities.

Enterprise Wireless Network Applications

The Cisco AIR-ANT2544V4M-R8 Dual Band Wall Mount Antenna is designed for professional networking applications where wireless reliability is essential. Enterprise environments require stable connectivity for employees, customers, communication systems, cloud applications, and connected devices. A properly selected antenna can significantly contribute to maintaining a dependable wireless infrastructure.

In office environments, this antenna can support wireless access points that provide connectivity throughout workspaces, conference rooms, and shared areas. Businesses increasingly rely on wireless networks for video meetings, collaboration platforms, mobile devices, and cloud-based services. A strong antenna solution helps ensure that users experience consistent connectivity throughout their daily operations.

In educational environments, wireless networks must support many users at the same time. Students, teachers, and administrators often depend on wireless access for digital learning platforms, online resources, and communication tools. A dual-band wall mount antenna can help improve wireless availability in classrooms, libraries, laboratories, and common areas.

Industrial and warehouse environments also benefit from professional wireless antenna solutions. These locations may contain large spaces, physical obstacles, and equipment that can affect wireless performance. Strategic antenna placement can help extend network access to areas where handheld devices, scanners, monitoring systems, and operational technology require reliable communication.

Wireless Infrastructure Optimization

Optimizing a wireless network involves more than installing access points. Antenna selection, placement, orientation, and frequency planning all influence the final network performance. The Cisco AIR-ANT2544V4M-R8 is designed to work as part of a complete wireless infrastructure strategy where every component contributes to reliable connectivity.

Network administrators evaluate factors such as building construction, user density, device types, and coverage requirements when planning wireless deployments. A wall mount antenna provides additional flexibility because it can be installed in positions that direct radio coverage where it is most needed. This makes it useful in environments where ceiling-mounted solutions may not provide the desired coverage pattern.

Professional wireless deployments often require equipment that integrates smoothly with existing networking systems. Cisco-compatible antennas are developed to support Cisco wireless solutions, helping organizations maintain consistent hardware standards throughout their infrastructure. This compatibility simplifies management and reduces complexity during network expansion or upgrades.

Design Features of Cisco AIR-ANT2544V4M-R8

The Cisco AIR-ANT2544V4M-R8 antenna is designed with enterprise installation requirements in mind. Its wall mount design provides a practical approach for improving wireless coverage while maintaining a professional appearance. The physical design allows organizations to install wireless antennas in visible locations without creating unnecessary disruption to the surrounding environment.

The antenna design focuses on dependable wireless signal transmission and reception. Antennas are carefully engineered components that influence how radio waves travel through a physical space. Factors such as antenna gain, radiation pattern, and frequency support determine how effectively wireless signals reach connected devices.

This antenna category is commonly selected by organizations that need equipment capable of supporting long-term network operations. Enterprise wireless systems are expected to operate continuously, often supporting critical business processes. A reliable antenna helps maintain communication between wireless devices and network infrastructure.

Flexibility and Deployment Considerations

Wall mounting provides flexibility for network designers who need alternative placement options. Some buildings have structural limitations that make ceiling installation difficult, while others may require targeted wireless coverage in specific zones. A wall-mounted antenna can address these challenges by allowing administrators to position wireless equipment according to the unique requirements of the environment.

Proper installation is important for achieving the best possible wireless performance. The antenna should be positioned carefully based on coverage goals, surrounding materials, and expected user locations. Professional wireless planning considers the interaction between antennas, access points, and connected devices to create an efficient network layout.

When deployed correctly, the Cisco AIR-ANT2544V4M-R8 can help organizations improve wireless consistency and reduce connectivity issues. The antenna works as part of a larger system, supporting the relationship between wireless clients and network infrastructure.

Benefits of Using a Cisco Dual Band Wall Mount Antenna

Choosing a dual-band wall mount antenna provides several advantages for organizations building or expanding wireless networks. One of the primary benefits is improved flexibility. A single antenna solution can support devices operating across different wireless standards and frequency ranges, making it easier to accommodate diverse technology environments.

Another important advantage is improved network planning. Wireless administrators can use antenna placement strategies to provide coverage where users need it most. This is especially valuable in buildings with unusual layouts, multiple floors, or areas where wireless signals may encounter obstacles.

The antenna also supports better wireless capacity management. Modern networks often have many connected devices, including laptops, smartphones, tablets, sensors, and specialized equipment. Using both 2.4 GHz and 5 GHz bands helps distribute traffic and allows networks to handle higher demand more efficiently.

Enterprise-grade antennas also provide long-term value because they are designed for professional networking environments. Organizations typically invest in wireless infrastructure with the expectation that equipment will support future growth. A dependable antenna solution can contribute to a stable foundation for wireless expansion.

Supporting Modern Wi-Fi Environments

Wireless technology continues to evolve as businesses adopt more connected devices and digital services. Modern Wi-Fi environments require infrastructure that can support increasing demands for speed, reliability, and availability. Antennas remain a fundamental part of this infrastructure because they directly influence wireless communication quality.

The Cisco AIR-ANT2544V4M-R8 category supports organizations that need to maintain effective wireless communication across different environments. Whether used in enterprise offices, educational facilities, public spaces, or industrial applications, a properly deployed antenna helps provide the wireless foundation needed for modern connectivity.

As organizations continue transitioning toward wireless-first operations, reliable antenna solutions become increasingly important. Video collaboration, cloud computing, mobile workflows, and connected systems all depend on strong wireless performance. The antenna serves as a critical connection point between users and network resources.

Enterprise Connectivity with Cisco Wireless Accessories

Cisco wireless accessories are developed to complement professional networking solutions by providing additional options for installation and optimization. The Cisco AIR-ANT2544V4M-R8 represents an antenna solution focused on helping organizations achieve dependable wireless coverage in demanding environments.

Businesses rely on wireless connectivity for communication, productivity, and operational efficiency. A properly selected antenna contributes to reducing weak signal areas, improving device connectivity, and creating a more consistent user experience. As wireless demands continue to increase, investing in appropriate infrastructure components becomes an essential part of network planning.

The Cisco AIR-ANT2544V4M-R8 Dual Band Wall Mount Antenna category is valuable for organizations seeking a professional wireless enhancement option that supports multiple frequency ranges and flexible installation. With its enterprise-focused design, dual-band functionality, and compatibility with Cisco wireless systems, it provides a practical solution for improving wireless network coverage and performance across a wide range of applications.
