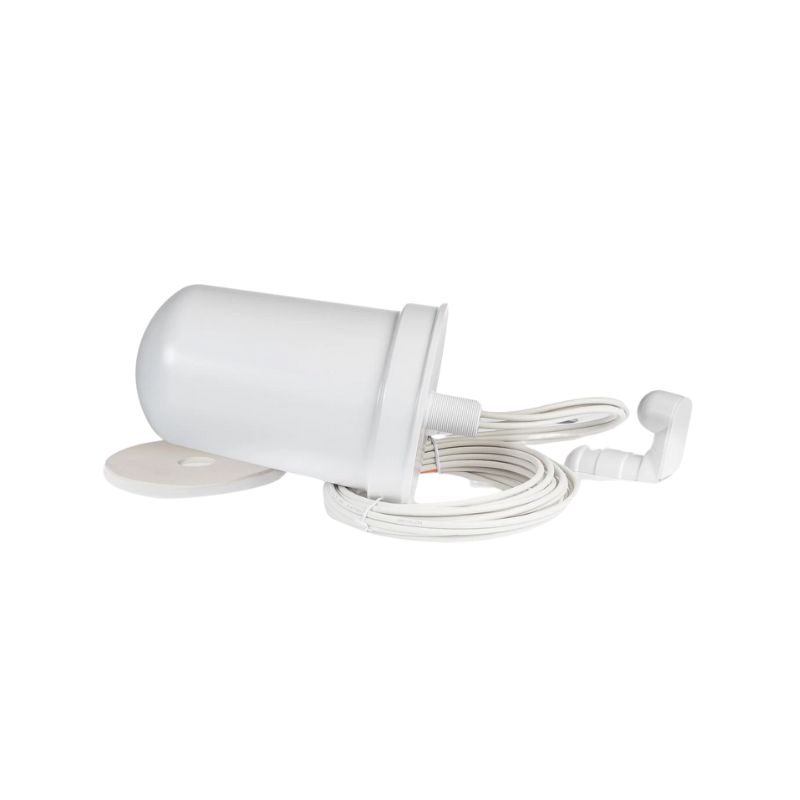

AIR-ANT2544V4M-R8 Cisco Dual Band Wall Mount Antenna

Overview of the Dual Band Wall Mount Antenna

The Cisco AIR-ANT2544V4M-R8 Dual Band Wall Mount Antenna is a professional wireless networking antenna designed to enhance Wi-Fi coverage, improve signal reliability, and support enterprise-grade wireless deployments. This dual-band antenna solution is commonly used with compatible Cisco wireless access points to provide stable connectivity across both the 2.4 GHz and 5 GHz frequency bands. Built for business, industrial, educational, healthcare, hospitality, and high-density network environments, the antenna helps organizations create dependable wireless infrastructures that support modern connectivity demands.

Main Information

• Manufacturer: Cisco
• Part Number: AIR-ANT2544V4M-R8
• Device Type: Antenna

Technical Features

• Antenna Type: Four-element MIMO omnidirectional antenna.
• Operating Frequency Ranges: 2400 to 2484 MHz and 5150 to 5850 MHz.
• Peak Gain: 4 dBi on the 2.4 GHz band and 4 dBi on the 5 GHz band.
• Nominal Input Impedance: 50 Ohms.
• Voltage Standing Wave Ratio: 2:1 or less across both operating bands.
• Polarization Type: Linear, vertical polarization.
• Azimuth Plane Beamwidth: 360-degree omnidirectional horizontal coverage.
• Elevation Plane 3dB Beamwidth at 2.4 GHz: 60 degrees.
• Elevation Plane 3dB Beamwidth at 5 GHz: 33 degrees.
• Connector Type: Four Reverse-Polarity TNC plugs.

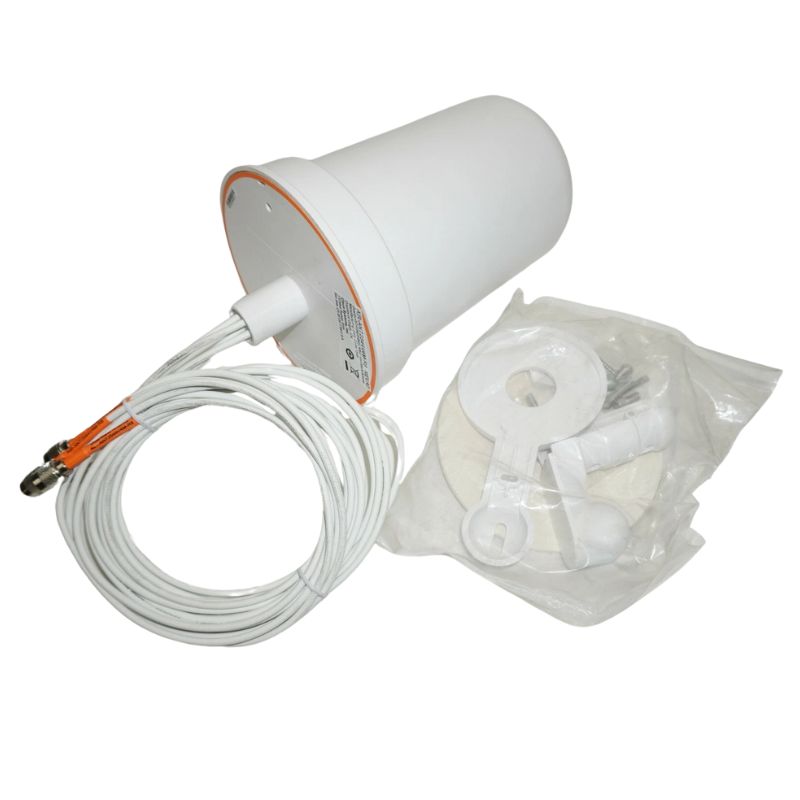

• Pigtail Cables: Four attached 8-foot plenum-rated cables.
• Physical Dimensions: 8.6 inches in length by 6.3 inches in diameter.
• Weight: 1.48 pounds for the main antenna assembly.
• Radome Color: White.
• Environment Rating: Certified for both indoor and outdoor deployments.
• Operating Temperature: -30°C to 70°C.

Compatibility

• Cisco Aironet 1800 Series: Compatible with 1830 and 1850 access points.
• Cisco Aironet 2800 Series: Compatible with 2802E access points.
• Cisco Aironet 3800 Series: Compatible with 3802E access points.
• Cisco Catalyst 9100 Series: Compatible with 9115AX, 9120AX, and 9130AX access points.
• General Radio Requirement: Connects to any Cisco radio utilizing external dual-band RP-TNC connectors.

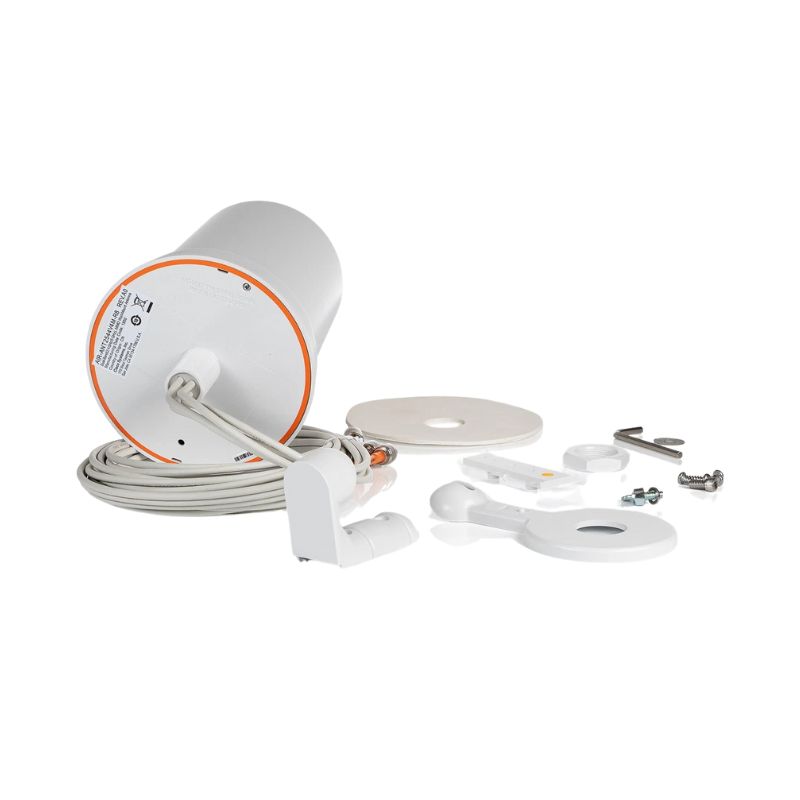

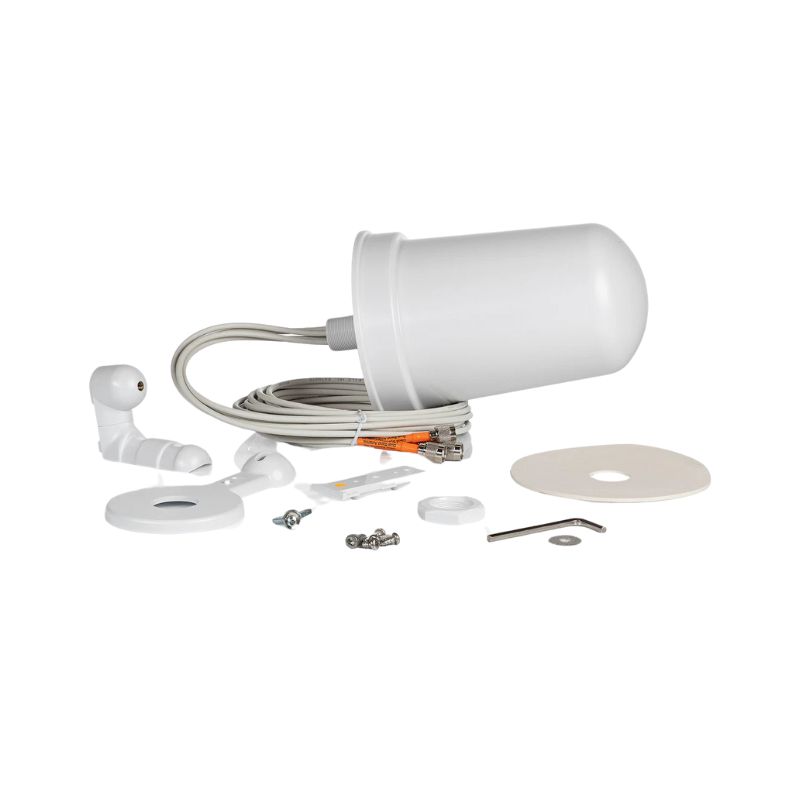

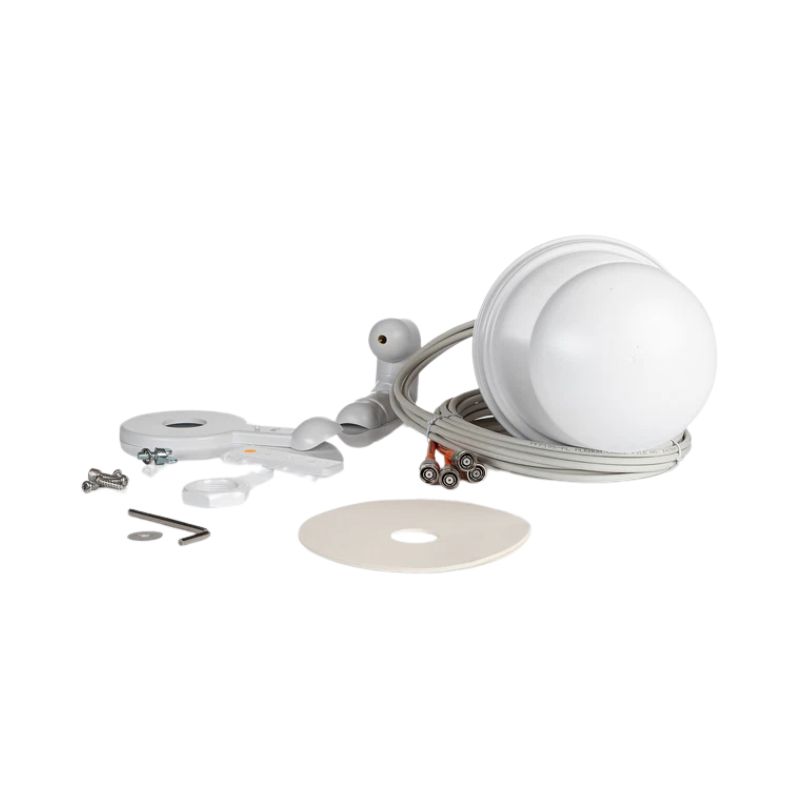

• Mounting Requirement: Designed for wall mounting or attachment to I-beams with the included multi-mount kit.

Cisco AIR-ANT2544V4M-R8 Dual Band Antenna

As wireless networks continue to expand, antenna performance becomes an important factor in achieving consistent coverage and efficient data transmission. The Cisco AIR-ANT2544V4M-R8 is engineered to provide balanced signal distribution through a wall-mounted design that works well in locations where ceiling-mounted antenna installations may not be practical. Its design allows network administrators to position antennas strategically to improve wireless performance while maintaining a clean and professional installation appearance.

This dual-band wall mount antenna category represents a specialized range of networking accessories focused on extending the capabilities of wireless communication systems. Unlike basic consumer antennas, enterprise antennas such as the Cisco AIR-ANT2544V4M-R8 are developed for environments where uptime, coverage accuracy, and predictable wireless behavior are essential. The antenna supports advanced Wi-Fi deployments by helping access points deliver stronger and more consistent wireless signals throughout connected areas.

Dual Band Wireless Performance and Frequency Support

The Cisco AIR-ANT2544V4M-R8 Dual Band Wall Mount Antenna operates across two major Wi-Fi frequency ranges, allowing compatible wireless networks to support different types of connected devices and traffic requirements. The 2.4 GHz band provides broad coverage and better penetration through physical obstacles, making it useful for applications where range is important. The 5 GHz band provides additional capacity and access to less congested wireless channels, helping support higher-performance applications.

Modern wireless environments often include a wide variety of devices such as laptops, mobile devices, wireless scanners, voice communication systems, sensors, and Internet of Things equipment. A dual-band antenna allows network designers to create flexible wireless coverage that supports these different device types. By supporting both frequency ranges, the Cisco AIR-ANT2544V4M-R8 contributes to a more adaptable wireless network architecture.

Network performance depends on more than just the wireless access point itself. The antenna system influences how signals travel, how devices connect, and how effectively wireless resources are used. A properly selected wall mount antenna can help reduce weak coverage zones and improve the overall user experience. The Cisco AIR-ANT2544V4M-R8 is designed to work as part of an integrated Cisco wireless solution, helping organizations maintain reliable wireless communication.

Wall Mount Antenna Design for Flexible Deployment

The wall mount form factor of the Cisco AIR-ANT2544V4M-R8 makes it suitable for installations where directional placement and physical accessibility are important. Wall-mounted antennas can be positioned at specific points within a building to help optimize wireless coverage patterns. This makes them useful in offices, classrooms, warehouses, retail spaces, medical facilities, and other structured environments.

A wall-mounted antenna installation provides an alternative to traditional ceiling-based wireless designs. Some locations have architectural limitations, equipment restrictions, or environmental considerations that make ceiling installation difficult. In these cases, a wall-mounted antenna provides network engineers with additional flexibility when designing wireless coverage layouts.

The antenna design also supports cleaner infrastructure management. Professional network installations require equipment that can blend into existing environments while maintaining technical performance. The Cisco AIR-ANT2544V4M-R8 is intended for organized deployment scenarios where both appearance and functionality matter.

Enterprise Wireless Network Applications

The Cisco AIR-ANT2544V4M-R8 Dual Band Wall Mount Antenna is suitable for a wide range of enterprise wireless applications. Businesses rely on wireless connectivity for communication, collaboration, cloud applications, security systems, and operational tools. In these environments, wireless interruptions can affect productivity and user experience, making reliable antenna performance an important consideration.

In office environments, the antenna can support wireless access points that provide connectivity for employees, guests, and business devices. In educational facilities, wireless networks must often support many users simultaneously, including students, teachers, and administrative staff. A properly deployed antenna system helps create consistent coverage throughout classrooms, meeting spaces, and common areas.

Healthcare environments also require dependable wireless communication for many operational needs. Wireless devices may support communication workflows, equipment monitoring, and digital services. Antennas designed for professional deployments help network teams create wireless systems that are stable and easier to manage.

Industrial and warehouse environments often present additional wireless challenges due to large spaces, equipment layouts, and physical barriers. The Cisco AIR-ANT2544V4M-R8 can be part of a wireless strategy designed to improve connectivity in demanding locations where reliable communication is essential.

Improving Wireless Coverage and Signal Distribution

Antenna placement plays a major role in wireless network quality. Even advanced access points depend on proper antenna selection and positioning to achieve effective coverage. The Cisco AIR-ANT2544V4M-R8 helps network administrators address coverage requirements by providing an antenna solution designed for enterprise wireless systems.

Wireless signals can be affected by walls, furniture, electronic interference, and building materials. A well-planned antenna deployment considers these factors and places equipment where it can provide the best possible wireless experience. Wall-mounted antennas offer additional placement options that may improve coverage in specific areas.

The goal of professional wireless design is not simply to increase signal strength but to create balanced and reliable connectivity. Excessive signal overlap can cause interference, while insufficient coverage can create connection problems. Enterprise antennas support careful wireless planning by giving network professionals more control over coverage patterns.

Reliable Connectivity for Modern Wireless Environments

Modern organizations depend on wireless networks for everyday operations, making antenna quality an important component of network infrastructure. The Cisco AIR-ANT2544V4M-R8 Dual Band Wall Mount Antenna supports the requirements of businesses that need dependable wireless access across multiple devices and applications.

As technologies such as cloud computing, video conferencing, wireless collaboration, and smart devices continue to grow, wireless networks must provide consistent performance. Antennas like the Cisco AIR-ANT2544V4M-R8 help support these demands by contributing to stronger and more efficient wireless communication systems.

Benefits of Choosing a Professional Dual Band Antenna

Professional dual-band antennas provide several advantages compared with general-purpose wireless accessories. They are designed with enterprise deployment needs in mind, including performance consistency, installation flexibility, and integration with business networking equipment. The Cisco AIR-ANT2544V4M-R8 supports wireless environments where dependable connectivity is a priority.

One major advantage of dual-band support is the ability to balance wireless traffic between different frequency ranges. The 2.4 GHz band remains valuable for compatibility and coverage, while the 5 GHz band supports higher throughput and additional capacity. This combination helps organizations create wireless networks that can adapt to different usage scenarios.

Another important benefit is deployment flexibility. A wall-mounted antenna can be installed in locations that provide improved coverage compared with standard access point positioning. This flexibility is valuable in buildings with complex layouts or specialized networking requirements.

Network Planning and Considerations

Successful wireless deployment requires careful planning before installation. Network professionals typically evaluate building structure, expected user density, application requirements, and coverage objectives when selecting antenna locations. The Cisco AIR-ANT2544V4M-R8 can be incorporated into these plans to help achieve reliable wireless communication.

Installation quality also affects wireless performance. Antenna orientation, placement, and connection quality are important factors that influence signal behavior. Proper installation ensures that the antenna performs effectively and contributes to the overall wireless network design.

Regular assessment of wireless performance can help organizations identify areas where improvements may be needed. As businesses grow and technology requirements change, antenna upgrades or repositioning may become part of ongoing network optimization efforts.

Supporting Future-Ready Wireless Connectivity

Wireless technology continues to evolve as organizations adopt more connected devices and digital services. A strong wireless foundation requires equipment that can support changing demands. The Cisco AIR-ANT2544V4M-R8 Dual Band Wall Mount Antenna provides a reliable component for organizations building or maintaining professional wireless networks.

The continued growth of mobile work, smart devices, and wireless applications increases the importance of stable network access. Businesses need wireless solutions that can handle increasing numbers of users while maintaining consistent performance. Enterprise antennas contribute to this goal by helping create better-designed wireless environments.

Whether used in a new wireless installation or as part of an upgrade project, the Cisco AIR-ANT2544V4M-R8 represents a practical antenna solution for organizations seeking dependable connectivity. Its dual-band capability, wall mount design, and enterprise-focused engineering make it a valuable component for many wireless networking scenarios.

Cisco AIR-ANT2544V4M-R8 Is a Valuable Networking Accessory

The Cisco AIR-ANT2544V4M-R8 Dual Band Wall Mount Antenna plays an important role in improving wireless network performance by providing a reliable connection point between access points and connected devices. A wireless network is only as effective as its ability to deliver stable communication, and antennas are fundamental to achieving that objective.

This antenna category is designed for organizations that understand the importance of professional-grade networking equipment. Instead of relying on generic solutions, enterprise users require components that align with their infrastructure goals. The Cisco AIR-ANT2544V4M-R8 offers a dedicated solution for environments where wireless reliability, flexibility, and performance are important.

With support for dual-band wireless operation and a convenient wall-mounted configuration, this antenna helps network teams design coverage strategies that match the physical and operational requirements of their environments. It is suitable for organizations looking to enhance wireless accessibility while maintaining a structured and manageable network design.
