MA-ANT-3-E5 Cisco MR42E Indoor Dual-band Wide Patch 5-port Antenna

Cisco MA-ANT-3-E5 Meraki Indoor Dual-Band Wide Patch Antenna

High-Performance Wireless Antenna for Enterprise Connectivity

The Cisco MA-ANT-3-E5 is a professionally engineered indoor dual-band wide patch antenna designed to enhance wireless coverage and performance in demanding network environments. Built by Cisco, this antenna is optimized for seamless integration with enterprise-grade wireless systems, especially the Cisco Meraki MR42E access point.

Key Product Identification Details

Manufacturer & Product Classification

• Brand: Cisco
• Model / SKU: MA-ANT-3-E5
• Category: Networking Equipment
• Subcategory: Dual-Band Indoor Antenna

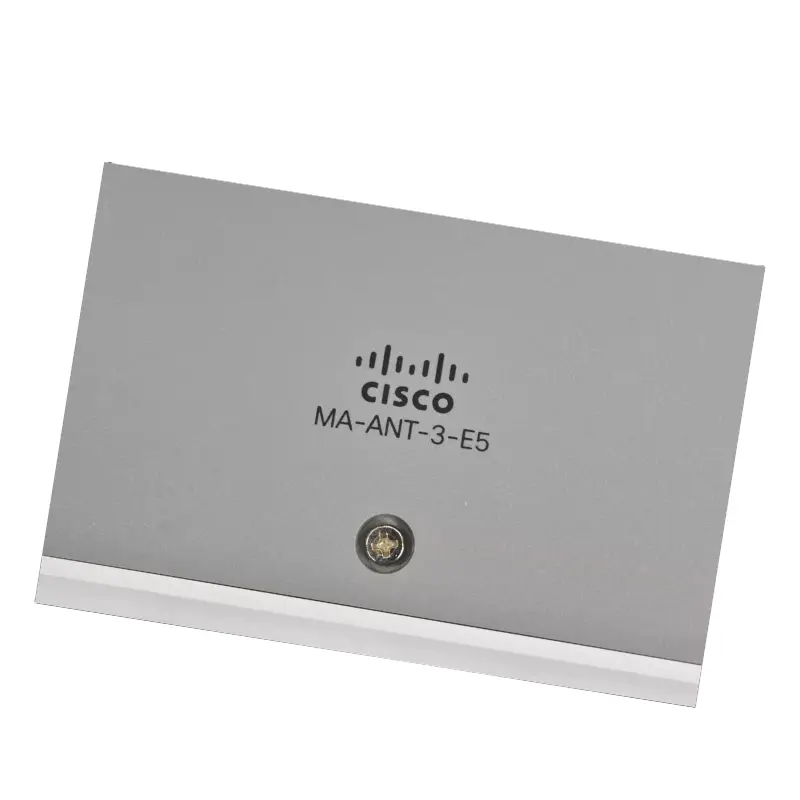

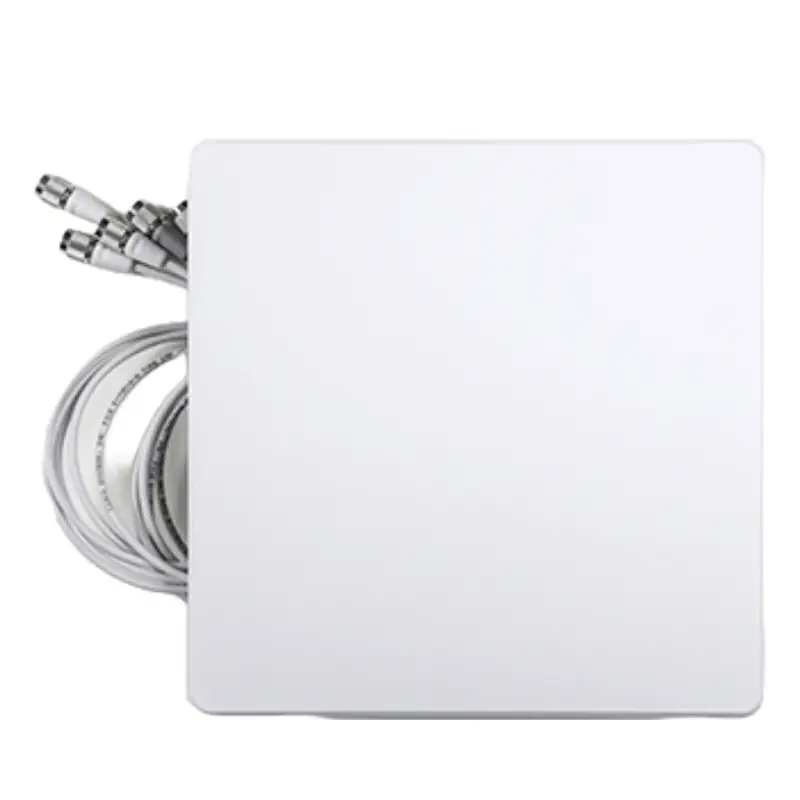

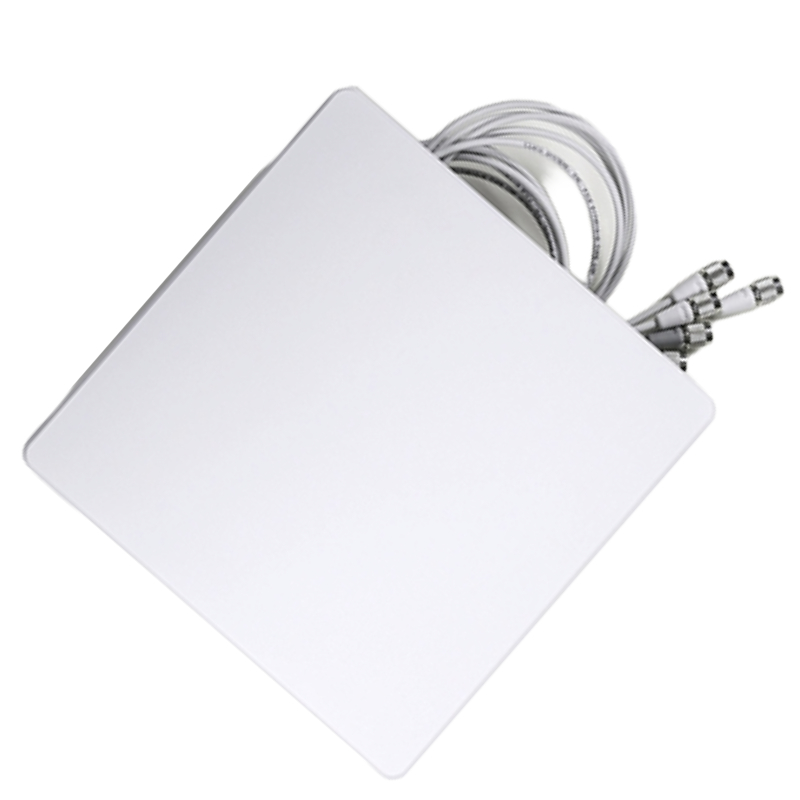

Structural Design and Build Quality

Durable Construction and Compact Form Factor

This antenna is constructed using a robust PC/ABS material blend, ensuring durability and long-term operational stability in indoor environments. Its compact and slim profile allows flexible placement without compromising aesthetics or performance.

Physical Dimensions

• Width: 10.8 inches
• Depth: 10.8 inches
• Height: 0.9 inches
• Weight: 2.43 lbs

Wireless Performance Specifications

Dual-Band Frequency Support for Enhanced Coverage

Designed to operate across both major Wi-Fi bands, the Cisco MA-ANT-3-E5 ensures strong and stable connectivity in high-density environments.

Frequency Ranges

• 2.4 GHz band: 2.4 – 2.5 GHz
• 5 GHz band: 5.15 – 5.875 GHz

Antenna Gain and Signal Efficiency

• 7 dBi gain for 2.4 GHz frequency
• 6.3 dBi gain for 5 GHz frequency

Signal Coverage Characteristics

• Directional signal propagation for targeted coverage
• Horizontal beamwidth: 60°
• Vertical beamwidth: 60°

Installation and Mounting Flexibility

Versatile Deployment Options for Indoor Environments

The antenna supports multiple installation configurations, making it suitable for varied enterprise setups including office spaces, commercial buildings, and managed network infrastructures.

Mounting Capabilities

• Wall-mount compatible
• Pole-mount supported
• Optimized for indoor installation

Included Accessories

• 1-meter antenna cable included in package
• Complete mounting kit provided

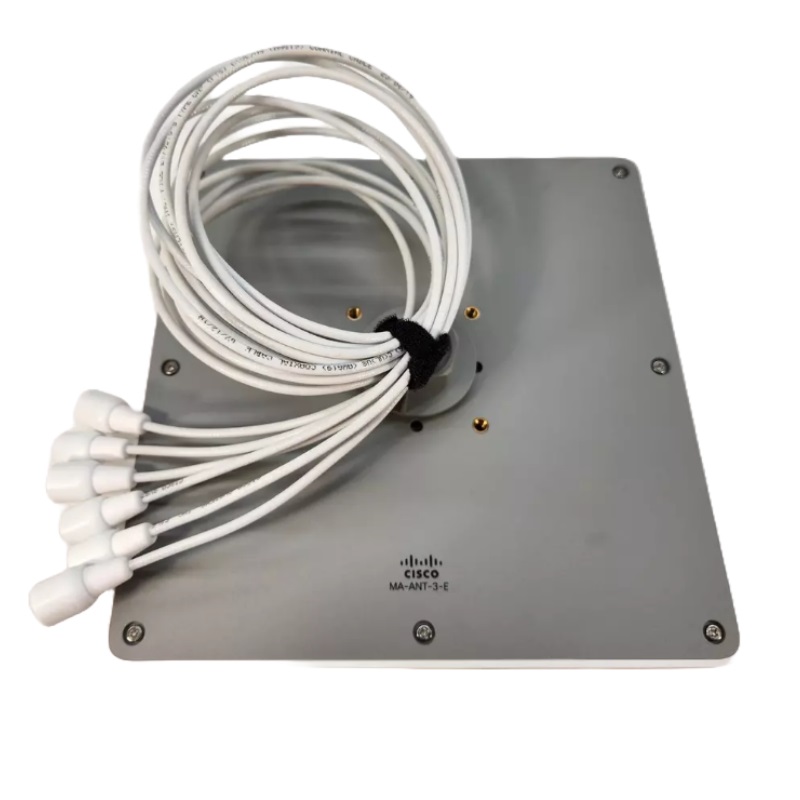

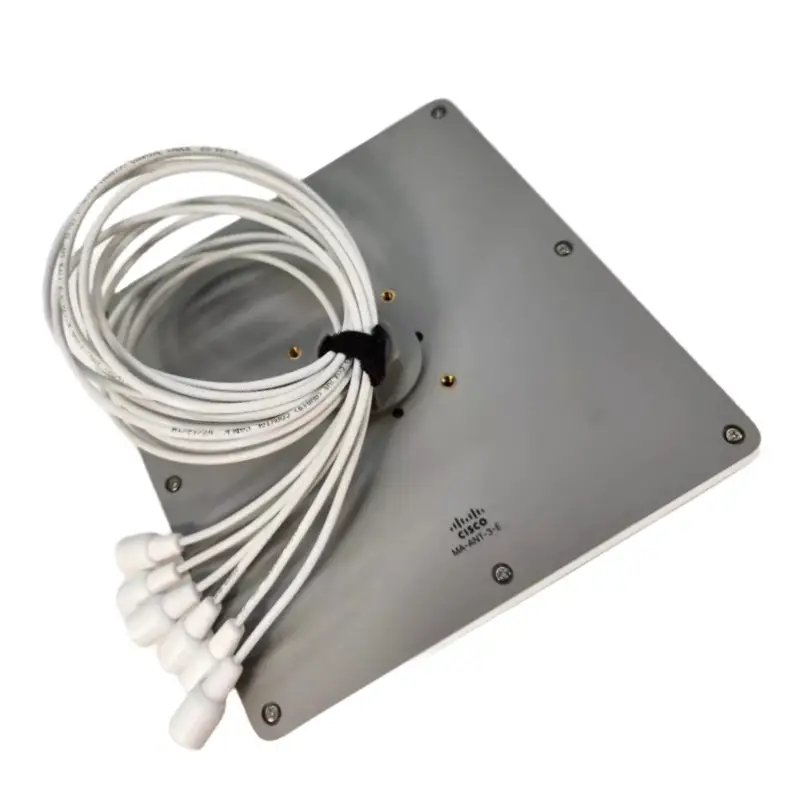

Connector and Interface Configuration

Multi-Port Connectivity for Flexible Network Design

This antenna is equipped with five RP-TNC connectors, enabling stable and high-quality signal distribution across supported access points.

• Connector Type: RP-TNC
• Number of Ports: 5

Environmental Operating Conditions

Reliable Performance Across Standard Indoor Conditions

Engineered for consistent operation within typical indoor environments, the antenna maintains stability across a wide range of temperature and humidity conditions.

• Minimum operating temperature: 32°F
• Maximum operating temperature: 104°F
• Operating humidity range: 5% – 93%

Compatibility and Use Case

Designed for Cisco Meraki MR42E Integration

The MA-ANT-3-E5 is specifically optimized for use with the Cisco Meraki MR42E, enhancing wireless coverage, reducing dead zones, and improving network efficiency in enterprise deployments.

Ideal Deployment Scenarios

• Corporate offices and enterprise buildings
• Educational institutions and campuses
• Retail and commercial environments
• High-density indoor wireless networks

Cisco MA-ANT-3-E5 Indoor Dual-band Wide Patch 5-port Antenna

The Cisco MA-ANT-3-E5 Meraki Indoor Dual-band Wide Patch 5-port Antenna represents a specialized category within enterprise wireless networking accessories, designed to optimize signal distribution, enhance coverage consistency, and ensure reliable connectivity in demanding indoor environments. This category focuses on high-performance directional and semi-directional antennas engineered to complement modern wireless infrastructure, particularly within Wi-Fi deployments that demand both 2.4 GHz and 5 GHz band compatibility. As organizations continue to scale their wireless networks, the importance of antenna selection becomes critical, influencing everything from throughput performance to user experience and network stability.

Role of Dual-band Antennas in Enterprise Wireless Infrastructure

Dual-band antennas such as the Cisco MA-ANT-3-E5 are engineered to operate across both 2.4 GHz and 5 GHz frequencies, providing flexibility and adaptability in environments with varying device requirements. The 2.4 GHz band offers broader coverage and better penetration through walls and obstacles, while the 5 GHz band delivers higher data rates and reduced interference. By supporting both frequencies, this antenna category enables network administrators to balance coverage and performance effectively, ensuring seamless connectivity across diverse indoor spaces.

Importance of Wide Patch Antenna Design

The wide patch antenna design is a defining characteristic of this category, offering a focused yet sufficiently broad radiation pattern that enhances signal distribution across targeted zones. Unlike omnidirectional antennas that radiate signals uniformly in all directions, wide patch antennas concentrate energy toward specific areas, making them ideal for environments where controlled coverage is necessary. This design reduces signal leakage, minimizes interference between adjacent access points, and improves overall network efficiency.

Applications in Modern Indoor Environments

Indoor dual-band wide patch antennas are widely deployed in environments such as offices, retail spaces, educational institutions, healthcare facilities, and hospitality venues. In these settings, maintaining consistent connectivity is essential for productivity, customer satisfaction, and operational efficiency. The Cisco MA-ANT-3-E5 antenna category is particularly suited for installations where directional coverage is required, such as corridors, open-plan offices, and large conference rooms, ensuring optimal signal strength where it matters most.

Technical Characteristics of Cisco MA-ANT-3-E5 Antenna Category

The technical specifications associated with this category highlight its suitability for enterprise-grade deployments. These antennas are designed to support multiple spatial streams, advanced beamforming technologies, and high-density client environments. Their construction emphasizes durability, precision engineering, and compatibility with modern access points, particularly those within the Meraki ecosystem.

Five-Port Antenna Configuration

A key feature of the Cisco MA-ANT-3-E5 category is its five-port configuration, enabling enhanced signal diversity and improved performance through multiple input multiple output (MIMO) technology. This configuration allows for simultaneous transmission and reception across multiple channels, increasing data throughput and reducing latency. The presence of multiple ports also facilitates better handling of high client densities, ensuring consistent performance even in crowded environments.

Enhanced Signal Directionality and Coverage Control

The directional properties of wide patch antennas provide precise control over signal propagation. This enables network designers to shape coverage areas according to specific requirements, reducing interference and optimizing channel utilization. By directing signals toward intended zones, these antennas help maintain strong connections while minimizing overlap between adjacent access points.

Integration with Advanced Wireless Standards

The Cisco MA-ANT-3-E5 antenna category is compatible with modern wireless standards, including those supporting high-speed data transmission and improved spectral efficiency. This ensures that organizations can leverage the full capabilities of their wireless infrastructure, including technologies such as MU-MIMO and beamforming, to deliver superior performance across all connected devices.

Design and Build Quality Considerations

The physical design of indoor dual-band wide patch antennas plays a crucial role in their performance and longevity. This category emphasizes robust construction, compact form factors, and aesthetic considerations that align with modern interior environments. The Cisco MA-ANT-3-E5 antenna is designed to blend seamlessly into indoor spaces while maintaining high performance standards.

Compact and Discreet Form Factor

One of the defining features of this antenna category is its compact design, which allows for unobtrusive installation in various indoor settings. Whether mounted on walls or ceilings, these antennas maintain a low profile while delivering powerful signal coverage. This is particularly important in environments where aesthetics are a priority, such as retail stores and corporate offices.

Durability and Material Quality

The construction of these antennas incorporates high-quality materials that ensure durability and resistance to environmental factors commonly encountered indoors. This includes resistance to temperature variations, humidity, and physical wear, ensuring long-term reliability and consistent performance.

Ease of Installation and Deployment

The Cisco MA-ANT-3-E5 category is designed with ease of installation in mind, featuring mounting options and connectors that simplify deployment. This reduces installation time and minimizes the need for specialized tools or expertise, making it easier for organizations to implement and expand their wireless networks.

Performance Optimization and Network Efficiency

Performance optimization is a central aspect of the Cisco MA-ANT-3-E5 antenna category, enabling organizations to achieve high levels of network efficiency and reliability. By leveraging advanced antenna technologies, this category supports improved signal quality, reduced interference, and enhanced user experiences.

Improved Signal Strength and Stability

The directional nature of wide patch antennas contributes to stronger and more stable signal coverage, particularly in targeted areas. This ensures that users experience consistent connectivity, even in environments with high device densities or challenging layouts.

Reduction of Interference and Noise

By focusing signal transmission in specific directions, these antennas help reduce interference from neighboring access points and external sources. This results in cleaner signal channels, improved data rates, and reduced packet loss, all of which contribute to better overall network performance.

Support for High-Density Environments

The Cisco MA-ANT-3-E5 category is well-suited for high-density environments where multiple devices are connected simultaneously. Its multi-port configuration and advanced design enable efficient handling of large numbers of clients, ensuring that performance remains consistent even under heavy load conditions.

Use Cases and Deployment Scenarios

This antenna category is versatile and can be deployed in a wide range of indoor scenarios, each benefiting from its directional capabilities and dual-band support. Understanding these use cases helps organizations make informed decisions when selecting antennas for their wireless infrastructure.

Corporate Office Environments

In corporate offices, maintaining reliable wireless connectivity is essential for productivity and collaboration. The Cisco MA-ANT-3-E5 antenna category enables targeted coverage in meeting rooms, workspaces, and corridors, ensuring that employees have consistent access to network resources.

Retail and Commercial Spaces

Retail environments require robust wireless connectivity to support point-of-sale systems, inventory management, and customer engagement applications. Directional antennas help ensure that critical areas receive strong signal coverage, enhancing operational efficiency and customer experience.

Educational and Healthcare Facilities

In educational institutions and healthcare facilities, reliable wireless connectivity is crucial for communication, data access, and digital services. The Cisco MA-ANT-3-E5 antenna category provides the performance and reliability needed to support these mission-critical applications, ensuring seamless connectivity across classrooms, lecture halls, and patient care areas.

Compatibility and Integration with Meraki Ecosystem

The Cisco MA-ANT-3-E5 antenna is specifically designed to integrate seamlessly with the Meraki ecosystem, offering compatibility with a range of access points and network management tools. This ensures that organizations can easily incorporate these antennas into their existing infrastructure without compatibility concerns.

Seamless Integration with Access Points

The antenna category is engineered to work with compatible access points, enabling optimal performance through precise alignment and configuration. This ensures that the antenna and access point function as a cohesive unit, maximizing signal efficiency and coverage.

Cloud-Based Management and Monitoring

Integration with cloud-based management platforms allows administrators to monitor and optimize network performance in real time. This includes adjusting antenna configurations, analyzing coverage patterns, and identifying potential issues before they impact users.

Scalability for Growing Networks

The Cisco MA-ANT-3-E5 antenna category supports scalability, allowing organizations to expand their wireless networks as needed. Its compatibility with a wide range of devices and configurations ensures that it can adapt to evolving requirements and technological advancements.

Future Trends and Innovations in Antenna Technology

The evolution of wireless technology continues to drive innovation in antenna design, with a focus on improving performance, efficiency, and adaptability. The Cisco MA-ANT-3-E5 category reflects these trends, incorporating advanced features that align with the future of wireless networking.

Advancements in Beamforming and MIMO Technologies

Future developments in beamforming and MIMO technologies are expected to further enhance the capabilities of directional antennas, enabling more precise signal targeting and improved data throughput. These advancements will continue to improve the performance of antennas within this category.

Integration with Emerging Wireless Standards

As new wireless standards are introduced, antenna technology will evolve to support higher frequencies, greater bandwidth, and improved efficiency. The Cisco MA-ANT-3-E5 category is well-positioned to adapt to these changes, ensuring long-term relevance and compatibility.

Focus on Energy Efficiency and Sustainability

Energy efficiency and sustainability are becoming increasingly important considerations in network design. Antennas in this category are designed to optimize power usage while maintaining high performance, contributing to more sustainable and cost-effective wireless deployments.
