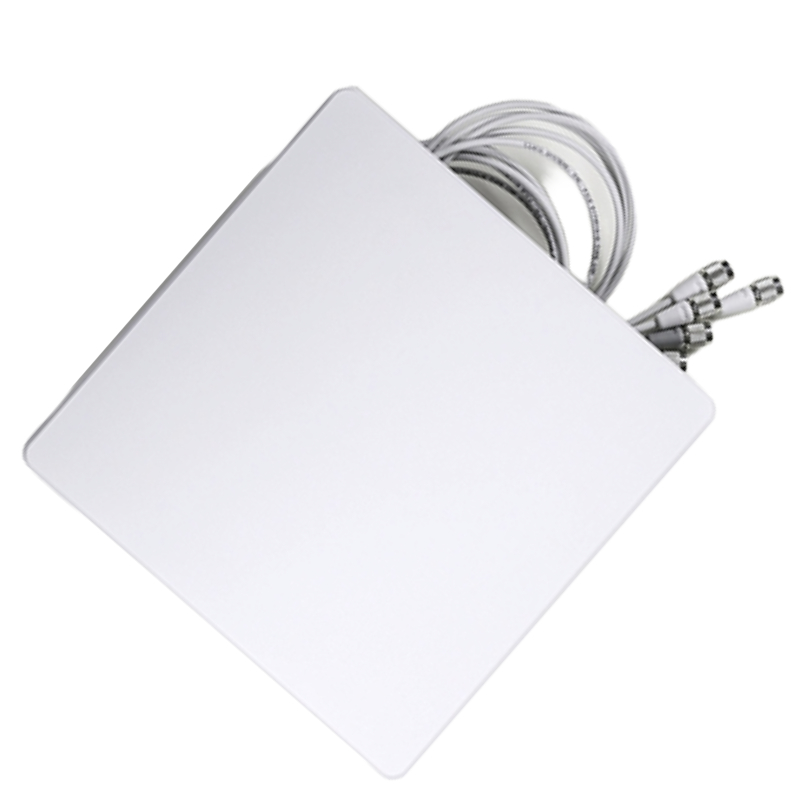

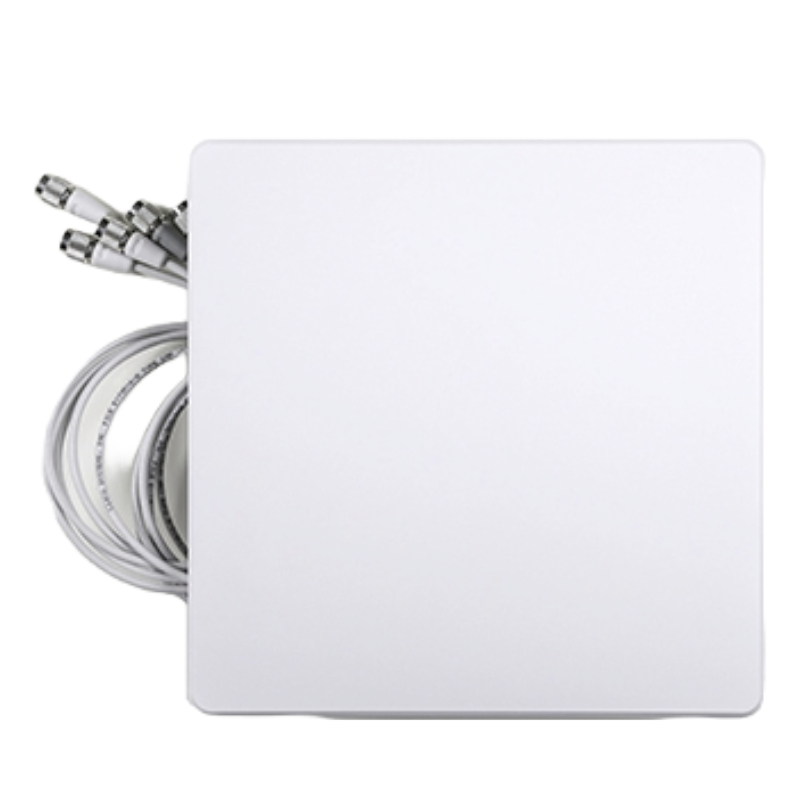

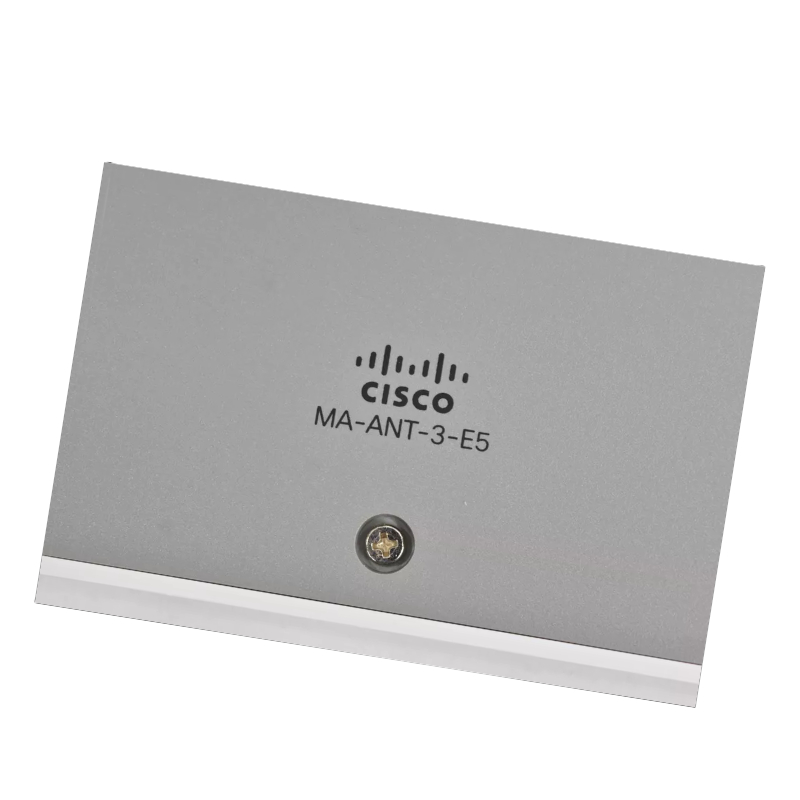

MA-ANT-3-E5 Cisco MR42E Indoor Dual-band Wide Patch 5-port Antenna

Cisco MA-ANT-3-E5 Meraki Indoor Dual-Band Antenna Overview

Enterprise-Class Wireless Antenna Solution for Indoor Deployment

The Cisco MA-ANT-3-E5 is a high-performance indoor dual-band wide patch antenna engineered to enhance wireless coverage and signal consistency. Designed for enterprise environments, it supports optimized connectivity across both 2.4 GHz and 5 GHz frequency bands, making it suitable for modern high-density network infrastructures.

Key Highlights of Cisco MA-ANT-3-E5

• Manufacturer: Cisco Systems
• Model / SKU: MA-ANT-3-E5
• Category: Networking Hardware – Antenna
• Optimized for Cisco Meraki MR42E access points

Technical Specifications and Build Details

Physical Design and Construction

• Durable housing material: PC/ABS composite for long-term reliability
• Compact structure with modern low-profile design
• Dimensions: 10.8 inches (W) × 10.8 inches (D) × 0.9 inches (H)
• Weight: 2.43 lbs for stable mounting installation

Included Package Components

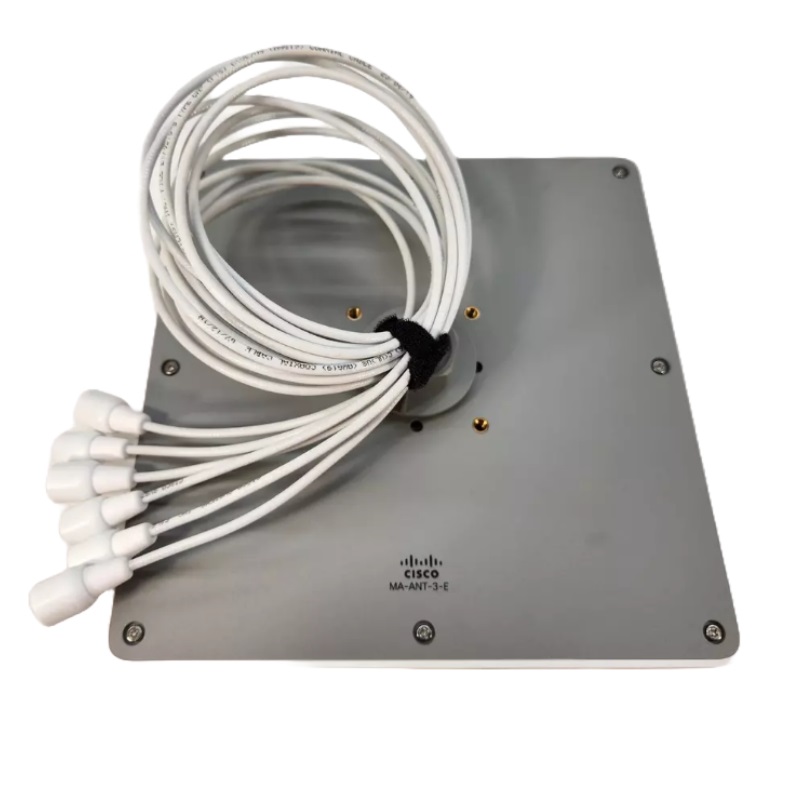

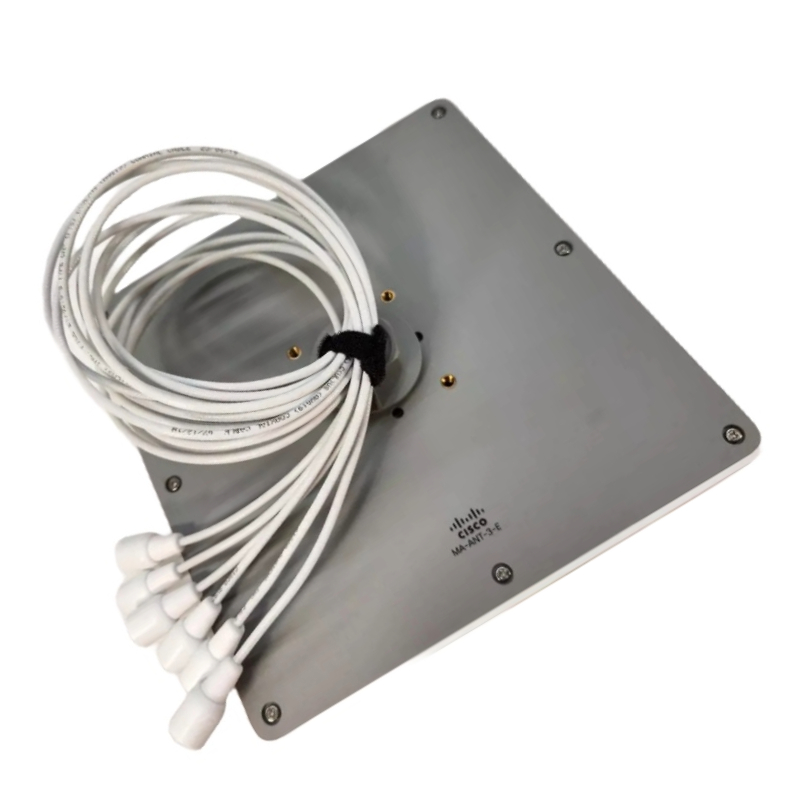

• 1-meter antenna cable included for flexible deployment
• Complete mounting kit provided for quick installation

Wireless Performance Capabilities

Frequency Support and Signal Enhancement

• Dual-band operation: 2.4 GHz and 5 GHz support
• Frequency range: 2.4 – 2.5 GHz and 5.15 – 5.875 GHz
• Gain performance: 7 dBi (2.4 GHz), 6.3 dBi (5 GHz)

Radiation Pattern and Coverage Strength

• Directional antenna design for focused signal delivery
• 60° horizontal beamwidth for targeted coverage
• 60° vertical beamwidth ensuring balanced distribution

Installation Flexibility and Mounting Options

Adaptable Deployment Configurations

• Supports wall-mounted installations
• Compatible with pole mounting setups
• Suitable for indoor enterprise environments

Connector Interface and Compatibility

• Equipped with 5 x RP-TNC connectors
• Designed for seamless integration with Cisco Meraki systems

Environmental and Operating Conditions

Durability Across Controlled Indoor Environments

• Operating temperature range: 32°F to 104°F
• Humidity tolerance: 5% to 93% (non-condensing)
• Built for stable performance in variable indoor conditions

Compatibility and Use Cases

Optimized for Cisco Meraki Wireless Infrastructure

• Specifically engineered for Cisco Meraki MR42E access points
• Ideal for offices, campuses, and enterprise Wi-Fi deployments
• Enhances signal reliability in high-traffic network environments

Typical Application Scenarios

• Corporate office wireless expansion
• Educational institutions and training centers
• Retail and hospitality network optimization
• Multi-room indoor coverage enhancement

Performance Advantages in Enterprise Networks

• Improved wireless throughput and stability
• Reduced signal interference in dense environments
• Enhanced dual-band performance for modern devices

Cisco MA-ANT-3-E5 Meraki Indoor Dual-band Wide Patch 5-port Antenna

The Cisco MA-ANT-3-E5 Meraki Indoor Dual-band Wide Patch 5-port Antenna represents a specialized category of enterprise-grade wireless networking accessories designed to enhance and extend the capabilities of modern Wi-Fi deployments. This antenna is engineered to support dual-band frequencies, delivering optimized performance across both 2.4 GHz and 5 GHz spectrums. As wireless infrastructure continues to evolve to meet the demands of dense indoor environments such as offices, educational institutions, healthcare facilities, and retail spaces, high-performance antennas like this model play a critical role in ensuring consistent coverage, reliable connectivity, and efficient signal distribution.

This category of antennas is characterized by its ability to integrate seamlessly with Meraki access points, offering flexible mounting options and directional coverage patterns that help network administrators fine-tune wireless performance. The five-port configuration further enhances deployment versatility, allowing multiple antenna elements to work in coordination for improved signal propagation and reduced interference. The wide patch design ensures a balanced radiation pattern, making it suitable for environments where uniform coverage is required without compromising signal strength.

Dual-Band Wireless Performance and Frequency Optimization

Understanding Dual-Band Capabilities

Dual-band antennas such as the Cisco MA-ANT-3-E5 are engineered to operate simultaneously on both 2.4 GHz and 5 GHz frequency bands, providing enhanced flexibility and performance for modern wireless networks. The 2.4 GHz band offers broader coverage and better penetration through walls and obstacles, making it suitable for general connectivity needs. Meanwhile, the 5 GHz band delivers higher data throughput and reduced interference, making it ideal for bandwidth-intensive applications such as video streaming, VoIP, and cloud-based services.

By supporting both bands, this antenna category enables network administrators to balance coverage and capacity effectively. Devices can dynamically connect to the most appropriate frequency band, ensuring optimal performance regardless of user density or application requirements.

Signal Efficiency and Interference Mitigation

One of the defining characteristics of wide patch antennas is their ability to deliver focused signal coverage while minimizing interference. The Cisco MA-ANT-3-E5 achieves this through precise engineering that optimizes radiation patterns and reduces signal leakage. This is particularly important in environments with multiple access points, where overlapping signals can lead to degraded performance and reduced network efficiency.

The antenna’s design ensures that signals are directed toward intended coverage areas, reducing unnecessary signal dispersion and enhancing overall network reliability. This targeted approach is essential for maintaining high-quality wireless connectivity in high-density deployments.

Wide Patch Antenna Design and Coverage Characteristics

Directional Coverage and Radiation Patterns

The wide patch design of the Cisco MA-ANT-3-E5 provides a controlled directional coverage pattern that is ideal for indoor environments requiring consistent and predictable signal distribution. Unlike omnidirectional antennas that broadcast signals in all directions, wide patch antennas focus energy in specific directions, allowing for more efficient use of wireless resources.

This directional capability is particularly beneficial in scenarios where coverage needs to be confined to specific areas, such as conference rooms, hallways, or open office spaces. By directing signals precisely where they are needed, network administrators can reduce interference and improve overall network performance.

Uniform Coverage Across Indoor Spaces

The antenna’s wide patch configuration ensures that coverage remains consistent across designated areas, eliminating dead zones and ensuring seamless connectivity for users. This is especially important in enterprise environments where uninterrupted access to network resources is critical for productivity and operational efficiency.

The design also supports multi-antenna configurations, enabling advanced technologies such as beamforming and spatial diversity. These features further enhance signal quality and reliability, ensuring that users experience stable and high-speed connectivity regardless of their location within the coverage area.

5-Port Antenna Configuration and Connectivity

Multi-Port Design for Enhanced Flexibility

The five-port configuration of the Cisco MA-ANT-3-E5 provides a high level of flexibility for network deployments. Each port corresponds to a specific antenna element, allowing for precise control over signal distribution and enabling advanced wireless technologies such as Multiple Input Multiple Output (MIMO). This multi-port design is essential for modern Wi-Fi standards, which rely on multiple antenna streams to deliver higher data rates and improved reliability.

By leveraging multiple ports, the antenna can support simultaneous transmission and reception of signals, enhancing network performance and reducing latency. This is particularly important in environments with high user density, where multiple devices are competing for bandwidth.

Integration with Meraki Access Points

The Cisco MA-ANT-3-E5 is specifically designed to integrate seamlessly with Meraki access points, ensuring compatibility and ease of deployment. The antenna connects directly to compatible devices, allowing network administrators to extend coverage and optimize performance without the need for complex configurations.

This seamless integration simplifies the deployment process and ensures that the antenna operates at peak efficiency. It also enables centralized management through the Meraki dashboard, providing administrators with real-time insights into network performance and enabling proactive optimization.

Applications in Enterprise and Commercial Environments

Office and Corporate Deployments

In corporate environments, reliable wireless connectivity is essential for supporting a wide range of applications, from communication tools to cloud-based services. The Cisco MA-ANT-3-E5 antenna category is well-suited for office deployments, where it can provide consistent coverage across workspaces, meeting rooms, and common areas.

Its directional capabilities allow administrators to focus coverage on high-traffic areas, ensuring that employees have access to fast and reliable connectivity at all times. This contributes to improved productivity and a better overall user experience.

Educational Institutions and Campus Networks

Educational institutions often require robust wireless networks to support students, faculty, and administrative staff. The Cisco MA-ANT-3-E5 is ideal for these environments, where it can deliver reliable coverage across classrooms, lecture halls, and common areas.

The antenna’s ability to handle high user density and provide consistent performance makes it a valuable asset for campus networks. It ensures that users can access online resources, participate in virtual learning, and collaborate effectively without connectivity issues.

Healthcare and Retail Applications

In healthcare settings, reliable wireless connectivity is critical for supporting medical devices, patient monitoring systems, and administrative operations. The Cisco MA-ANT-3-E5 provides the performance and reliability needed to meet these demands, ensuring that critical applications function without interruption.

Retail environments also benefit from high-performance antennas, as they enable seamless connectivity for point-of-sale systems, inventory management, and customer engagement tools. The antenna’s directional coverage helps ensure that signals are focused where they are needed most, improving overall efficiency and customer experience.

Advanced Wireless Technologies and Compatibility

Support for Modern Wi-Fi Standards

The Cisco MA-ANT-3-E5 is designed to support modern Wi-Fi standards, enabling high-speed connectivity and efficient use of wireless resources. Its multi-port configuration and dual-band capabilities make it compatible with advanced technologies such as Wi-Fi 5 and Wi-Fi 6, ensuring that networks can meet the demands of today’s applications.

This compatibility ensures that the antenna can be used in a wide range of deployments, from small offices to large enterprise environments. It also provides a future-proof solution that can adapt to evolving wireless standards and requirements.

Enhancing Network Performance with MIMO

Multiple Input Multiple Output technology is a key component of modern wireless networks, enabling higher data rates and improved reliability. The Cisco MA-ANT-3-E5 supports MIMO through its multi-port design, allowing multiple data streams to be transmitted and received simultaneously.

This capability enhances network performance by increasing throughput and reducing latency, ensuring that users can access applications and services without delays. It also improves overall network efficiency, making it possible to support more devices without compromising performance.

Scalability and Future-Proof Networking

Adapting to Growing Network Demands

As organizations continue to expand and adopt new technologies, their networking requirements evolve accordingly. The Cisco MA-ANT-3-E5 antenna category is designed to scale with these demands, providing a flexible and reliable solution that can be adapted to changing needs.

Its compatibility with a wide range of access points and support for advanced wireless technologies ensures that it can continue to deliver high performance as networks grow and evolve.

Long-Term Investment in Wireless Infrastructure

Investing in high-quality antennas such as the Cisco MA-ANT-3-E5 is a strategic decision that can deliver long-term benefits. By providing reliable performance and supporting modern wireless standards, this antenna helps ensure that networks remain efficient and capable of meeting future demands.

This long-term reliability makes it an ideal choice for organizations looking to build a robust and scalable wireless infrastructure that can support their operations for years to come.

Performance Optimization and Network Reliability

Reducing Dead Zones and Enhancing Coverage

One of the primary goals of deploying a high-performance antenna is to eliminate dead zones and ensure consistent coverage across the entire network area. The Cisco MA-ANT-3-E5 achieves this through its directional design and advanced engineering, which enable it to deliver strong and reliable signals even in challenging environments.

This improved coverage ensures that users can stay connected regardless of their location, reducing frustration and enhancing overall productivity.

Maintaining Stable Connections in High-Density Environments

High-density environments such as offices, campuses, and public venues require antennas that can handle large numbers of connected devices without compromising performance. The Cisco MA-ANT-3-E5 is designed to meet these demands, providing stable and reliable connectivity even under heavy load.

Its ability to manage multiple data streams and reduce interference ensures that users experience consistent performance, making it an essential component of any high-capacity wireless network.
